Measurement of radial rotation error of electric spindle based on vibration response reconstruction

doi:10.3785/j.issn.1008-973X.2025.04.020

Journal of ZheJiang University (Engineering Science)

2025, Vol. 59

Issue (4): 842-852 DOI: 10.3785/j.issn.1008-973X.2025.04.020

Measurement of radial rotation error of electric spindle based on vibration response reconstruction

Jiahao RUAN1,2(

),Weimin KANG1,2,Jianzhong FU1,2,*(

)

1. School of Mechanical Engineering, Zhejiang University, Hangzhou 310027, China
2. Key Laboratory of 3D Printing Process and Equipment of Zhejiang Province, Hangzhou 310027, China

Download:

HTML

PDF(2756KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Existing methods of measuring radial rotation error of the electric spindle apply to low rotational speeds and fail to realize the online measurement of the machining process. The intrinsic mechanism of the vibration response and radial rotation error of a machine tool electric spindle was studied, the mechanism of online measurement of radial rotation error by vibration reconstruction of the electric spindle was revealed, and a new method of online measurement of radial rotation error by vibration signal was proposed for the electric spindle under high-speed rotation. The vibration response of the mandrel was reconstructed from the vibration signals collected from the electric spindle housing by modal expansion equation. During the reconstruction process, the initial extraction of the modal vibration pattern of the spindle was realized by finite element simulation, the modal vibration pattern was corrected by modal vibration experiment, and a mathematical model of the vibration response of the mandrel and radial rotation error of the spindle was established to realize the solution of the radial rotation error of the spindle. Comparison tests were conducted with the three-point method of spindle radial error measurement. Results showed that the error of the proposed method was within 6.49% at electric spindle speeds below 10 000 r/min. The proposed method provides a technical path for realizing the online measurement of the radial rotation error of the electric spindle during the machining process of CNC machine tools.

Key words： CNC machine tool electric spindle radial rotation error vibration response reconstruction modal extension

Received: 31 January 2024 Published: 25 April 2025

CLC:

TH 113.1

Fund: 浙江省自然科学基金资助项目（DT23E0501，DT23E050005）；国家自然科学基金资助项目（52175440）；浙江省科技计划项目（2023C01059）.

Corresponding Authors: Jianzhong FU E-mail: 22125091@zju.edu.cn;fjz@zju.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Jiahao RUAN
	Weimin KANG
	Jianzhong FU

Cite this article:

Jiahao RUAN,Weimin KANG,Jianzhong FU. Measurement of radial rotation error of electric spindle based on vibration response reconstruction. Journal of ZheJiang University (Engineering Science), 2025, 59(4): 842-852.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2025.04.020 OR https://www.zjujournals.com/eng/Y2025/V59/I4/842

基于振动响应重构的电主轴径向回转误差测量

现有测量电主轴径向回转误差的方法适用于低转速，无法实现加工过程的在线测量. 开展机床电主轴振动响应与径向回转误差的内在机理研究，揭示电主轴振动重构在线测量径向回转误差机制，提出电主轴在高速转动下通过振动信号获取在线测量径向回转误差的新方法. 应用模态扩展方程，基于电主轴机壳上采集的振动信号，重构芯轴的振动响应. 在重构过程中，利用有限元仿真实现电主轴模态振型初步提取，采用模态振型实验校正电主轴模态振型，建立芯轴振动响应与电主轴径向回转误差的数学模型，实现电主轴径向回转误差的求解. 对比实验结果表明，相比主轴径向误差测量的三点法，所提方法在主轴转速低于10 000 r/min时，误差不超过6.49%. 所提方法为实现数控机床加工过程中电主轴径向回转误差在线测量提供了技术路径.

关键词： 数控机床, 电主轴, 径向回转误差, 振动响应重构, 模态扩展

Tab.1 Material-mechanical property parameters of key components of electric spindle

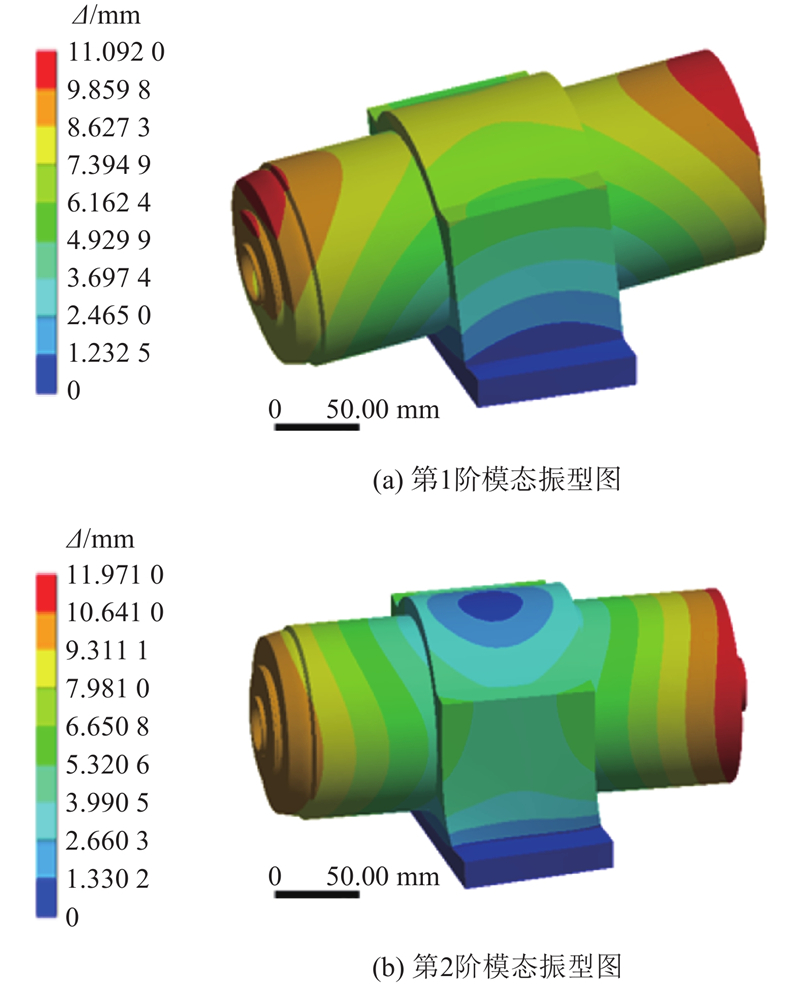

Fig.1 First two orders of modal vibration pattern of electric spindle

Fig.2 Excitation experiment setup

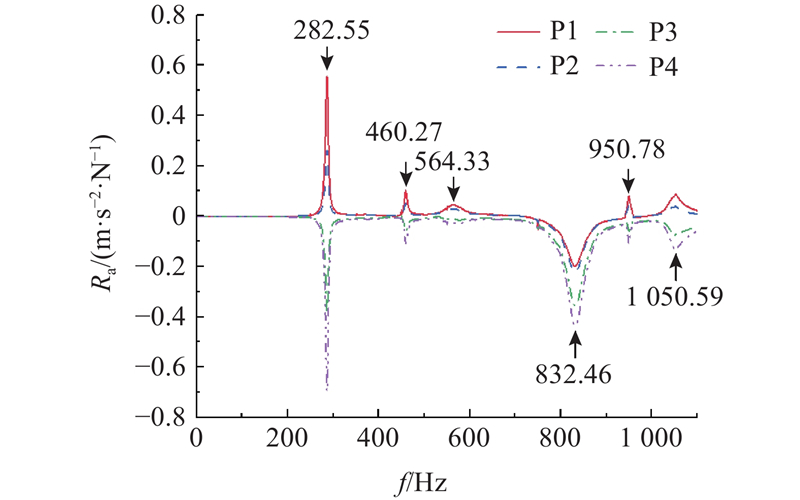

Fig.3 Accelerance frequency response function diagram

Tab.2 Inherent frequency of each order before and after modification of finite element model of electric spindle

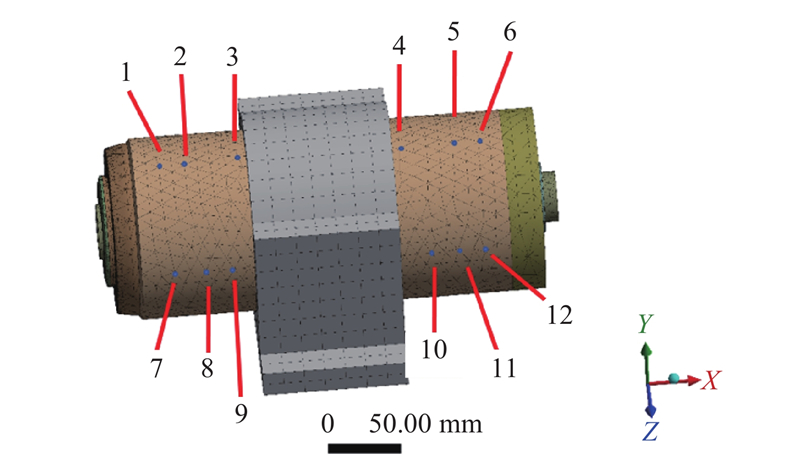

Fig.4 Arrangement of measurement points of electric spindle sensor

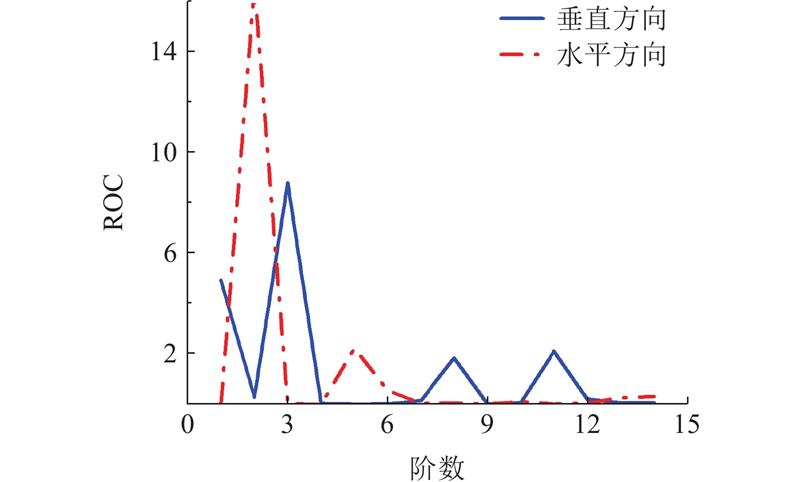

Fig.5 Variation of rate of change of Fisher information matrix 2-norm with modal analysis order for different spindle vibration directions

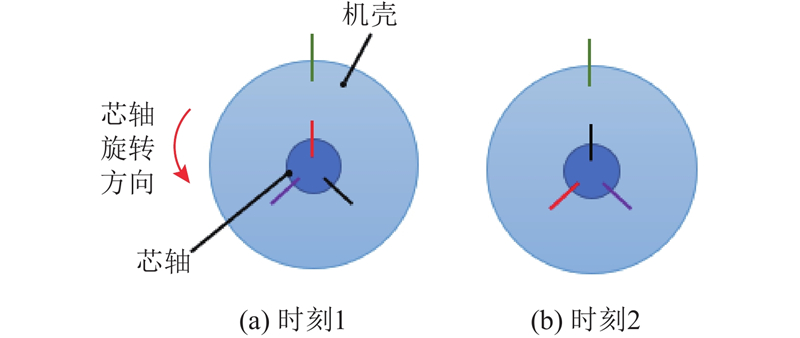

Fig.6 Schematic rationalization of effect of rotational speed on modal vibration pattern

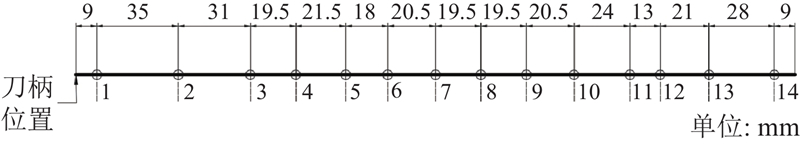

Fig.7 Size distribution of mandrel reconfiguration points

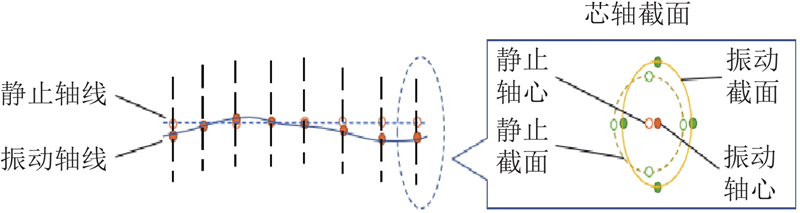

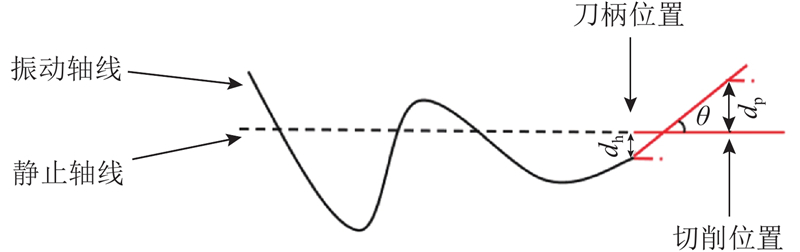

Fig.8 Axis fitting schematic

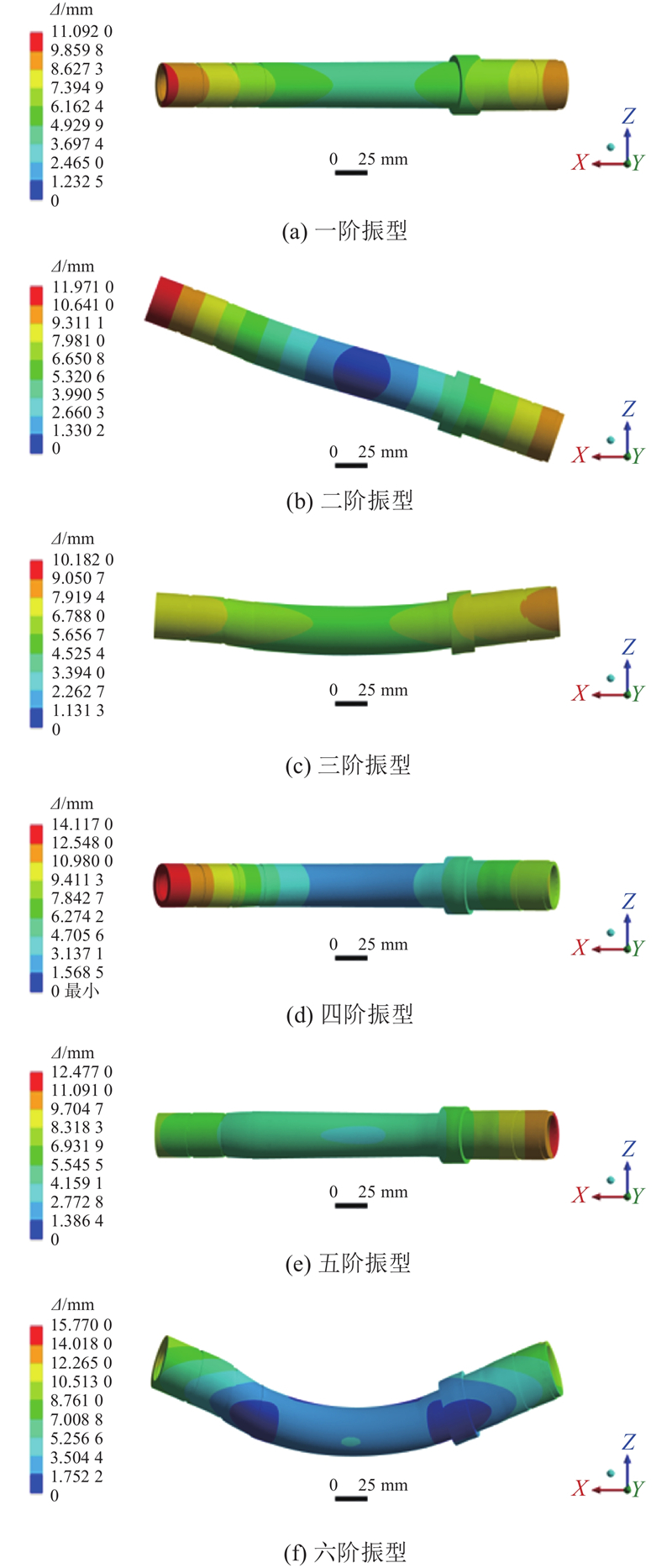

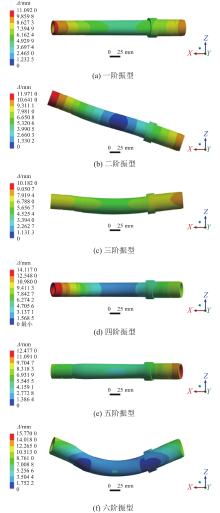

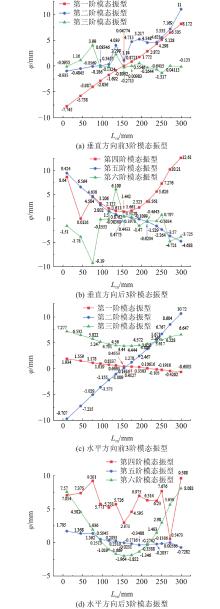

Fig.9 First six orders of vibration pattern of electric spindle mandrel

Fig.10 Calculation method of rotation error

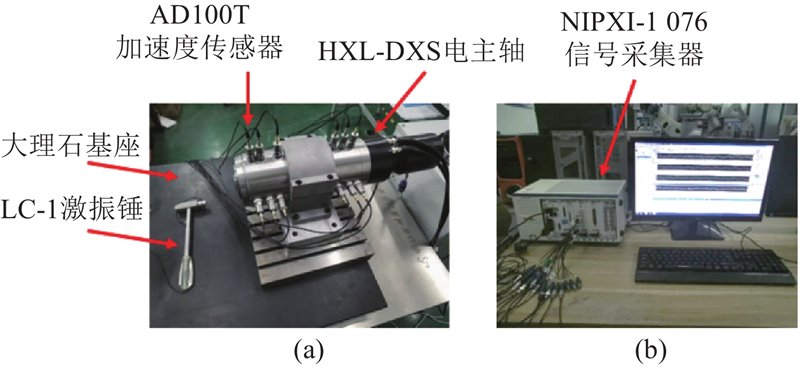

Fig.11 Modal vibration pattern correction test rig

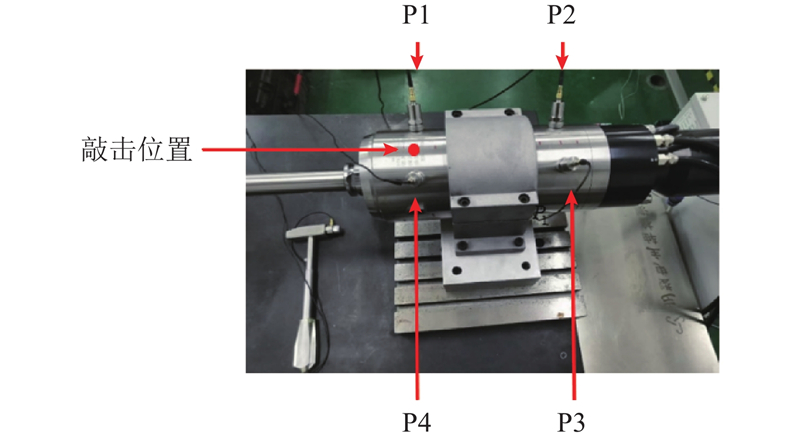

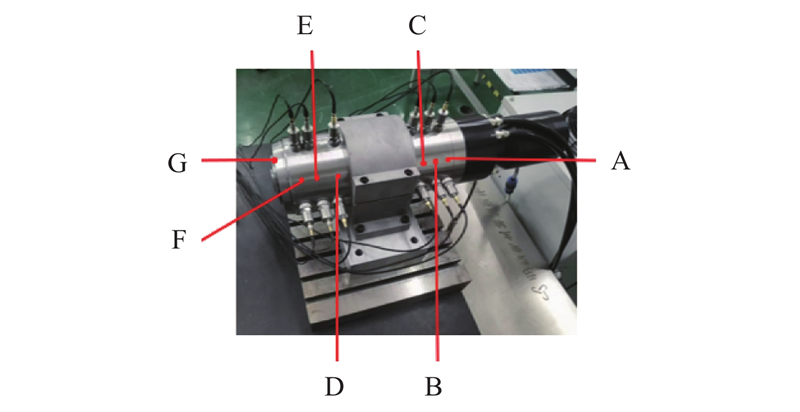

Fig.12 Knocking position of force hammer

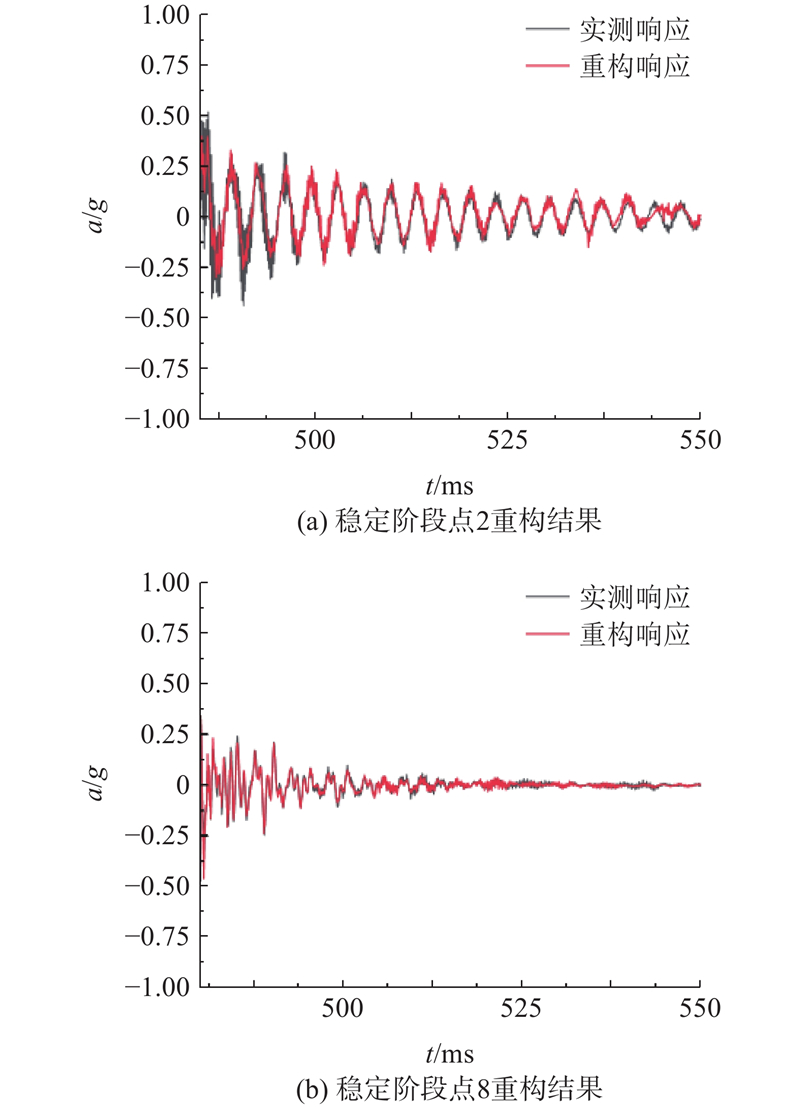

Fig.13 Comparison of reconstructed and measured responses

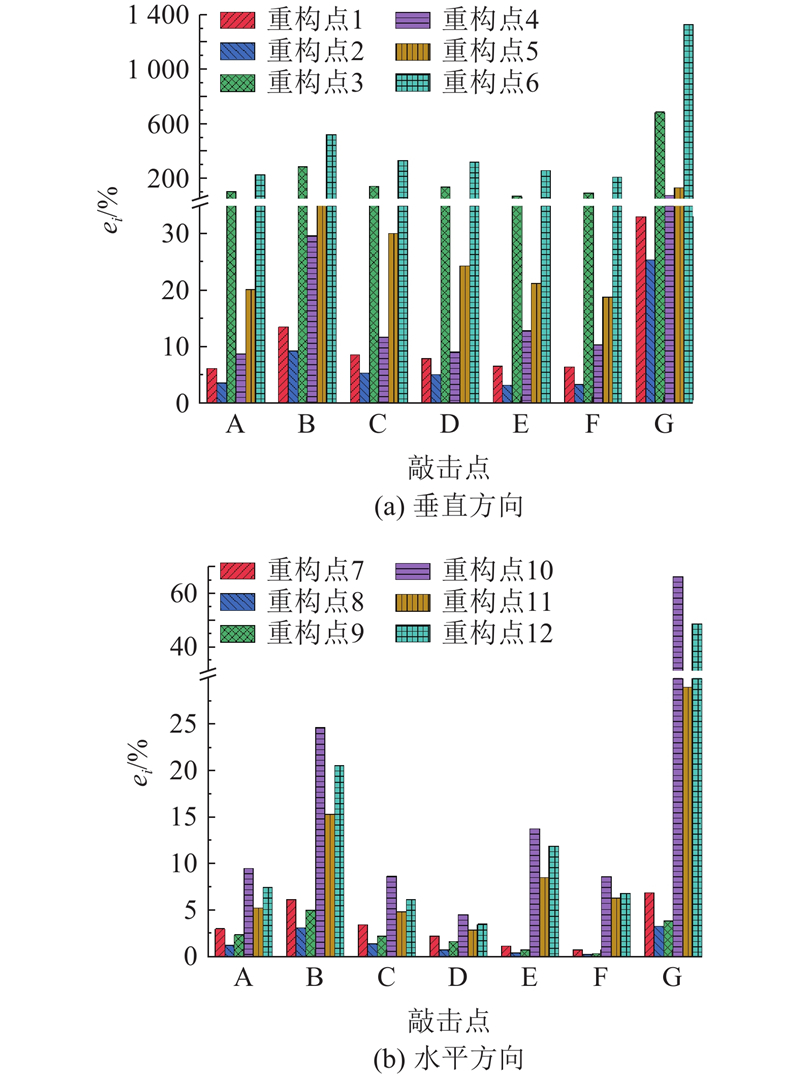

Fig.14 Comparison of reconstruction errors of vibration response at different reconstruction points (before modal vibration pattern correction)

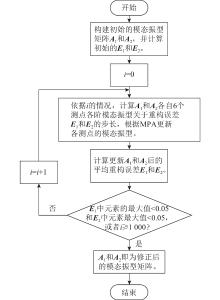

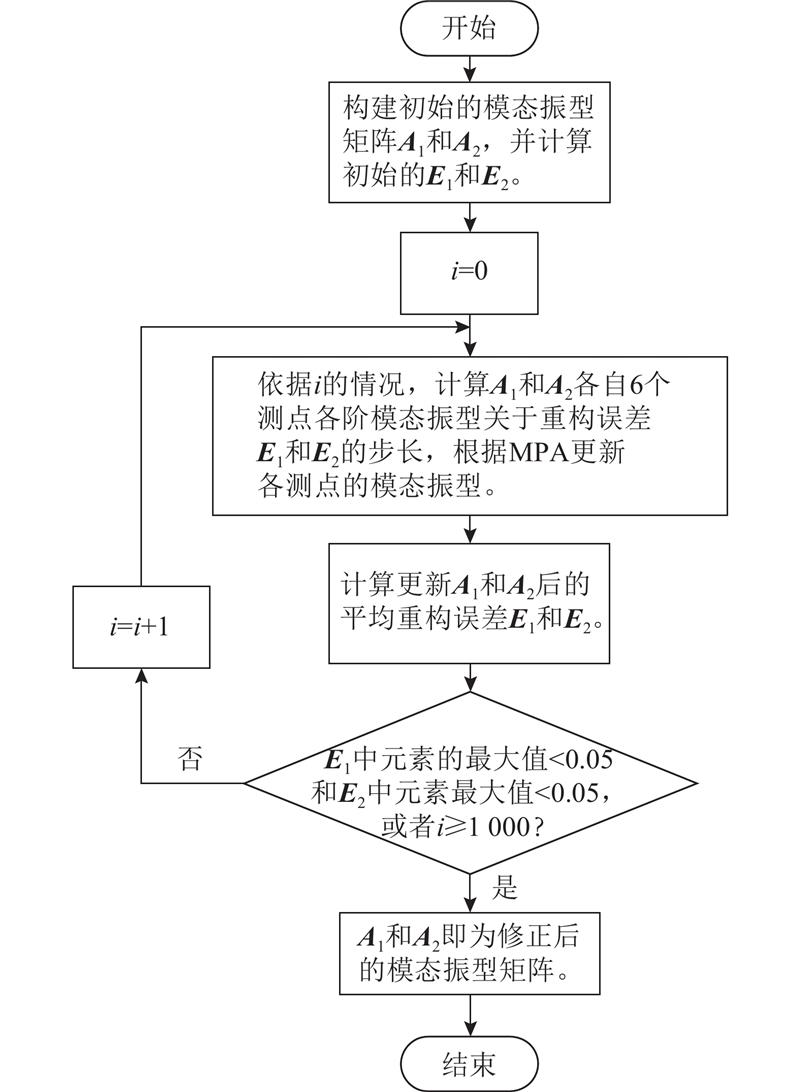

Fig.15 Flowchart of modal vibration pattern correction algorithm for electric spindle housing

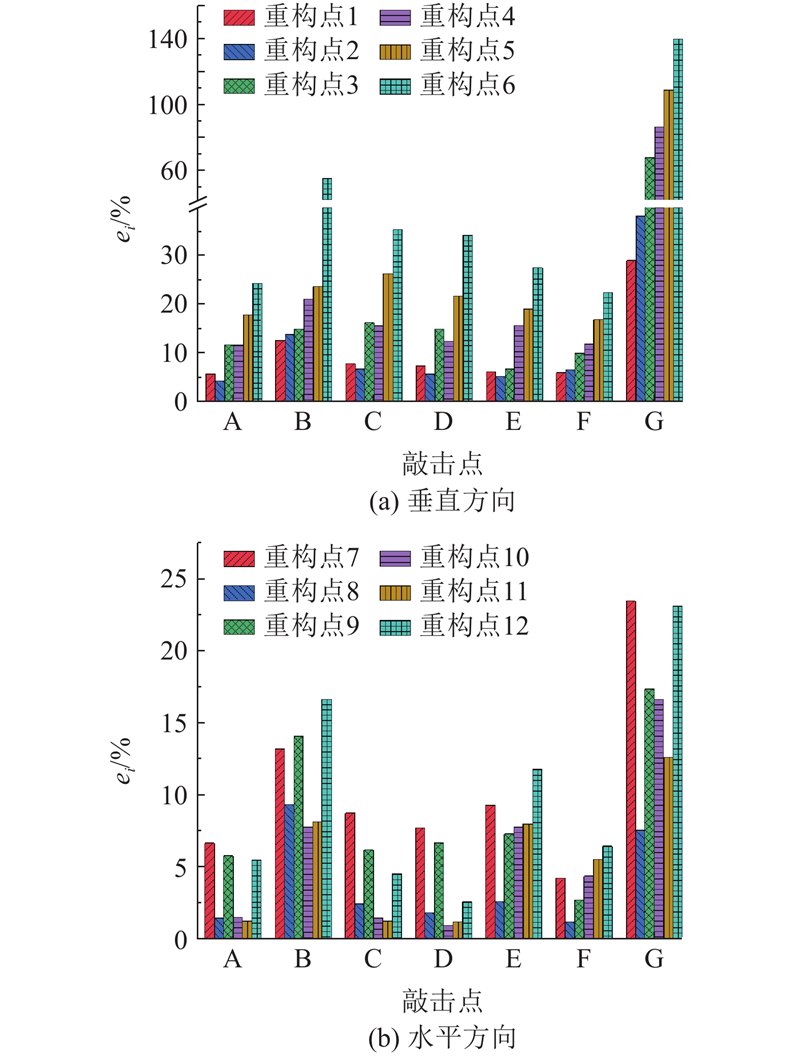

Fig.16 Comparison of reconstruction errors of vibration response at different reconstruction points (after modal vibration pattern correction)

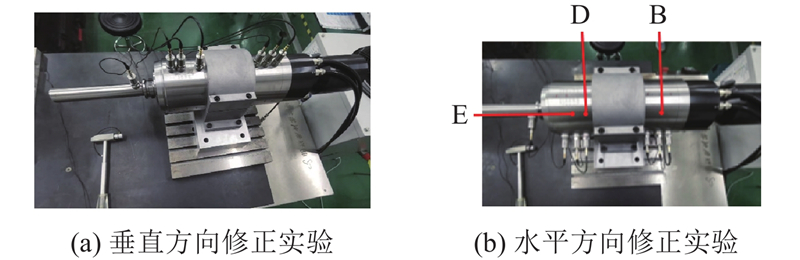

Fig.17 Test program for modal vibration pattern correction of electric spindle mandrel

Fig.18 Modal vibration pattern of electric spindle mandrel

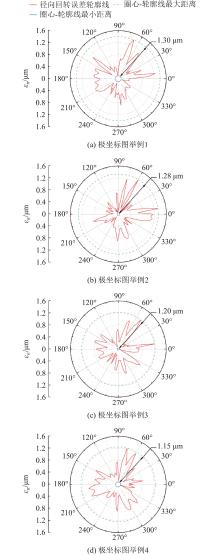

Fig.19 Polar coordinates of repeated measurement part of vibration response reconstruction method

Tab.3 Measured values of radial rotation error by vibration field reconstruction method for tested electric spindle

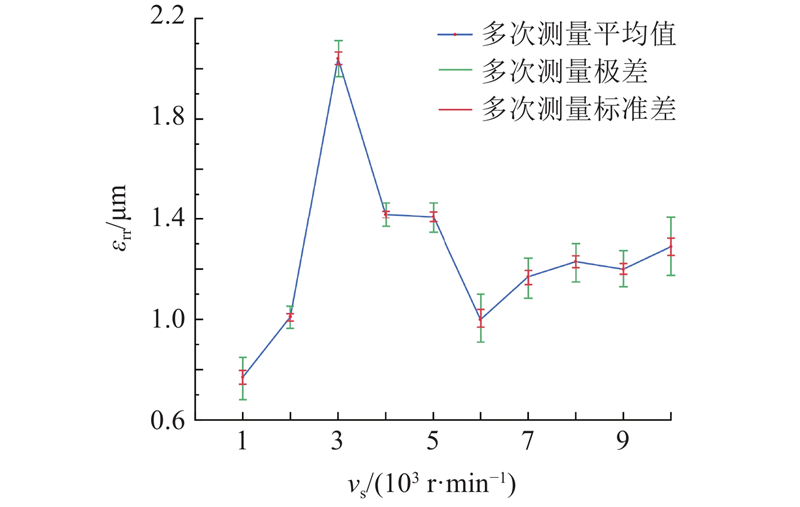

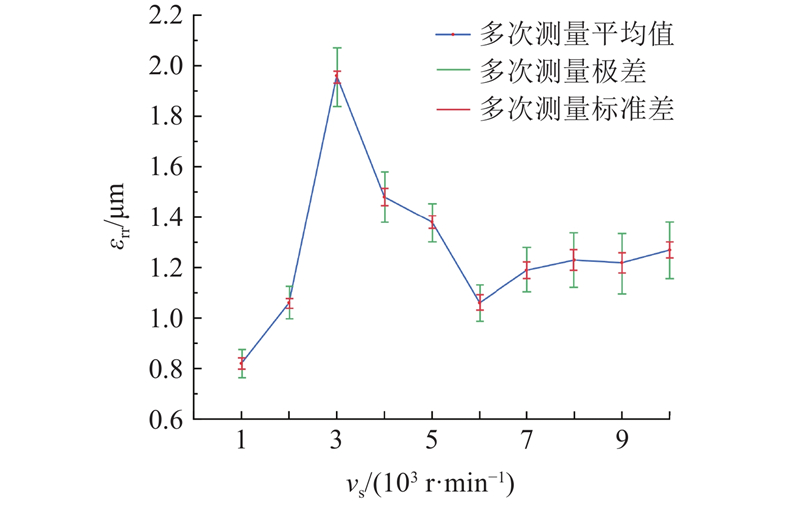

Fig.20 Distribution of measurement results of vibration response reconstruction method at different rotational speeds of electric spindle

Tab.4 Measurement results of radial rotation error of electric spindle vibration response reconstruction method

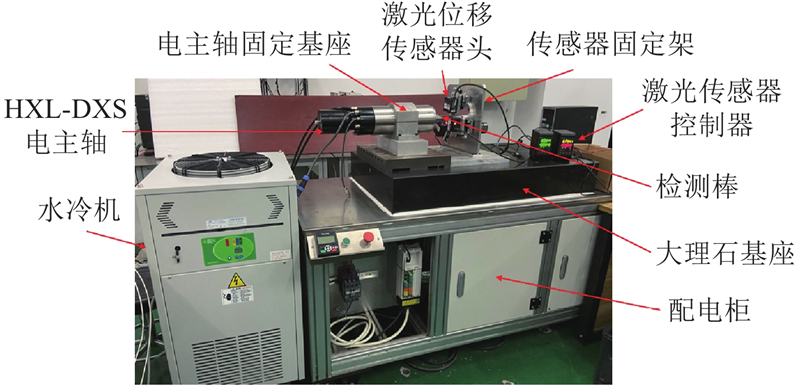

Fig.21 Test rig for high rotational speed three-point method

Fig.22 Distribution of measurement results of three-point method at different rotational speeds of electric spindle

Tab.5 Measurement error results of vibration response reconstruction method of measured electric spindle at different rotational speeds


[1]	蔡鹤皋关于主轴回转运动精度及其动态测量方法的分析[J]. 哈尔滨工业大学学报, 1978, (2): 56- 70 CAI Hegao Analysis of rotary motion accuracy of spindle and its dynamic measurement method[J]. Journal of Harbin Institute of Technology, 1978, (2): 56- 70

[2]	TLUSTY J Dynamics of high-speed milling[J]. Journal of Engineering for Industry, 1986, 108 (2): 59- 67 doi: 10.1115/1.3187052

[3]	DONALDSON R R A simple method for separating spindle error from test ball roundness error[J]. CIRP Annals Manufacturing Technology, 1972, 21 (1): 125- 126

[4]	叶京生, 顾启泰, 章燕申. 论多步法误差分离技术的测量精度. 计量学报. 1990, 11(2): 119–123. YE Jingsheng, GU Qitai, ZHANG Yanshen. Measuring accuracy of errors separation technique by using multistep method [J]. Acta Metrologica Sinica , 1990, 11(2): 119–123.

[5]	GREJDA R, MARSH E, VALLANCE R Techniques for calibrating spindles with nanometer error motion[J]. Precision Engineering, 2005, 29 (1): 113- 123 doi: 10.1016/j.precisioneng.2004.05.003

[6]	蓝河, 雷大江, 钱林弘, 等基于光谱共焦位移传感器的非接触式回转误差测量系统[J]. 制造技术与机床, 2017, (3): 141- 145 LAN He, LEI Dajiang, QIAN Linhong, et al A non contact system for measurement of rotating error based on confocal chromatic displacement sensor[J]. Manufacturing Technology and Machine Tool, 2017, (3): 141- 145

[7]	DENIS S A, SAMUEL G L Harmonic-analysis-based method for separation of form error during evaluation of high-speed spindle radial errors[J]. Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, 2012, 226 (5): 837- 852 doi: 10.1177/0954405411434868

[8]	马平, 李健洪, 欧建国, 等主轴回转精度多步误差分离研究[J]. 机械科学与技术, 2018, 37 (6): 884- 890 MA Ping, LI Jianhong, OU Jianguo, et al Study on multi-step error separation of spindle rotation precision[J]. Mechanical Science and Technology for Aerospace Engineering, 2018, 37 (6): 884- 890

[9]	邱海龙. 基于三点法的精密主轴径向回转误差分离技术研究[D]. 西安: 西安电子科技大学, 2015: 1–68. QIU Hailong. A research for precision spindle radial rotation error separation technology based on the three-point method [D]. Xi’an: Xidian University, 2015: 1–68.

[10]	LEE D H, LEE W R Easy measuring instrument for analyzing the radial and tilt error motions of a rotating shaft[J]. Proceedings of the Institution of Mechanical Engineers, Part M: Journal of Engineering for the Maritime Environment, 2017, 231 (2): 667- 674 doi: 10.1177/1475090216680891

[11]	张根明. 超精密气体静压主轴回转误差测量与分析[D]. 广州: 广东工业大学, 2018: 1–81. ZHANG Genming. Measurement and analysis of rotation error of the ultra-precision aerostatic spindle [D]. Guangzhou: Guangdong University of Technology, 2018: 1–81.

[12]	KAVITHA C, ASHOK S D A new approach to spindle radial error evaluation using a machine vision system[J]. Metrology and Measurement Systems, 2017, 24 (1): 201- 219 doi: 10.1515/mms-2017-0018

[13]	娄志峰, 郝秀朋, 刘力, 等圆光栅配合自准直仪测量主轴径向运动误差[J]. 光学精密工程, 2019, 27 (9): 2053 LOU Zhifeng, HAO Xiupeng, LIU Li, et al Spindle radial motion error measurement using a circular grating and a autocollimator[J]. Optics and Precision Engineering, 2019, 27 (9): 2053 doi: 10.3788/OPE.20192709.2053

[14]	郑烽. 负载条件下机床主轴动态精度测量方法研究[D]. 成都: 电子科技大学, 2018: 1–66. ZHENG Feng. Study on measuring method of dynamic rotary precision of spindle rotation under load condition [D]. Chengdu: University of Electronic Science and Technology of China, 2018: 1–66.

[15]	康婷, 曹宏瑞切削工况下机床主轴回转精度动态预测方法[J]. 机械工程学报, 2020, 56 (17): 240- 248 KANG Ting, CAO Hongrui Dynamic prediction method for machine tool spindle rotational accuracy under cutting condition[J]. Journal of Mechanical Engineering, 2020, 56 (17): 240- 248

[16]	黄伟迪, 甘春标, 杨世锡一类高速电主轴的动力学建模及振动响应分析[J]. 浙江大学学报: 工学版, 2016, 50 (11): 2198- 2206 HUANG Weidi, GAN Chunbiao, YANG Shixi Dynamic modeling and vibration response analysis of high speed motorized spindle[J]. Journal of Zhejiang University: Engineering Science, 2016, 50 (11): 2198- 2206

[17]	应申舜, 林绿高, 计时鸣基于模态参数验证的机床结构件优化设计[J]. 浙江大学学报: 工学版, 2018, 52 (10): 1880- 1887 YING Shenshun, LIN Lvgao, JI Shiming Optimization design to machine tool structures using experimental verification of modal parameters[J]. Journal of Zhejiang University: Engineering Science, 2018, 52 (10): 1880- 1887

[18]	蒲东. 高速列车轴箱的加速度传感器空间布局研究[D]. 哈尔滨: 哈尔滨理工大学, 2020: 1–67. PU Dong. Study on acceleration sensor spatial placement of high-speed train’s axle box bearings [D]. Harbin: Harbin University of Science and Technology, 2020: 1–67.

[19]	黄伟迪, 甘春标, 杨世锡, 等高速电主轴角接触球轴承刚度及其对电主轴临界转速的影响分析[J]. 振动与冲击, 2017, 36 (10): 19- 25 HUANG Weidi, GAN Chunbiao, YANG Shixi, et al Analysis on the stiffness of angular contact ball bearings and its effect on the critical speed of a high speed motorized spindle[J]. Journal of Vibration and Shock, 2017, 36 (10): 19- 25

[20]	FARAMARZI A, HEIDARINEJAD M, MIRJALILI S, et al Marine predators algorithm: a nature-inspired metaheuristic[J]. Expert Systems with Applications, 2020, 152: 113377 doi: 10.1016/j.eswa.2020.113377

[21]	International Organization for Standardization. Test code for machine tools Part 7: geometric accuracy of axes of rotation: ISO 230-7: 2015 [S/OL]. [2025–03–24]. https://www.iso.org/standard/56624.html.

[22]	李志国, 乔百杰, 朱昱达, 等基于测点优化与模态扩展的机械结构振动响应全场重构[J]. 振动与冲击, 2023, 42 (9): 123- 134 LI Zhiguo, QIAO Baijie, ZHU Yuda, et al Full field reconstruction of mechanical structure vibration responses based on measurement point optimization and modal expansion[J]. Journal of Vibration and Shock, 2023, 42 (9): 123- 134
