Journal of ZheJiang University (Engineering Science)  2024, Vol. 58 Issue (12): 2609-2618    DOI: 10.3785/j.issn.1008-973X.2024.12.020

GSM-OTFS signal detection algorithm based on belief propagation and expectation propagation
Wei ZHOU1,2(),Wenjing DOU1,2,Qianqian LI2,Rui XU2
1. School of Optoelectronic Engineering, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
2. Chongqing Key Laboratory of Mobile Communications Technology, Chongqing University of Posts and Telecommunications, Chongqing 400065, China
Download: HTML     PDF(2459KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A signal detection algorithm adopting the hybrid belief propagation and expectation propagation (EP-BP) was proposed, by combining the orthogonal time frequency space (OTFS) technology and the generalized spatial modulation (GSM). The discrete probability distribution was projected into a multivariate complex Gaussian function, and the beliefs of the GSM transmission symbols were calculated via the iterative propagation of the mean vectors and the covariance matrices. A two-stage TS-EP-BP signal detection algorithm was designed to reduce the computational complexity. The activated antenna combination was determined via the EP-BP in the first stage, and in the second stage, the vector variable node (VN) in the factor graph was decomposed into multiple sub-VNs, and the invalid sub-VNs were cut out. Considering that the modulation symbols were independent to the activated antennas, the computation times of symbol belief were greatly reduced by the approximation of the univariate complex Gaussian distribution function. Bit error rates of different algorithms in different conditions were compared through simulation, and the results showed that, the proposed EP-BP and TS-EP-BP algorithms had better performance of bit error rate, especially, by the TS-EP-BP algorithm, a flexible performance-complexity tradeoff was striked by changing the maximum iteration times in the first stage.

Key words： orthogonal time frequency space      generalized spatial modulation      belief propagation      expectation propagation      signal detection
Received: 09 October 2023      Published: 25 November 2024
CLC:  TN 929.5
Fund:  国家自然科学基金资助项目（61701062）；重庆市基础与前沿研究计划资助项目（cstc2019jcyj-msxmX0079）.
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Wei ZHOU
Wenjing DOU
Qianqian LI
Rui XU
Cite this article:

Wei ZHOU,Wenjing DOU,Qianqian LI,Rui XU. GSM-OTFS signal detection algorithm based on belief propagation and expectation propagation. Journal of ZheJiang University (Engineering Science), 2024, 58(12): 2609-2618.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2024.12.020     OR     https://www.zjujournals.com/eng/Y2024/V58/I12/2609


基于置信度和期望传播的GSM-OTFS信号检测算法

结合正交时频空（OTFS）技术与广义空间调制（GSM），提出混合置信度（EP）和期望传播（BP）的EP-BP信号检测算法. 该算法将离散概率分布投影到多元复高斯分布函数中，通过均值向量和协方差矩阵的迭代传递计算出GSM发射符号置信度. 为了降低计算复杂度，设计了两阶段的TS-EP-BP信号检测算法：第1阶段通过EP-BP确定激活天线组合，第2阶段将因子图中的矢量变量节点（VN）分离为多个子VN，并剪除无效子VN. 考虑调制符号独立于激活天线，采用一元复高斯分布函数近似以大幅度减少符号置信度计算次数. 通过仿真对不同条件下不同算法的误码率进行对比，结果表明，所提EP-BP和TS-EP-BP算法具有较优的误码率性能，尤其TS-EP-BP算法可以通过改变第1阶段的最大迭代次数来灵活地平衡误码率性能和计算复杂度.


关键词： 正交时频空（OTFS）,  广义空间调制（GSM）,  置信传播,  期望传播,  信号检测

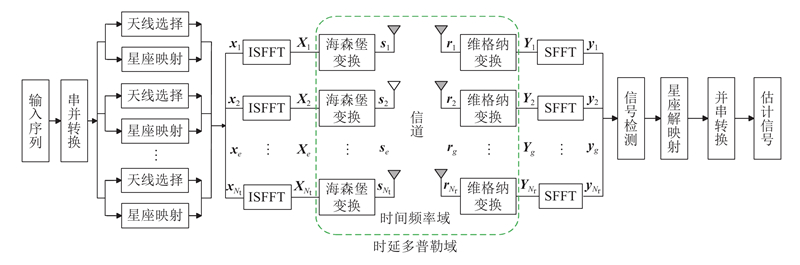

Fig.1 Model diagram of GSM-OTFS system

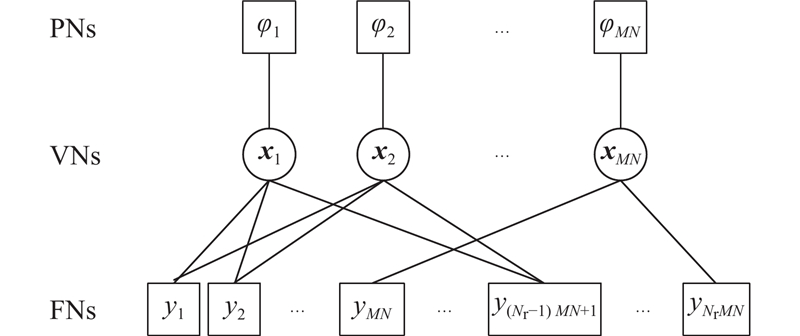

Fig.2 EP-BP factor graph for GSM-OTFS system

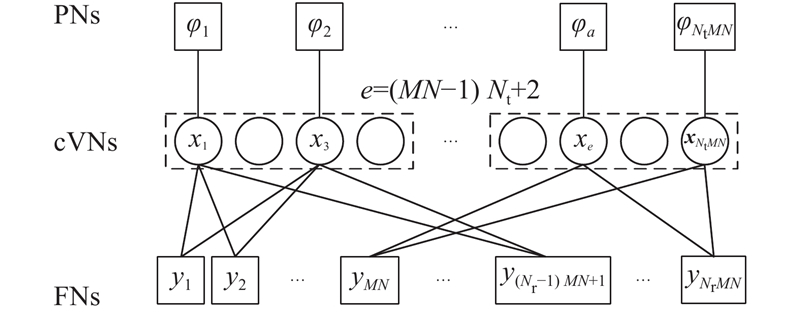

Fig.3 TS-EP-BP factor graph for GSM-OTFS system
算法复数乘法次数
EP-BP$ TMN[12{N_{\text{r}}}{N_{\text{t}}}+8{N_{\text{t}}}+(2N_{\text{t}}^2+{N_{\text{t}}}+2){C_{\text{c}}}+{N_{\text{a}}}{({C_{\text{m}}})^{{N_{\text{a}}}}}] $
TS-
EP-BP		$ \begin{gathered} {T^{\text{b}}}MN[12{N_{\text{r}}}{N_{\text{t}}}+8{N_{\text{t}}}+(2N_{\text{t}}^2+{N_{\text{t}}}+2){C_{\text{c}}}+{N_{\text{a}}}{({C_{\text{m}}})^{{N_{\text{a}}}}}]+ \\ (T - {T^{\text{b}}})MN[(13{N_{\text{r}}}+8{C_{\text{m}}}+2){N_{\text{a}}}+3{N_{\text{t}}}] \\ \end{gathered} $
GAMP[14]$ \begin{gathered} {N_{\text{t}}}N(4N_{\text{t}}^2+8{N_{\text{t}}}+1)+MN[10N_{\text{t}}^2{2^Q} - {N_{\text{t}}}+10{N_{\text{t}}} - \\ 6N_{\text{t}}^2+26{N_{\text{r}}}{N_{\text{t}}}+4N_{\text{r}}^3+22N_{\text{r}}^2 - {N_{\text{r}}}+8N_{\text{r}}^2{N_{\text{t}}}+ \\ 16{N_{\text{r}}}N_{\text{t}}^2+3 \times {2^Q} - 1+8{N_{\text{t}}}(2M+2N - 1)] \\ \end{gathered} $
MP[21]$ {(MN)^2}(84{C_{\text{m}}}+20) - MN(75{C_{\text{m}}}+10) $
Tab.1 Algorithm complexity summary table
参数数值
载波频率/ GHz4
子载波间隔/ kHz15
子载波个数（$M$）16、32
时隙数（$N$）16、32
调制阶数4-QAM
终端移动速度/ (km·h?1)500
路径数9
调制脉冲矩形窗
信道估计理想估计
Tab.2 Simulation parameter table of GSM-OTFS system

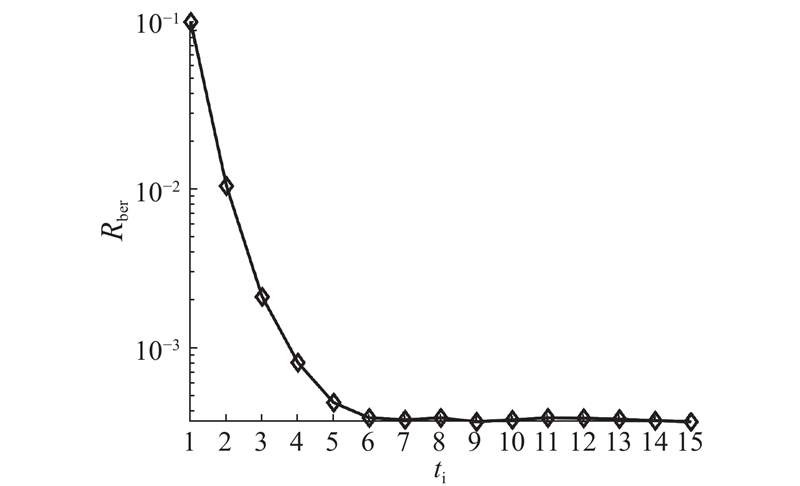

Fig.4 Relationship between bit error rate performance and iteration times of EP-BP algorithm

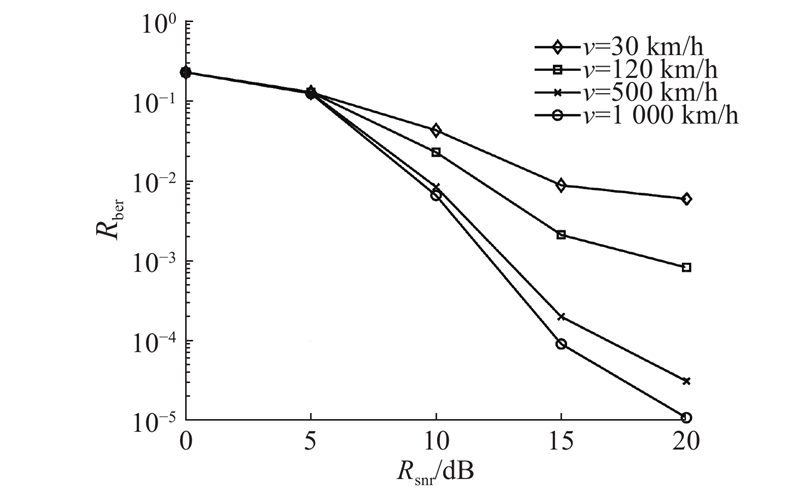

Fig.5 Relationship between bit error rate performance and signal-to-noise ratio of EP-BP algorithm under different UE speeds

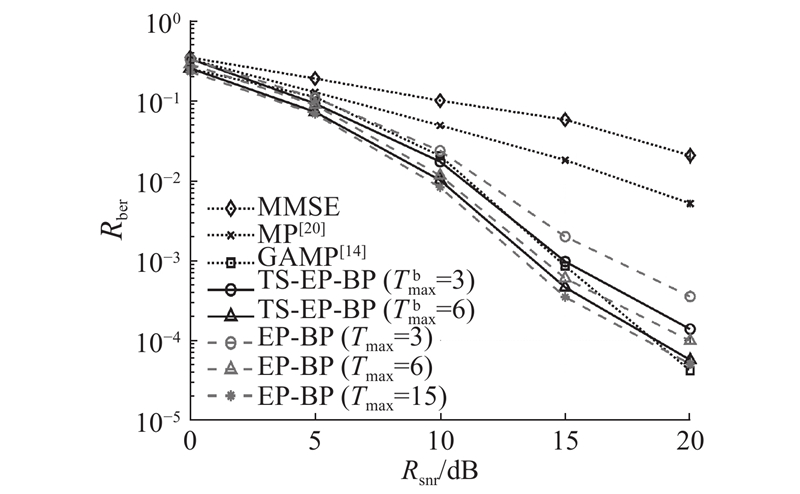

Fig.6 Relationship between bit error rate performance and signal-to-noise ratio of different algorithms when $M = N = 16$

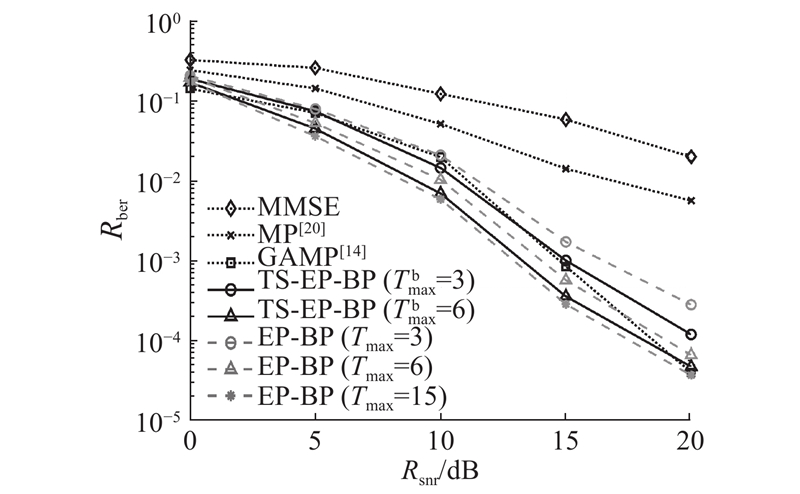

Fig.7 Relationship between bit error rate performance and signal-to-noise ratio of different algorithms when$M = N = 32$
[1]   HADANI R, RAKIB S, TSATSANIS M, et al. Orthogonal time frequency space modulation [C]// IEEE Wireless Communications and Networking Conference . San Francisco: IEEE, 2017: 1–6.
[2]   HADANI R, MONK A. OTFS: a new generation of modulation addressing the challenges of 5G [EB/OL]. (2018-02-07)[2023-09-20]. https://arxiv.org/abs/1802.02623.
[3]   HADANI R, RAKIB S, MOLISCH A F, et al. Orthogonal time frequency space (OTFS) modulation for millimeter-wave communications systems [C]// IEEE MTT-S International Microwave Symposium . Honololu: IEEE, 2017: 681–683.
[4]   RAVITEJA P, HONG Y, VITERBO E, et al Practical pulse-shaping waveforms for reduced-cyclic-prefix OTFS[J]. IEEE Transactions on Vehicular Technology, 2018, 68 (1): 957- 961
[5]   REZAZADEH A, REYHANI A F, JI M, et al. Analysis of discrete-time MIMO OFDM-based orthogonal time frequency space modulation [C]// IEEE International Conference on Communications . Kansas City: IEEE, 2018: 1–6.
[6]   RAMACHANDRAN M K, CHOCKALINGAM A. MIMO-OTFS in high-Doppler fading channels: signal detection and channel estimation [C]// IEEE Global Communications Conference . Abu Dhabi: IEEE, 2018: 206–212.
[7]   SHEN W, DAI L, AN J, et al Channel estimation for orthogonal time frequency space (OTFS) massive MIMO[J]. IEEE Transactions on Signal Processing, 2019, 67 (16): 4204- 4217
doi: 10.1109/TSP.2019.2919411
[8]   SURABHI G D, CHOCKALINGAM A. Low-complexity linear equalization for 2×2 MIMO-OTFS signals [C]// IEEE 21st International Workshop on Signal Processing Advances in Wireless Communications . Atlanta: IEEE, 2020: 1–5.
[9]   FENG D, ZHENG J, BAI B, et al Generalized index modulation for MIMO-OTFS transmission[J]. IEEE Wireless Communications Letters, 2023, 12 (5): 907- 911
doi: 10.1109/LWC.2023.3250255
[10]   LI B, BAI Z, GUO J, et al. Generalized spatial modulation based orthogonal time frequency space system [C]// IEEE 94th Vehicular Technology Conference . Norman: IEEE, 2021: 1–5.
[11]   RAJPOOT K D, MAHESWARAN P. On the performance of generalized spatial-index modulation based orthogonal time frequency space system [C]// National Conference on Communications . Guwahati: IEEE, 2023: 1–6.
[12]   YANG Y, BAI Z, LIU H, et al. Design and performance analysis of spatial-index modulation based orthogonal time frequency space system [C]// IEEE International Conference on Communications Workshops . Seoul: IEEE, 2022: 922–927.
[13]   ZOU X, FAN S, CHEN H, et al. Orthogonal time frequency space with generalized spatial modulation [C]// IEEE 95th Vehicular Technology Conference . Helsinki: IEEE, 2022: 1–5.
[14]   WANG T, FAN S, CHEN H, et al Generalized approximate message passing detector for GSM-OTFS systems[J]. IEEE Access, 2022, 10: 22997- 23007
doi: 10.1109/ACCESS.2022.3153703
[15]   FAN S, XIAO Y, XIAO L, et al Improved layered message passing algorithms for large-scale generalized spatial modulation systems[J]. IEEE Wireless Communication Letters, 2017, 7 (1): 66- 69
[16]   FAN S, XIAO Y, YANG P, et al Approximate message passing detector based upon probability sorting for large-scale GSM systems[J]. IEEE Transactions on Vehicular Technology, 2019, 68 (9): 9303- 9307
doi: 10.1109/TVT.2019.2928695
[17]   WEI L, ZHENG J, LIU Q Approximate message passing detector for index modulation with multiple active resources[J]. IEEE Transactions on Vehicular Technology, 2018, 68 (1): 972- 976
[18]   ZHANG Z, GONG C, DONG Y, et al. Expectation propagation aided signal detection for uplink massive generalized spatial modulation MIMO systems [C]// IEEE Transactions on Wireless Communications . IEEE, 2022, 21(3): 2006–2018.
[19]   LI H, LI B, ZHANG T, et al Iterative receiver for orthogonal time frequency space with index modulation via structured prior-based hybrid belief and expectation propagation[J]. China Communications, 2023, 20 (1): 66- 78
doi: 10.23919/JCC.2023.01.006
[20]   KSCHISCHANG F R, FREY B J, LOELIGER H A Factor graphs and the sum-product algorithm[J]. IEEE Transactions on Information Theory, 2001, 47 (2): 498- 519
doi: 10.1109/18.910572
[21]   RAVITEJA P, PHAN K T, HONG Y, et al Interference cancellation and iterative detection for orthogonal time frequency space modulation[J]. IEEE Transactions on Wireless Communications, 2018, 17 (10): 6501- 6515
doi: 10.1109/TWC.2018.2860011
