Traffic signal control method based on deep reinforcement learning
Zhi-min LIU1,2(),Bao-Lin YE2,*(),Yao-dong ZHU2,Qing YAO1,Wei-min WU3
1. School of Information Science and Technology, Zhejiang Sci-Tech University, Hangzhou 310018, China
2. College of Information Science and Engineering, Jiaxing University, Jiaxing 314001, China
3. State Key Laboratory of Industrial Control Technology, Institute of Cyber-Systems and Control, Zhejiang University, Hangzhou 310027, China
Download: HTML     PDF(1377KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A traffic signal control method based on an improved deep reinforcement learning was proposed for an isolated intersection, aiming at a problem that the traffic signal control methods based on deep reinforcement learning were difficult to update the traffic signal control strategy in time. A new reward function of the proposed method was built by utilizing the real-time change of vehicle numbers at an intersection between two adjacent sampling time steps, whereby the dynamic change process of traffic status at the intersection was tracked and utilized in time. In addition, double network structure and experience playback were respectively used to improve the learning efficiency and convergence rate of the proposed method. SUMO simulation test results show that the proposed method can significantly shorten the average waiting time and average queue length of vehicles at the intersection, and improve the traffic efficiency at the intersection.



Key wordstraffic signal control      deep reinforcement learning      reward function      experience replay
Received: 23 March 2022      Published: 30 June 2022
CLC:  TP 181
Fund:  国家自然科学基金资助项目(61603154);浙江省自然科学基金资助项目 (LY19F030014);工业控制技术国家重点实验室开放课题 (ICT2022B52)
Corresponding Authors: Bao-Lin YE     E-mail: liuzhimin0223@163.com;yebaolin@zjxu.edu.cn
Cite this article:

Zhi-min LIU,Bao-Lin YE,Yao-dong ZHU,Qing YAO,Wei-min WU. Traffic signal control method based on deep reinforcement learning. Journal of ZheJiang University (Engineering Science), 2022, 56(6): 1249-1256.

URL:

https://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2022.06.024     OR     https://www.zjujournals.com/eng/Y2022/V56/I6/1249


基于深度强化学习的交通信号控制方法

针对基于深度强化学习的交通信号控制方法存在难以及时更新交叉口信号控制策略的问题,提出基于改进深度强化学习的单交叉口交通信号控制方法. 构建新的基于相邻采样时间步实时车辆数变化量的奖励函数,以及时跟踪并利用交叉口交通状态动态的变化过程. 采用双网络结构提高算法学习效率,利用经验回放改善算法收敛性. 基于SUMO的仿真测试结果表明,相比传统控制方法和深度强化学习方法,所提方法能明显缩短交叉口车辆平均等待时间和平均排队长度,提高交叉口通行效率.


关键词: 交通信号控制,  深度强化学习,  奖励函数,  经验回放

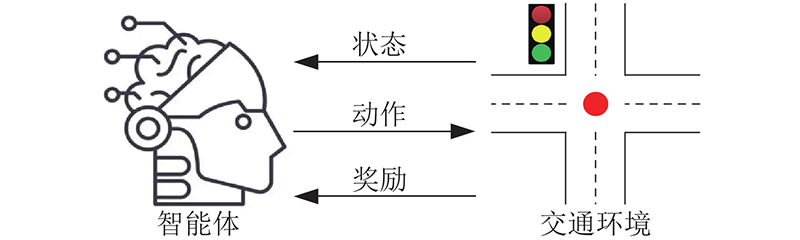

Fig.1 Framework of reinforcement learning

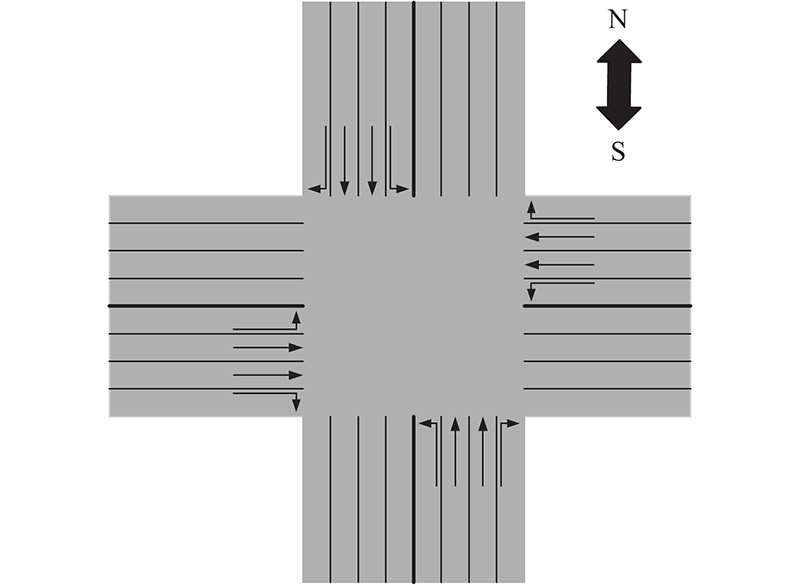

Fig.2 Structure diagram of intersection

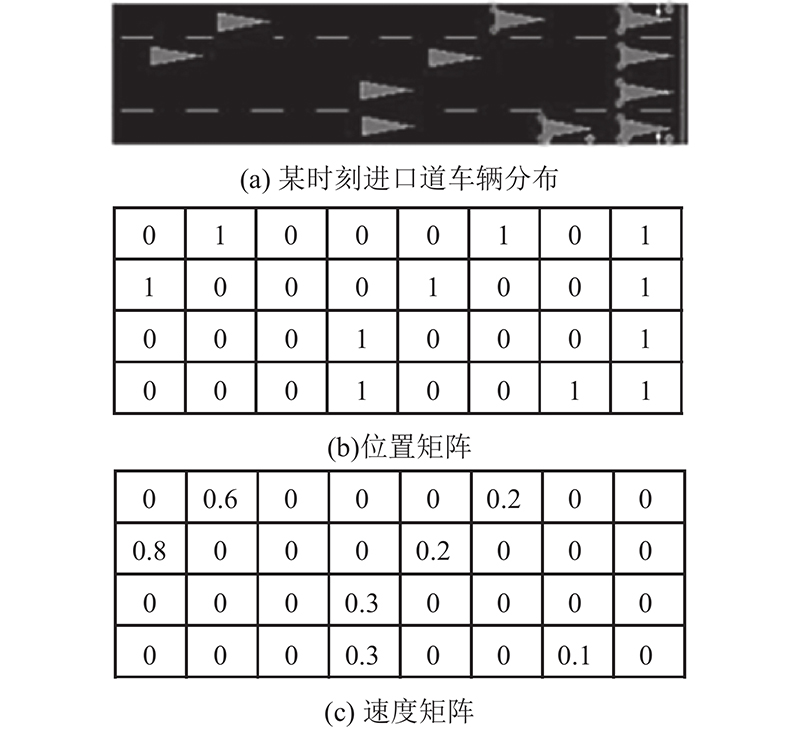

Fig.3 State elements in reinforcement learning

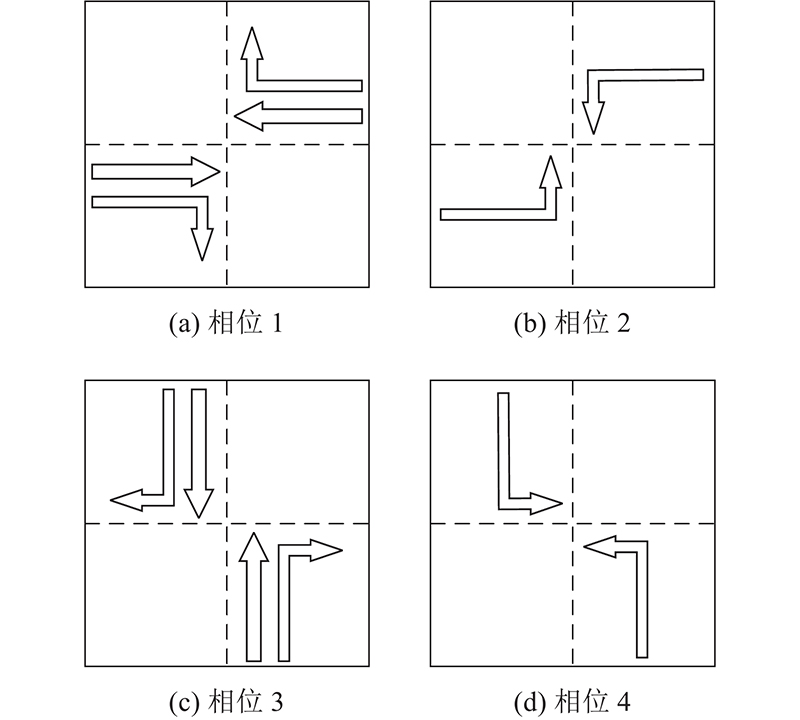

Fig.4 Diagram of phase setting of intersection

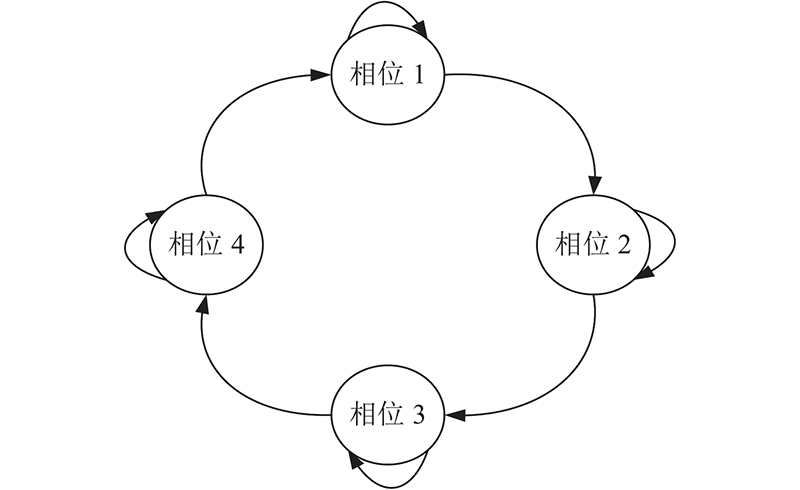

Fig.5 Construct action apace needed for reinforcement learning

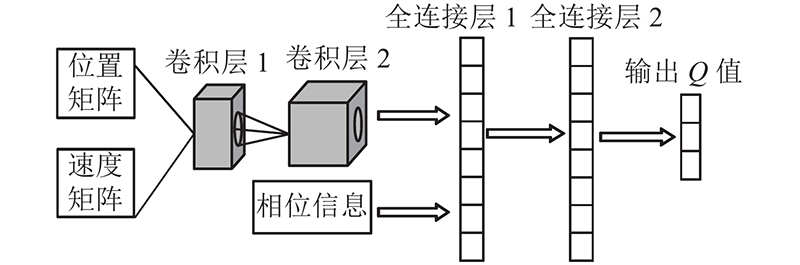

Fig.6 Convolution neural network fitting Q−value

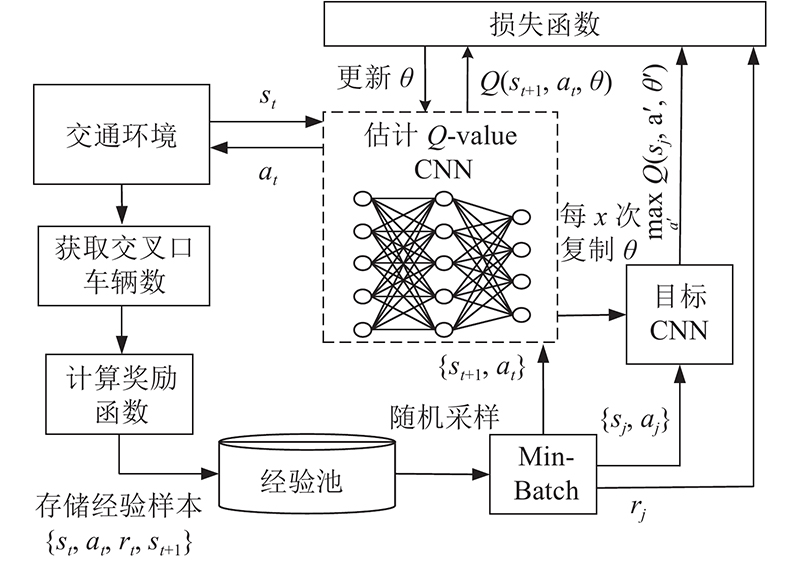

Fig.7 Traffic signal control framework based on nature DQN

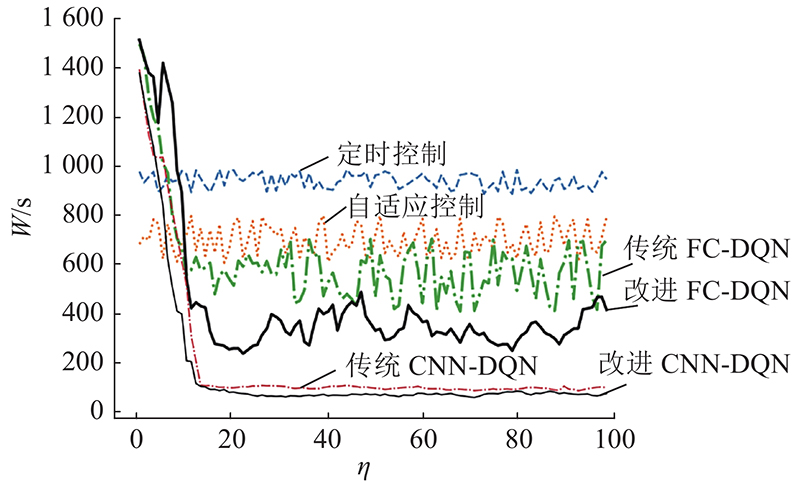

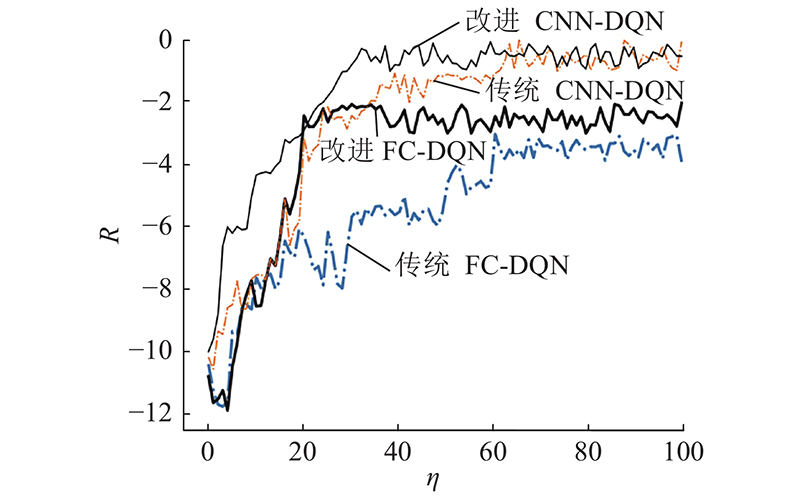

Fig.8 Cumulative rewards of different deep reinforcement learning algorithm
Fig.9 Average waiting time of different traffic signal control methods

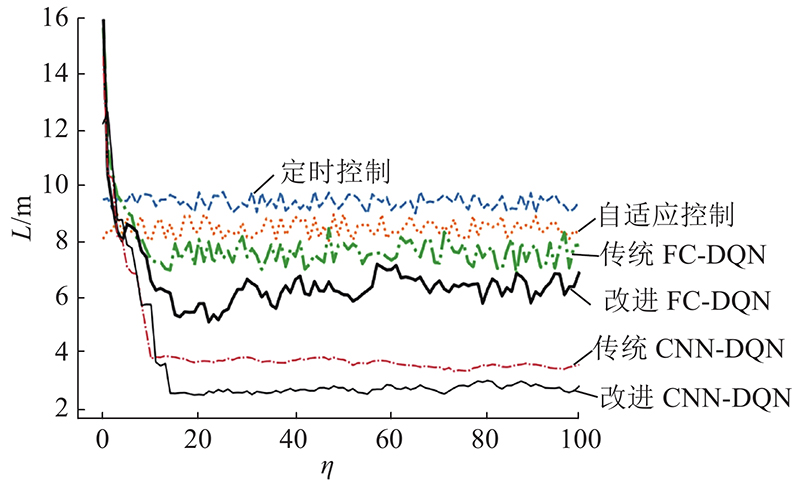

Fig.10 Average length of queue of different traffic signal control methods
控制方法 R W/s L/m
定时控制 937.85 9.64
自适应控制 694.08 8.48
传统FC-DQN ?5.40 607.05 7.82
改进FC-DQN ?3.66 431.85 6.58
传统CNN-DQN ?2.54 168.59 4.14
改进CNN-DQN ?1.63 106.47 3.39
Tab.1 Test results of control effects of different traffic signal control methods
控制方法 S/min V/s
传统FC-DQN 116 < 2.0
改进FC-DQN 105 < 2.0
传统CNN-DQN 88 < 2.0
改进CNN-DQN 75 < 2.0
Tab.2 Model training time and algorithm response time
