Cryogenic low-cycle fatigue performance of pre-strained metastable austenitic stainless steel (S30408)
Yi-bo WANG1,2(),Hui-ming DING3,4,*(),Jin-yang ZHENG1,2,4,Qun-jie LU1,2,Zhen-yu WANG1,2,Ping XU5,Zhi-wei CHEN6
1. Institute of Process Equipment, Zhejiang University, Hangzhou 310027, China
2. High-pressure Process Equipment and Safety Engineering Research Center of Ministry of Education, Zhejiang University, Hangzhou 310027, China
3. School of Mechanical Engineering, Zhejiang University, Hangzhou 310027, China
4. State Key Laboratory of Fluid Power and Mechatronic Systems, Zhejiang University, Hangzhou 310027, China
5. School of Aeronautics and Astronautics, Zhejiang University, Hangzhou 310027, China
6. China Special Equipment Inspection and Research Institute, Beijing 100029, China
Download: HTML     PDF(1017KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Cryogenic pressure vessel’s low-cycle fatigue performance is greatly affected by cold forming and warm forming. Tensile experiments and low-cycle fatigue experiments of metastable austenitic stainless steel S30408 at liquid-nitrogen temperature (77 K) were conducted to analyze the influences of pre-strain (0 and 0.35) and pre-strain temperature (293 K and 363 K) on the cryogenic low-cycle fatigue performance. Due to 0.35 pre-strain resulting in the increase in dislocation density and formation of strain-induced body centered cubic martensite, 293 K pre-strain specimen shows higher initial cyclic stress amplitude, smaller fatigue striation width and longer low-cycle fatigue life than base metal specimen at 77 K. When the pre-strain temperature changes from 293 K to 363 K, the austenite phase owns higher stability, martensitic transformation is blocked, the initial cyclic stress amplitude decreases, the fatigue striation width increases, and the strengthening effects on the cryogenic low-cycle fatigue life caused by 0.35 pre-strain is weakened. In general, 0.35 pre-strain shows significant strengthening effects on the S30408’s cryogenic low-cycle fatigue performance, and the effects are limited by the pre-strain temperature.



Key wordsliquid-nitrogen temperature      pre-strain temperature      cyclic stress response      low-cycle fatigue life      martensitic transformation
Received: 09 October 2019      Published: 15 December 2020
CLC:  TG 142
Corresponding Authors: Hui-ming DING     E-mail: yibowang@zju.edu.cn;ddhhmm558@163.com
Cite this article:

Yi-bo WANG,Hui-ming DING,Jin-yang ZHENG,Qun-jie LU,Zhen-yu WANG,Ping XU,Zhi-wei CHEN. Cryogenic low-cycle fatigue performance of pre-strained metastable austenitic stainless steel (S30408). Journal of ZheJiang University (Engineering Science), 2020, 54(11): 2190-2195.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.11.014     OR     http://www.zjujournals.com/eng/Y2020/V54/I11/2190


预应变亚稳态奥氏体不锈钢(S30408)深冷低周疲劳性能

为了研究冷成形和温成形对深冷容器低周疲劳性能的影响,通过液氮温度(77 K)下的拉伸试验和低周疲劳试验,分析预应变(0和0.35)和预应变温度(293 K和363 K)对亚稳态奥氏体不锈钢(S30408)深冷低周疲劳性能的影响机制. 0.35预应变使试样内部位错密度增加和产生强化相体心立方马氏体,与母材试样相比,293 K预应变试样初始循环应力幅增大,疲劳辉纹宽度减小,深冷低周疲劳寿命增加显著. 随着预应变温度由293 K升高到363 K,奥氏体相稳定性增加,马氏体相变受到抑制,初始循环应力幅减小,疲劳辉纹宽度增大,预应变对深冷低周疲劳寿命的增益作用减弱. 总体来看,0.35预应变对S30408深冷低周疲劳性能有明显增益作用,但增益程度受预应变温度的限制.


关键词: 液氮温度,  预应变温度,  循环应力响应,  低周疲劳寿命,  马氏体相变
材料 wB /%
C Si Mn P S Cr Ni Mo N
S30408 0.036 0.390 1.120 0.035 0.005 18.310 8.180 0.091 0.032
GB24511 ≤0.08 ≤0.75 ≤2.00 ≤0.035 ≤0.015 ≤18.00~20.00 ≤8.00~12.00 ? ≤0.10
Tab.1 Chemical compositions of S30408 stainless steel under testing
Fig.1 Pre-strain plate and sampling schematic and Photography of plate after pre-strain

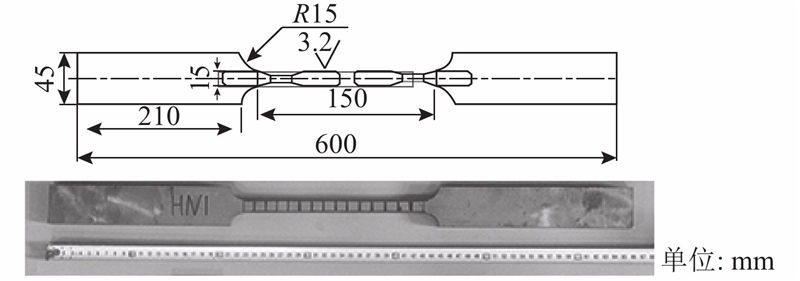

Fig.2 Geometric dimensions of circular bar specimens

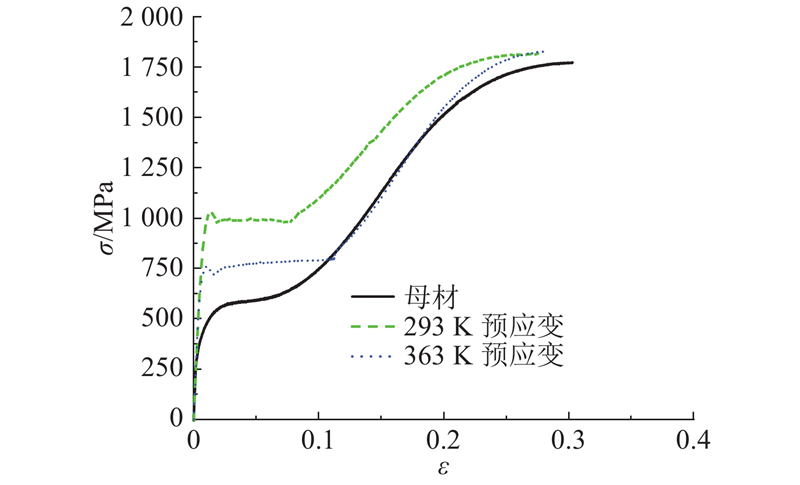

Fig.3 Engineering stress-strain curve of S30408 base metal and pre-strain metal at 77 K
试样 Rp0.2 /MPa Rm /MPa ${w_{\alpha '}}$ /%
试验前 试验后
母材 472 1773 0 73.9
293 K预应变 990 1818 16.1 72.2
363 K预应变 723 1829 0 71.4
Tab.2 Tensile property of S30408 base metal and pre-strain metal at 77 K

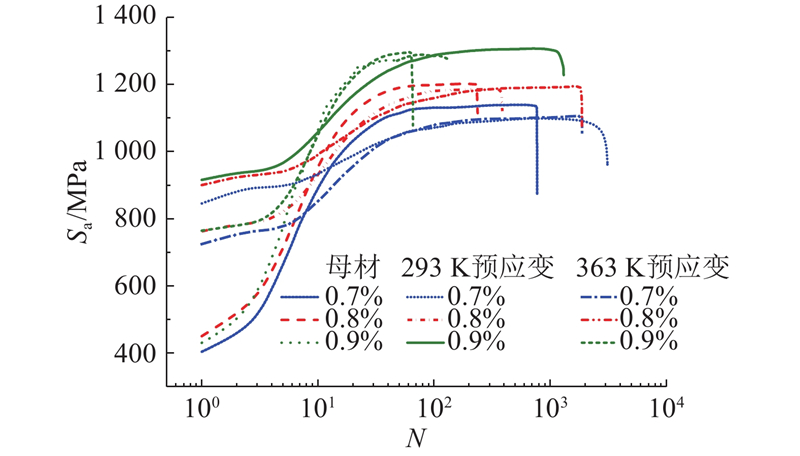

Fig.4 Cyclic stress response curves of S30408 base metal and pre-strain metal at 77 K

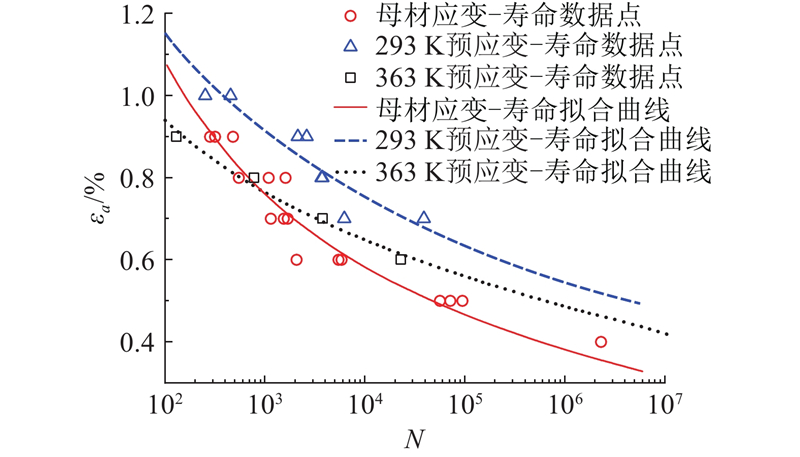

Fig.5 Fatigue life of S30408 base metal and pre-strain metal
试样 E /MPa b c εf σf′ /MPa
母材 173 000 ?0.080 ?0.448 0.0230 1972
293 K预应变 163 404 ?0.058 ?0.349 0.0120 1967
363 K预应变 160 130 ?0.059 ?0.480 0.0095 1758
Tab.3 Manson-Coffin equation fitting parameters of S30408 base metal and pre-strain metal
批次 293 K 368 K
Rm /MPa R0.35 /MPa R Rm /MPa R0.35 /MPa R
W 753 592 0.786 604 555 0.919
X 747 628 0.841 588 555 0.944
Y 802 660 0.823 582 532 0.914
Z 744 624 0.839 558 527 0.944
Tab.4 Stress changing of S30408 during pre-strain process at different temperatures
Fig.6 Fatigue striations of different specimens at stain amplitude of 0.7%
