Influence of mineral components of suspended sediment on salinity measurement
Qi-jun LI1(),Yan-ming YAO1,Jian-ge JIAO2,Jin-xiong YUAN1,Xin-yu ZHAO3,*()
1. Ocean College, Zhejiang University, Zhoushan 316021, China
2. College of Mechanical and Electrical Engineering, China Jiliang University, Hangzhou 310058, China
3. Taizhou Port and Shipping Administration Bureau, Taizhou 318000, China
Download: HTML     PDF(1408KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

Quartz, kaolin and their mixture were used to simulate suspended sediment minerals. Salinity was measured by CTD75M in different initial salinities and suspended sediment concentrations. Results indicate that the measured salinity decreases with the decrease of initial salinity, the increase of suspended sediment concentration and the decrease of mineral component density. Effective medium percolation model and Maxwell conductivity model were applied to analyze the electrical conductivity in turbid water. The experimental data fitted well with the above theoretical conductivity formulas. Results indicate that the volume of suspended sediment is the key factor affecting the relative electrical conductivity. The experimental data of the existing literature were analyzed, indicating that the empirical salinity correction formula based on suspended sediment concentration has regional limitations, which is not applicable in coastal waters with different suspended sediment densities. Hence, a modified formula of theoretical salinity based on suspended sediment volume fraction was proposed to improve the applicable scope of the formula.

Key words： mineral components      salinity measurement      electrical conductivity model      theoretical modified formula      practical salinity scale of 1978
Received: 01 August 2019      Published: 22 September 2020
CLC:  P 731.12
Corresponding Authors: Xin-yu ZHAO     E-mail: 3130100107@zju.edu.cn;zxy-tzgh@126.com
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Qi-jun LI
Yan-ming YAO
Jian-ge JIAO
Jin-xiong YUAN
Xin-yu ZHAO
Cite this article:

Qi-jun LI,Yan-ming YAO,Jian-ge JIAO,Jin-xiong YUAN,Xin-yu ZHAO. Influence of mineral components of suspended sediment on salinity measurement. Journal of ZheJiang University (Engineering Science), 2020, 54(9): 1858-1866.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.09.023     OR     http://www.zjujournals.com/eng/Y2020/V54/I9/1858


悬沙矿物组分对盐度测量的影响

选用石英砂、高岭土及两者的混合物模拟悬沙矿物，利用温盐深剖面仪CTD75M测定不同初始盐度和悬沙浓度下的水体盐度. 试验结果表明，测量盐度随初始盐度的减小、悬沙浓度的增大以及矿物组分密度的减小而减小. 运用有效介质渗透模型和Maxwell电导率模型分析含沙盐水的电导率；试验数据与电导率理论公式拟合良好，显示悬沙所占体积是影响相对电导率的主要因素. 对已有文献的试验数据进行分析，结果表明：基于悬沙浓度的经验盐度修正公式在悬沙密度不同的沿海海域并不适用，具有区域局限性. 为此提出基于悬沙体积分数的理论盐度修正公式，提高公式的适用范围.


关键词： 矿物组分,  盐度测量,  电导率模型,  理论修正公式,  1978实用盐标

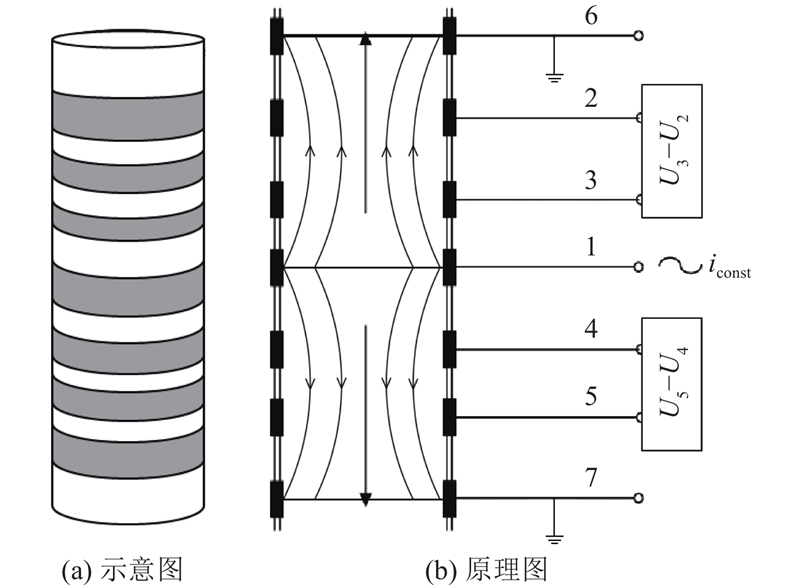

Fig.1 Sketch map and schematic diagram of conductivity sensor with seven electrodes
Fig.2 Grain size accumulation curve of quartz and kaolin sample
电导率模型 原公式 简化公式
串联模型[29] $\sigma _{\rm{ser } }={\left( {\dfrac{ {\varphi _{\rm{m} } } }{ {\sigma _{\rm{m} } } } + \dfrac{ {\varphi _{\rm{p} } } }{ {\sigma _{\rm{p} } } } } \right)^{ - 1} }{\rm{ } }\;{\simfont\text{（}}6{\simfont\text{）}}$ $\sigma '_{\rm{ser } } = 0\;{\simfont\text{（}}7{\simfont\text{）}}$
并联模型[29] $\sigma _{\rm{par} }=\sigma _{\rm{m} }\varphi _{\rm{m} } + \sigma _{\rm{p} }\varphi _{\rm{p } }\;{\simfont\text{（}}8{\simfont\text{）}}$ $\sigma '_{\rm{par} }=\sigma _{\rm{m} }\varphi _{\rm{m } }\;{\simfont\text{（}}9{\simfont\text{）}}$
有效介质渗透模型[25] $\begin{array}{l} \sigma _{\rm{EM} }=\dfrac{1}{4}\Bigg\{ {\left( {3\varphi _{\rm{m} } - 1} \right)\sigma _{\rm{m} } + \left( {3\varphi _{\rm{p} } - 1} \right)\sigma _{\rm{p} } + } \\ \left. { { {\left[ { { {\left( {\left( {3\varphi _{\rm{m} } - 1} \right)\sigma _{\rm{m} } + \left( {3\varphi _{\rm{p} } - 1} \right)\sigma _{\rm{p} } } \right)}^2} + 8\sigma _{\rm{m} }\sigma _{\rm{p} } } \right]}^{{1}/{2} } } } \right\}\;{\simfont\text{（}}10{\simfont\text{）}}\end{array}$ $\sigma '_{\rm{EM} }=\dfrac{ {\rm{1} } }{2}\left( {3\varphi _{\rm{m} } - 1} \right)\sigma _{\rm{m } }\;{\simfont\text{（}}11{\simfont\text{）}}$
H-S模型下边界[30] $\sigma _{\rm{HS -} }=\sigma _{\rm{p} } + \varphi _{\rm{m} }{\left( {\dfrac{1}{ {\sigma _{\rm{m} } - \sigma _{\rm{p} } } } + \dfrac{ {\varphi _{\rm{p} } } }{ {3\sigma _{\rm{p} } } }} \right)^{ - 1} }{\rm{ } }\;{\simfont\text{（}}12{\simfont\text{）}}$ $\sigma '_{\rm{HS -}} = 0 \;{\simfont\text{（}}13{\simfont\text{）}}$
H-S模型上边界[30] $\sigma _{\rm{HS +}} = \sigma _{\rm{m}} + \varphi _{\rm{p}}{\left( {\dfrac{1}{{\sigma _{\rm{p}} - \sigma _{\rm{m}}}} + \dfrac{{\varphi _{\rm{m}}}}{{3\sigma _{\rm{m}}}}} \right)^{ - 1}}{\rm{ }}\;{\simfont\text{（}}14{\simfont\text{）}}$ $\sigma '_{\rm{HS +} }=\sigma _{\rm{m} } + \varphi _{\rm{p} }{\left( {\dfrac{ {\varphi _{\rm{m} } } }{ {3\sigma _{\rm{m} } } } - \dfrac{1}{ {\sigma _{\rm{m} } } }} \right)^{ - 1} }{\rm{ } }\;{\simfont\text{（}}15{\simfont\text{）}}$
Maxwell模型[31] $\sigma _{\rm{matrix} }=\sigma _{\rm{m} }\left( {1 + \dfrac{ {\varphi _{\rm{p} } } }{ {\left( {1 - \varphi _{\rm{p} } } \right){\rm{/3} } + { {\sigma _{\rm{m} } } / {\left( {\sigma _{\rm{p} } - \sigma _{\rm{m} } } \right)} } } }} \right)\;{\simfont\text{（}}16{\simfont\text{）}}$ $\sigma '_{\rm{matrix} }=\sigma _{\rm{m} }\dfrac{ {2 - 2\varphi _{\rm{p} } } }{ {2 + \varphi _{\rm{p} } } }{\rm{ } }\;{\simfont\text{（}}17{\simfont\text{）}}$
Tab.1 Electrical conductivity models and its corresponding simplified formulas

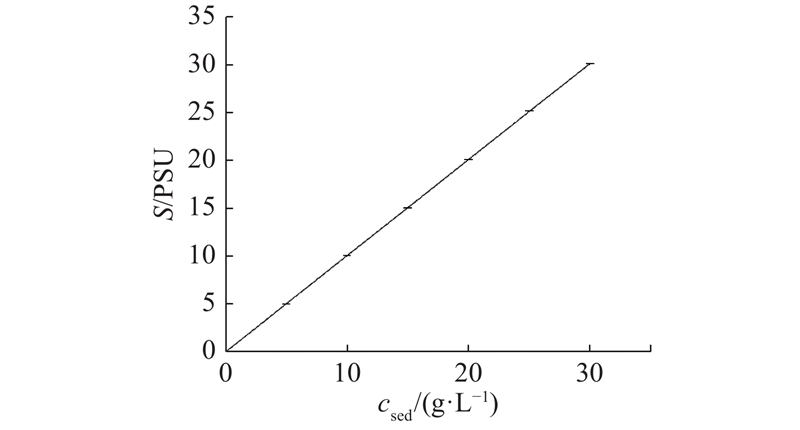

Fig.3 Relationship between NaCl mass concentration and measured salinity by CTD75M
Fig.4 Residual salinity depending on different quartz and kaolin mass concentration in ultrapure water
Fig.5 Change of measurement salinity over time after stopping magnetic stirring blender
Fig.6 Measurement salinity corresponding to different initial salinities and different mineral compositions

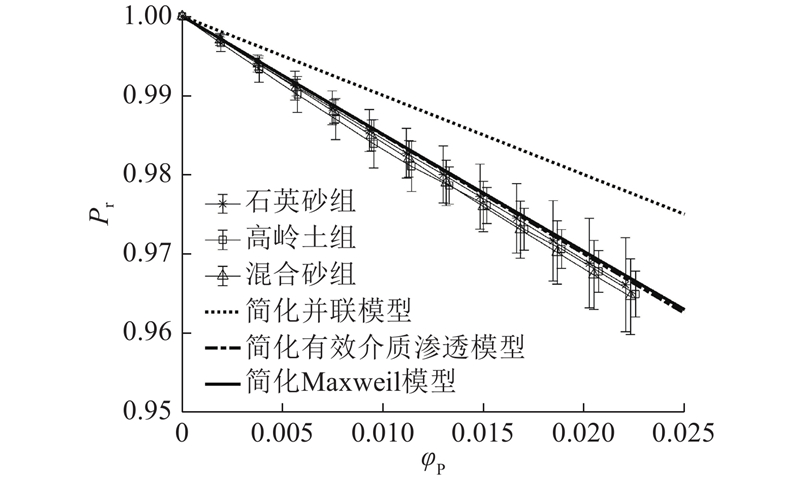

Fig.7 Relationship between relative conductivity and suspended sediment volume ratio

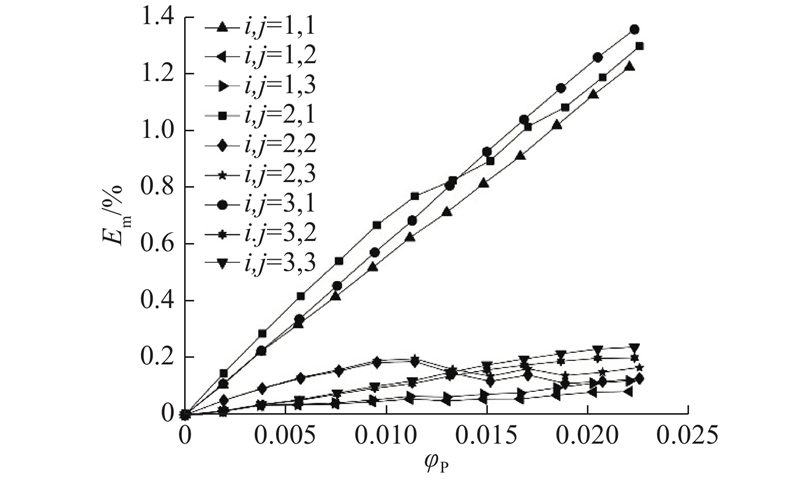

Fig.8 Relative conductivity of relative error derived from test groups and electrical conductivity models under different volume ratios

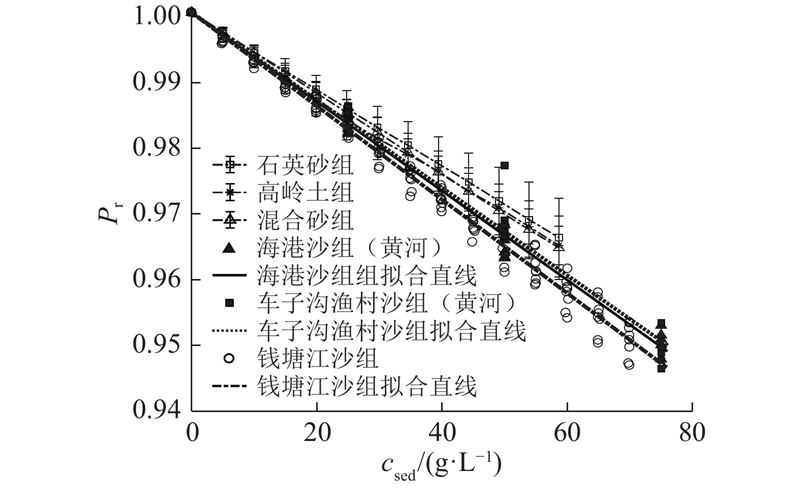

Fig.9 Relationship between suspended sediment concentration and relative conductivity in test group and other literatures
