Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (1): 202-212    DOI: 10.3785/j.issn.1008-973X.2020.01.024
Aerospace Technology
Thermal sensitivity factors analysis of stratospheric airships
Chen CHENG(),Xiao-liang WANG*()
School of Aeronautics and Astronautics, Shanghai Jiaotong University, Shanghai 200240, China
Download: HTML     PDF(5001KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A thermal characteristics model of the airship was established and the main thermal influence factors were analyzed by taking stratosphere airship as the research object. A complete thermal model of the stratospheric airship was established with the finite split method. The shape was modeled and the surface was discretized in order to make the established thermal model applicable to different types of airships. The distribution parameter method and the lumped parameter method were used to calculate the thermal characteristics of the skin cell and the internal filling gas. The reliability and effectiveness of the established model and its solution method were verified by relevant experimental data. The changes in the surface temperature of the airship and the temperature of the internal filling gas under the influence of 8 different thermal influence factors were calculated, and the qualitative and quantitative effects of each factor were analyzed. The conditions for extreme temperature of the airship skin were summarized. The effects and laws of different heat sources on the thermal characteristics of airships were compared, and a simplified part of the thermal characteristics model of airships was given.

Key words： airship      sensitivity factors      thermal characteristics      stratosphere
Received: 20 November 2018      Published: 05 January 2020
CLC:  V 274
Corresponding Authors: Xiao-liang WANG     E-mail: chen.cheng.sjtu@foxmail.com;wangxiaoliang@sjtu.edu
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Chen CHENG
Xiao-liang WANG
Cite this article:

Chen CHENG,Xiao-liang WANG. Thermal sensitivity factors analysis of stratospheric airships. Journal of ZheJiang University (Engineering Science), 2020, 54(1): 202-212.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.01.024     OR     http://www.zjujournals.com/eng/Y2020/V54/I1/202


平流层飞艇热敏感因素分析

以平流层飞艇为研究对象，建立飞艇热特性模型并分析主要的热影响因素. 通过有限拆分法，建立完整的平流层飞艇热特性模型. 为了使建立的热模型能够适用于不同类型的飞艇，将其外形建模和表面离散化处理，分别采用分布参数法和集总参数法，对蒙皮单元和内部填充气体进行热特性数值计算. 通过相关试验数据对建立的模型及其求解方法的可靠有效性进行验证. 分别计算8种不同热影响因素作用下飞艇表面蒙皮温度及内部填充气体温度的变化，对每种因素的影响规律进行定性和定量的分析，得到飞艇热特性的主要敏感因素及不敏感因素，归纳出飞艇蒙皮出现极值温度的条件. 比较不同热源对飞艇热特性的影响和规律，给出飞艇热特性模型中的可简化部分.


关键词： 飞艇,  影响因素,  热特性,  平流层

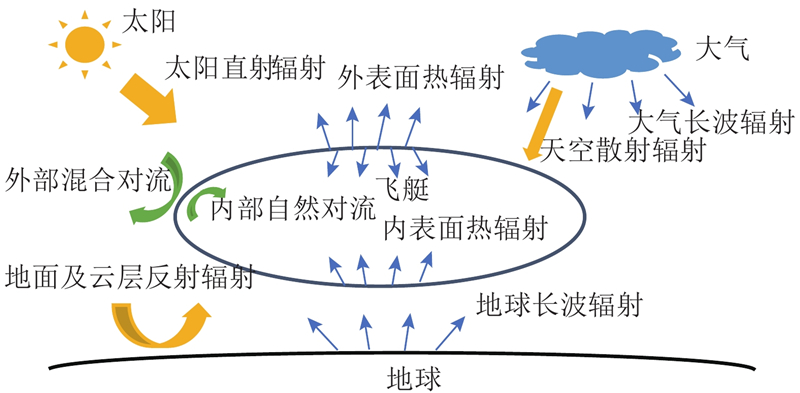

Fig.1 Stratospheric airship thermal environment

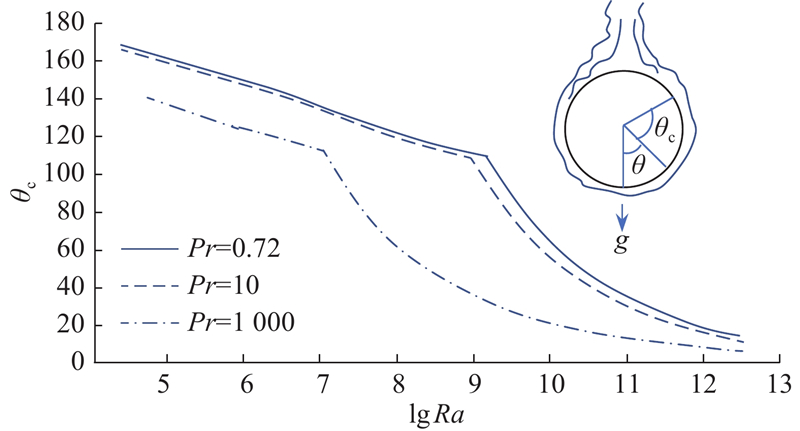

Fig.2 Relationship between demarcation point of laminar-turbulent flow and Rayleigh number

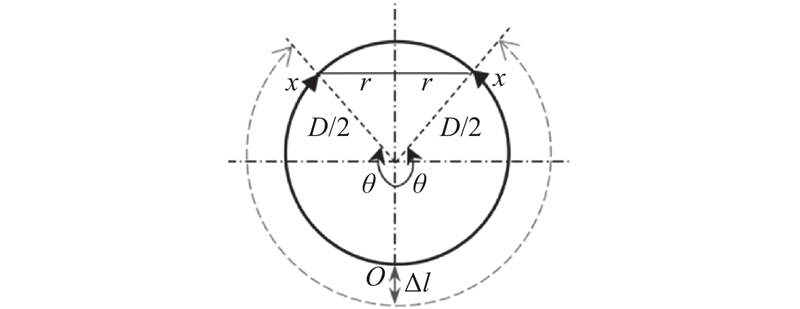

Fig.3 Natural external convection cross-section parameters
换热方式 外部自然对流换热系数 努赛尔数
层流换热 ${h_{ {\rm{free\_ex} } } } = { {N{u_{\rm{D} } } \cdot { {{k} }_{ {\rm{air} } } }} / D}$ $N{u_{{D} } } = { {{C} }_{\rm{c} } } \cdot Ra_{{D} }^{ {1 / 4} }$
湍流换热 ${h_{ {\rm{free\_ex} } } } = { {N{u_x} \cdot { {{k} }_{ {\rm{air} } } }} / x}$ $N{u_x} = { {{C} }_{\rm{t} } } \cdot A(\theta ) \cdot Ra_x^{ {1 / 3} }$
Tab.1 Heat transfer coefficient and Nusselt number of laminar and turbulent convection
Fig.4 Flow chart of thermal analysis of airships

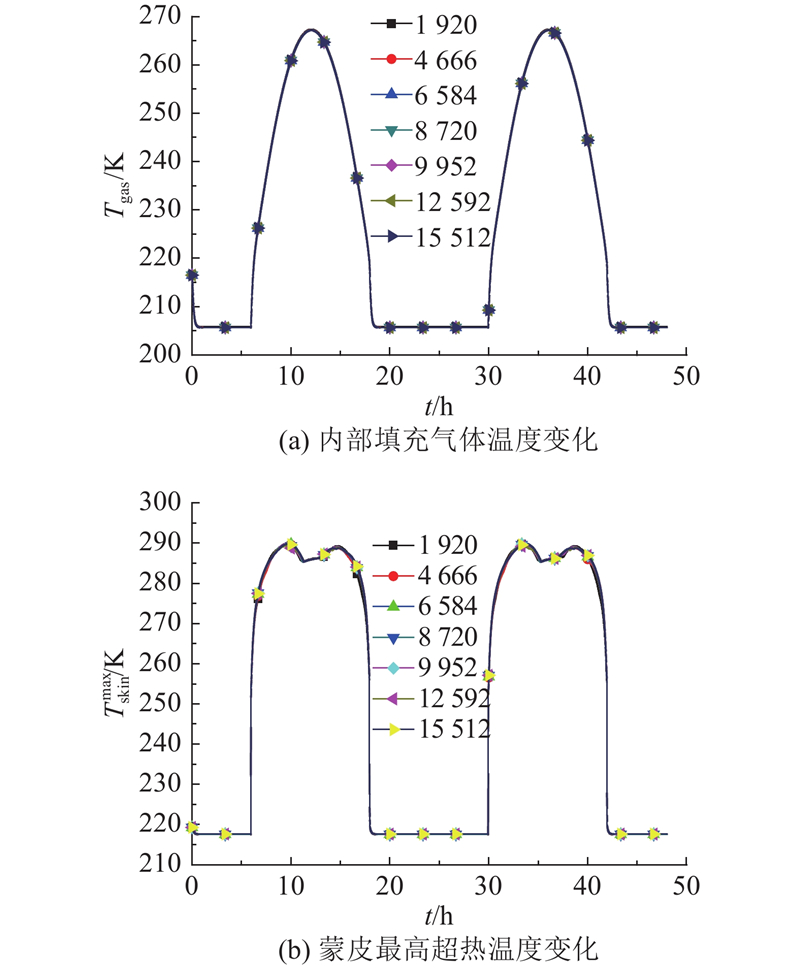

Fig.5 Thermal characteristics of airship in 48 h under different grid numbers

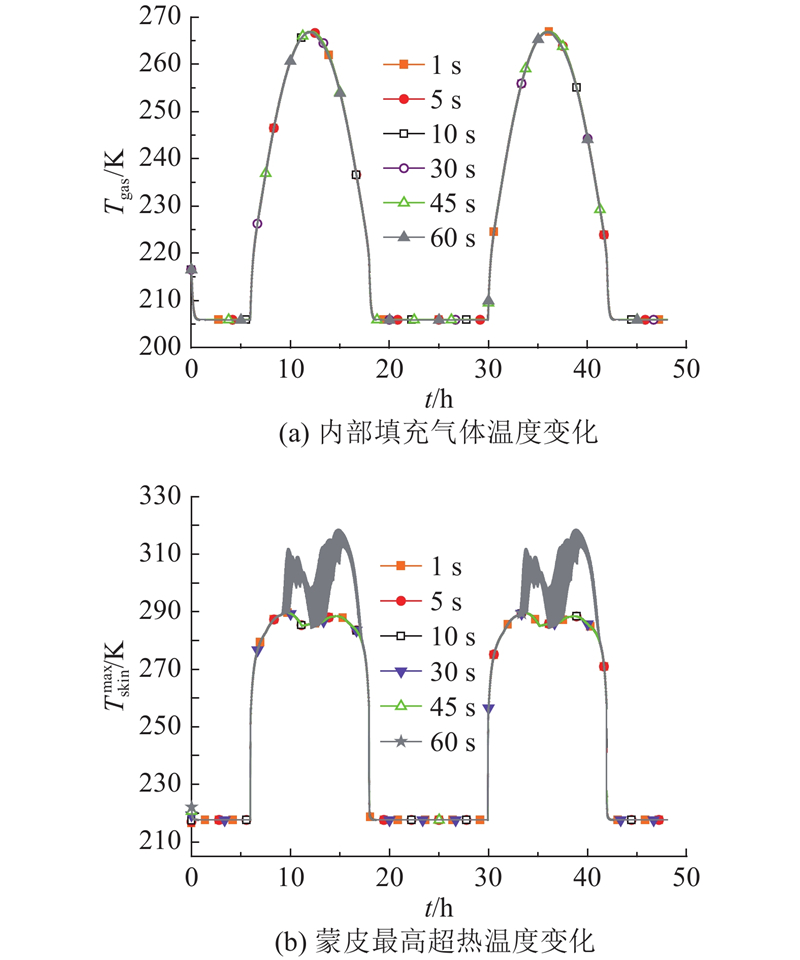

Fig.6 Thermal characteristics of airship in 48 h under different calculation time steps
基本参数 参数值 基本参数 参数值
飞艇总长 1.42 m 太阳辐射热流 972 W/m2
中间圆柱直径 0.47 m 蒙皮发射率 0.81
蒙皮厚度 0.1 mm 太阳吸收比 0.45
Tab.2 Basic geometric parameters in Li Defu's experiment

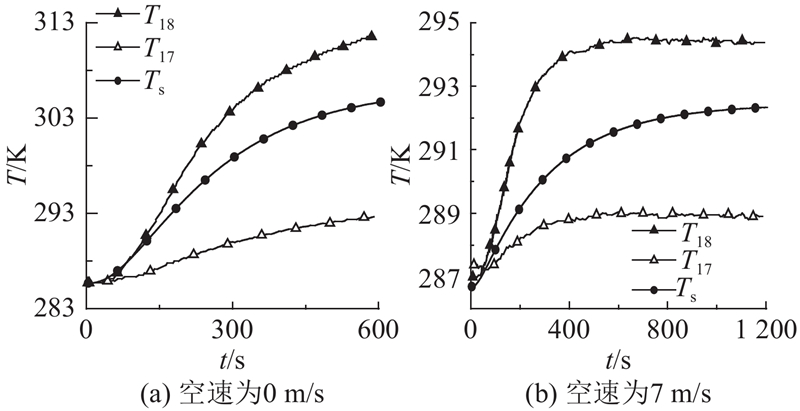

Fig.7 Comparison of calculated value and experimental value of temperature of internal filling gas
基本参数 参数值 基本参数 参数值
飞行高度 20 000 m 表面单元个数 4 666
飞艇长度 50 m 飞艇最大直径 16 m
飞艇体积 6 704.5 蒙皮太阳辐射吸收率 0.33
蒙皮比热容 3 600 J/（kg·K） 蒙皮长波辐射吸收率 0.33
蒙皮发射率 0.8 初始时刻蒙皮温度 216.5 K
地球发射率 0.92 初始时刻浮升气体温度 216.5 K
Tab.3 Basic input parameters in numerical calculation of thermal sensitivity factors analysis of stratospheric airships

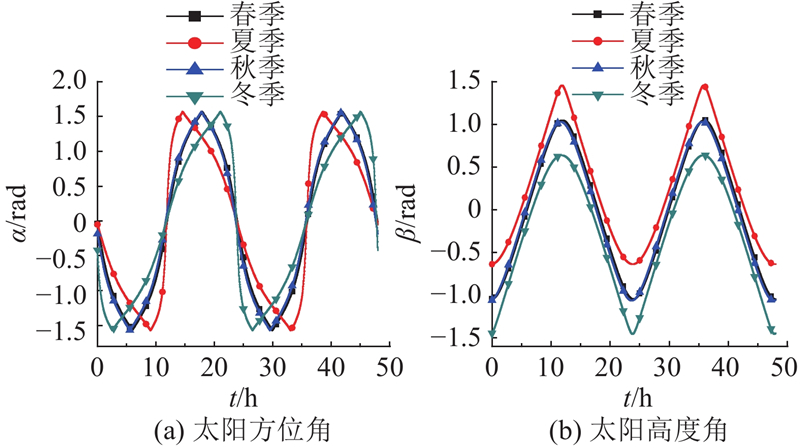

Fig.8 Change of solar angles in 48 h in different seasons
季节 最大温度 最大温度时段 最小温度 最小温度时段
春 289.86 K 9 h-15 h 193.3 K 19 h-5 h
夏 285.41 K 9 h-15 h 193.3 K 19 h-5 h
秋 289.12 K 9 h-15 h 193.3 K 19 h-5 h
冬 289.86 K 9 h-15 h 193.3 K 19 h-5 h
Tab.4 Thermal characteristics of skin in different seasons

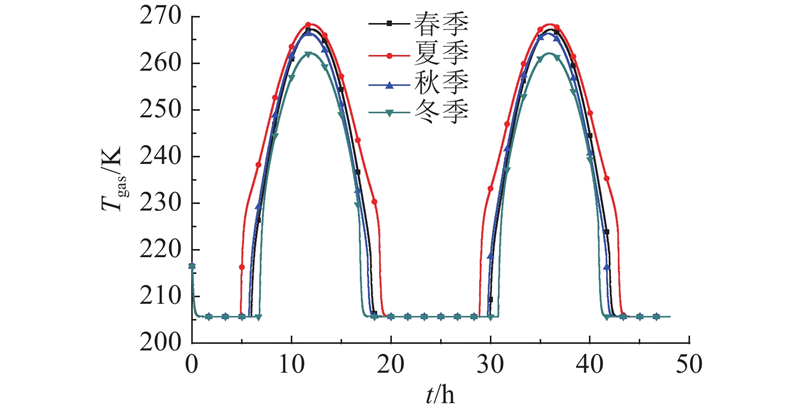

Fig.9  ${T_{{\rm{gas}}}}$ in 48 h in different seasons

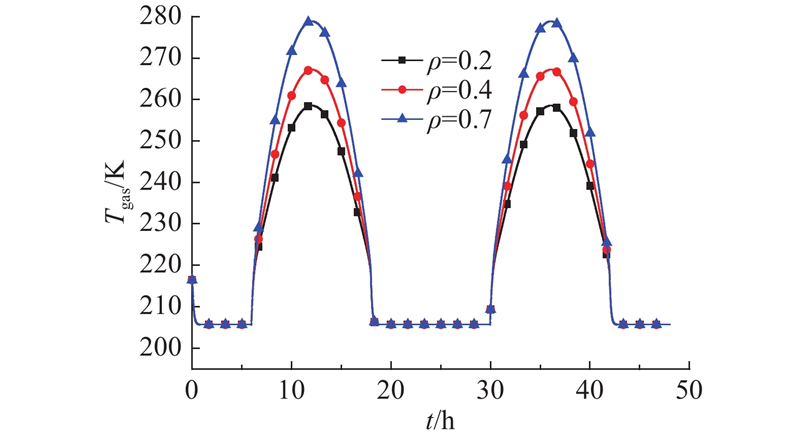

Fig.10  ${T_{{\rm{gas}}}}$ in 48 h under different cloud cover levels

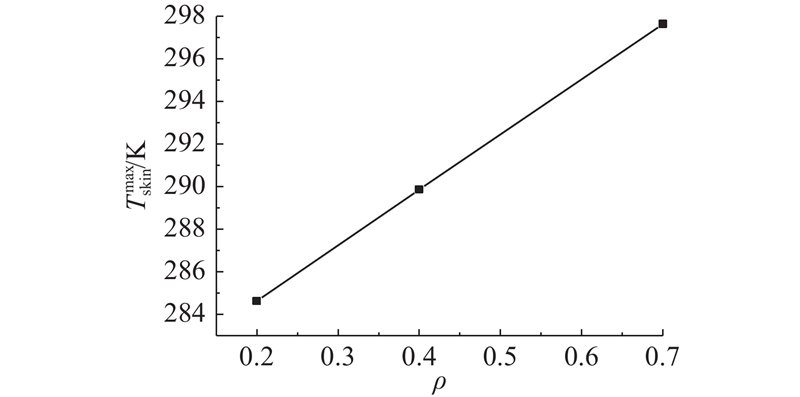

Fig.11 Relationship of ${T_{\rm{skin}}^{{\max }}}$ and cloud cover level

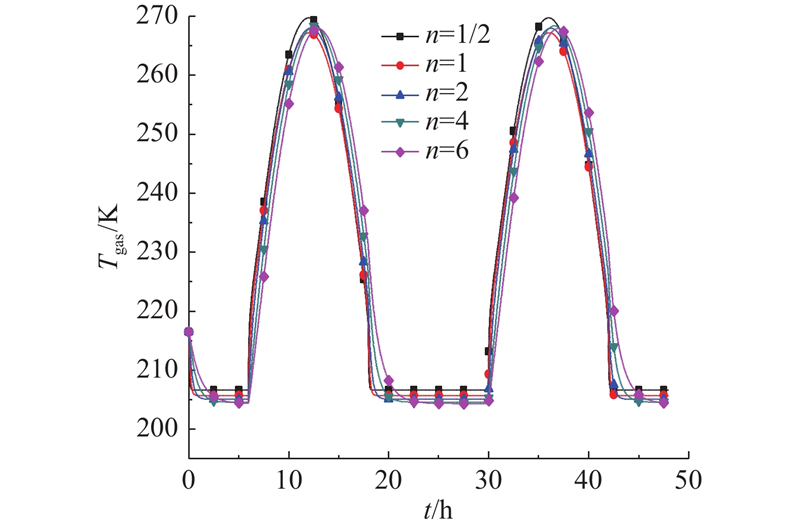

Fig.12  ${T_{{\rm{gas}}}}$ in 48 h at different sizes of airship

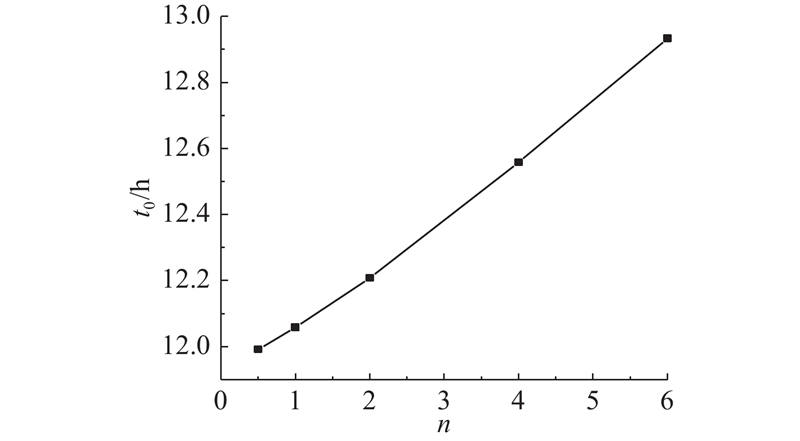

Fig.13 Relationship between time when inner gas (helium) reaches maximum temperature and size of airship
Fig.14 Relationship between ${T_{\rm{skin}}^{\min }}$ and size of airship

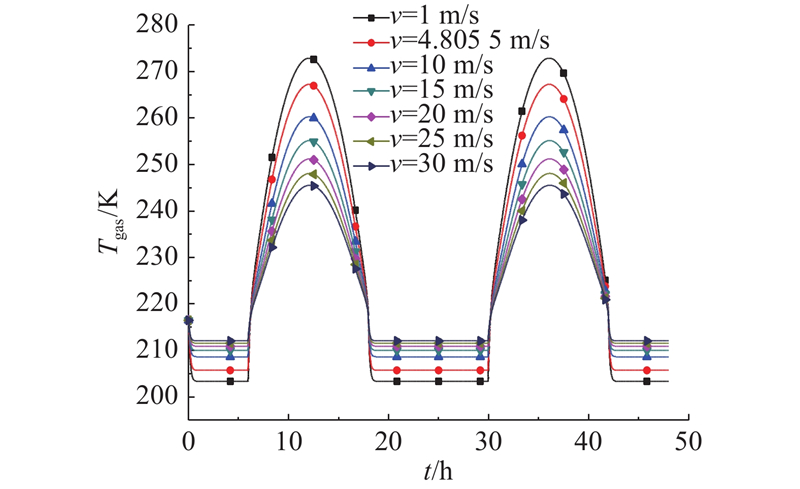

Fig.15  ${T_{{\rm{gas}}}}$ in 48 h at different airspeed

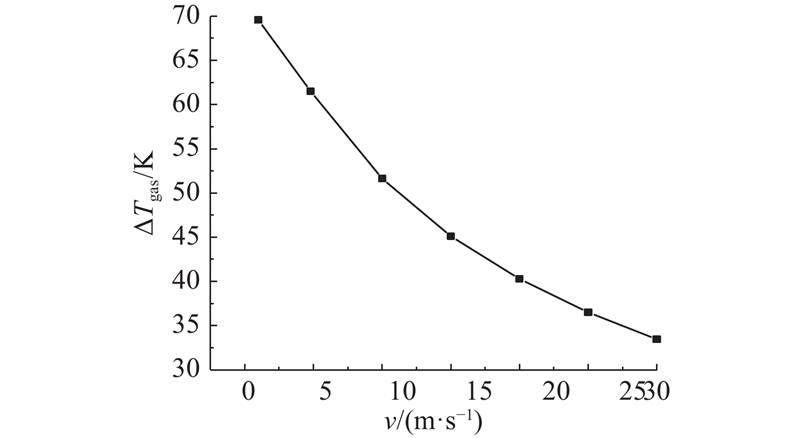

Fig.16 Relationship between airspeeds and $\Delta {T_{{\rm{gas}}}}$ between day and night

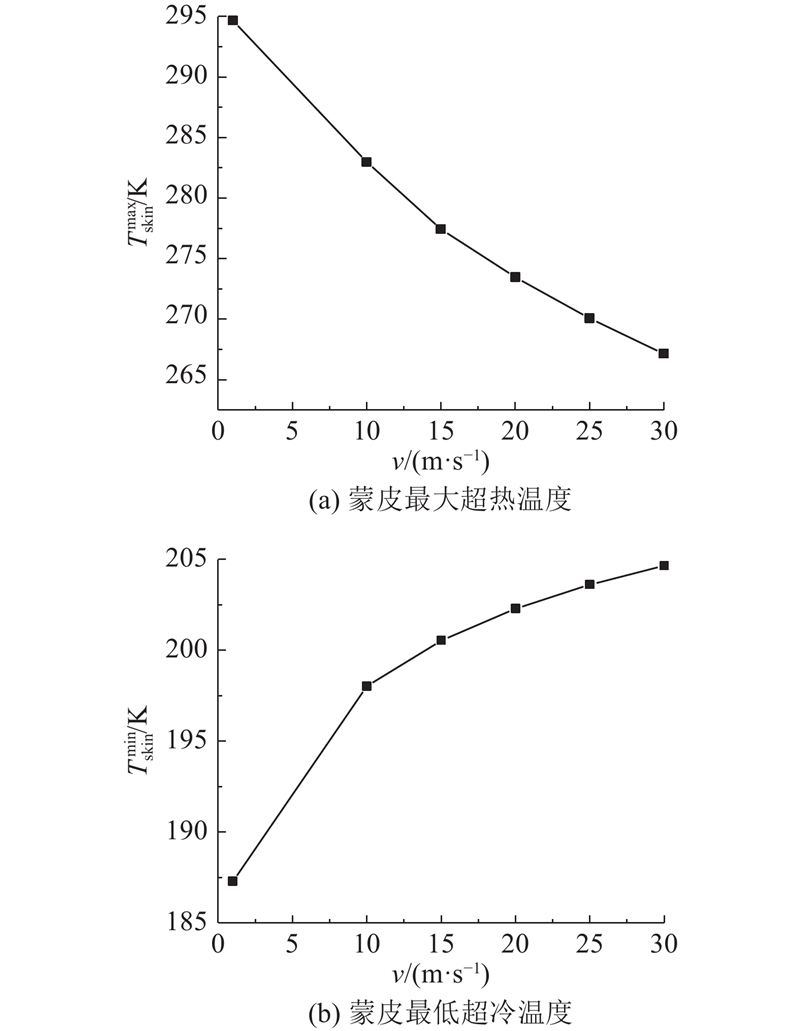

Fig.17 Relationship between skin temperature and airspeeds

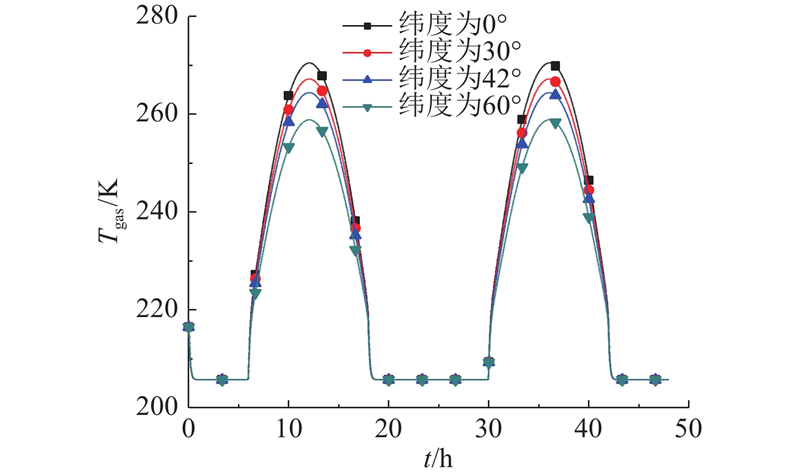

Fig.18  ${T_{{\rm{gas}}}}$ in 48 h at different latitude

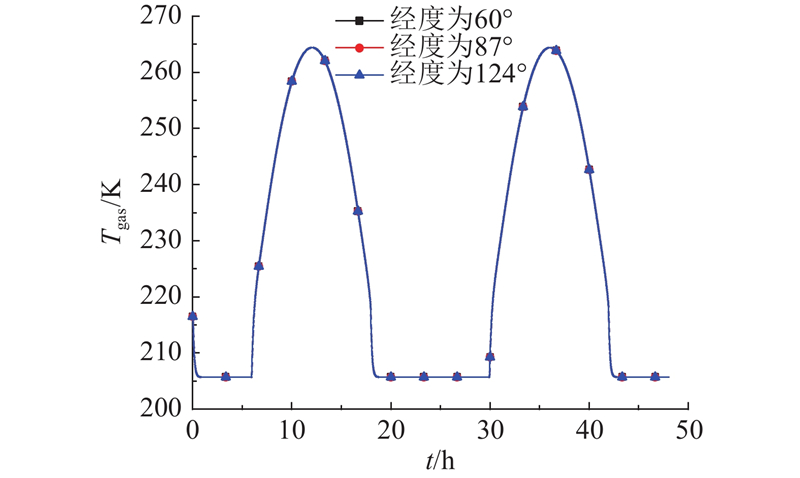

Fig.19  ${T_{{\rm{gas}}}}$ in 48 h at different longitude

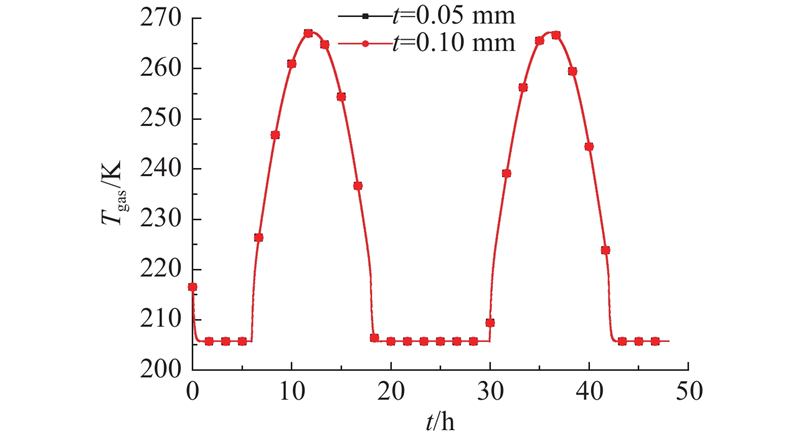

Fig.20  ${T_{{\rm{gas}}}}$ in 48 h with different skin thickness
Fig.21  ${T_{{\rm{gas}}}}$ in 48 h with different type of inner gas

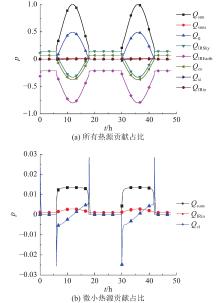

Fig.22 Percentage of contribution of heat source of airship
Fig.23  ${T_{{\rm{gas}}}}$ of both simplified model and full model

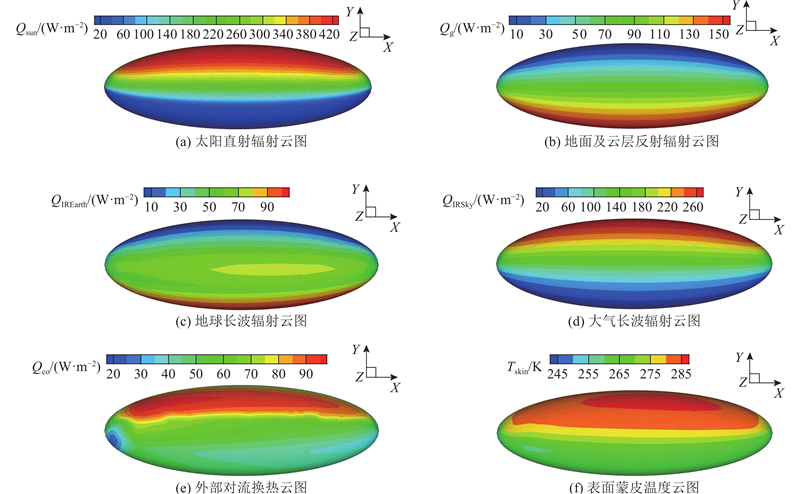

Fig.24 Main heat sources and skin temperature at 12 h in spring
