Solution of traveling salesman problem by hybrid imperialist competitive algorithm
Xiao-bing PEI(),Xiu-yan YU,Shang-lei WANG
School of Management, Tianjin University of Technology, Tianjin 300384, China
Download: HTML     PDF(1128KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A hybrid imperialist competitive algorithm (HICA) was proposed aiming at the problem of traveling salesman problem combinatorial optimization. In the framework of imperialist competitive algorithm, the probability model was introduced to record and update the feasible solution, and the probability matrix was used to mine the excellent feasible solution segment combination block in the feasible solution in order to reduce the complexity of imperialist assimilation and improve the quality of feasible solution. The feasible solution was recombined with greedy criteria and insertion search operators in order to achieve fast convergence speed and improve population diversity. An iterative search strategy was proposed to search effectively in different solution spaces to find out the missing key information and avoid local optimization. The mixed empire competition was verified through the simulation test and comparison of the results of TSPLIB standard cases.

Key words： hybrid imperialist competitive algorithm (HICA)      traveling salesman problem      probability model      combined block      greedy criteria      repeated search strategy
Received: 05 August 2018      Published: 30 September 2019
CLC:  TP 18
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Xiao-bing PEI
Xiu-yan YU
Shang-lei WANG
Cite this article:

Xiao-bing PEI,Xiu-yan YU,Shang-lei WANG. Solution of traveling salesman problem by hybrid imperialist competitive algorithm. Journal of ZheJiang University (Engineering Science), 2019, 53(10): 2003-2012.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.10.018     OR     http://www.zjujournals.com/eng/Y2019/V53/I10/2003


混合帝国竞争算法求解旅行商问题

针对旅行商组合优化问题，提出混合帝国竞争算法（HICA）. 以帝国竞争算法为框架，引入概率模型用以记录并更新可行解，利用概率矩阵挖掘可行解中的优秀可行解片段组合区块，用以降低帝国同化的复杂度及提高可行解的质量；利用贪婪准则及插入搜寻算子操作进行可行解重组，以加快收敛速度及提高种群多样性. 提出反复搜索策略在不同的解空间进行有效的搜索，找出被遗漏的关键信息，避免局部最优化；通过对TSPLIB标准案例的仿真测试及结果比较，验证了混合帝国竞争算法的有效性.


关键词： 混合帝国竞争算法（HICA）,  旅行商问题,  概率模型,  组合区块,  贪婪准则,  反复搜索策略

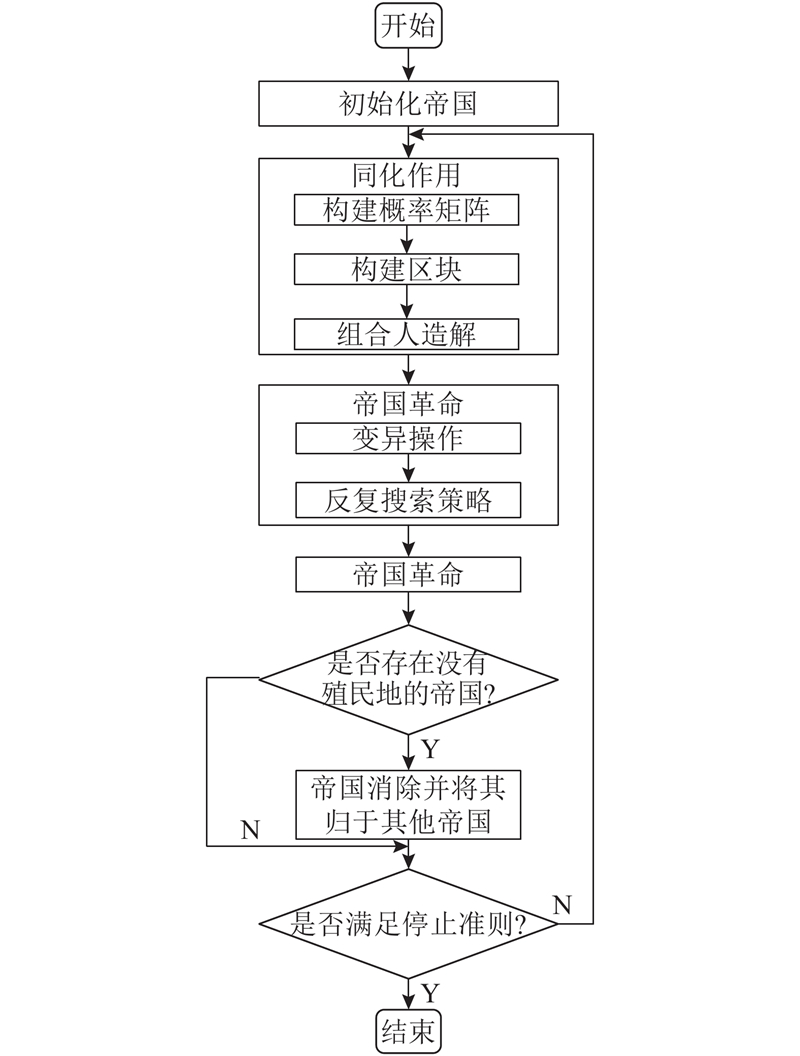

Fig.1 Flow chart of hybrid imperialist competitive algorithm

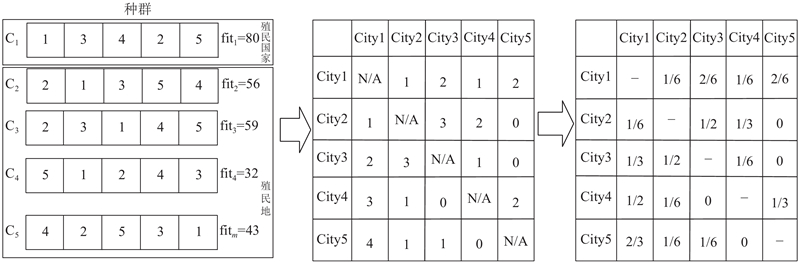

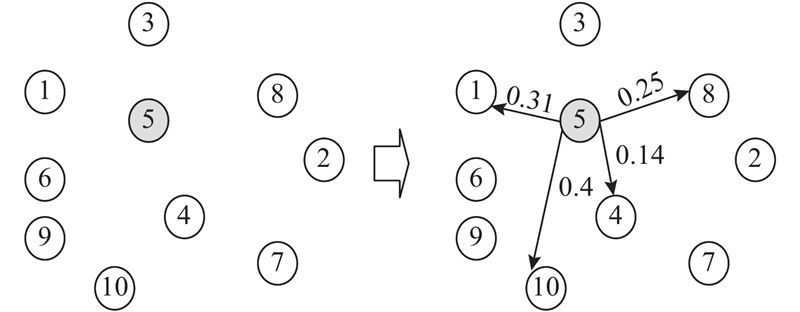

Fig.2 Renewal schematic of probability matrix
Fig.3 Comparison of HICA solution complexity

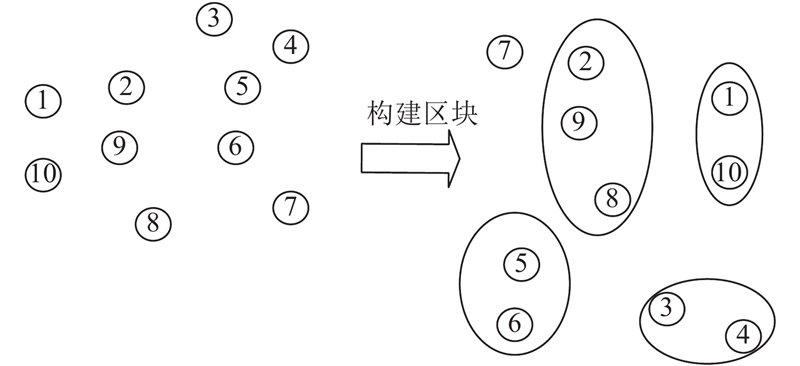

Fig.4 Schematic of block mining

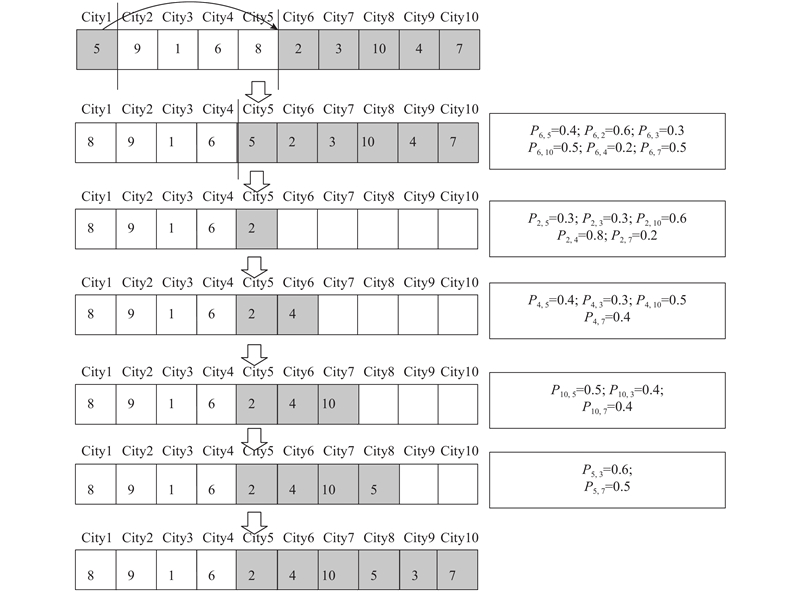

Fig.5 Generation of new assimilation colonies

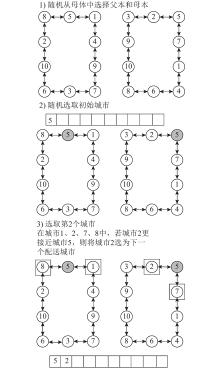

Fig.6 Feasible solution of greedy criterion reengineering
Fig.7 Feasible solution of insert search operator

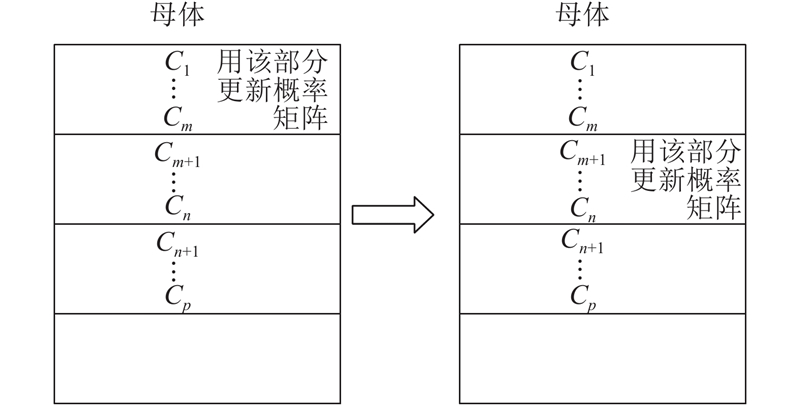

Fig.8 Change search range of parent
序号 实例 Cu HICA ICA GA
$C{\rm{^*}} $ ${\overline C} $ $\psi $/% $\overline t $/s $C{\rm{^*}} $ $\overline C$ $\psi $/% $\overline t $/s $C{\rm{^*} }$ $\overline C $ $\psi $/% $\overline t $/s
注：1)“?”表示利用该算法计算的最优解优于已知的最优解.
1 bier127 118 282 118 282 119 857 0.00 16.01 118 703 121 095 0.36 16.21 120 406 126 845 1.80 17.37
2 ch130 6 110 6 110 6 142 0.00 8.54 6 127 6 204 0.29 8.73 6 303 6 431 3.17 8.71
3 ch150 6 528 6 528 6 600 0.00 10.85 6 543 6 641 0.24 11.21 6 790 68 402 4.02 11.43
4 d198 15 780 15 780 16 583 0.00 24.32 1 587 16 108 0.58 27.10 16 149 16 298 2.34 30.22
5 eil51 426 426 430 0.00 2.85 429 432 0.67 3.94 435 441 2.29 5.03
6 eil76 538 538 546 0.00 4.94 544 558 1.18 6.53 550 565 2.39 9.47
7 eil101 629 629 630 0.00 2.02 640 664 1.78 13.83 660 674 4.96 13.27
8 kroA100 21 282 21 282 21 282 0.00 9.09 21 285 21 508 0.02 11.28 22 353 22 654 5.03 12.03
9 kroA200 29 368 29 373 30 159 0.02 15.12 29 431 31 042 0.21 18.72 31 268 32 416 6.47 21.73
10 lin318 42 029 42 074 42 348 0.11 20.93 42 307 43 051 0.66 29.85 45 548 45 815 8.37 38.36
11 pr107 44 303 44 303 44 538 0.00 14.33 44 302 44 803 ?1) 17.90 46 674 46 856 5.35 16.69
12 Pr136 96 772 96 772 97 431 0.00 10.12 96 771 98 426 ? 16.36 101 189 102 344 4.564 18.71
13 pr152 73 682 73 682 73 624 0.00 11.01 73 684 74 051 0.00 18.62 74 520 75 658 1.1 19.72
14 pr299 48 191 48 199 49 001 0.02 33.99 48 640 49 124 0.93 40.40 51 952 52 104 7.8 48.22
15 pr439 107 217 107 383 111 216 0.15 57.73 107 917 109 859 0.65 59.36 118 084 19 208 10.14 63.23
16 rat575 6 773 6 814 6 942 0.61 71.96 7 037 7 235 3.90 71.68 8 016 8 945 18.36 78.26
17 rat783 8 806 8 889 8 910 0.94 100.5 9 247 9 686 5.04 103.97 10 469 11 502 18.89 122.46
18 tsp225 3 916 3 916 4 011 0.00 24.61 3 907 4 095 ? 28.35 4 220 4 264 7.77 35.34
Tab.1 The comparison of experimental results between HICA、ICA and GA
实例
（已知最优解） 		算法 $C{\rm{^*}} $ ${\overline C} $ $\psi $/% $\overline t $/s 实例
（已知最优解） 		算法 $C^{\rm{*}}$ $\overline C $ $\psi $/% $\overline t $/s
注：1)“?”表示在相应的文献中未找到对应的值.
berlin52（7542） DCS 7 542 7 836.4 0.00 2..24 st70（675） DCS 675 675.3 0.00 2..24
DWCA 7 542 7 542.0 0.00 15.70 DWCA 675 678.6 0.00 90.44
DSOS 7 542 7 542.6 0.00 63.44 DSOS 675 679.2 0.00 82.58
ACE 7 542 7 543.0 0.00 13.36 ACE 675 676.4 0.00 2.69
HICA 7 542 7 542.0 0.00 2.20 IMA 677 684.0 0.30 ?1)
? ? ? ? ? HICA 675 675.1 0.00 9.09
ch130（6110） DCS 6 110 6 135.9 0.00 23.12 kroa100（21282） DCS 21 282 21 282.9 0.00 2.71
ACE 6 110 6 153.9 0.00 26.03 DWCA 21 282 21 348.1 0.00 473.43
IMA 6 220 6 245.0 0.00 ?1) DSOS 21 282 21 409.5 0.00 127.53
HICA 6 110 6 142.1 0.00 8.54 ACE 21 282 21 298.6 0.00 42.46
? ? ? ? ? HICA 21 282 21 282.2 0.00 1.96
pr152（73682） DCS 73 682 73 821.6 0.00 14.86 eil101（629） DCS 629 630.4 0.00 18.87
DWCA 73 682 74 202.6 0.00 4049.5 DWCA 639 645.9 1.50 602.20
DSOS 74 013 74 785.4 0.44 516.68 DSOS 640 650.6 1.74 171.75
ACE 73 682 73 766.8 0.00 149.12 ACE 629 633.6 0.00 3.91
HICA 73 682 73 624.1 0.00 11.01 HICA 629 630.1 0.00 2.02
Tab.2 Performance comparison between HICA and other algorithms for solving TSP problem

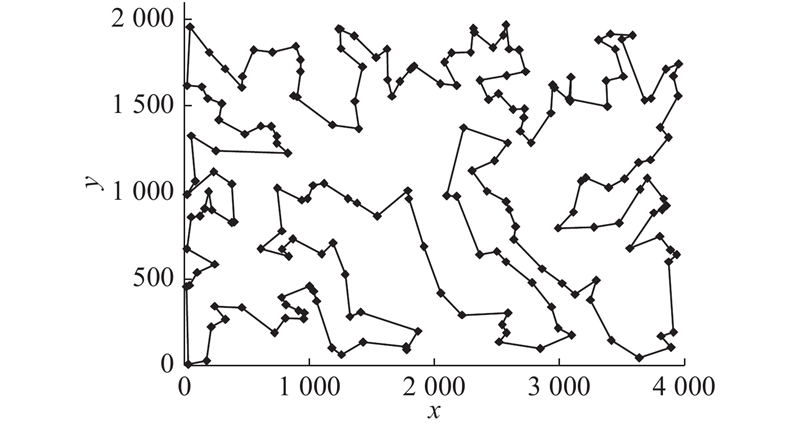

Fig.9 Optimal roadmap of eil51
Fig.10 Optimal roadmap of kroA200

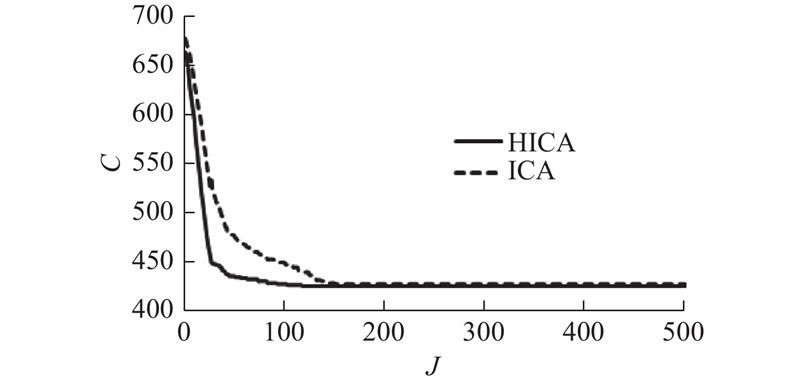

Fig.11 Convergence graph of eil51

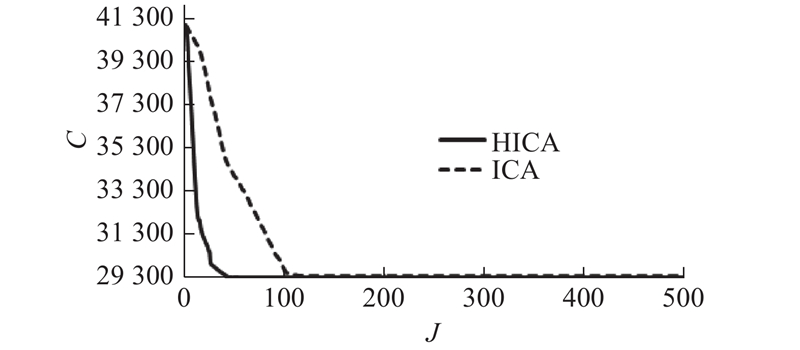

Fig.12 Convergence graph of kroA200
