浙江大学学报(工学版)  2021, Vol. 55 Issue (4): 648-657    DOI: 10.3785/j.issn.1008-973X.2021.04.006
计算机技术、电信技术
基于GWO-SVM的下肢假肢穿戴者骑行相位识别
高新智(),刘作军*(),张燕,陈玲玲
河北工业大学 智能康复装置与检测技术教育部工程研究中心,天津 300130
Bicycle riding phase recognition of lower limb amputees based on GWO-SVM
Xin-zhi GAO(),Zuo-jun LIU*(),Yan ZHANG,Ling-ling CHEN
Engineering Research Center of Intelligent Rehabilitation and Detecting Technology, Ministry of Education, Hebei University of Technology, Tianjin 300130, China
 全文: PDF(1222 KB)   HTML
摘要:

针对下肢假肢穿戴者骑行相位识别的问题,提出基于灰狼算法优化的支持向量机(GWO-SVM)分类模型. 建立下肢多源信息系统,采集膝关节、踝关节的加速度信号以及膝关节角度信号. 应用奇异值分解,对采集到的信号进行降噪处理. 在对信号进行降噪处理之后,为了避免单一信号不确定的影响,从数据冗余角度,选取各信号的特征点,开展归一化处理,组成多维特征向量,作为SVM分类模型的输入. 为了能够进一步提高分类精度,加强全局优化能力,利用GWO算法对核参数进行优化. 通过与PSO-SVM分类模型、GA-SVM分类模型对比表明,基于GWO优化的SVM分类模型对骑行相位的识别率为94%,高于其他方法优化的SVM分类模型.

关键词: 下肢假肢骑行运动相位识别灰狼优化(GWO)支持向量机(SVM)
Abstract:

An approach based on gray wolf algorithm optimization and support vector machine was proposed aiming at the problem of identifying the riding phases of lower limb prosthetic wearers. A multi-sensor system was constructed for the motion data collection. Then the acceleration signals of the knee joint, ankle joint and the angle signals of the knee joint on the prosthetic side were collected. Singular value noise reduction was used to reduce the noise of the collected signal. Then feature points of each signal were selected and normalized from the perspective of data redundancy. These motion feature point signals formed a multi-dimensional feature vector as the input of SVM classification model, which solved the problem of the uncertain influence of a single signal. The gray wolf algorithm optimized support vector machine kernel parameters, which not only improved the classification accuracy of the recognition, but also enhanced the global optimization ability. The support vector machine model optimized by the gray wolf algorithm has an accuracy rate of 94% for bicycle riding phase recognition, which is higher than the support vector machine model based on particle swarm optimization and the support vector machine model optimized based on genetic optimization algorithm.

Key words: lower prosthesis    bicycle riding    phase recognition    grey wolf optimization (GWO)    support vector machine (SVM)
收稿日期: 2020-07-02 出版日期: 2021-05-07
CLC:  TP 242
基金资助: 国家自然科学基金资助项目(61703135,61773151);河北省青年自然科学基金资助项目(F2018202279)
通讯作者: 刘作军     E-mail: 982570895@qq.com;liuzuojun@hebut.edu.cn
作者简介: 高新智(1993—),男,博士生,从事智能假肢、模式识别的研究. orcid.org/0000-0001-7644-7667. E-mail: 982570895@qq.com
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
高新智
刘作军
张燕
陈玲玲

引用本文:

高新智,刘作军,张燕,陈玲玲. 基于GWO-SVM的下肢假肢穿戴者骑行相位识别[J]. 浙江大学学报(工学版), 2021, 55(4): 648-657.

Xin-zhi GAO,Zuo-jun LIU,Yan ZHANG,Ling-ling CHEN. Bicycle riding phase recognition of lower limb amputees based on GWO-SVM. Journal of ZheJiang University (Engineering Science), 2021, 55(4): 648-657.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.04.006        http://www.zjujournals.com/eng/CN/Y2021/V55/I4/648

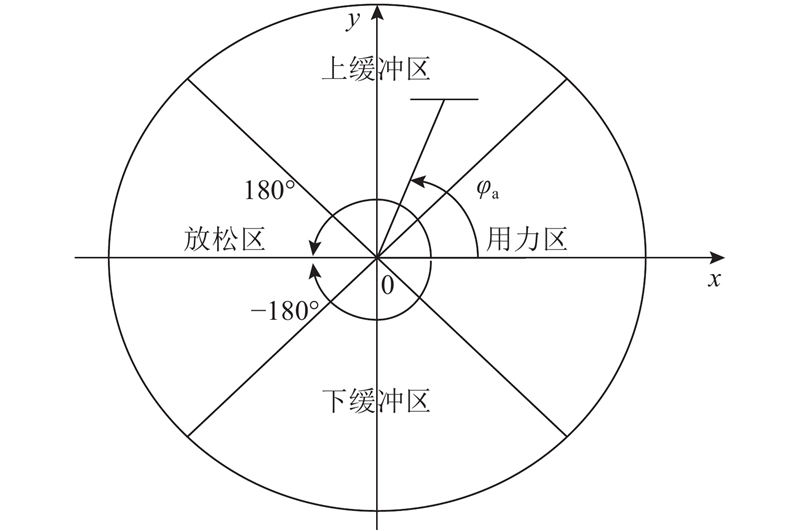

图 1  骑行相位划分

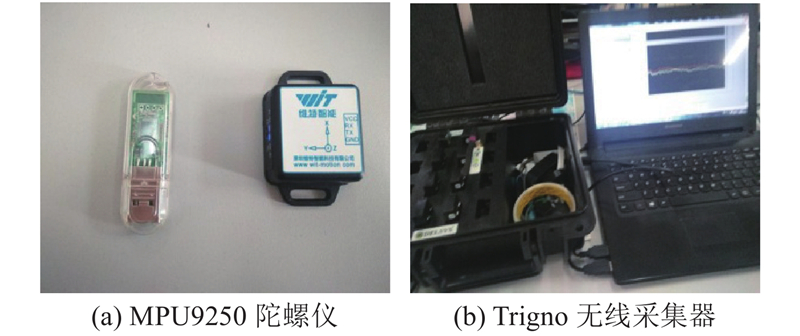

图 2  加速度、角度测量仪器

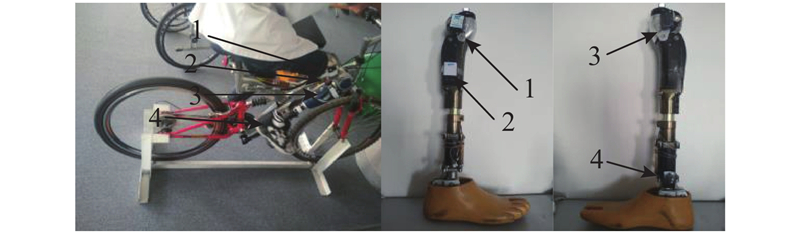

图 3  假肢穿戴者骑行图片
受试者编号 性别 年龄/岁 身高/cm
A1 42 173
A2 27 175
A3 25 162
表 1  受试者情况
图 4-1

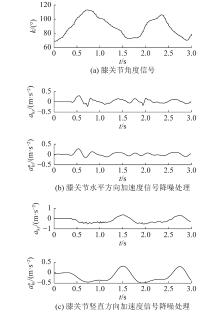

图 4  运动信号预处理
受试者 θp /(°) θl /(°) θr /(°) θu /(°)
A1 89.27 113.72 100.51 80.39
A2 86.75 108.26 96.86 75.24
A3 85.73 103.62 96.83 78.57
表 2  受试者各相位对应角度

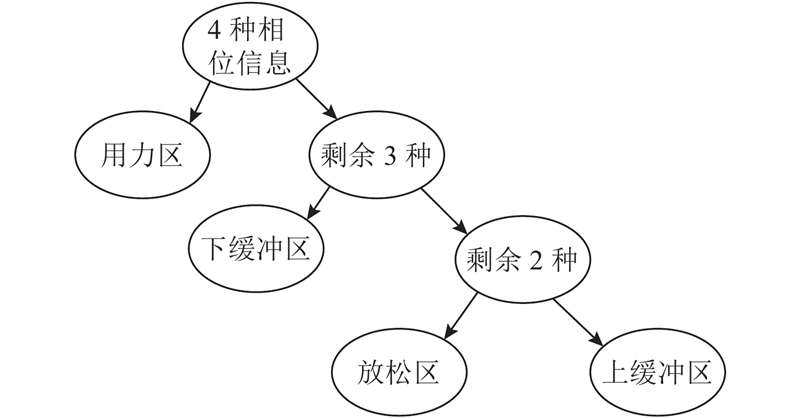

图 5  二分类法示意图
核函数 C=2,γ=1 C=1,γ=1 C=2,γ=0.5 C=3,γ=2
polynomial 75% 73% 48% 83%
sigmoid 31% 28% 82% 3%
linear 77% 83% 80% 85%
RBF 79% 85% 85% 83%
表 3  不同核函数的测试结果

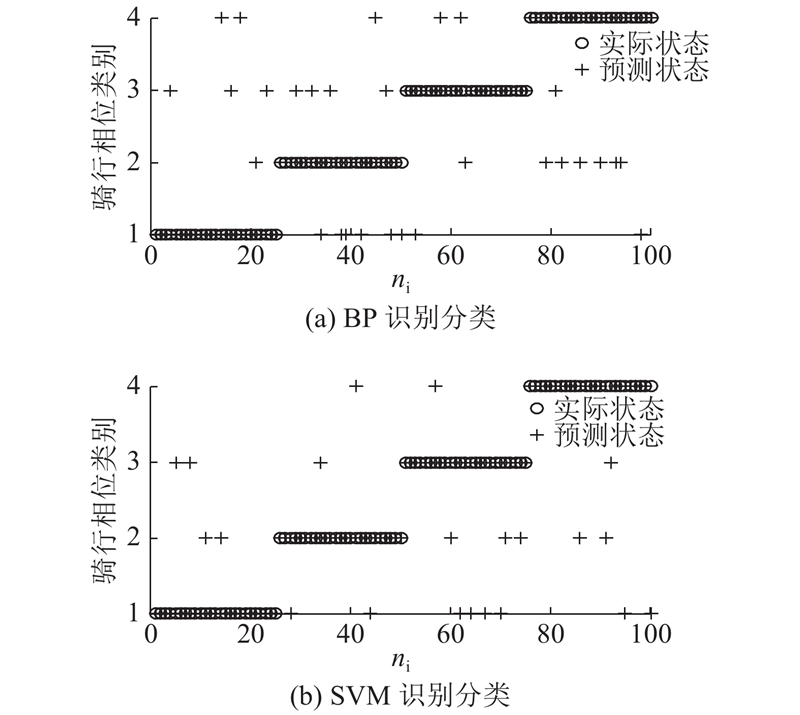

图 6  骑行相位分类结果

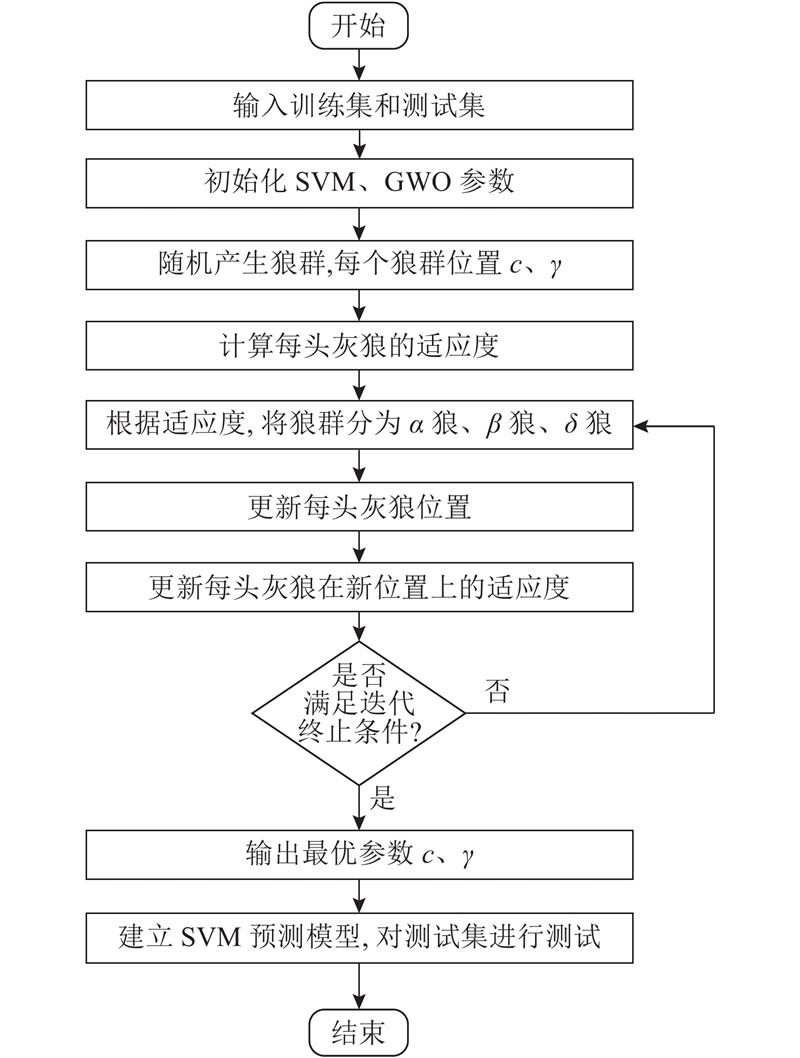

图 7  GWO优化SVM分类模型算法流程

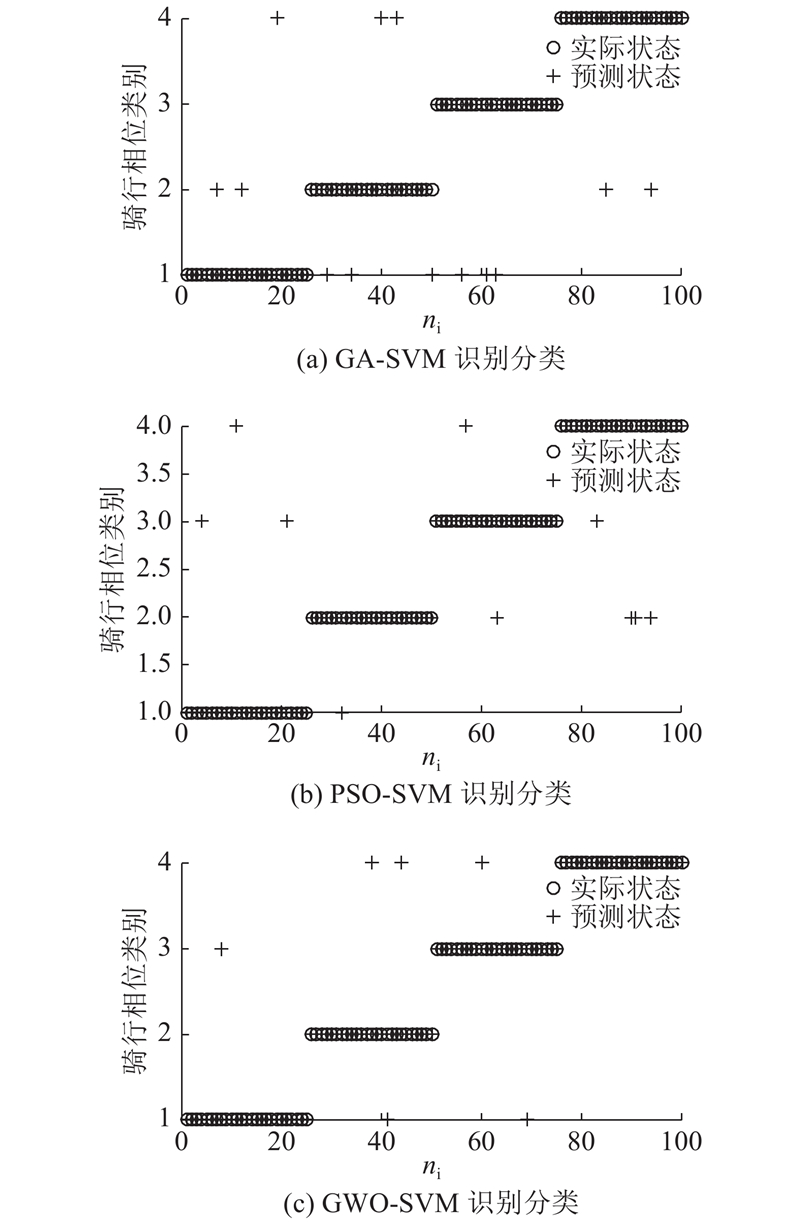

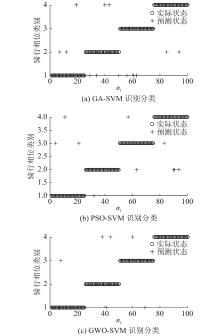

图 8  优化SVM识别结果
优化方法 参数设置 寻优结果 A /%
GA-SVM np = 20,
PC = 0.9,
Pm = 0.01
C = 44.602 7
γ = 25.110 6
87
PSO-SVM npar = 20,
c1 = 1.5,
c2 = 1.7
C = 53.835 4
γ = 22.018 6
90
GWO-SVM nw = 20 C = 20.246 2
γ = 35.184 2
94
表 4  优化SVM的识别结果
算法 nr pr /%
用力区 下缓冲区 放松区 上缓冲区 总和
BP 19 15 21 17 72 72
SVM 21 22 17 19 79 79
GA-SVM 22 20 22 23 87 87
PSO-SVM 22 24 23 21 90 90
GWO-SVM 24 22 23 25 94 94
表 5  各分类模型的识别结果
图 9  3种优化算法的适应度
