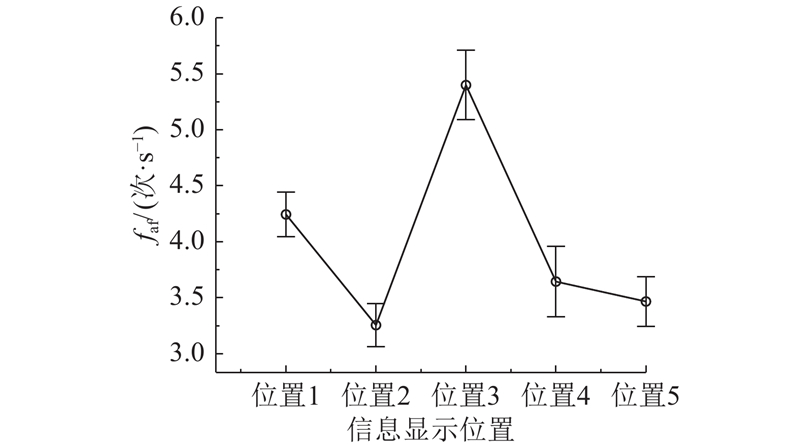

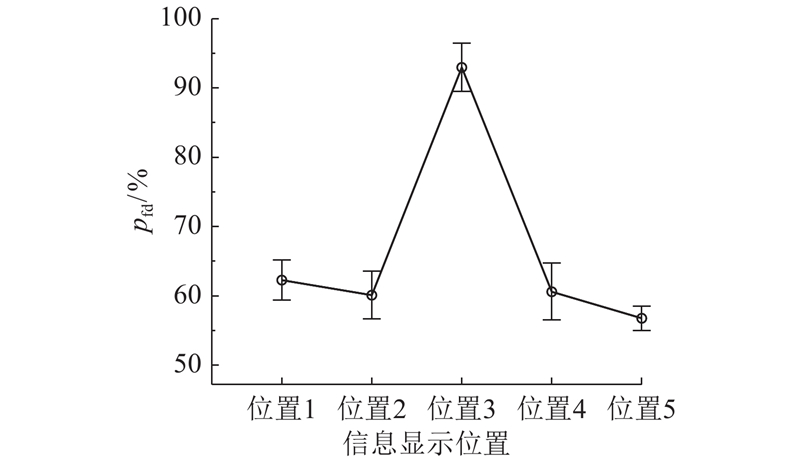

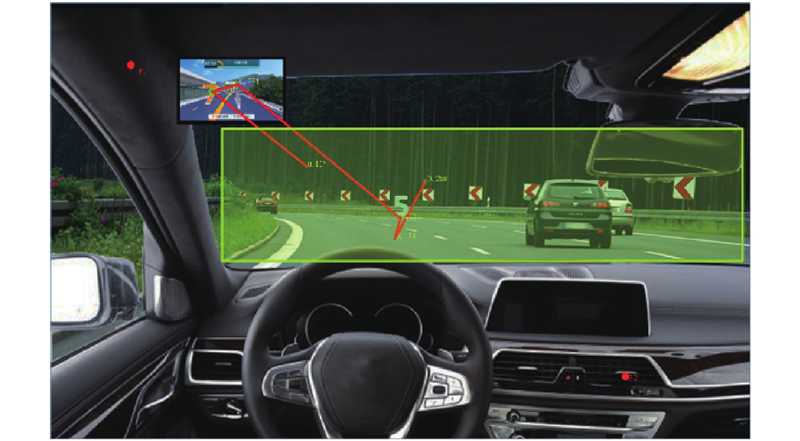

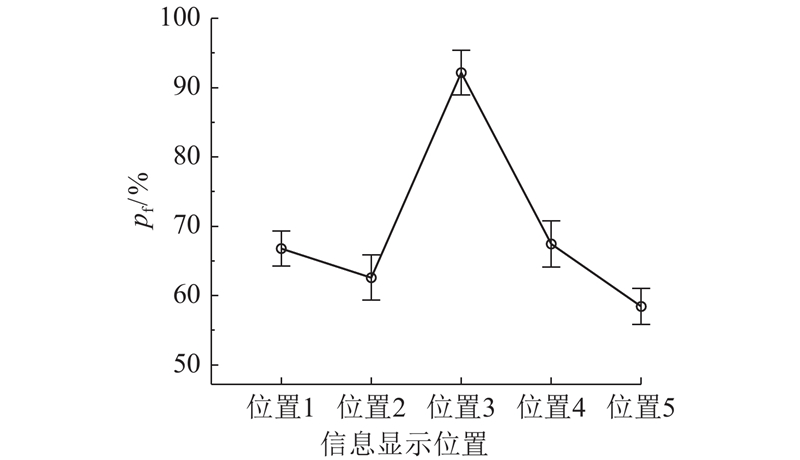

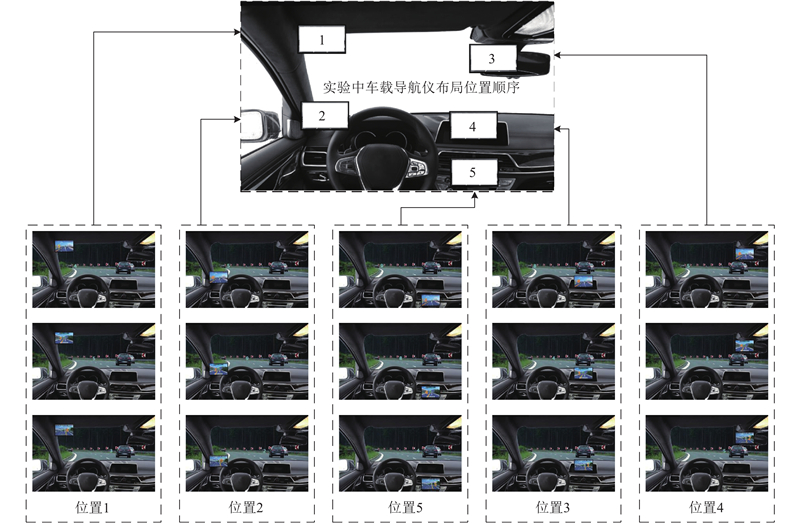

The position design of in-vehicle information display was analyzed in order to improve the safety of in-vehicle information display design. Five common positions of in-vehicle information display equipment were selected. The eye movement experiment was designed to simulate the task of information reading during driving by considering the relationship between driver's visual behavior and driving safety. The analysis and comparison of experimental data show that different in-vehicle information display positions will have a significant impact on the fixation frequency when the driver reads the information and the distribution of fixation data in the area of interest (AOI). The mean values of the fixation frequency, the percentage of fixation time in AOI and the percentage of fixations in AOI were analyzed and compared. The data of position 3 were highest in the 5 display positions selected in the experiment. Results showed that the participants were more focused on reading the information in position 3, and the visual deviation effect of the participants in position 3 was the least. Driver's visual deviation will cause distracted driving and threaten driving safety. The position design of in-vehicle information display will have a certain impact on driving safety.
Keywords：in-vehicle information display
;
position design
;
distracted driving
;
driving safety
;
eye movement experiment
WANG Long, YU Sui-huai, CHU Jian-jie. Position design of in-car information display based on eye movement analysis. Journal of Zhejiang University(Engineering Science)[J], 2020, 54(4): 671-677 doi:10.3785/j.issn.1008-973X.2020.04.005

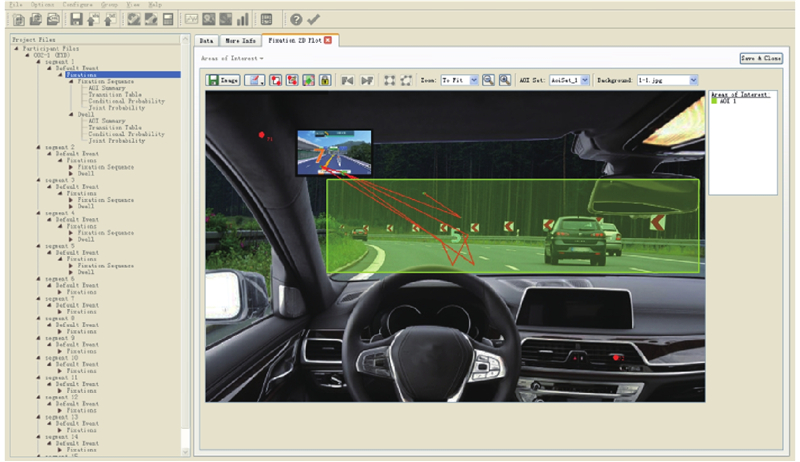

依据Victor等[18, 25]的研究，选取AOI内注视点数量（AOI fix-count）、AOI内注视点百分比（percentage of fix-count）、AOI内注视时间（AOI fix-duration time）、AOI内注视时间百分比（percentage of AOI fix-duration time）、AOI内注视点平均持续时间（average fixation duration in AOI）共5项数据导入SPSS中进行分析.
PETTITT M, BURNETT G, STEVENS A. Defining driver distraction [C]//The 12th World Congress on Intelligent Transport Systems. San Francisco: ITSA, 2005: 183-195.
SUNDEEN M. Along for the ride: reducing driver distractions. Final report of the driver focus and technology forum [C]// The National Conference of State Legislatures. Denver: Colorado State Legislatures, 2002.
DERAM P. Vehicle based detection of inattentive driving for integration in an adaptive lane departure warning system-distraction detection [D]. Stockholm: Royal Institute of Technology, KTH, 2004.
GREENBERG J, TIJERINA L, CURRY R, et al. Evaluation of driver distraction using an event detection paradigm [C]//Transportation Research Board Annual Meeting. Washington DC: [s. n.], 2003.
UNDERWOOD G, CHAPMAN P, CRUNDALL D, et al. The visual control of steering and driving: where do we look when negotiating curves [C]// Vision in Vehicles-VII. Amsterdam: Elsevier, 1999: 245-252.
GREEN P. Potential safety impacts of automotive navigation systems [C]//Automotive Land Navigation Conference. Ann Arbor: University of Michigan Transportation Research Institute, 1997.
GREEN P. Driver distraction, telematics design, and workload managers: safety issues and solutions [C]//Convergence International Congress and Exposition on Transportation Electronics. Detroit: SAE International, 2004.
TIHERINA L, JOHNSTON S, PARMER E, et al
Preliminary studies in haptic displays for rear end collision avoidance system and adaptive cruise control system applications
[J]. Cruise Control, 2000, 16 (5): 441- 600
TSIMHONI O, SMITH D, GREEN P
Address entry while driving: speech recognition versus a touch-screen keyboard
[J]. Human Factors: The Journal of the Human Factors and Ergonomics Society, 2004, 46 (4): 600- 610
