重塑高岭土渗透各向异性影响因素
Factors influencing permeability anisotropy of remolded kaolin
通讯作者:
收稿日期: 2018-02-4
Received: 2018-02-4
作者简介 About authors
余良贵(1992—),男,硕士生,从事高岭土渗透性研究.orcid.org/0000-0002-3811-3962.E-mail:
为了研究软土渗透各向异性,以重塑高岭土为研究对象,利用三轴渗流仪对重塑高岭土展开一系列渗流试验,研究电解质类型、浓度及固结压力对软黏土渗透各向异性的影响,并从微观角度解释其作用机理。研究发现:1)高岭土颗粒为扁平状结构,在一维固结下颗粒趋向于垂直于主应力方向排列,重塑高岭土竖向剖面孔隙面积大于水平向剖面孔隙面积,这2个因素共同导致渗透各向异性比(水平渗透系数与垂直渗透系数之比)大于1;2)渗透各向异性比随固结压力增大而减小,主要是因为竖向剖面大孔隙较多,压力作用下竖向剖面孔隙面积减小幅度大于水平剖面孔隙面积减小幅度;3)马来西亚高岭土在高纯水下为絮凝状结构,在盐溶液下为散凝状结构,在高纯水下土体竖向剖面大孔隙较多,而在盐溶液下竖向剖面孔隙和水平向剖面孔隙较为接近,导致在高纯水下测得的渗透各向异性比在盐溶液下的测量结果大;4)在本试验条件下,电解质类型、浓度对马来西亚高岭土渗透各向异性比的影响均较小。
关键词:
A series of experiments were conducted by triaxial permeameter to analysis the permeability anisotropy of soft soil. The effects of electrolyte type, ionic molar concentration and consolidation pressure on permeability anisotropy and the corresponding microscopic mechanisms were investigated, with remolded kaolin as the research object. Results showed that under one-dimensional consolidation, kaolin particles, most having flat structure, tended to orientate perpendicularly to the direction of the major principal stress and the pore area of remolded kaolin in vertical profile was much larger than that in horizontal profile. As a result, permeability anisotropy ratio (ratio of horizontal to vertical permeability coefficients) was greater than one. Permeability anisotropy ratio decreased with the increase of consolidation pressure, of which the main reason was that the amount of large pores, which had higher compressibility, in vertical profile was larger than that in horizontal profile. Malaysia kaolin has flocculated structure if prepared in ultrapure water, while has dispersed structure in saline solution. The measured permeability anisotropy ratio in ultrapure water was larger than that in saline solution, which was the consequence of more large pores in vertical profile than that in horizontal profile in ultrapure water. The vertical and horizontal profiles had similar amounts of large pores in saline solution. Test results also revealed that the electrolyte type and ionic molar concentration had little effect on the permeability anisotropy ratio of Malaysia kaolin.
Keywords:
本文引用格式
余良贵, 周建, 温晓贵, 徐杰, 罗凌晖.
YU Liang-gui, ZHOU Jian, WEN Xiao-gui, XU Jie, LUO Ling-hui.
多数学者通过测定土体水平渗透系数kh和垂直渗透系数kv,将两者的比值定义为渗透各向异性比
渗透各向异性问题虽已受到关注,但相关研究不够系统,理论成果不够丰富。针对该问题,利用GDS三轴渗透仪对重塑高岭土开展一系列试验,重点研究软土沉积历史(在不同液体环境下固结得到重塑土)和固结压力(对应不同孔隙大小)对渗透各向异性的影响,探讨渗透各向异性影响机理,为深入开展水力各向异性的相关研究奠定基础。
1. 试验简介与方案总述
1.1. 试验设备和土样类型选择
渗流试验设备可按外壁类型划分为柔性壁和刚性壁设备,以三轴渗透仪为代表的柔性壁设备能够有效降低侧壁渗漏,有助于提高试验精度;同时还能通过施加围压再现历史应力,能够准确测量土体的现场渗透系数[9]。因此采用三轴渗透仪进行渗流试验。
已有研究表明,影响软土渗透性的因素较多,如孔隙特性、液体性质等。孔隙特性(孔隙比和孔隙分布等)通过改变渗流通道的面积和数量来影响渗流效率[10-11];液体性质(极性与非极性、电解质类型、离子浓度等)通过改变软土结合水膜的厚度来影响渗流[9, 12];此外,黏土矿物成分与渗流液会发生化学反应,也使不同黏土矿物对溶液的响应有所不同[13]。原状软土的黏土矿物种类、比例不一,为降低土体成分对试验结果的干扰,拟采用仅含单一黏土矿物的土体进行试验。高岭土常被用于研究海底地质灾害和海底软土的动力特性[14-15],也常与砂土等材料混合模拟原位海洋土[15-16]。因此采用马来西亚高岭土制作重塑土样并开展一系列试验研究,以提高不同试样之间的可比性。
1.2. 重塑土制备过程
1)将马来西亚高岭土和超纯水(电阻率为15.0~18.2 MΩ·cm. 电导率约为0.53 μS/cm,pH为5.60~5.80)按照1:2的质量比,在大功率搅拌器下搅拌为均匀高岭土泥浆;2)将泥浆倒入180 mm×650 mm(直径×高度)有机玻璃桶中,静置后置于气压固结仪下分3级加载至300 kPa(加压板直径为100 mm,折算有效固结压力约为90 kPa),每级加载时间为48 h。制备完成后,重塑高岭土试样中含水率(水的质量分数)为55%~57%(沿高度方向分布),较为均匀,符合试验要求。
若研究液体性质(离子、浓度等)对渗透各向异性的影响,则需确保土体在沉积过程和试验过程中始终处于某类特定水环境下,具体制样过程参考文献[14]的制样方法。
1.3. 试验加载
将重塑高岭土在切样器下,沿着水平和竖直2个方向各切割出1个140 mm×70 mm(高度×直径)的圆柱体试样,用于测量
1)土体饱和:在100 kPa的反压下饱和,直至饱和度B>0.98。
2)土体固结:在有效围压为100 kPa下固结,直至每3 600 s反压排水体积小于100 mm3。
需要注意的是,研究液体性质等影响因素时,需在试验装置中增加隔离器,防止盐溶液腐蚀控制器。研究固结压力对渗透各向异性影响的试验中,在步骤3)完成后,根据需要的压力值继续重复步骤2)、3)。
1.4. 试验方案
分析探讨渗透系数主要影响因素(孔隙特性与液体性质等)对渗透各向异性存在影响的可能性。孔隙是构成渗流的主要通道,对渗透系数k影响较大[10-11],在试验过程中一般通过施加固结压力来改变孔隙特性。土体受压后颗粒会发生定向排列,可能对
表 1 重塑高岭土渗透各向异性试验方案
Tab.1
水平向试样 | 竖向试样 | 编号说明 | 液体类型 | cB/(mol∙L−1) | p/kPa |
S1HP1 | S1VP1 | S1代表试样1;H和V分别代表水平方向和竖直方向;P代表固结压力,P1代表100 kPa固结压力,依此类推 | 纯水 | − | 100 |
S1HP2 | S1VP2 | 200 | |||
S1HP3 | S1VP3 | 300 | |||
S2HP1 | S2VP1 | S2代表试样2;试验在氯化钠溶液下开展;其余参数同上 | 氯化钠溶液 | 0.10 | 100 |
S2HP2 | S2VP2 | 200 | |||
S2HP3 | S2VP3 | 300 | |||
S3HP1 | S3VP1 | S3代表试样3;试验在氯化钾溶液下开展;其余参数同上 | 氯化钾溶液 | 0.10 | 100 |
S3HP2 | S3VP2 | 200 | |||
S3HP3 | S3VP3 | 300 | |||
S4HP1 | S4VP1 | S4代表试样4;试验在氯化钙溶液下开展;其余参数同上 | 氯化钙溶液 | 0.10 | 100 |
S4HP2 | S4VP2 | 200 | |||
S4HP3 | S4VP3 | 300 | |||
S5Hc0.01 | S5Vc0.01 | S5~S7分别代表试验在NaCl、KCl、CaCl2溶液下开展;c代表浓度;其余参数同上 | 氯化钠溶液 | 0.01 | 100 |
S6Hc0.01 | S6Vc0.01 | 氯化钾溶液 | 0.01 | 100 | |
S7Hc0.01 | S7Vc0.01 | 氯化钙溶液 | 0.01 | 100 |
2. 试验数据采集和整理
式中:
如表2所示为试样S1HP1和S3HP1在单位时间(3 600 s)内测得的
表 2 S1HP1和S3HP1单位时间内进出水量差和水平渗透系数
Tab.2
t/h | S1HP1 | S3HP1 | t/h | S1HP1 | S3HP1 | t/h | S3HP1 | |||||||||
| kh/(10−7 cm∙s−1) | | kh/(10−7 cm∙s−1) | | kh(10−7 cm∙s−1) | | kh(10−7 cm∙s−1) | | kh/(10−7 cm∙s−1) | |||||||
注:S1HP1的单位时间内流量差和渗透系数较为稳定,试验时间可适当缩短;而S3HP1可适当增加试验时间 | ||||||||||||||||
1 | −0.79 | 22.91 | −3.42 | 16.87 | 21 | 1.18 | 21.12 | 0.00 | 13.94 | 41 | −1.87 | 13.86 | ||||
2 | −0.15 | 21.52 | −2.64 | 16.49 | 22 | 0.55 | 21.26 | −0.75 | 14.15 | 42 | −0.34 | 14.21 | ||||
3 | −0.15 | 21.39 | −5.39 | 16.34 | 23 | 0.74 | 21.24 | −1.79 | 14.01 | 43 | −0.66 | 14.80 | ||||
4 | −0.08 | 21.40 | −4.14 | 16.21 | 24 | −0.70 | 21.08 | −2.75 | 14.03 | 44 | −0.37 | 15.55 | ||||
5 | −0.62 | 21.36 | −5.60 | 15.86 | 25 | −0.35 | 21.13 | −2.76 | 14.01 | 45 | −0.99 | 15.59 | ||||
6 | 1.29 | 21.27 | 2.13 | 15.87 | 26 | 0.43 | 21.18 | −2.74 | 14.12 | 46 | −0.88 | 15.71 | ||||
7 | −0.27 | 21.51 | 2.91 | 15.92 | 27 | 0.67 | 21.09 | −0.11 | 14.29 | 47 | −0.16 | 15.43 | ||||
8 | −1.26 | 21.48 | 1.29 | 15.95 | 28 | −0.04 | 21.14 | 0.34 | 14.38 | 48 | −0.96 | 15.27 | ||||
9 | −0.74 | 21.28 | 0.93 | 15.93 | 29 | − | − | −2.37 | 14.29 | 49 | −0.27 | 15.25 | ||||
10 | −1.40 | 21.05 | 0.36 | 15.87 | 30 | − | − | −1.21 | 13.81 | 50 | −0.44 | 14.84 | ||||
11 | −0.12 | 21.16 | −0.52 | 15.77 | 31 | − | − | −4.00 | 13.59 | 51 | −1.33 | 14.57 | ||||
12 | −0.71 | 20.90 | −1.34 | 15.67 | 32 | − | − | 0.72 | 13.61 | 52 | −0.68 | 14.39 | ||||
13 | −1.03 | 20.82 | −1.53 | 15.37 | 33 | − | − | −0.06 | 13.69 | 53 | −1.31 | 14.18 | ||||
14 | 0.16 | 20.88 | −1.71 | 15.15 | 34 | − | − | −0.65 | 13.68 | 54 | −0.81 | 14.07 | ||||
15 | −0.76 | 20.69 | −1.61 | 15.10 | 35 | − | − | −0.47 | 13.84 | 55 | −0.82 | 13.94 | ||||
16 | 0.52 | 20.75 | −2.71 | 14.87 | 36 | − | − | −0.53 | 13.81 | 56 | −1.16 | 13.98 | ||||
17 | 0.40 | 20.86 | −1.16 | 14.63 | 37 | − | − | 0.00 | 13.94 | 57 | −0.69 | 14.16 | ||||
18 | 0.44 | 20.85 | −12.57 | 14.29 | 38 | − | − | −0.75 | 14.15 | 58 | −3.09 | 14.29 | ||||
19 | 0.20 | 20.95 | −10.85 | 13.87 | 39 | − | − | −1.79 | 14.01 | 59 | −1.48 | 14.25 | ||||
20 | 1.34 | 21.07 | −0.59 | 13.80 | 40 | − | − | −2.75 | 14.03 | 60 | −2.23 | 14.12 |
根据以上规则选取稳定的渗流阶段,可得到连续24 h内流经土体的总流量,但计算渗透系数还需有试样尺寸数据。而在试验过程中,试样尺寸也在变化,因此有必要对尺寸作出合理假定。
1)假定在试验过程中试样径向应变和轴向应变的数值大小相等。因三轴渗透仪无轴向位移传感器,故无法准确读取试样尺寸。参考GDS三轴渗流仪内置计算方法,即径向应变与轴向应变大小相等,可通过反压排水体积计算得到固结后试样尺寸。本试验下所有试样最大径向应变不超过6%,变化幅度较小,因此该假定合理。

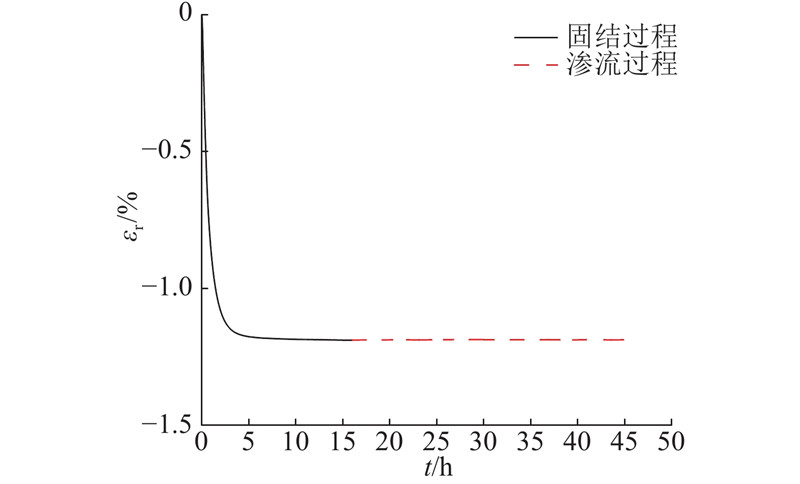

2)假定渗流过程中试样尺寸保持不变。渗流过程中试样尺寸不断变化,很难确定渗流稳定阶段下试样的平均尺寸。如图1所示为S1HP1在固结和渗流过程中的径向应变曲线,渗流开始阶段试样的径向应变为−3.648 6%,渗流结束后土体径向应变为−3.643 9%,两者差值较小,因此尽管渗流过程中试样尺寸有变化,但变化较小,假定渗流过程中土体尺寸保持不变对结果影响不大。图中,εr为径向应变.
图 1
图 1 S1HP1固结和渗流过程中径向应变曲线
Fig.1 Radial strain curve of S1HP1 in process of consolidation and seepage
根据上述渗流数据选取方法和处理方式,可以得到各组试验数据,如表3所示。
表 3 各压力下不同溶液中制取的重塑高岭土的渗流各向异性试验数据
Tab.3
土样 | 离子 种类 | cB/ (mol∙L−1) | p/kPa | (10−7 cm∙s−1) | (10−7 cm∙s−1) | |
S1 | 超纯水 | − | 100 | 21.19 | 15.28 | 1.39 |
200 | 16.12 | 12.24 | 1.32 | |||
300 | 12.38 | 10.27 | 1.21 | |||
S2 | 钠离子 | 0.10 | 100 | 12.87 | 10.75 | 1.20 |
200 | 9.90 | 8.46 | 1.17 | |||
300 | 7.16 | 6.72 | 1.07 | |||
S3 | 钾离子 | 0.10 | 100 | 14.86 | 12.31 | 1.21 |
200 | 10.57 | 9.17 | 1.15 | |||
300 | 8.56 | 7.73 | 1.11 | |||
S4 | 钙离子 | 0.10 | 100 | 10.77 | 9.39 | 1.15 |
200 | 8.41 | 7.44 | 1.13 | |||
300 | 5.95 | 5.55 | 1.07 | |||
S5 | 钠离子 | 0.01 | 100 | 13.66 | 11.56 | 1.18 |
S6 | 钾离子 | 0.01 | 100 | 14.07 | 11.71 | 1.20 |
S7 | 钙离子 | 0.01 | 100 | 11.89 | 9.80 | 1.21 |
3. 试验结果与影响机制分析
3.1. 水力各向异性总述
由表3可以看出,重塑高岭土水力各向异性具有2个特点:1)重塑土高岭土渗透性具有各向异性,且水平渗透系数均大于竖向渗透系数;2)重塑高岭土的渗透各向异性比波动范围窄,
图 2
3.2. 电解质类型的影响与分析

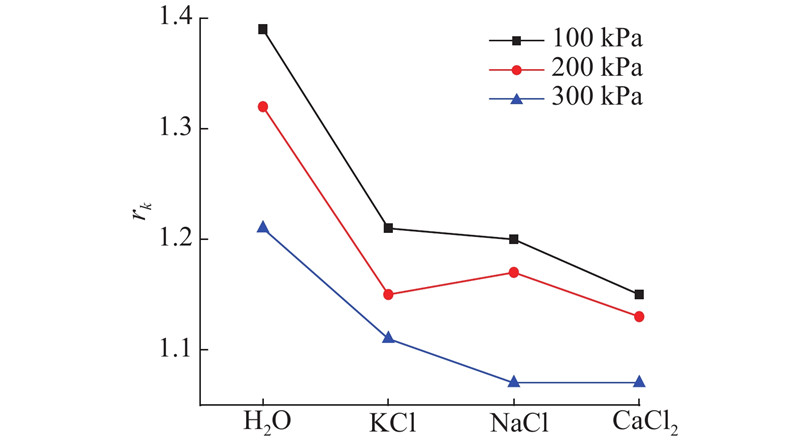

如图3所示为试样在不同溶液下的
图 3
图 3 各压力下不同溶液中制取的重塑高岭土的渗透各向异性比
Fig.3 Permeability anisotropy ratios of remolded kaolin prepared with different solutions under various pressures
Wang等[25]将高岭土颗粒聚集状态划分为絮凝、散凝和抗絮凝3类,其中在絮凝状态下颗粒接触方式以边面(E-F)结构和边边(E-E)结构为主,在散凝状态下以面面(F-F)方式接触。Pillai等[20]认为,在纯水条件下高岭土颗粒间以F-F方式接触,在盐溶液下则以E-F接触方式为主。但Wang等[25]提出,未经洗涤高岭土的水溶液pH一般低于等电点IEP(高岭土的电动势为0时所对应的pH),当pH低于等电点时,高岭土颗粒按E-F方式接触;当pH低于等电点时,往溶液中加入电解质(盐),高岭土双电层中电荷密度增加,颗粒间的排列受到层间斥力影响,由E-F接触方式逐渐向F-F接触方式转变。即Wang等[25]认为,未洗涤过的高岭土颗粒在盐溶液下以F-F接触为主,在纯水下以E-F接触方式为主。
图 4
对照搅拌法利用聚合氯化铝(絮凝剂)和六偏磷酸钠(分散剂)2种试剂对高岭土颗粒排列方式的影响,定性分析在高纯水和盐溶液下的土颗粒聚集状态。分别制备浓度为0.10 mol/L的聚合氯化铝和浓度为0.10 mol/L的六偏磷酸钠溶液300 mL,分别加入150 g高岭土并用调土刀搅拌,结果发现六偏磷酸钠(分散剂)溶液下的高岭土易于搅拌,而聚合氯化铝(絮凝剂)下的高岭土颗粒聚集在一起,搅拌困难。对比发现,在盐溶液下的搅拌效果和在分散剂下的搅拌效果接近,而在超纯水下的搅拌效果与在絮凝剂下的搅拌效果接近。

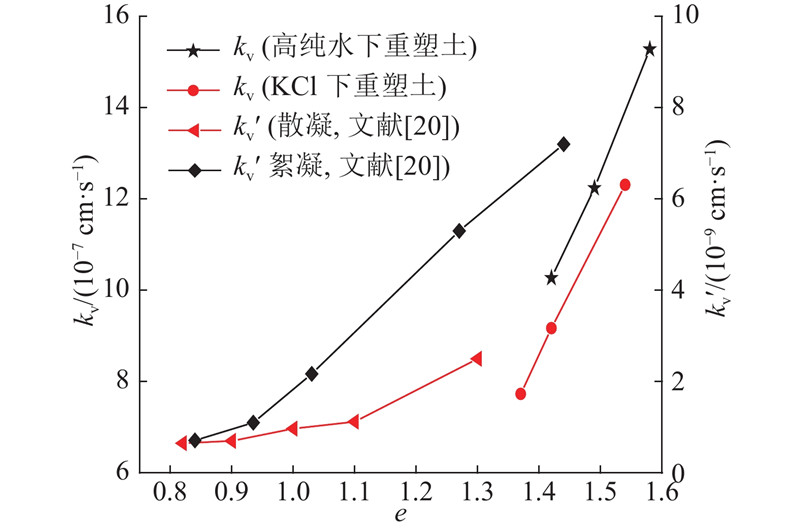

图 5
图 5 不同微观结构下高岭土孔隙比和竖向渗透系数关系曲线
Fig.5 Relationship between pore ratio and vertical permeability coefficient of kaolin under different microstructures
图 6
图 6 在浓度为0.10 mol/L的KCl溶液和高纯水下制取的重塑高岭土的微观示意图
Fig.6 Sketch of microstructures of remolded kaolin prepared with 0.10 mol/L KCl solution and ultrapure water
综上所述,高纯水下试样(偏絮凝)的
3.3. 固结压力的影响与分析
如图7所示为在浓度为0.10 mol/L盐溶液和超纯水条件下得到的重塑高岭土
图 7
图 7 不同溶液下重塑高岭土渗透各向异性比和固结压力关系曲线
Fig.7 Relationship between permeability anisotropy ratio of remolded kaolin and consolidation pressure at different solutions
如图8所示为在高纯水和浓度为0.10 mol/L的KCl溶液下制取的重塑土的SEM二值化图。图中,白色部分为孔隙,黑色部分为土颗粒。由图可以看出,高岭土竖向剖面的孔隙比水平向剖面的孔隙多,且竖向剖面有明显的大孔隙。由此可见,重塑高岭土竖向孔隙和水平向孔隙面积的不同也是导致
图 8
图 8 在高纯水和浓度为0.10 mol/L的KCl溶液下制取的重塑高岭土(100 kPa)的SEM二值化图
Fig.8 SEM binary images of remolded kaolin prepared with ultrapure water and 0.10 mol/L KCl solution under consolidation pressure of 100 kPa
图 9
图 9 在高纯水和浓度为0.10 mol/L的KCl溶液下制取的重塑高岭土(300 kPa)的SEM二值化图
Fig.9 SEM binary images of remolded kaolin prepared with ultrapure water and 0.10 mol/L KCl solution under consolidation pressure of 300 kPa
利用PCAS软件统计在高纯水下制取的重塑高岭土孔隙分布,定量分析重塑土的孔隙随固结压力变化规律。不同固结压力下重塑土孔隙分布如表4所示。表中,S为孔隙面积,
表 4 在高纯水中制取的重塑高岭土在固结压力为100、300 kPa下的孔隙分布表
Tab.4
S/像素 | 竖向孔隙数量 | 水平向孔隙数量 | |||
100 kPa | 300 kPa | 100 kPa | 300 kPa | ||
0~50 | 951 | 381 | 872 | 349 | |
50~200 | 149 | 64 | 175 | 40 | |
200~500 | 31 | 9 | 24 | 2 | |
500~1 000 | 9 | 0 | 1 | 0 | |
1 000~2 000 | 4 | 0 | 0 | 0 | |
>2 000 | 1 | 0 | 0 | 0 | |
合计 | 1 145 | 454 | 1 072 | 391 | |
| 47.1 | 34.02 | 35.75 | 28.26 |
3.4. 离子浓度的影响与分析

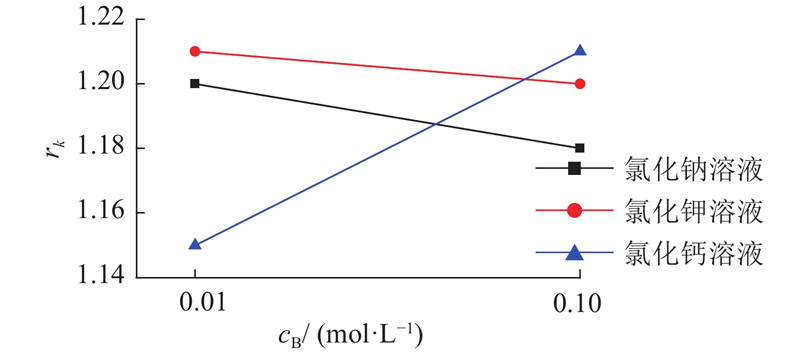

如图10所示为在浓度分别为0.01、0.10 mol/L的各类盐溶液下制取得到高岭土的rk与lg cB曲线图。由图可以看出,当盐溶液浓度从0.01 mol/L增加到0.10 mol/L,氯化钙溶液下的rk变化最大,但其变化幅度仍不超过5%。因此可认为离子浓度对重塑土的rk影响较小。
图 10
图 10 不同溶液下制取的重塑高岭土的渗透各向异性比和离子浓度对数曲线
Fig.10 Curves between permeability anisotropy ratio and logarithm of ion concentration of remolded kaolin prepared with different solutions
表 5 不同溶液下制取的重塑高岭土液塑限
Tab.5
溶液类型 | 0.01 mol/L | 0.10 mol/L | |||
ωL | ωP | ωL | ωP | ||
超纯水 | 65.35 | 40.04 | 65.35 | 40.04 | |
氯化钠 | 63.99 | 42.61 | 59.67 | 40.25 | |
氯化钾 | 63.36 | 42.36 | 59.22 | 40.33 | |
氯化钙 | 63.12 | 41.03 | 58.89 | 40.18 |
4. 结 论
(1)重塑高岭土水平向与竖向渗透系数比为1.07~1.39,波动区间相对较窄。重塑高岭土
(2)选用的高岭土在超纯水下表现为偏絮凝结构,在电解质溶液下表现为偏散凝结构。试验结果表明在高纯水下制取的高岭土的
(3)随着固结压力增大,土体中大孔隙率先被压缩,小孔隙受到的影响较小。竖向剖面上的大孔隙较多,因而压力增大时受到的影响更显著,致使kh下降幅度大于kv下降幅度,导致
(4)在本试验条件下,电解质类型和离子浓度对
