Hydrodynamic performance of two vertical plates penetrating system mounted over stepped bottom |
Chen WANG1( ),Zheng-zhi DENG1,*( ),Da-wei MAO2 |
1. Ocean College, Zhejiang University, Zhoushan 316021, China 2. Power China Zhongnan Engineering Co. Ltd, Changsha 410014, China |
|
|

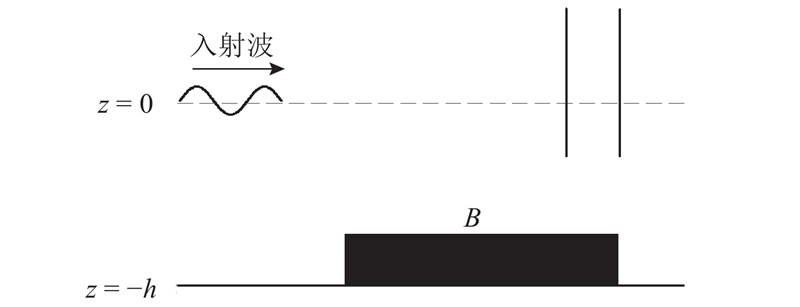

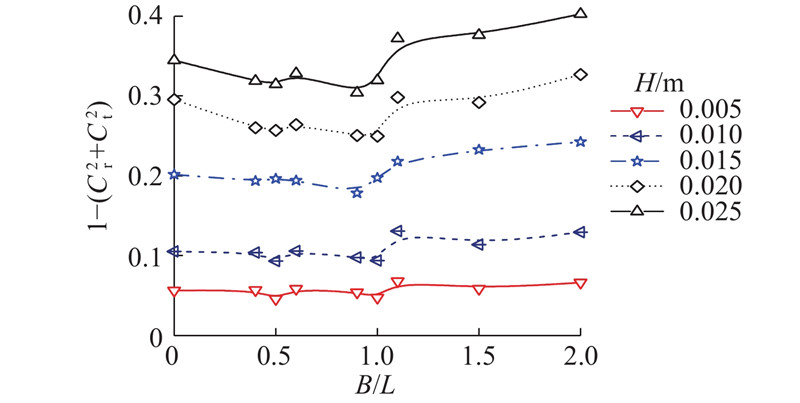

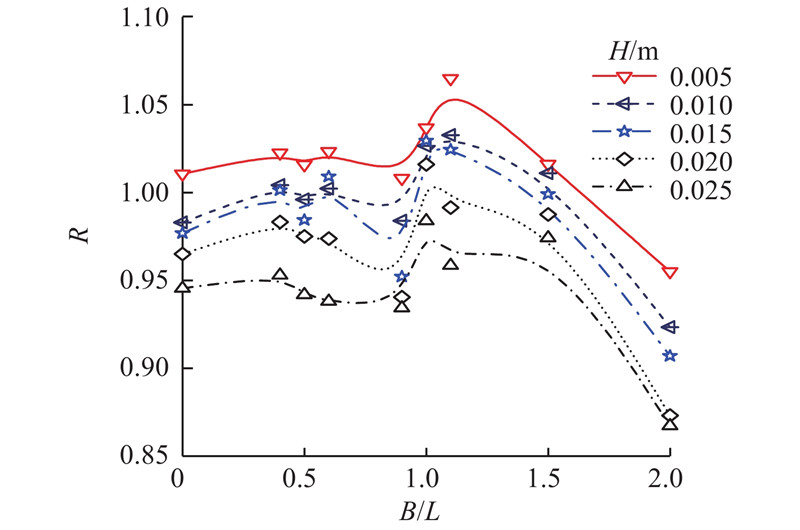

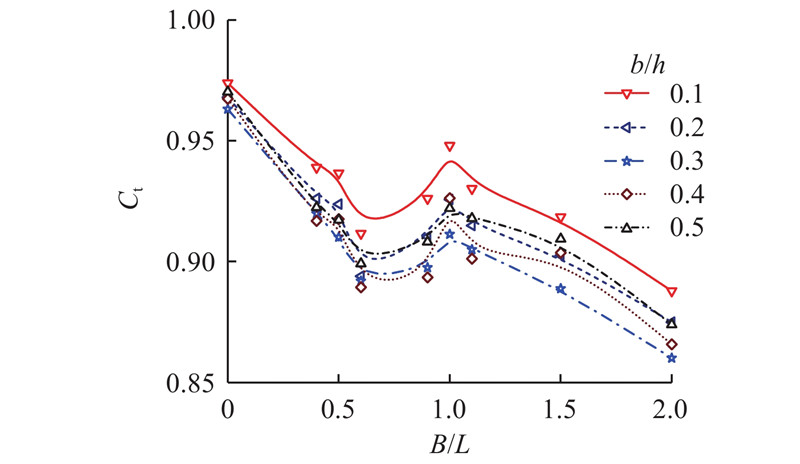

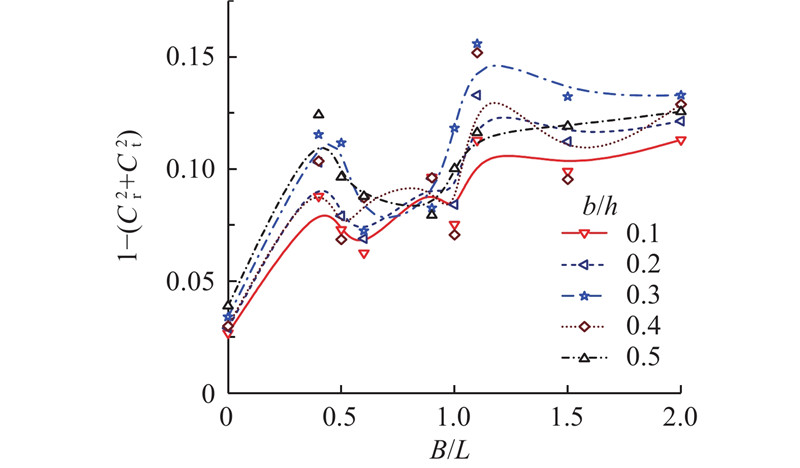

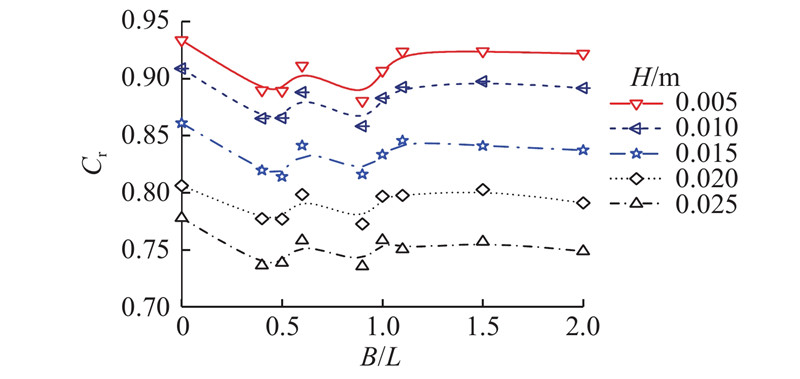

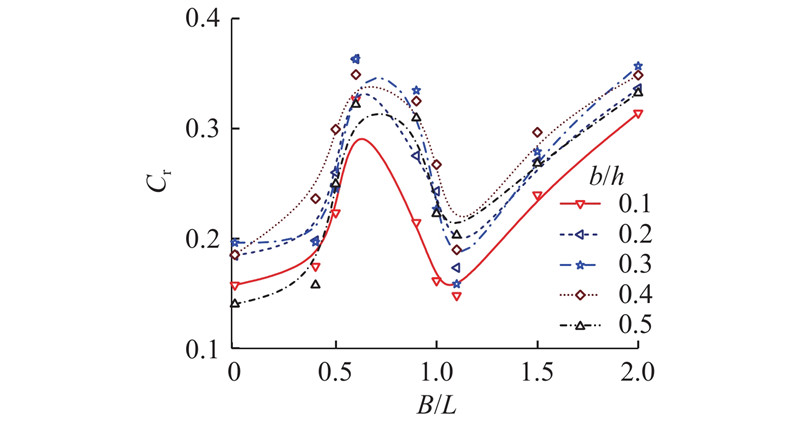

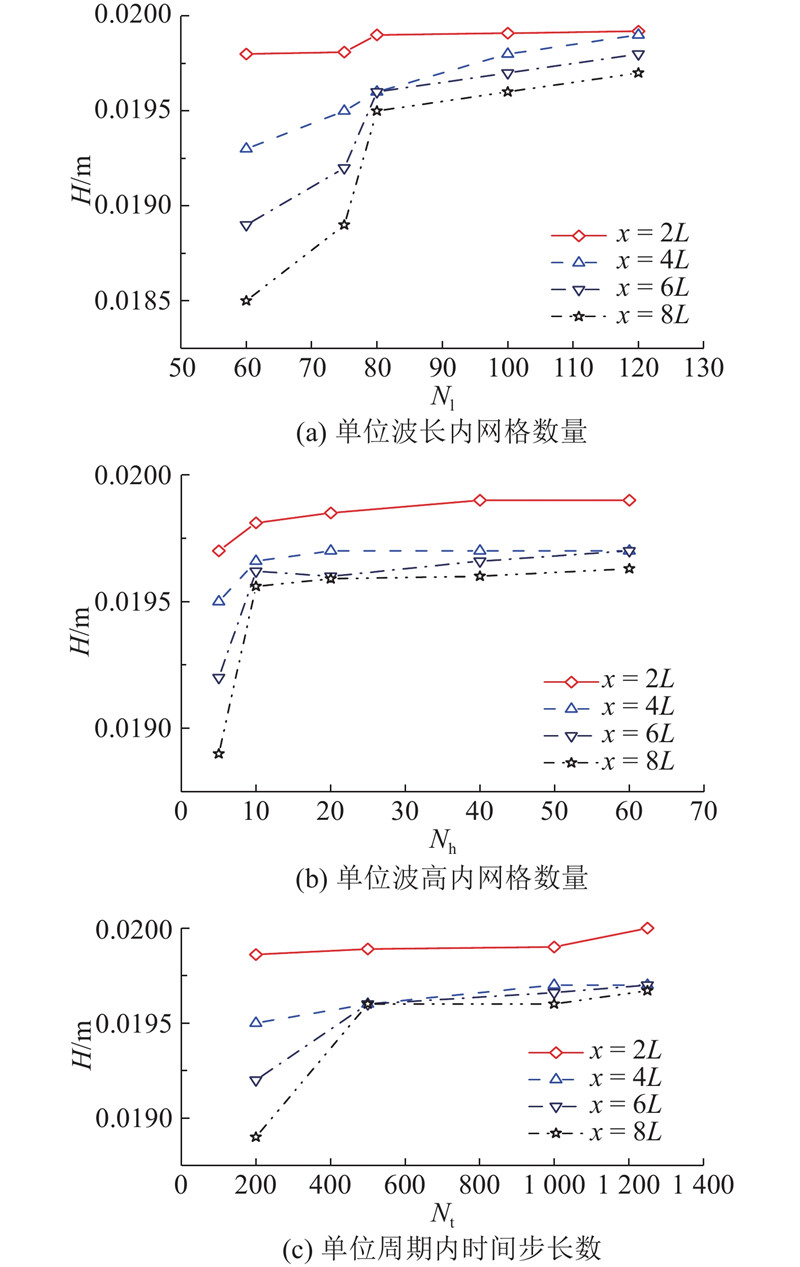

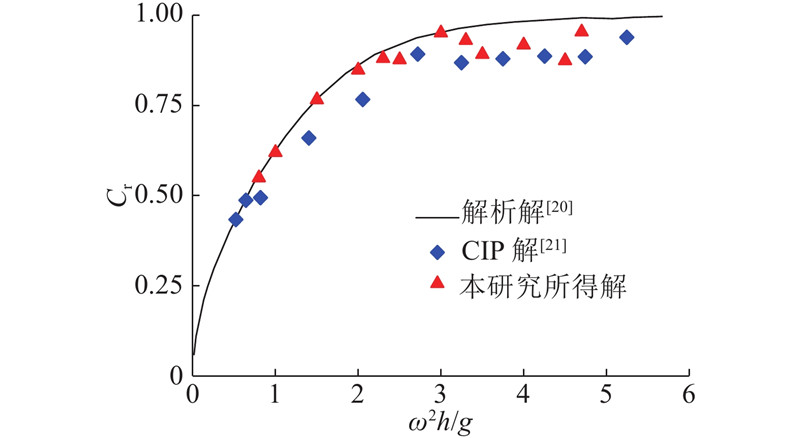

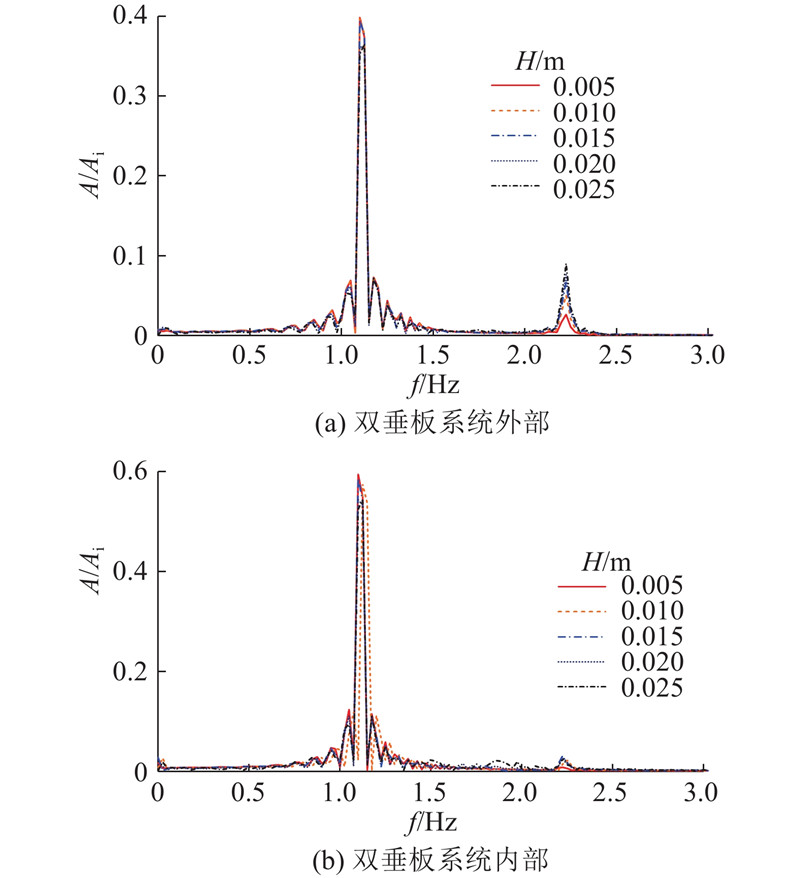

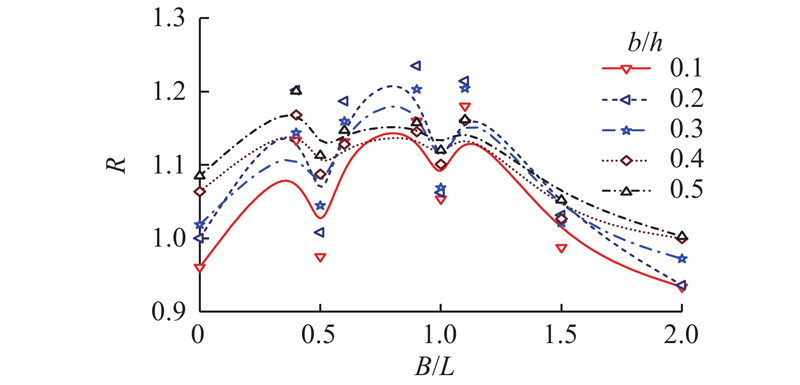

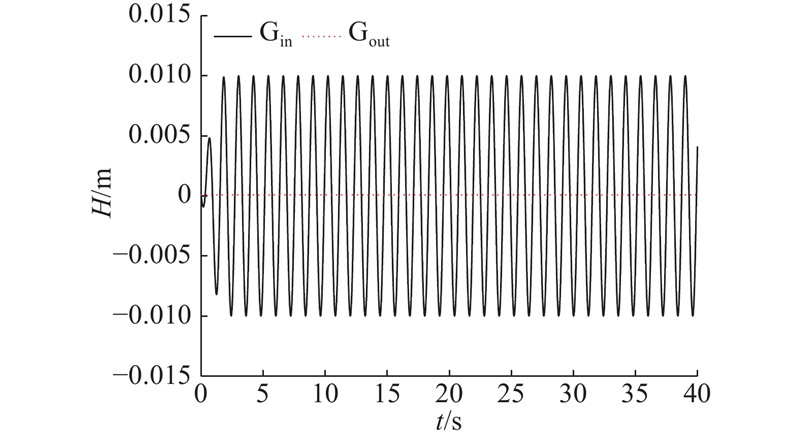

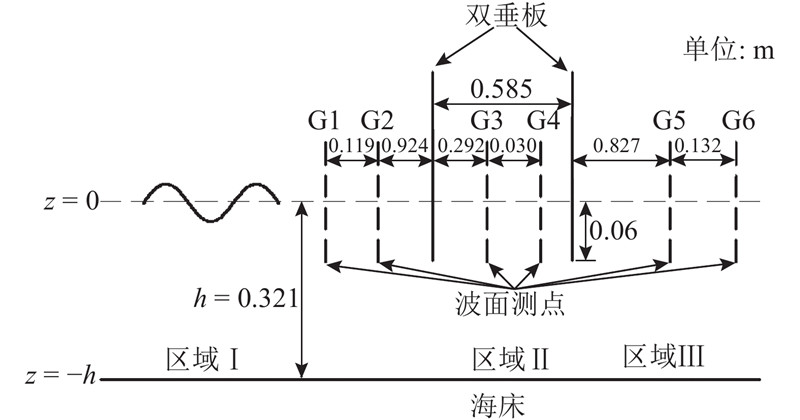

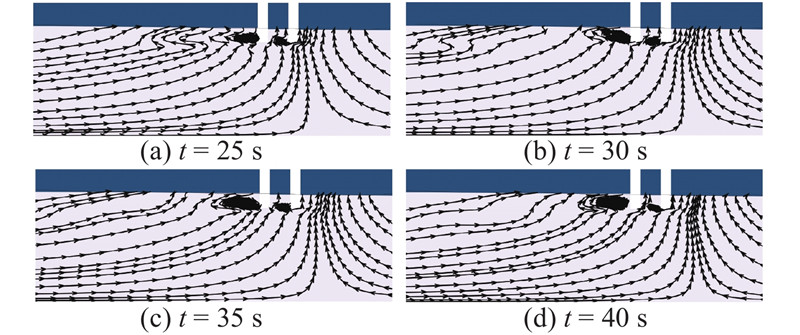

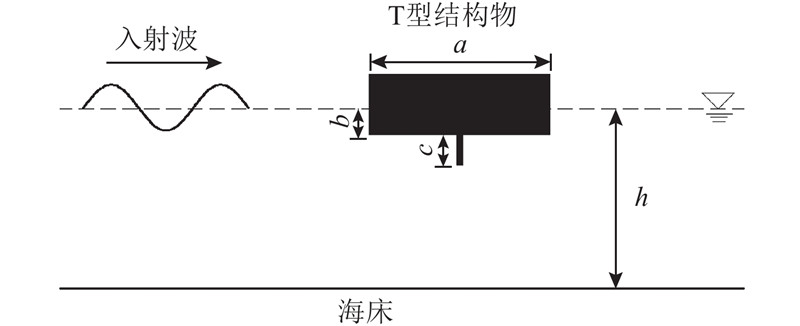

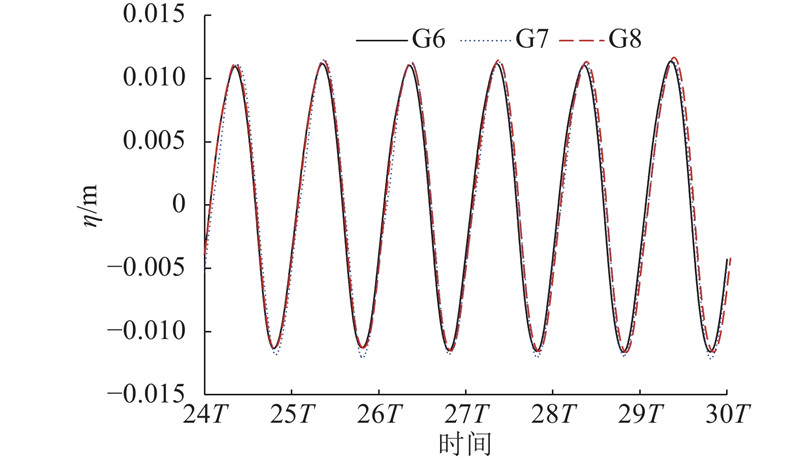

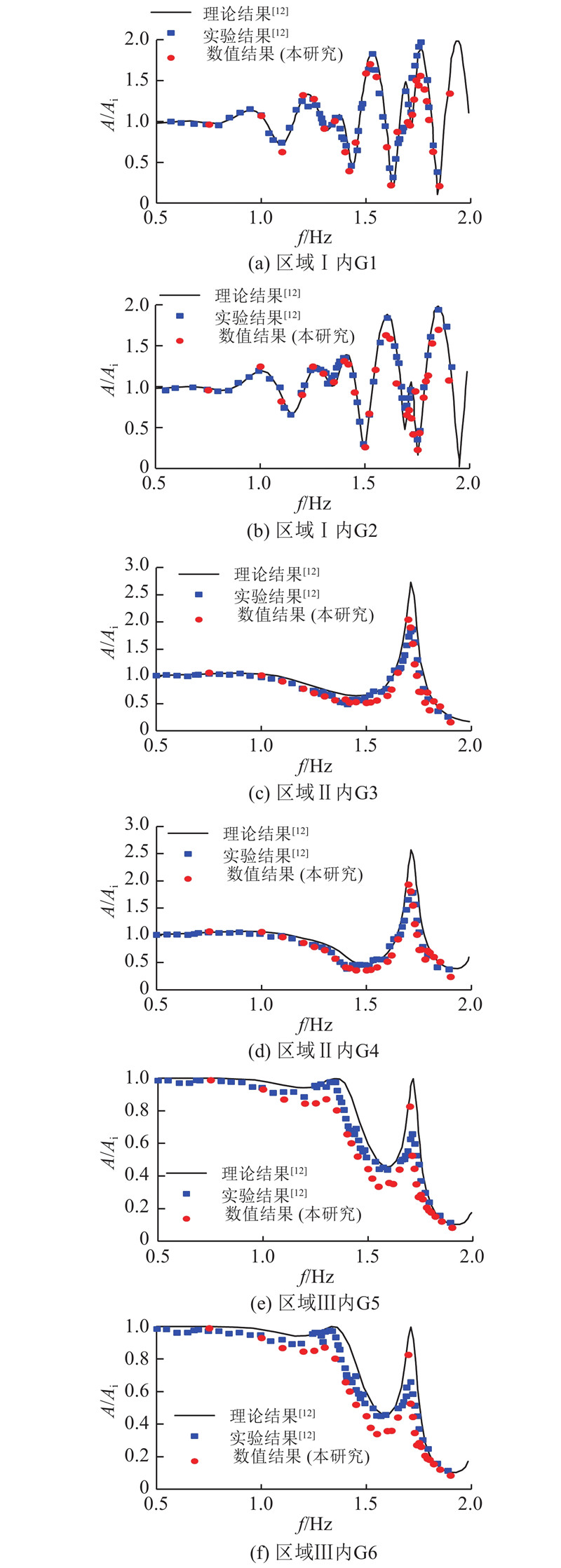

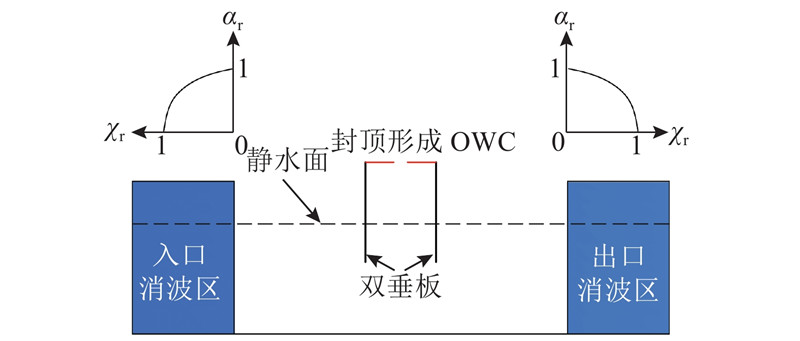

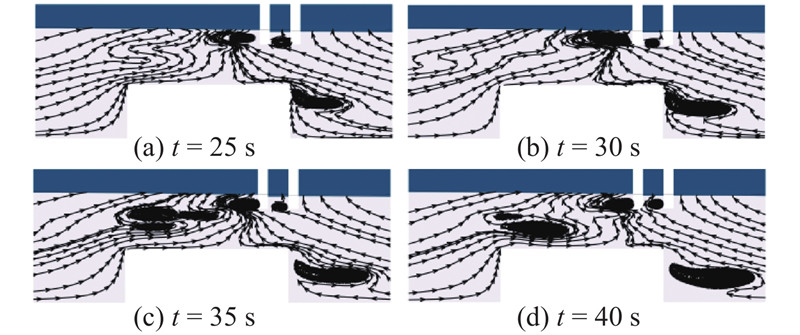

Abstract The hydrodynamic performance of regular wave-two vertical plates-topography coupled system, comprised by two vertical penetrating plates mounted over a stepped bottom (submerged breakwater) with different dimensions, were analyzed by the use of the toolbox waves2Foam based on the open source software OpenFOAM. The effects of the gap between the two plates and the dimension of the stepped bottom on the hydrodynamic characteristics, such as reflection and transmission coefficients, viscous dissipation ratio of wave energy, and relative oscillating amplitude of the free surface between the two plates, were examined systematically under the action of different incident waves. In addition, the nonlinear effect of wave on the hydrodynamic parameters was investigated. Results showed that a proper dimension of the stepped bottom, for example that the ratio of topography length to wavelength was approximately equal to 1.0, was beneficial for reducing the reflection and transmission coefficients and obtaining a satisfactory viscous dissipation ratio. The presence of the stepped bottom enhances the oscillating amplitude of the free surface between the two plates and effectively improves the capacity of capturing wave energy. Furthermore, the increase of wave height leads to the reduction of the reflection and transmission coefficients, the enhancement of the viscous dissipation ratio, and the drop of the oscillating amplitude of the free surface between the two plates.
|
Received: 04 April 2018
Published: 21 February 2019
|
|
Corresponding Authors:
Zheng-zhi DENG
E-mail: cqhfwchen@zju.edu.cn;zzdeng@zju.edu.cn
|
台阶式地形上双垂板透空系统的水动力学特性
基于开源计算流体动力学软件OpenFOAM中的工具箱waves2Foam,通过在双垂板透空系统下方布置不同尺寸的台阶式地形(潜堤),对规则波-双垂板-地形耦合系统的水动力学特性进行数值分析. 在不同入射波况作用下,研究双垂板的间距和台阶式地形的尺寸对结构系统前/后的反/透射系数、波能的黏性耗散率及双垂板间的液面相对振动幅值等水动力参数的影响. 此外,探究波浪非线性对相关水动力参数的影响. 结果表明:合理布置台阶式地形尺寸,如令地形的长度与波长的比值约为1.0,能够有效减小双垂板系统的波能反射和透射,并可获得适中的黏性耗散率;地形的存在会加剧双垂板间的液面振动幅度,有效提升两板间的波能捕获能力;波高的增大会造成反射和透射系数的减小,增大黏性耗散率,降低板间液面振动幅值.
关键词:
OpenFOAM,
双垂板,
台阶式地形,
黏性耗散,
波浪非线性
|
|
[1] |
VICINANZA D, CONTESTABILE P, N?RGAARD J Q H, et al Innovative rubble mound breakwaters for overtopping wave energy conversion[J]. Coastal Engineering, 2014, 88 (3): 154- 170
|
|
|
[2] |
LóPEZ I, ANDREU J, CEBALLOS S, et al Review of wave energy technologies and the necessary power-equipment[J]. Renewable and Sustainable Energy Reviews, 2013, 27 (6): 413- 434
|
|
|
[3] |
VICINANZA D, N?RGAARD J H, CONTESTABILE P, et al Wave loadings acting on overtopping breakwater for energy conversion[J]. Journal of Coastal Research, 2013, 118 (3): 1696- 1674
|
|
|
[4] |
宁德志, 石进, 滕斌, 等 岸式振荡水柱波能转换装置的数值模拟[J]. 哈尔滨工程大学学报, 2014, (7): 789- 794 NING De-zhi, SHI Jin, TENG Bin, et al Numerical simulation of a land-based oscillating water column wave energy conversion device[J]. Journal of Harbin Engineering University, 2014, (7): 789- 794
|
|
|
[5] |
WIEGEL R L Transmission of waves past a rigid vertical thin barrier[J]. Journal of the Waterways and Harbors Division, 1960, 86: 1- 12
|
|
|
[6] |
KRIEBEL D L, BOLLMANN C A. Wave transmission past vertical wave barriers [C]// Coastal Engineering. Orlando : ASCE, 1996: 2470–2483.
|
|
|
[7] |
LOSADA I J, LOSADA M A, ROLDáN A J Propagation of oblique incident waves past rigid vertical thin barriers[J]. Applied Ocean Research, 1992, 14 (3): 191- 199
|
|
|
[8] |
PORTER R, EVANS D V Complementary approximations to wave scattering by vertical barriers[J]. Journal of Fluid Mechanics, 1995, 294: 155- 180
|
|
|
[9] |
USHA R, GAYATHRI T Wave motion over a twin-plate breakwater[J]. Ocean Engineering, 2005, 32 (8): 1054- 1072
|
|
|
[10] |
WANG Ke, ZHANG Zhi-qiang, XU Wang Transmitted and reflected coefficients for horizontal or vertical plate type breakter[J]. China Ocean Engineering, 2011, 25 (2): 285- 294
|
|
|
[11] |
MAJED O A, MOHAMMED A N S, MEDHAT M H Hydrodynamic characteristics of three rows of vertical slotted wall breakwaters[J]. Journal of Marine Science and Application, 2017, 16 (3): 261- 275
|
|
|
[12] |
SHIN D M, CHO Y Diffraction of waves past two vertical thin plates on the free surface: a comparison of theory and experiment[J]. Ocean Engineering, 2016, 124: 274- 286
|
|
|
[13] |
SHEN Y M, WU B J, LIU R, et al Scattering of linear water waves by a fixed and infinitely long rectangular structure parallel to a vertical wall in oblique seas[J]. Journal of Waterway Port Coastal and Ocean Engineering, 2006, 132 (2): 106- 113
|
|
|
[14] |
JU L H, ZUO Q H, TENG L, et al Study on wave dissipation of the structure combined by baffle and submerged breakwater[J]. China Ocean Engineering, 2017, 31 (6): 674- 682
|
|
|
[15] |
RUSCHE H. Computational fluid dynamics of dispersed two-phase flows at high phase fractions [D]. London: Imperial College of London, 2002.
|
|
|
[16] |
DESHPANDE S S, ANUMOLU L, TRUJILLO M F Evaluating the performance of the two-phase flow solver interFoam[J]. Computational Science and Discovery, 2012, 5 (1): 14- 16
|
|
|
[17] |
JASAK H. Error analysis and estimation for the finite volume method with applications to fluid flows [D]. London: Imperial College London, 1996.
|
|
|
[18] |
JACOBSEN N G, FUHRMAN D R, FREDS?E J A wave generation toolbox for the open-source CFD library: OpenFoam?[J]. International Journal for Numerical Methods in Fluids, 2012, 70 (9): 1073- 1088
|
|
|
[19] |
GODA Y, SUZUKI Y Estimation of incident and reflected waves in random wave experiments[J]. Plos One, 2012, 4 (9): 73- 73
|
|
|
[20] |
汪林. 嵌套式振荡水柱波能转换装置的理论研究[D]. 浙江: 浙江大学, 2018. WANG Lin. Theoretical study on the nested oscillating water column wave energy conversion devices [D]. Zhejiang: Zhejiang University, 2018.
|
|
|
[21] |
ZHAO X, HU C Numerical and experimental study on a 2-D floating body under extreme wave conditions[J]. Applied Ocean Research, 2012, 35 (1): 1- 13
|
|
|
[22] |
乔方利.中国区域海洋学: 物理海洋学[M].北京: 海洋出版社, 2012.
|
|
|
[23] |
NING D Z, WANG R Q, ZOU Q P, et al An experimental investigation of hydrodynamics of a fixed OWC wave energy converter[J]. Applied Energy, 2016, 168: 636- 648
|
|
|
[24] |
LUO Y, NADER J R, COOPER P, et al Nonlinear 2D analysis of the efficiency of fixed oscillating water column wave energy converters[J]. Renewable Energy, 2014, 64 (2): 255- 265
|
|
|
[25] |
ELHANAFI A, FLEMING A, MACFARLANE G, et al Numerical energy balance analysis for an onshore oscillating water column-wave energy converter[J]. Energy, 2016, 116 (1): 539- 557
|
|
|
[26] |
NING D Z, SHI J, ZOU Q P, et al Investigation of hydrodynamic performance of an OWC (oscillating water column) wave energy device using a fully nonlinear HOBEM (higher-order boundary element method)[J]. Energy, 2015, 83: 177- 188
|
|
|
|
