Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (12): 2423-2429    DOI: 10.3785/j.issn.1008-973X.2020.12.017

Multi-layer domain name detection and measurement based on DNS traffic
Yi-xuan ZHANG(),Jian GONG*()
School of Cyber Science and Engineering, Southeast University, Nanjing 211100, China
Download: HTML     PDF(828KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

A multi-layer domain name detection algorithm based on DNS traffic was designed to give a further study to the role of domain in DNS traffic and provide a method for domain’s influence analysis. In the detection stage, DNS traffic was collected from the boundary of the CERNET backbone, then request and response sequences were extracted. Based on the aggregation characteristic of multi-layer domain name and the concurrency of DNS resolution, the sets of parent-child domains in traffic were detected, and a time sliding window mechanism was introduced to measure the results' confidence. In the measurement stage, the detection results were analyzed from multiple perspectives, including the scale and intersection of multi-layer domain name sets, the number of tags of parent-child domain and the resource type of child domain in the set, etc. Then two cases of typical websites with multi-layer domain name were provided. The measurement results verified the existence and characteristics of multi-layer domain name and showed the effectiveness of the algorithm.

Key words： multi-layer domain name      network measurement      domain monitoring      website
Received: 29 September 2019      Published: 31 December 2020
CLC:  TP 393
Corresponding Authors: Jian GONG     E-mail: yxzhang@njnet.edu.cn;jgong@njnet.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Yi-xuan ZHANG
Jian GONG
Cite this article:

Yi-xuan ZHANG,Jian GONG. Multi-layer domain name detection and measurement based on DNS traffic. Journal of ZheJiang University (Engineering Science), 2020, 54(12): 2423-2429.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.12.017     OR     http://www.zjujournals.com/eng/Y2020/V54/I12/2423


基于DNS流量的多层多域名检测与测量

为了研究DNS流量中的域名角色，为域名影响力分析提供一种域名定位和筛选的思路，设计一种基于DNS流量的多层多域名检测算法. 在检测阶段，从CERNET主干网边界采集DNS流量，提取请求和应答序列. 基于多层多域名的聚合特征及解析的并发性，检测流量中存在的主从域名集合，并引入时间滑动窗口机制进行置信度测量. 在测量阶段，对算法检测结果从多个角度进行分析，包括多层多域名集合的规模和相交情况、主从域名的标签级数、集合中从域名对应的资源类型等，并提供了2个存在多层多域名的典型网站案例. 测量结果验证了多层多域名现象的存在以及多层多域名集合的特点，表明了此多层多域名检测算法的有效性.


关键词： 多层多域名,  网络测量,  域名监测,  网站

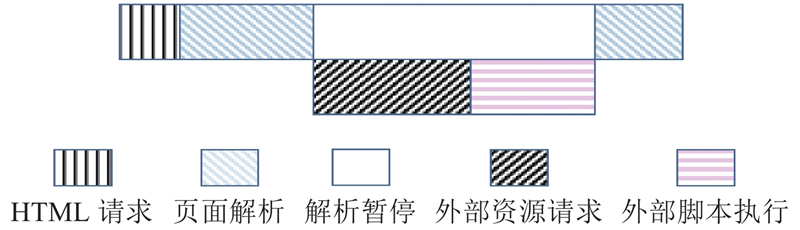

Fig.1 Abstract process of rendering Web page
Fig.2 Architecture of IPCIS domain database
单位 域名数量 IP数量 域名数量∶IP
东南大学 1 398 1 309 1.07∶1
江苏广播电视大学 17 061 61 280∶1
Tab.1 Counts of domain and IP attributed to two units

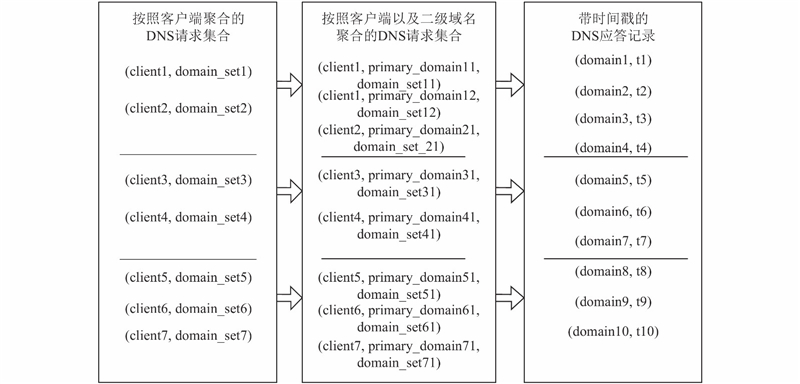

Fig.3 Domain aggregation mapping process

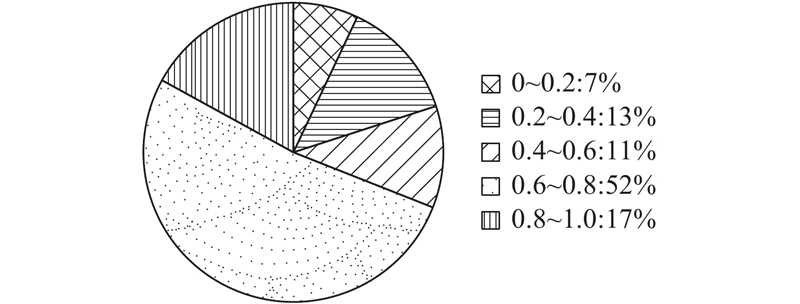

Fig.4 Distribution of reliability test
数量 不重复
域名数量 		不重复二级
域名数量 		请求客户
端数量 		请求/应
答总量
DNS请求 4378 064 737 575 113 427 273 744 822
DNS应答 2071 320 465 652 ? 414 397 058
Tab.2 Statistical analysis of raw data
Fig.5 Counts of DNS request and response per day
从域名数量范围 网站数量分布/%
[3, 10] 44.4
[11, 20] 18.0
[21, 30] 9.0
>30 28.6
Tab.3 Distribution of websites with different numbers of child domains
被网站引用数量 从域名数量分布/%
[1, 10] 65.6
[11, 20] 24.0
[21, 30] 5.0
>30 5.4
Tab.4 Distribution of child domains referenced by different numbers of websites

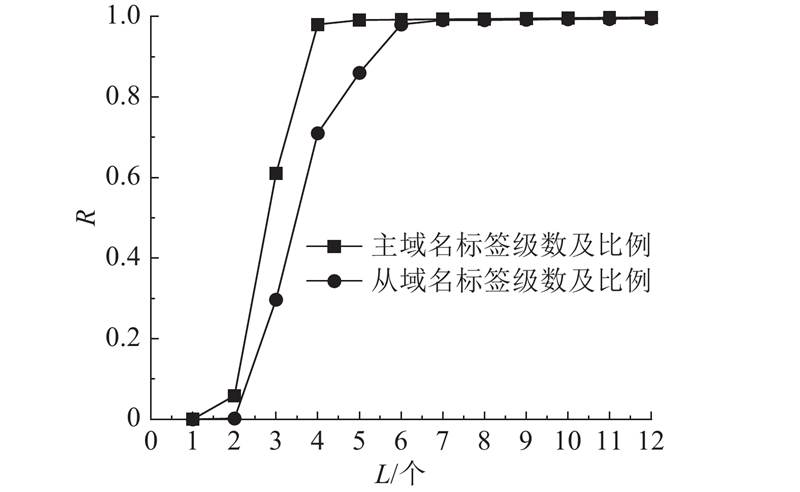

Fig.6 Ratio of number of tags of parent-child domain (CDF)
