Point cluster selection based on weighted network Voronoi diagram

Xiao-min LU1,2,3(

),Hao-wen YAN2,3,*(

),Lu KANG2,3,Fang WU4

1. School of Environment and Municipal Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
2. Faculty of Geomatics, Lanzhou Jiaotong University, Lanzhou 730070, China
3. Gansu Provincial Engineering Laboratory for National Geographic State Monitoring, Lanzhou 730070, China
4. Institute of Geospatial Information, Information Engineering University, Zhengzhou 450000, China

Download:

HTML

PDF(1557KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The existing algorithms based on Voronoi ignores the fact that points are connected through road network, in view of which, a new algorithm was proposed based on network weighted Voronoi diagram. Firstly, the weighted network Voronoi diagram of the point cluster was constructed based on expansion operation. Secondly, the area of the weighted network Voronoi polygon and the total length of the expansion route of each point were calculated, based on which the appropriate factors for describing the statistical, thematic, topological and metric information were selected. Thirdly, the method called ‘concentric circle’ was proposed and the point deletion was completed. The experimental results show that the algorithm takes into account the effect of the weight of the point, the level and the direction of the roads, and the density of the road network on the generalized results. The information of the original point cluster is transmitted well and the generalized results fit the actual geographic feature.

Key words： network weighted Voronoi diagram rasterization point cluster generalization dilation operation ‘concentric circle’ algorithm

Received: 19 May 2018 Published: 04 March 2019

CLC:

P 283

Corresponding Authors: Hao-wen YAN E-mail: xiaominlu08@gmail.com;haowen2010@gmail.com

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Xiao-min LU
	Hao-wen YAN
	Lu KANG
	Fang WU

Cite this article:

Xiao-min LU,Hao-wen YAN,Lu KANG,Fang WU. Point cluster selection based on weighted network Voronoi diagram. Journal of ZheJiang University (Engineering Science), 2019, 53(3): 571-578.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.03.019 OR http://www.zjujournals.com/eng/Y2019/V53/I3/571

基于网络加权Voronoi图的点群选取

传统基于Voronoi图的算法忽略了点与点之间是通过实际网络距离相连这一事实，针对此缺陷，提出一种基于网络加权Voronoi图的点群选取算法. 1）利用网络扩展法构建点群的网络加权Voronoi图；2）计算每个点对应的网络Voronoi多边形面积及扩展弧段总长度，并以此为依据，为点群中所包含的统计、专题、拓扑和度量信息分别选定量化描述因子；3）提出“同心圆”算法，解决点群取舍问题. 实验结果表明，提出的方法顾及了点群权重以及与点群相关联的道路等级、方向及局部密度对选取结果的影响，较好地保持了原始点群的各类信息，选取结果符合实际地理空间特征.

关键词： 网络加权Voronoi图, 栅格化, 点群选取, 扩展算法, “同心圆”算法

Fig.1 Flowchart of point cluster selection algorithm based on weighted network Voronoi diagram

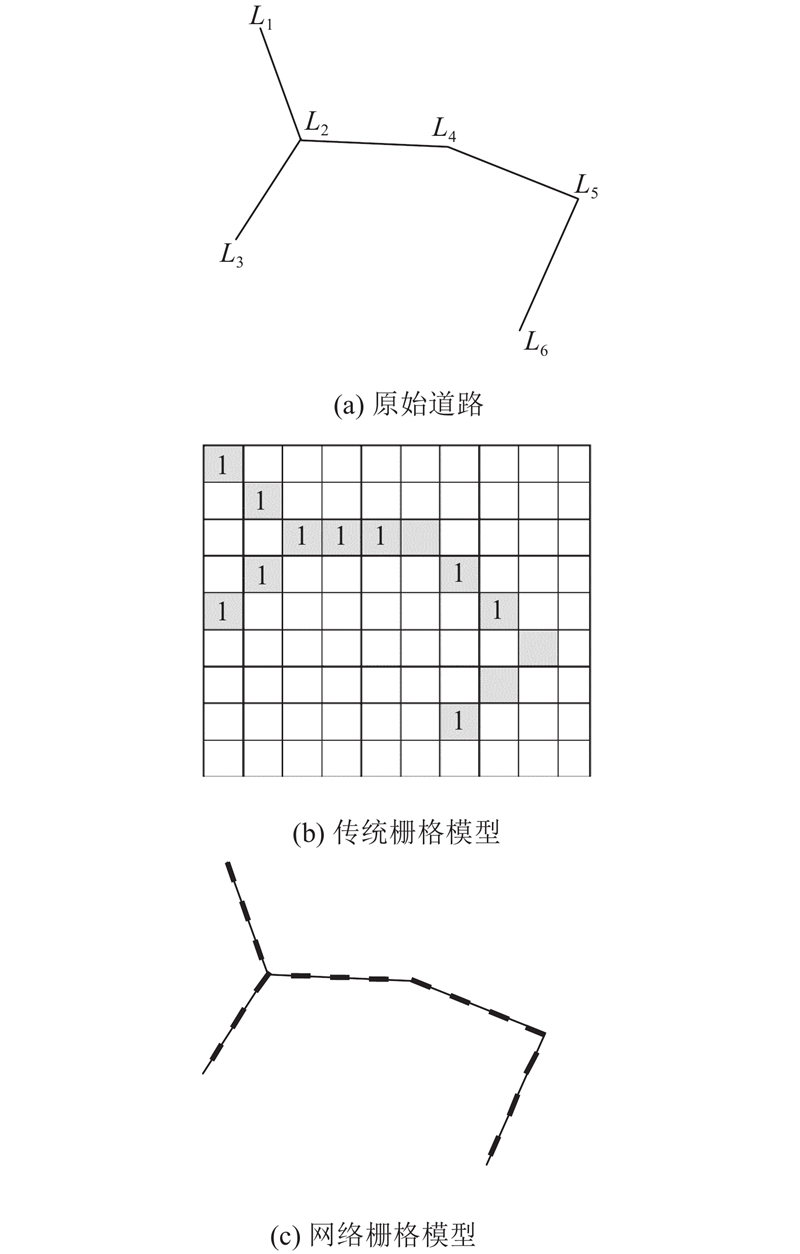

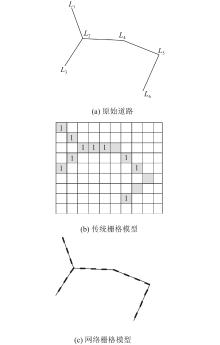

Fig.2 Traditional raster model and network raster model

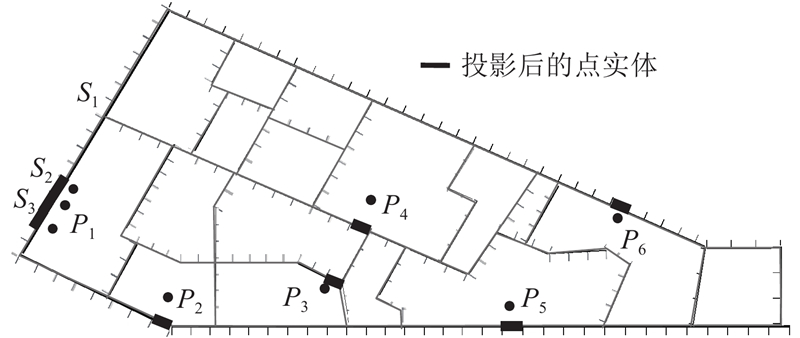

Fig.3 Rasterized results of source elements

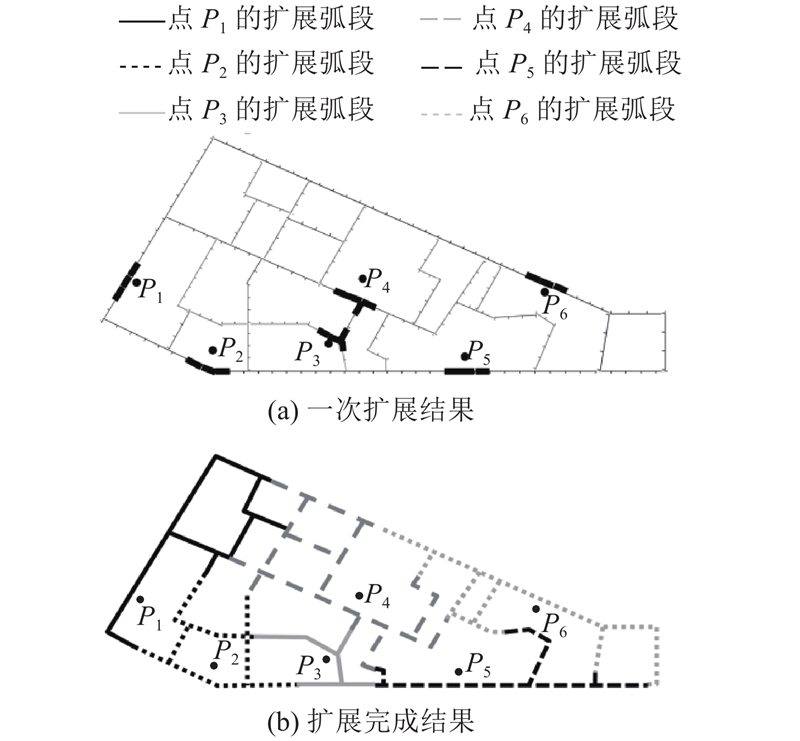

Fig.4 Dilation operation of point cluster

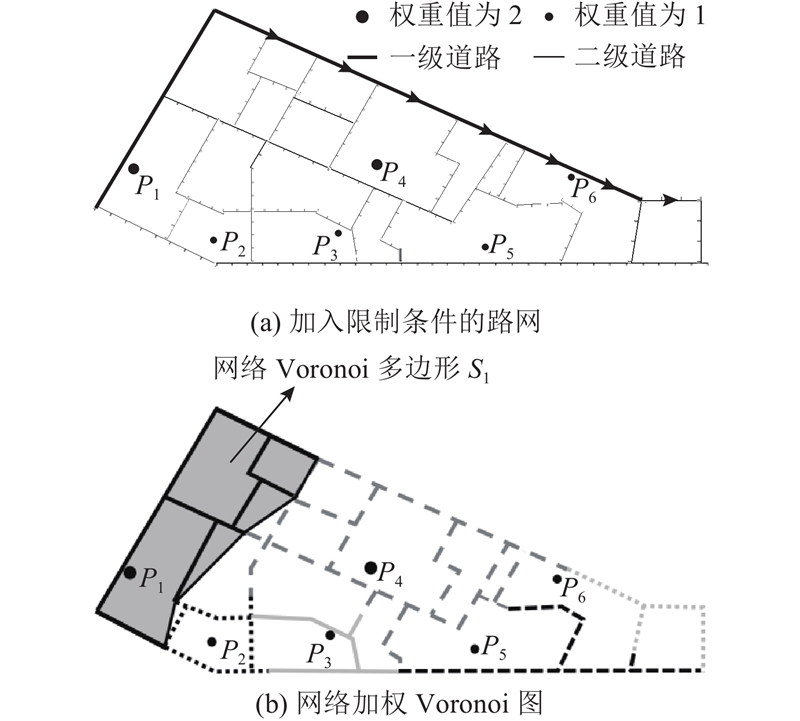

Fig.5 Generation of weighted network Voronoi diagram

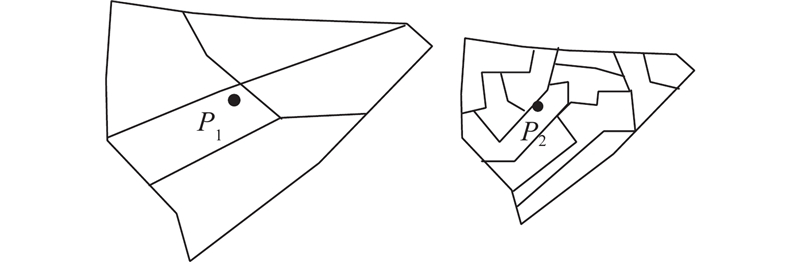

Fig.6 Weighted network Voronoi polygons and extended segments of point cluster

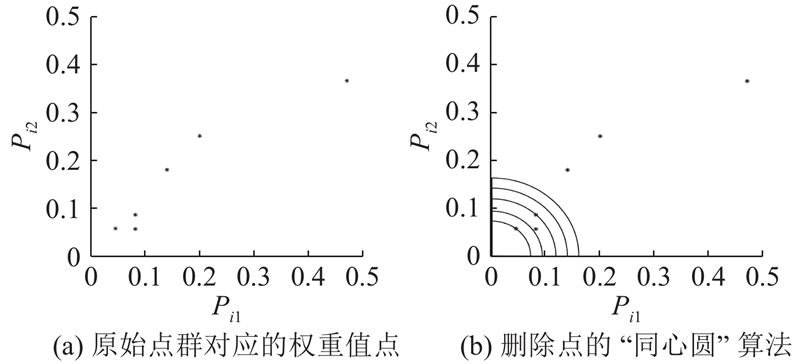

Fig.7 Method of ‘concentric quadrants’ in point deletion process

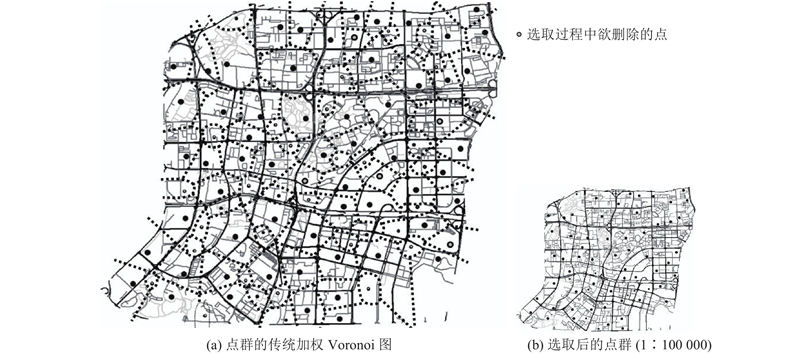

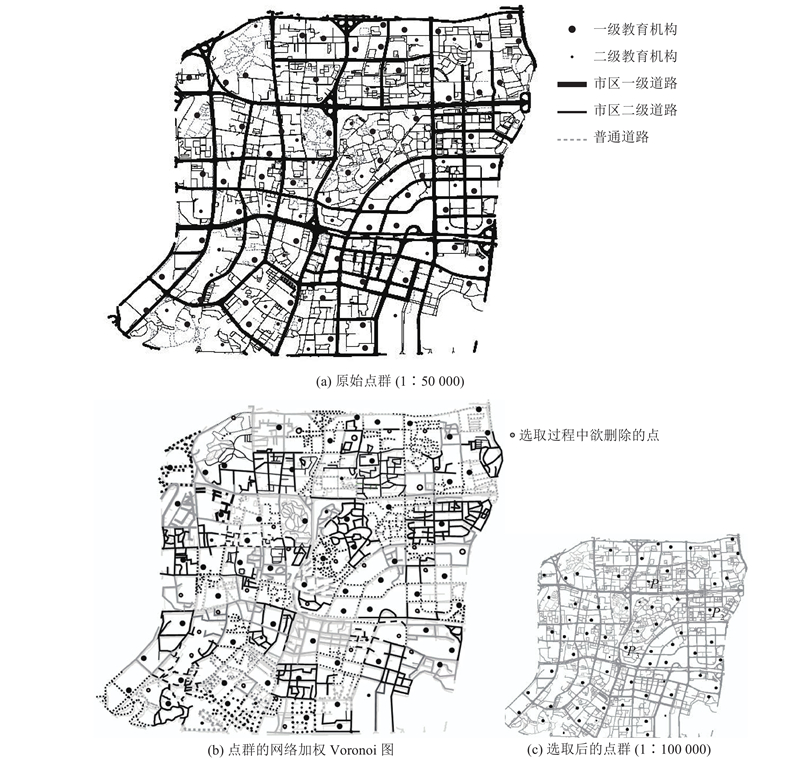

Fig.8 Experiment of point cluster selection based on weighted network Voronoi diagram
