Android APP reinforcement method with function Nativeization

Yan-yan SONG(

),Sen-lin LUO,Hai SHANG,Li-min PAN*(

),Ji ZHANG

School of Information and Electronics, Beijing Instutitute of Technology, Beijing 100081, China

Download:

HTML

PDF(878KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The logic of dynamic recovery attack and the function call execution flow in Android APP was investigated. The original DEX file was reconstructed and encrypted; its key Java function attribute was changed to Native, and the shell DEX file was added. When the Android APP was started, the shell DEX file was executed first, and then the original DEX was decrypted and loaded dynamically. When the protected function was called, the Native property of the function in memory was maintained, and the original Java function was implicitly restored and executed by the Hook technique and the reflection mechanism. The experimental results show that the method obtains high level of protection without Source decompilation at lower resource losses, and can effectively resist static analysis attacks, DEX dynamic recovery and dynamic shelling attacks.

Key words： APP reinforcement function-Nativezation Hook technology dynamic loading Android System

Received: 16 May 2018 Published: 04 March 2019

CLC:

TP 399

Corresponding Authors: Li-min PAN E-mail: songyanyan29@163.com;panlimin@bit.edu.cn

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yan-yan SONG
	Sen-lin LUO
	Hai SHANG
	Li-min PAN
	Ji ZHANG

Cite this article:

Yan-yan SONG,Sen-lin LUO,Hai SHANG,Li-min PAN,Ji ZHANG. Android APP reinforcement method with function Nativeization. Journal of ZheJiang University (Engineering Science), 2019, 53(3): 555-562.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.03.017 OR http://www.zjujournals.com/eng/Y2019/V53/I3/555

函数Native化的Android APP加固方法

调研动态恢复攻击的逻辑思路和Android APP中函数调用执行流程. 通过对原DEX文件进行重构和加密，将其关键Java函数属性改为Native，并添加壳DEX文件；Android APP启动后首先执行壳DEX文件，然后对原DEX进行解密和动态加载，当调用被保护函数时，保持该函数在内存中的Native属性，通过Hook技术和反射机制隐式恢复并执行原Java函数. 实验和对比分析结果表明，该方法能够在较低资源损耗和无需反编译源码的前提下获取高强度的保护效果，可以有效抵御静态分析攻击、DEX动态恢复和动态脱壳攻击.

关键词： APP加固, 函数Native化, Hook技术, 动态加载, Android系统

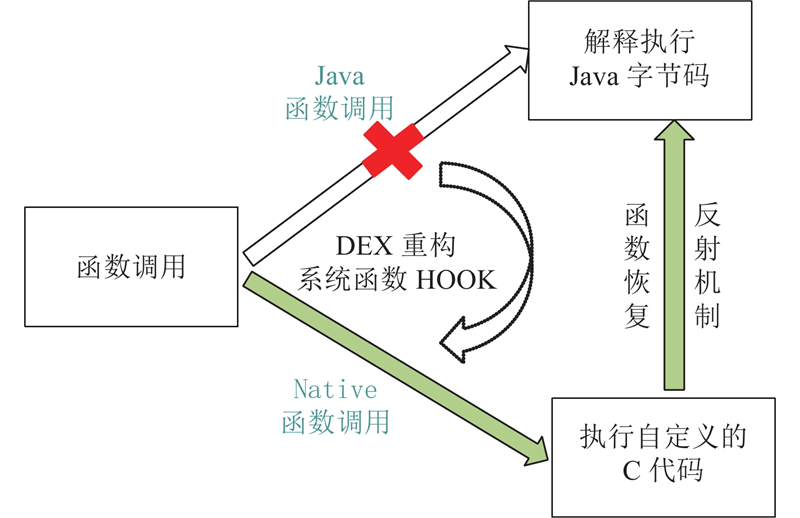

Fig.1 Principle diagram of Android APP reinforcement method with function Nativeization

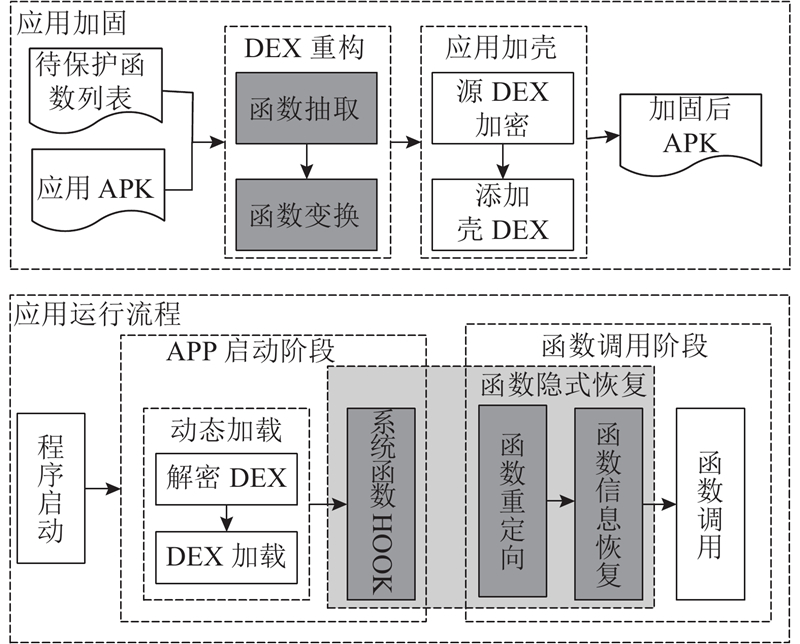

Fig.2 Flow chart of function Nativeization

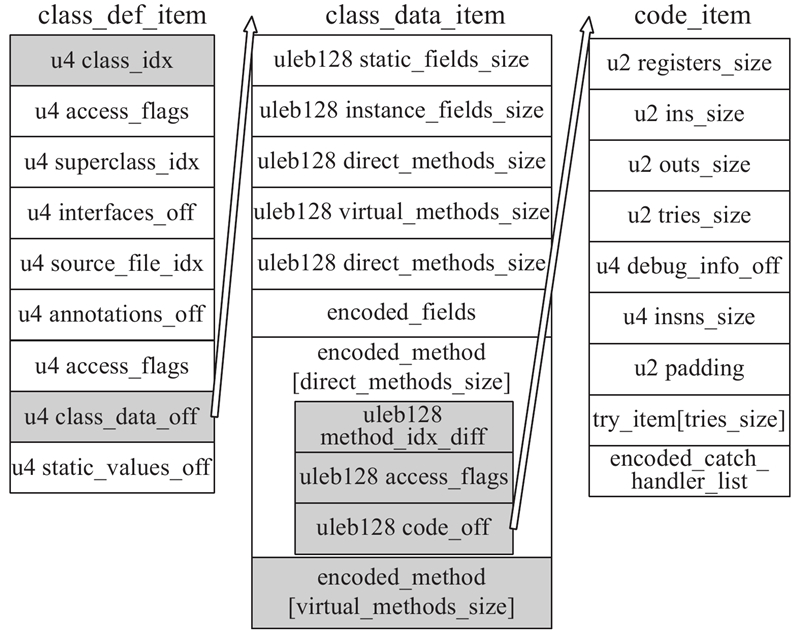

Fig.3 Description of class structure in DEX file

Tab.1 Description of encoded method in class structure

Tab.2 Example of encoded_method in class structure

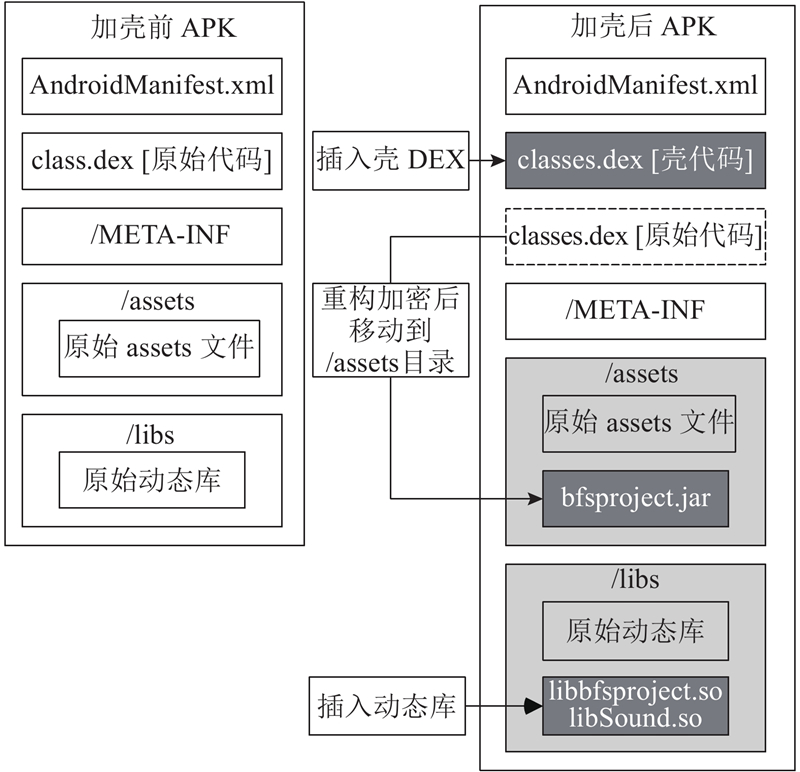

Fig.4 Comparison between original APK and shelled APK

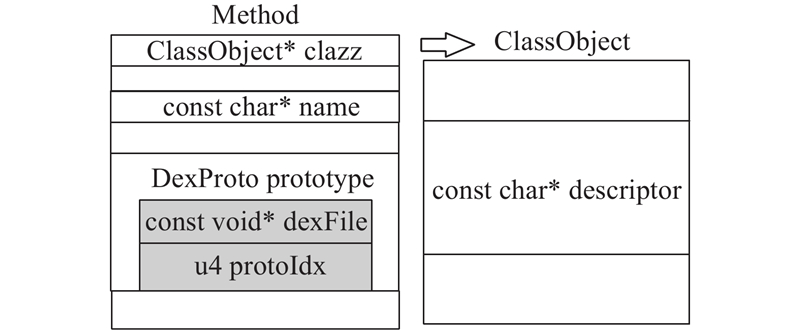

Fig.5 Method structure for function description in memory

Fig.6 Diagram of function eigenvalue acquisition method

Tab.3 Test function information table in sample APP

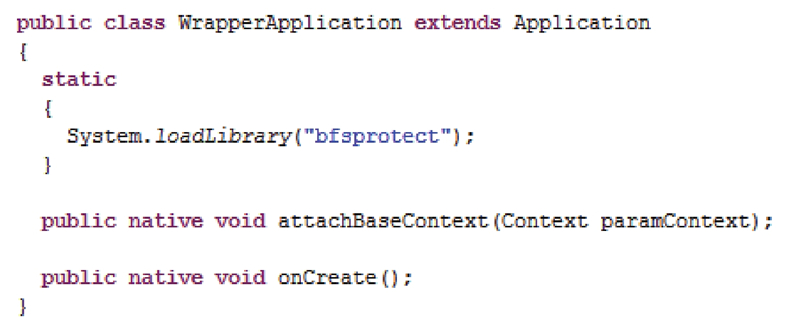

Fig.7 Decompile experimental results

Fig.8 010Editor static analysis results

Fig.9 Experimental results of dynamic shelling

Fig.10 Dynamic restore experiment results

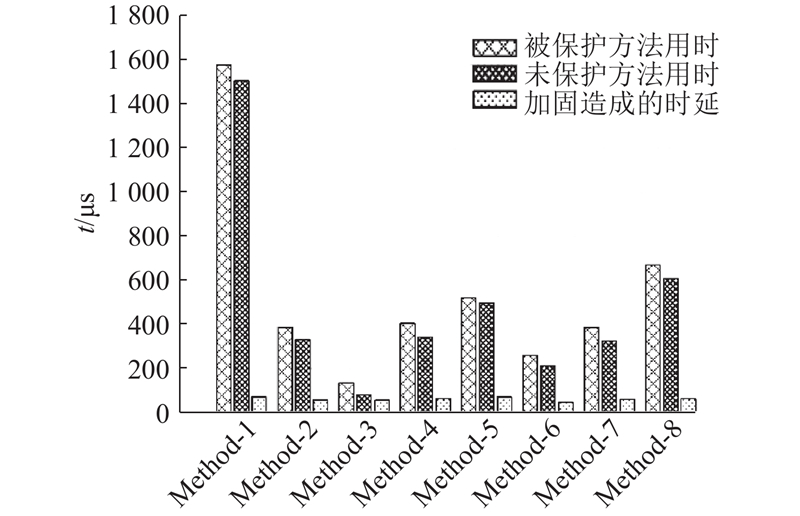

Fig.11 Average elapsed time of function execution

Tab.4 Comparison of proposed method with existing methods
