浙江大学学报(工学版)
浙江大学学报(工学版)  2021, Vol. 55 Issue (3): 563-570    DOI: 10.3785/j.issn.1008-973X.2021.03.017
计算机与控制工程
基于最大均值差异的多模态过程过渡模态识别方法
任超(),阎高伟*(),程兰,王芳
太原理工大学 电气与动力工程学院，山西 太原 030024
Transition mode identification method based on maximum mean discrepancy for multimode process
Chao REN(),Gao-wei YAN*(),Lan CHENG,Fang WANG
College of Electrical and Power Engineering, Taiyuan University of Technology, Taiyuan 030024, China
 全文: PDF(1350 KB)   HTML
摘要：

为了更好地揭示多模态过程的运行状态和数据分布变化规律，提高后续建模精度，提出基于最大均值差异（MMD）的多模态过程的过渡模态识别方法. 引入滑动窗口对数据进行切割，使用最大均值差异对多模态过程数据的分布差异进行度量，通过与稳定模态阈值α比较区分过程数据的稳定模态和过渡模态. 在过渡模态段内减小滑动窗口窗宽，利用过渡模态阈值β识别出过渡子模态. 数值仿真实验的模态识别结果表明，所提方法可以准确检测出输入变量期望值的阶跃变化，实现对模态的准确识别. 田纳西伊斯曼（TE）过程仿真数据实验表明，所提方法可以有效地划分出合理的模态，进而选择出分布最相近的历史模态建模，提高多模态过程的软测量建模精度.
关键词： 模态识别;  多模态过程;  最大均值差异;  数据分布;  滑动窗口
Abstract:

A transition mode identification method based on maximum mean discrepancy (MMD) was proposed in order to better reveal the law of the operating state and the process data distributional variation of a multi-mode process, and further improve the accuracy of subsequent modeling. Firstly, the sliding window technique was introduced to segment process data, and the MMD was used to measure the distribution difference of the process data. The stable mode and transition mode of the process data were distinguished by comparing the MMD with the stable modal threshold α. Secondly, the width of the sliding window was reduced in transition mode segments, and a transition mode threshold β was used to identify the transition modes. The modal identification results of numerical simulation experiments show that the proposed method can achieve the goal of detecting the step change of the expected value of the input variables and identifying the transient modes. Tennessee Eastman (TE) process simulation data experiments show that the proposed method can effectively divide reasonable modes, select the historical mode modeling with the closest distribution, and improve the soft sensor modeling accuracy of multi-modal processes.
Key words: mode identification    multi-mode process    maximum mean discrepancy    data distribution    sliding window
收稿日期: 2019-10-15 出版日期: 2021-04-25
CLC:  TP 274
基金资助: 国家自然科学基金资助项目（61973226，61603267）；山西省科技重大专项资助项目（20181102017）; 山西省重点研发计划项目（201903D121143）
通讯作者: 阎高伟     E-mail: m15988842972@163.com;yangaowei@tyut.edu.cn
作者简介: 任超（1996—），男，硕士生，从事过程建模研究. orcid.org/0000-0002-5191-8570. E-mail： m15988842972@163.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
任超
阎高伟
程兰
王芳

引用本文:

任超,阎高伟,程兰,王芳. 基于最大均值差异的多模态过程过渡模态识别方法[J]. 浙江大学学报(工学版), 2021, 55(3): 563-570.

Chao REN,Gao-wei YAN,Lan CHENG,Fang WANG. Transition mode identification method based on maximum mean discrepancy for multimode process. Journal of ZheJiang University (Engineering Science), 2021, 55(3): 563-570.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.03.017    或    http://www.zjujournals.com/eng/CN/Y2021/V55/I3/563

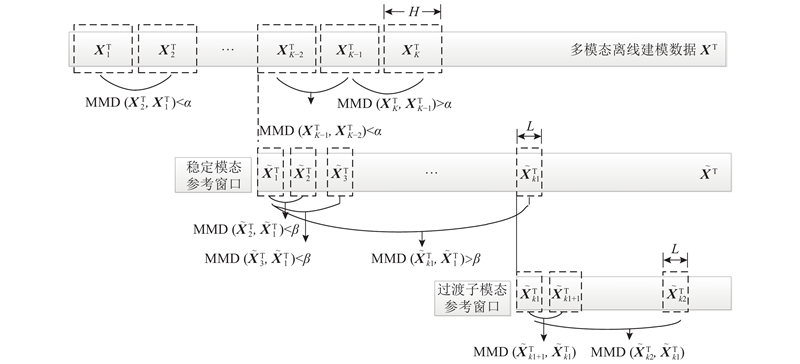

图 1  基于MMD的多模态过程中的过渡模态识别示意图
定义模态 ${{{x}}_1}$服从分布 ${{{x}}_2}$服从分布
P $N(5,0.36)$ $N(20,0.49)$
PQ_1 $N(6,0.36)$ $N(20,0.49)$
PQ_2 $N(7,0.36)$ $N(20,0.49)$
PQ_3 $N(8,0.36)$ $N(20,0.49)$
PQ_4 $N(9,0.36)$ $N(20,0.49)$
Q $N(10,0.36)$ $N(20,0.49)$
表 1  数值仿真中的模态定义
图 2  数值仿真中5个输出变量变化示意图

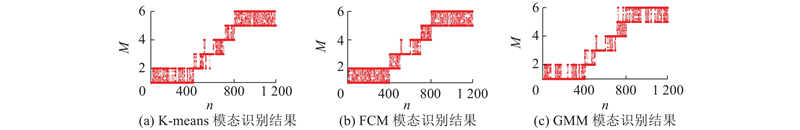

图 3  模态在不同聚类方法下的识别结果

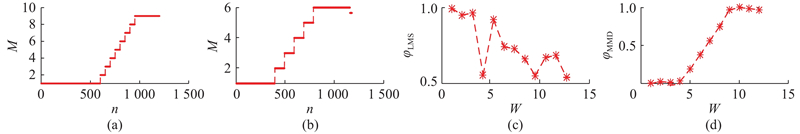

图 4  基于负载矩阵相似度及最大均值差异的模态识别结果分析

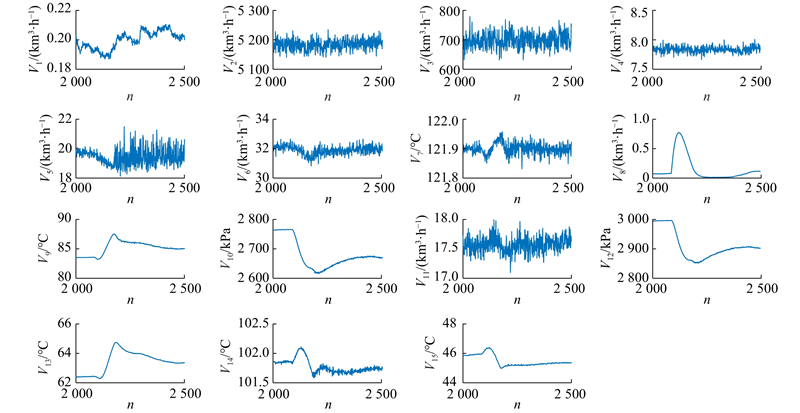

图 5  TE过程下15个过程变量过渡期间变化示意图
工况 方法 RMSE
浓度A 浓度B 浓度C
一 MMD-PLSR 0.221 2 0.118 2 0.251 1
GMM-PLSR 0.227 3 0.132 1 0.256 5
FCM-PLSR 0.246 8 0.198 7 0.267 9
Kmeans-PLSR 0.246 9 0.194 7 0.273 6
LMS-PLSR 0.247 4 0.282 5 0.288 6
二 MMD-PLSR 0.221 2 0.113 1 0.249 7
GMM-PLSR 0.228 8 0.113 8 0.268 4
FCM-PLSR 0.248 2 0.211 9 0.272 5
Kmeans-PLSR 0.247 4 0.205 5 0.274 4
LMS-PLSR 0.265 5 0.293 3 0.285 4
表 2  多模型软测量方法的均方根误差预测结果对比
