Adaptive fuzzy integral sliding mode velocity control for the cutting system of a trench cutter
Qi-yan TIAN,Jian-hua WEI,Jin-hui FANG,Kai GUO
Front. Inform. Technol. Electron. Eng.    2016, 17 (1): 55-66.   DOI: 10.1631/FITEE.15a0160
Abstract   HTML   PDF (1392KB)

This paper presents a velocity controller for the cutting system of a trench cutter (TC). The cutting velocity of a cutting system is affected by the unknown load characteristics of rock and soil. In addition, geological conditions vary with time. Due to the complex load characteristics of rock and soil, the cutting load torque of a cutter is related to the geological conditions and the feeding velocity of the cutter. Moreover, a cutter’s dynamic model is subjected to uncertainties with unknown effects on its function. In this study, to deal with the particular characteristics of a cutting system, a novel adaptive fuzzy integral sliding mode control (AFISMC) is designed for controlling cutting velocity. The model combines the robust characteristics of an integral sliding mode controller with the adaptive adjusting characteristics of an adaptive fuzzy controller. The AFISMC cutting velocity controller is synthesized using the backstepping technique. The stability of the whole system including the fuzzy inference system, integral sliding mode controller, and the cutting system is proven using the Lyapunov theory. Experiments have been conducted on a TC test bench with the AFISMC under different operating conditions. The experimental results demonstrate that the proposed AFISMC cutting velocity controller gives a superior and robust velocity tracking performance.




View image in article

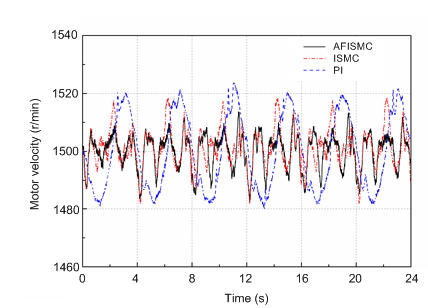

Fig. 10 Constant tracking with disturbance in hard soil
Extracts from the Article
To further test the performance of AFISMC, we changed the geological condition to hard soil. The corresponding tracking errors of AFISMC, ISMC, and PI with disturbances in hard soil are shown in Fig. 10. The three controllers showed similar control performance and the errors were all nearly 20 r/min during the falling process of the disturbance signal. However, the AFISMC achieved a superior control performance than the other two controllers during the rising process in the experiment when confronted with a harder operating condition, which demonstrates the effectiveness of the proposed controller.
