Multi-objective optimization design for BFRP/Al hybrid crashworthy device using MOPSO

doi:10.3785/j.issn.1006-754X.2026.05.181

Chinese Journal of Engineering Design

2026, Vol. 33

Issue (1): 106-116 DOI: 10.3785/j.issn.1006-754X.2026.05.181

Optimization Design

Multi-objective optimization design for BFRP/Al hybrid crashworthy device using MOPSO

Youtong LI¹(

),Qinyi LI¹,Qianjie LIU²(

),Yiqing CHEN¹,Chunlin ZHANG^1,³,Hao LI¹

^1.School of Intelligent Manufacturing and Automotive Engineering, Guang'an Vocational & Technical College, Guang'an 638000, China
^2.School of Mechatronics and Vehicle Engineering, East China Jiaotong University, Nanchang 330013, China
^3.College of Mechanical and Vehicle Engineering, Chongqing University, Chongqing 400030, China

Download:

HTML

PDF(5304KB)
Export: BibTeX | EndNote (RIS)

Abstract

Basalt fiber-reinforced polymer (BFRP) has excellent mechanical properties and melt-recyclability, with broad application prospects in automotive lightweight field. For the aluminum crashworthy device of a certain vehicle, a multi-objective optimization design of BFRP/Al hybrid crashworthy device is carried out. Firstly, mechanical tests were conducted on BFRP laminates, and a finite element model of the crashworthy device was established using HyperMesh software. Subsequently, training samples for the surrogate model were generated via Latin hypercube sampling. Key design parameters were identified through sensitivity analysis, and the prediction accuracy of the surrogate model for response indicators was enhanced by a space-filling sampling method based on the weighted Euclidean distance. Finally, with the objectives of minimizing peak load, total mass and maximum crossbeam displacement of the crashworthy device, the MOPSO (multi-objective particle swarm optimization) algorithm was employed to obtain the Pareto frontier, and the optimal design parameter combination was determined based on the entropy weight-TOPSIS (technique for order preference by similarity to an ideal solution) method. The results demonstrated that the optimized crashworthy device achieved reductions of 36.15% in peak load and 12.23% in total mass, exhibiting significantly improved crashworthiness while meeting the lightweight target. The proposed method can provide a systematic solution for the lightweight design of BFRP/Al hybrid crashworthy devices.

Key words： basalt fiber-reinforced polymer (BFRP) hybrid crashworthy device sensitivity analysis multi-objective particle swarm optimization (MOPSO) crashworthiness

Received: 14 August 2025 Published: 01 March 2026

CLC:

U 465.6

Corresponding Authors: Qianjie LIU E-mail: 859135985@qq.com;734831871@qq.com

	Service
	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Youtong LI
	Qinyi LI
	Qianjie LIU
	Yiqing CHEN
	Chunlin ZHANG
	Hao LI

Cite this article:

Youtong LI,Qinyi LI,Qianjie LIU,Yiqing CHEN,Chunlin ZHANG,Hao LI. Multi-objective optimization design for BFRP/Al hybrid crashworthy device using MOPSO. Chinese Journal of Engineering Design, 2026, 33(1): 106-116.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2026.05.181 OR https://www.zjujournals.com/gcsjxb/Y2026/V33/I1/106

基于MOPSO的BFRP/铝混合防撞装置多目标优化设计

玄武岩纤维增强复合材料（basalt fiber-reinforced polymer, BFRP）具有优异的力学性能和可熔融再生特性，在汽车轻量化领域的应用前景广阔。针对某车型的铝制防撞装置，开展BFRP/铝混合防撞装置的多目标优化设计。首先，对BFRP层合板开展力学性能测试，并利用HyperMesh软件建立防撞装置有限元模型；其次，采用拉丁超立方抽样生成代理模型的训练样本，结合敏感度分析识别关键设计参数，并通过基于加权欧式距离的空间填充采样法来提升代理模型对响应指标的预测精度；最后，以防撞装置峰值载荷、总质量及横梁最大位移最小为优化目标，运用MOPSO（multi-objective particle swarm optimization，多目标粒子群优化）算法求解Pareto前沿，并基于熵权- TOPSIS（technique for order preference by similarity to an ideal solution，逼近理想解排序法）确定最优设计参数组合。结果显示：优化后防撞装置的峰值载荷降低了36.15%，总质量减小了12.23%，显著提升了耐撞性能并实现了轻量化目标。所提出的方法可为BFRP/铝混合防撞装置的轻量化设计提供一套系统性的解决方案。

关键词： 玄武岩纤维增强复合材料, 混合防撞装置, 敏感度分析, 多目标粒子群优化, 耐撞性

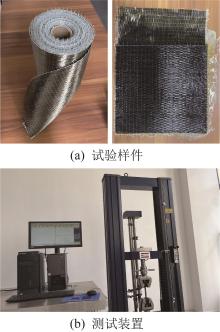

Fig.1 Test samples and testing equipment

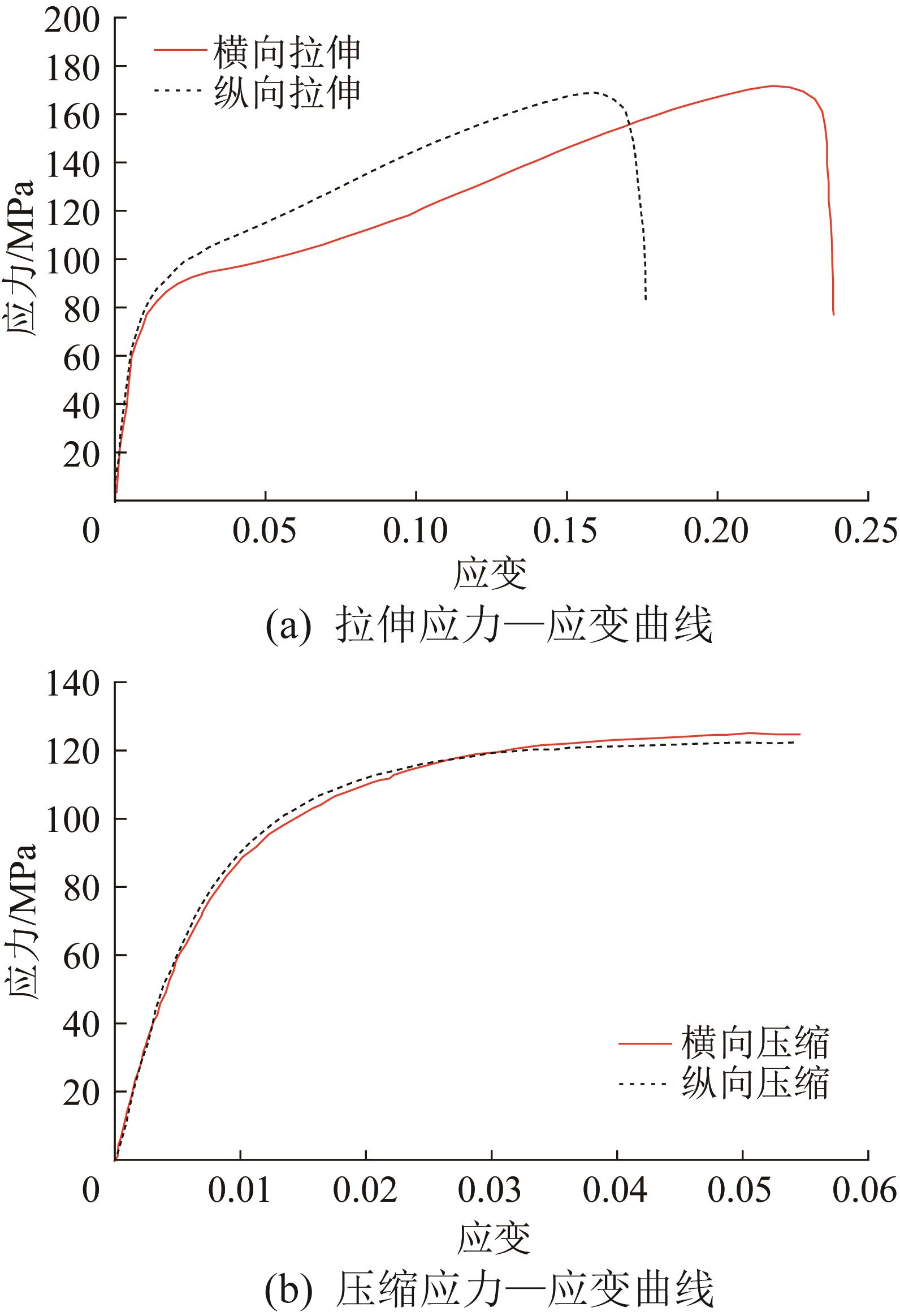

Fig.2 Tensile and compressive stress-strain curves of 1# test sample

Table 1 Material properties of BFRP and aluminum alloy

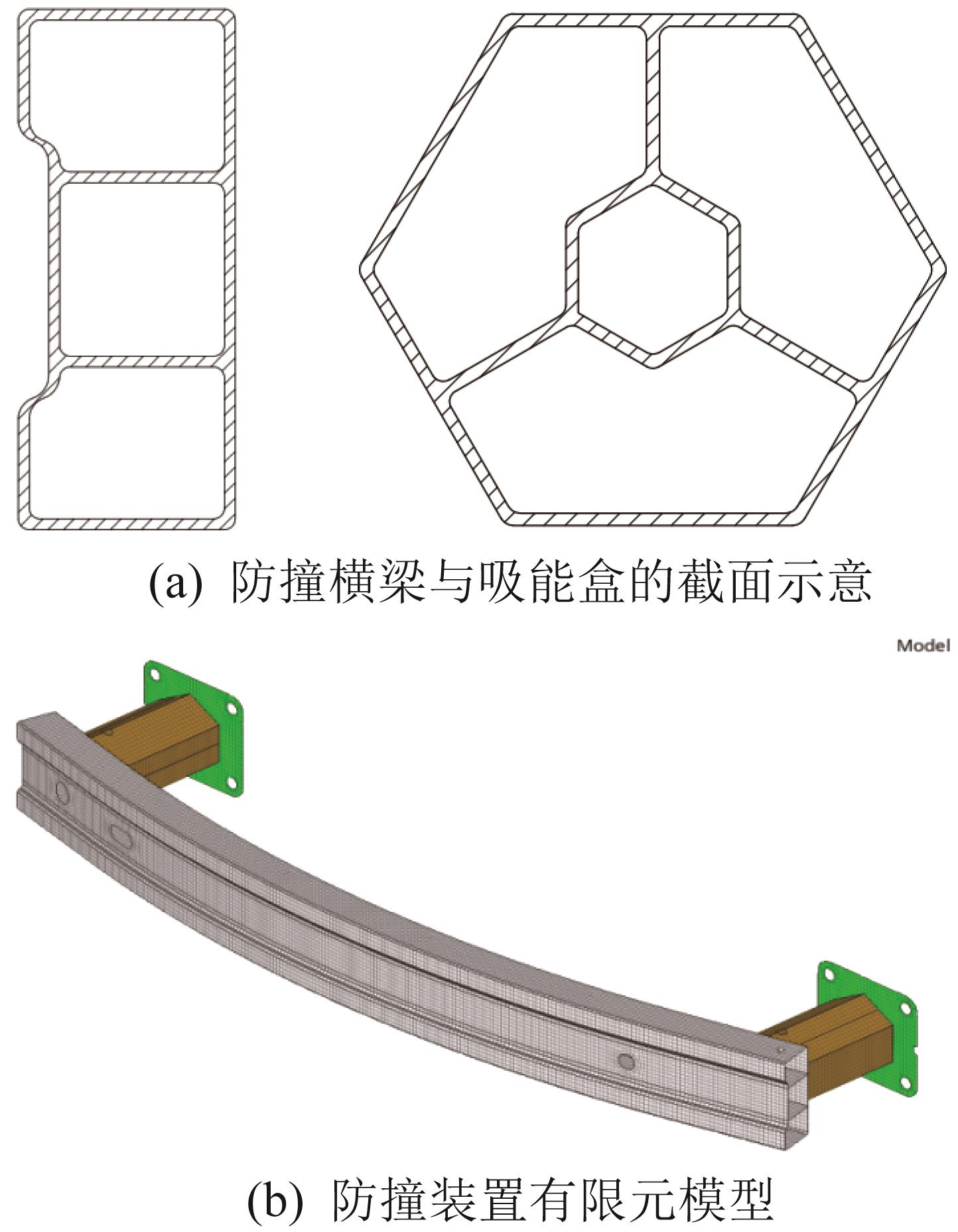

Fig.3 Schematic of cross-section of key components in crashworthy device and its finite element model

Table 2 Experimental design scheme and solution results

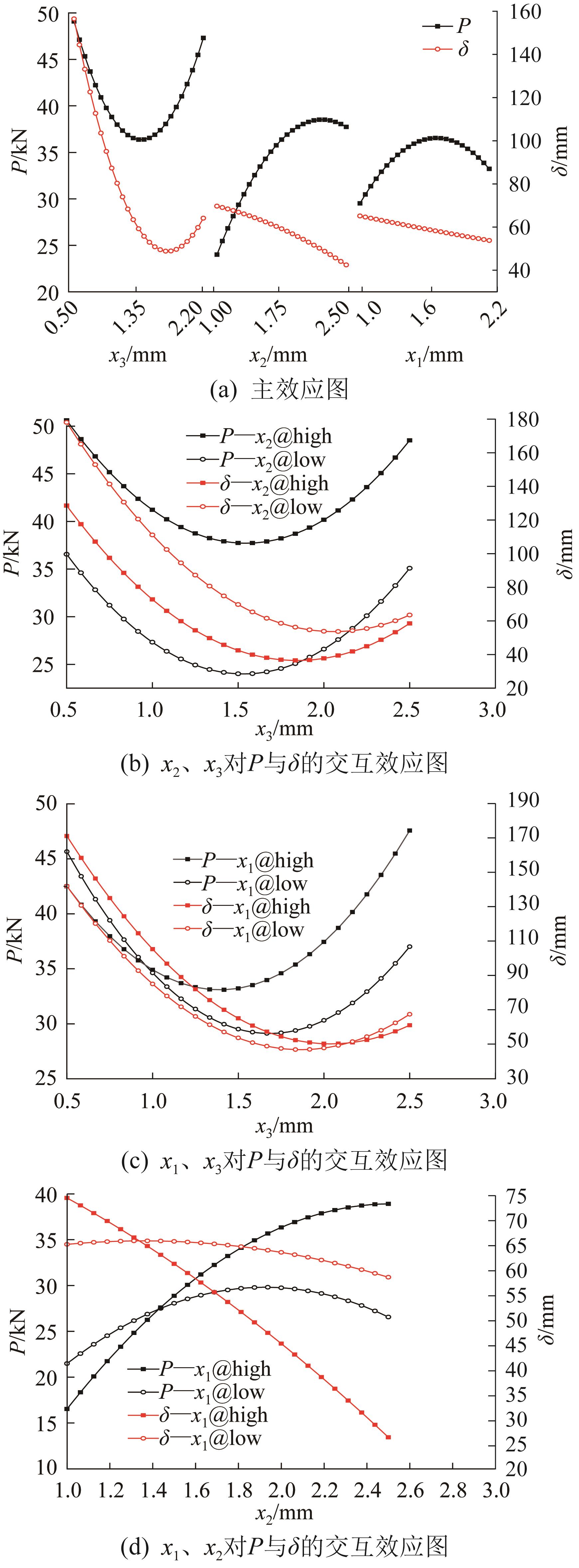

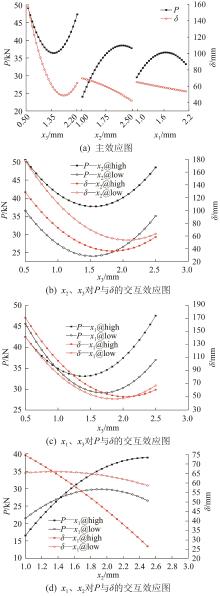

Fig.4 Main effects and interaction effects of design variables

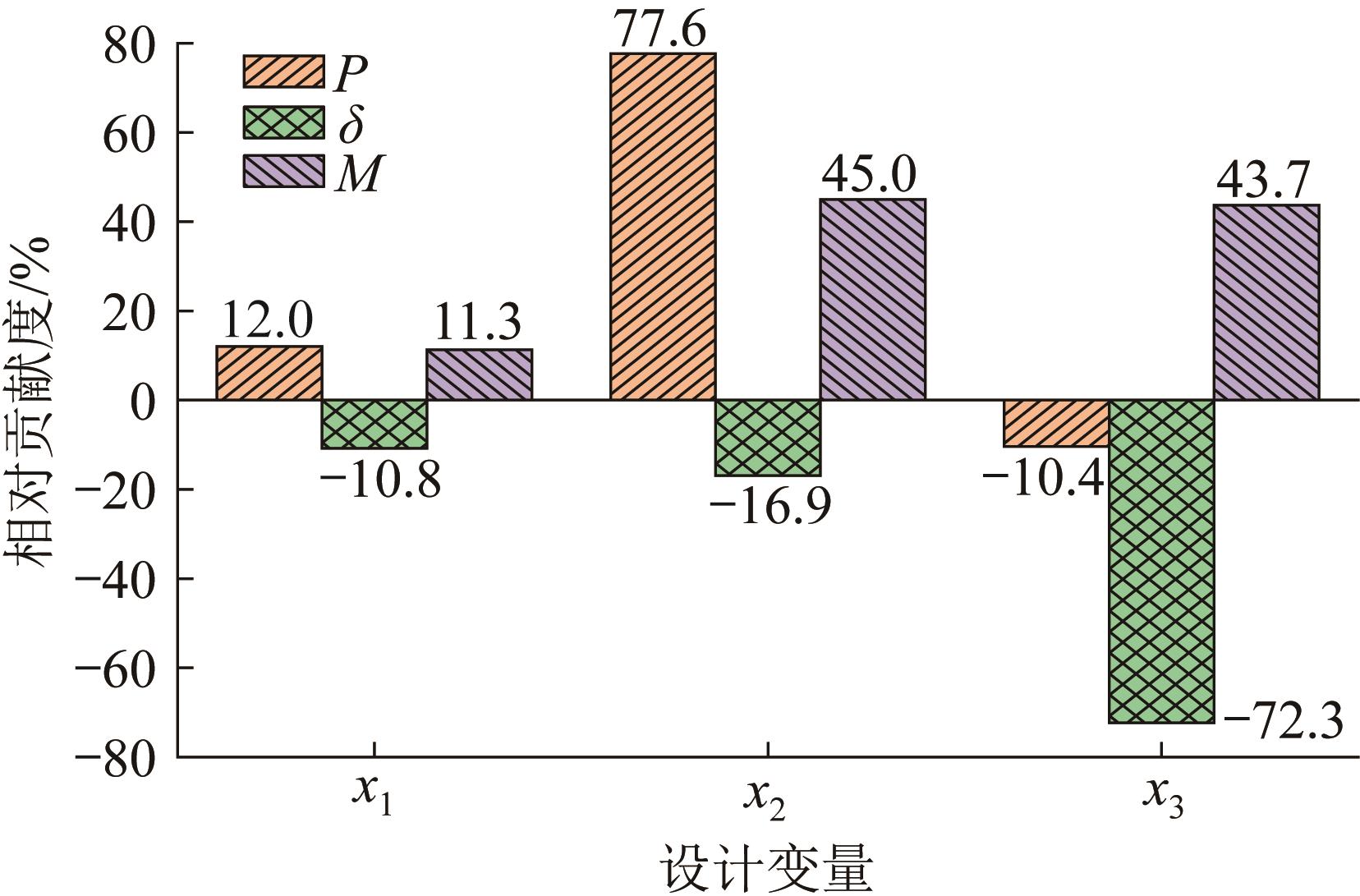

Fig.5 Sensitivity analysis result of design variables

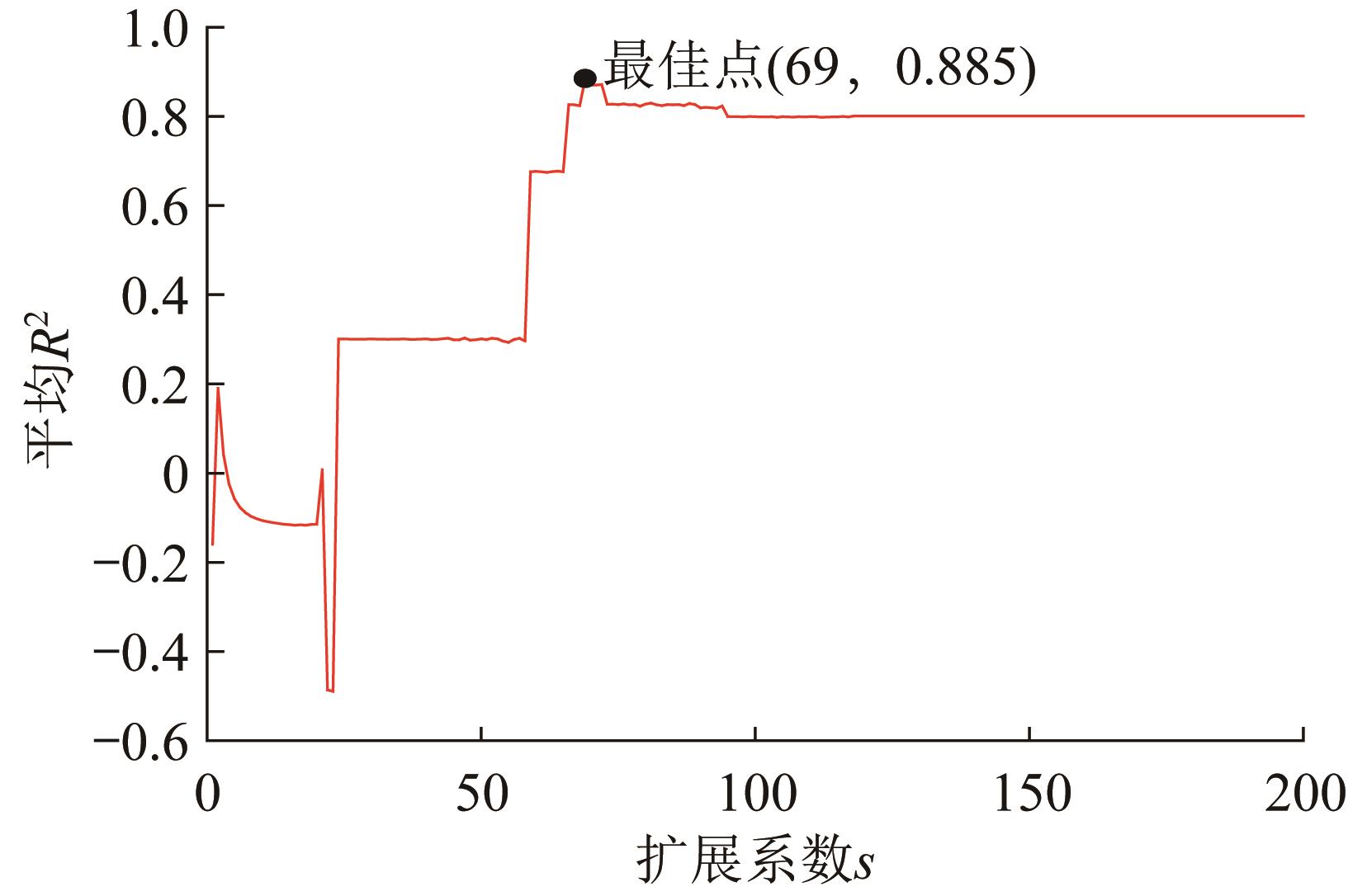

Fig.6 Optimization curve of spread coefficient

Table 3 Error analysis result of surrogate model

Table 4 Weight corresponding to each design variable

Fig.7 Spatial distribution of new sampling points and initial sampling points

Table 5 New sampling points and solution results

Table 6 Error analysis results of surrogate model after supplementary sampling

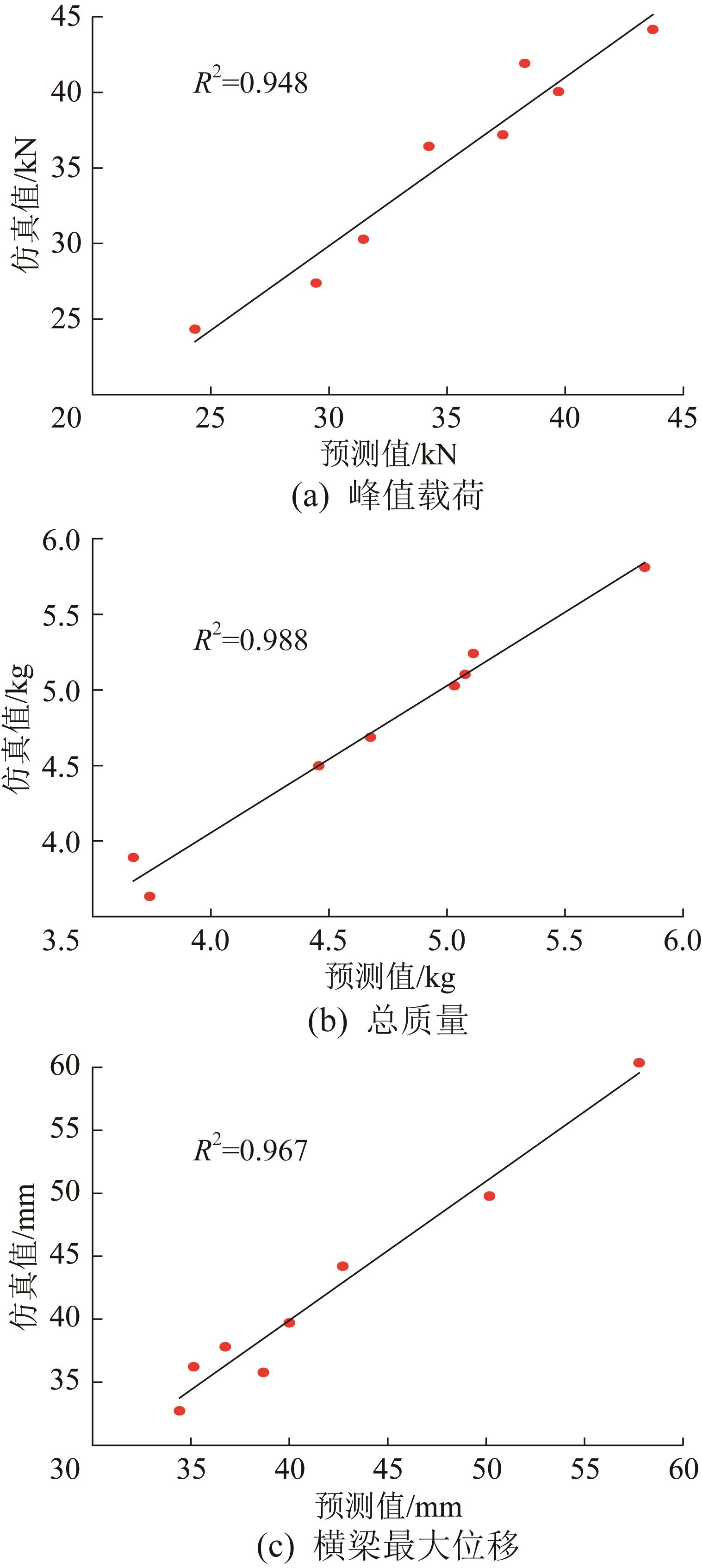

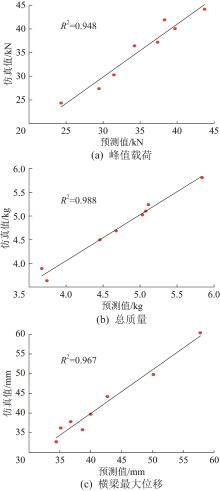

Fig.8 Fitting accuracy verification result of surrogate model

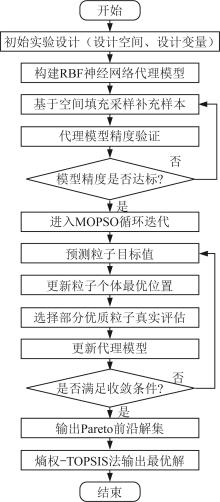

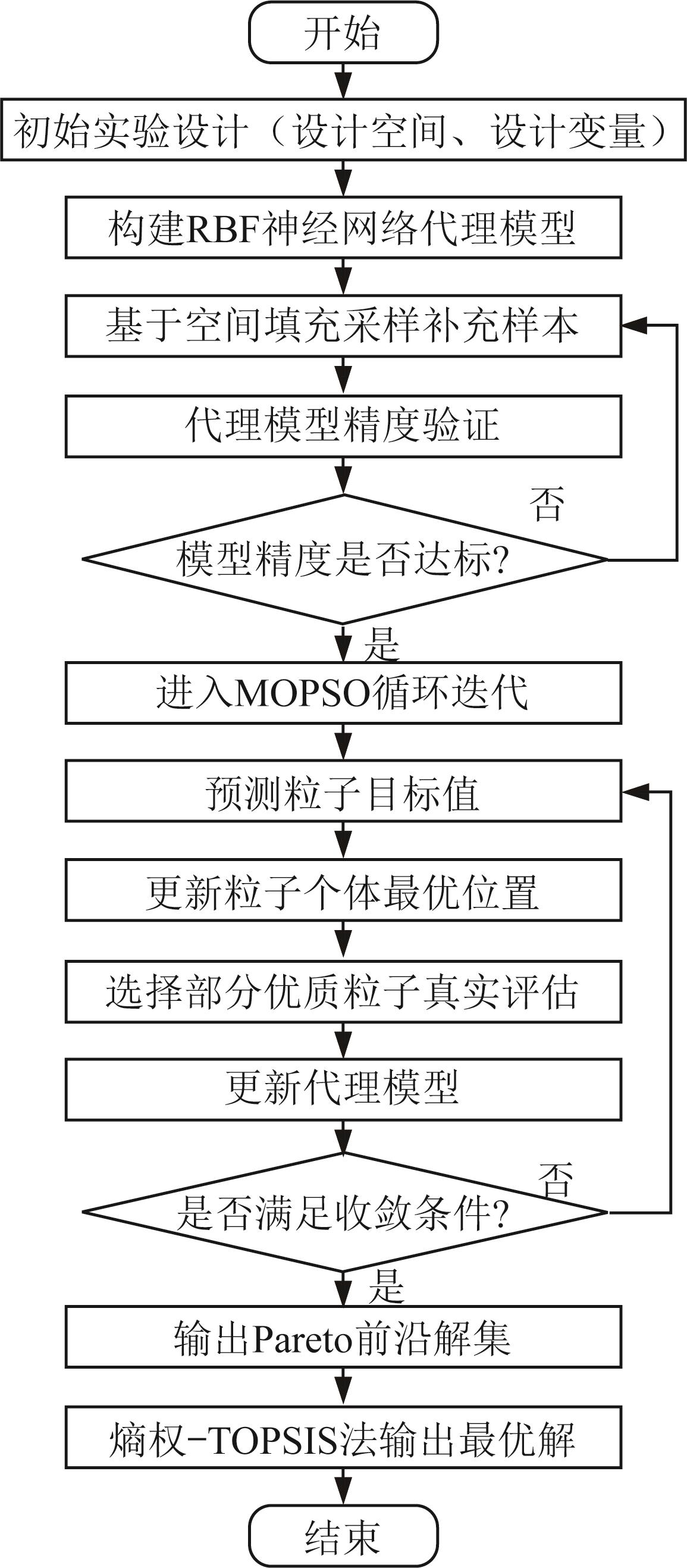

Fig.9 Multi-objective optimization process based on MOPSO

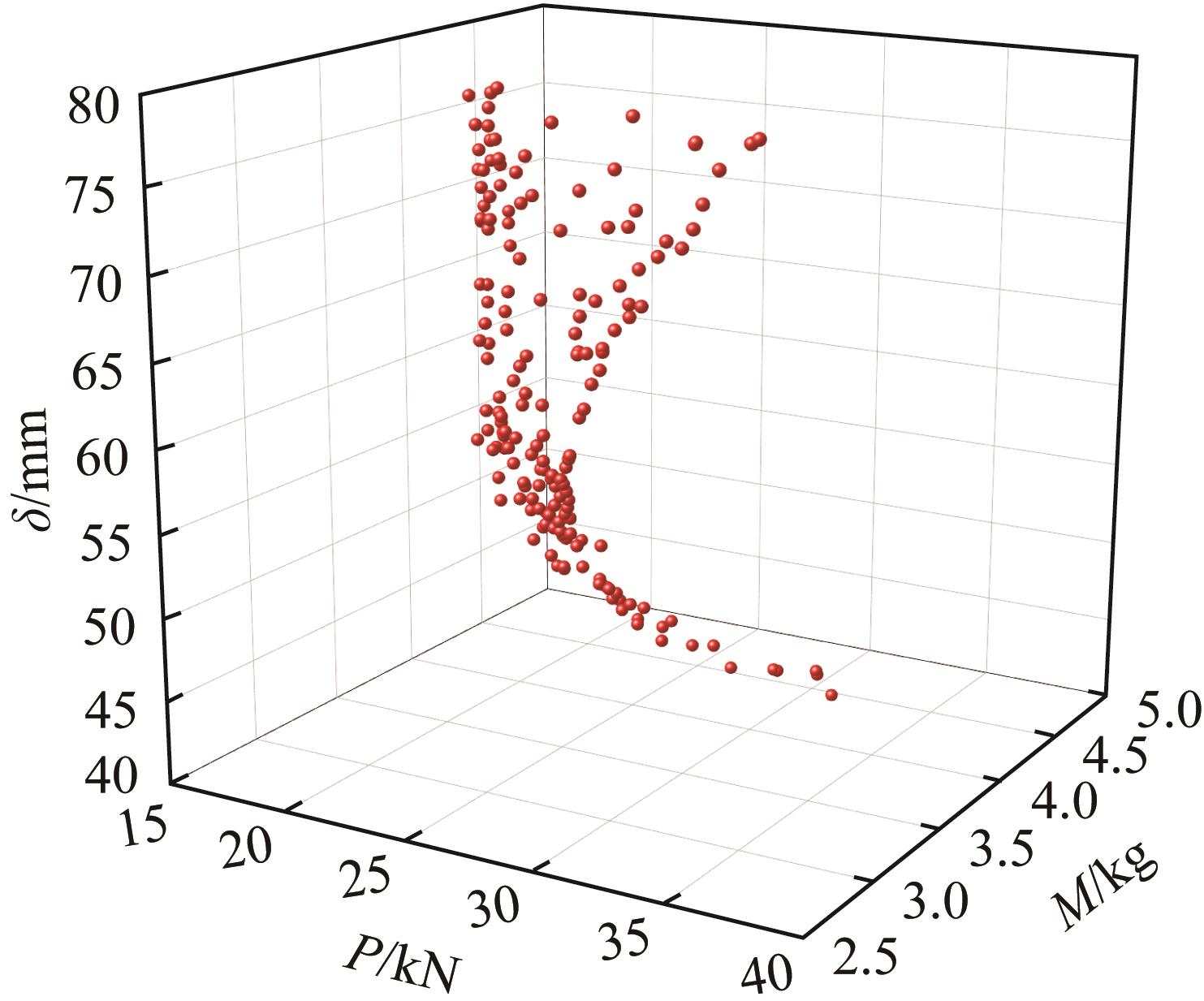

Fig.10 Pareto frontier for multi-objective optimization of crashworthy device

响应指标	信息熵	差异系数	权重
峰值载荷P	0.988 3	0.011 7	0.199 7
总质量M	0.989 4	0.010 6	0.180 8
横梁最大位移 $δ$	0.963 7	0.036 3	0.619 5

Table 7 Entropy values and weights of response indicators

Table 8 Ranking of relative closeness of Pareto frontier

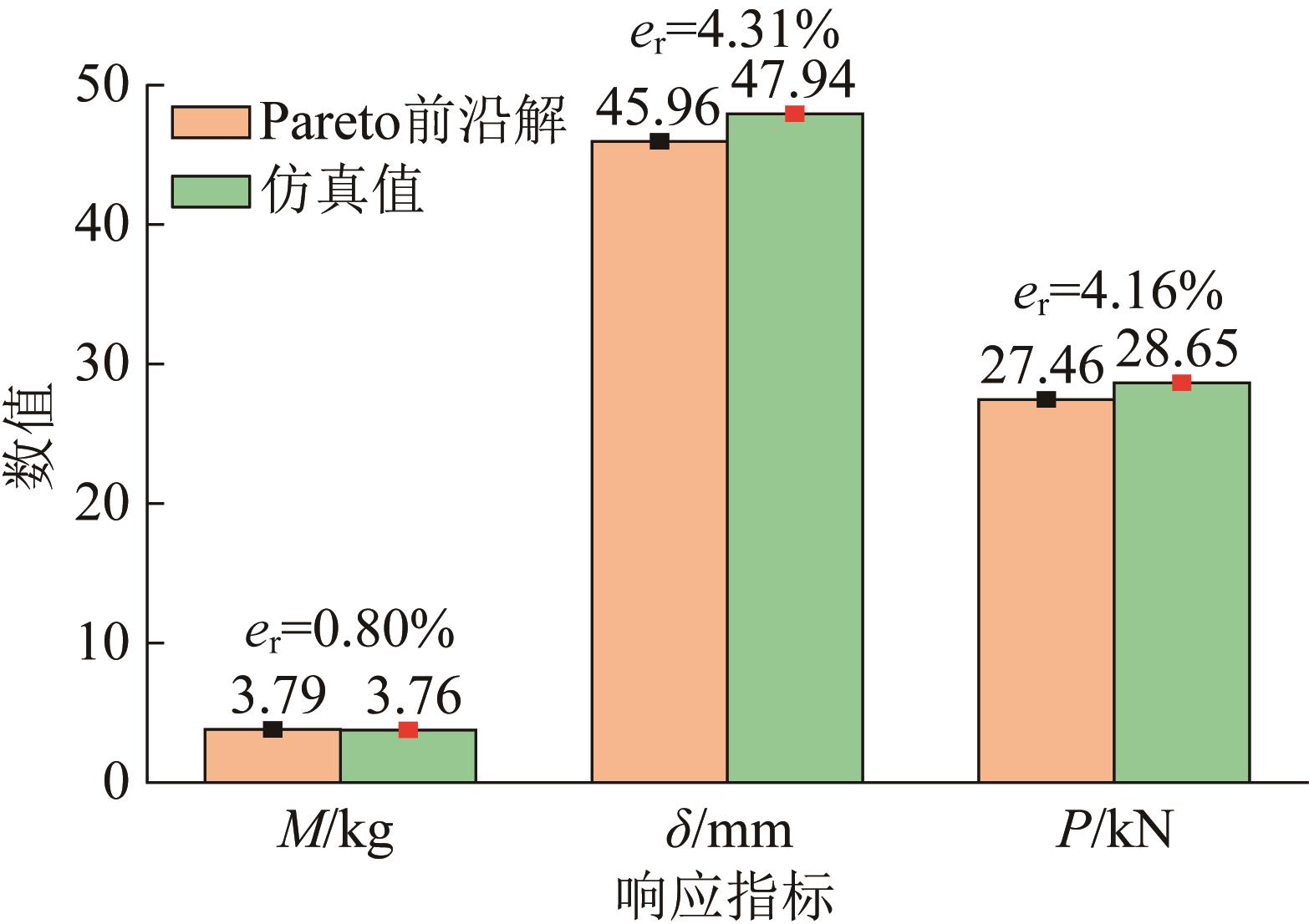

Fig.11 Comparison between Pareto frontier solution and simulation results of response indicators

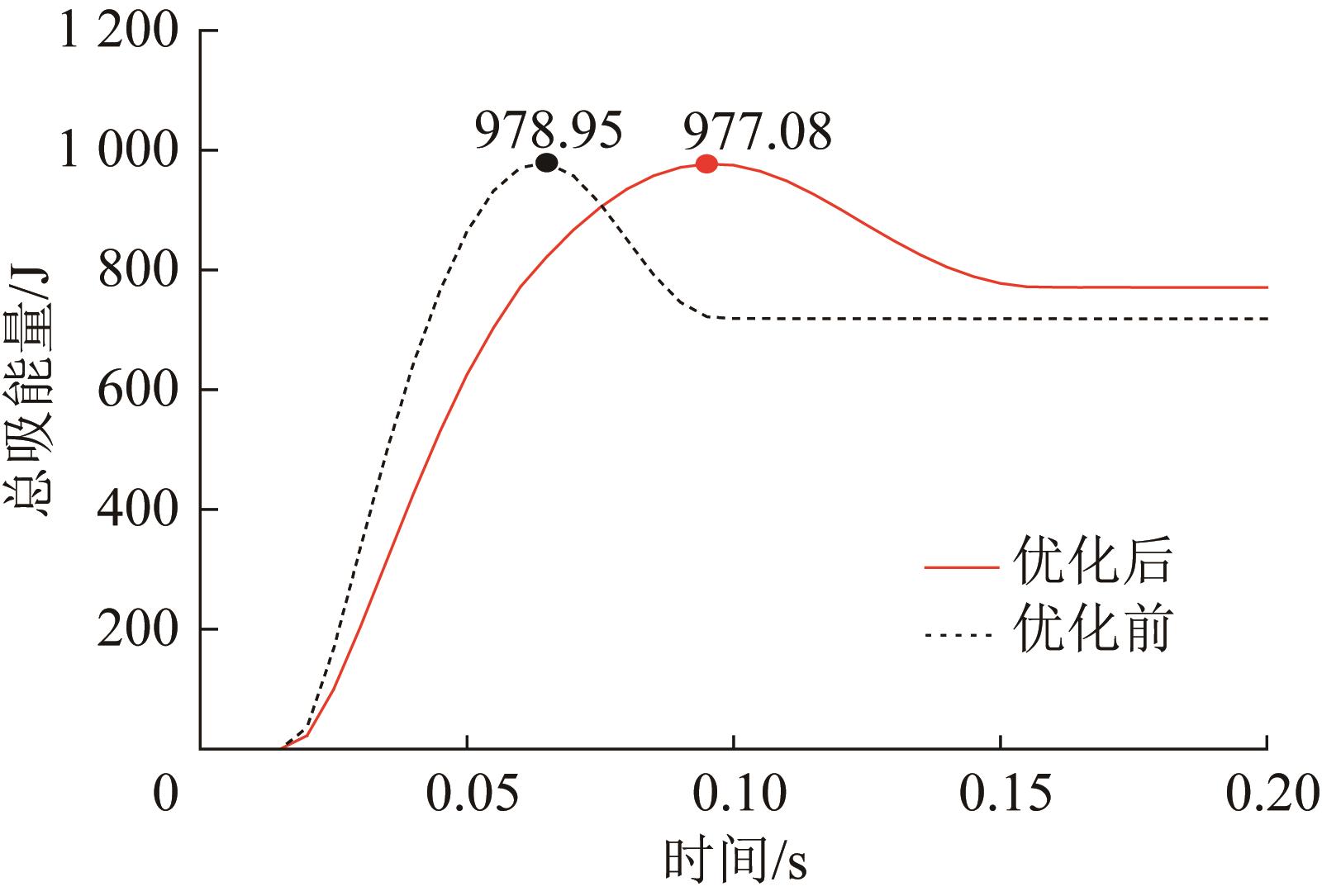

Fig.12 Comparison of total energy absorption curves of crashworthy devices before and after optimization

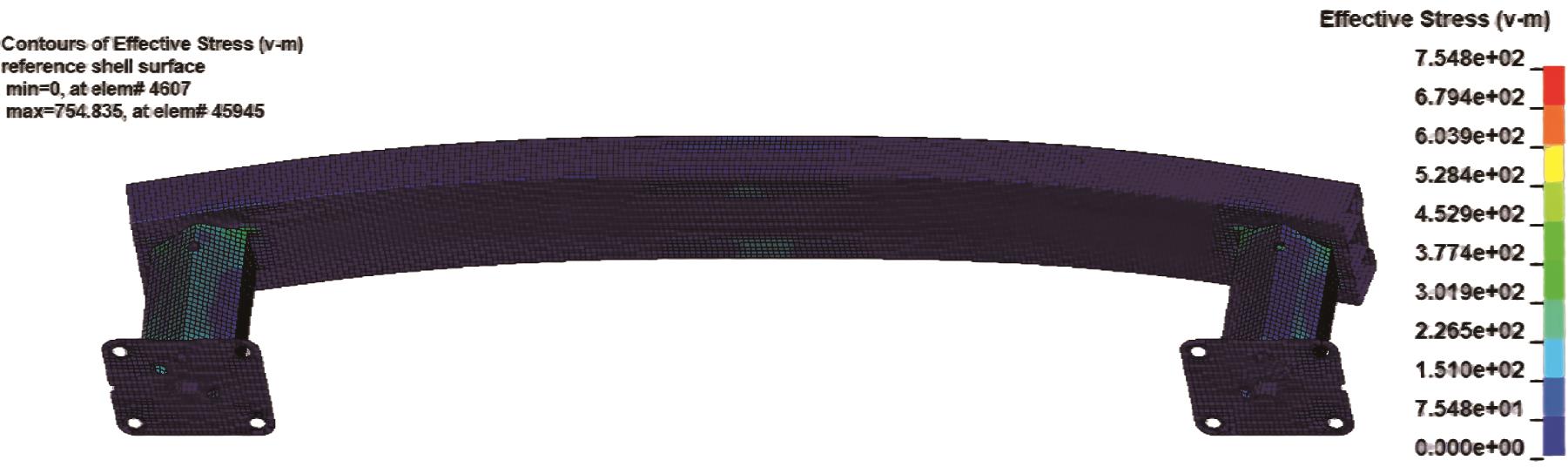

Fig.13 Stress distribution cloud map of crashworthy device after optimization （t=0.095 s）

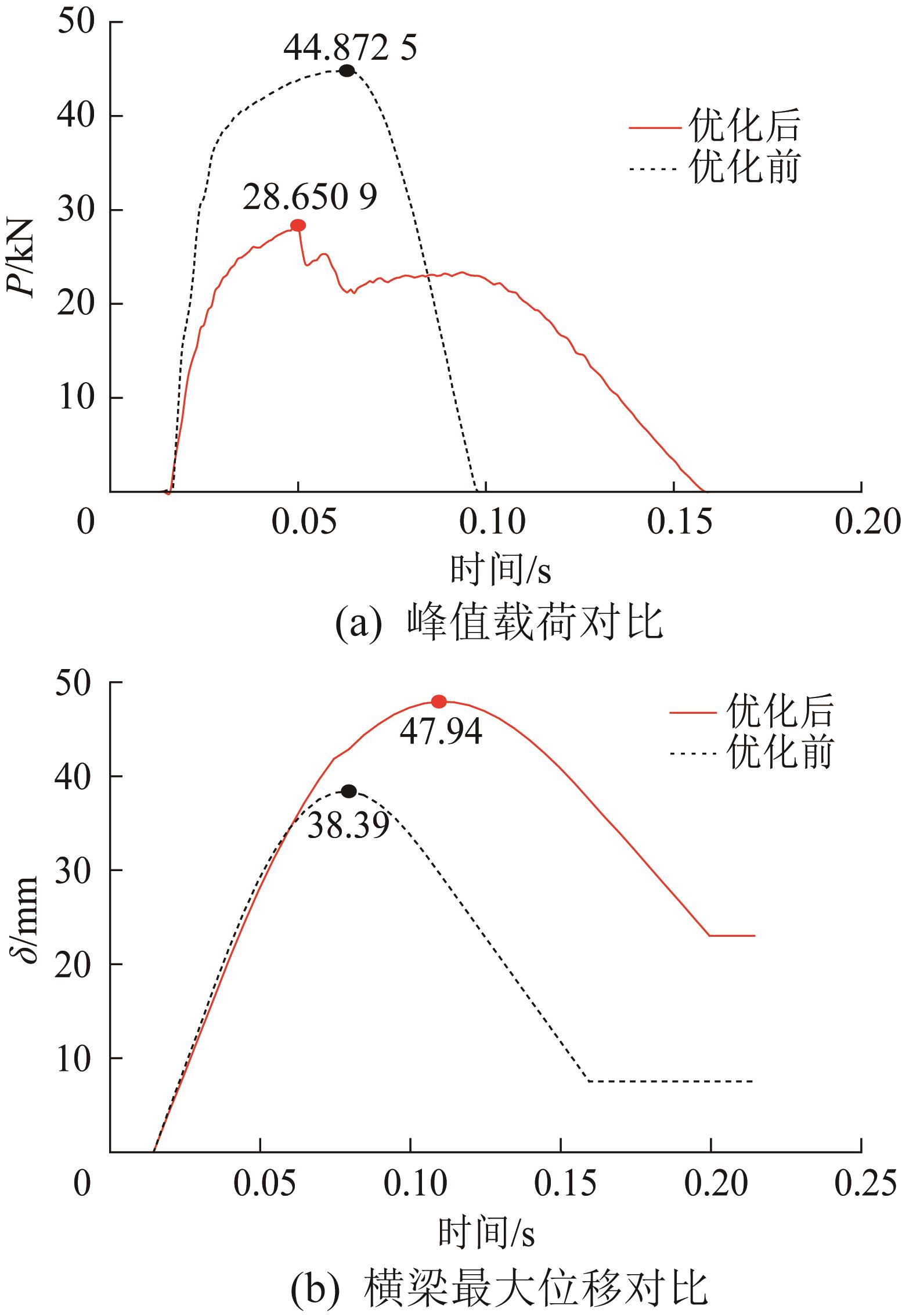

Fig.14 Comparison of crash performance of crashworthy devices before and after optimization

Table 9 Comparison of response indicators of crashworthy devices before and after optimization


[[1]]	熊其平，钟建辉，占红星，等. 轻量化材料在汽车制造中的应用［J］. 汽车测试报告， 2024（17）： 62-64. XIONG Q P， ZHONG J H， ZHAN H X， et al. Application of lightweight materials in automobile manufacturing［J］. Car Test Report， 2024（17）： 62-64.

[[2]]	刘嘉麒. 玄武岩纤维材料［M］. 北京：化学工业出版社， 2021： 1-5. doi：10.22443/rms.emc2020.685 LIU J Q. Basaltic fiber materials［M］. Beijing： Chemical Industry Press， 2021： 1-5. doi: 10.22443/rms.emc2020.685

[[3]]	张建伟，佘希林，刘嘉麒，等. 连续玄武岩纤维新材料的制备、性能及应用［J］. 材料导报， 2023， 37（11）： 238-244. ZHANG J W， SHE X L， LIU J Q， et al. Preparation， properties and application of novel continuous basalt fibers［J］. Materials Reports， 2023， 37（11）： 238-244.

[[4]]	袁铁军，孙强，吕红明，等. 复合材料在汽车防撞梁上的应用研究进展［J］. 工程塑料应用， 2024， 52（4）： 169-174. YUAN T J， SUN Q， LÜ H M， et al. Research progress on application of composite materials in automotive crash beams［J］. Engineering Plastics Application， 2024， 52（4）： 169-174.

[[5]]	DIXIT Y， DHALIWAL G S， NEWAZ G， et al. Comparative investigation for the performance of steel and carbon fiber composite front bumper crush-can （FBCC） structures in quarter-point impact crash tests［J］. Journal of Dynamic Behavior of Materials， 2020， 6（1）： 96-111.

[[6]]	肖罡，郭鹏程，项忠珂，等. 汽车铝合金前防撞梁截面的有限空间优化设计［J］. 塑性工程学报， 2023， 30（8）： 146-155. XIAO G， GUO P C， XIANG Z K， et al. Finite space optimization design of vehicle aluminum alloy front anti-collision beam section［J］. Journal of Plasticity Engineering， 2023， 30（8）： 146-155.

[[7]]	张涛. 碳纤维增强复合材料汽车保险杠轻量化设计［D］. 青岛：青岛大学， 2021. ZHANG T. Lightweight design of carbon fiber reinforced composite automobile bumpers［D］. Qingdao： Qingdao University， 2021.

[[8]]	CHEN J X， TUO W Y， WAN C F， et al. Shear test method for and mechanical characteristics of short basalt fiber reinforced polymer composite materials［J］. Journal of Applied Polymer Science， 2018， 135（16）： 46078.

[[9]]	孙胜江，朱长华，梅葵花. 玄武岩纤维复合材料梁-柱式护栏防撞性能［J］. 振动与冲击， 2019， 38（21）： 265-270. SUN S J， ZHU C H， MEI K H. Anti-collision performance of basalt fiber composite beam-column guardrails［J］. Journal of Vibration and Shock， 2019， 38（21）： 265-270.

[[10]]	徐森. 玄武岩纤维前防撞梁结构优化设计［D］. 长春：吉林大学， 2022. XU S. Structural optimization design of basalt fiber front crash beam［D］. Changchun： Jilin University， 2022.

[[11]]	崔晓凡. 车用玄武岩-碳纤维混杂复合材料结构优化与性能研究［D］. 长春：吉林大学， 2023. CUI X F. Structural optimization and performance study of basalt/carbon fiber hybrid composites for vehicles［D］. Changchun： Jilin University， 2023.

[[12]]	陈静，崔晓凡，郑晋军，等. 基于加点多目标粒子群算法的碳纤维防撞梁优化设计［J］. 湖南大学学报（自然科学版）， 2022， 49（8）： 21-28. doi：10.5755/j02.eie.31232 CHEN J， CUI X F， ZHENG J J， et al. Optimization design of carbon fiber anti-collision beam based on multi-objective particle swarm with additional points［J］. Journal of Hunan University （Natural Sciences）， 2022， 49（8）： 21-28. doi: 10.5755/j02.eie.31232

[[13]]	彭煜轩，周先军. 碳纤维复合材料保险杠碰撞性能研究［J］. 机电工程技术， 2024， 53（12）： 192-197. PENG Y X， ZHOU X J. Research on collision performance of carbon fiber composite bumper［J］. Mechanical & Electrical Engineering Technology， 2024， 53（12）： 192-197.

[[14]]	ZHANG F， WU M Y， HOU X T， et al. Post-buckling reliability analysis of stiffened composite panels based on adaptive iterative sampling［J］. Engineering with Computers， 2022， 38（）： 2651-2661.

[[15]]	ZHANG L G， LU Z Z， WANG P. Efficient structural reliability analysis method based on advanced Kriging model［J］. Applied Mathematical Modelling， 2015， 39（2）： 781-793.

[[16]]	WANG D F， XIE C， WANG S. An adaptive RBF neural network-based multi-objective optimization method for lightweight and crashworthiness design of cab floor rails using fuzzy subtractive clustering algorithm［J］. Structural and Multidisciplinary Optimization， 2021， 63（2）： 915-928.

[[17]]	HE C H， ZENG H， HUANG J Q， et al. Structure aware single-stage 3D object detection from point cloud［C］//2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition. Seattle， WA， Jun. 13-19， 2020.

[[18]]	张铃欣. 汽车车轮区域流动不稳定性及其气动外形优化减阻方法研究［D］. 镇江：江苏大学， 2023. ZHANG L X. Investigation of automotive wheel flow nstabilities and aerodynamic shape optimization for drag reduction［D］. Zhenjiang： Jiangsu University， 2023.

[[19]]	王学武，闵永，顾幸生. 基于密度聚类的多目标粒子群优化算法［J］. 华东理工大学学报（自然科学版）， 2019， 45（3）： 449-457. WANG X W， MIN Y， GU X S. Multi-objective particle swarm optimization algorithm based on density clustering［J］. Journal of East China University of Science and Technology， 2019， 45（3）： 449-457.

[[20]]	PHROMPHAN P， SUVISUTHIKASAME J， KAEWMONGKOL M， et al. A new Latin hypercube sampling with maximum diversity factor for reliability-based design optimization of HLM［J］. Symmetry， 2024， 16（7）： 901.

[[21]]	王晓钰. 不同长度特长隧道光环境对驾驶员心生理负荷的影响研究［D］. 重庆：重庆交通大学， 2024. WANG X Y. Study on the relationship between traffic safety and biomass index at the entrance of highway tunnel［D］. Chongqing： Chongqing Jiaotong University， 2024.
