| Reliability and Quality Design |
|
|
|
|
| Analysis of mechanical properties and corrosion behavior of self-piercing riveted-bonded composite joints in acidic environment |
Yuhao JIANG1( ),Baoying XING1(),Guiqiu YANG1,Kai ZENG1,Xiaocong HE1,Chunbao ZOU2 |
1.Faculty of Mechanical and Electrical Engineering, Kunming University of Science and Technology, Kunming 650500, China
2.Guangzhou Heron Intelligent Equipment Co. , Ltd. , Guangzhou 510990, China |
|
|
|

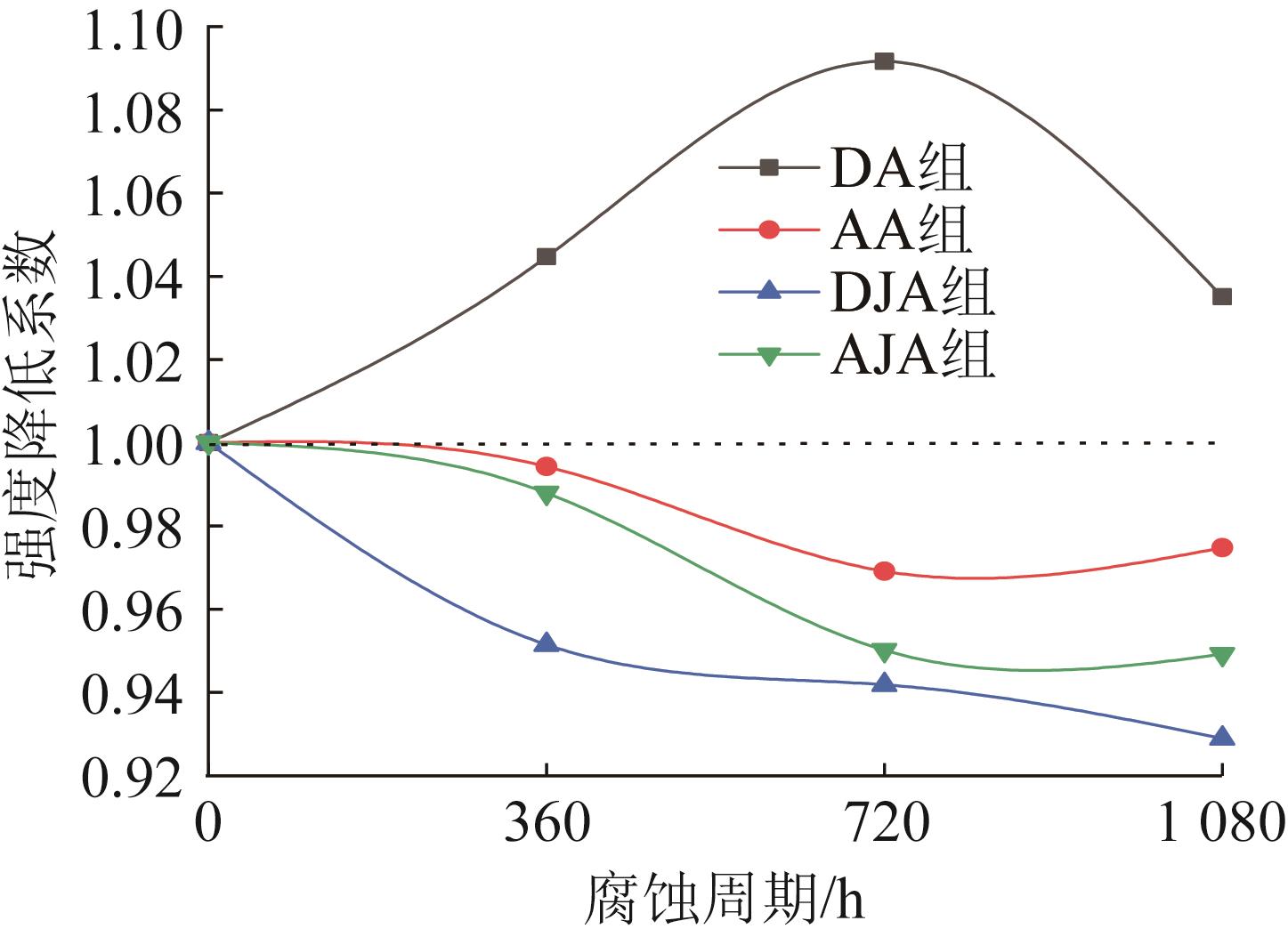

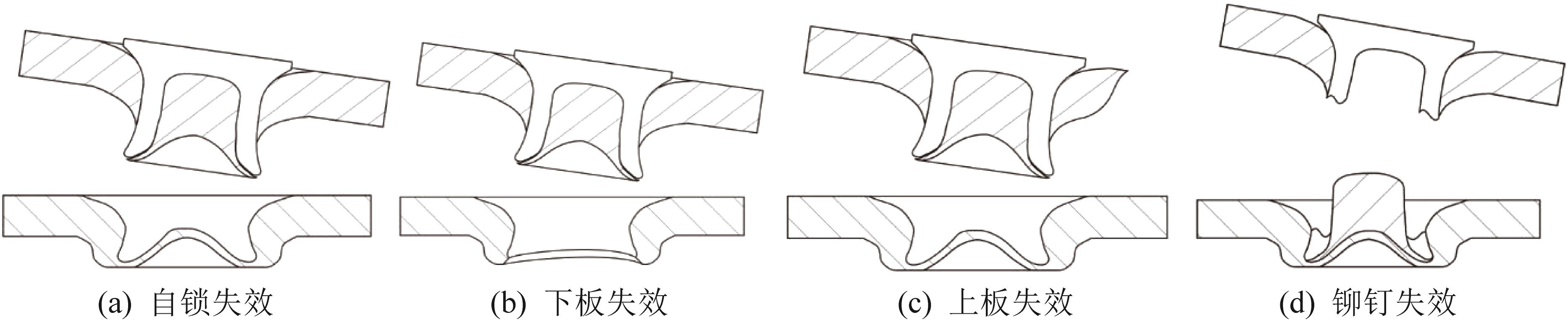

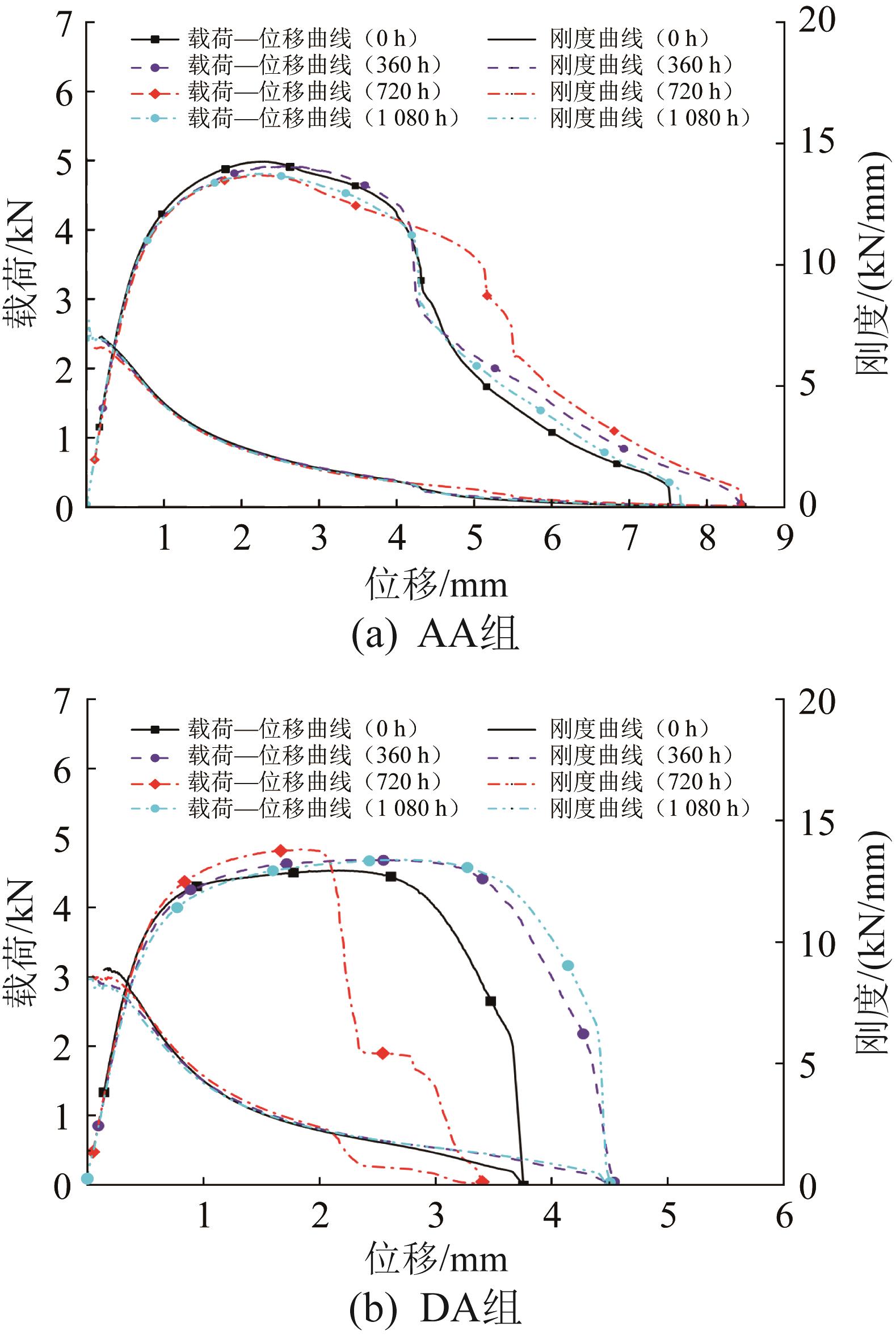

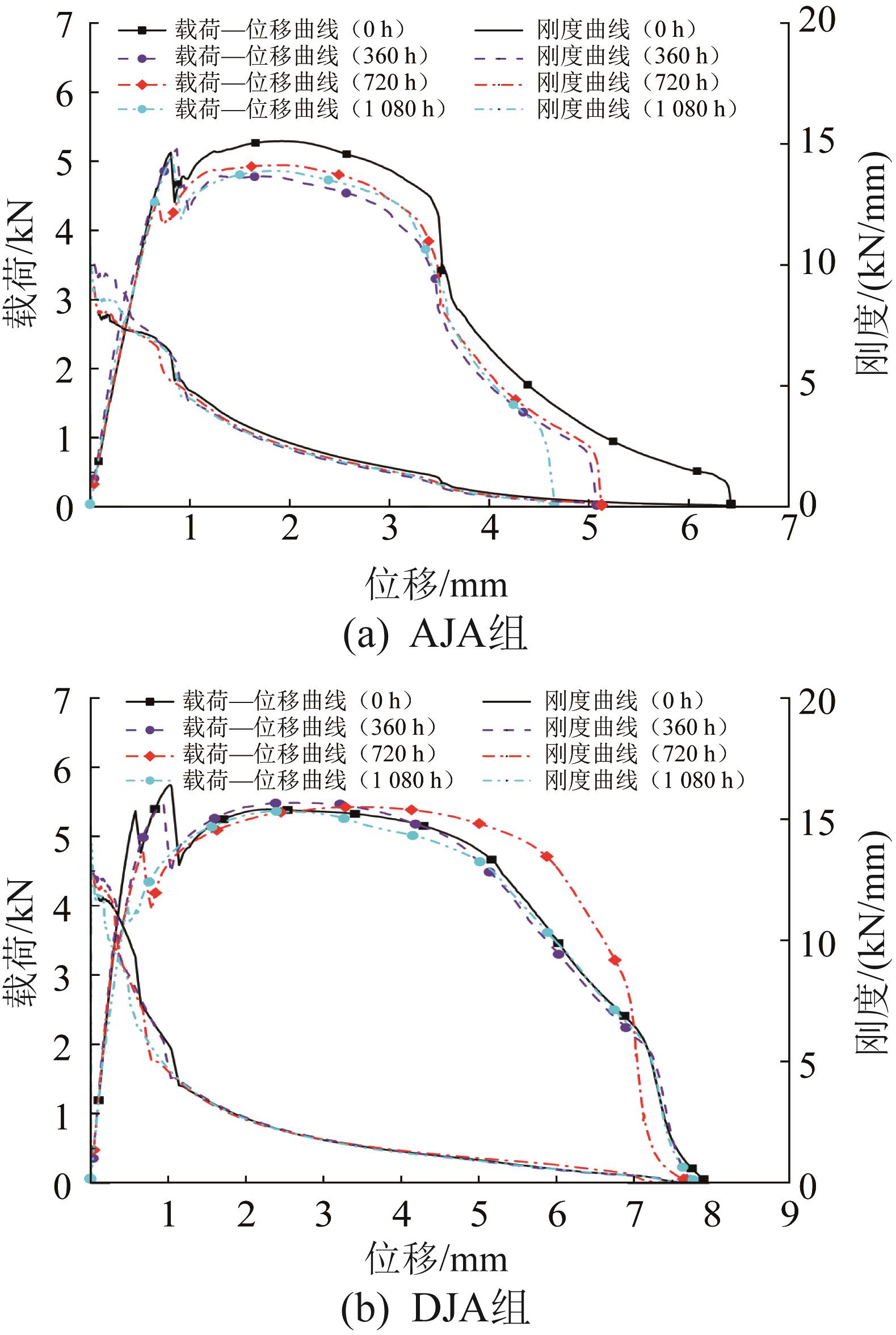

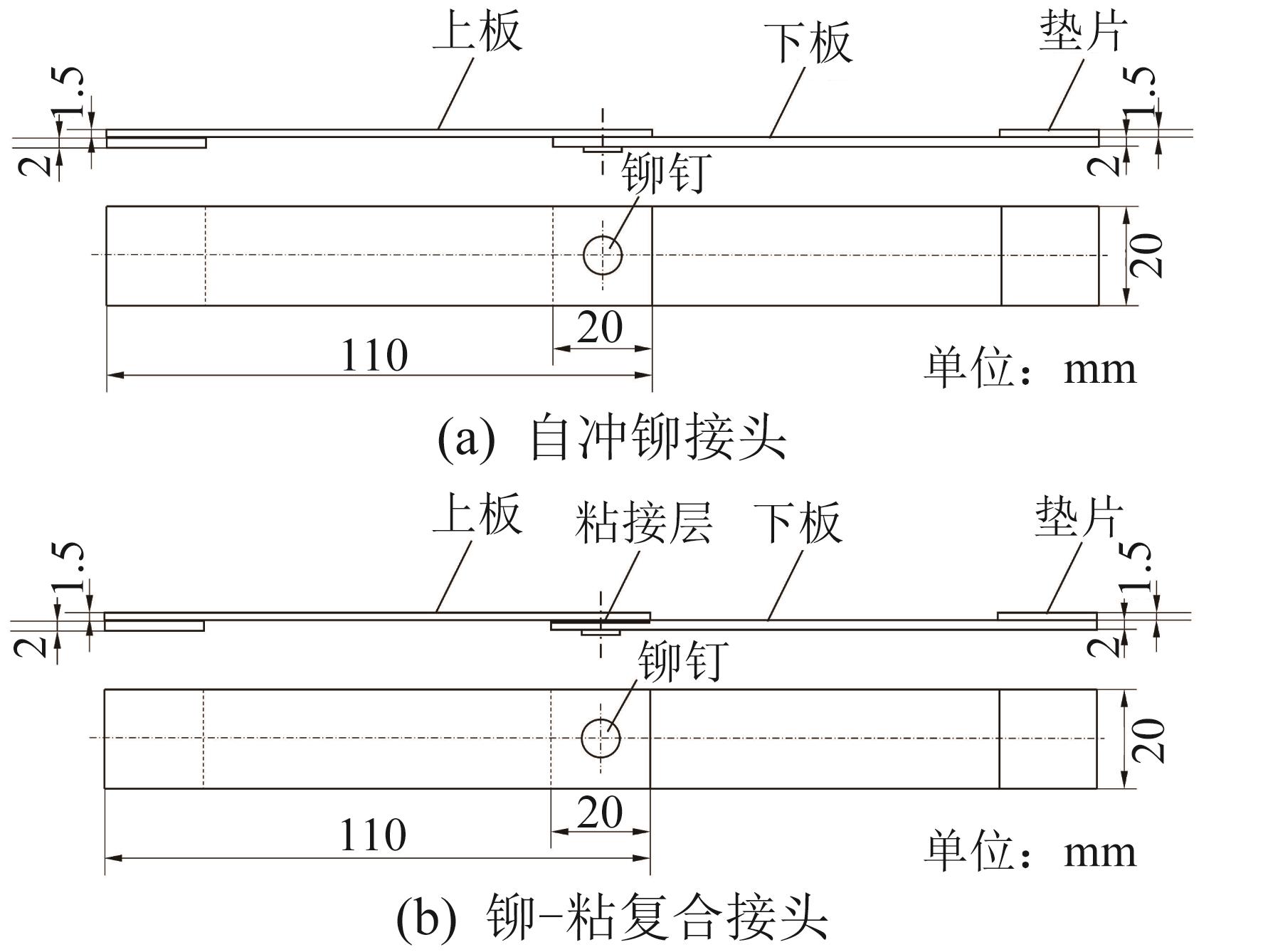

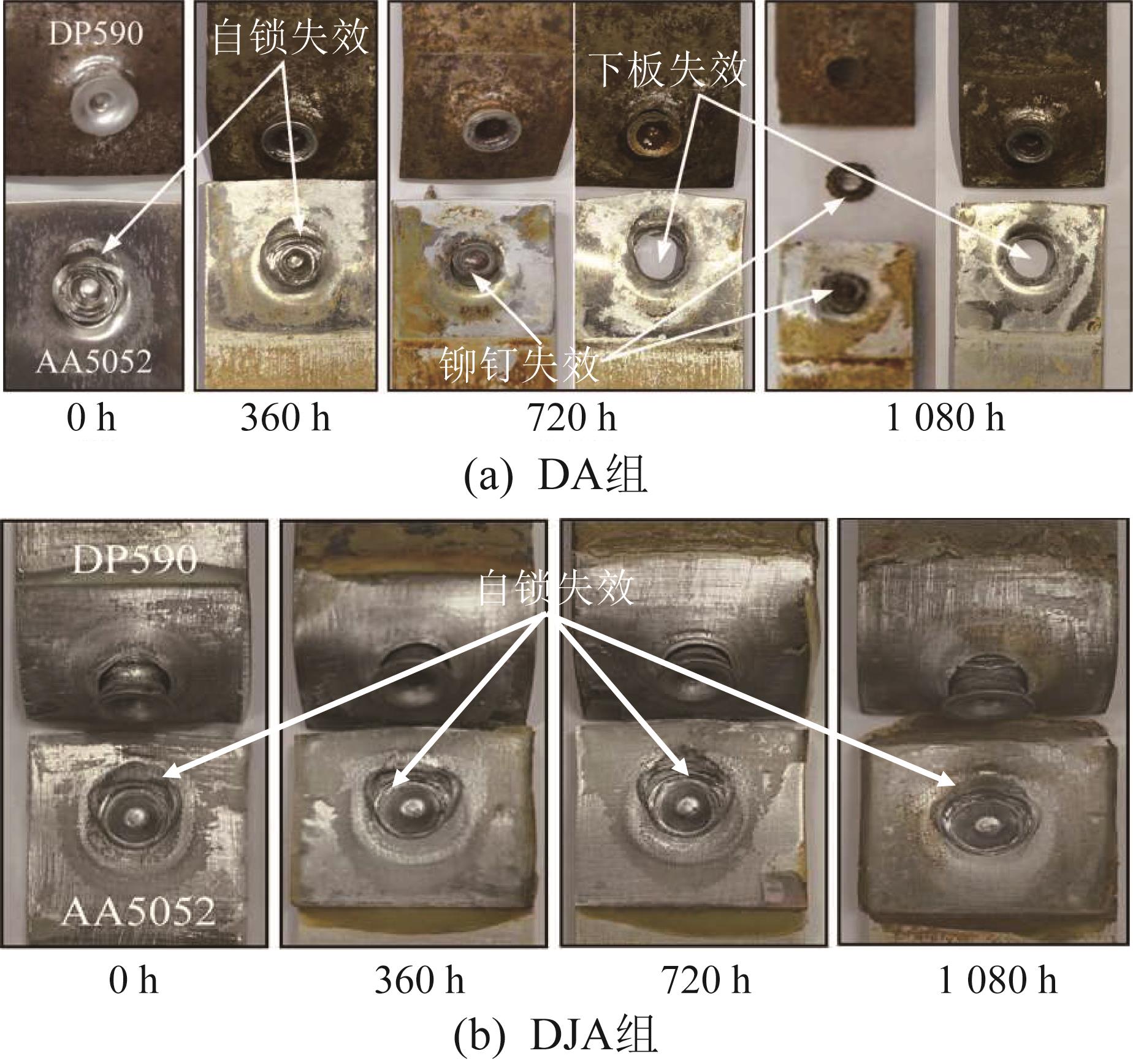

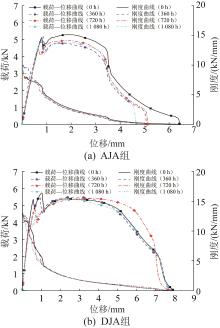

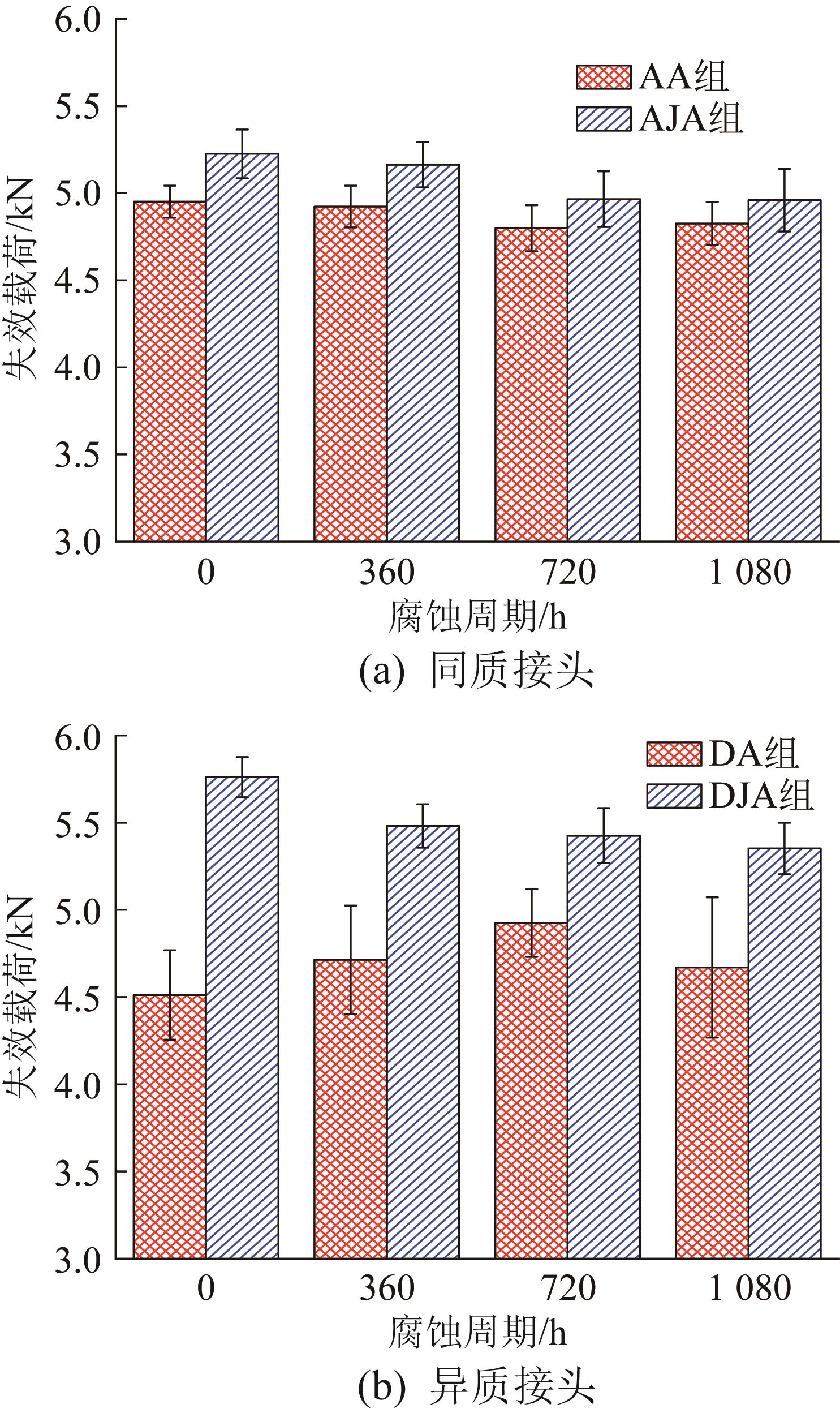

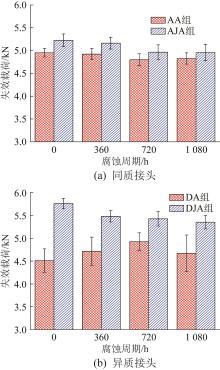

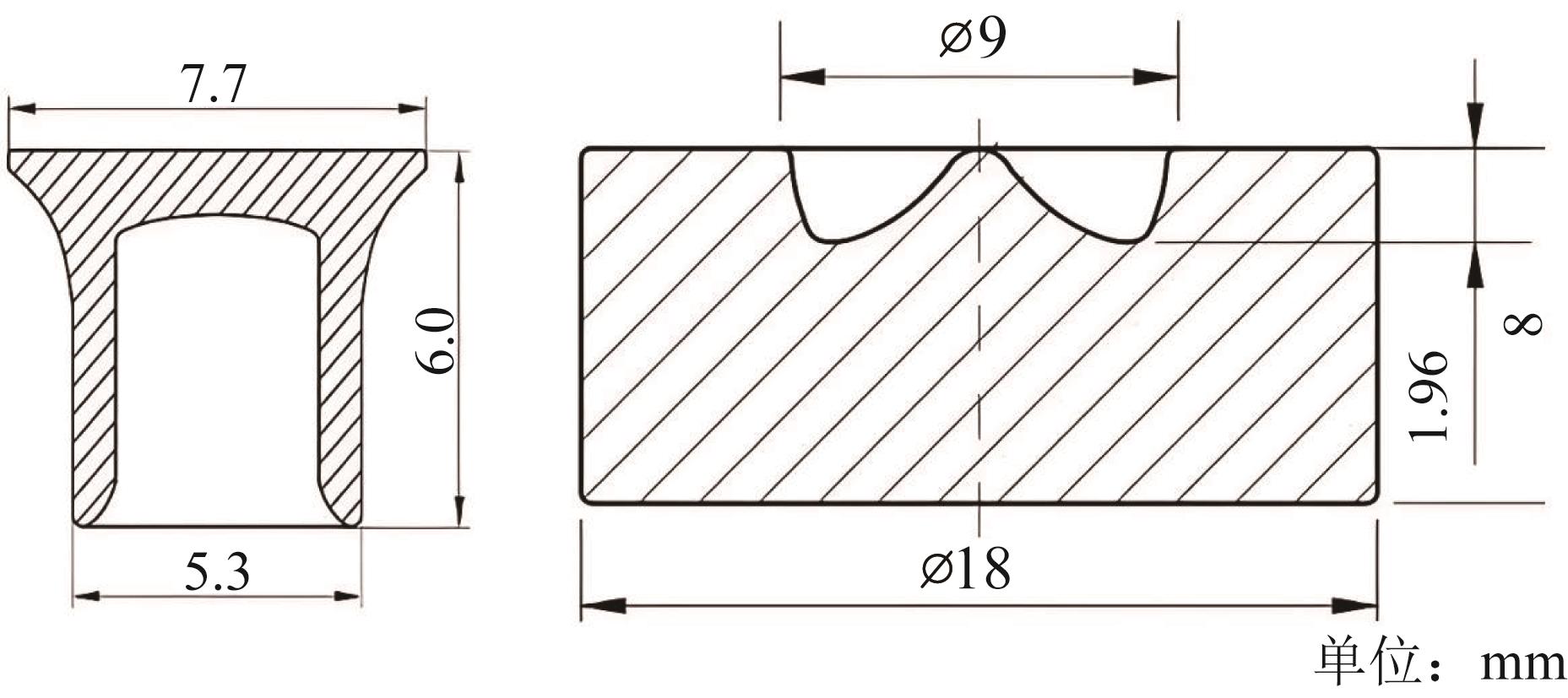

Abstract To study the failure modes and mechanical properties of self-piercing riveted-bonded (SPR-bonded) composite joints in acidic environments, the 0.02 mol/L NaHSO3 solution was used as the corrosion medium to conduct dry-wet alternate immersion corrosion tests on similar and dissimilar SPR joints and SPR-bonded composite joints. Subsequently, the static mechanical properties of the joints under different corrosion cycles were explored through static tensile tests, and the corrosion behavior at the gaps during the riveting forming process of joints was studied by means of scanning electron microscope. The results showed that the corrosion effect had an impact on the failure displacement of the SPR joint, and the static strength and stiffness of the SPR-bonded composite joint were both superior to those of the SPR joint. The bonded structure was more sensitive to the corrosion effect, which gradually reduced the failure load of the SPR-bonded composite joint, resulting in the failure load of the SPR-bonded composite joint being borne by the riveted structure in the middle and later stages of corrosion. The dissimilar joints exhibited relatively poorer stability compared to similar joints. The incorporation of adhesive effectively inhibited the transformation of failure modes of dissimilar joints in corrosive environments. The adhesive had a certain inhibitory effect on the corrosion in the overlap area between the upper and lower plates of the joint. The scratches on the riveted hole wall of the upper plate would accelerate the corrosion at the contact surface between the outer side of the rivet tube leg and the upper plate. The selection of SPR-bonded composite joints helps to enhance the static strength and corrosion resistance of riveted structures, thereby prolonging their service life. The research results provide theoretical support for the application of riveting technology in acidic corrosive environments.
|
|
Received: 19 November 2024
Published: 01 September 2025
|
|
|
|
Corresponding Authors:
Baoying XING
E-mail: 15666750225@163.com;xbb0808@163.com
|
酸性环境下自冲铆-粘接复合接头的力学性能及腐蚀行为分析
为分析酸性环境下自冲铆-粘接（铆-粘）复合接头的失效形式和力学性能，以0.02 mol/L的NaHSO3溶液作为腐蚀介质，对同质、异质的自冲铆接头和铆-粘复合接头进行干湿交替的周浸腐蚀试验，随后通过静力学拉伸试验对不同腐蚀周期下接头的静力学性能进行探究，并借助扫描电子显微镜对接头铆接成形过程中缝隙处的腐蚀行为进行研究。结果表明：腐蚀作用影响自冲铆接头的失效位移，铆-粘复合接头的静强度和刚度均优于自冲铆接头。粘接结构对腐蚀效应更为敏感，使得铆-粘复合接头的失效载荷逐渐减小，导致腐蚀中后期铆-粘复合接头的失效载荷由铆接结构承受；异质接头的稳定性比同质接头差，粘接剂的加入有效抑制了腐蚀环境下异质接头失效形式的转变。粘接剂对接头上板与下板间搭接区域的腐蚀有一定抑制作用，上板铆接孔壁的刮痕会加速铆钉管腿外侧与上板接触面处的腐蚀。选用铆-粘复合接头有助于提高铆接结构的静强度和耐腐蚀性能，延长了使用寿命。研究结果为铆接技术在酸性腐蚀环境中的应用提供了理论支持。
关键词：
自冲铆接,
腐蚀行为,
力学性能,
失效形式
|
|
| [[1]] |
李永兵， 马运五， 楼铭， 等. 轻量化薄壁结构点连接技术研究进展［J］. 机械工程学报， 2020， 56（6）： 125-146. doi：10.3901/jme.2020.06.125
LI Y B， MA Y W， LOU M， et al. Advances in spot joining technologies of lightweight thin-walled structures［J］. Journal of Mechanical Engineering， 2020， 56（6）： 125-146.
doi: 10.3901/jme.2020.06.125
|
|
|
| [[2]] |
张先炼， 何晓聪， 邢保英， 等. TA1纯钛与1420铝锂合金异质薄板自冲铆接微动疲劳特性［J］. 材料工程， 2019， 47（4）： 143-151.
ZHANG X L， HE X C， XING B Y， et al. Fretting fatigue characteristics of self-piercing riveting in dissimilar sheets of TA1 pure titanium and 1420 aluminum-lithium alloys［J］. Journal of Materials Engineering， 2019， 47（4）： 143-151.
|
|
|
| [[3]] |
MA Y W， YANG B X， HU S Q， et al. Combined strengthening mechanism of solid-state bonding and mechanical interlocking in friction self-piercing riveted AA7075-T6 aluminum alloy joints［J］. Journal of Materials Science & Technology， 2022， 105： 109-121.
|
|
|
| [[4]] |
ANG H Q. An overview of self-piercing riveting process with focus on joint failures， corrosion issues and optimisation techniques［J］. Chinese Journal of Mechanical Engineering， 2021， 34（1）： 2.
|
|
|
| [[5]] |
杨贵秋， 邢保英， 曾凯， 等. 腐蚀环境下钢/铝压印-胶接复合接头的静力学性能研究［J］. 工程设计学报， 2024， 31（5）： 663-669.
YANG G Q， XING B Y， ZENG K， et al. Study on statics properties of steel/aluminum clinch-bonded composite joint under corrosive environment［J］. Chinese Journal of Engineering Design， 2024， 31（5）： 663-669.
|
|
|
| [[6]] |
冯震， 邢保英， 何晓聪， 等. 盐性环境下铝合金自冲铆接头的疲劳特性及寿命预测［J］. 材料导报， 2022， 36（1）： 149-153.
FENG Z， XING B Y， HE X C， et al. Fatigue characteristics and life prediction of aluminum alloy self-piercing riveted joints in salt environment［J］. Materials Reports， 2022， 36（1）： 149-153.
|
|
|
| [[7]] |
LIM Y C， JUN J， LEONARD D N， et al. Study of galvanic corrosion and mechanical joint properties of AZ31B and carbon-fiber-reinforced polymer joined by friction self-piercing riveting［J］. Journal of Magnesium and Alloys， 2022， 10（2）： 400-410.
|
|
|
| [[8]] |
QIN Q Y， TANG B W， WEI C Z， et al. Corrosion behavior of riveted joints with electrophoretic treatment in neutral salt spray environment［J］. Materials and Corrosion， 2024， 75（5）： 665-677.
|
|
|
| [[9]] |
LAI J M， HUANG Z C， TANG N L， et al. Insight of salt spray corrosion on mechanical properties of TA1-Al5052 self-piercing riveted joint［J］. Materials， 2022， 15（23）： 8643.
|
|
|
| [[10]] |
KOTADIA H R， RAHNAMA A， SOHN I R， et al. Performance of dissimilar metal self-piercing riveting （SPR） joint and coating behaviour under corrosive environment［J］. Journal of Manufacturing Processes， 2019， 39： 259-270.
|
|
|
| [[11]] |
ABE Y， MORI K I. Mechanical clinching and self-pierce riveting for sheet combination of 780 MPa high-strength steel and aluminium alloy A5052 sheets and durability on salt spray test of joints［J］. The International Journal of Advanced Manufacturing Technology， 2021， 113（1）： 59-72.
|
|
|
| [[12]] |
斯日吉模楞， 毛培. 资源型地区自然资源对经济增长影响的实证分析： 基于2000—2016年中国重点煤炭城市样本［J］. 自然资源学报， 2019， 34（12）： 2491-2503. doi：10.31497/zrzyxb.20191201
SI R J M L， MAO P. Empirical analysis of the influence of natural resources on regional economic growth： based on the sample of key coal cities in China from 2000 to 2016［J］. Journal of Natural Resources， 2019， 34（12）： 2491-2503.
doi: 10.31497/zrzyxb.20191201
|
|
|
| [[13]] |
王丽媛， 王秀通， 孙好芬， 等. 大气环境中SO2影响金属腐蚀的研究进展［J］. 装备环境工程， 2011， 8（2）： 62-66.
WANG L Y， WANG X T， SUN H F， et al. Study of SO2 influence on metal corrosion in atmospheric environment［J］. Equipment Environmental Engineering， 2011， 8（2）： 62-66.
|
|
|
| [[14]] |
全国钢标准化技术委员会. 金属和合金的腐蚀 盐溶液周浸试验： ［S］. 北京： 中国标准出版社， 2005.
National Steel Standardization Technical Committee. Corrosion of metals and alloys： alternate immersion test in salt solution： ［S］. Beijing： Standards Press of China， 2005.
|
|
|
| [[15]] |
曾凯， 何晓聪， 邢保英. 钉脚张开度对自冲铆构件机械内锁刚度的影响［J］. 焊接学报， 2019， 40（6）： 143-147， 167.
ZENG K， HE X C， XING B Y. Effect of the degree of rivet opening on the rigidity of the interlock in self-piercing riveting joints［J］. Transactions of the China Welding Institution， 2019， 40（6）： 143-147， 167.
|
|
|
| [[16]] |
谢志强， 张爱林， 闫维明， 等. 薄壁钢板自冲铆接受剪性能及承载力计算方法研究［J］. 工程力学， 2020， 37（6）： 234-245.
XIE Z Q， ZHANG A L， YAN W M， et al. The shear behavior and calculation method of self-piercing riveted connections on thin-walled steel sheets［J］. Engineering Mechanics， 2020， 37（6）： 234-245.
|
|
|
| [[17]] |
周江奇， 潘海涛， 楼铭， 等. 结构胶对铝钢异种金属自冲铆接工艺影响研究［J］. 汽车工程学报， 2015， 5（5）： 313-320.
ZHOU J Q， PAN H T， LOU M， et al. Impact of structural adhesive on self-piercing riveted aluminum to steel joints［J］. Chinese Journal of Automotive Engineering， 2015， 5（5）： 313-320.
|
|
|
| [[18]] |
黄志超， 刘帅红， 赖家美， 等. 结构胶对钢铝自冲铆接接头力学性能的影响［J］. 塑性工程学报， 2021， 28（7）： 157-162.
HUANG Z C， LIU S H， LAI J M， et al. Influence of structural adhesive on mechanical properties of steel-aluminum self-piercing riveted joints［J］. Journal of Plasticity Engineering， 2021， 28（7）： 157-162.
|
|
|
| [[19]] |
FIORE V， CALABRESE L， PROVERBIO E， et al. Salt spray fog ageing of hybrid composite/metal rivet joints for automotive applications［J］. Composites Part B： Engineering， 2017， 108： 65-74.
|
|
|
| [[20]] |
杨进， 邢保英， 何晓聪， 等. 腐蚀环境下自冲铆接头竞争失效机制及力学性能分析［J］. 焊接学报， 2022， 43（7）： 69-75， 117.
YANG J， XING B Y， HE X C， et al. Analysis of competitive failure mechanisms and mechanical properties of self-piercing riveted joints in corrosive environments［J］. Transactions of the China Welding Institution， 2022， 43（7）： 69-75， 117.
|
|
|
| [[21]] |
许小山. 基于表面粗糙度的复合材料/金属层合板粘接界面强化机理试验与数值研究［J］. 新技术新工艺， 2018（5）： 36-39.
XU X S. Study on strengthening mechanism for composite/metal laminates based on surface roughness by experimental and numerical methods［J］. New Technology & New Process， 2018（5）： 36-39.
|
|
|
| [[22]] |
IBRAHIM A H， CRONIN D S. Mechanical testing of adhesive， self-piercing rivet， and hybrid jointed aluminum under tension loading［J］. International Journal of Adhesion and Adhesives， 2022， 113： 103066.
|
|
|
| [[23]] |
周和荣， 李晓刚， 肖葵， 等. 铝合金7A04在干湿周浸条件下的腐蚀行为研究（英文）［J］. 稀有金属材料与工程， 2009， 38（）： 293-298.
ZHOU H R， LI X G， XIAO K， et al. The corrosion behavior of aluminum alloy 7A04 under cyclic wet-dry immersion conditions［J］. Rare Metal Materials and Engineering， 2009， 38（）： 293-298.
|
|
|
| [[24]] |
邢保英， 何晓聪， 王玉奇， 等. 铝合金自冲铆接头疲劳性能及失效机理［J］. 焊接学报， 2016， 37（6）： 50-54， 131.
XING B Y， HE X C， WANG Y Q， et al. Fatigue properties and failure mechanisms of self-piercing riveted joints in aluminium alloy［J］. Transactions of the China Welding Institution， 2016， 37（6）： 50-54， 131.
doi: 10.3785/j.issn.1006-754X.2025.04.181
|
|
|
| [[24]] |
本文链接：
姜宇豪, 邢保英, 杨贵秋, 等. 酸性环境下自冲铆-粘接复合接头的力学性能及腐蚀行为分析[J]. 工程设计学报, 2025, 32(4): 523-531. doi:10.3785/j.issn.1006-754X.2025.04.181
doi: 10.3785/j.issn.1006-754X.2025.04.181
|
|
|
|
