Energy consumption analysis of load sensitive system of fixed displacement pump based on fluid pulse width modulation
Yan REN1(),Wangfang TAO1,Jian WU1,Yu HUANG2,Lizhong LU2
1.College of Mechanical and Electrical Engineering, Wenzhou University, Wenzhou 325035, China
2.College of Mechanical Engineering, Zhejiang University of Technology, Hangzhou 310023, China
Download: HTML     PDF(4188KB)
Export: BibTeX | EndNote (RIS)

Abstract

In order to reduce the energy consumption of the load sensitive system of a fixed displacement pump, the valve group composed of load sensitive valves in the pump control system was replaced by a two-dimensional pulse width modulated rotary valve, and a load sensitive system based on fluid pulse width modulation was designed. According to the working principle of the load sensitive system, the AMESim simulation model of the system was established, the load sensitive characteristics and energy consumption of the system were simulated and analyzed, and an experimental platform was built for experimental verification. The results showed that the combination of two-dimensional pulse width modulated rotary valve and fixed displacement pump made the system load sensitive, so that the fixed displacement pump output power and load consumption power changed with the load, which reduced the overflow loss and improved the energy saving effect of the system.

Key words： load sensing      two-dimensional pulse width modulation rotary valve      fluid pulse width modulation      energy consumption analysis
Received: 15 April 2024      Published: 31 December 2024
CLC:  TH 137.51
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Yan REN
Wangfang TAO
Jian WU
Yu HUANG
Lizhong LU
Cite this article:

Yan REN,Wangfang TAO,Jian WU,Yu HUANG,Lizhong LU. Energy consumption analysis of load sensitive system of fixed displacement pump based on fluid pulse width modulation. Chinese Journal of Engineering Design, 2024, 31(6): 776-783.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2024.14.03     OR     https://www.zjujournals.com/gcsjxb/Y2024/V31/I6/776


基于流体脉宽调制的定量泵负载敏感系统能耗分析

为了减小定量泵负载敏感系统的能耗，用二维脉宽调制转阀替代泵控系统中由负载敏感阀构成的阀组，设计了一种基于流体脉宽调制的负载敏感系统。根据该负载敏感系统的工作原理，建立了系统AMESim仿真模型，对系统的负载敏感特性和能耗进行了仿真分析，并搭建了实验平台，进行实验验证。结果表明：二维脉宽调制转阀与定量泵的组合使系统具有负载敏感特性，使得定量泵输出功率和负载消耗的功率都随着负载的变化而变化，减小了溢流损失，提高了系统的节能效果。


关键词： 负载敏感,  二维脉宽调制转阀,  流体脉宽调制,  能耗分析

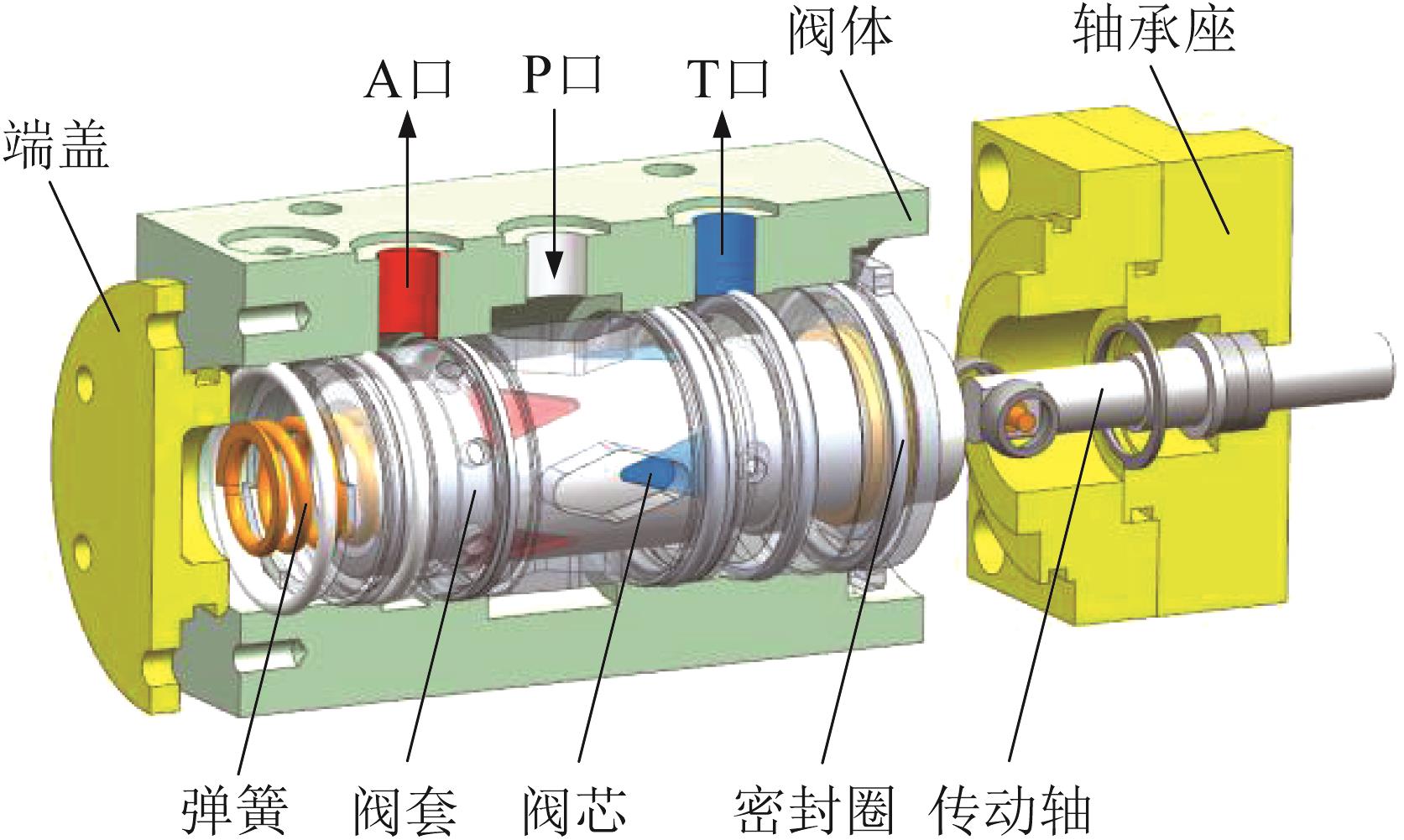

Fig.1 Structure of two-dimensional pulse width modulation rotary valve
Fig.2 Plan view of valve core and valve sleeve with τ=50％

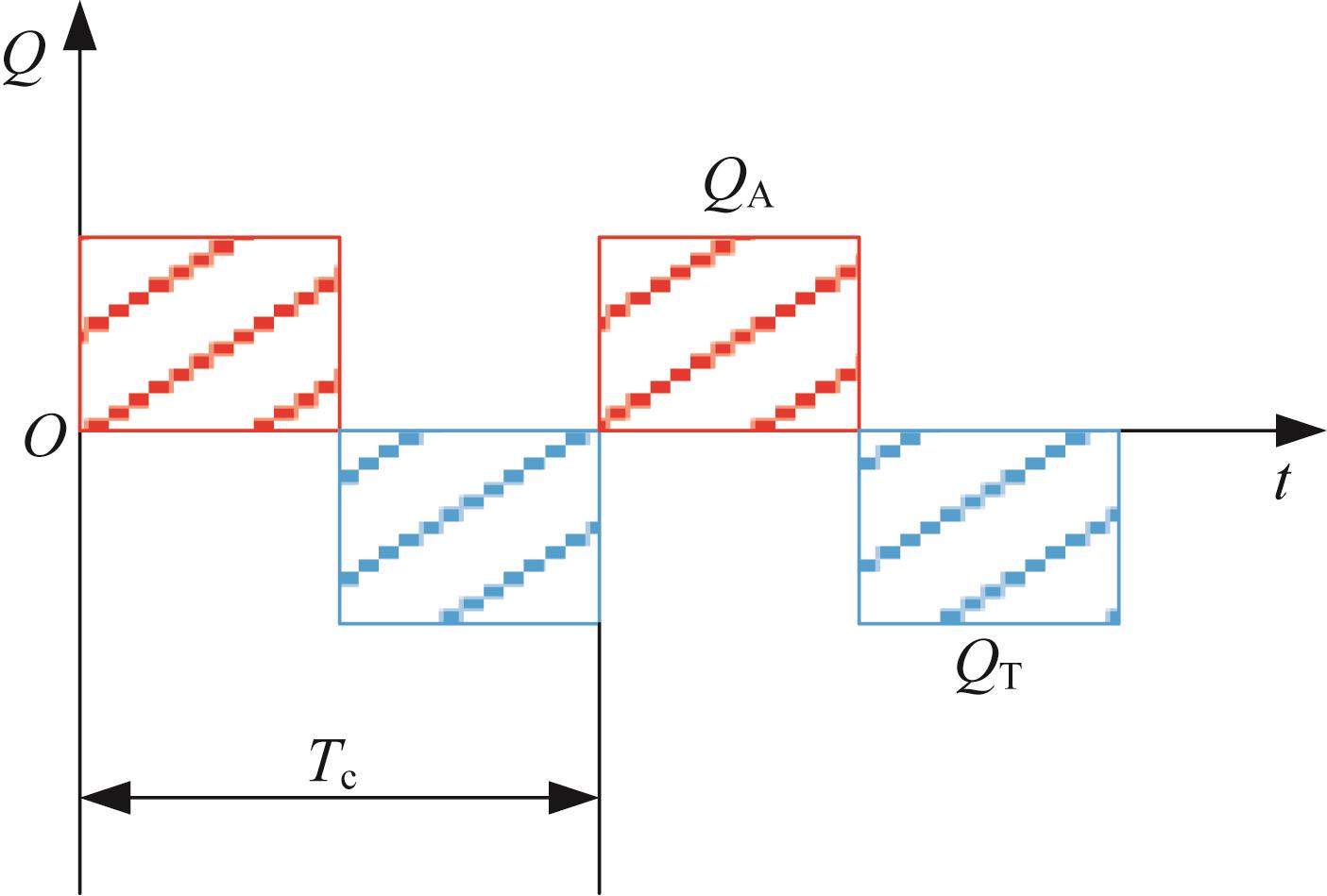

Fig.3 Flow distribution map with τ=50％

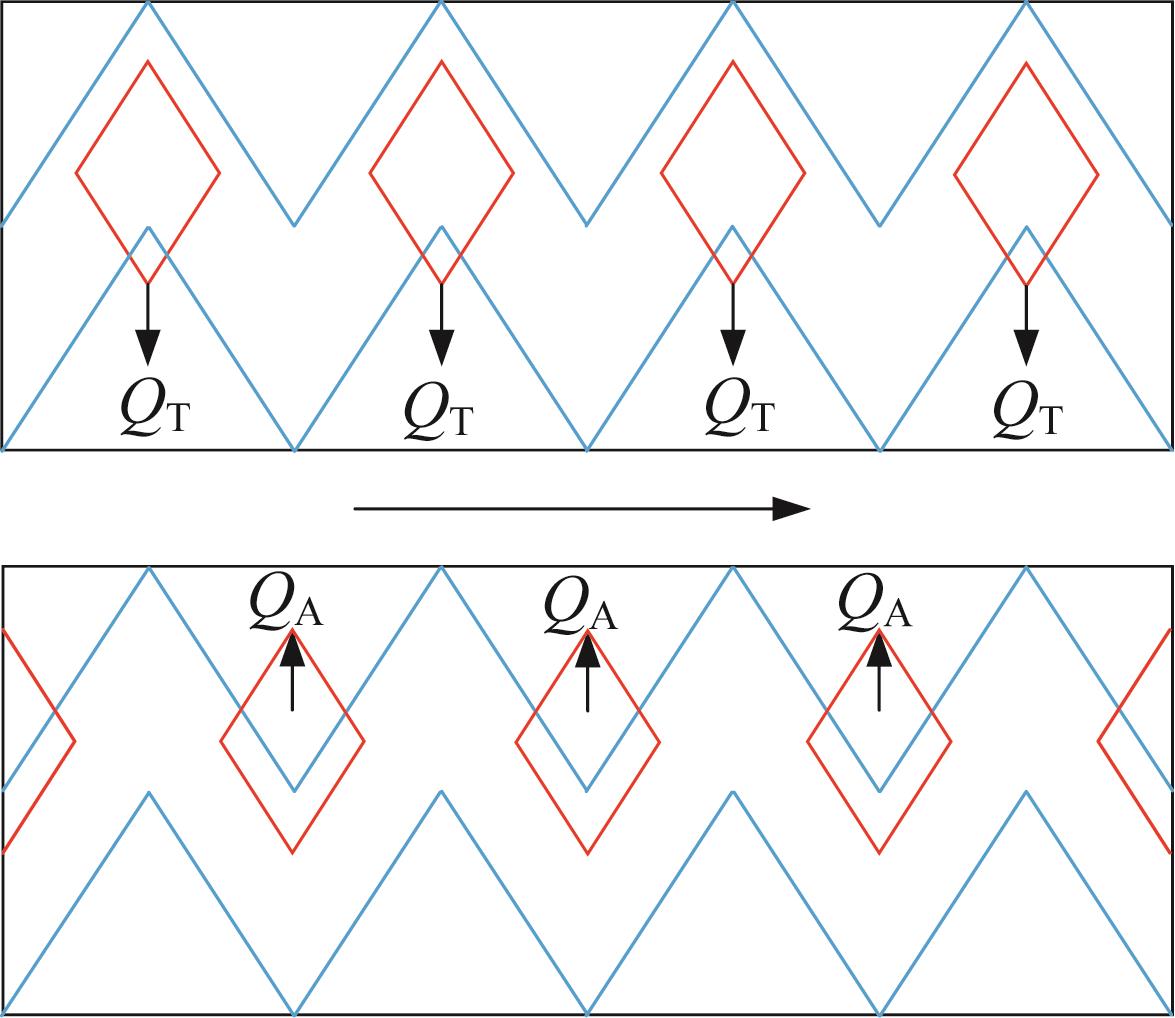

Fig.4 Plan view of valve core and valve sleeve with τ>50%

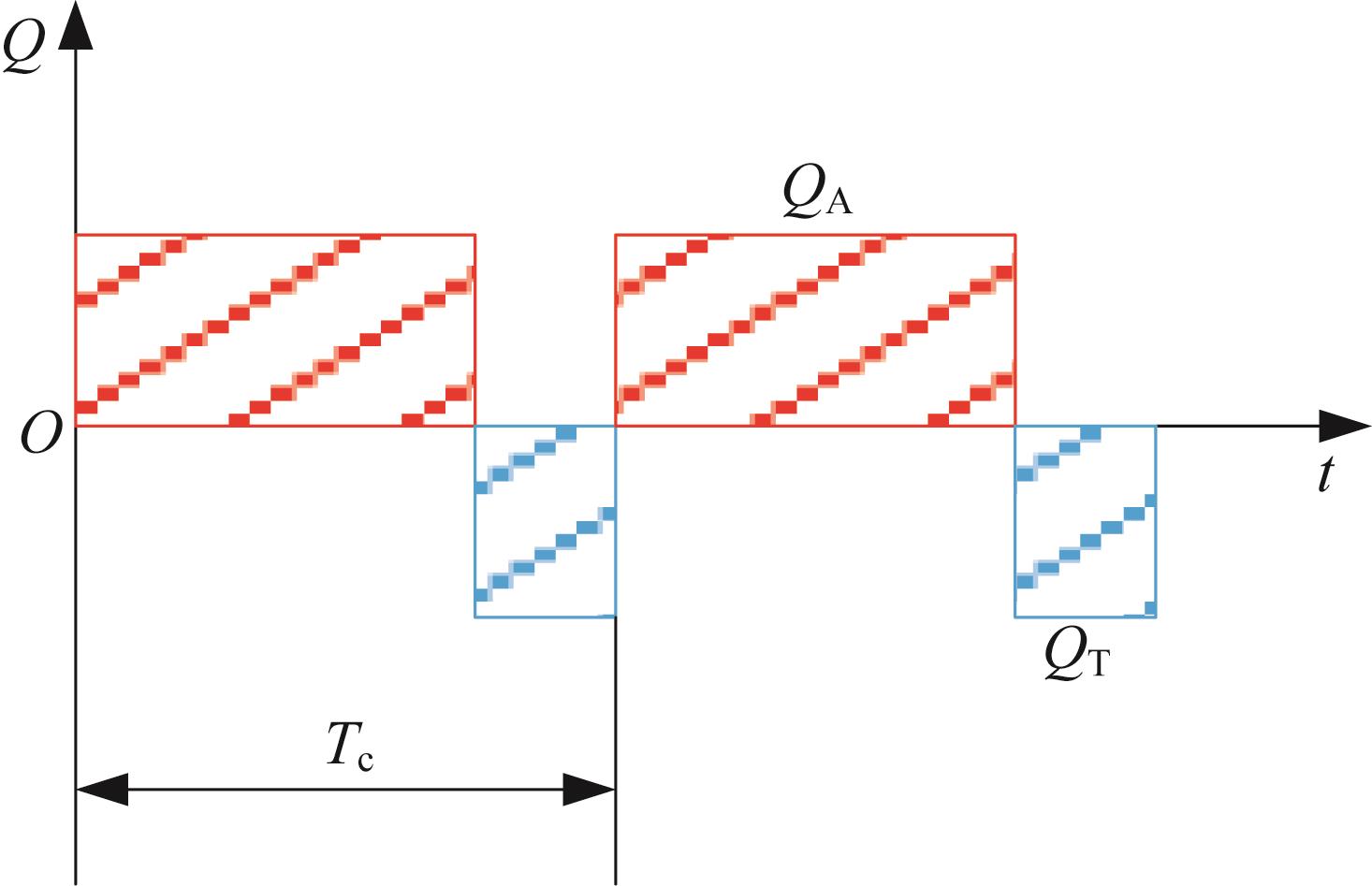

Fig.5 Flow distribution map with τ>50%

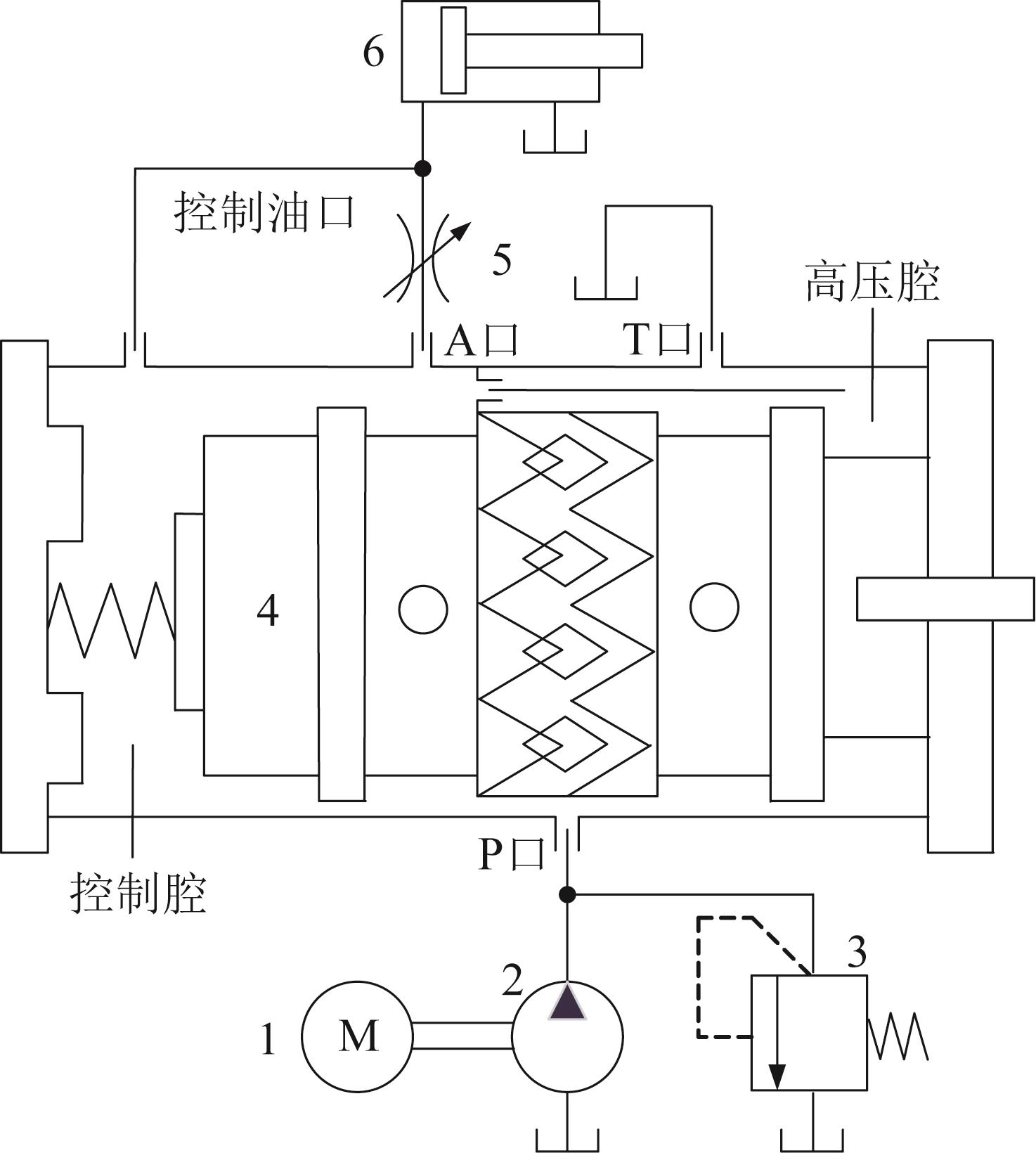

Fig.6 Structure of load sensitive system based on fluid pulse width modulation

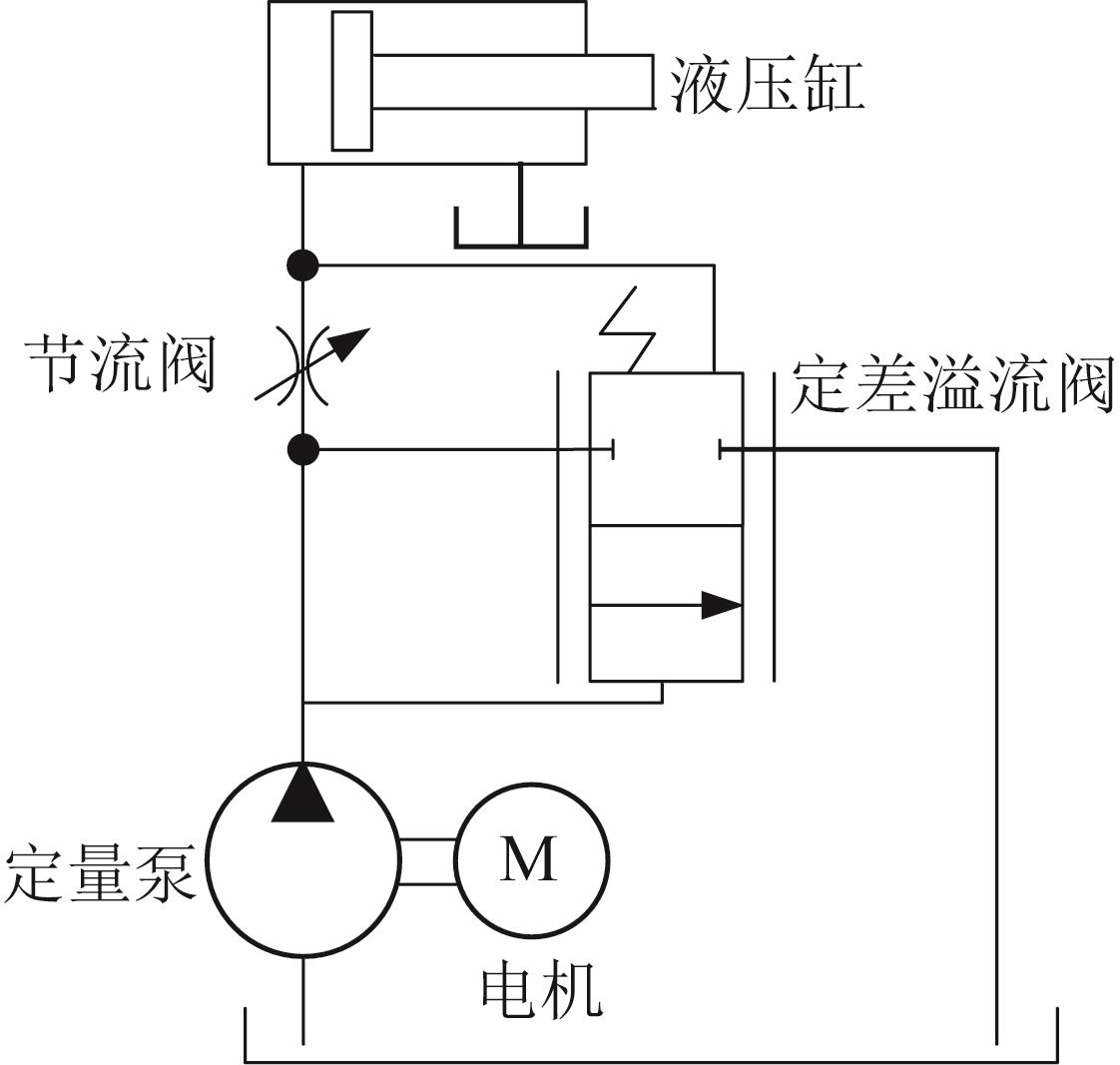

Fig.7 Schematic of working principle of traditional proportioning pump load sensing system

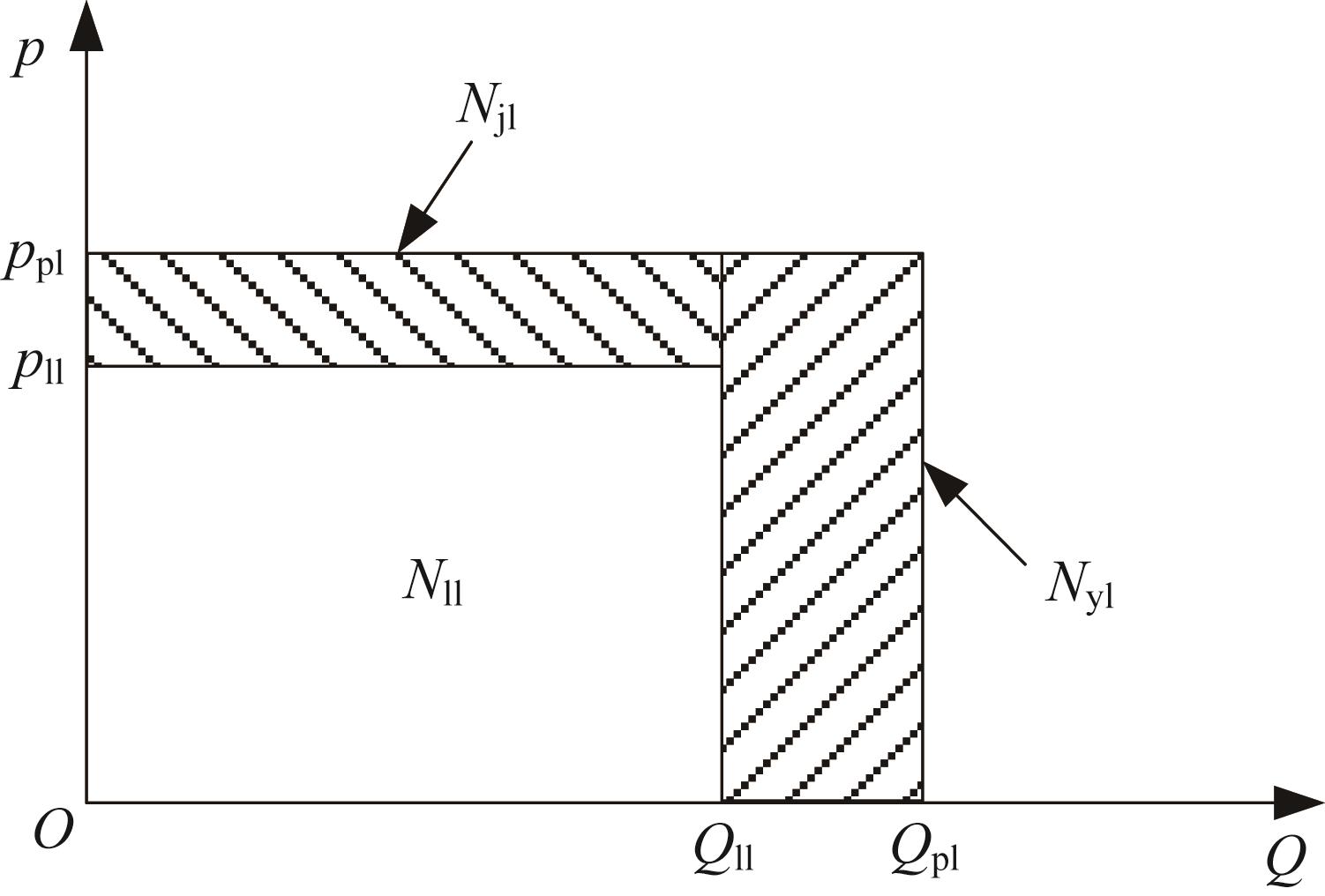

Fig.8 Energy consumption diagram of traditional proportioning pump load sensitive system

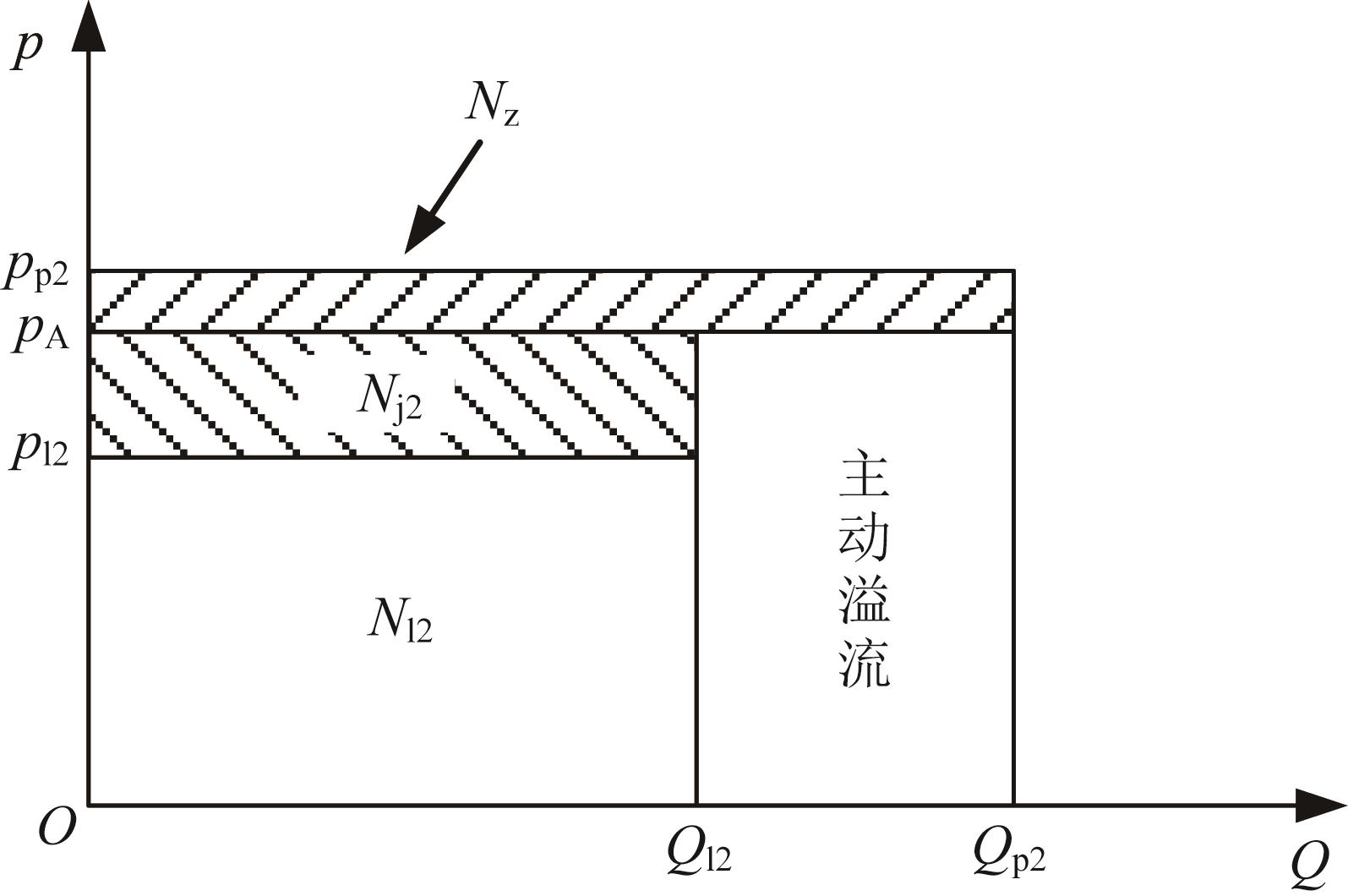

Fig.9 Energy consumption diagram of load sensitive system based on fluid pulse width modulation

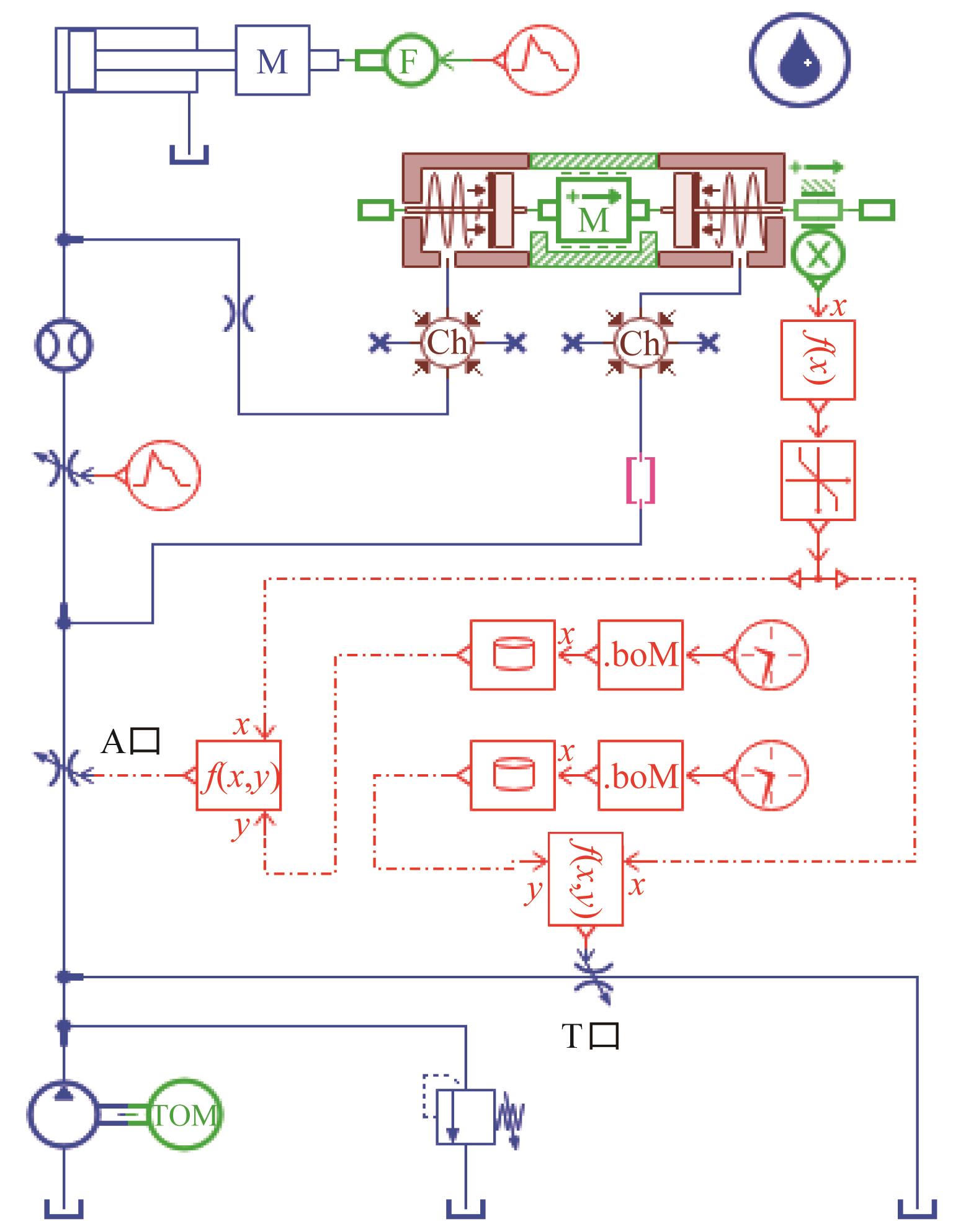

Fig.10 Simulation model of load sensitive system based on fluid pulse width modulation
参数数值
电机转速/(r/min)1 000
泵排量/(L/min)12
阀芯质量/kg5
活塞直径/mm30
活塞杆直径/mm24
弹簧预紧力/N407
弹簧刚度/(N/mm)5
Table 1 Parameters of simulation model of load sensitive system

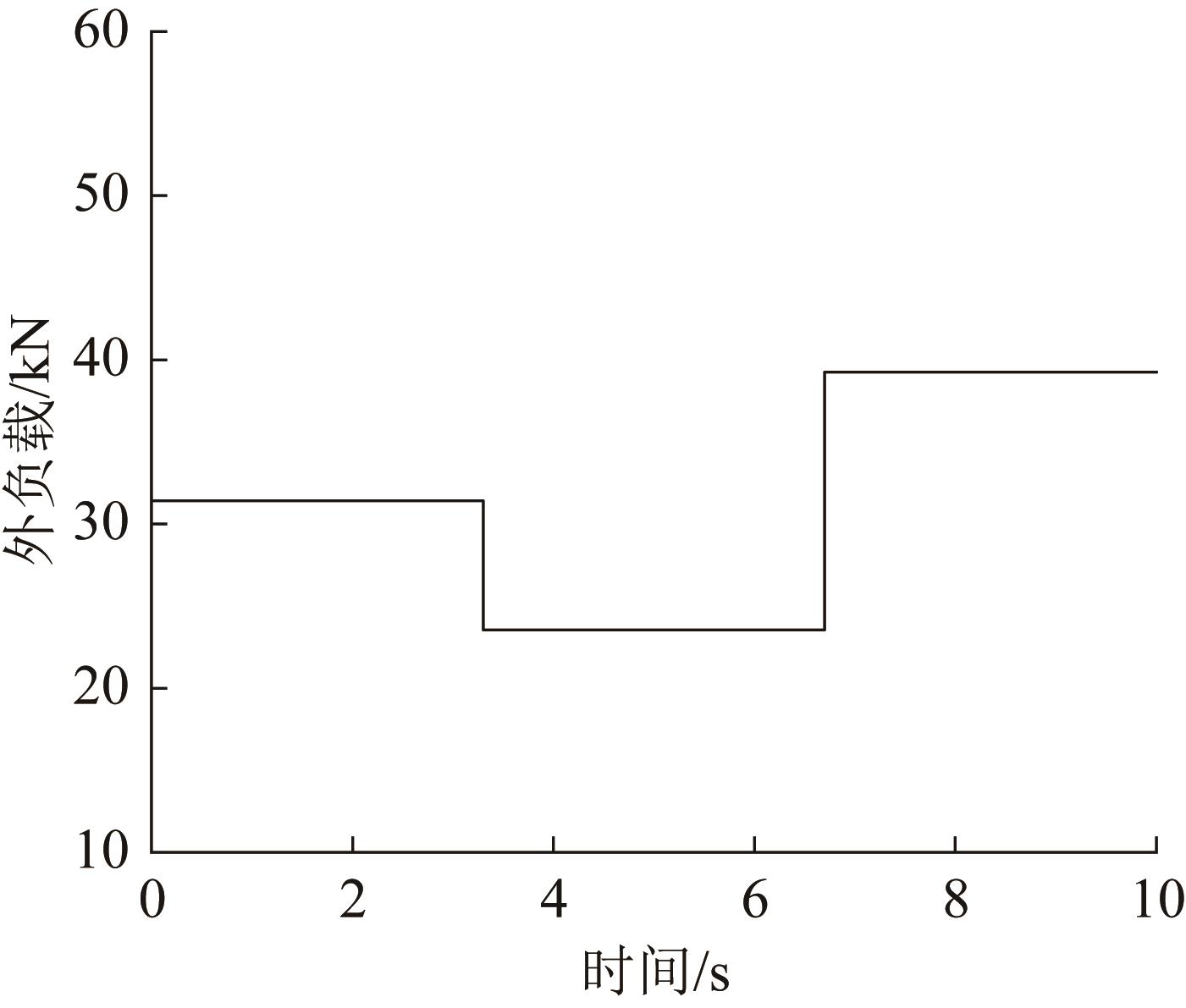

Fig.11 Variation curve of external load force of hydraulic cylinder

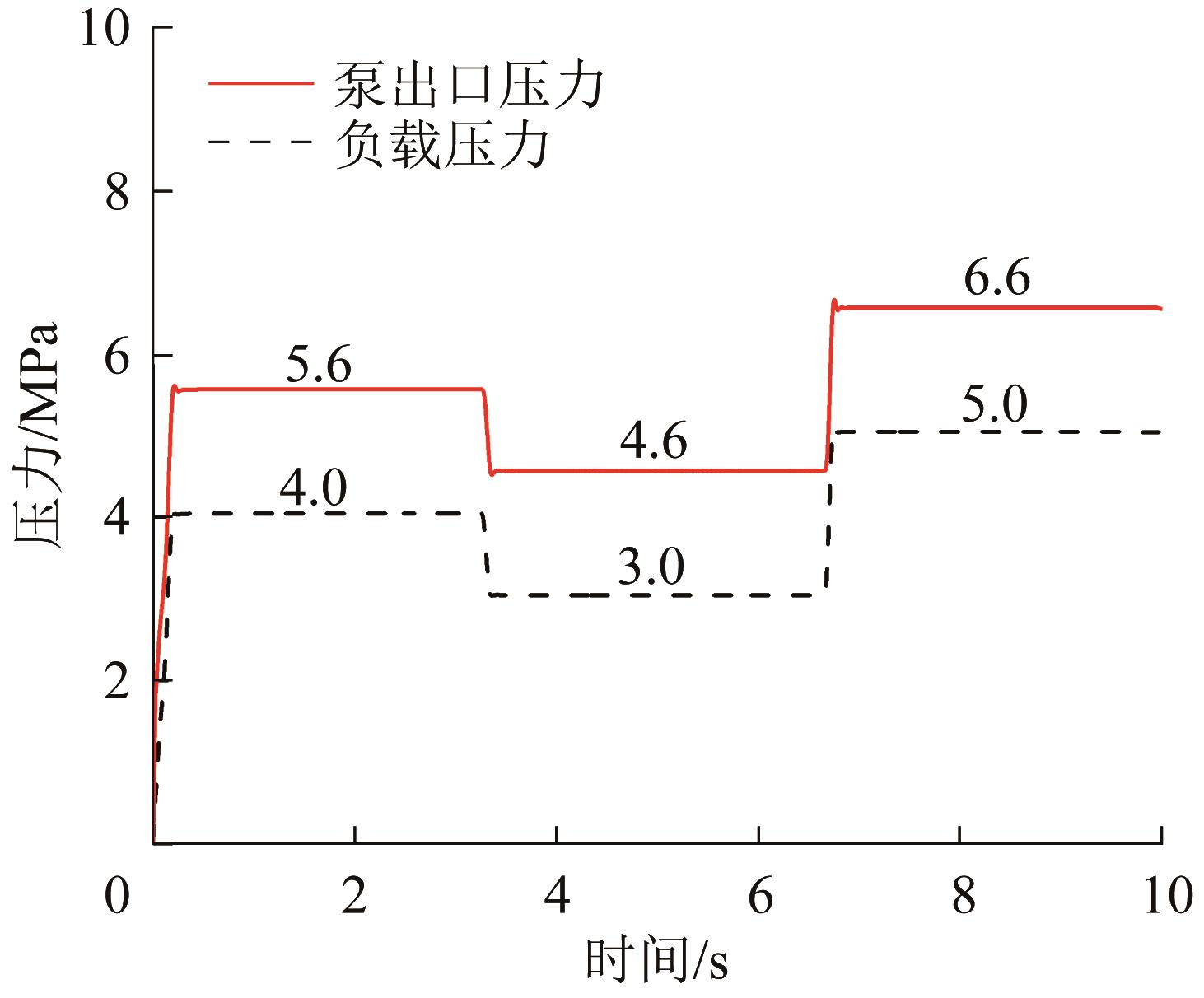

Fig.12 Variation curves of pressure at both ends of throttle valve

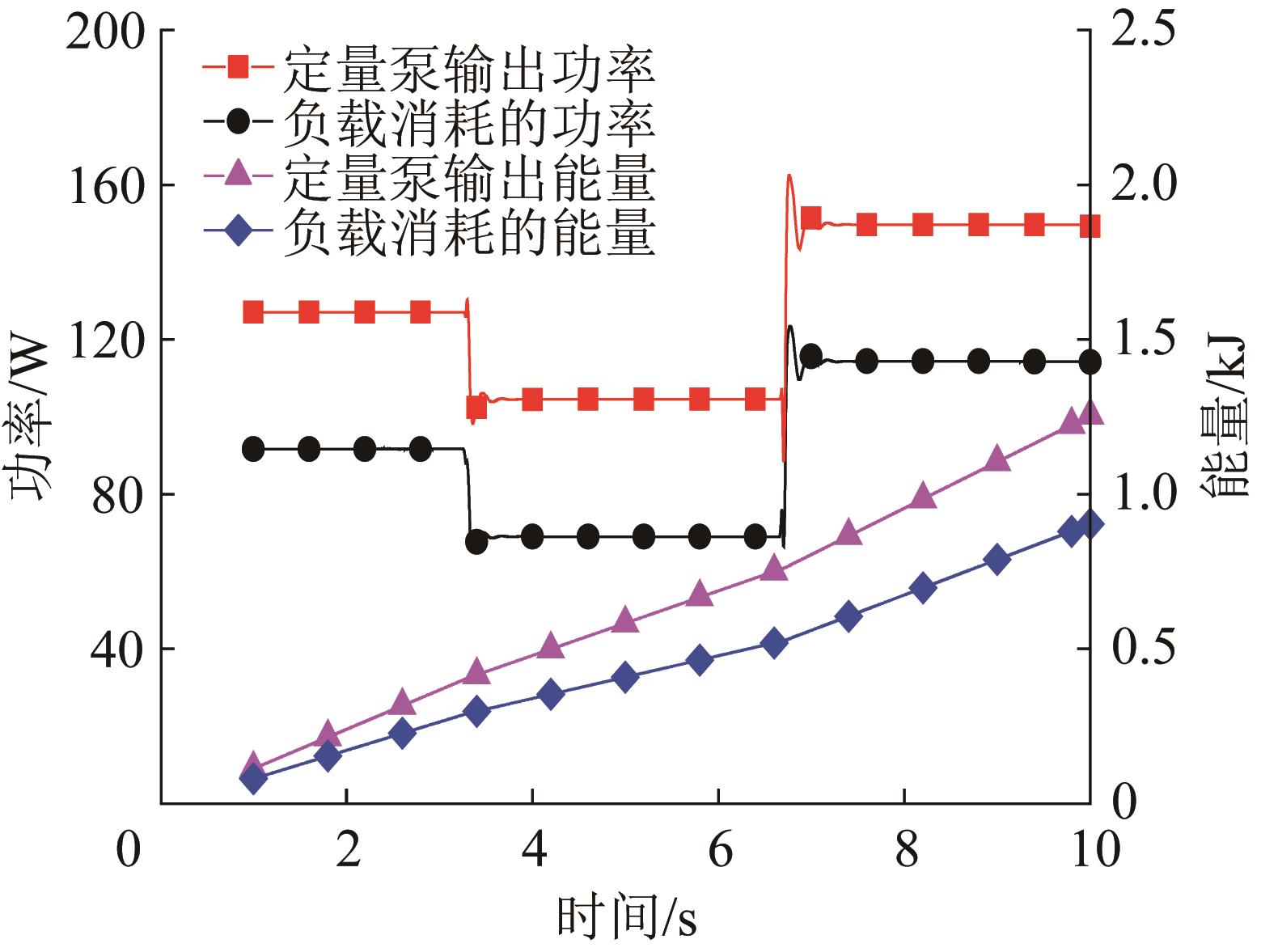

Fig.13 Variation curves of power and energy of load sensitive system

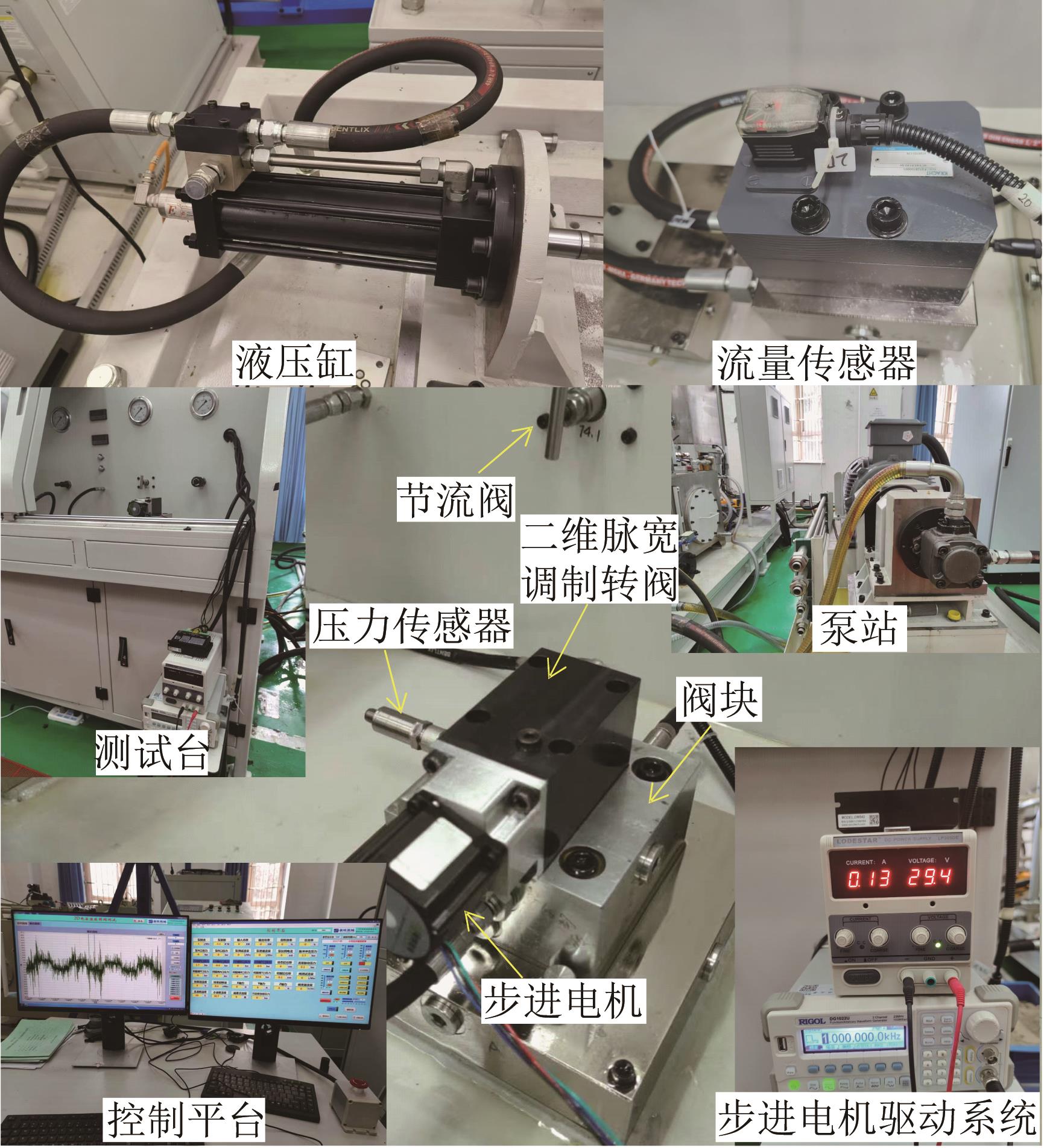

Fig.14 Platform for energy saving experiment of load sensitive system

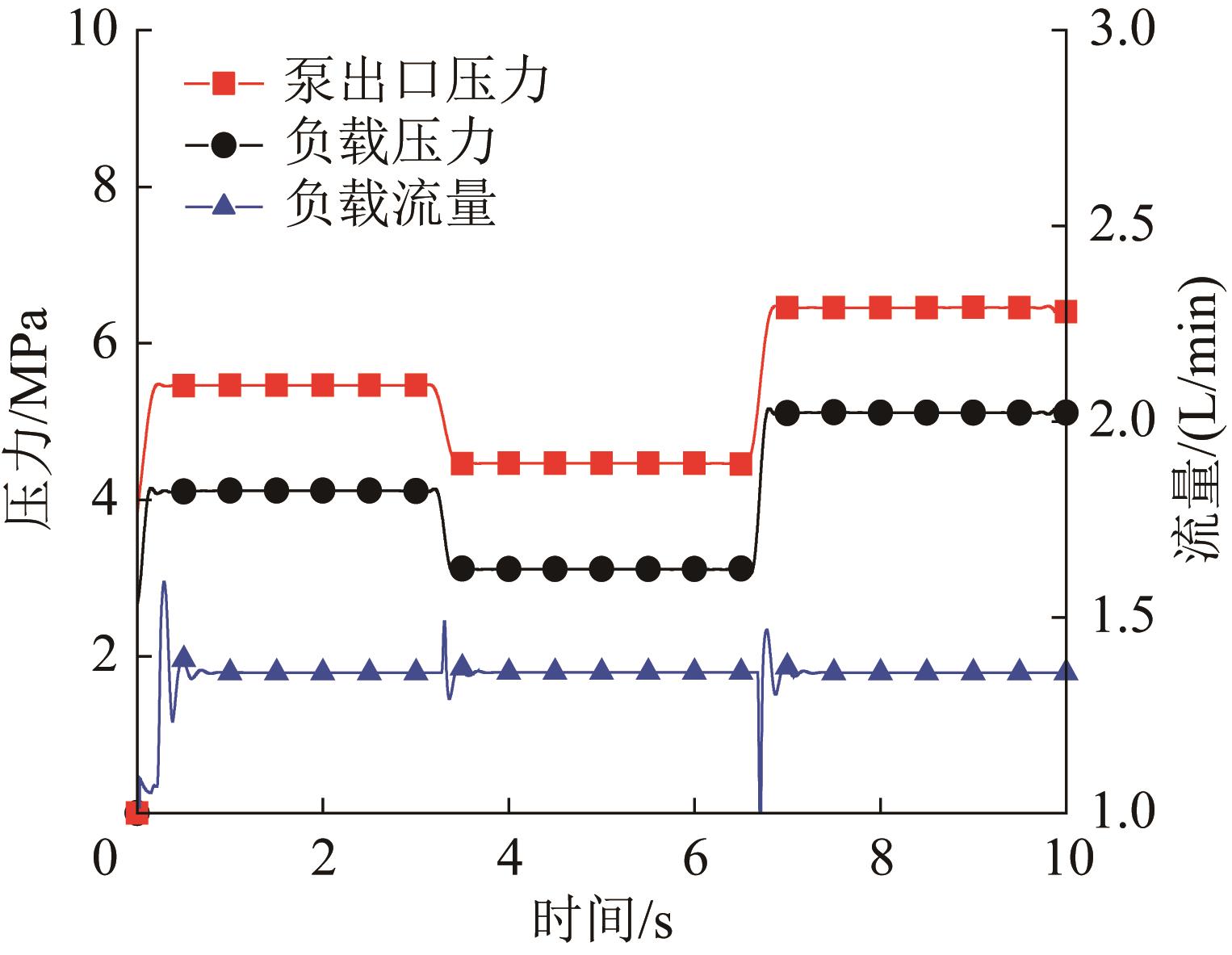

Fig.15 Pressure-flow experimental curves of load sensitive system

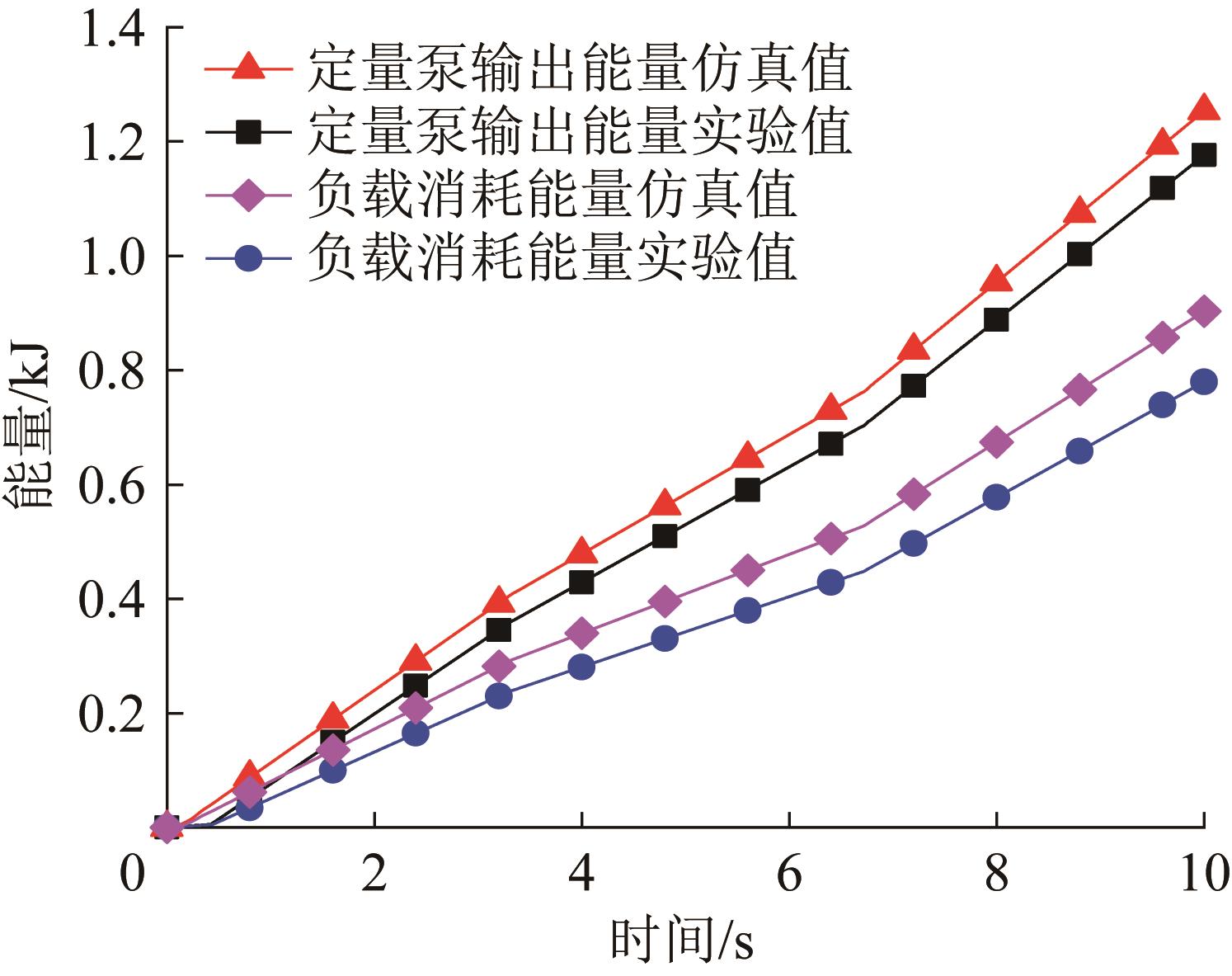

Fig.16 Comparison between experimental and simulated values of pump output energy and load consumption energy
