工程设计学报  2023, Vol. 30 Issue (4): 399-408    DOI: 10.3785/j.issn.1006-754X.2023.00.057
【主题栏目】数字孪生 · 智能制造
基于数字底座的涂装车身缓存区智能设计与调度优化
王柏村1,2(),朱凯凌1,鲍劲松3,王峰2,4,谢海波1,2,杨华勇1,2
1.浙江大学 机械工程学院,浙江 杭州 310058
2.浙江大学 高端装备研究院,浙江 杭州 311106
3.东华大学 机械工程学院,上海 201620
4.无锡雪浪数制科技有限公司,江苏 无锡 214131
Intelligent design and scheduling optimization of painted body storage based on digital pedestal system
Baicun WANG1,2(),Kailing ZHU1,Jinsong BAO3,Feng WANG2,4,Haibo XIE1,2,Huayong YANG1,2
1.School of Mechanical Engineering, Zhejiang University, Hangzhou 310058, China
2.Institute of Advanced Machines, Zhejiang University, Hangzhou 311106, China
3.College of Mechanical Engineering, Donghua University, Shanghai 201620, China
4.Wuxi Xuelang Industrial Intelligence Technology Co. , Ltd. , Wuxi 214131, China
 全文: PDF(4487 KB)   HTML
摘要:

在汽车生产环节进行数字建模、系统仿真与优化对提升汽车的生产质量和效率具有重要意义。为了解决目前汽车制造企业普遍存在的因数据链断裂而导致的资源配置效率低下等难题,以汽车涂装车身缓存区(painted body storage,PBS)为研究对象,提出了一种新型的数字底座平台,来实现数据链整合和多源异构数据融合。同时,设计了一种针对PBS的车身调序策略,考虑了总装工艺对车序优化的约束,采用遗传算法获得了PBS出车序列,然后以逆序数对为参考指标,进行PBS车道排布。将基于数字底座的PBS系统应用于某汽车制造企业,应用效果验证了所提出方法和策略的有效性。研究结果为企业构建内部集成制造平台和设计具体车间单元提供了参考。

关键词: 涂装车身缓存区数字底座系统设计建模仿真调序优化
Abstract:

Digital modeling, system simulation and optimization in the automotive production process are of great significance for improving the quality and efficiency of automotive production. In order to solve the common problem of low resource allocation efficiency caused by data link breakage in automobile manufacturing enterprises, a new type of digital pedestal system was proposed based on the painted body storage (PBS) of automobile, to achieve data chain integration and multi-source heterogeneous data fusion. At the same time, a vehicle sequencing strategy for PBS was designed, taking into account the constraints of the final assembly process on sequence optimization. The PBS outbound sequence was obtained by a genetic algorithm, and then the inverse ordinal pair was used as a reference index for PBS lane layout. The effectiveness of the proposed method and strategy was verified by applying the PBS system based on digital pedestal system to a certain automotive manufacturing enterprise. The research results provide a reference for enterprises to build internal integrated manufacturing platforms and design specific workshop units.

Key words: painted body storage    digital pedestal system    system design    modeling and simulation    sequencing optimization
收稿日期: 2023-06-15 出版日期: 2023-09-04
CLC:  TP 273
基金资助: 浙江省重点研发计划资助项目(2021C01018);国家自然科学基金资助项目(52205542)
作者简介: 王柏村(1990—),男,安徽太湖人,研究员,博士,从事智能制造与数字孪生研究,E-mail: baicunw@zju.edu.cn, https://orcid.org/0000-0002-4324-7420|杨华勇(1961—),男,重庆人,教授,中国工程院院士
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
王柏村
朱凯凌
鲍劲松
王峰
谢海波
杨华勇

引用本文:

王柏村,朱凯凌,鲍劲松,王峰,谢海波,杨华勇. 基于数字底座的涂装车身缓存区智能设计与调度优化[J]. 工程设计学报, 2023, 30(4): 399-408.

Baicun WANG,Kailing ZHU,Jinsong BAO,Feng WANG,Haibo XIE,Huayong YANG. Intelligent design and scheduling optimization of painted body storage based on digital pedestal system[J]. Chinese Journal of Engineering Design, 2023, 30(4): 399-408.

链接本文:

https://www.zjujournals.com/gcsjxb/CN/10.3785/j.issn.1006-754X.2023.00.057        https://www.zjujournals.com/gcsjxb/CN/Y2023/V30/I4/399

图1  汽车生产的四大工艺

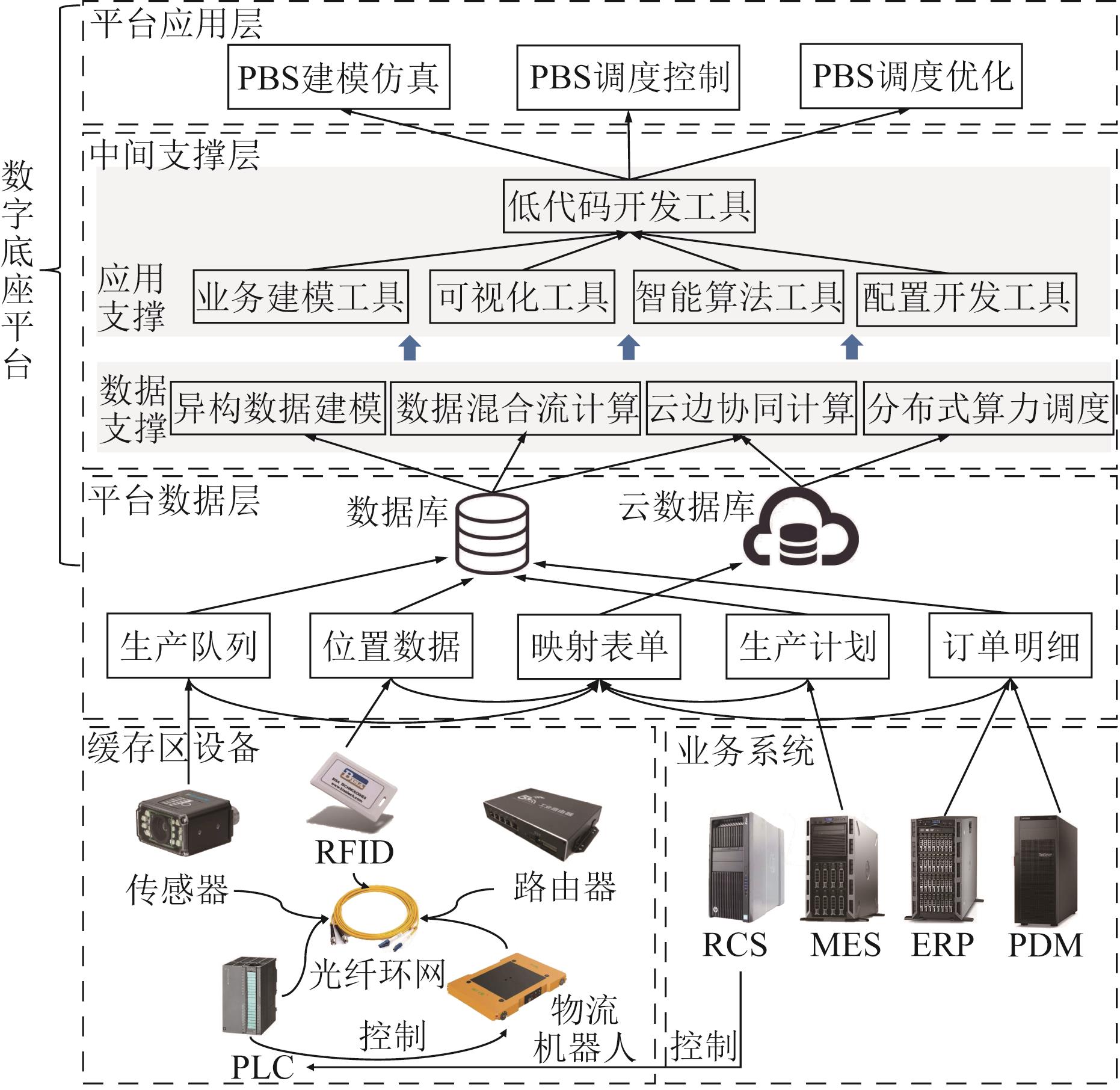

图2  基于数字底座的PBS系统框架

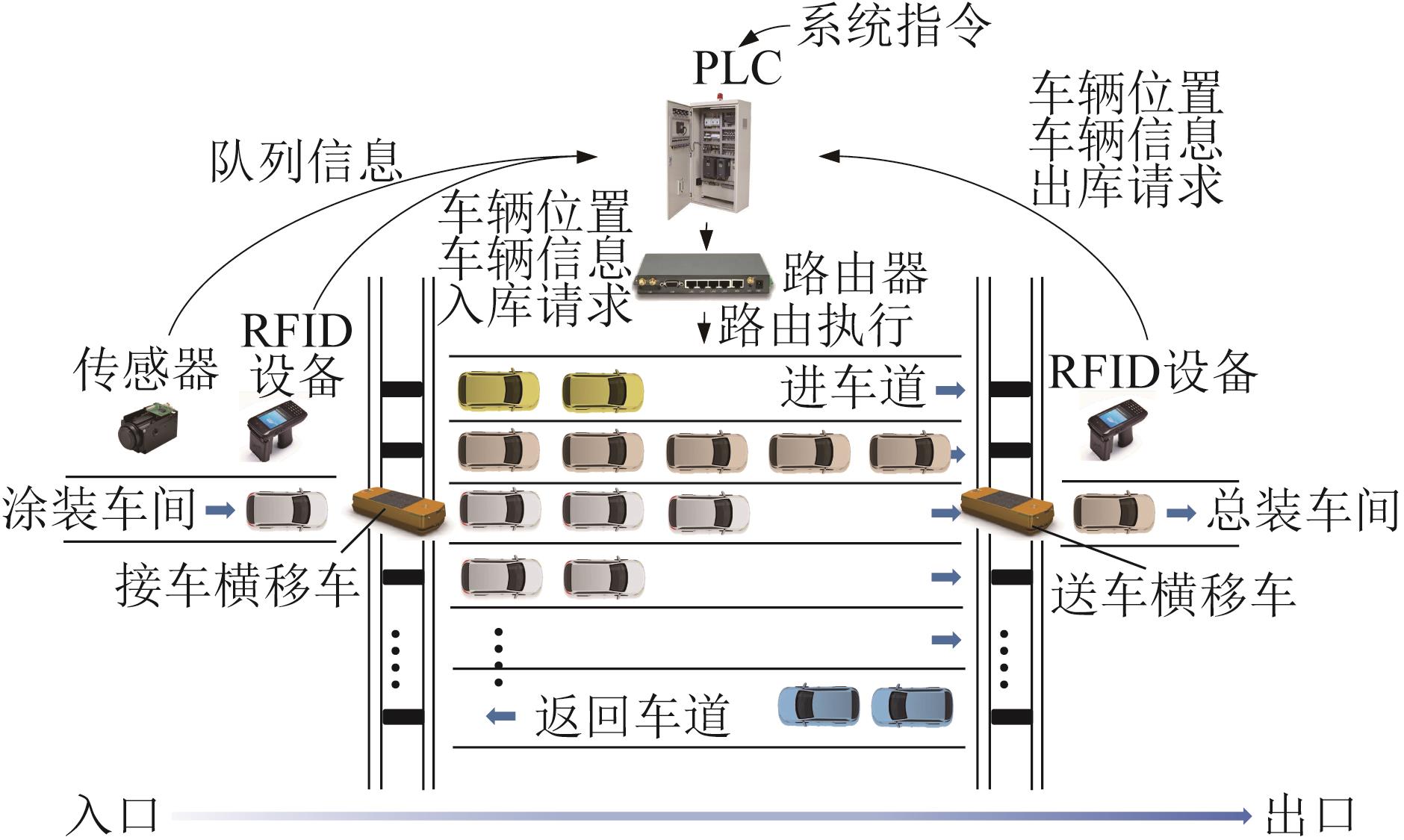

图3  PBS物理系统框架

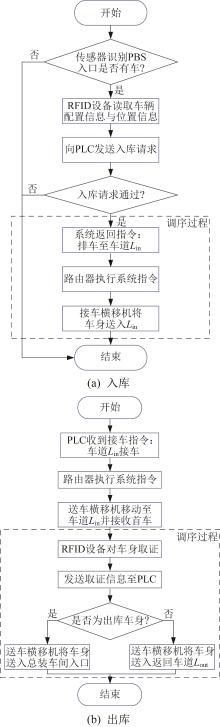

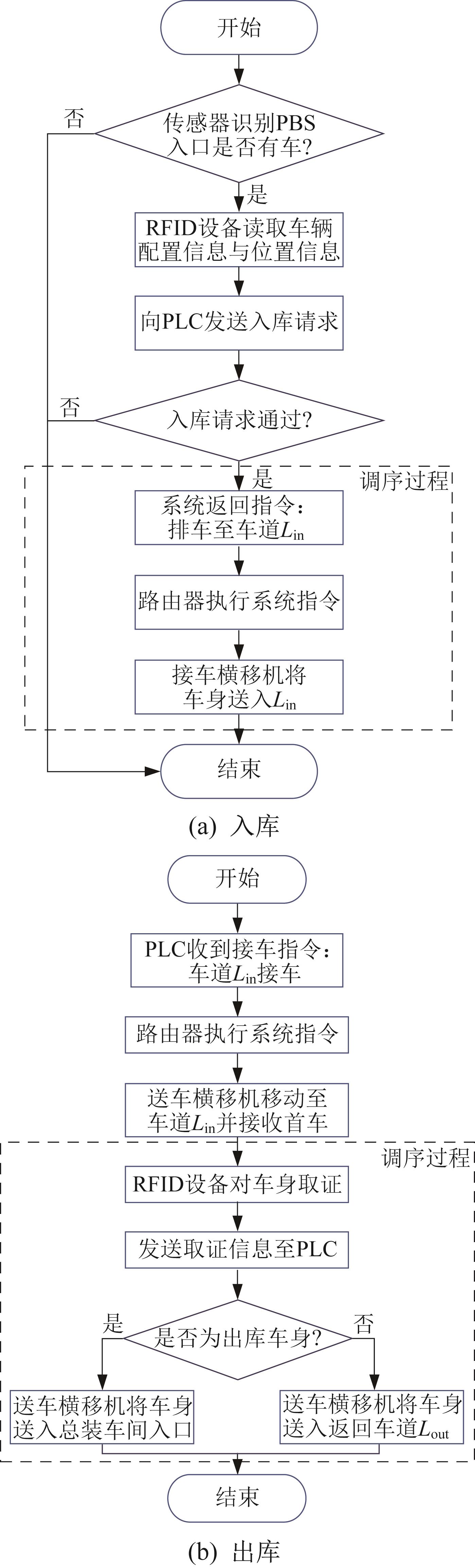

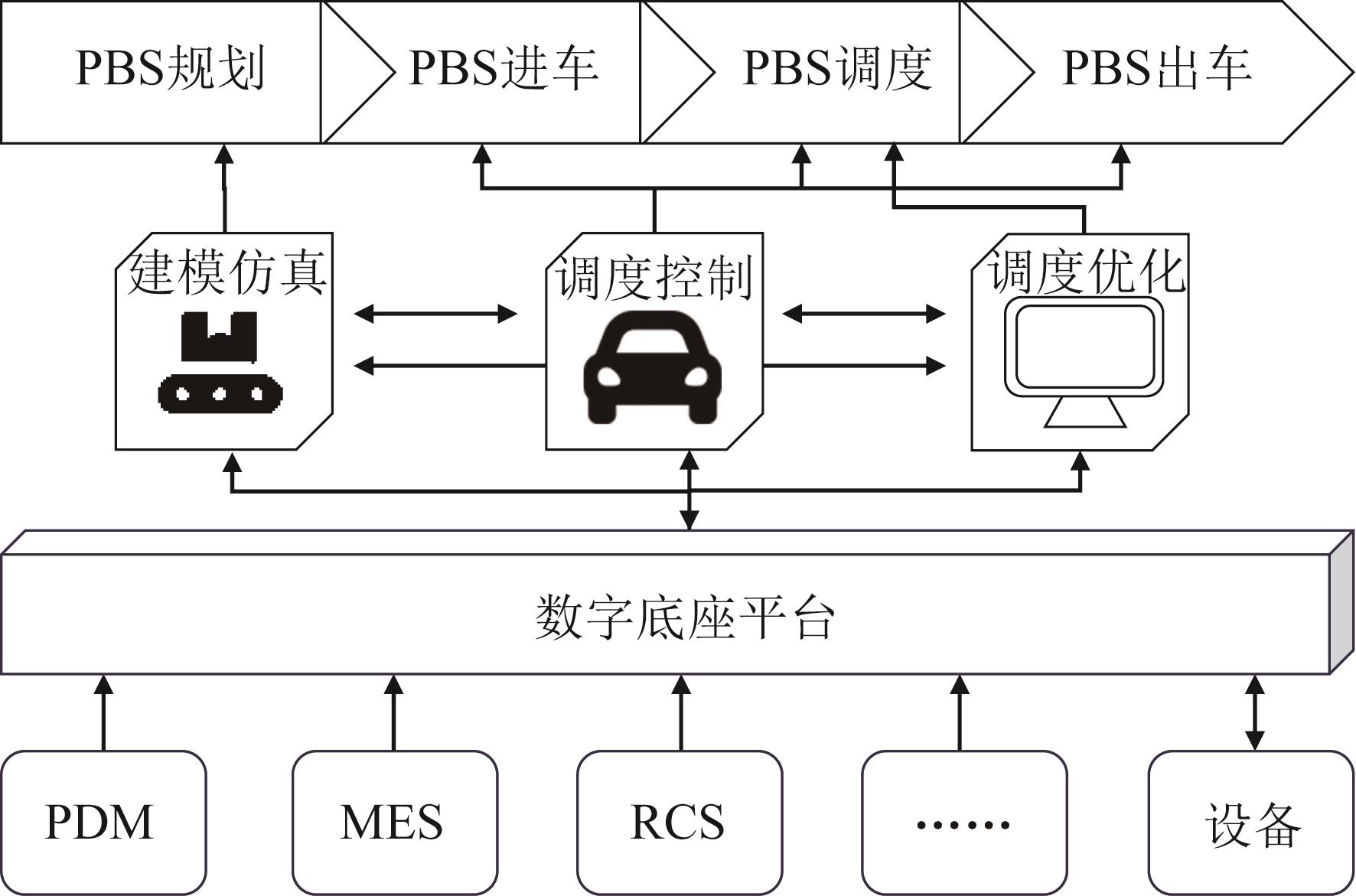

图4  PBS内车身入库和出库流程

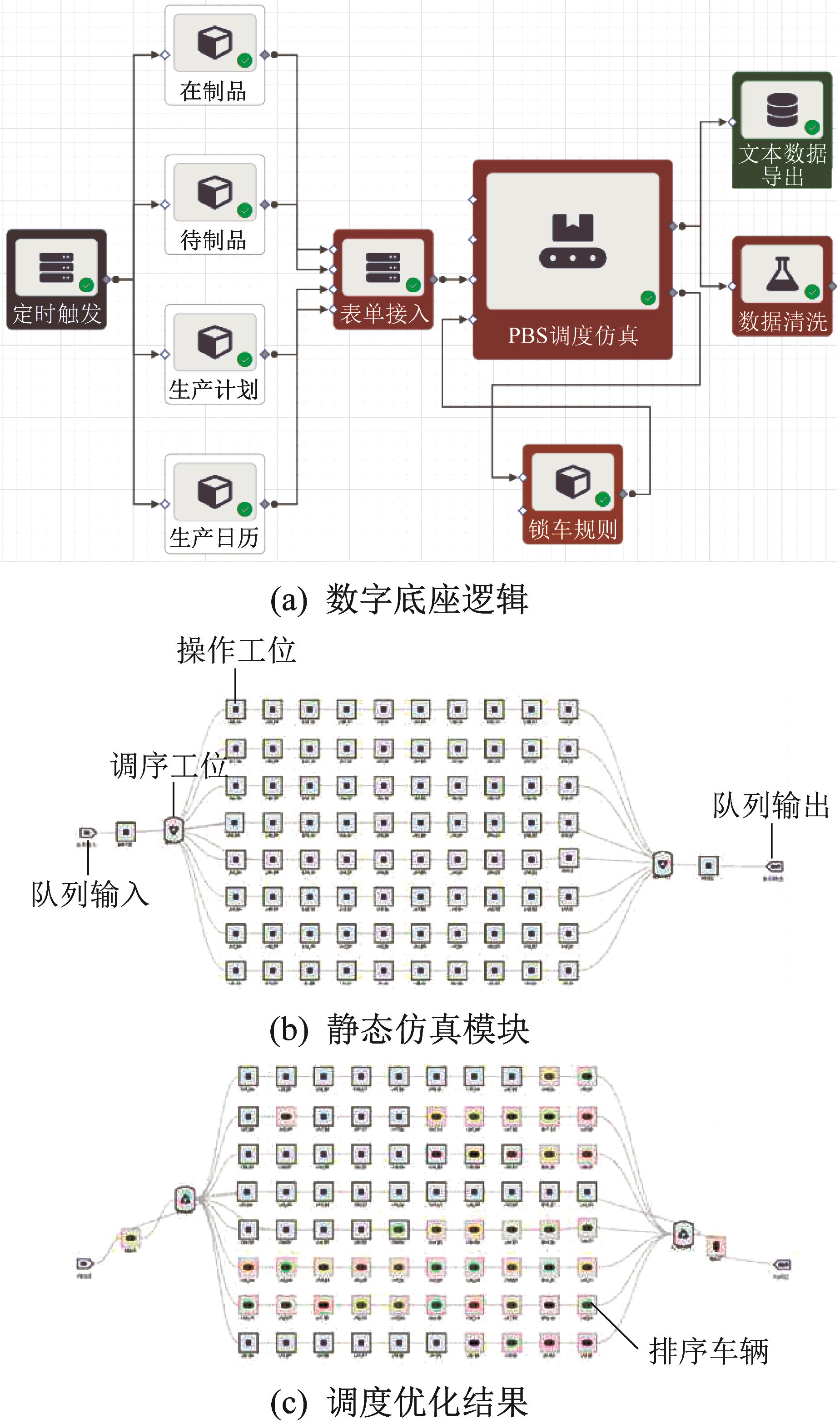

图5  基于数字底座的PBS优化仿真

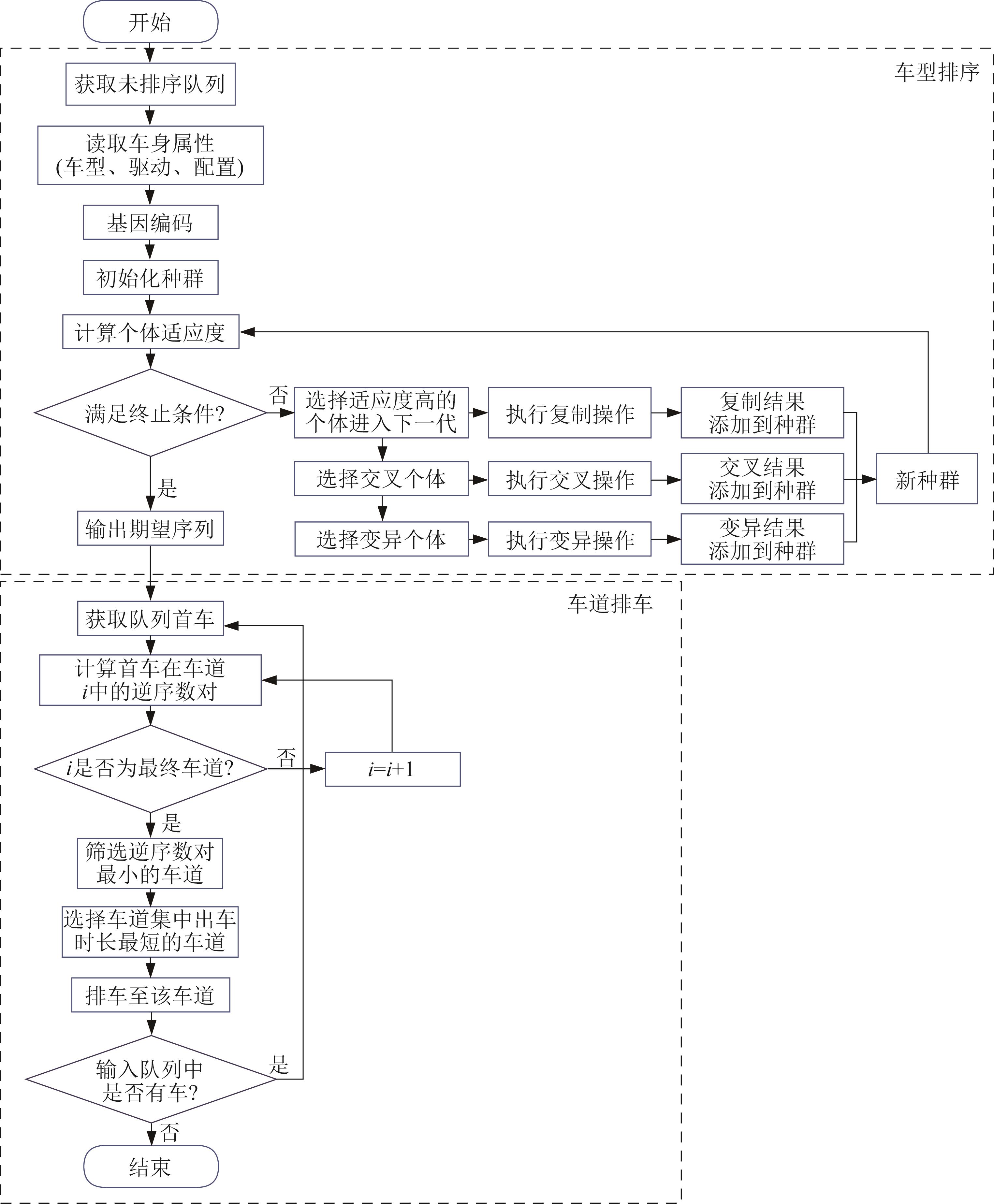

图6  面向PBS车身排序的算法框架

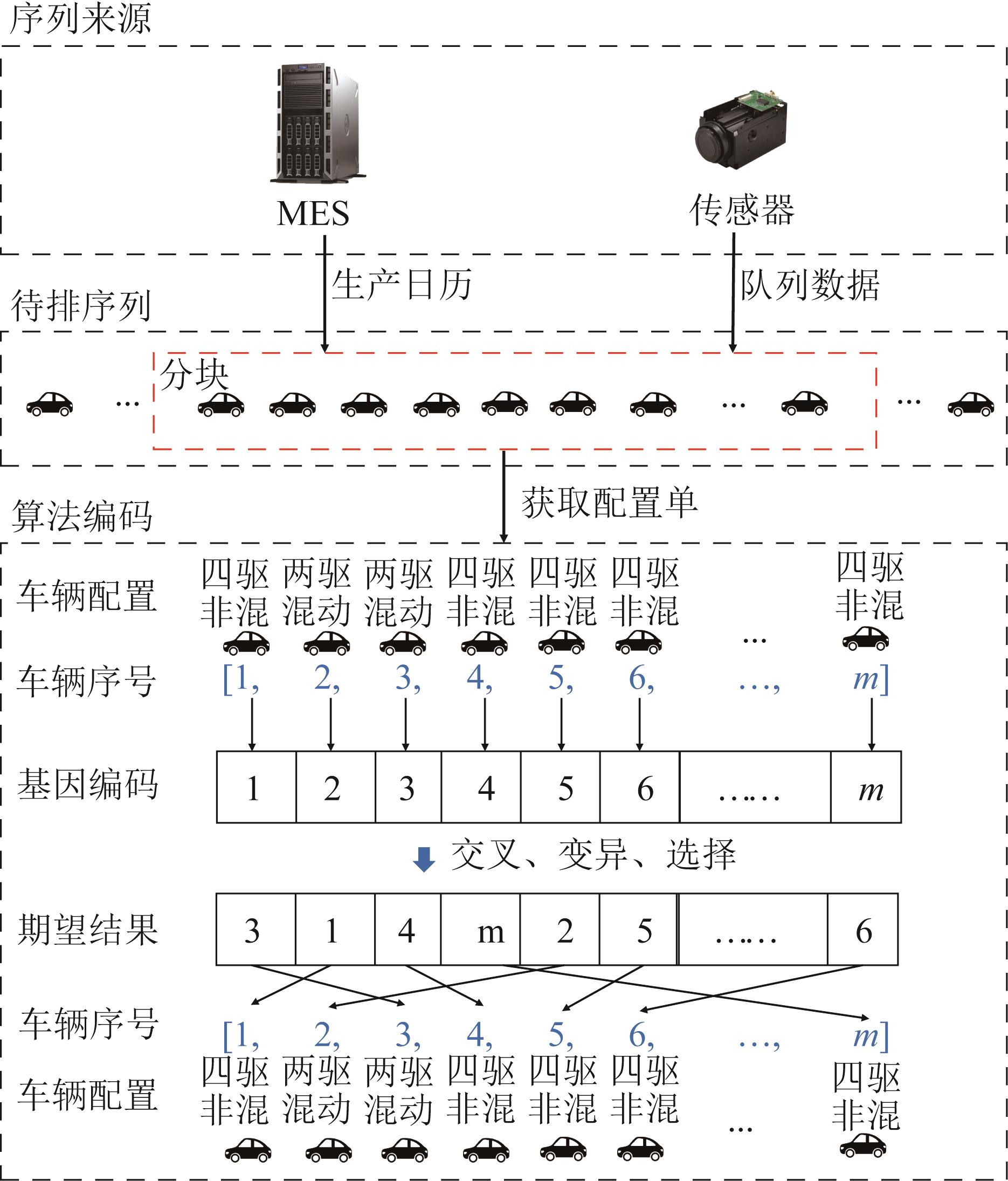

图7  车型排序与编码示意

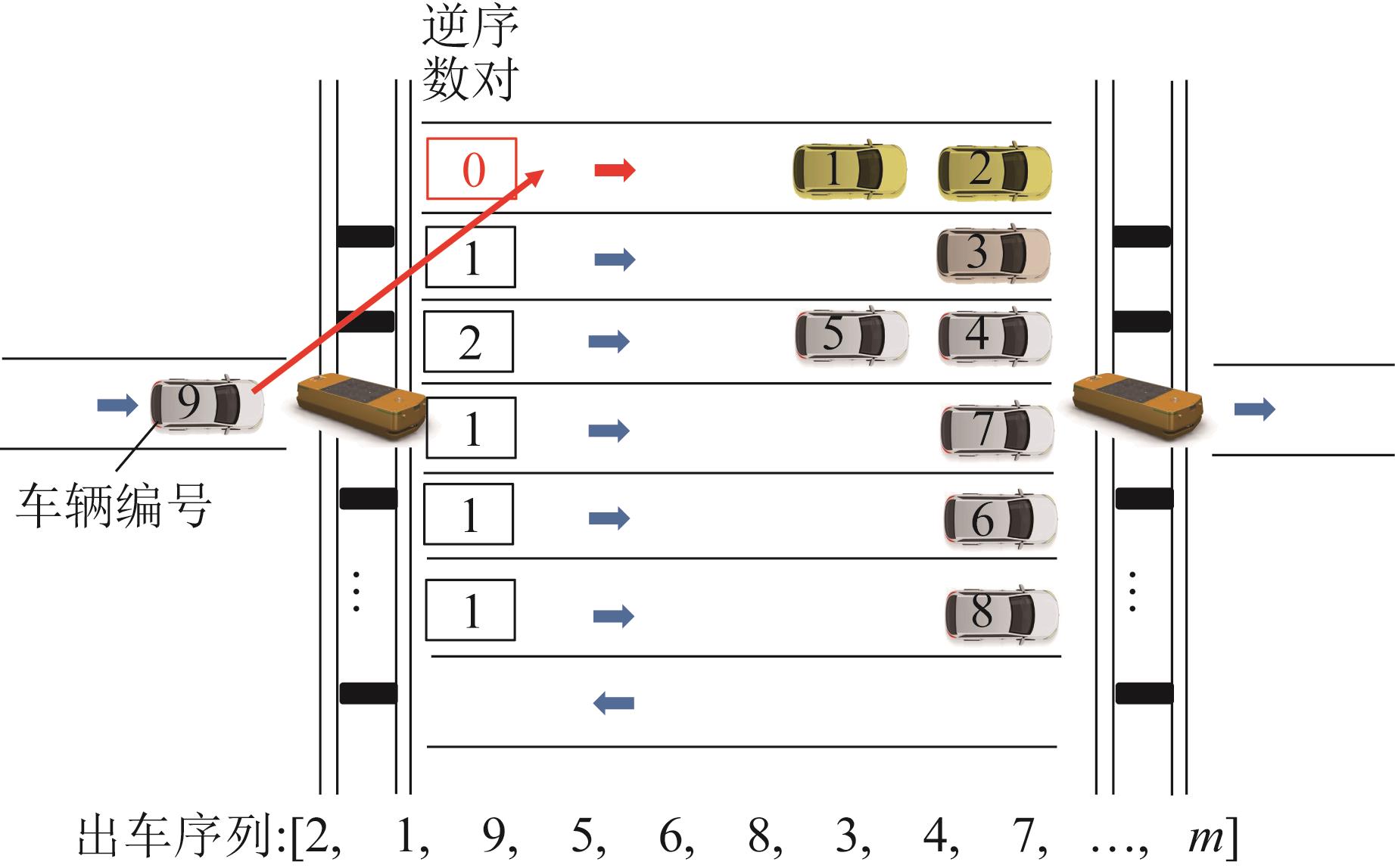

图8  车道排序策略示意
生产参数量值
产量400辆/d
平均生产节拍108 s
PBS静态库容量80辆
PBS进车道数7条
PBS返回车道数1条
表1  某汽车制造企业的生产参数
图9  基于数字底座的PBS系统应用模型

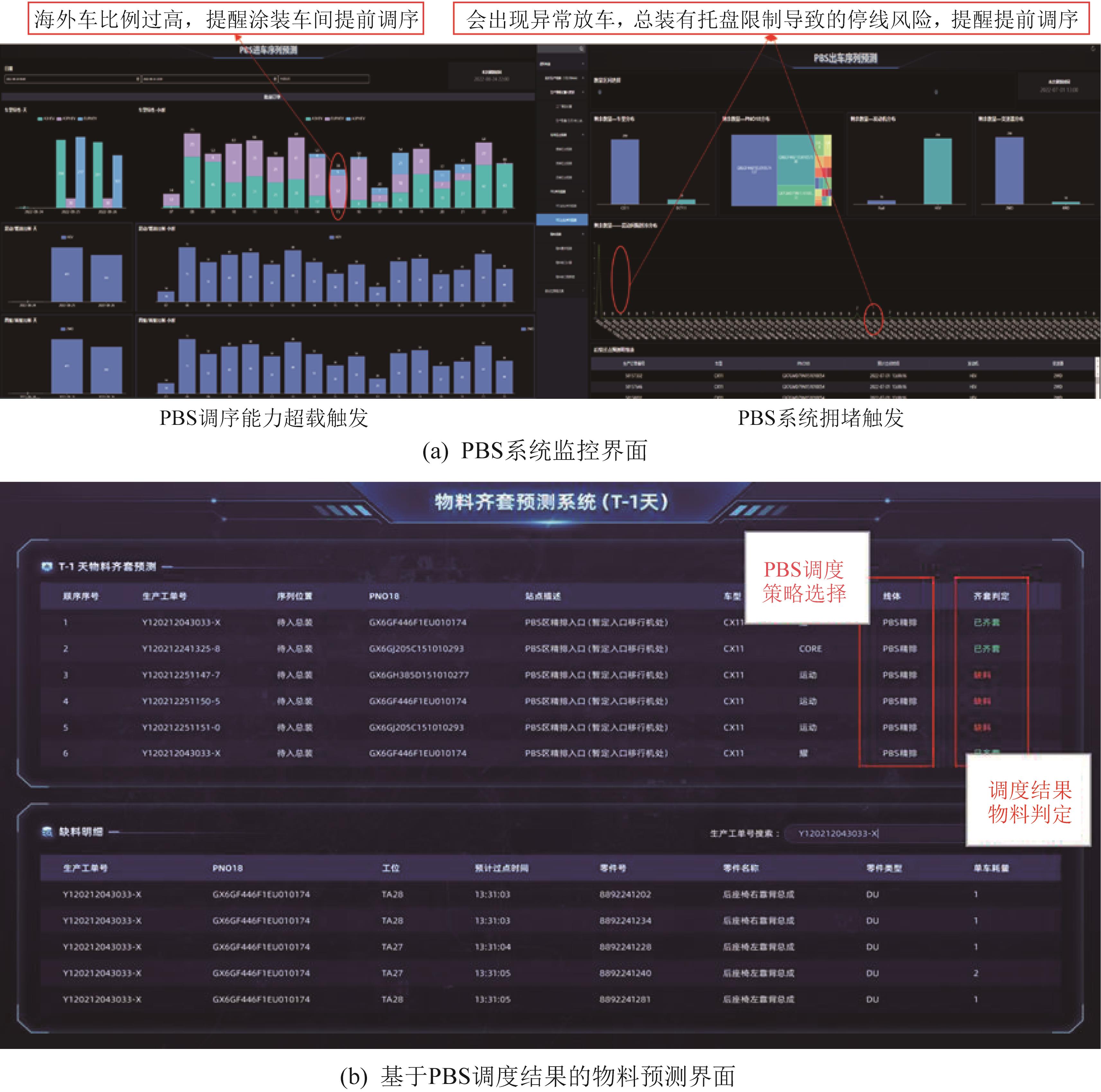

图10  PBS系统应用模型的界面
