Review of PDC bit cutter arrangement technology
Ya-chao MA1(),Lei TAO1,Zhun RONG2
1.School of Mechatronic Engineering, Southwest Petroleum University, Chengdu 610500, China
2.Northwest Sichuan Gas Mine, PetroChina Southwest Oil and Gas Field Company, Dazhou 635000, China
Download: HTML     PDF(4174KB)
Export: BibTeX | EndNote (RIS)

Abstract

PDC (polycrystalline diamond compact) bit is the main rock-breaking tool in oil and gas drilling field, which has the advantages of high abrasion, high rate of penetration and high rock-breaking efficiency. As a cutting unit, PDC cutter determines the rock-breaking performance of PDC bit. The purpose of PDC bit cutter arrangement is to determine the spatial position of each PDC cutter on the bit, so that the bit has excellent performance and reliable life when drilling and breaking rock. PDC bits designed based on different cutter arrangement technologies show different rock-breaking performance during drilling. Therefore, the PDC bit cutter arrangement technology has been widely concerned by scholars at home and abroad. At present, a large number of scholars have made corresponding research on the cutter arrangement technology of PDC bit since its birth, but there is still a lack of systematic summary. For this reason, based on the literature about PDC bit cutter arrangement technology at home and abroad in recent years, the development process of PDC bit cutter arrangement technology since its birth was summarized, mainly including the early cutter arrangement stage, the classical cutter arrangement stage and the modern cutter arrangement stage. Through analyzing and summarizing the development process of PDC bit cutter arrangement technology, it was pointed out that the cutter arrangement technology of PDC bit in composite PDC bit, compatible intelligent PDC bit, long-life PDC bit, force-balanced PDC bit, PDC bit under impact and vibration and PDC bit in special formation represented the future development trend. The research results can provide some reference for the subsequent research of PDC bit cutter arrangement technology, and are expected to promote the further development of PDC bit cutter arrangement technology.

Key words： PDC bit      PDC cutter      cutter arrangement technology      development trend
Received: 11 May 2022      Published: 06 March 2023
CLC:  TE 921
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Ya-chao MA
Lei TAO
Zhun RONG
Cite this article:

Ya-chao MA,Lei TAO,Zhun RONG. Review of PDC bit cutter arrangement technology. Chin J Eng Design, 2023, 30(1): 1-12.

URL:

https://www.zjujournals.com/gcsjxb/10.3785/j.issn.1006-754X.2023.00.006     OR     https://www.zjujournals.com/gcsjxb/Y2023/V30/I1/1


PDC钻头布齿技术研究综述

PDC（polycrystalline diamond compact，聚晶金刚石复合片）钻头是当今油气钻井领域的主要破岩工具，具有耐磨性高、机械钻速高和破岩效率高等优点。PDC切削齿作为切削单元，决定了PDC钻头的破岩性能。PDC钻头布齿的目的是确定每颗PDC切削齿在钻头上的空间位置，使得钻头在钻井破岩时具有优良的性能和可靠的寿命。基于不同布齿技术设计的PDC钻头在钻井过程中表现出不同的破岩性能。因此，PDC钻头布齿技术得到了国内外学者的广泛关注。现已有大量学者针对PDC钻头自诞生以来的布齿技术做了相应研究，但目前仍缺乏系统性的总结。为此，以近年来国内外关于PDC钻头布齿技术的文献为基础，总结了PDC钻头自诞生以来的布齿技术的发展历程，主要包括早期布齿阶段、经典布齿阶段和现代布齿阶段。通过对PDC钻头布齿技术发展历程的分析与总结，指出复合PDC钻头、兼容智能化PDC钻头、长寿命PDC钻头、力平衡PDC钻头、冲击与振动下PDC钻头以及特殊地层下PDC钻头的布齿技术是未来的发展趋势。研究结果可为后续的PDC钻头布齿技术研究提供一定的参考，有望推动PDC钻头布齿技术的进一步发展。


关键词： PDC钻头,  PDC切削齿,  布齿技术,  发展趋势

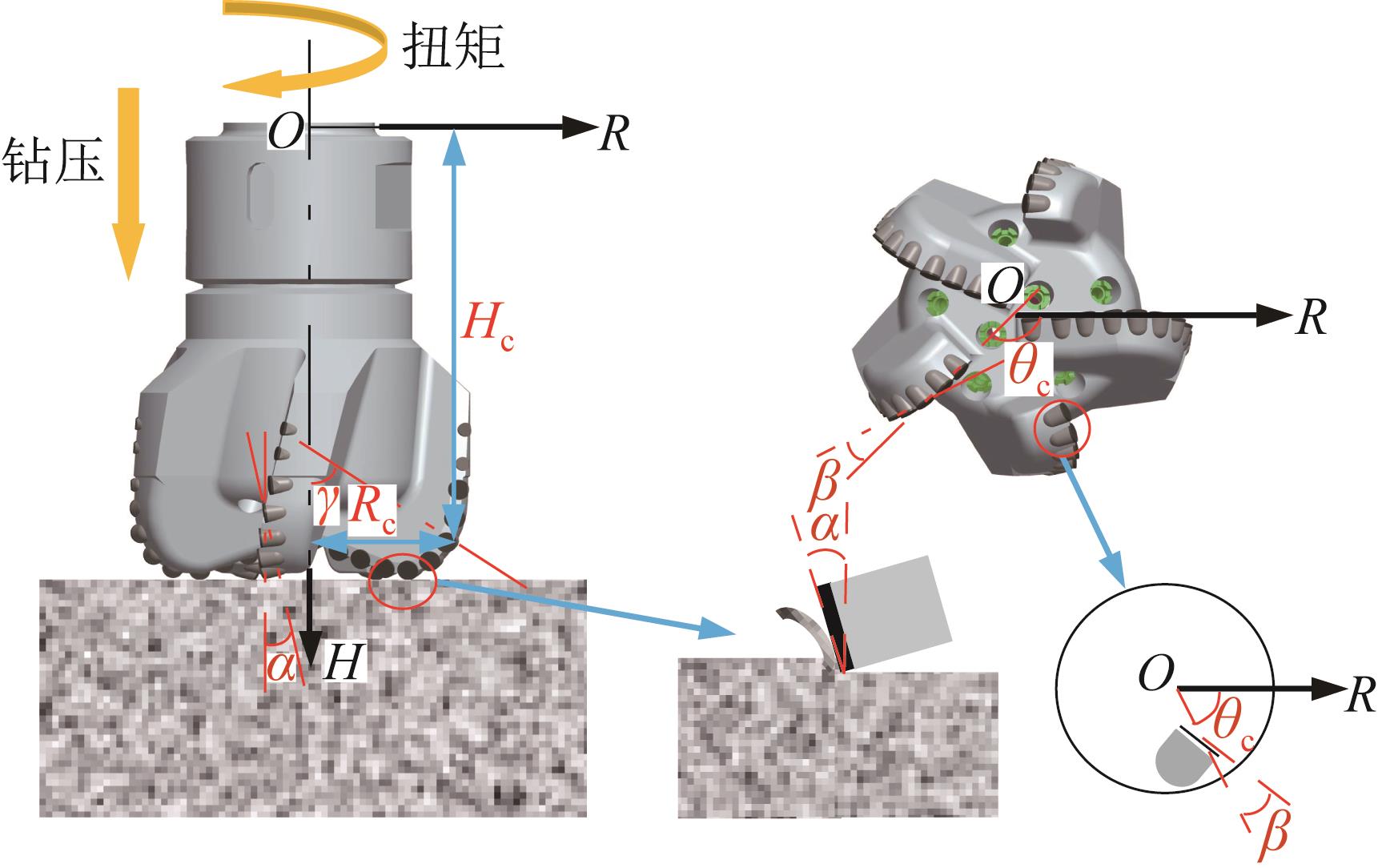

Fig.1 PDC bit cutter arrangement parameters

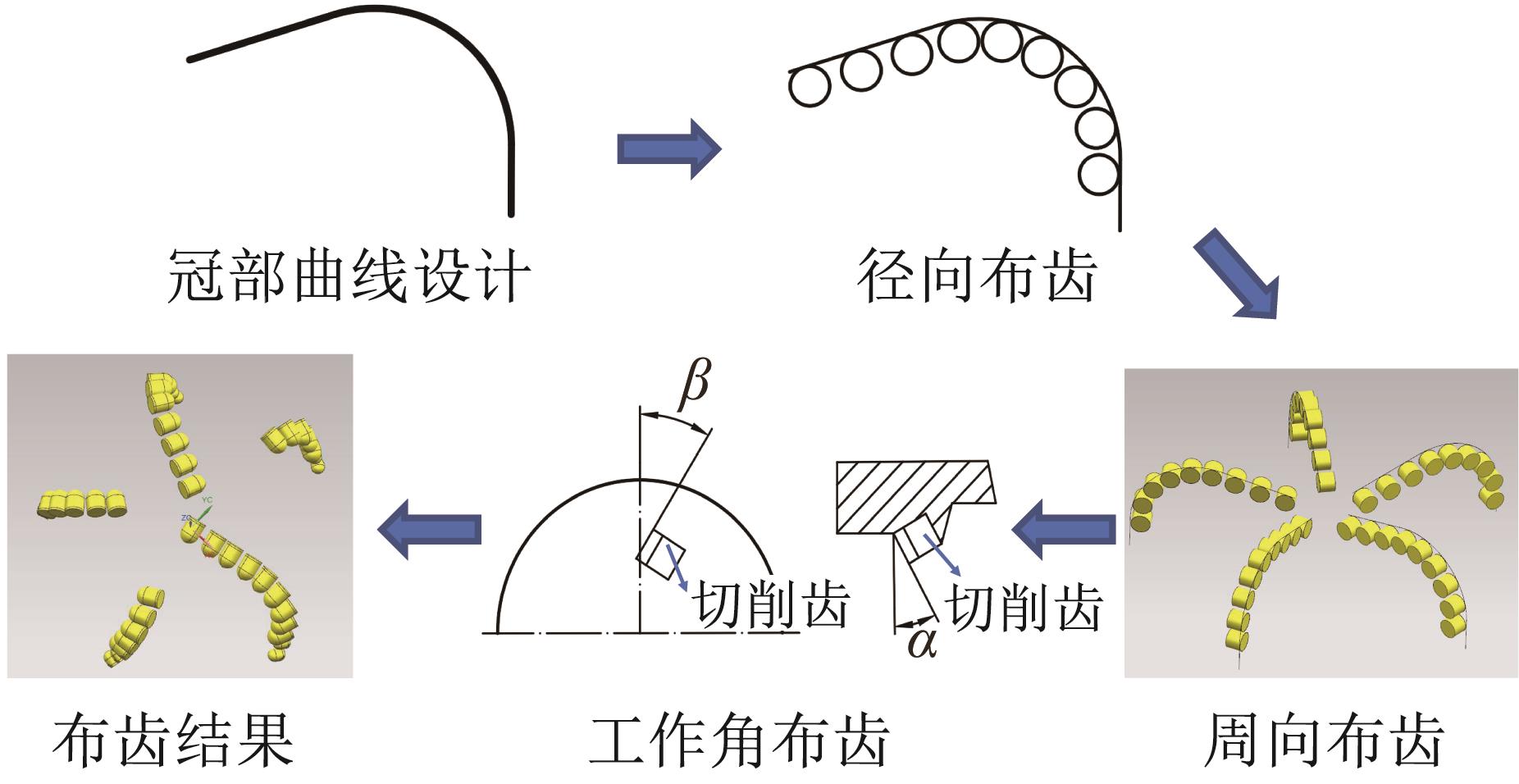

Fig.2 PDC bit cutter arrangement design process

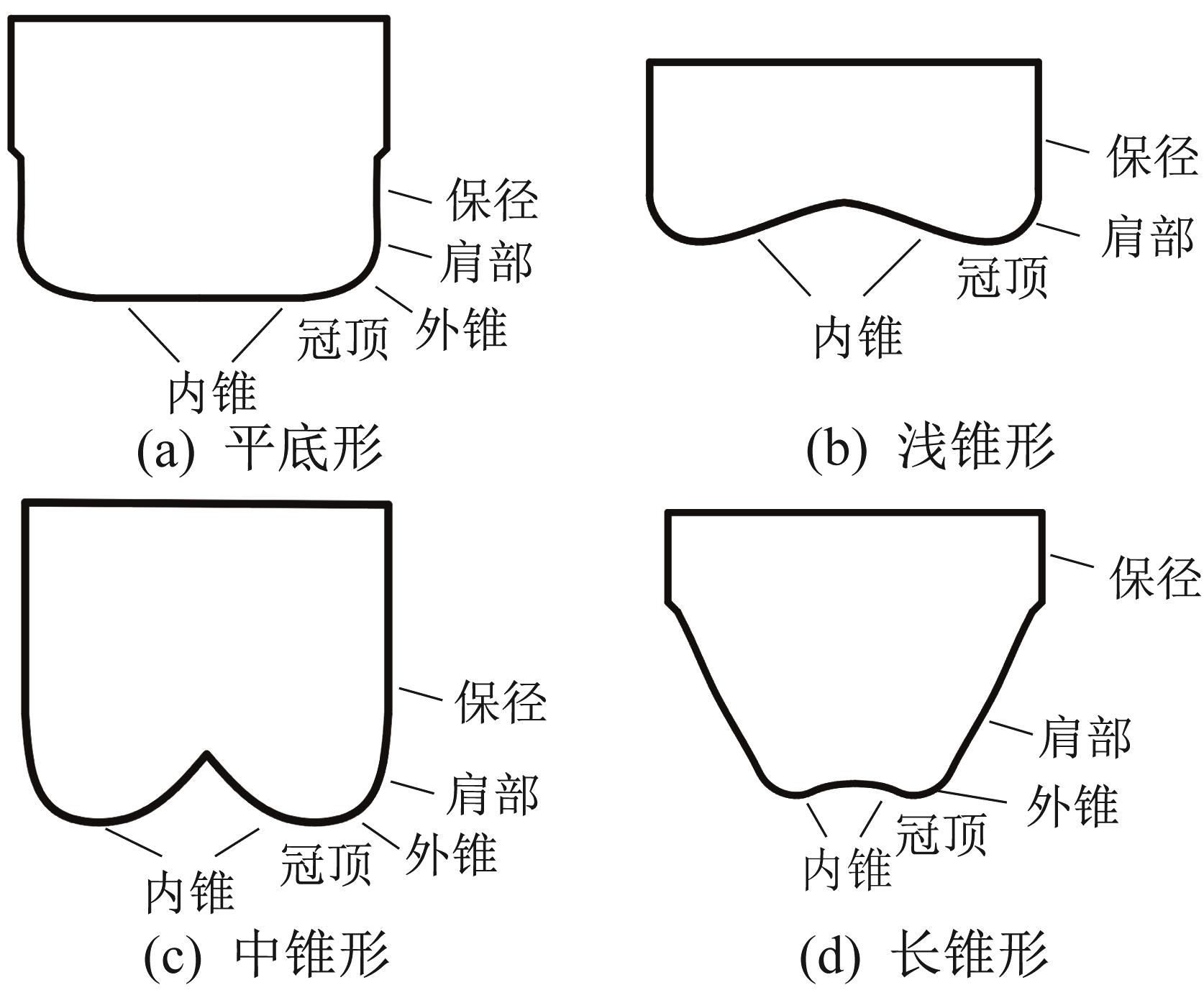

Fig.3 Classification of PDC bit crown profile shape based on IADC

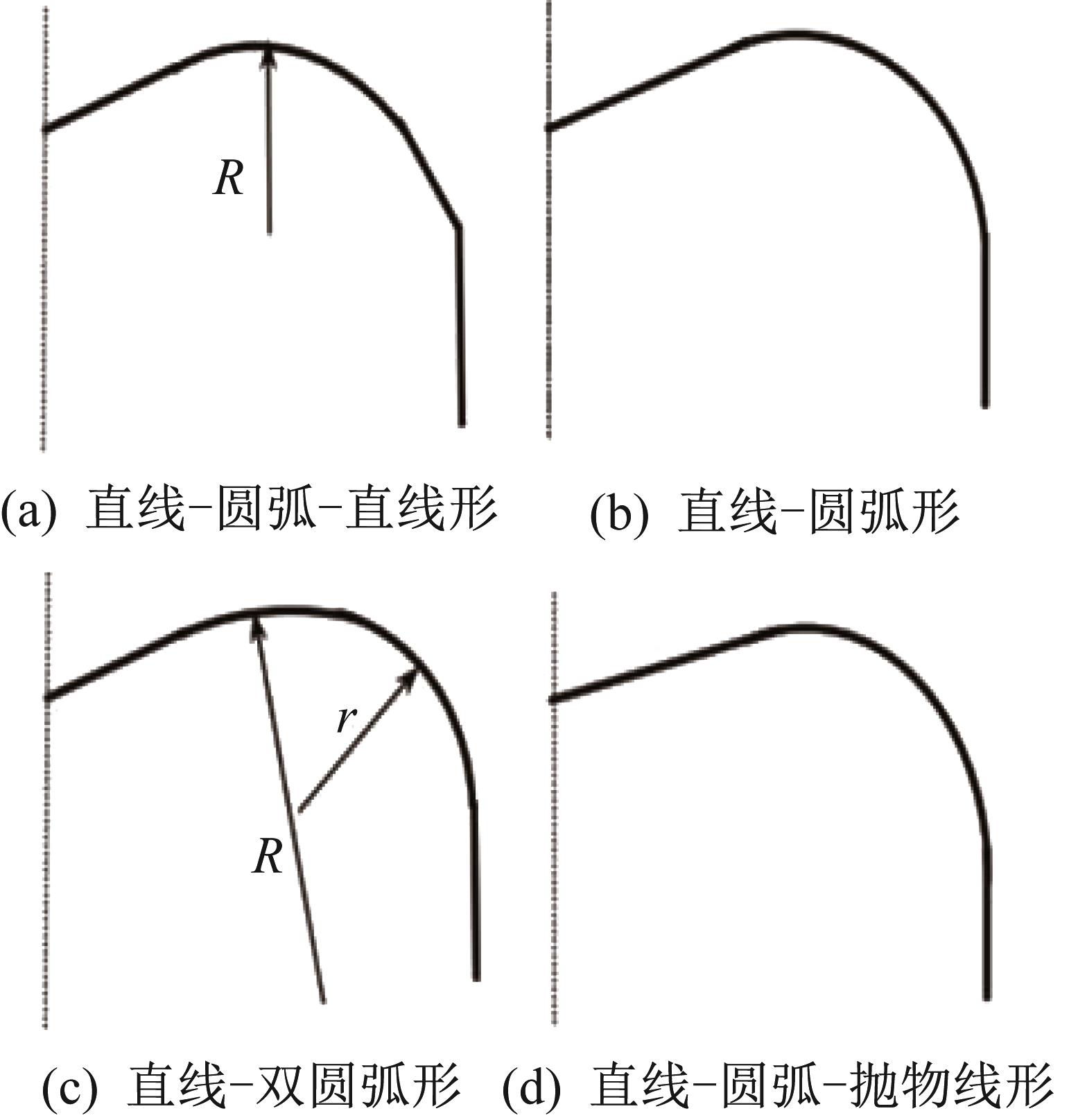

Fig.4 Crown curve shape of PDC bit

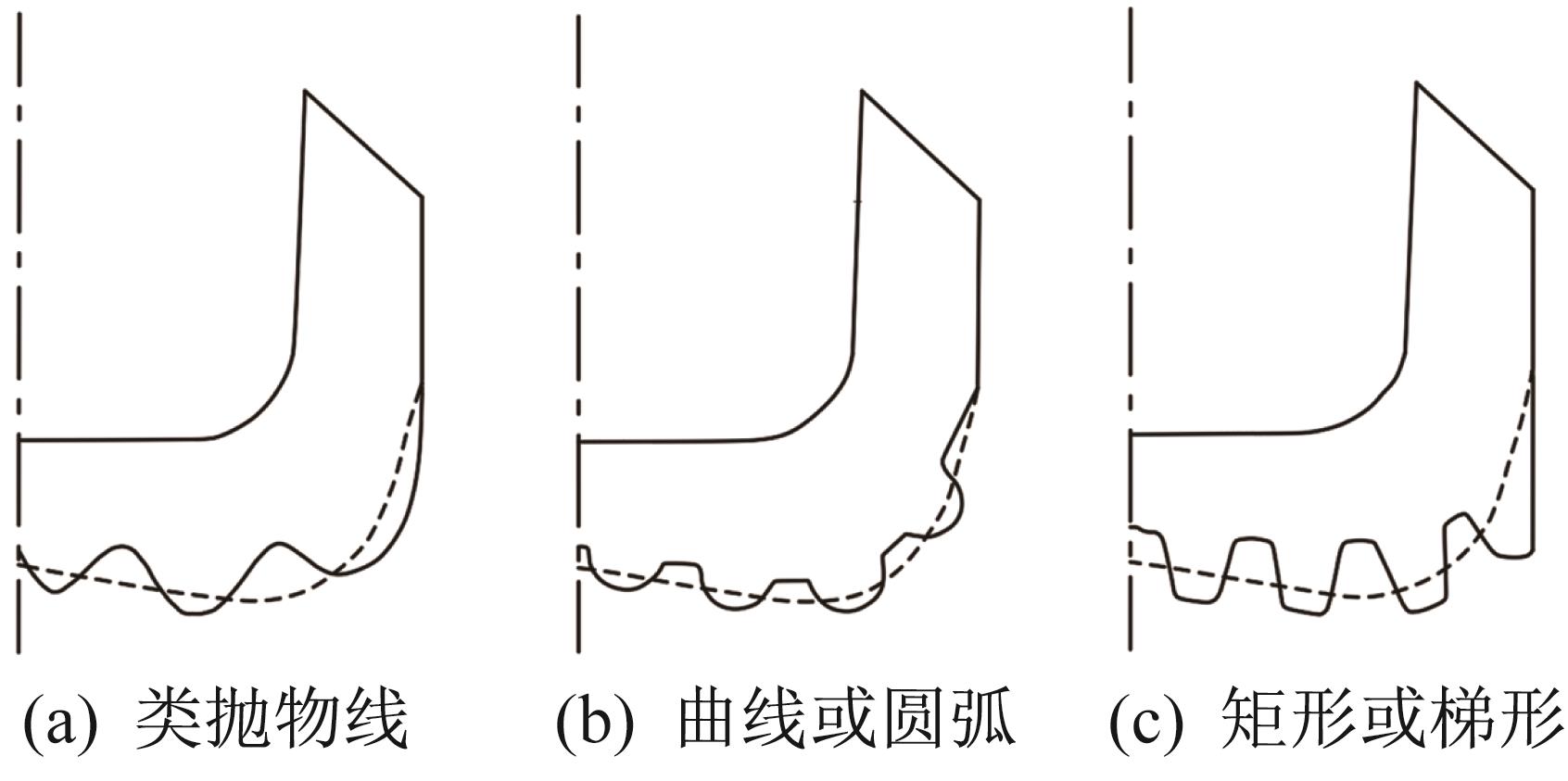

Fig.5 Several blade profile bulge shapes
Fig.6 Radial cutter arrangement design without gaps
Fig.7 Radial cutter arrangement design with minimal gaps
Fig.8 Radial cutter arrangement design with extreme gaps

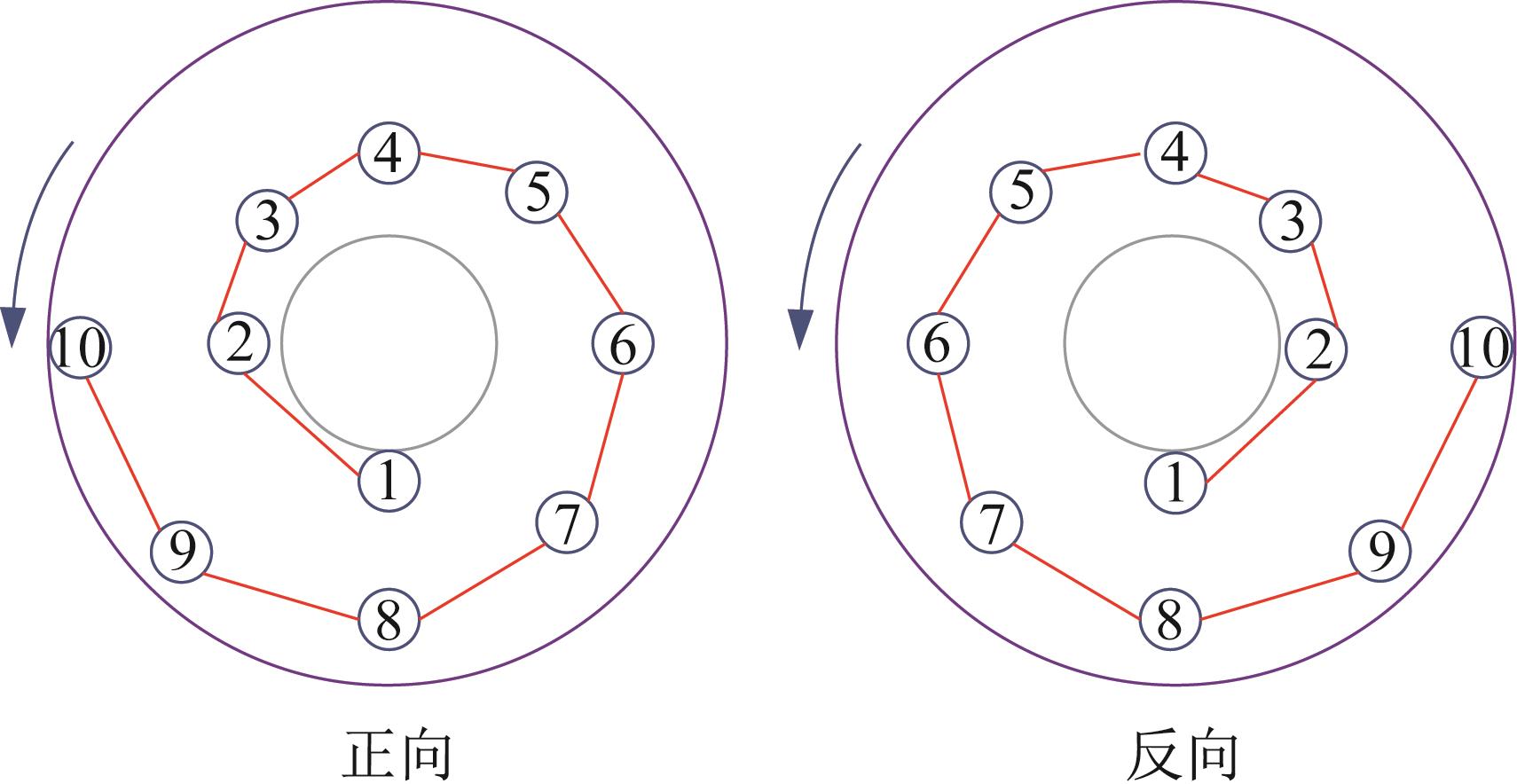

Fig.9 Spiral cutter arrangement design

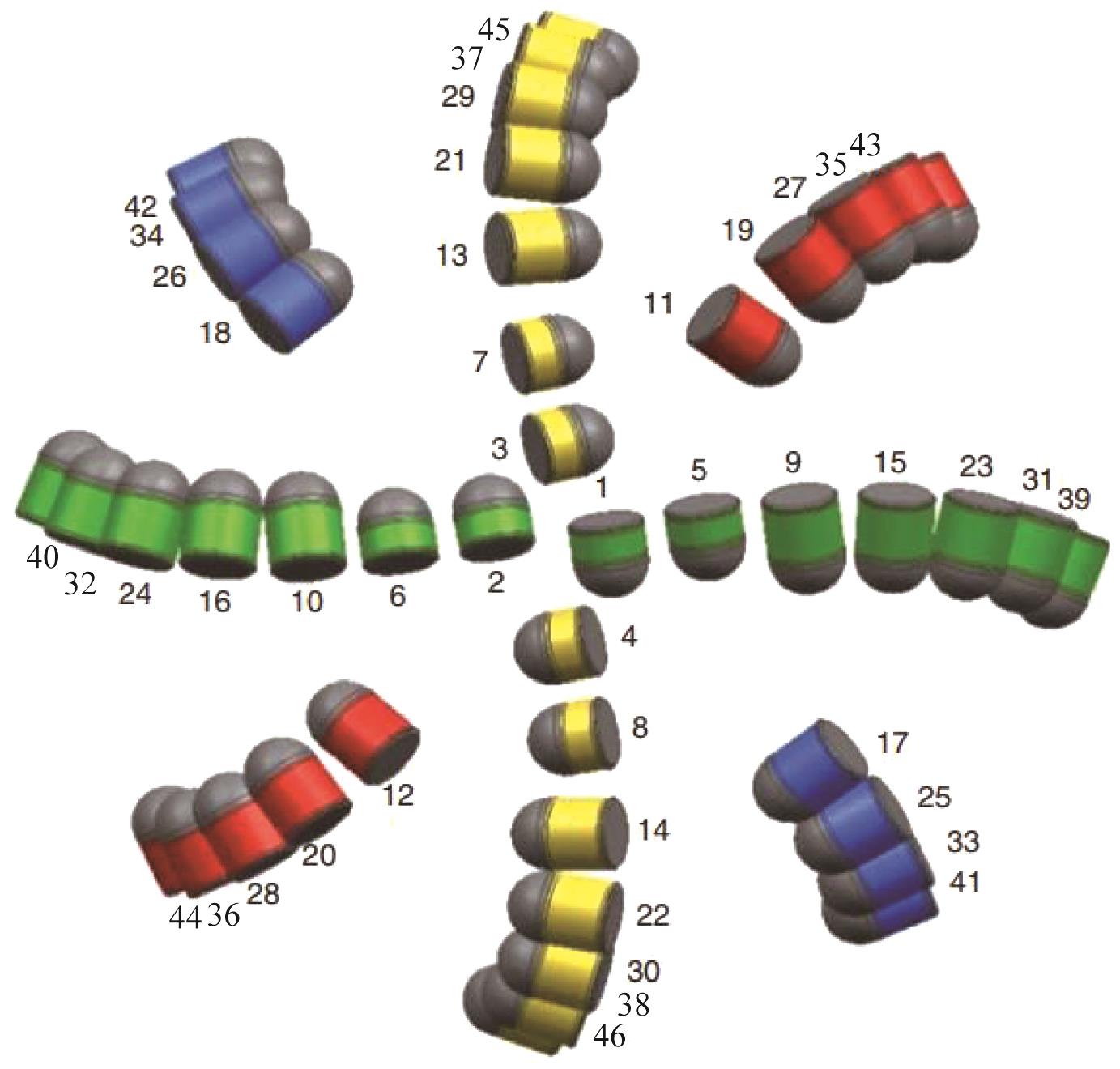

Fig.10 Group cutter arrangement design

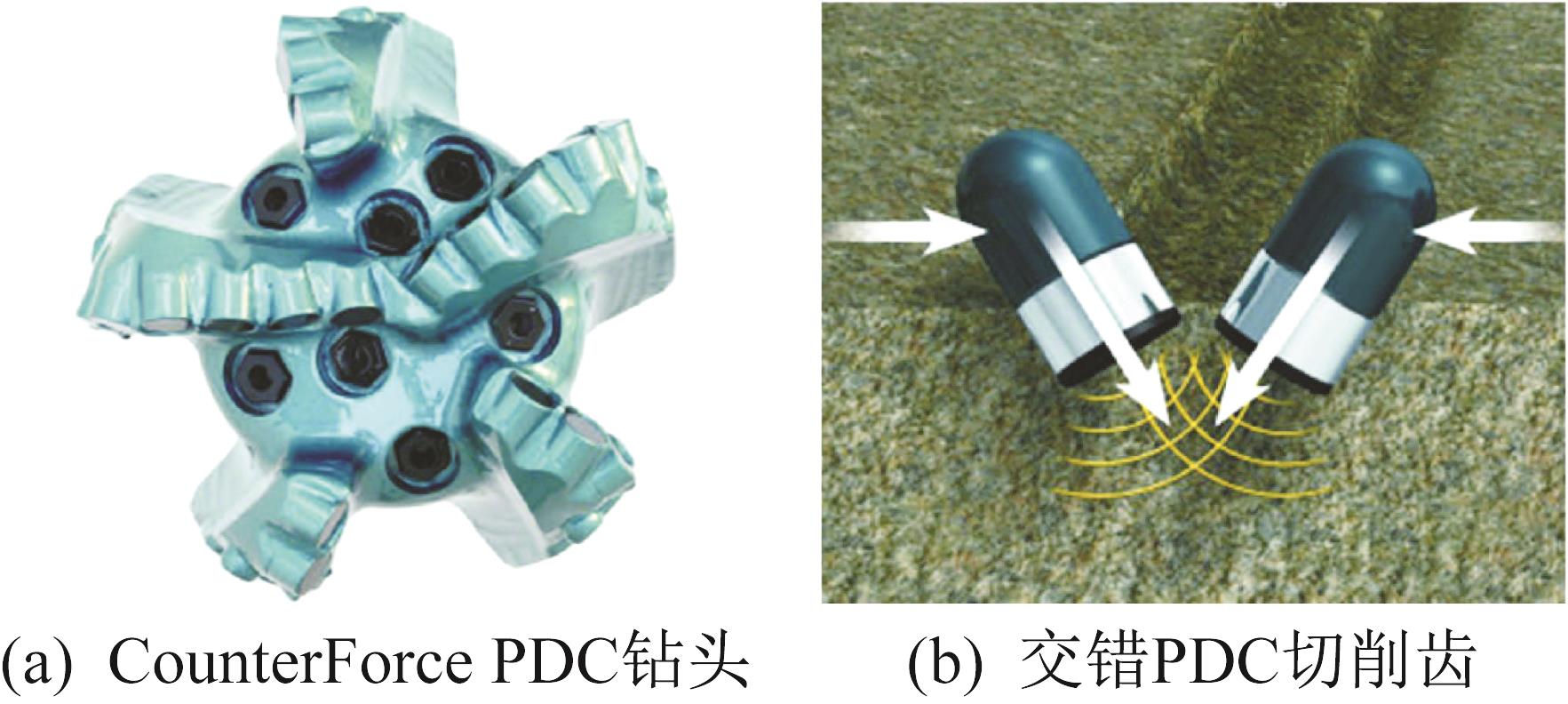

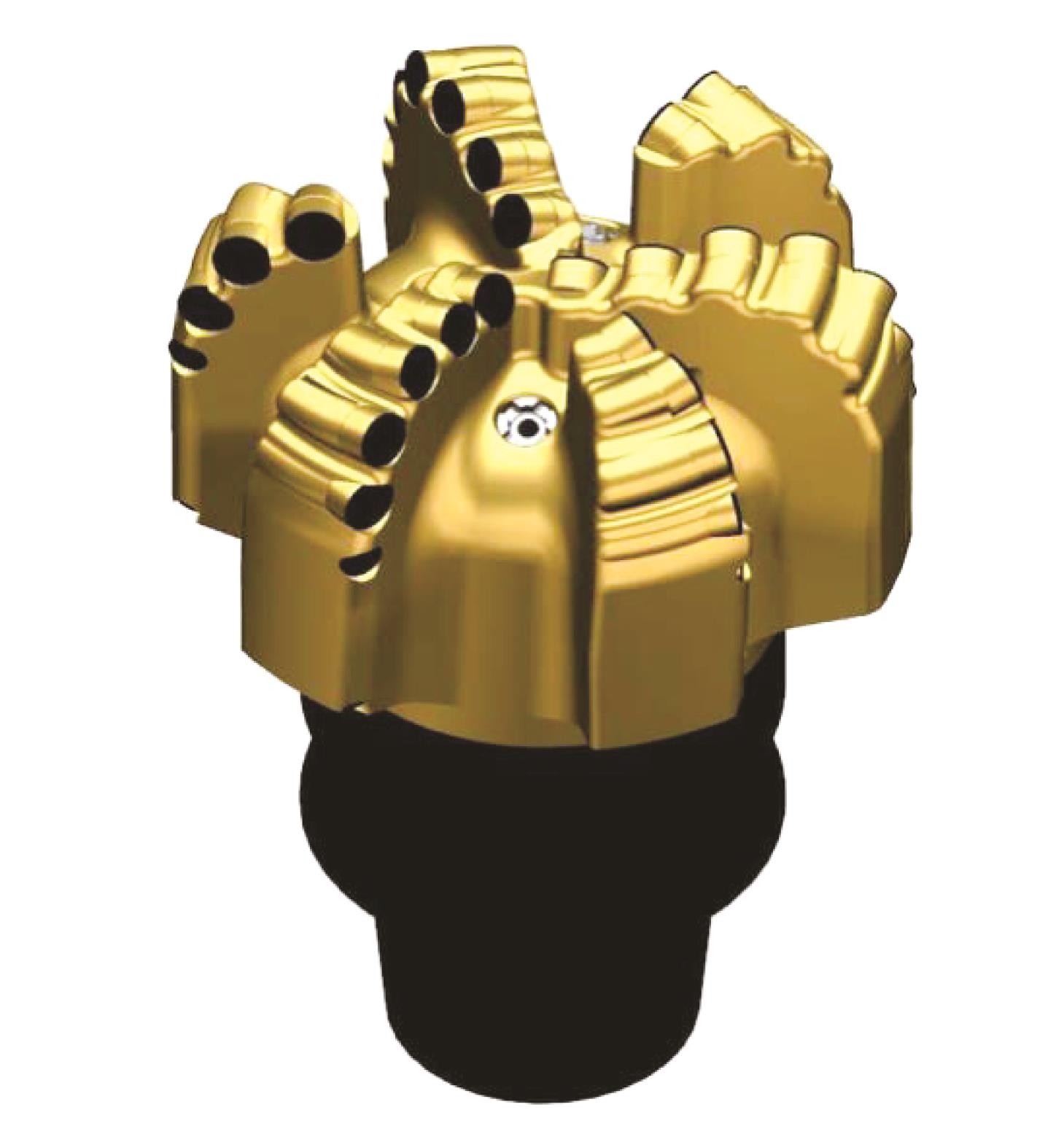

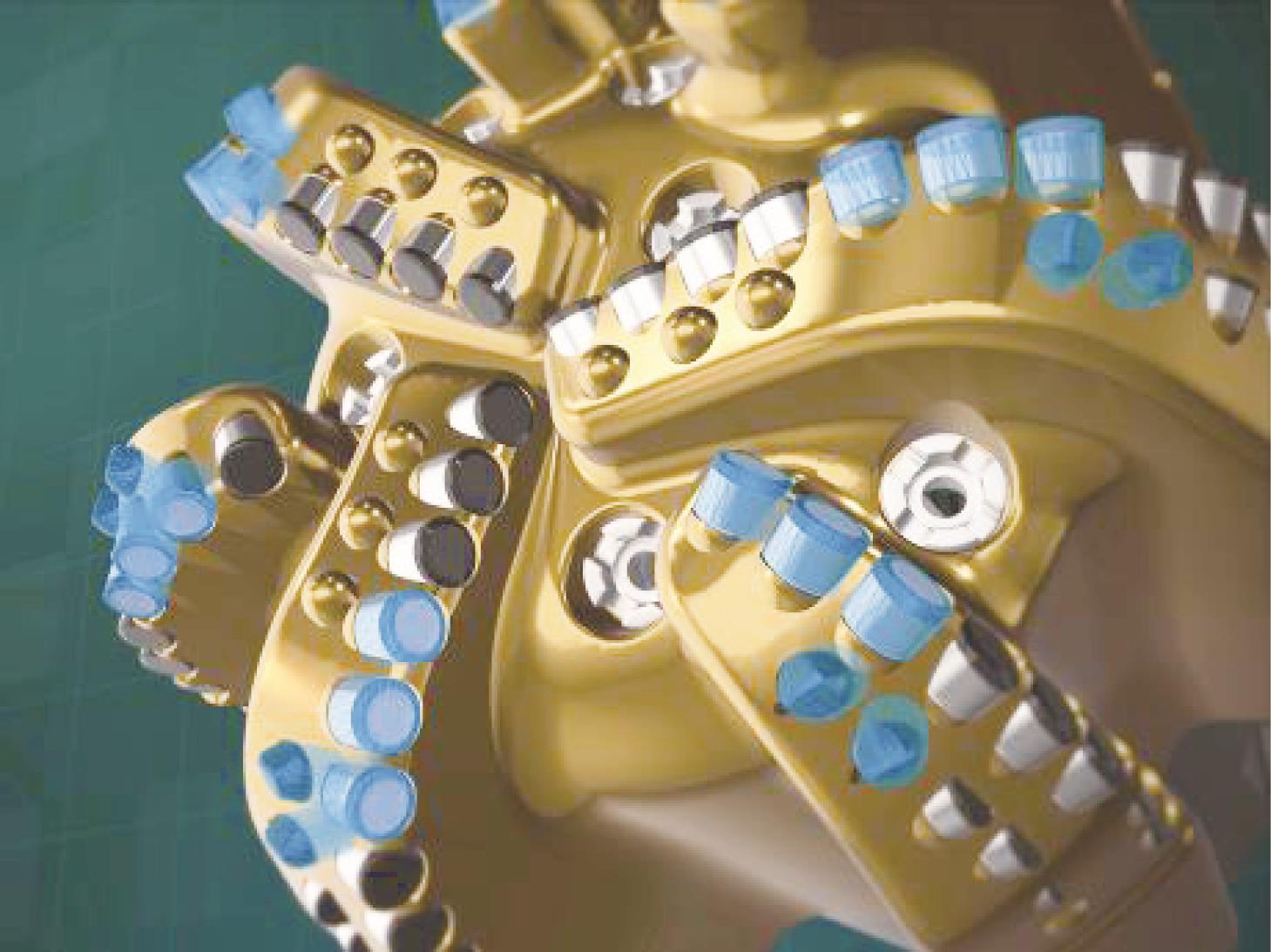

Fig.11 CounterForce PDC bit and staggered PDC cutter

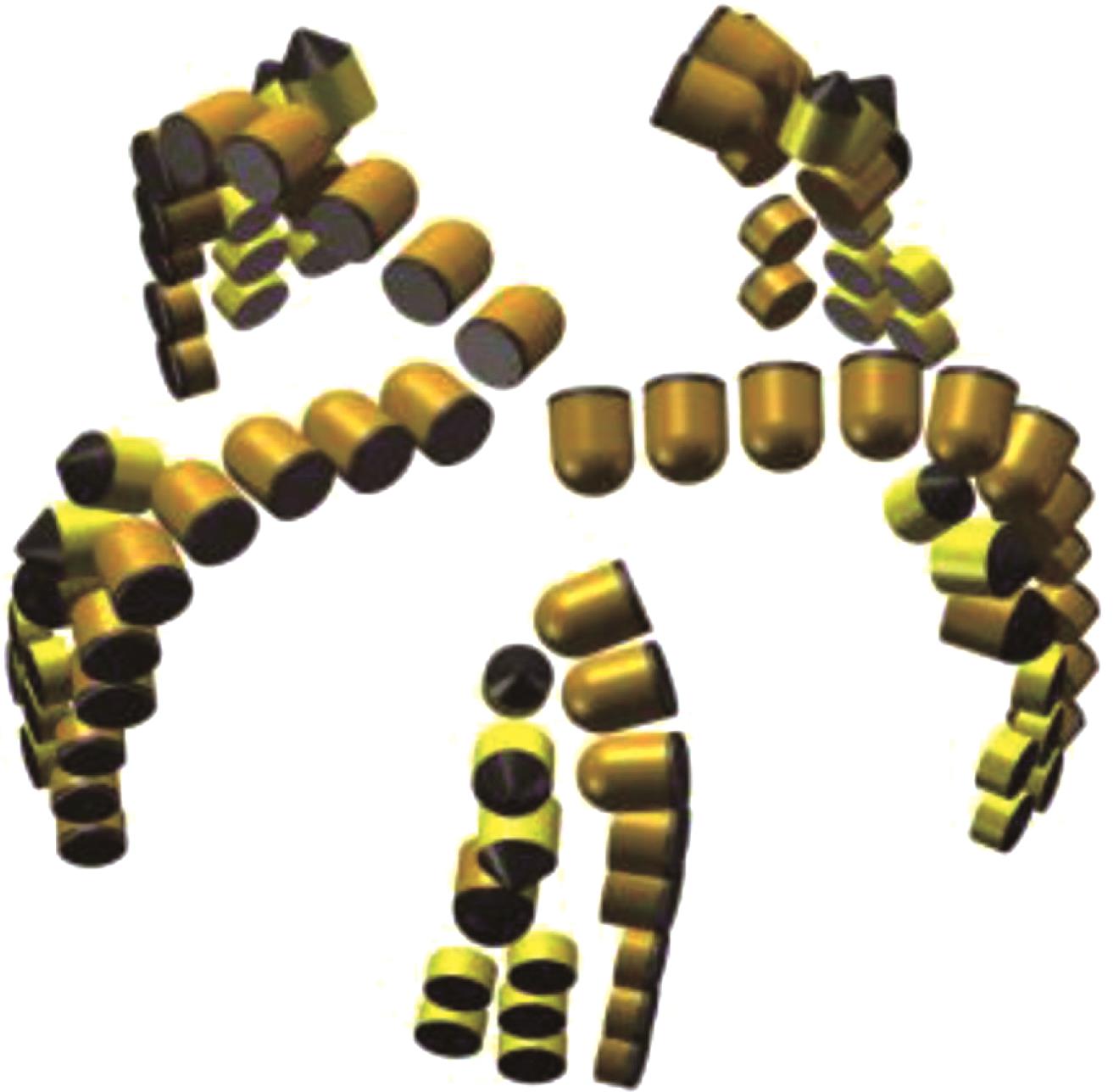

Fig.12 Mixed arrangement of conical PDC cutter and conventional PDC cutter

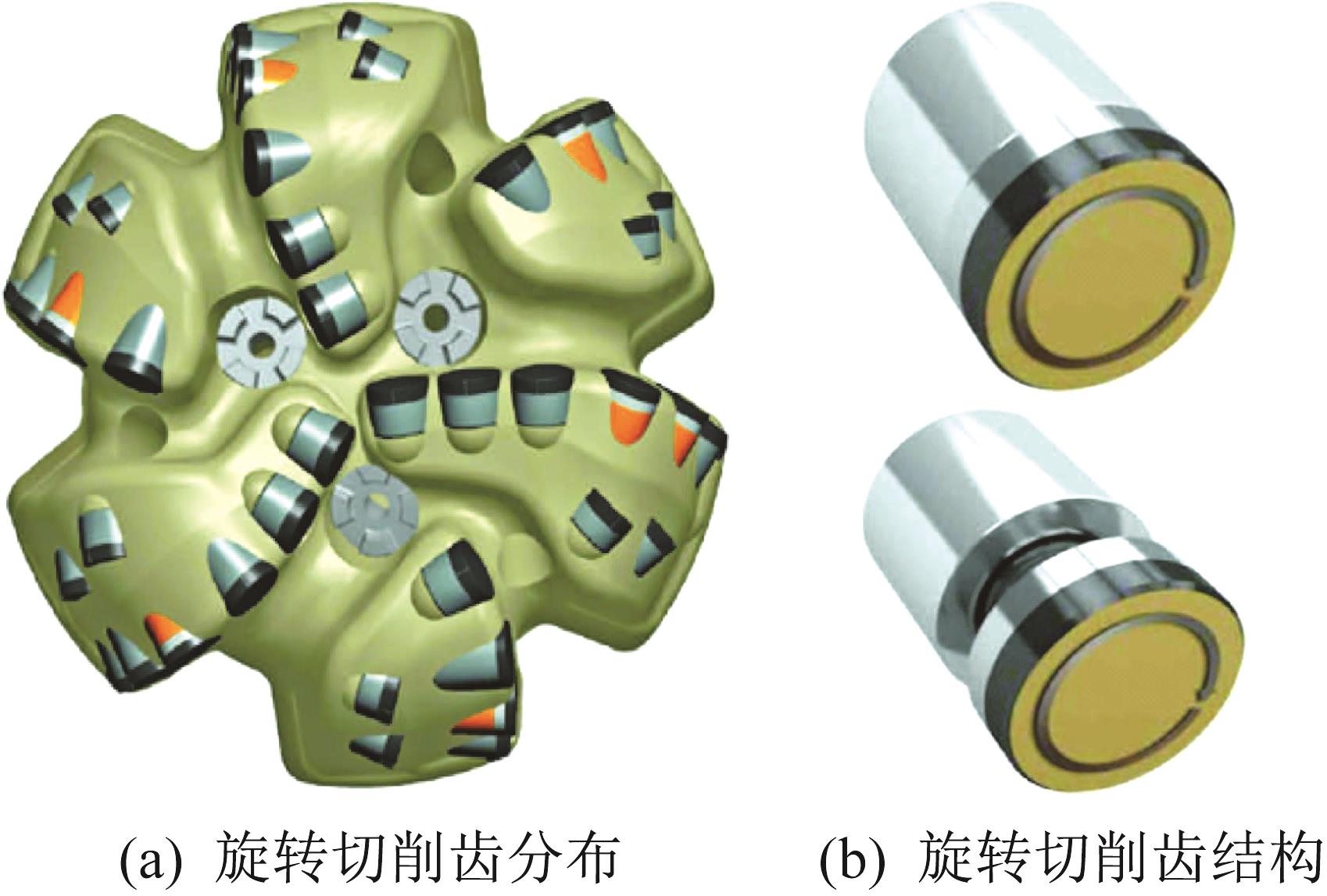

Fig.13 Distribution and structure of rotary cutter
Fig.14 Long-life chisel cutter

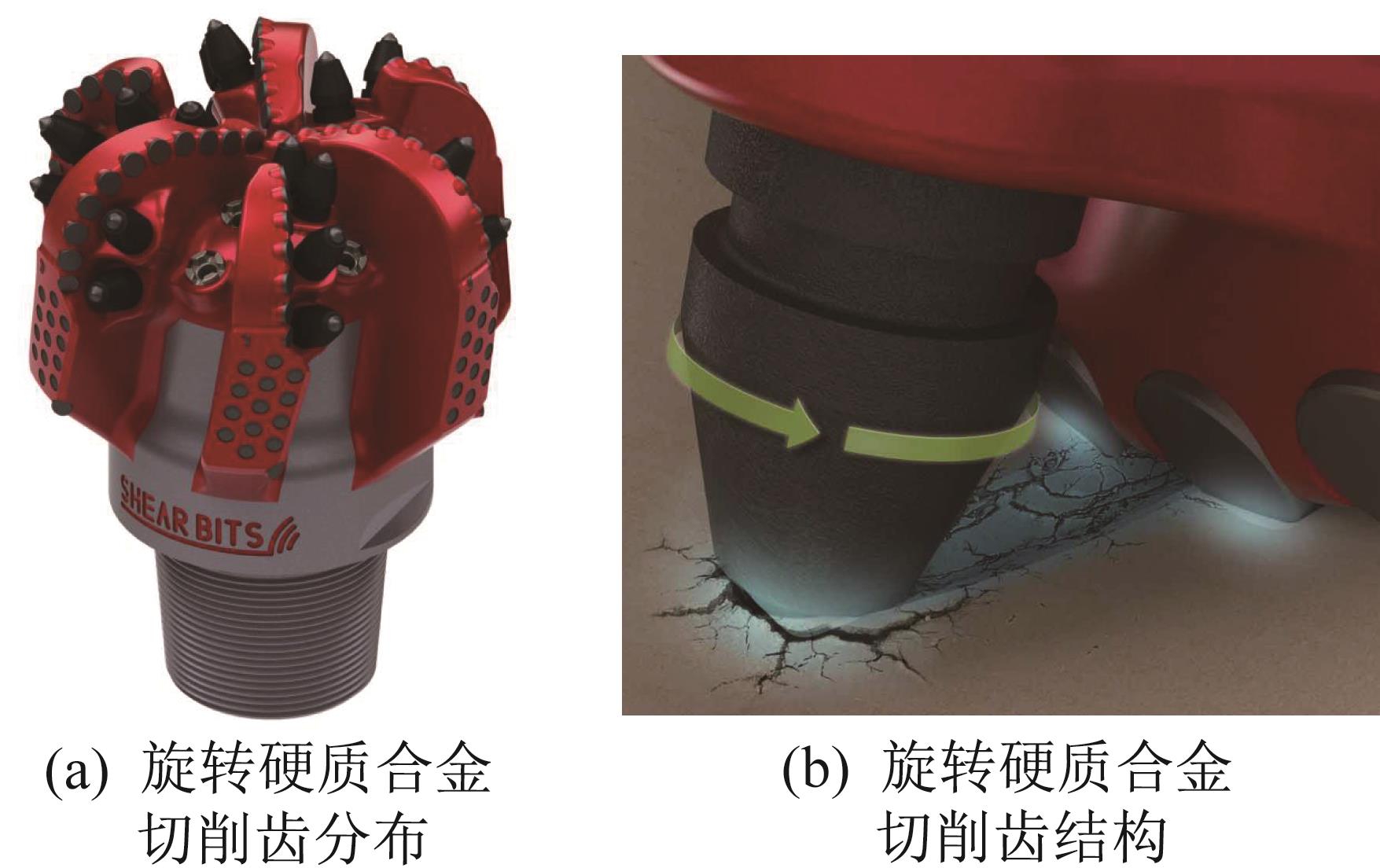

Fig.15 Distribution and structure of rotary cemented carbide cutter

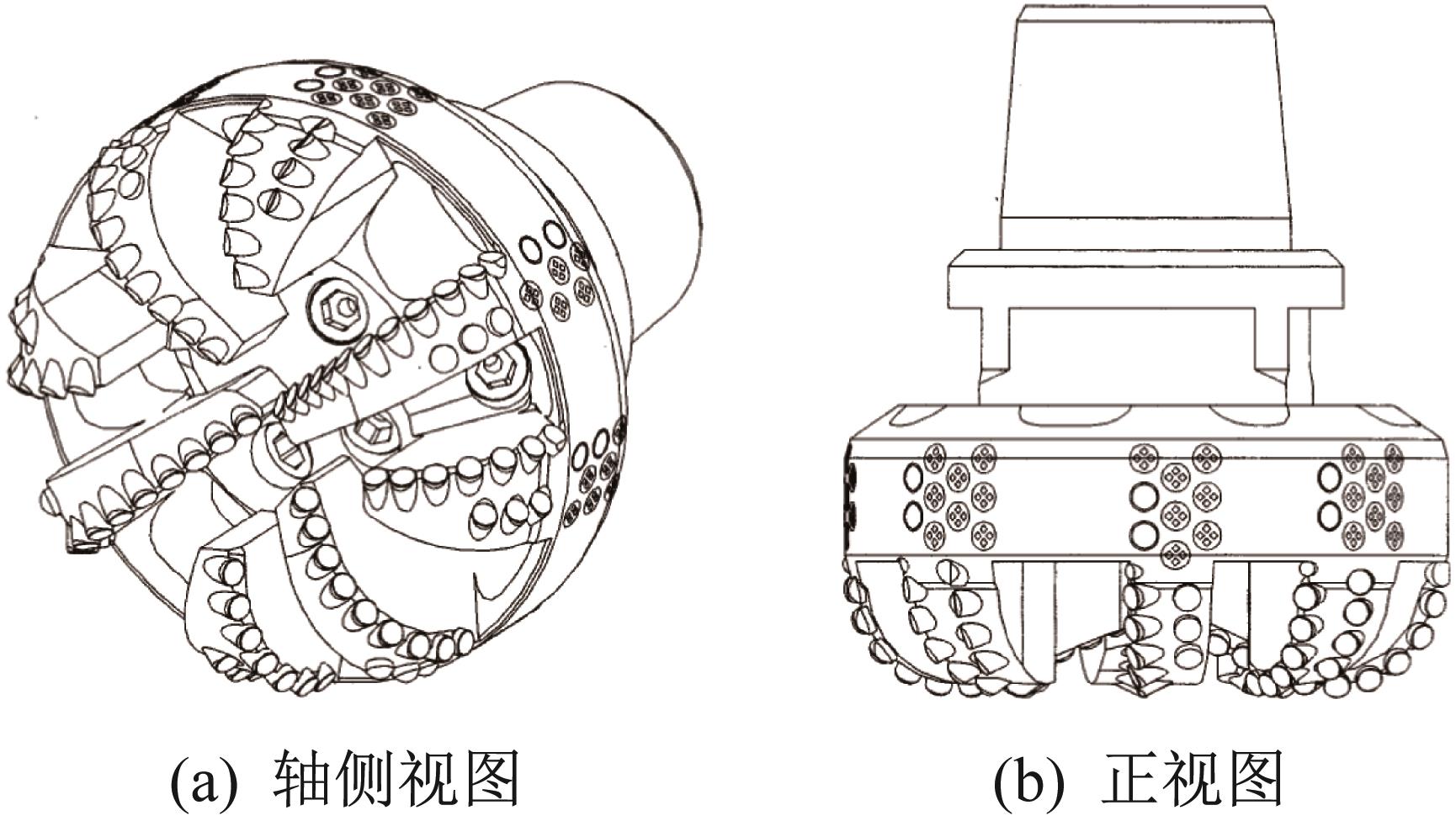

Fig.16 Integrated PDC bit with 360° contact ring

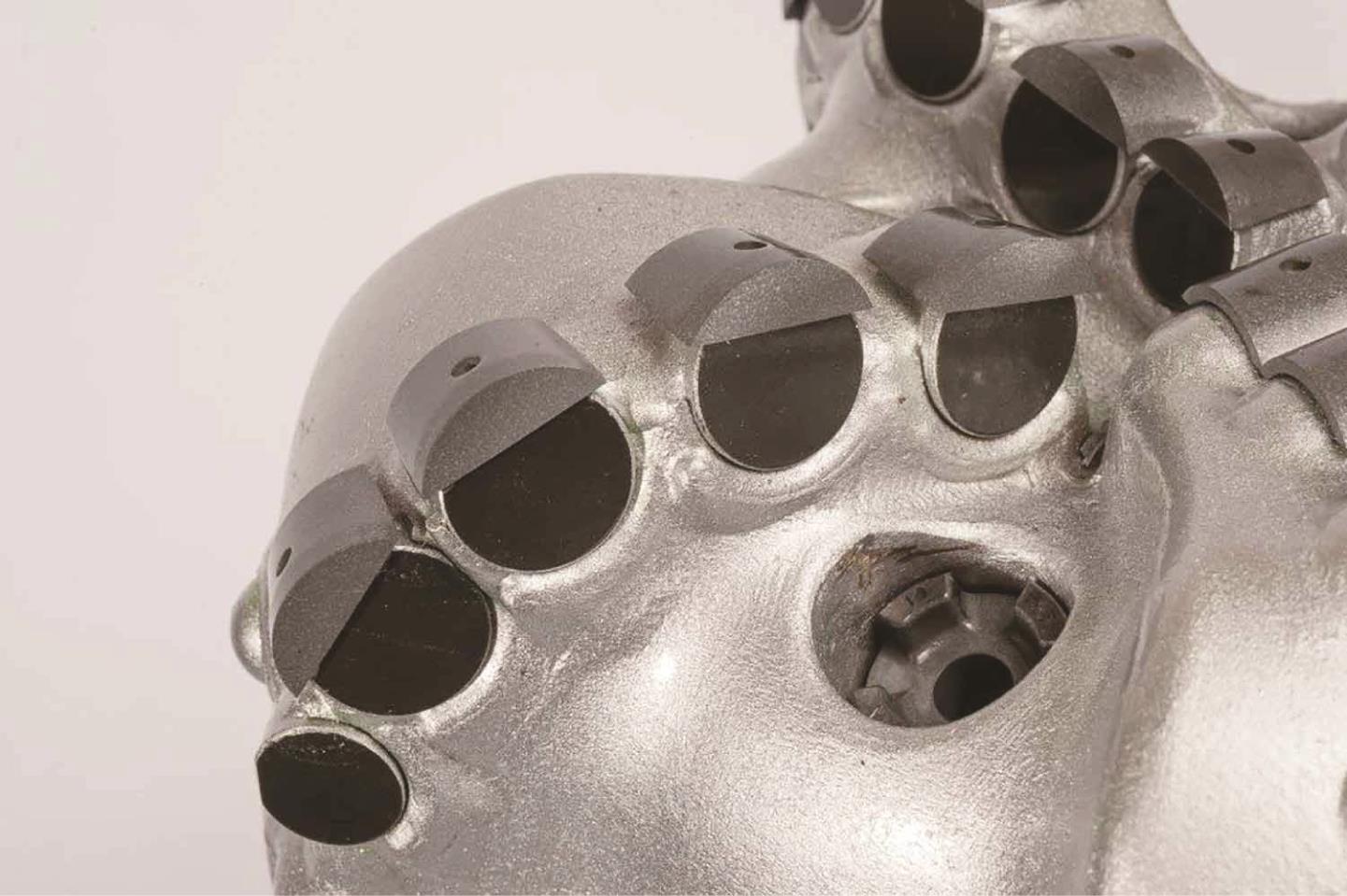

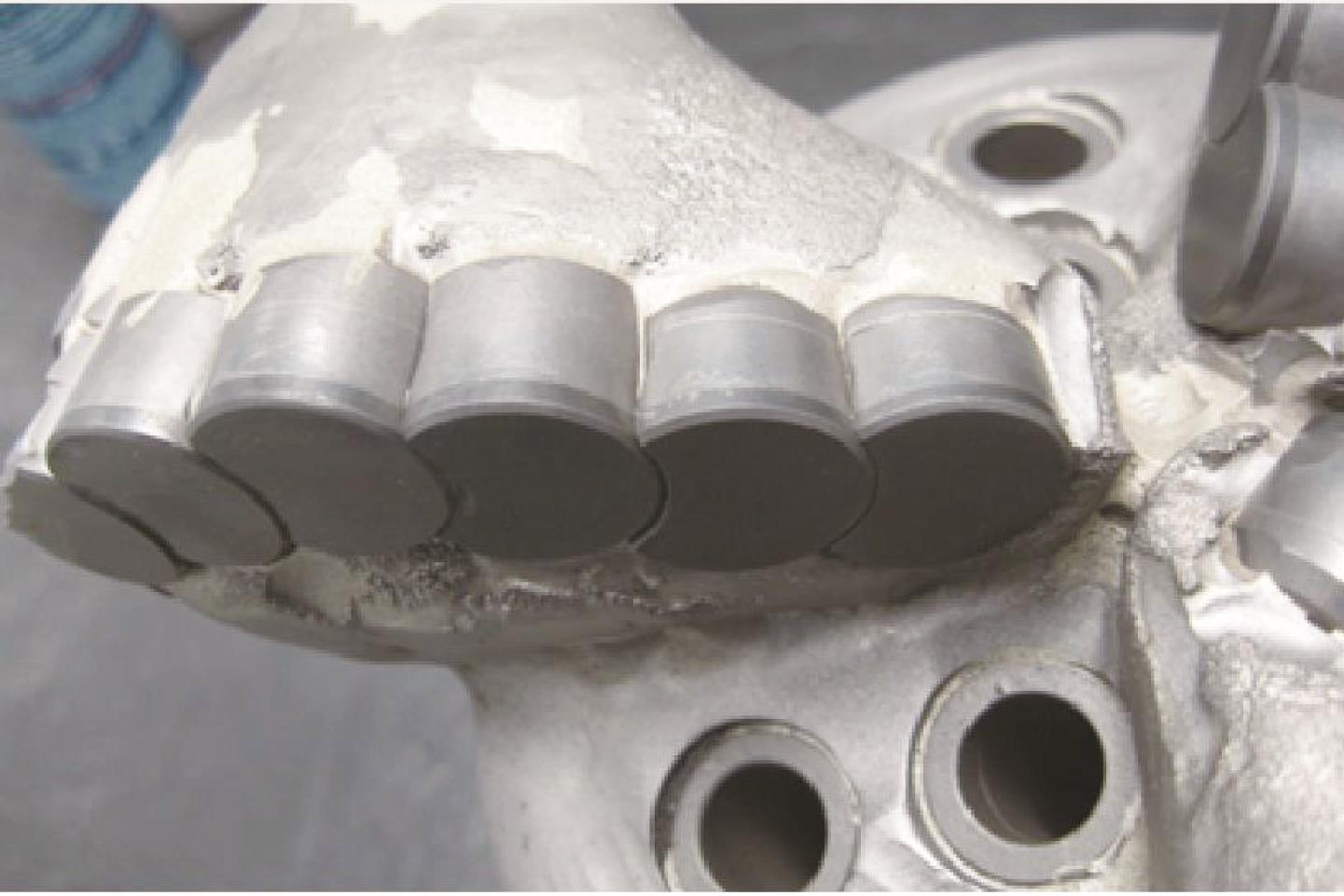

Fig.17 PDC cutter covered by shear cap

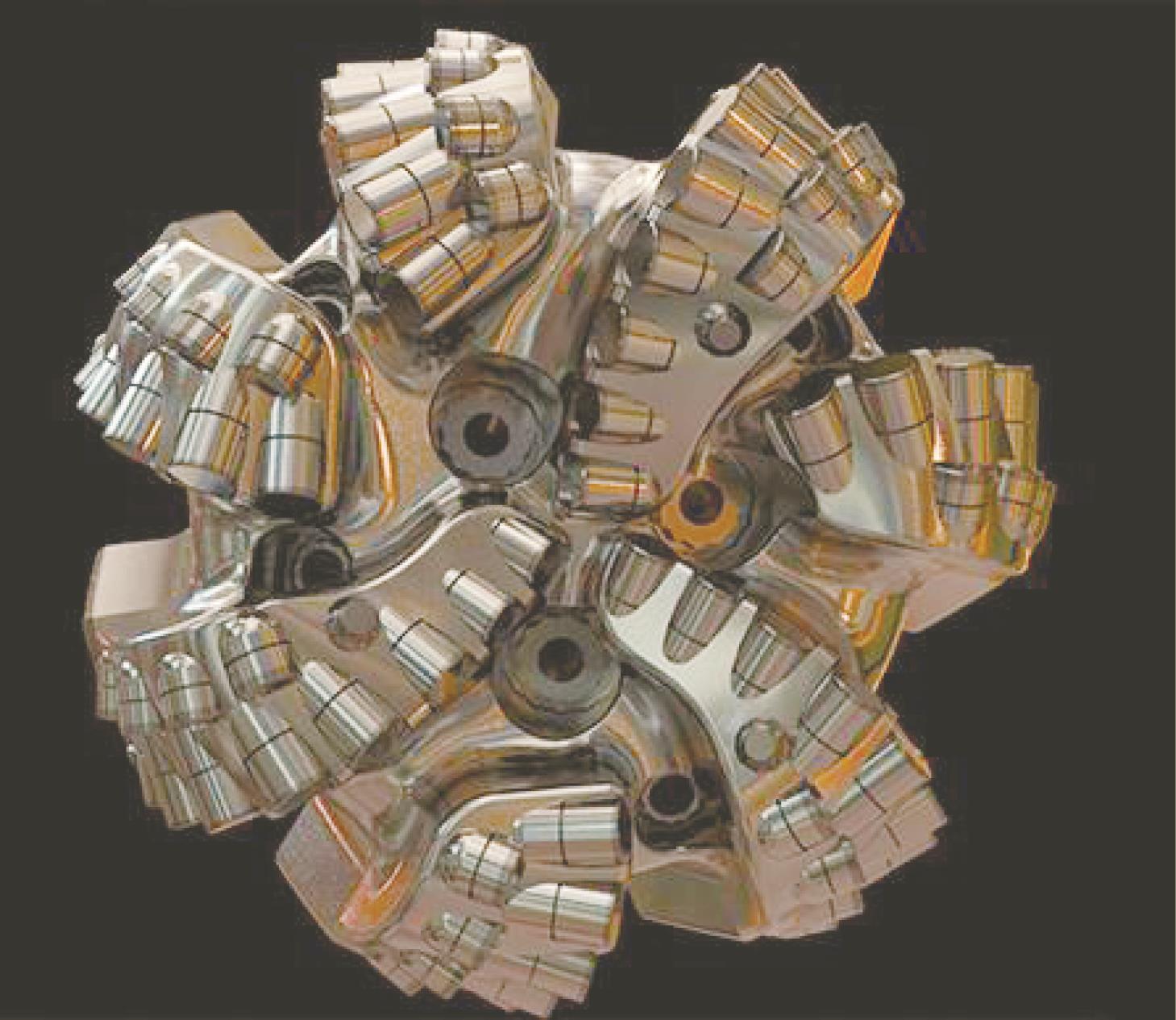

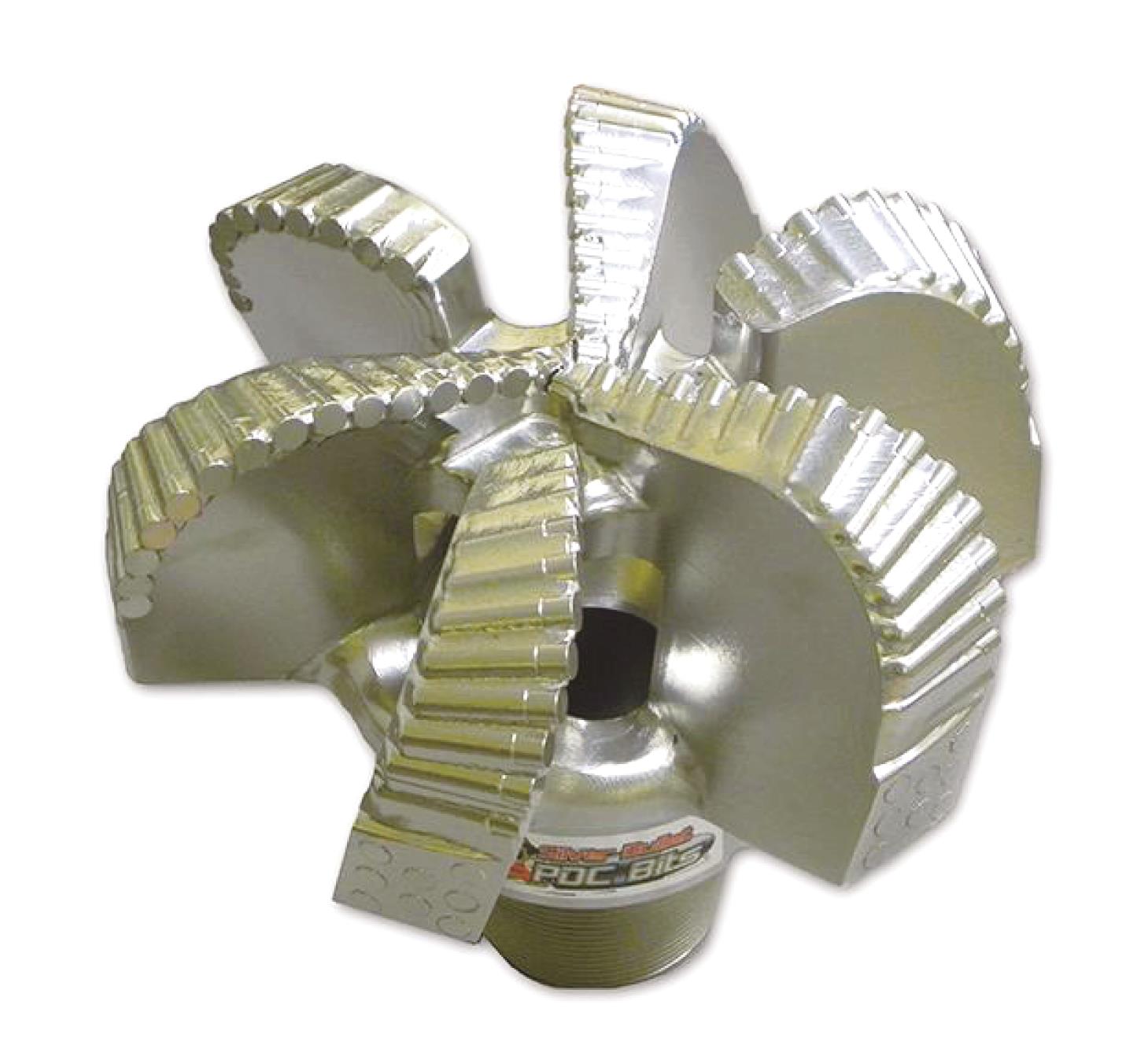

Fig.18 PDC bit with Stega cutter arrangement technology
