工程设计学报
工程设计学报  2024, Vol. 31 Issue (3): 292-300    DOI: 10.3785/j.issn.1006-754X.2024.03.143
机械设计理论与方法
基于深度学习的翼型参数化建模方法
沈剑雄1(),刘迎圆1(),王乐勤2
1.上海师范大学 信息与机电工程学院，上海 201400
2.浙江大学 能源工程学院，浙江 杭州 310027
Deep learning-based method for parametrized modeling of airfoil
Jianxiong SHEN1(),Yingyuan LIU1(),Leqin WANG2
1.College of Information, Mechanical and Electrical Engineering, Shanghai Normal University, Shanghai 201400, China
2.College of Energy Engineering, Zhejiang University, Hangzhou 310027, China
 全文: PDF(5118 KB)   HTML
摘要：

为解决现有翼型几何参数化描述方法优化设计效率低、计算工作量大的问题，提出了一种基于深度学习的翼型参数化建模方法。该方法以伊利诺伊大学厄巴纳-香槟分校（University of Illinois at Urbana-Champaign, UIUC）翼型数据库中翼型上下表面坐标点转化的翼型二维图像作为输入，首先使用卷积运算提取大量翼型图像的几何特征，然后通过多层感知机对提取的几何特征进行分类和压缩，将翼型形状压缩成若干个简化的拟合参数，最后通过解码器恢复翼型图像并输出翼型上下表面的点坐标。在此基础上，探讨了拟合参数数量对翼型几何精度的影响，确定了含6个拟合参数的卷积神经网络（convolutional neural network, CNN）结构，并基于计算流体力学数值仿真验证了所提出方法的拟合精度。最后，开发了可视化翼型几何设计软件，实现了拟合参数的调整与修正，并分析了各拟合参数对翼型形状的影响规律。结果表明，6个拟合参数均会对翼型形状产生全局影响，单独或联合调整6个拟合参数可获得新的翼型设计空间。研究结果可为翼型的优化设计提供技术支持与理论参考。
关键词： 翼型参数化;  几何特征;  深度学习;  卷积神经网络
Abstract:

In order to solve the problems of low efficiency and heavy computational workload during the optimization design process in the existing airfoil geometric parametrized modeling methods, a deep learning-based airfoil parametrized modeling method was put forward. In this method, the two-dimensional airfoil images converted from coordinate points of airfoil upper and lower surfaces in the airfoil database of the University of Illinois at Urbana-Champaign (UIUC) were taken as the input. Firstly, the convolution operations were used to extract geometric features of a large amount of airfoil images. Then, the extracted geometric features were classified and compressed by multi-layer perceptron, and the airfoil shape was compressed into several simplified fitting parameters. Finally, the airfoil image was restored and the coordinates of points on the upper and lower surfaces of airfoil were output by a decoder. On this basis, the influence of the number of fitting parameters on the geometric accuracy of airfoil was discussed, and a convolutional neural network (CNN) structure with six fitting parameters was determined. At the same time, the fitting accuracy of the proposed method was verified by the computational fluid dynamics numerical simulation. Finally, the visual airfoil geometry design software was developed to adjust and modify the fitting parameters, and the influence law of each fitting parameter on the airfoil shape was summarized. The results indicated that all the six fitting parameters had a global impact on the airfoil shape, and the new airfoil design space could be obtained by adjusting the six fitting parameters individually or jointly. This research results can provide technical support and theoretical guidance for airfoil optimization design.
Key words: airfoil parameterization    geometric feature    deep learning    convolutional neural network
收稿日期: 2023-03-31 出版日期: 2024-06-27
CLC:  TH 122
基金资助: 国家自然科学基金青年基金资助项目(51806145)
通讯作者: 刘迎圆     E-mail: 1000511952@smail.shnu.edu.cn;yyliu@shnu.edu.cn
作者简介: 沈剑雄（1998—），男，江苏南京人，硕士生，从事人工智能与流体机械研究，E-mail: 1000511952@smail.shnu.edu.cn
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章　　
沈剑雄
刘迎圆
王乐勤

引用本文:

沈剑雄,刘迎圆,王乐勤. 基于深度学习的翼型参数化建模方法[J]. 工程设计学报, 2024, 31(3): 292-300.

Jianxiong SHEN,Yingyuan LIU,Leqin WANG. Deep learning-based method for parametrized modeling of airfoil[J]. Chinese Journal of Engineering Design, 2024, 31(3): 292-300.

链接本文:

https://www.zjujournals.com/gcsjxb/CN/10.3785/j.issn.1006-754X.2024.03.143    或    https://www.zjujournals.com/gcsjxb/CN/Y2024/V31/I3/292

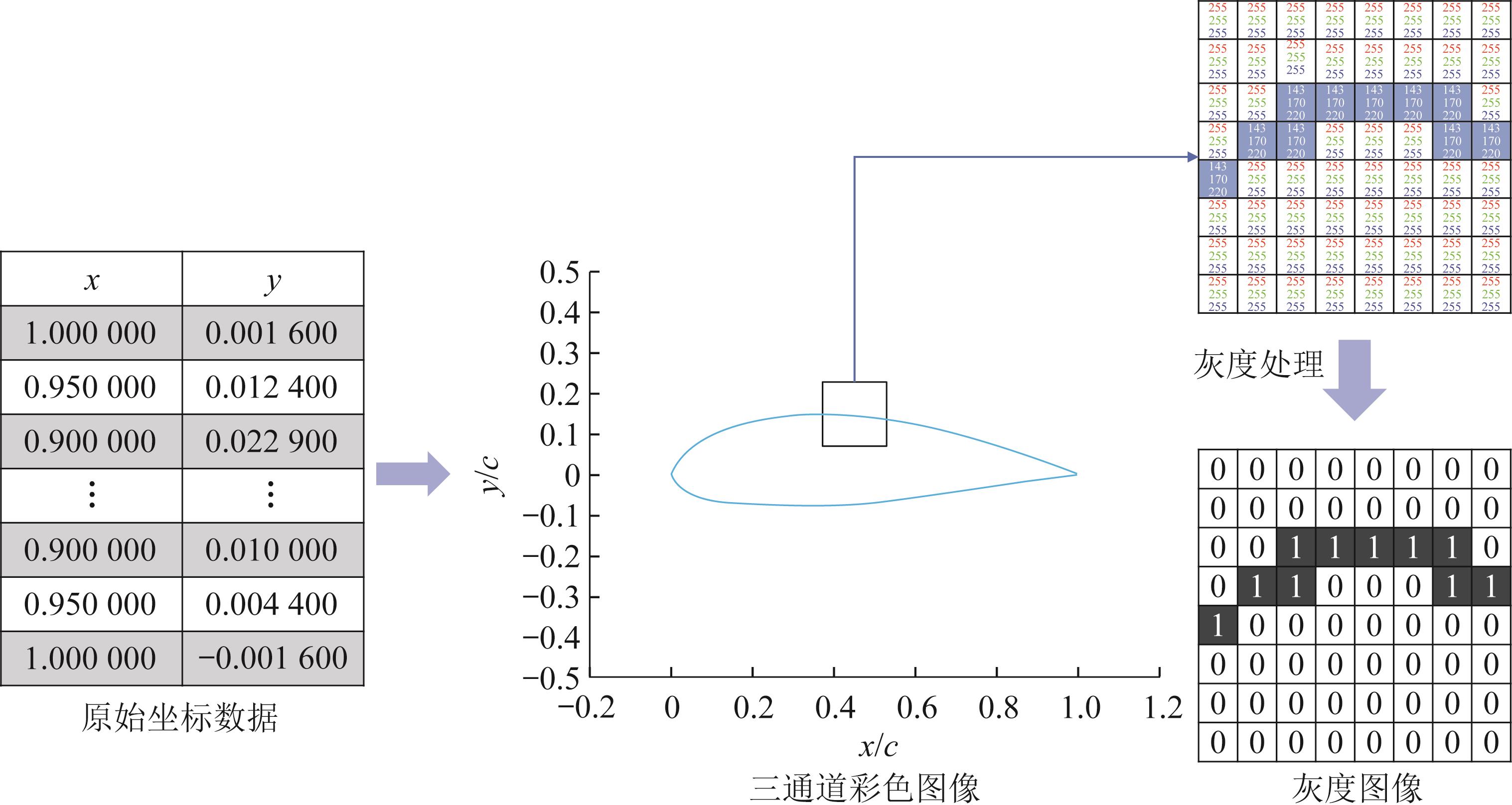

图1  翼型数据集的生成示意

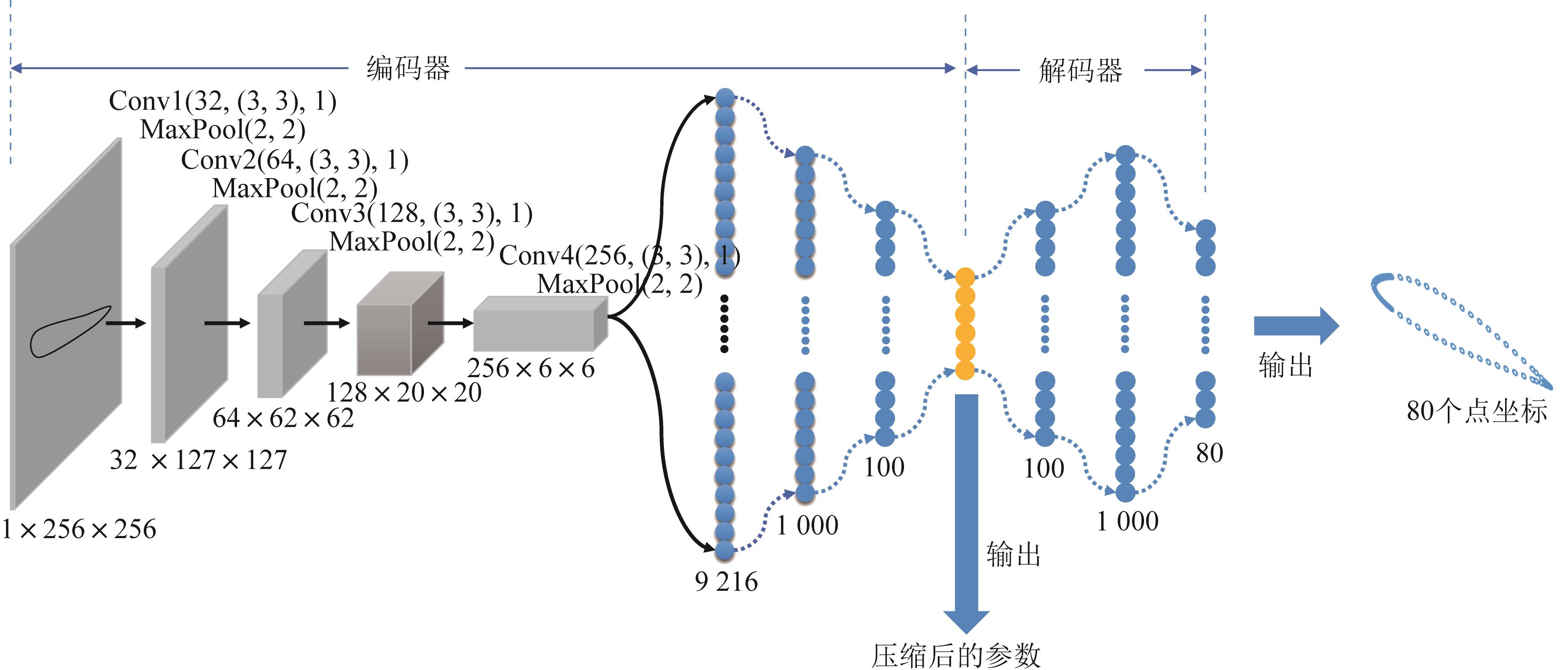

图2  基于CNN的翼型参数化模型的结构及主要参数

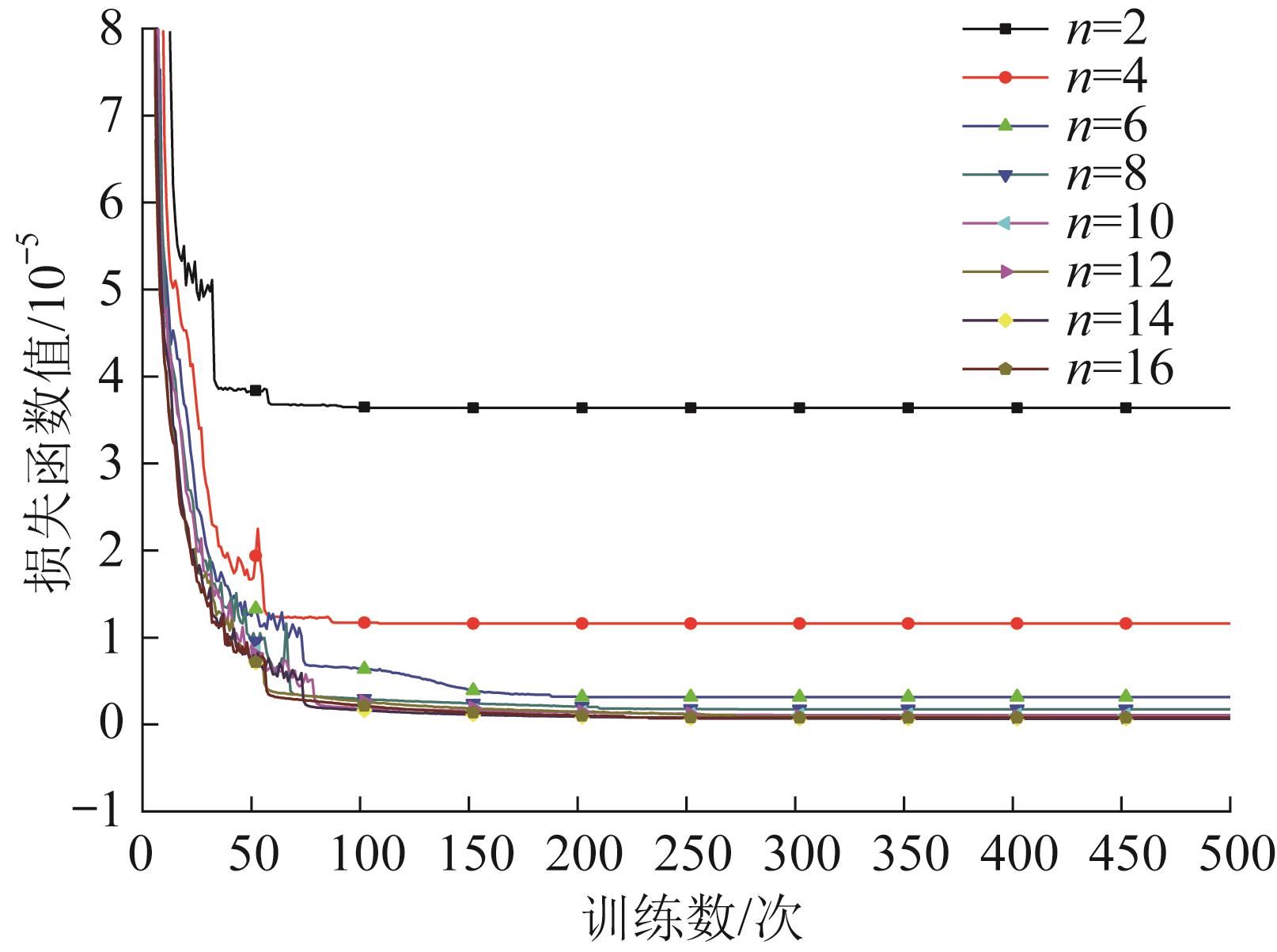

图3  拟合参数数量对NACA0021翼型拟合精度的影响

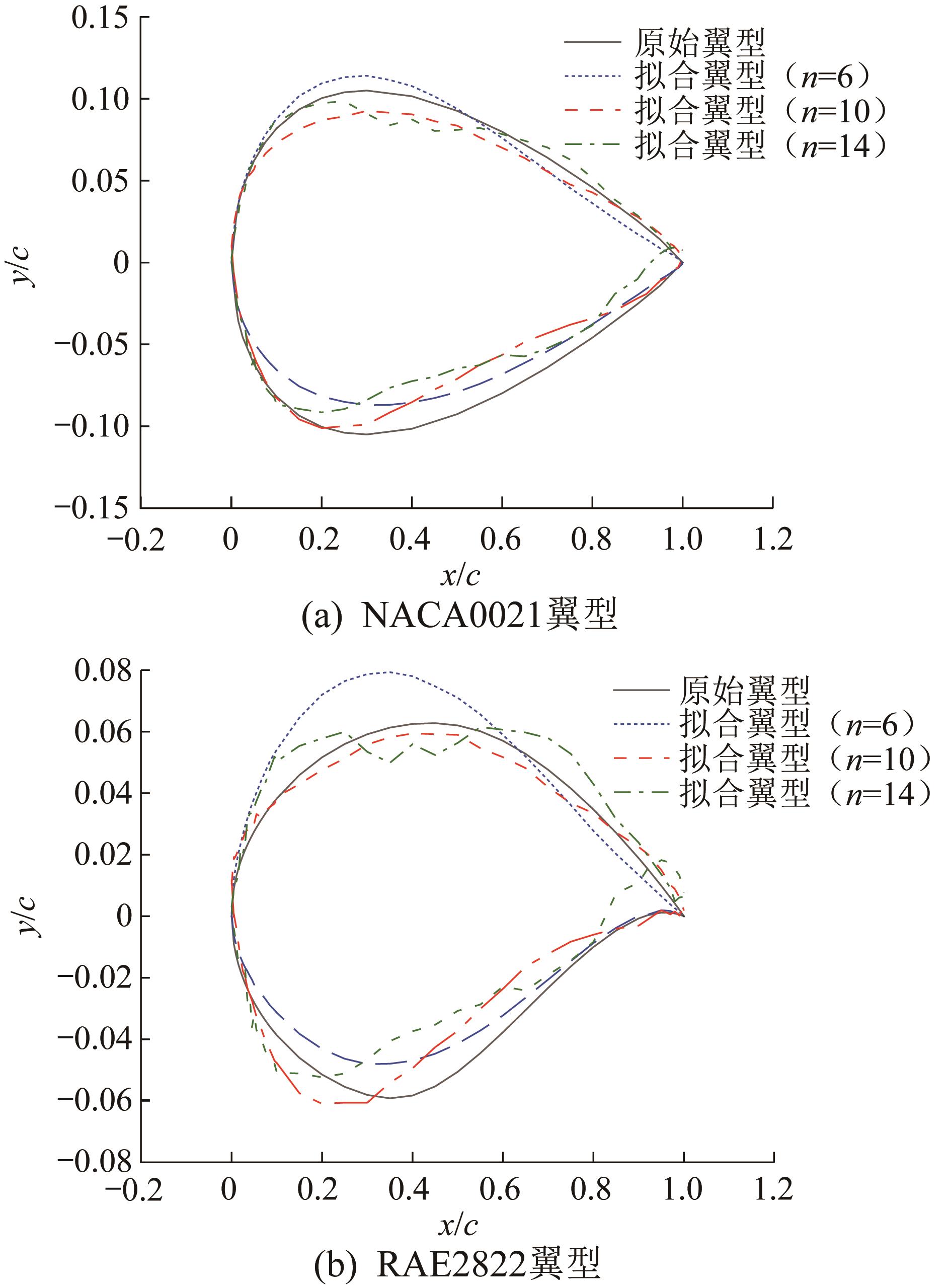

图4  不同参数数量下拟合参数调整对翼型形状的影响

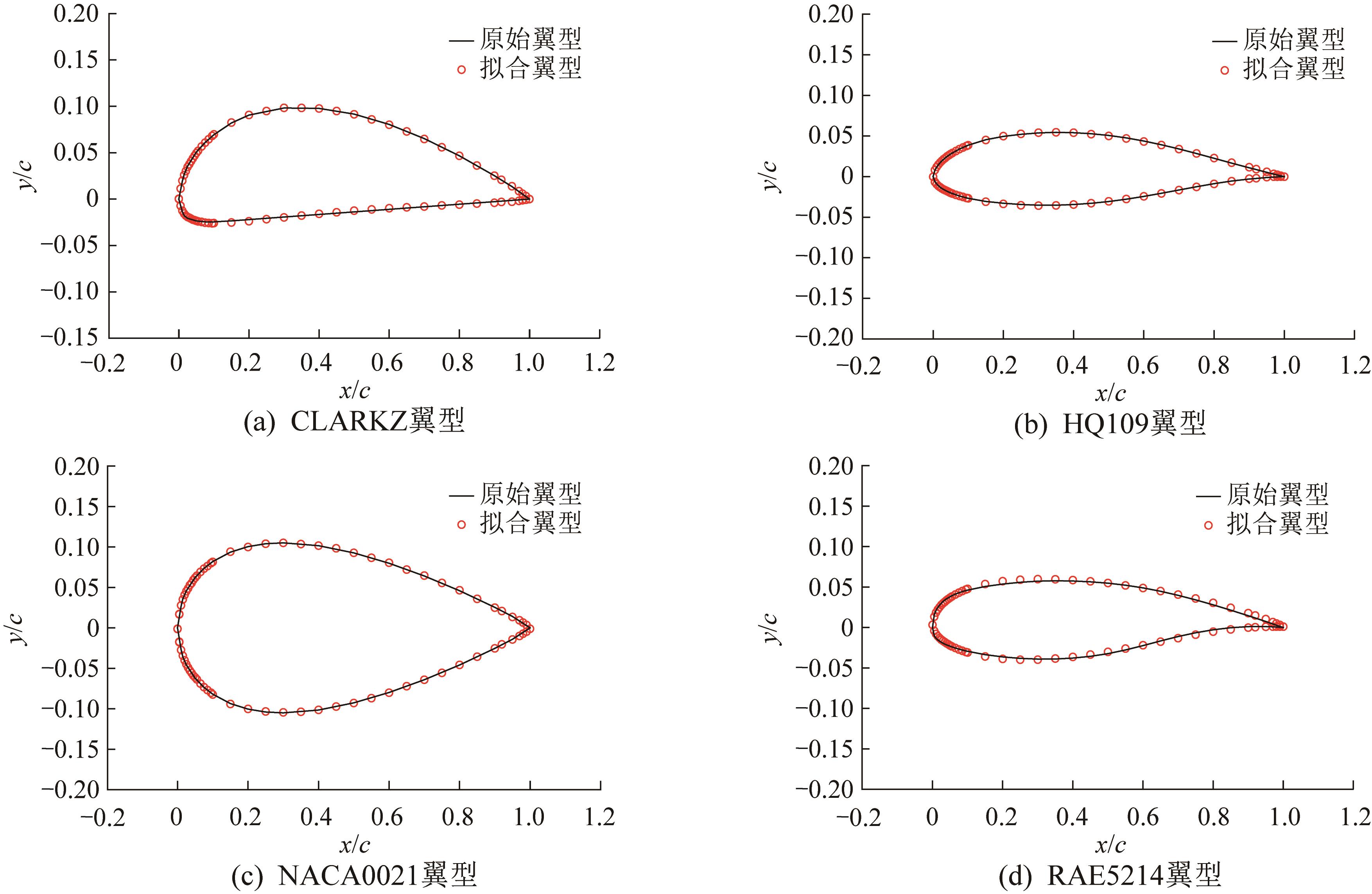

图5  CNN-6模型对不同翼型的拟合效果

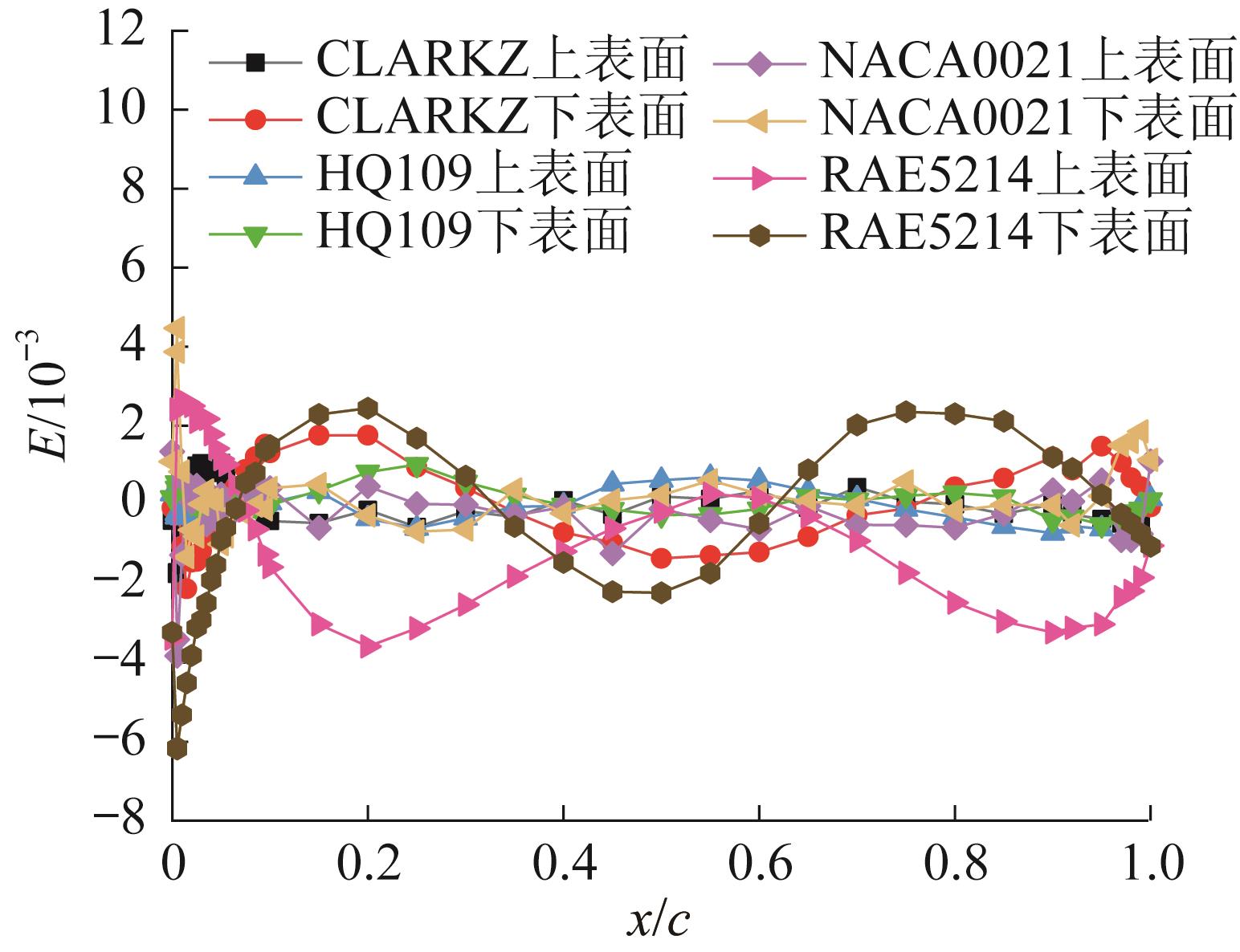

图6  不同翼型上下表面的拟合误差

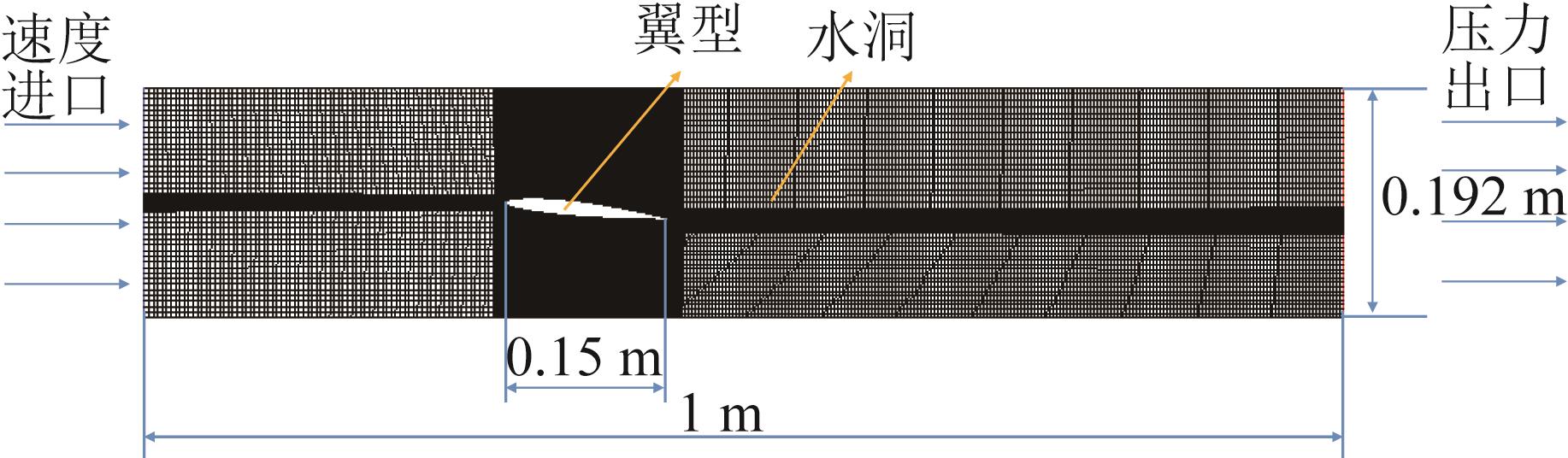

图7  HQ109翼型水洞仿真模型

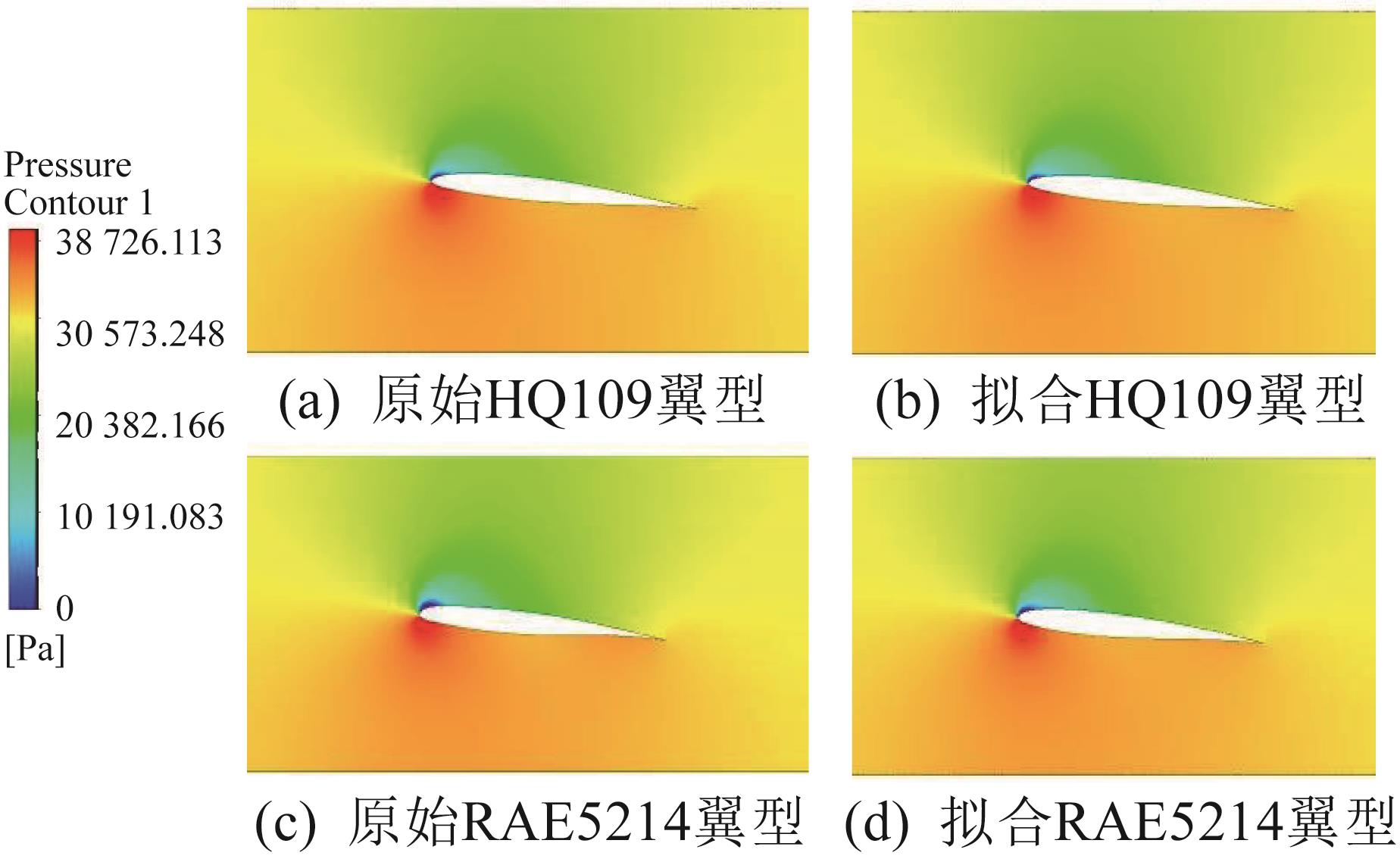

图8  原始翼型与拟合翼型的压力云图对比
参数HQ109翼型RAE5214翼型
原始翼型拟合翼型相对误差/%原始翼型拟合翼型相对误差/%
升力系数0.980.991.021.081.052.78
阻力系数0.0170.01700.0180.0195.56
表1  原始翼型与拟合翼型的升力系数、阻力系数对比

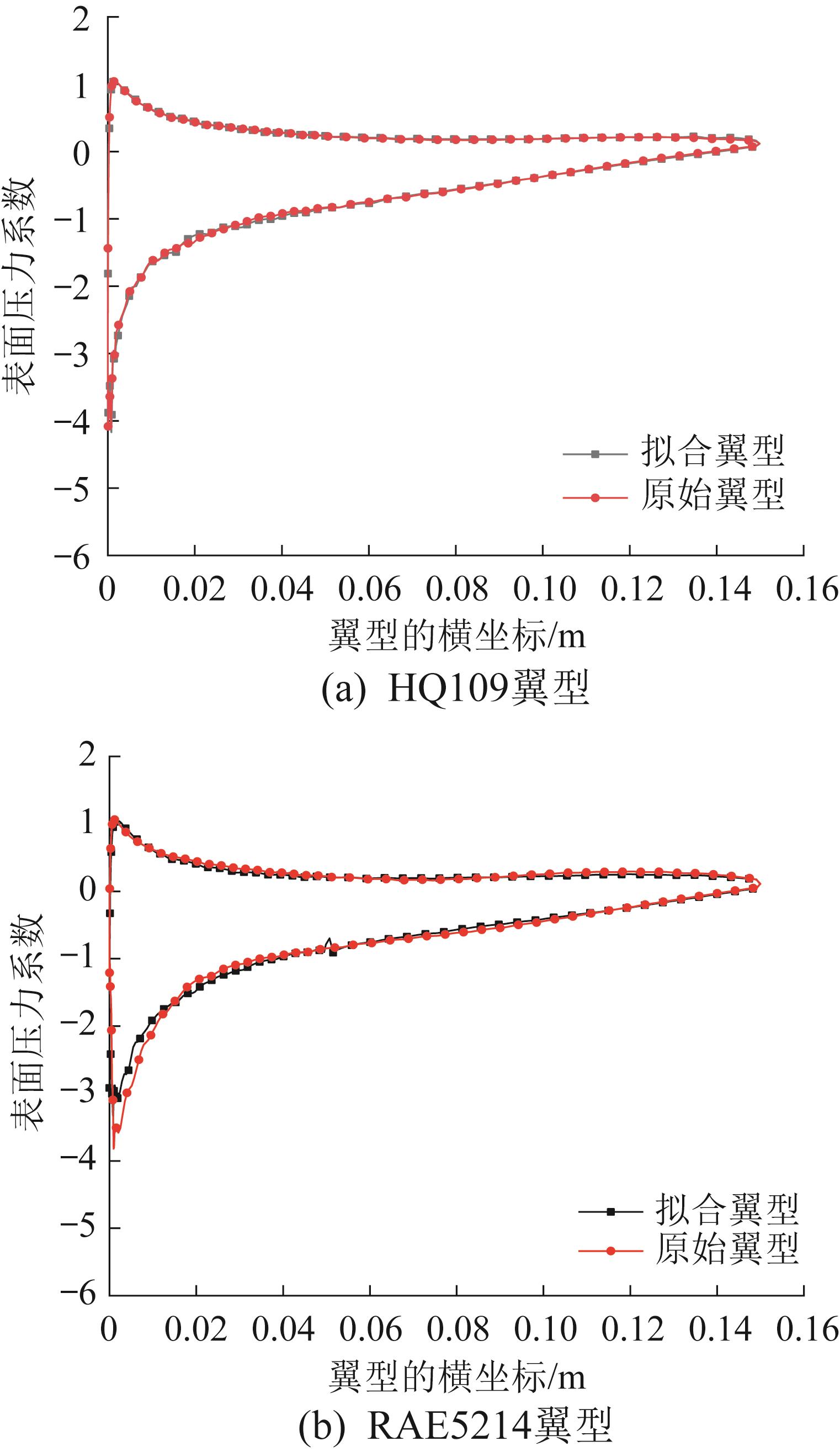

图9  原始翼型与拟合翼型的表面压力系数对比

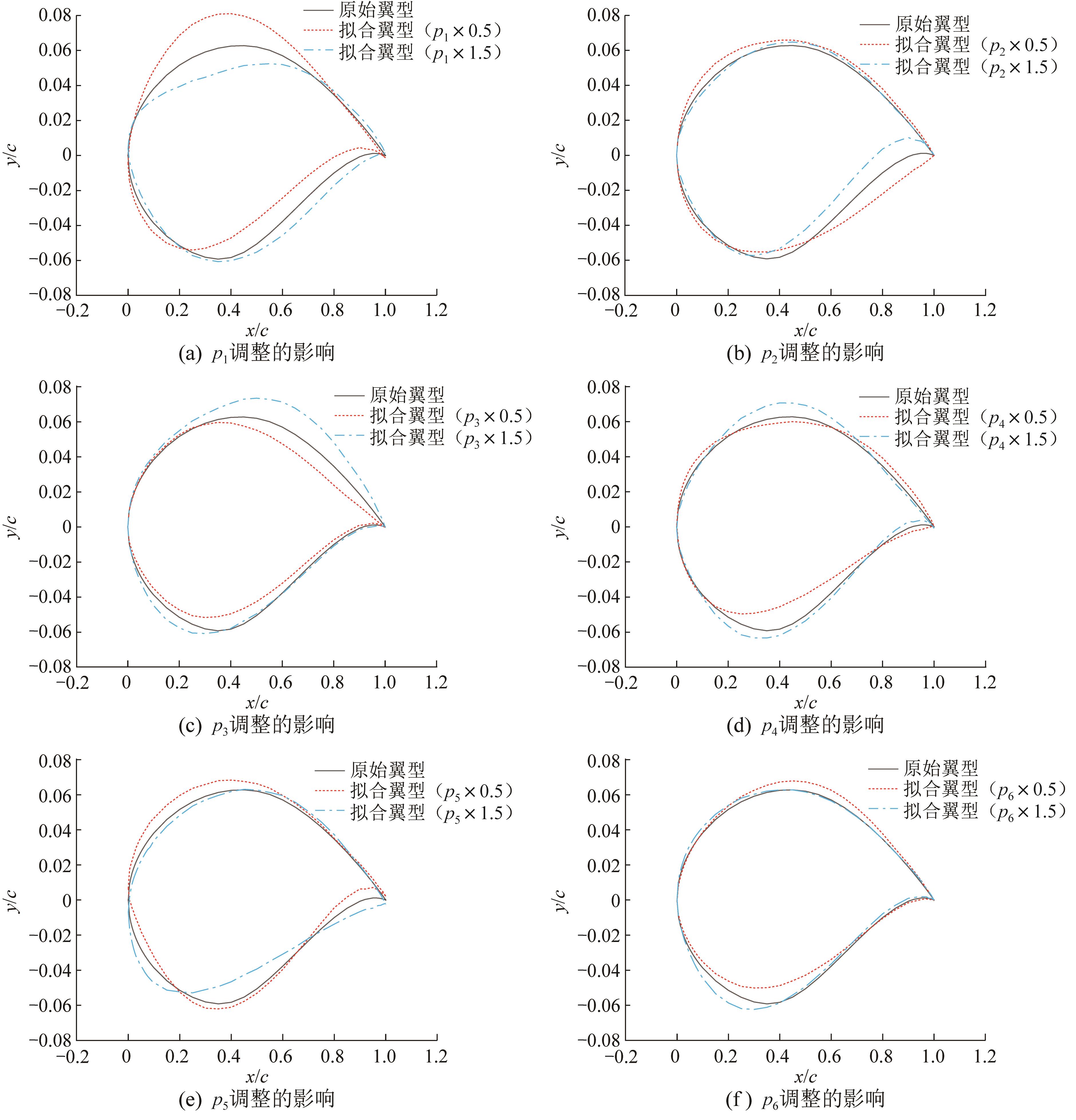

图10  CNN-6模型中单个拟合参数调整对RAE2822翼型形状的影响

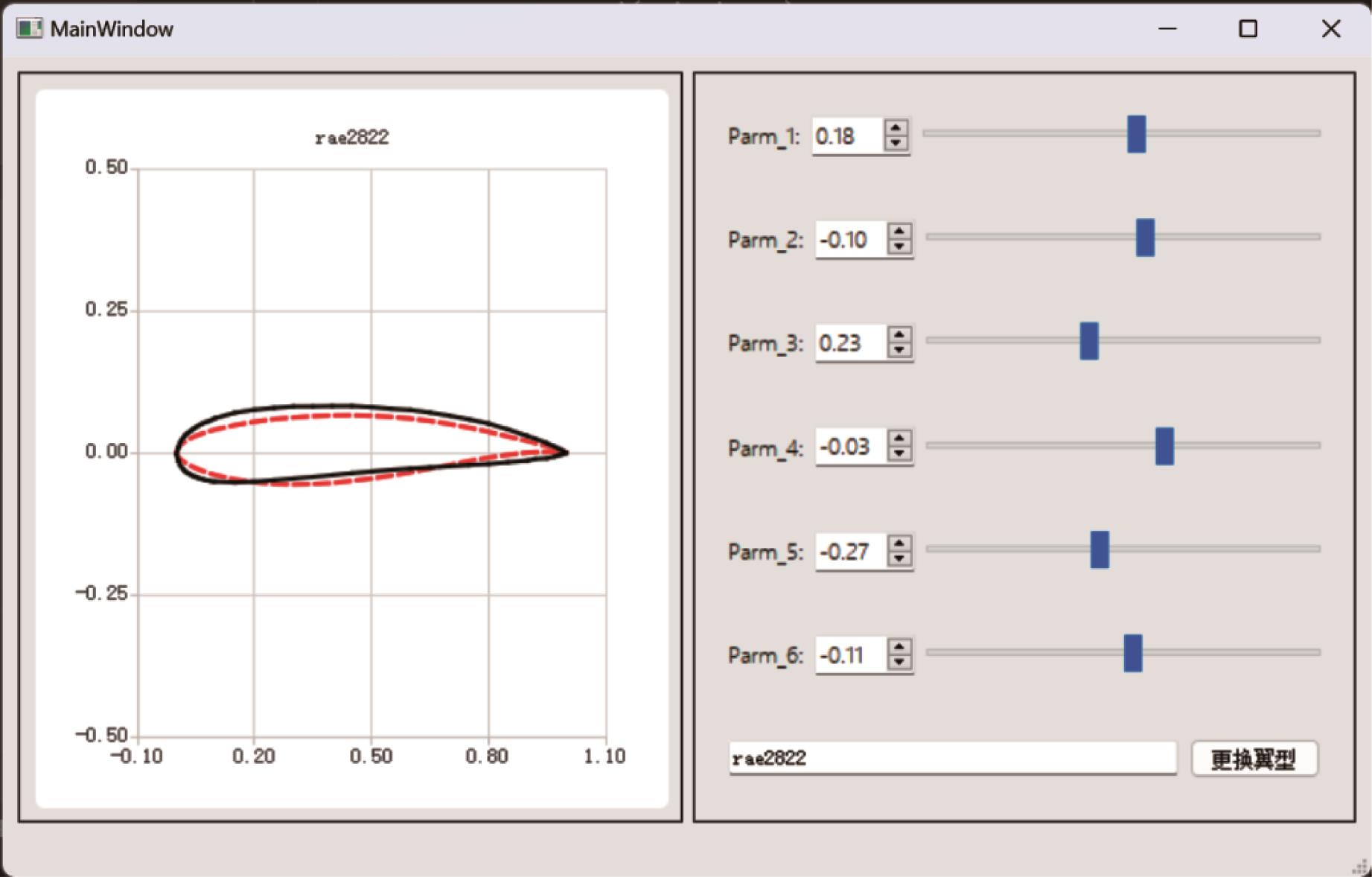

图11  可视化翼型几何设计软件
