基于图和体分解的异型零件加工特征识别方法

doi:10.3785/j.issn.1006-754X.2023.00.061

工程设计学报

2023, Vol. 30

Issue (5): 545-553 DOI: 10.3785/j.issn.1006-754X.2023.00.061

机械设计理论与方法

基于图和体分解的异型零件加工特征识别方法

李旺¹(

),刘厚才¹(

),康辉民¹(

),欧阳智海¹,曹正¹,周岳¹,蒋冠¹,段良辉²

^1.湖南科技大学机电工程学院，湖南湘潭 411201
^2.江南工业集团有限公司数控加工分厂，湖南湘潭 411207

Machining feature recognition method of special-shaped parts based on graph and volume decomposition

Wang LI¹(

),Houcai LIU¹(

),Huimin KANG¹(

),Zhihai OUYANG¹,Zheng CAO¹,Yue ZHOU¹,Guan JIANG¹,Lianghui DUAN²

^1.School of Mechanical Engineering, Hunan University of Science and Technology, Xiangtan 411201, China
^2.Numerical Control Processing Branch, Jiangnan Industrial Group Co. , Ltd. , Xiangtan 411207, China

全文: PDF(5648 KB) HTML

摘要：

针对异型零件具有众多复杂的相交特征，加工特征难以自动识别，进而影响其高效、高质量自动编程设计的问题，提出了一种基于图和体分解的加工特征识别方法。首先，以STEP中性文件作为输入，获取异型零件的几何、拓扑信息，以构造其毛坯特征和体积特征；同时，采用布尔减运算得到异型零件的加工体积特征，并将其分解为只含凸边关系的单一特征。然后，设计了一种基于特征面关系的几何特征矩阵（geometric feature matrix, GFM）和拓扑特征矩阵（topological feature matrix, TFM）构建方法，其中GFM侧重描述零件模型中面与面之间的位置关系，TFM侧重描述零件模型中面与面之间相邻的凹凸性，该方法较好地解决了传统属性邻接矩阵（attribute adjacency matrix, AAM）易出现无法准确表达零件加工特征的问题。最后，将异型零件的GFM和TFM与加工特征库进行匹配，以实现其加工特征的识别。在Visual Studio 2019平台中开发基于图和体分解的异型零件加工特征识别系统并开展验证实验。结果表明，所提出的方法能准确识别异型零件的所有加工特征，这可为异型零件加工工艺的自动编制和智能制造提供理论依据。

关键词： 异型零件; 加工特征; 相交特征; 体分解; 特征矩阵

Abstract:

Aiming at the problem that special-shaped parts have many complex intersecting features and the machining features are difficult to recognize automatically, which affects their high-efficiency and high-quality automatic programming design, a machining feature recognition method based on graph and volume decomposition is proposed. Firstly, the STEP neutral file was used as input, and the geometric and topological information of the special-shaped part was obtained to construct its blank and volume features. At the same time, the Boolean subtraction was used to obtain the machining volume features of the special-shaped part, and the features were decomposed into single features with only convex edge relationships. Then, a geometric feature matrix (GFM) and topological feature matrix (TFM) construction method based on the relationship of feature surfaces was designed, in which GFM focused on describing the position relationship between surfaces of the part model, and the TFM focused on describing the adjacent concavity and convexity between surfaces of the part model. This method better solved the problem that the traditional attribute adjacency matrix (AAM) was prone to fail to accurately express the machining features of parts. Finally, the GFM and TFM of the special-shaped part were matched with the machining feature database to achieve recognition of machining features. The machining feature recognition system for special-shaped parts based on graph and volume decomposition was developed on Visual Studio 2019 platform and the verification experiments were carried out. The results show that this method can accurately recognize all machining features of special-shaped parts, which can provide a theoretical basis for the automatic programming of machining processes and intelligent manufacturing of special-shaped parts.

Key words: special-shaped part machining feature intersecting feature volume decomposition feature matrix

收稿日期: 2022-11-08 出版日期: 2023-11-03

CLC:

TH 166

基金资助: 国家自然科学基金资助项目(51875198);湖南省省市联合基金资助项目(2021JJ50118);湘潭市科技局科技攻关项目(GX-YB20221004)

通讯作者: 刘厚才,康辉民 E-mail: lw1157102870@163.com;houcailiu@163.com;xykanghm@163.com

作者简介: 李旺（1995—），男，湖南湘潭人，硕士生，从事数字化与智能制造技术研究，E-mail: lw1157102870@163.com，https://orcid.org/0009-0003-3347-654X

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	李旺
	刘厚才
	康辉民
	欧阳智海
	曹正
	周岳
	蒋冠
	段良辉

引用本文:

李旺,刘厚才,康辉民,欧阳智海,曹正,周岳,蒋冠,段良辉. 基于图和体分解的异型零件加工特征识别方法[J]. 工程设计学报, 2023, 30(5): 545-553.

Wang LI,Houcai LIU,Huimin KANG,Zhihai OUYANG,Zheng CAO,Yue ZHOU,Guan JIANG,Lianghui DUAN. Machining feature recognition method of special-shaped parts based on graph and volume decomposition[J]. Chinese Journal of Engineering Design, 2023, 30(5): 545-553.

链接本文:

https://www.zjujournals.com/gcsjxb/CN/10.3785/j.issn.1006-754X.2023.00.061 或 https://www.zjujournals.com/gcsjxb/CN/Y2023/V30/I5/545

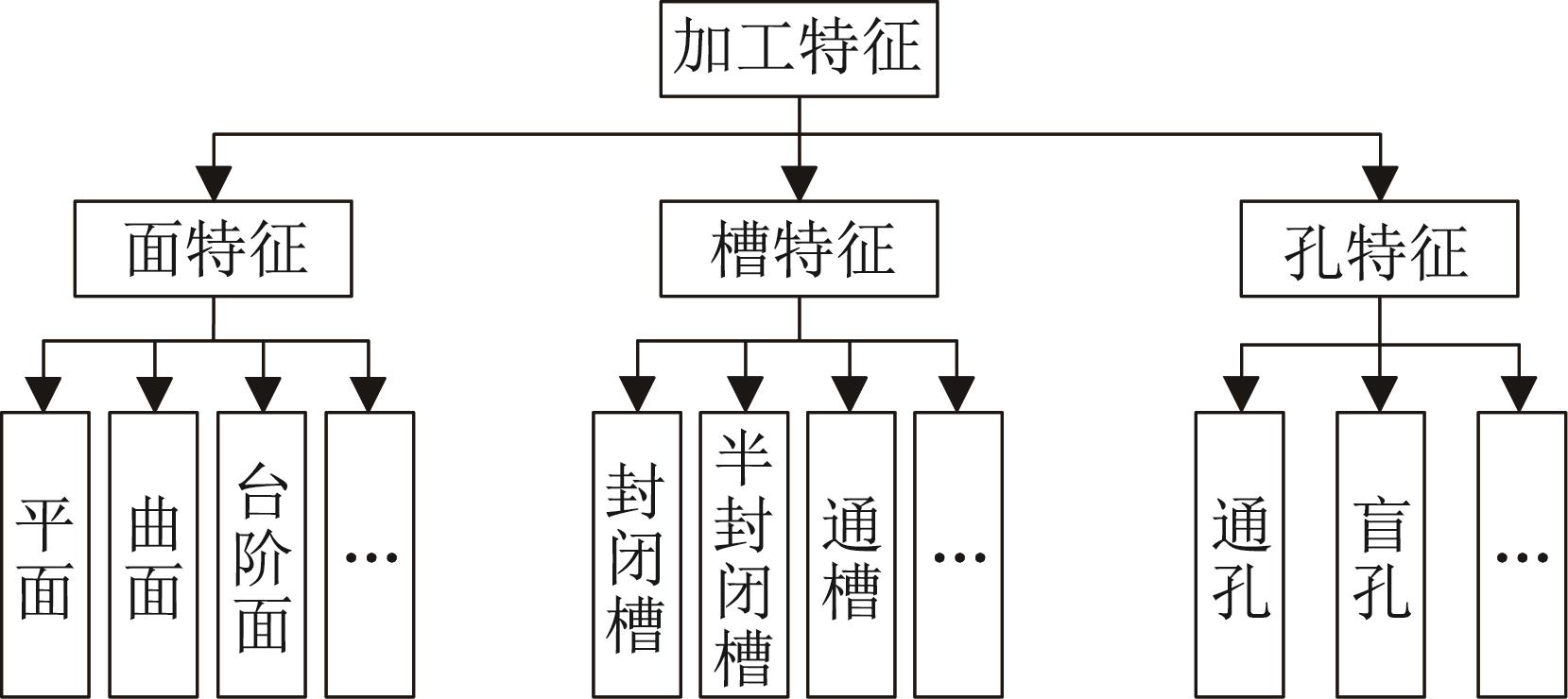

图1 异型零件加工特征分类

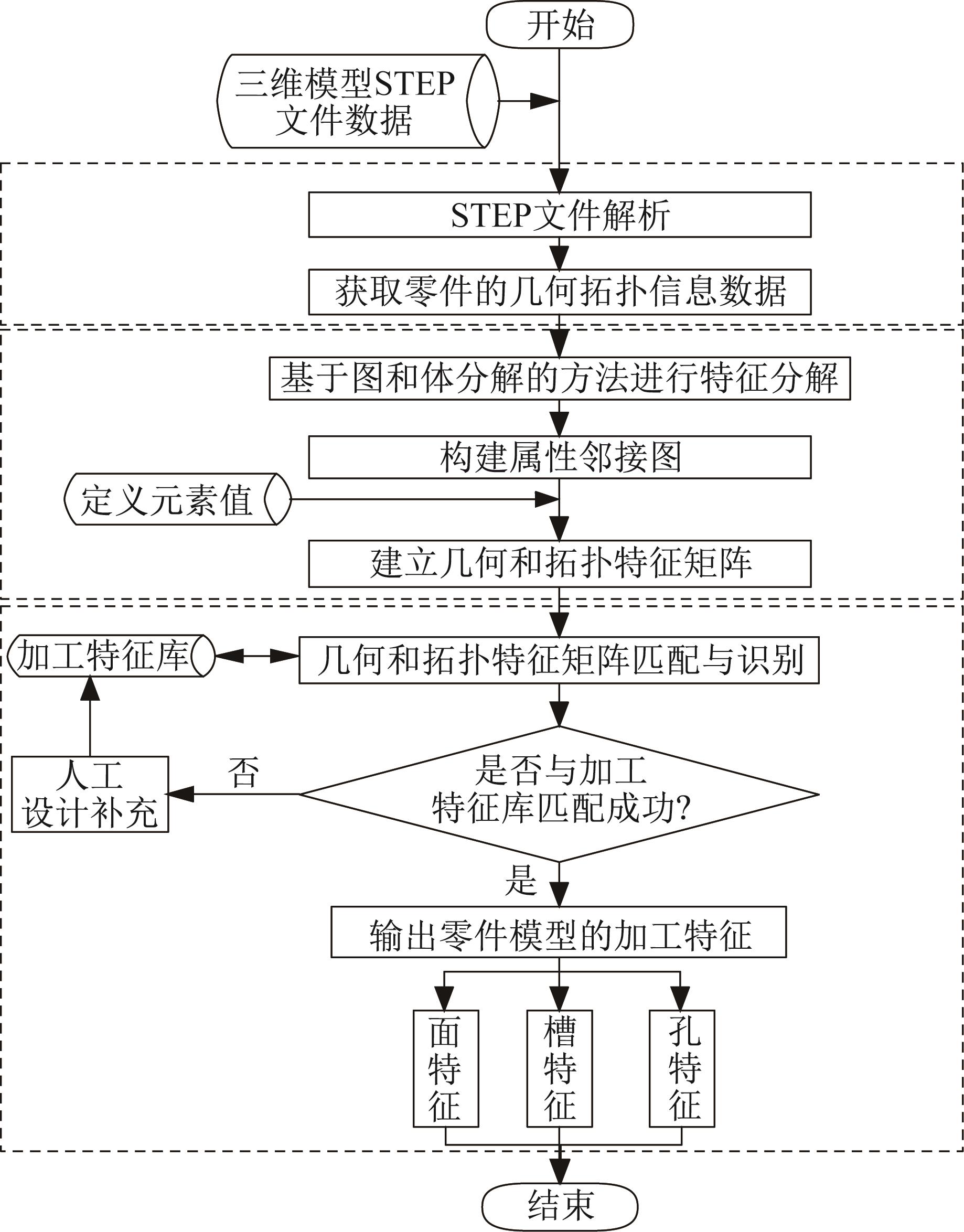

图2 基于图和体分解的异型零件加工特征识别流程

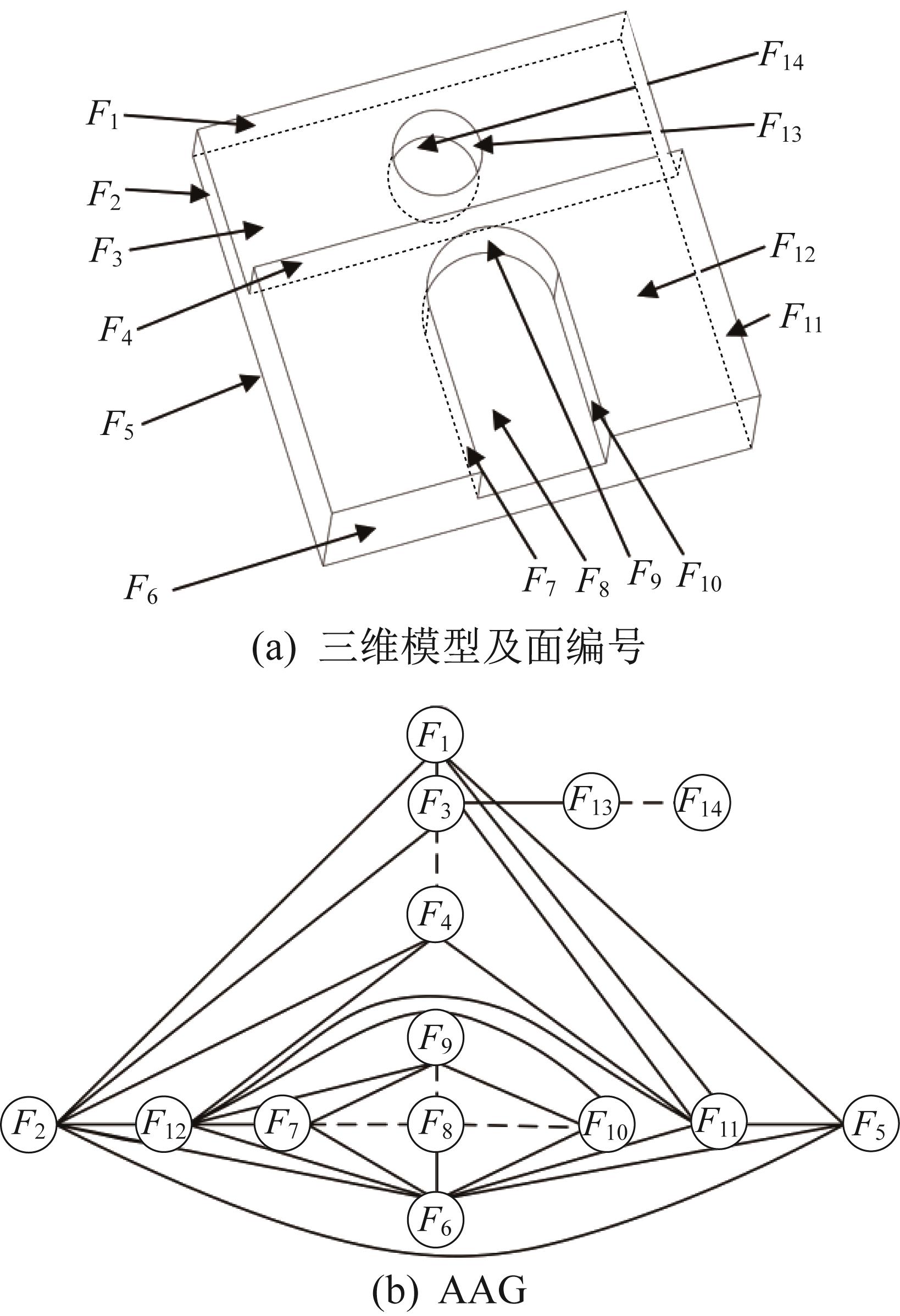

图3 某异型零件的三维模型和AAG

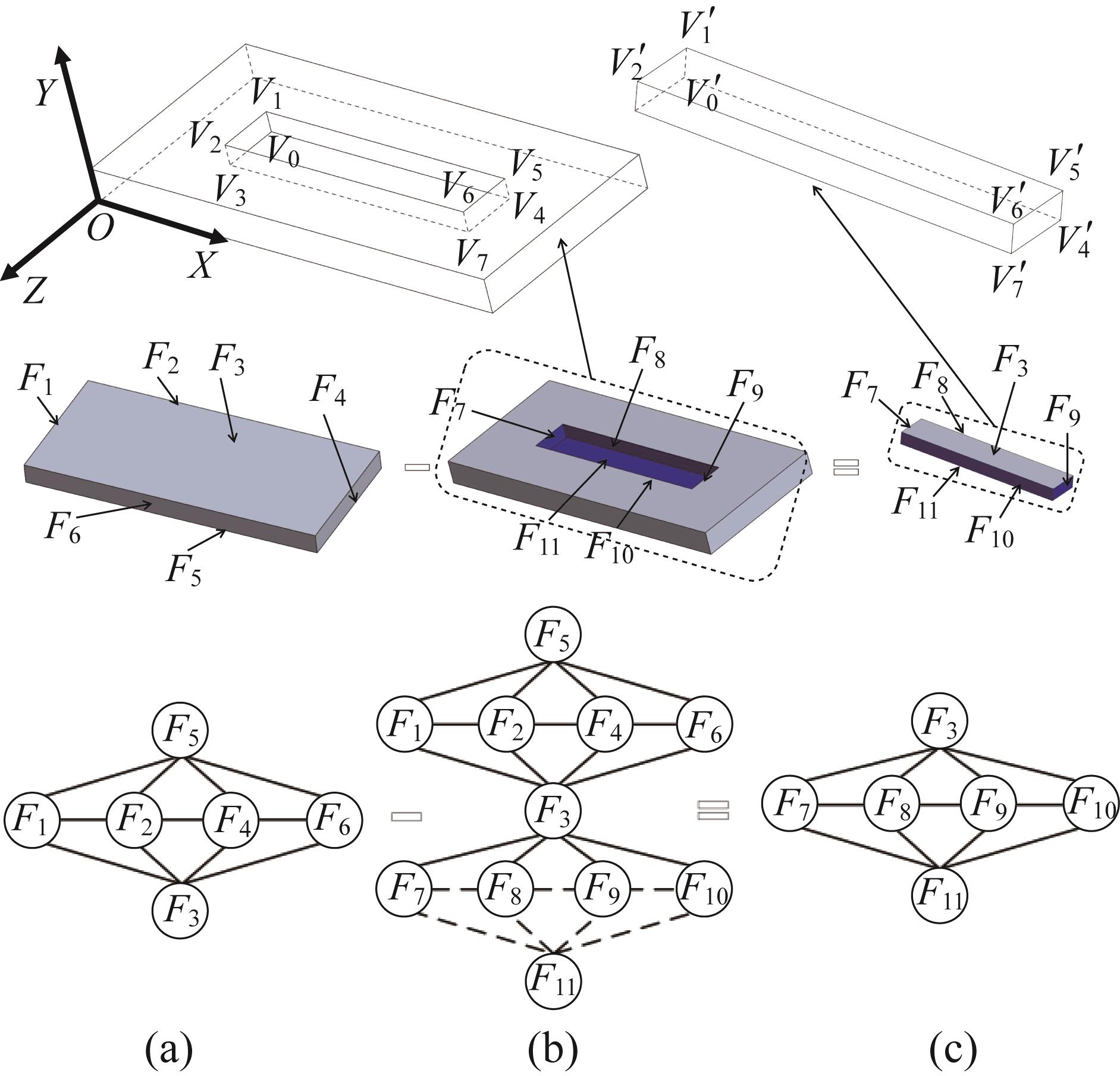

图4 封闭槽特征分解示意

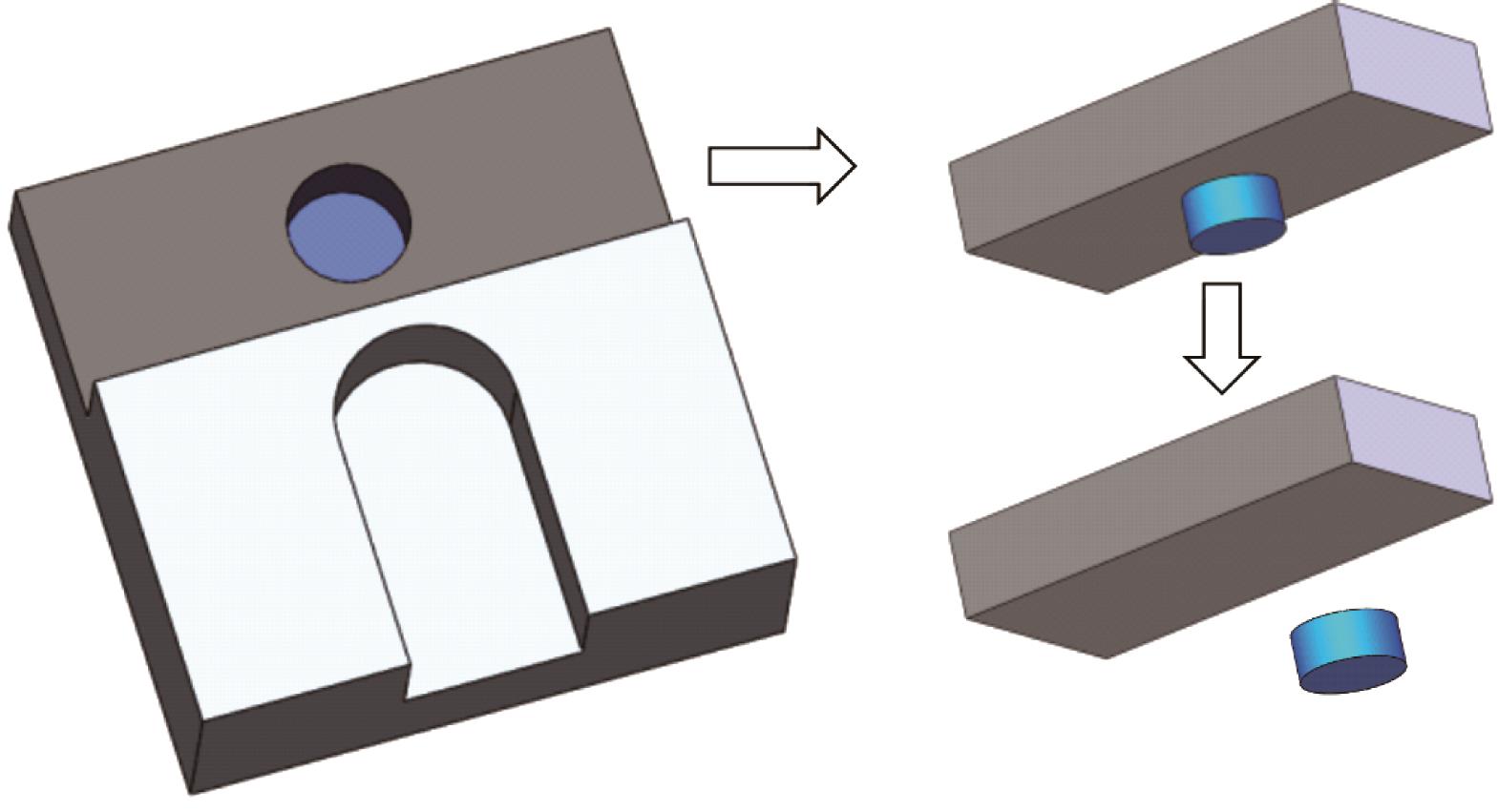

图5 含相交特征的加工体积特征分解示意

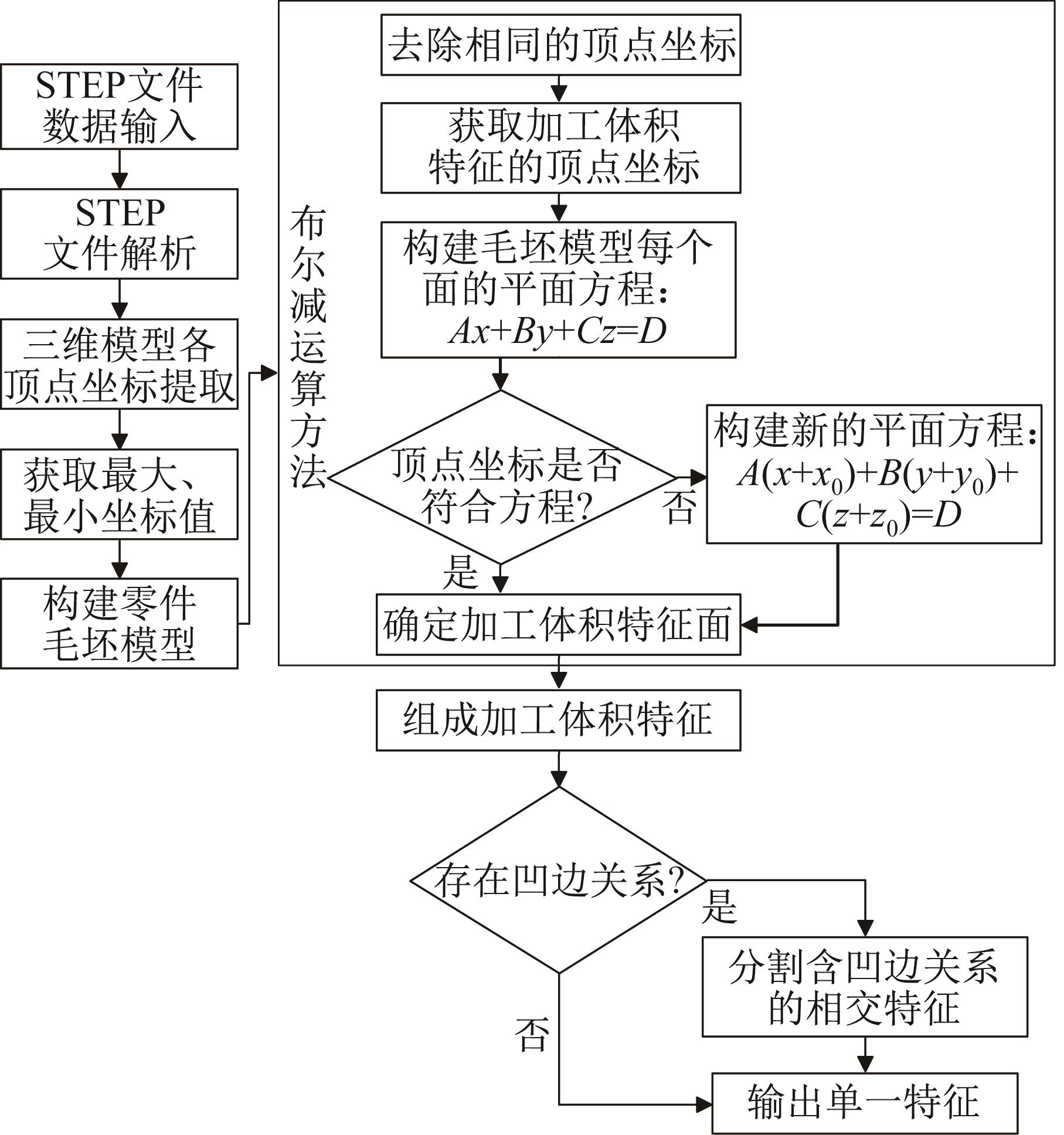

图6 基于图和体分解的异型零件复杂特征处理流程

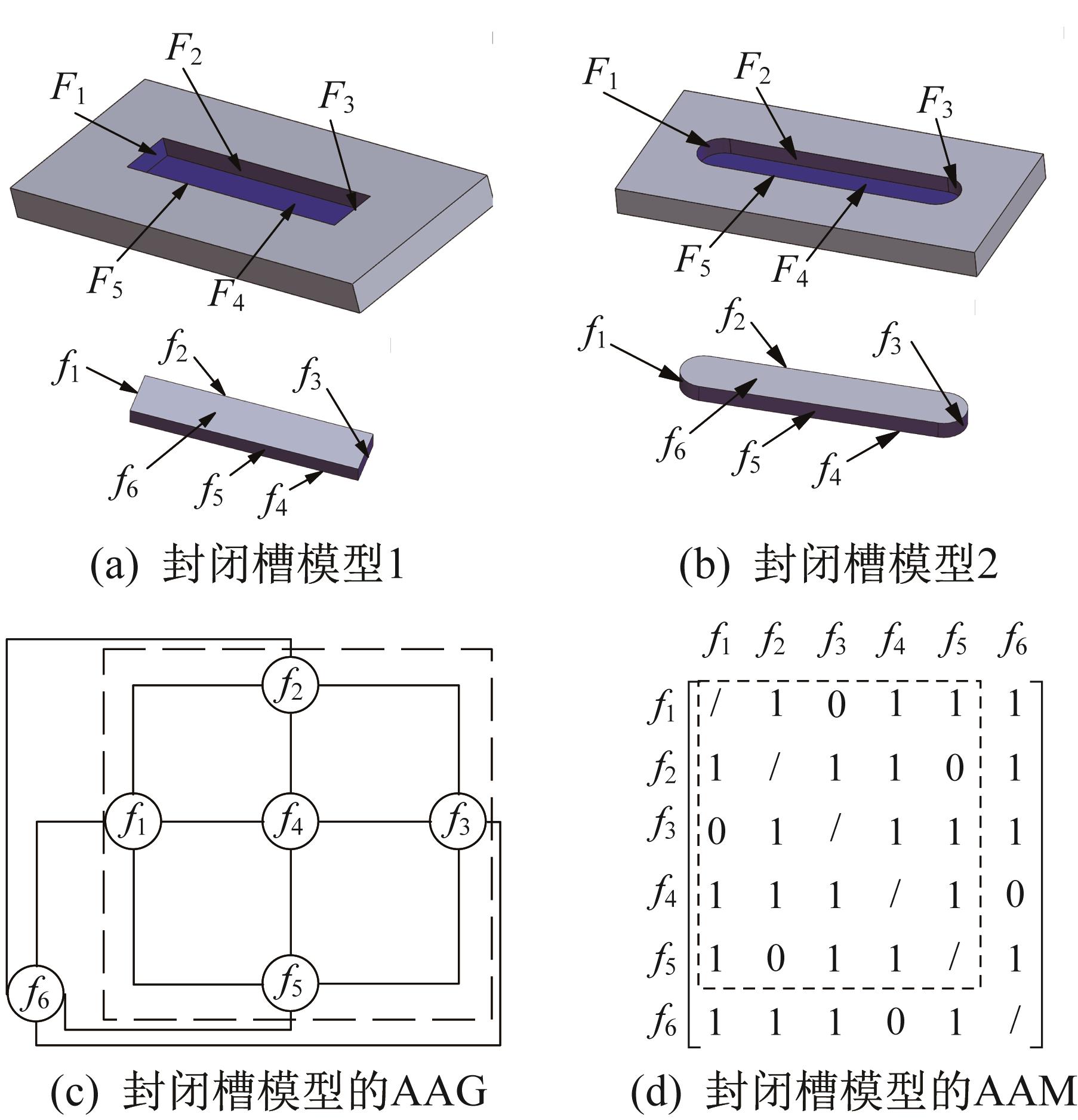

图7 封闭槽的传统AAG和AAM构建

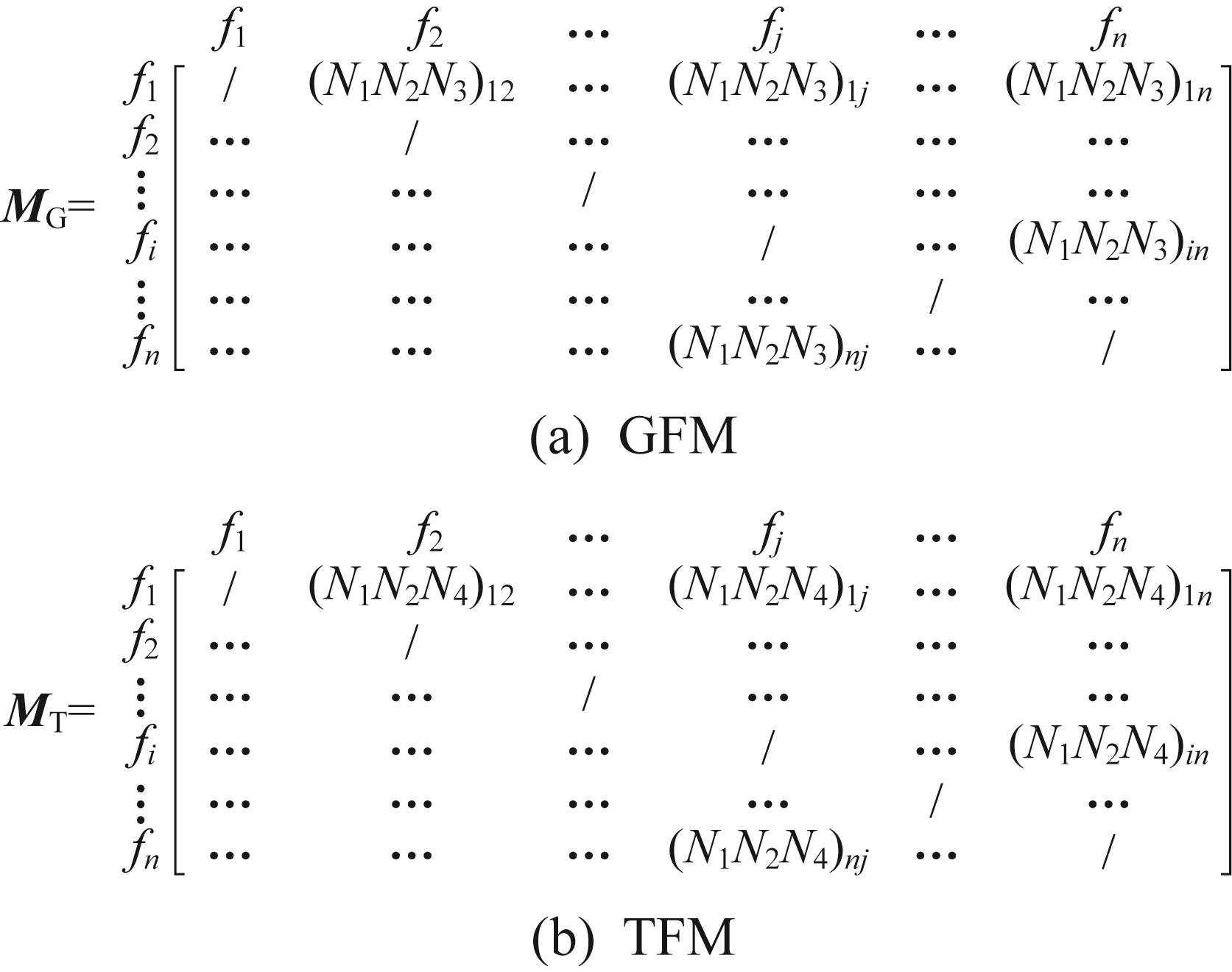

图8 异型零件特征矩阵构建

表1 GFM和TFM中元素值的定义

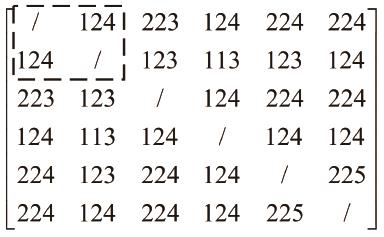

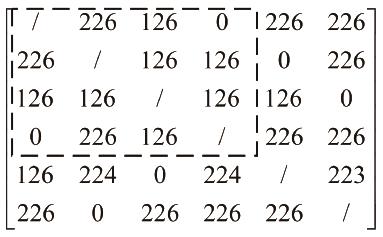

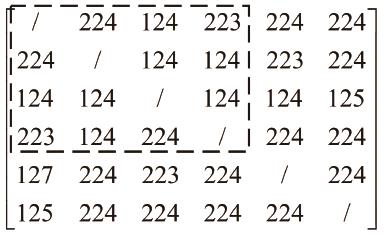

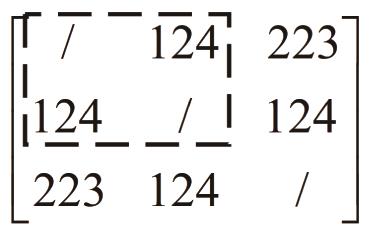

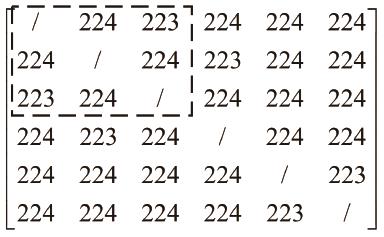

图9 不同封闭槽的GFM和TFM对比

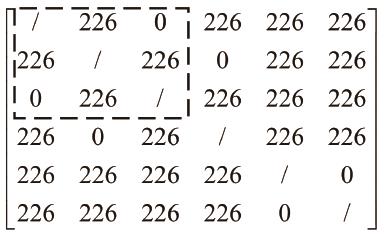

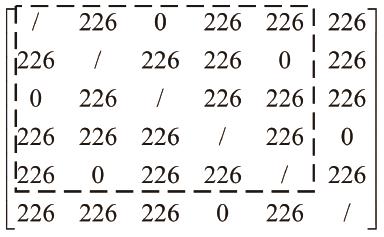

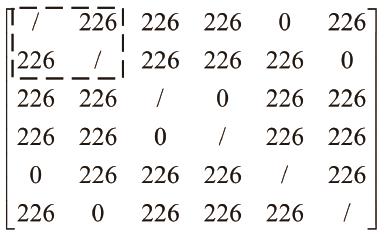

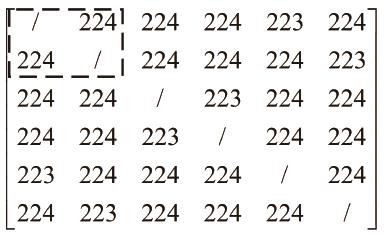

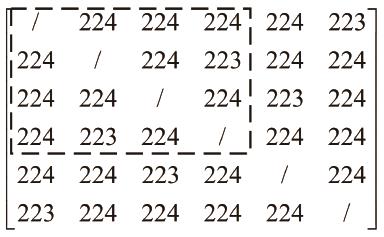

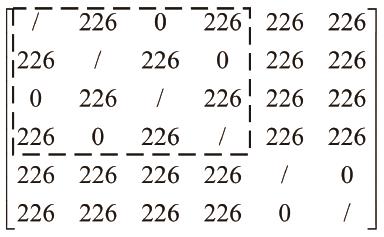

表2 异型零件的加工特征库（部分）

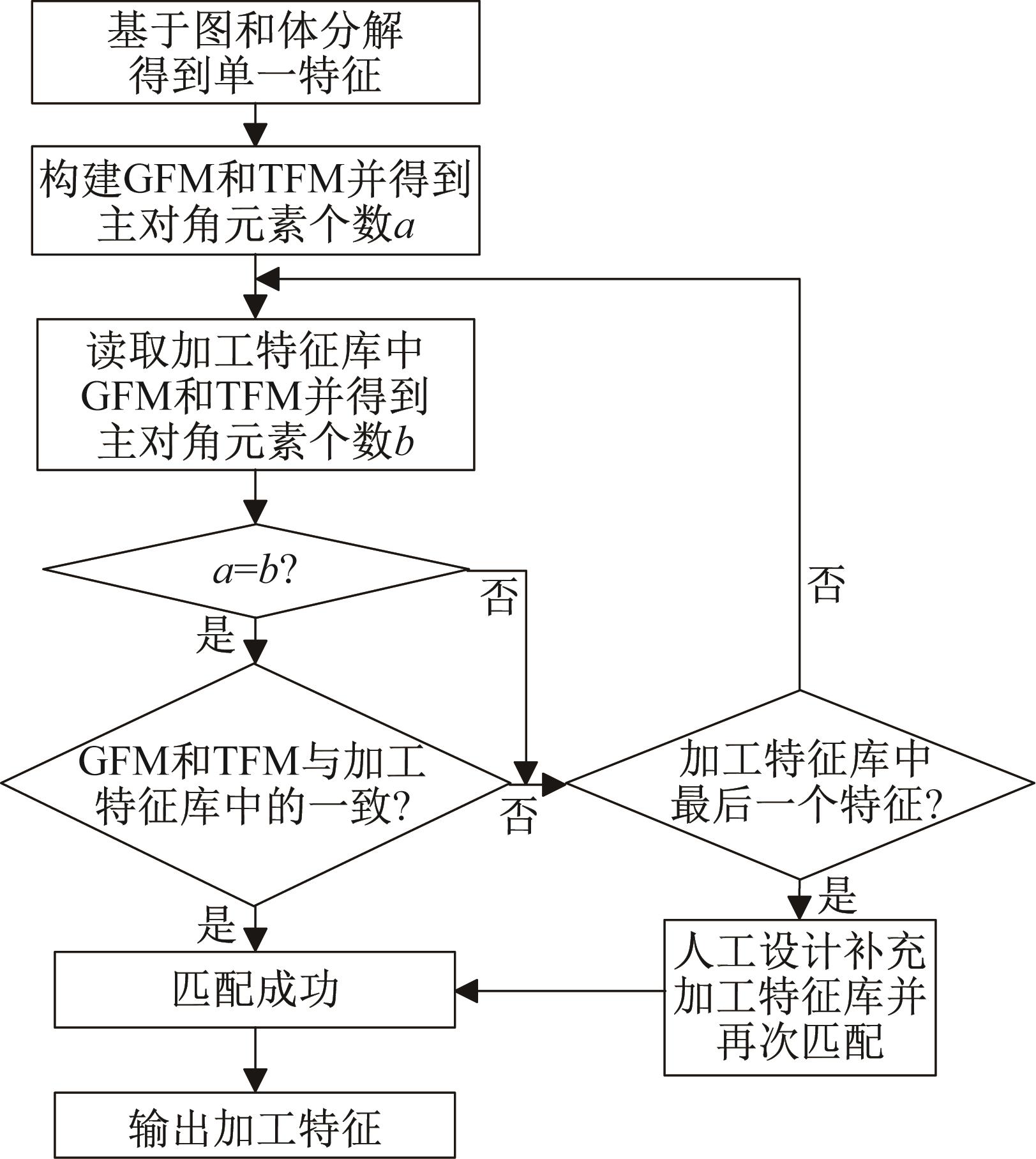

图10 异型零件加工特征的匹配与识别流程

图11 异型零件加工特征识别系统运行界面

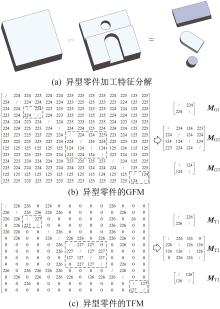

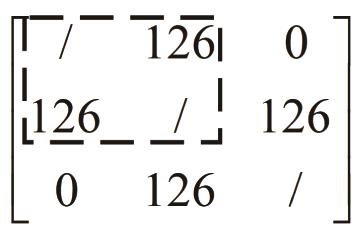

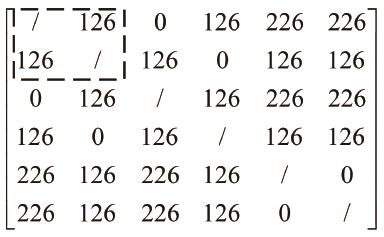

图12 某异型零件的加工特征分解及其GFM和TFM构建

1	张超，周光辉，李晶晶，等.新一代信息技术赋能的数字孪生制造单元系统关键技术及应用研究［J］.机械工程学报，2022，58（16）：329-343. doi：10.3901/jme.2022.16.329 ZHANG C， ZHOU G H， LI J J， et al. Research on key technologies and application of new IT-driven digital twin manufacturing cell system［J］. Journal of Mechanical Engineering， 2022， 58（16）： 329-343. doi: 10.3901/jme.2022.16.329
2	JOSHI S， CHANG T C. Graph-based heuristics for recognition of machined features from a 3D solid model［J］. Computer-Aided Design， 1988， 20（2）： 58-66.
3	刘雪梅，贾勇琪，陈祖瑞，等.缸体类零件加工特征识别方法［J］.计算机集成制造系统，2016，22（5）：1197-1204. LIU X M， JIA Y Q， CHEN Z R， et al. Recognition of machining feature for engine cylinder blocks［J］. Computer Integrated Manufacturing Systems， 2016， 22（5）： 1197-1204.
4	田富君，田锡天，耿俊浩，等.基于轻量化模型的加工特征识别技术［J］.中国机械工程，2010，21（18）：2212-2217. TIAN F J， TIAN X T， GENG J H， et al. Machining feature recognition based on lightweight model［J］. China Mechanical Engineering， 2010， 21（18）： 2212-2217.
5	周亚平，张洁，秦威.大型航天薄壁结构件特征识别方法［J］.计算机集成制造系统，2016，22（11）：2505-2512. ZHOU Y P， ZHANG J， QIN W. Feature recognition methodology for large thin-wall part of spacecraft［J］. Computer Integrated Manufacturing Systems， 2016， 22（11）： 2505-2512.
6	华顺刚，许林林，白茂东.零件模型的铸件毛坯自动生成方法［J］.计算机集成制造系统，2018，24（11）：2827-2835. HUA S G， XU L L， BAI M D. Automatic transformation from part model to blank model［J］. Computer Integrated Manufacturing Systems， 2018， 24（11）： 2827-2835.
7	张生芳，王国庆，马付建，等.基于改进图匹配的角盒类零件型腔加工特征自动识别［J］.中国机械工程，2022，33（8）：921-928. doi：10.3969/j.issn.1004-132X.2022.08.006 ZHANG S F， WANG G Q， MA F J， et al. Automatic recognition for cavity machining features of corner box parts based on improved graph matching［J］. China Mechanical Engineering， 2022， 33（8）： 921-928. doi: 10.3969/j.issn.1004-132X.2022.08.006
8	吴晓东，韩祖行.基于属性邻接图的STEP-NC制造特征识别实现［J］.机械设计与制造工程，2013，42（7）：13-16. doi：10.3969/j.issn.2095-509X.2013.07.004 WU X D， HAN Z X. Implementation of STEP-NC manufacturing feature recognition based on attribute adjacent graph［J］. Machine Design and Manufacturing Engineering， 2013， 42（7）： 13-16. doi: 10.3969/j.issn.2095-509X.2013.07.004
9	段现银，余胜，彭芳瑜，等.基于特征矩阵的大型舱体类构件毛坯模型复杂特征分层识别方法［J］.机械工程学报，2021，57（5）：166-176. doi：10.3901/jme.2021.05.166 DUAN X Y， YU S， PENG F Y， et al. Feature matrix based complex feature hierarchical recognition for blank model of large cabin component［J］. Journal of Mechanical Engineering， 2021， 57（5）： 166-176. doi: 10.3901/jme.2021.05.166
10	谢飞，郭宇，张红蕾，等.基于图和子图同构算法的制造特征识别方法［J］.南京航空航天大学学报，2018，50（3）：390-396. XIE F， GUO Y， ZHANG H L， et al. Manufacturing feature recognition based on graph and subgraph isomorphism algorithm［J］. Journal of Nanjing University of Aeronautics and Astronautics， 2018， 50（3）： 390-396.
11	刘长毅.基于图的体积分解的加工特征识别方法［J］.计算机集成制造系统，2006，12（7）：1013-1017. doi：10.3969/j.issn.1006-5911.2006.07.009 LIU C Y. Machining feature recognition based on graph volume decomposition［J］. Computer Integrated Manufacturing Systems， 2006， 12（7）： 1013-1017. doi: 10.3969/j.issn.1006-5911.2006.07.009
12	赵鸣，王细洋.基于体分解的MBD工序模型快速生成方法［J］.计算机集成制造系统，2014，20（8）：1843-1850. ZHAO M， WANG X Y. Rapid generation method of MBD process model based on volume decomposition［J］. Computer Integrated Manufacturing Systems， 2014， 20（8）： 1843-1850.
13	WOO Y， SAKURAI H. Recognition of maximal features by volume decomposition［J］. Computer-Aided Design， 2002， 34（3）： 195-207.
14	张贺，邵晓东，仇原鹰，等.基于体分解的轴类零件工序模型自动生成方法［J］.计算机集成制造系统，2022，28（5）：1293-1305. ZHANG H， SHAO X D， QIU Y Y， et al. Automatic generation method of process model of shaft parts based on volume decomposition［J］. Computer Integrated Manufacturing Systems， 2022， 28（5）： 1293-1305.
15	张贺，张玲，葛晓波，等.盘套类零件铸造毛坯及工序模型自动生成方法［J］.计算机集成制造系统，2023，29（1）：36-50. ZHANG H， ZHANG L， GE X B， et al. Automatic generation method of casting blank model and process models for disc and sleeve parts［J］. Computer Integrated Manufacturing Systems， 2023， 29（1）： 36-50.
16	ZUBAIR A F， MANSOR M S A. Automatic feature recognition of regular features for symmetrical and non-symmetrical cylinder part using volume decomposition method［J］. Engineering with Computers， 2018， 34（4）： 843-863.
17	RAMESHBABU V， SHUNMUGAM M S. Hybrid feature recognition method for setup planning from STEP AP-203［J］. Robotics and Computer-Integrated Manufacturing， 2009， 25（2）： 393-408.
18	WU W B， HUANG Z D， LIU Q H， et al. A combinatorial optimisation approach for recognising interacting machining features in mill-turn parts［J］. International Journal of Production Research， 2018， 56（11）： 3757-3780.
19	AL-WSWASI M， IVANOW A. A novel and smart interactive feature recognition system for rotational parts using a STEP file［J］. The International Journal of Advanced Manufacturing Technology， 2019， 104： 261-284.
