Evaluation of the critical stress of anodized coating-AZ91D substrate using SEM in-situ technology
Xi-shu Wang1,†(),Xing-wu Guo2,Yuzo Nakamura3,Hui-hui Yang1,Pan Pan1
1Applied Mechanics Laboratory, Department of Engineering Mechanics, Tsinghua University, Beijing 100084, China
2National Engineering Research Center for Light Alloy Net Forming, School of Material Science & Engineering, Shanghai Jiao Tong University, Shanghai 200030, China
3Department of Mechanical Engineering, Kagoshima University, Kagoshima 890-0065, Japan
Download: HTML     PDF(1928KB)
Export: BibTeX | EndNote (RIS)

Abstract

Experimental investigations of the micro cracking behavior of a coating-substrate structure were carried out in-situ with a scanning electron microscope (SEM). An anodized coating layer was deposited on an AZ91D substrate by the galvanize pulse method. Results indicated that the failure mechanism of the coating-substrate structure was due to a mismatch of micro deformation between the coating and substrate. The micro deformations induced by different failure models were cracking, spalling, or delamination. The failure models were validated using theoretical, experimental, and digital image correlation methods. The critical stress of failure can be evaluated by measuring the biaxial stress.

Key words： Magnesium alloy      Anodized coating      Material mechanics      Flexural stress      Cracking behavior
Received: 13 June 2015      Published: 06 January 2016
Fund:  the National Natural Science Foundation of China(No. 11272173,11572170);the Foundation of Traction Power State Key Laboratory of Southwest Jiaotong University, China(No. TPL1503)
Corresponding Authors: Xi-shu Wang     E-mail: xshwang@tsinghua.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Xi-shu Wang
Xing-wu Guo
Yuzo Nakamura
Hui-hui Yang
Pan Pan
Cite this article:

Xi-shu Wang,Xing-wu Guo,Yuzo Nakamura,Hui-hui Yang,Pan Pan. Evaluation of the critical stress of anodized coating-AZ91D substrate using SEM in-situ technology. Journal of Zhejiang University-SCIENCE A (Applied Physics & Engineering), 2016, 17(1): 65-75.

URL:

http://www.zjujournals.com/xueshu/zjus-a/10.1631/jzus.A1500178     OR     http://www.zjujournals.com/xueshu/zjus-a/Y2016/V17/I1/65

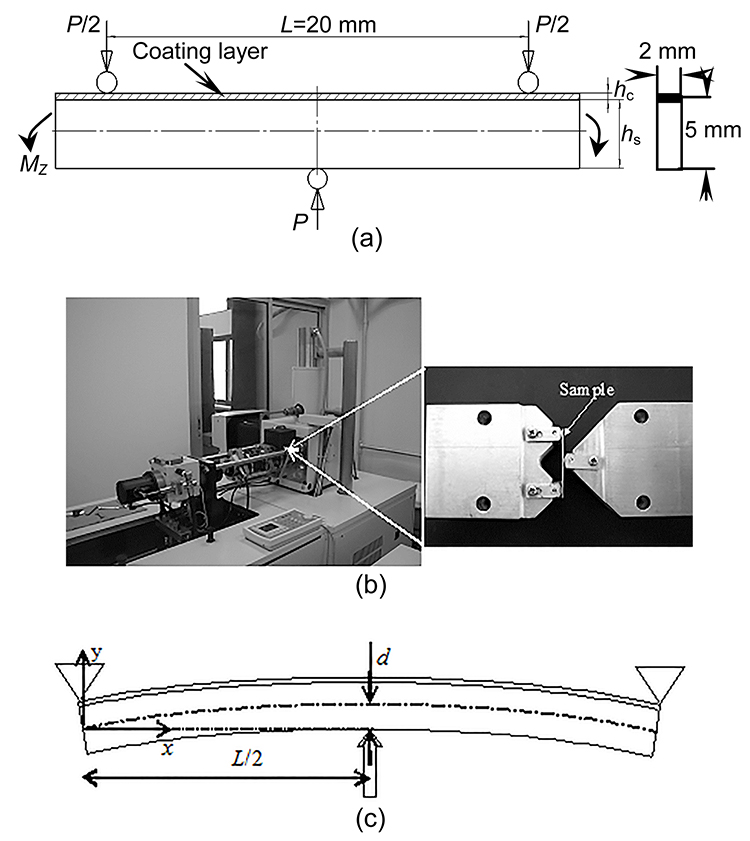

Fig. 1 A schematic of the coating-substrate structure based on SEM in-situ technology (a) Shape and size of the sample; (b) Experimental methodology; (c) Mechanics model of a two-layer-laminated beam. L is the span length, Mz is the bending moment, hc and hs are the thickness of the coating and substrate, respectively, d is the displacement of neutral axis, and P is the applied loading

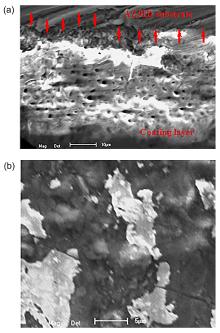

Fig. 2 Microstructures at the interface and surface of the coating-substrate structure (a) Cross-section image (scale bar 10 µm); (b) Free surface image (scale bar 5 µm)
Coating-substrate system E (GPa) Poisson’s ratio σ0.2 (MPa) σb (MPa) δ (%)
Coating-substrate in 330 V 42 0.385 100 169 5.7
Coating-substrate in 350 V 42 0.385 96 164 5.1
AZ91D bulk substrate 42 0.390 170 203 10.2
Coating layer 37 0.350
Table 1 Mechanical properties of the anodized coating-substrate structure

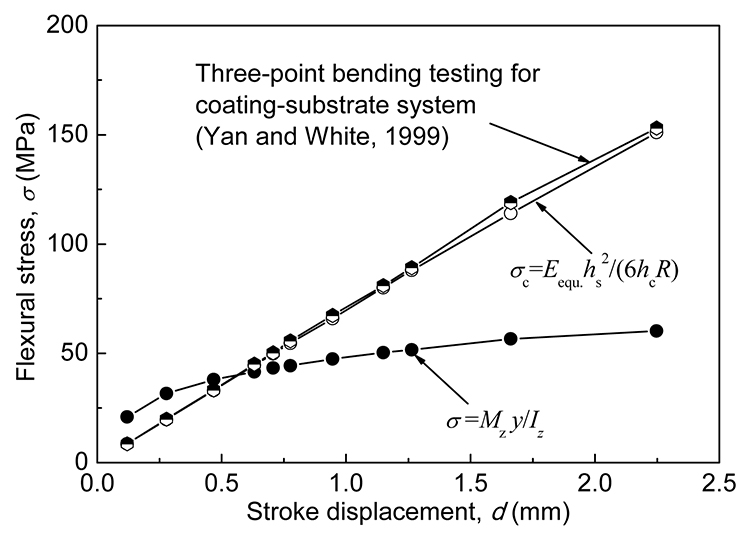

Fig. 3 Relationship between flexural stress and stroke displacement

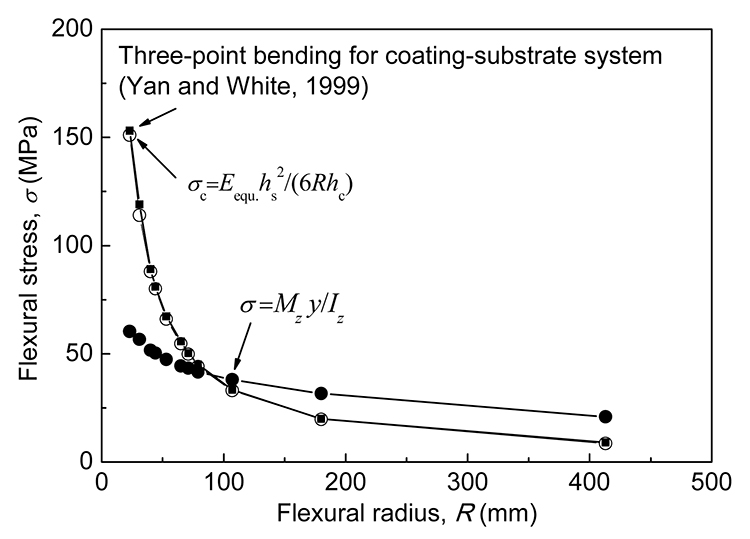

Fig. 4 Relationship between flexural stress and flexural radius

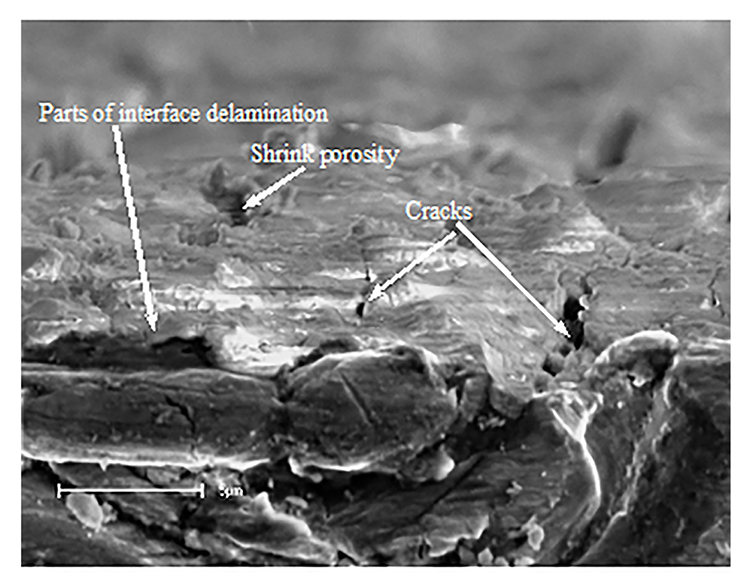

Fig. 5 Enlarged microstructure near the interface region (the flexural stress is 65 MPa, scale bar is 5 µm)
Fig. 6 SEM image at flexural stress (88 MPa) based on Eq. (7) (scale bar is 10 µm)

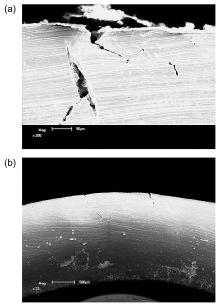

Fig. 7 (a) SEM image at the flexural stress (100 MPa) based on Eq. (7) (scale bar is 50 µm); (b) SEM image at the flexural stress (23 MPa) based on Eq. (7) (scale bar is 500 µm, R=300 mm)

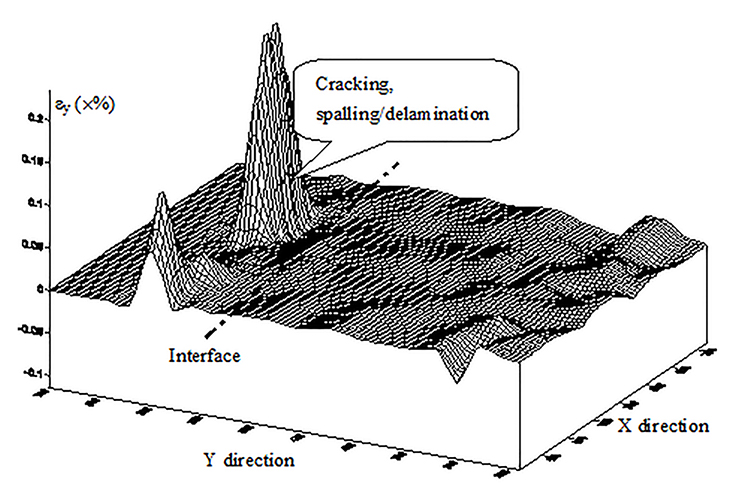

Fig. 8 Strain distributions near the interface based on DICM technology
