钒电池电堆端板的变形预测与拓扑优化

王友,赵永恒,史小虎,余龙海,孙彦招

Deformation prediction and topology optimization of end plates in vanadium flow battery stacks

You WANG,Yongheng ZHAO,Xiaohu SHI,Longhai YU,Yanzhao SUN

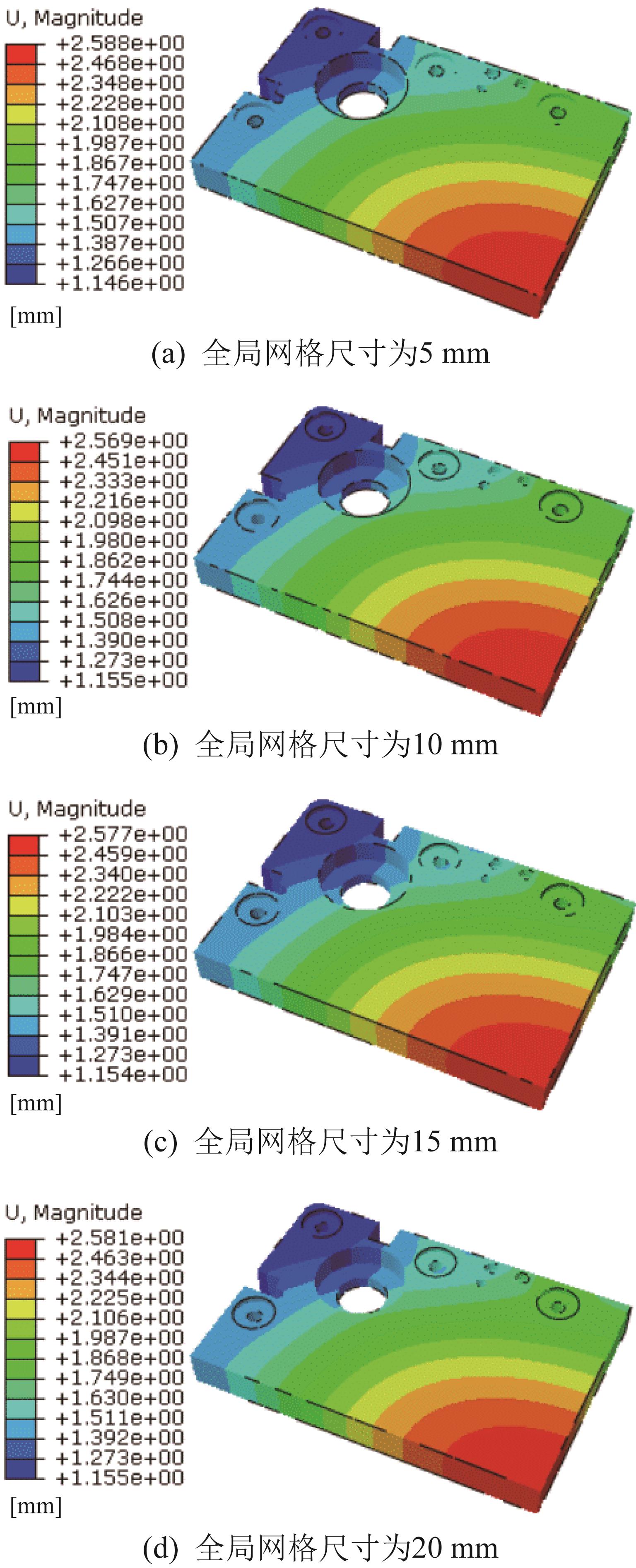

图6 初始构型端板的位移分布云图

Fig.6 Displacement distribution contour plots of end plate in initial configuration
