燃气调节阀低扭矩优化设计及试验研究

刘广奥,陈英龙,罗畅敏,闫博,高飞

Optimization design and experimental study of gas control valve with low torque

Guang'ao LIU,Yinglong CHEN,Changmin LUO,Bo YAN,Fei GAO

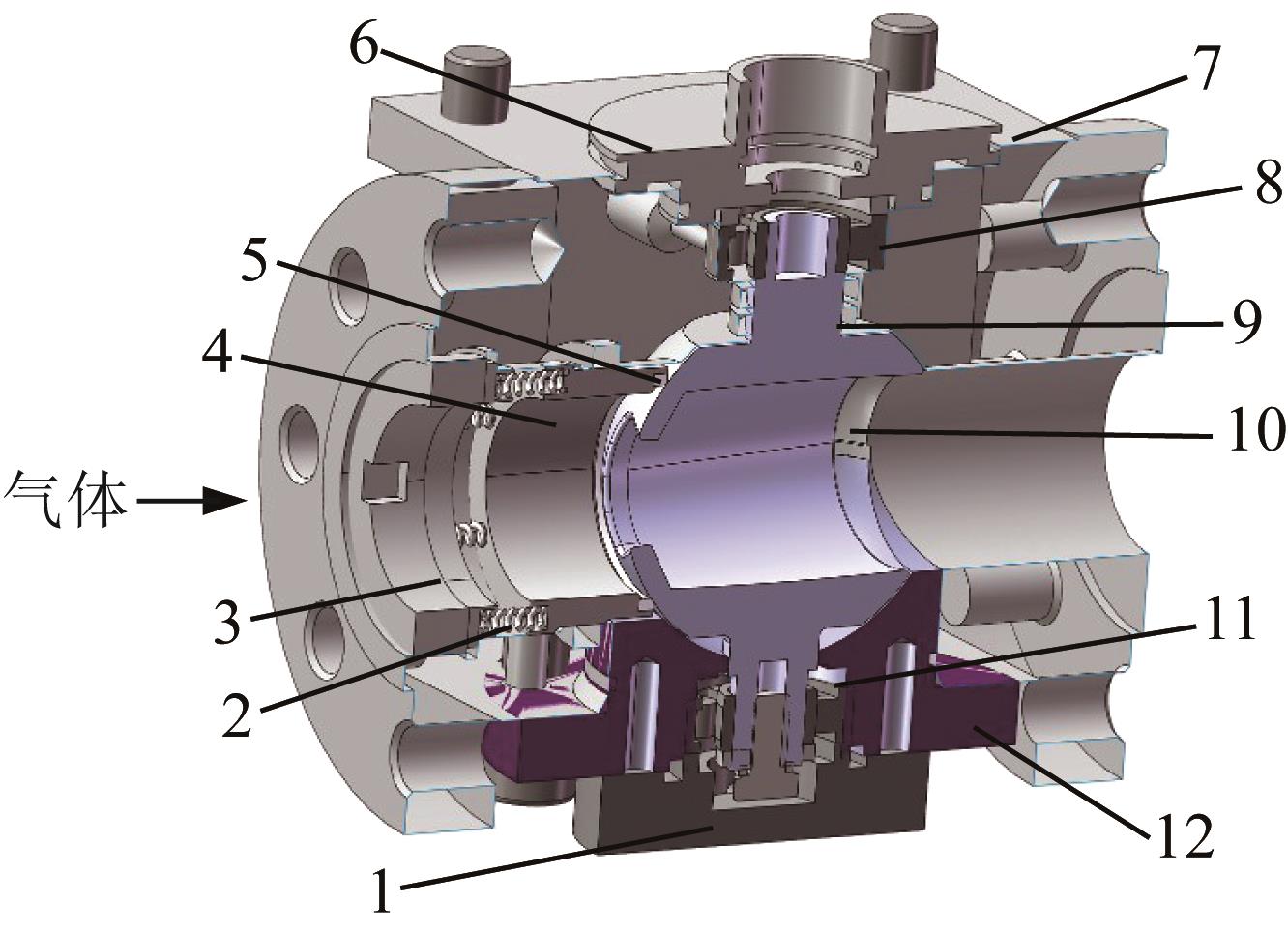

图3 计量模块总装1—底部盖板；2—组合弹簧；3—压紧座；4—阀座；5—密封圈；6—上端盖；7—阀体；8—轴承；9—阀杆；10—V形阀芯；11—格莱圈；12—阀底座。

Fig.3 Assembly of metering module
