全断面矩形掘进机刀盘截入岩样过程试验研究

李强,刘送永,王焱

Experimental study on the process of cutting into rock samples by full-section rectangular roadheader cutterhead

Qiang LI,Songyong LIU,Yan WANG

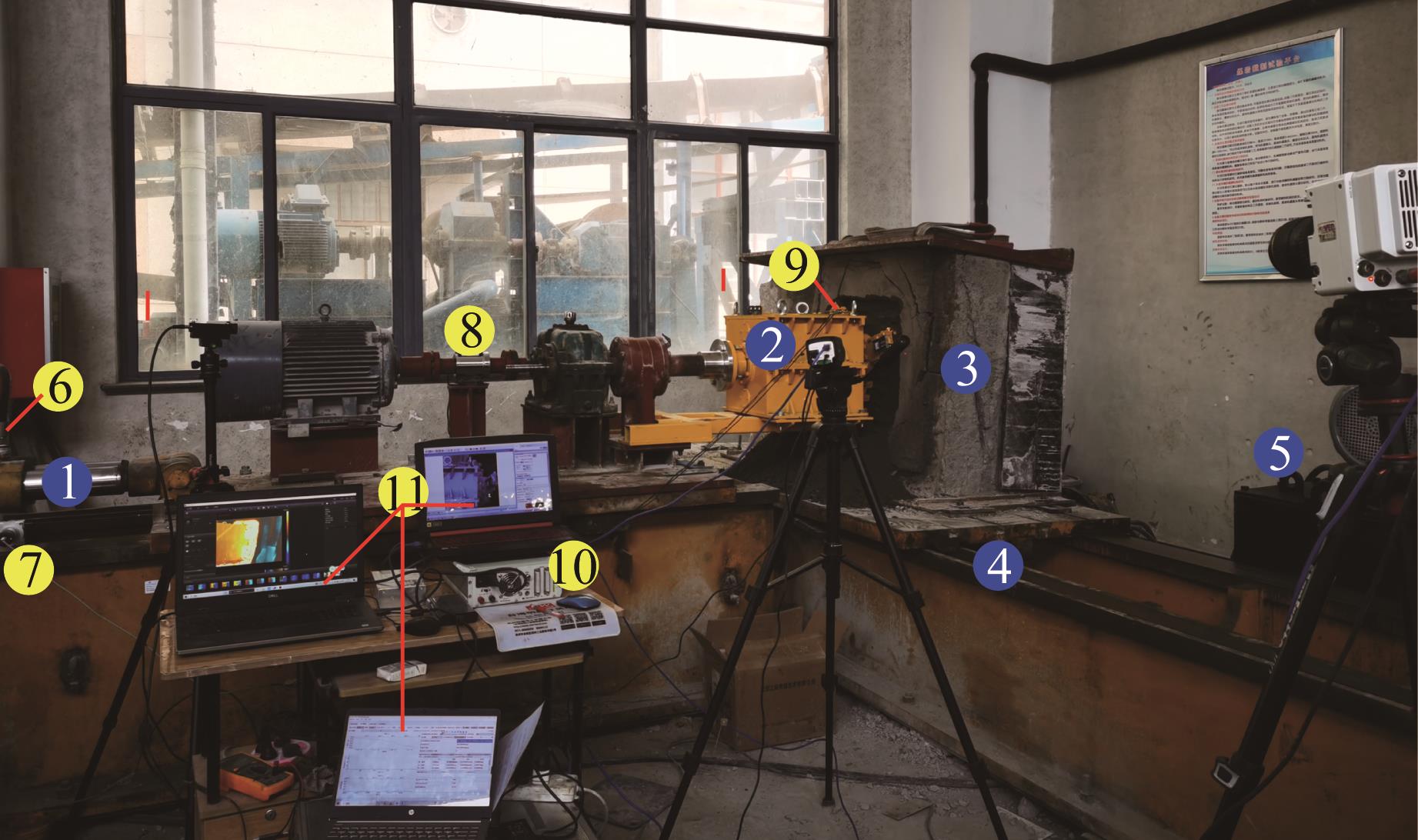

图7 刀盘截割试验台实物图1—推进装置；2—截割装置；3—岩样；4—岩样推移装置；5—液压泵站及控制装置；6—油压传感器；7—拉线式位移传感器；8—转速扭矩传感器；9—振动传感器；10—动态信号采集仪；11—计算机。

Fig.7 Physical picture of cutterhead cutting test bench
