175 MPa超高压井口6BX型法兰结构评价及轻量化设计

张绪亮,史君林,董仁,练章华,查磊,蒋洪波

Structural evaluation and lightweight design of 175 MPa ultra-high pressure wellhead 6BX flange

Xuliang ZHANG,Junlin SHI,Ren DONG,Zhanghua LIAN,Lei ZHA,Hongbo JIANG

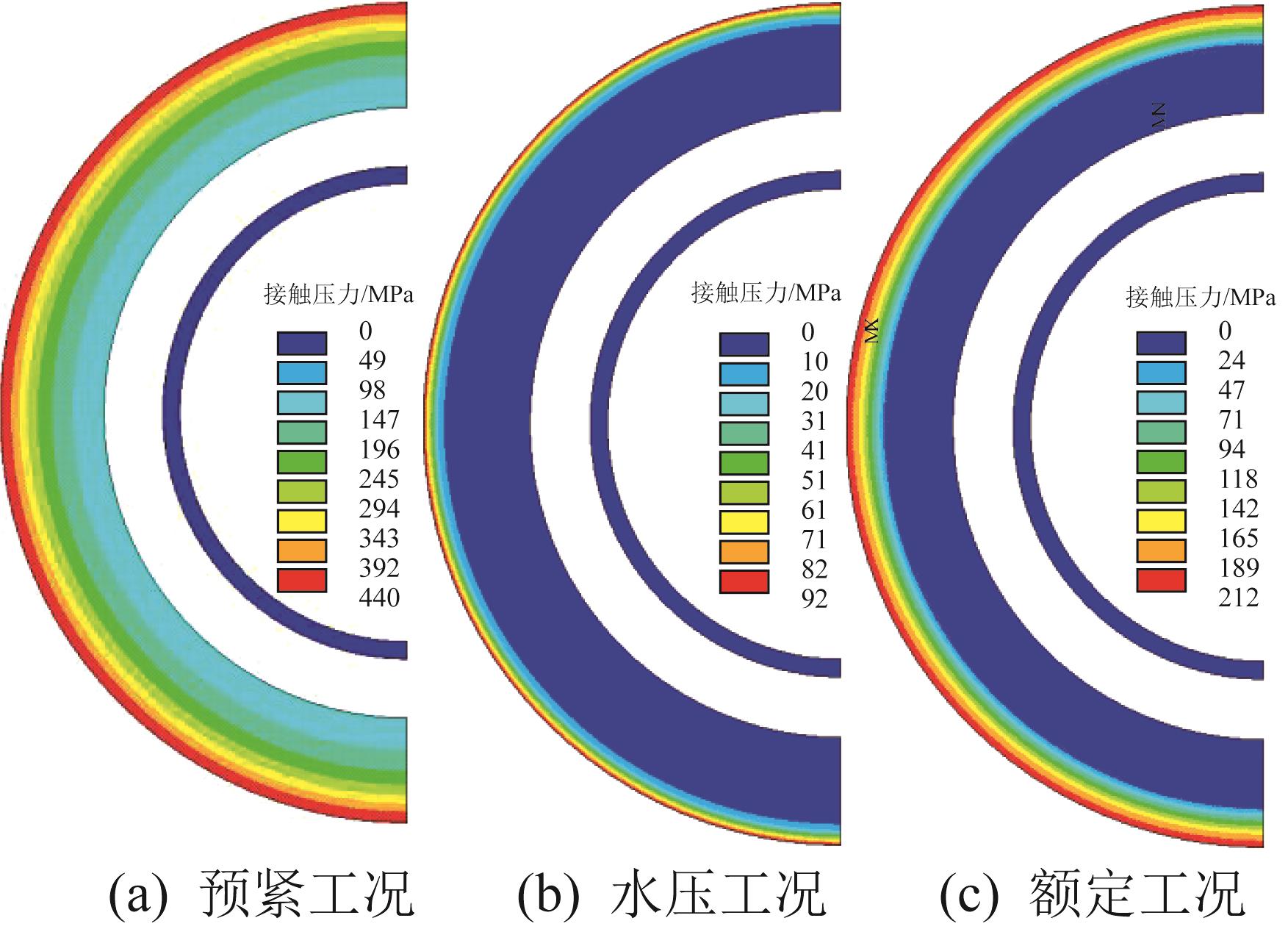

图15 各工况下上下法兰之间凸面的接触压力云图

Fig.15 Contact pressure nephograms of convex surface between upper and lower flanges under various operating conditions
