嵌套余弦函数型多轴柔性铰链的设计与分析

徐美娟,汪启亮,洪永烽,龙益平,刘通,郭彬

Design and analysis of nested cosine function type multi-axis flexure hinge

Meijuan XU,Qiliang WANG,Yongfeng HONG,Yiping LONG,Tong LIU,Bin GUO

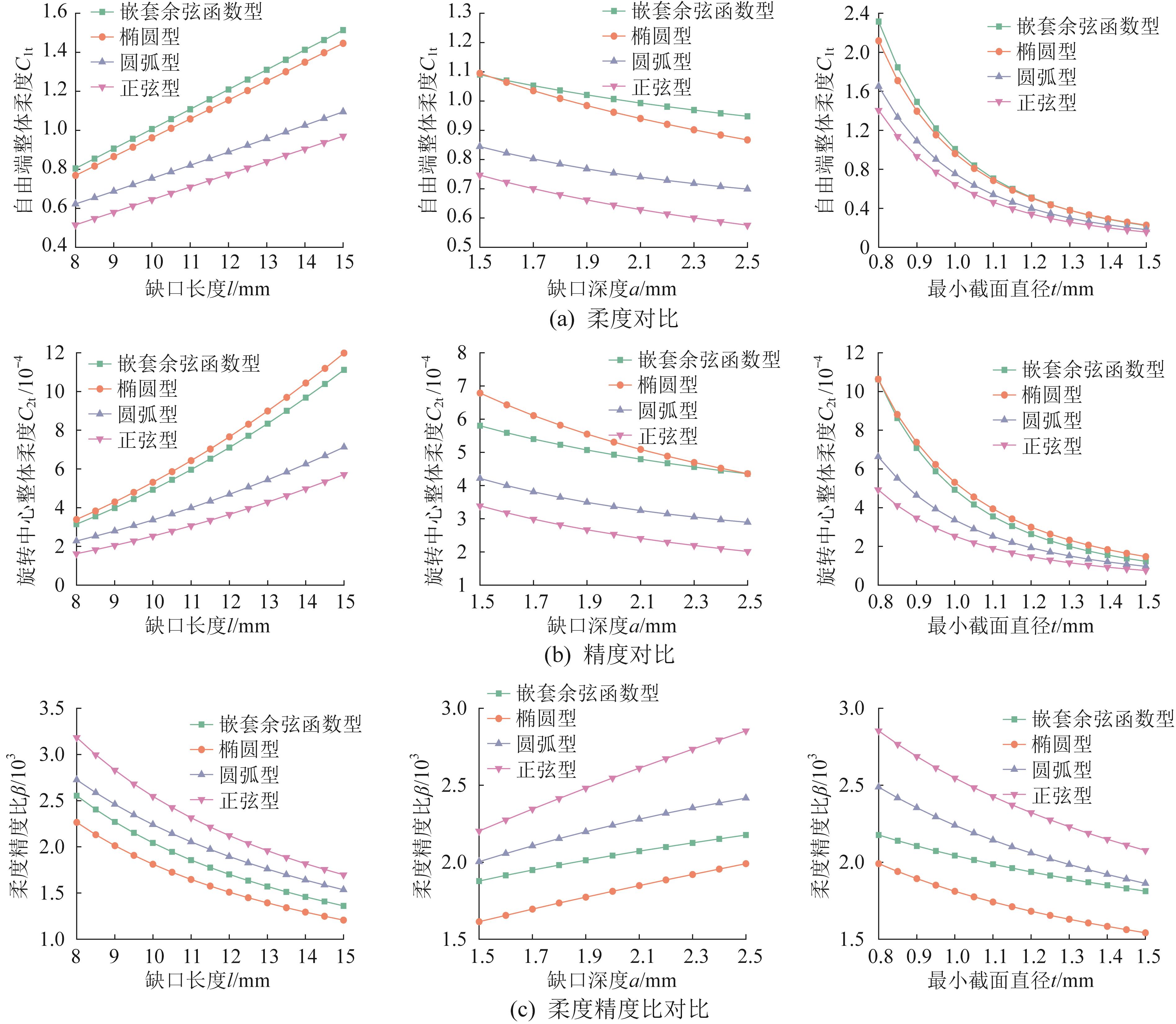

图8 不同柔性铰链的柔度、精度及柔度精度比对比

Fig.8 Comparison of compliance, precision and compliance-precision ratio of different flexure hinges
