流体脉宽调制双向变量机构流量特性研究

徐修文,任燕,鲁立中,阮健

Research on flow characteristics of fluid pulse width modulation bidirectional variable mechanism

Xiuwen XU,Yan REN,Lizhong LU,Jian RUAN

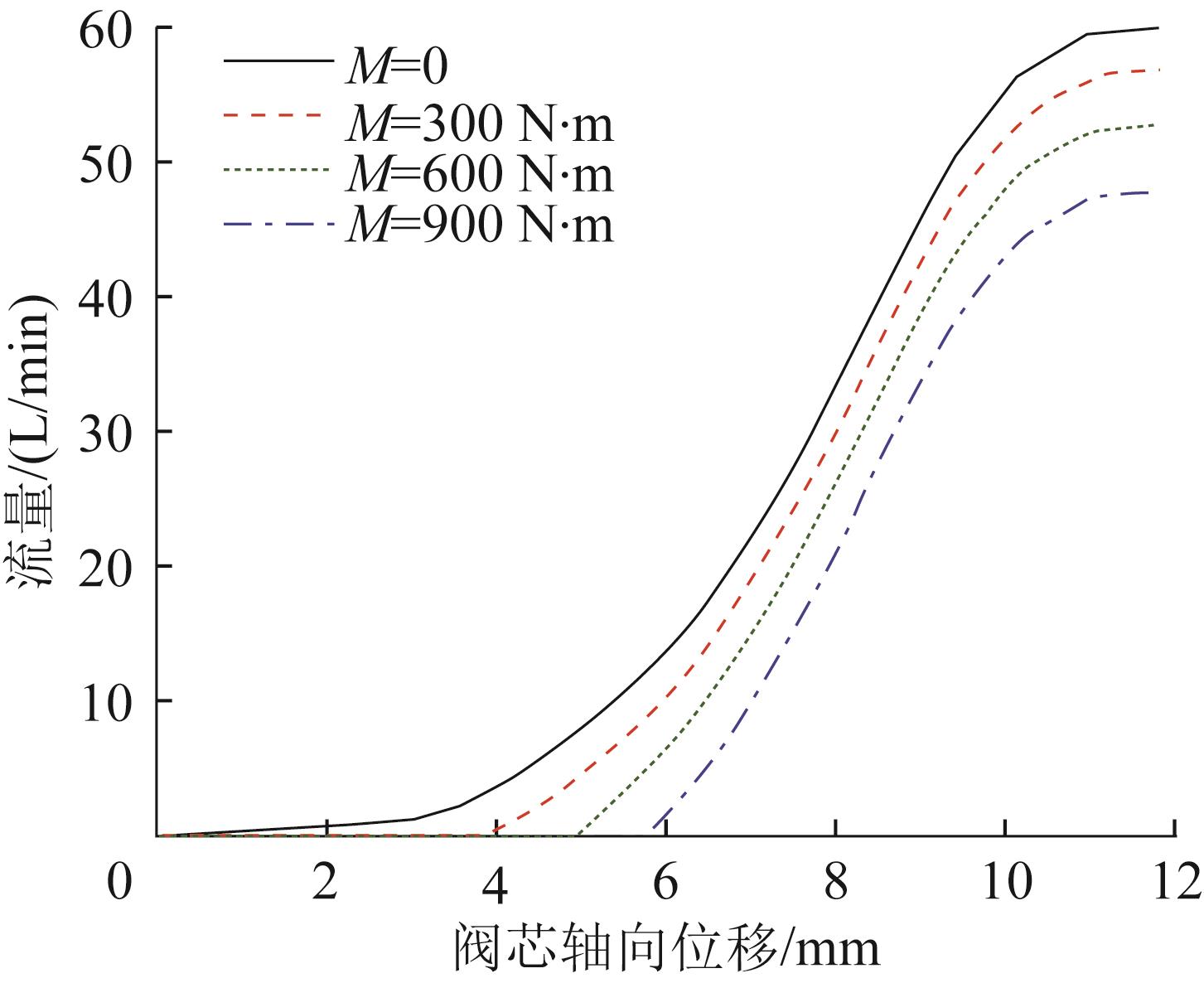

图15 不同负载下双向变量机构输出的稳态流量仿真曲线

Fig.15 Simulation curves of steady state output flow of bidirectional variable mechanism under different loads
