全通道内置阀式磁流变阻尼器的设计及性能分析

方冰,胡国良,梅鑫,喻理梵

Design and performance analysis of full fluid channel magnetorheological damper with built-in valve

Bing FANG,Guoliang HU,Xin MEI,Lifan YU

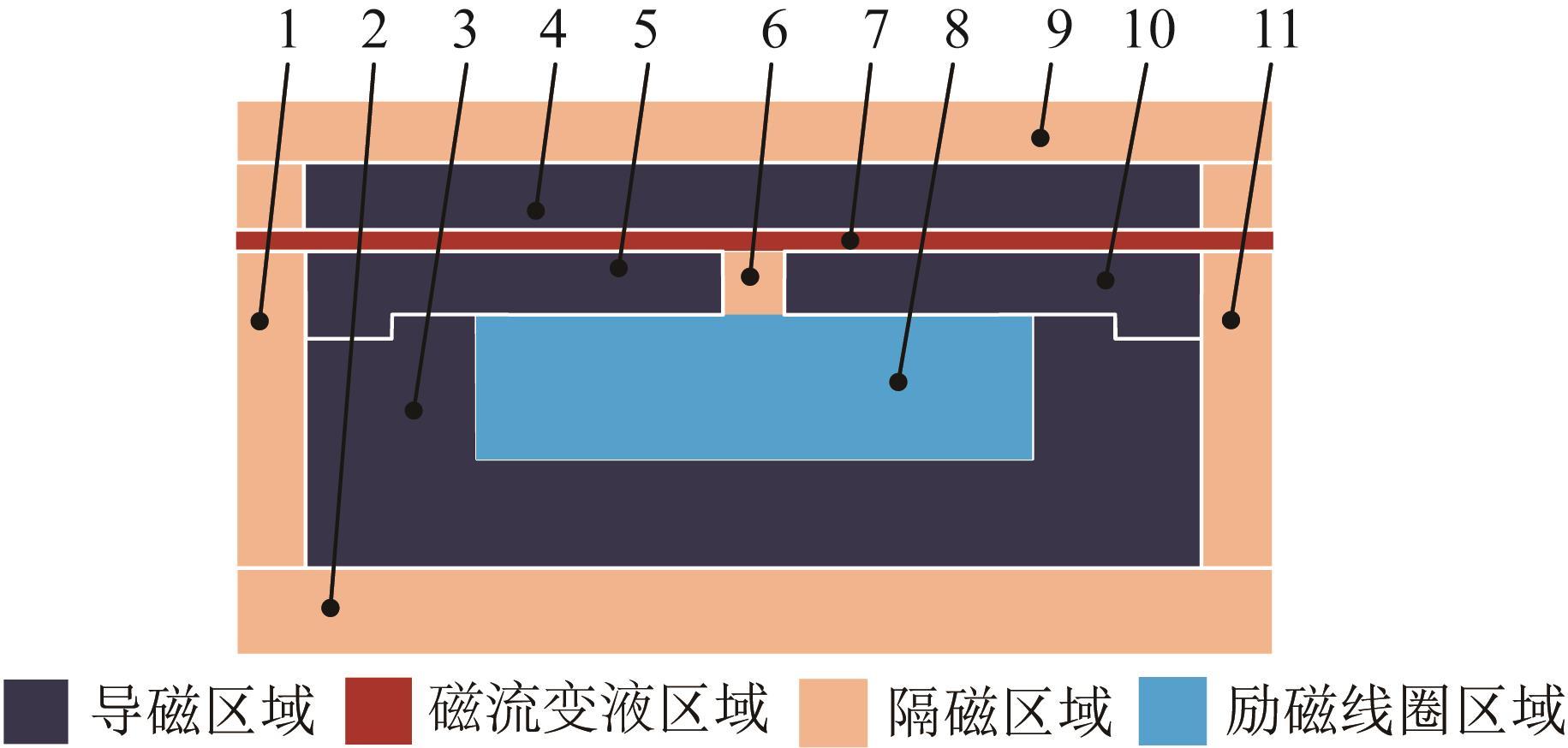

图6 磁流变阻尼器有限元模型1—左压板；2—活塞杆；3—线圈绕线架；4—内置导磁缸体；5—左楔形环；6—隔磁环；7—磁流变液；8—励磁线圈；9—缸体；10—右楔形环；11—右压板。

Fig.6 Finite element model of MRD
