基于点激光的CRTSⅢ型无砟轨道板轮廓尺寸快速检测方法

兰可豪,李淑娟,王嘉宾,高向阳,任朋欣

Rapid detection method for contour dimensions of CRTSⅢ ballastless track slab based on point laser

Kehao LAN,Shujuan LI,Jiabin WANG,Xiangyang GAO,Pengxin REN

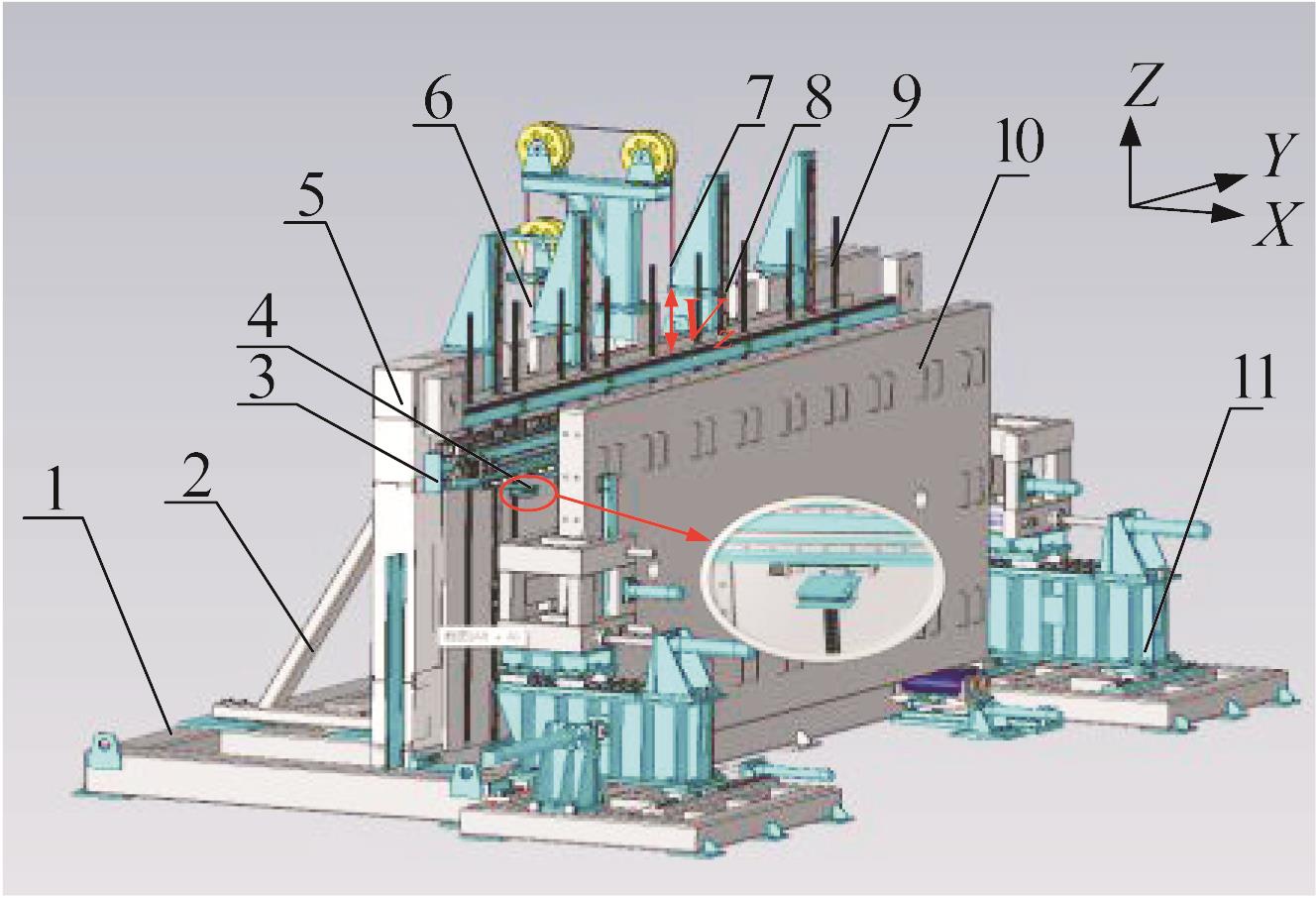

图3 CRTSⅢ型无砟轨道板立式检测设备三维模型1—基座；2—背部支撑架；3—横梁；4—点激光传感器；5—检测立板；6—伺服液压缸；7—钢丝绳；8—直线导轨；9—磁栅尺；10—CRTSⅢ型无砟轨道板；11—夹紧装置。

Fig.3 Three-dimensional model of CRTSⅢ ballastless track slab vertical detection device
