新型高速列车风阻制动装置设计与仿真分析
谢红太,王红,柴伟

Design and simulation analysis of new wind resistance braking device for high-speed trains
Hongtai XIE,Hong WANG,Wei CHAI

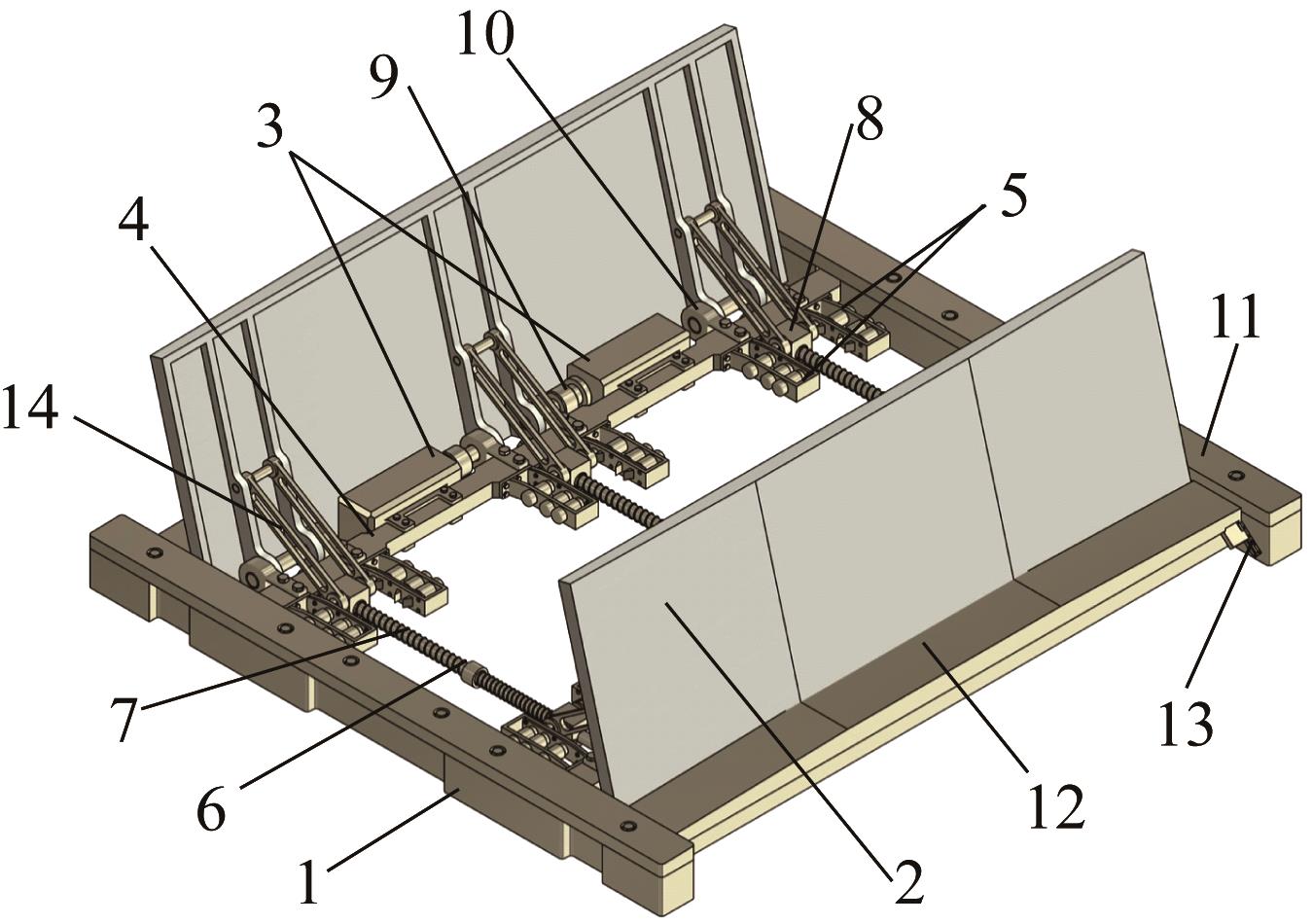

图5 窗形风阻制动装置结构组成1—基座; 2—风阻制动板; 3—低速电机; 4—固定横梁; 5—限位及锁紧机构组件; 6—滑轴; 7—缓冲弹簧; 8—滑动块; 9—联轴器; 10—连接架; 11—侧板; 12—补偿板; 13—补偿机构组件; 14—推拉杆。
Fig.5 Structure composition of window-shaped wind resistance braking device
