基于钢丝绳传动的自动抹灰机的轻量化设计

廖红玉,邓梦洋,周敏,谢良喜,姚俊夫

Lightweight design of automatic plastering machine based on wire rope transmission

Hong-yu LIAO,Meng-yang DENG,Min ZHOU,Liang-xi XIE,Jun-fu YAO

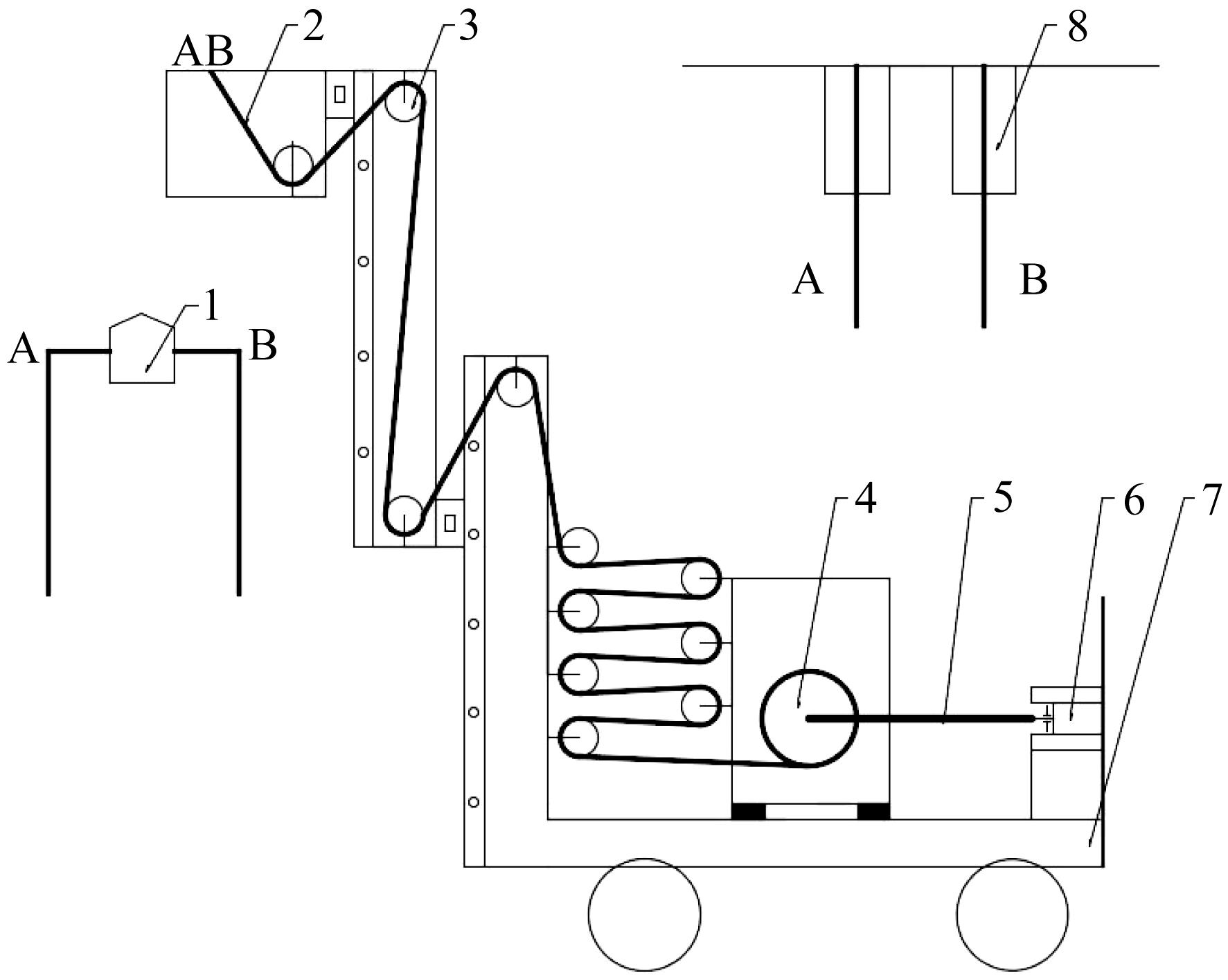

图4 喷嘴纵移运动原理示意1—喷嘴；2—钢丝绳；3—定滑轮；4—卷筒；5—丝杠；6—纵移电机；7—小车机架；8—双排滑轮组。

Fig.4 Schematic of principle of nozzle longitudinal movement
