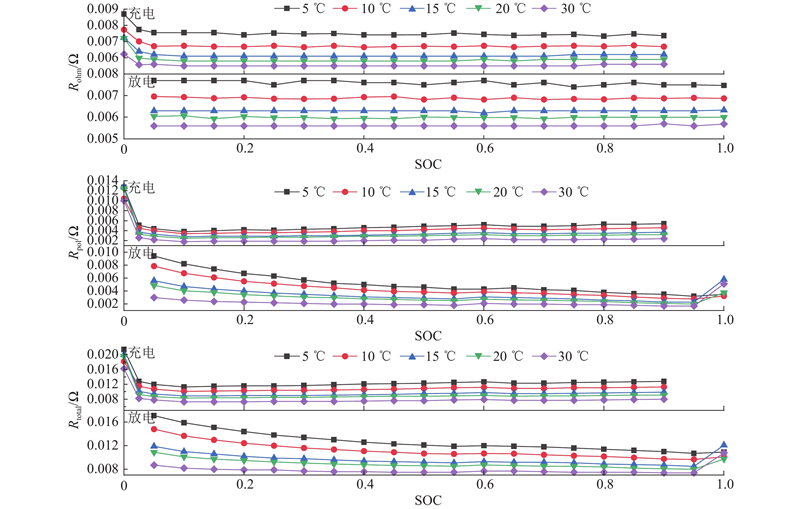

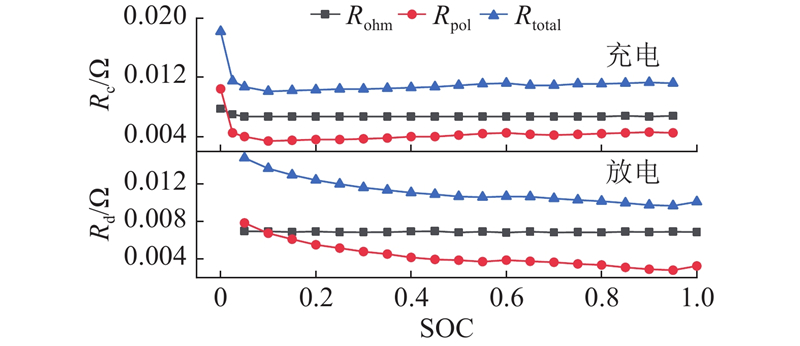

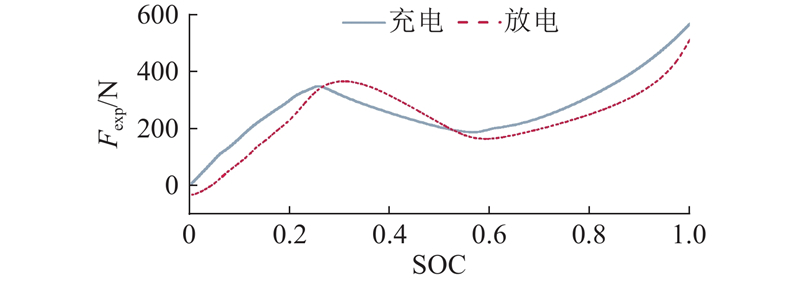

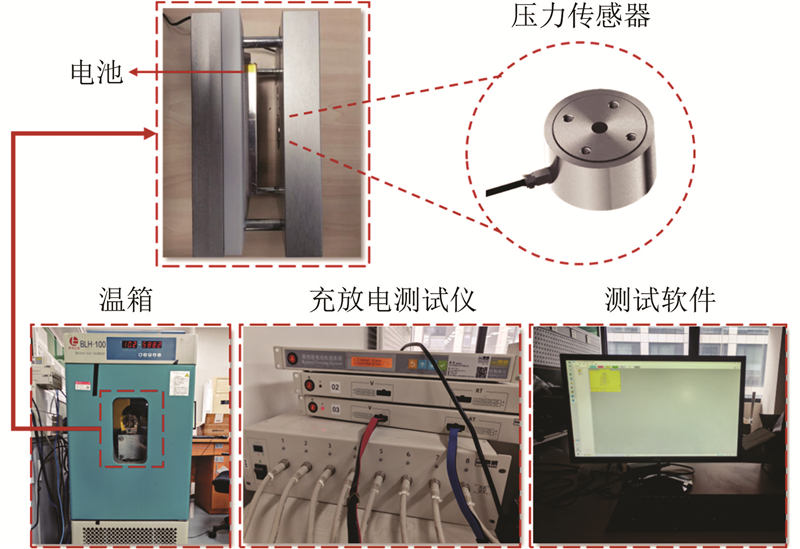

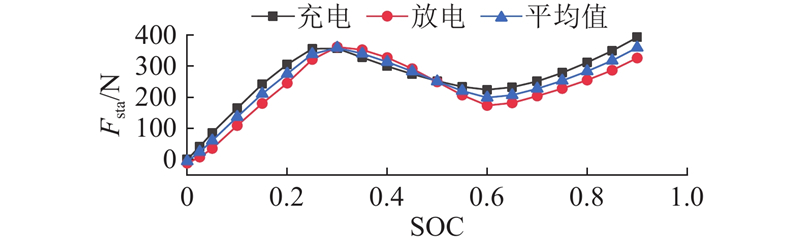

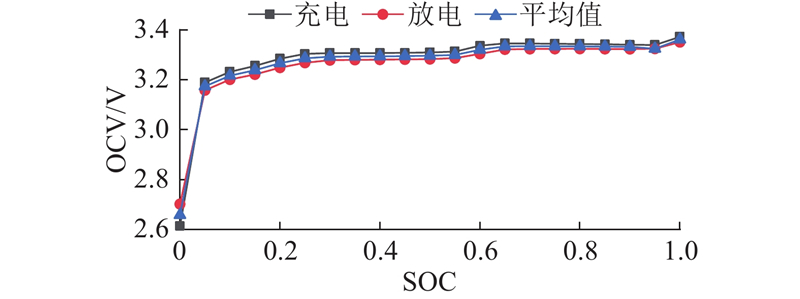

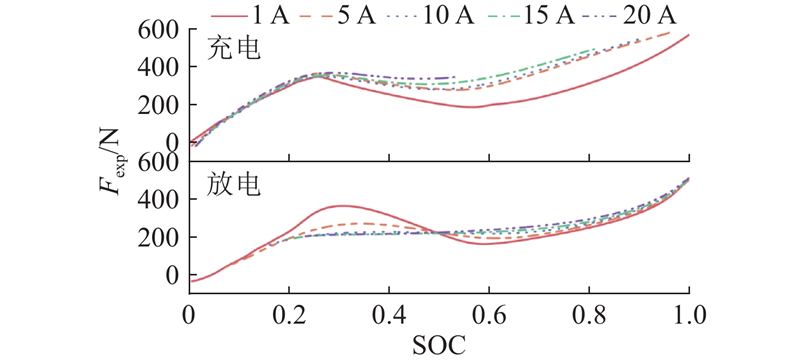

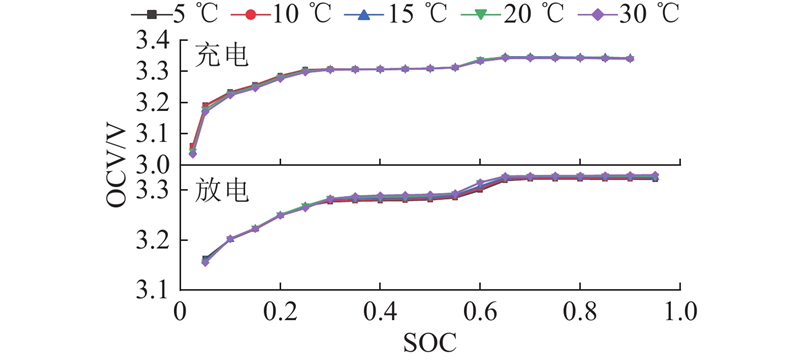

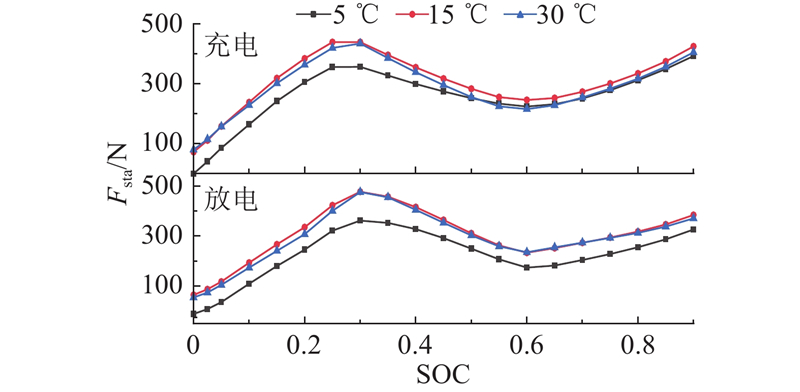

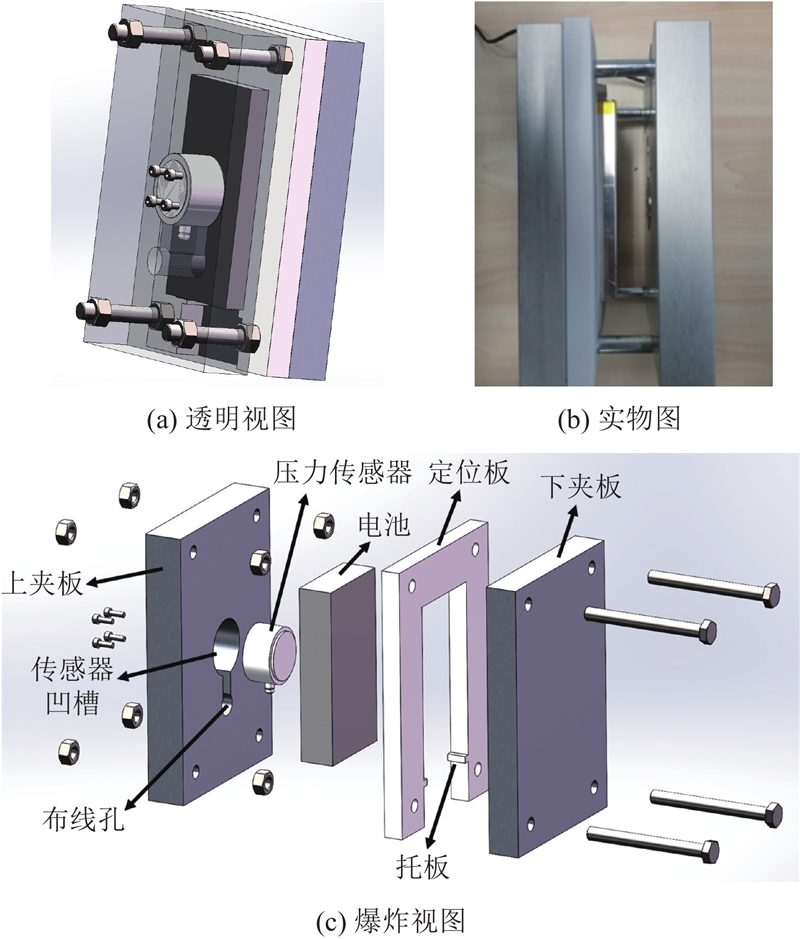

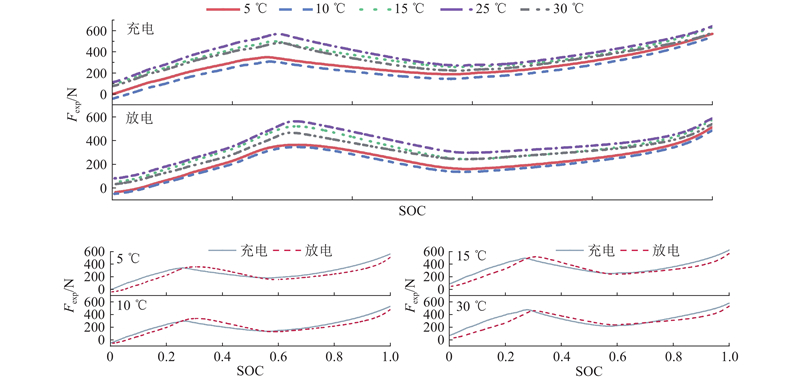

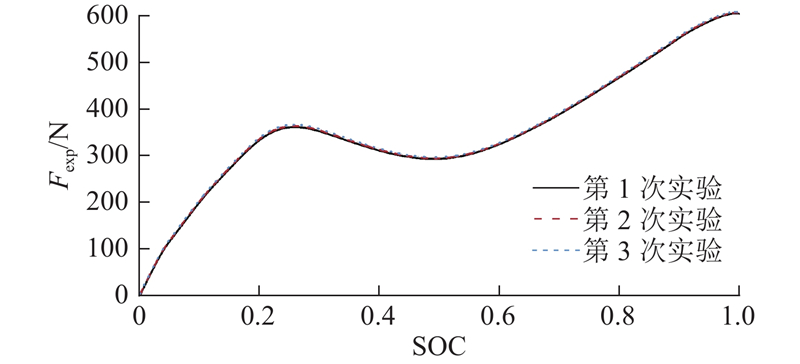

The mechanical and electrochemical characteristics of LiFePO₄ battery under different temperature and electric field were analyzed in order to introduce the in-situ surface expansion force as an additional input variable for the estimation of state of charge (SOC) and thus improve the estimation accuracy. A multi-physics signal acquisition platform was designed and constructed. Open-circuit voltage (OCV) tests, hybrid pulse power characterization (HPPC) tests, and in-situ surface expansion force measurements were conducted at different temperature. The mechanical and electrochemical characteristics of battery and its multi-physics responses under various operating conditions were analyzed. Results show that the in-situ surface expansion force first increases, then decreases, and then increases again as SOC rises, and it is more sensitive to SOC than OCV. The extrema of the expansion force curves are slightly affected by temperature, showing small delays with increasing temperature. They are strongly affected by current, occurring earlier and gradually disappearing as the current increases. The internal resistance decreases significantly with increasing temperature. The OCV curves exhibit high consistency across different temperature. The experimental results demonstrate that the expansion force signal has potential in SOC estimation and provide theoretical foundation and data support for SOC estimation methods based on expansion force signals.
