Journal of ZheJiang University (Engineering Science)  2021, Vol. 55 Issue (3): 539-547    DOI: 10.3785/j.issn.1008-973X.2021.03.014

Spatiotemporal deterioration of concrete under high osmotic pressure and sulfate attack
Rui-xin LI1(),Yi-quan ZOU1,*(),Da-wei HU2,Hui ZHOU2,Chong WANG2,Yong-xiang ZHOU3,Zu-qi WANG3
1. School of civil architecture and environment, Hubei University of Technology, Wuhan 430068, China
2. Institute of Rock and Soil Mechanics, Chinese Academy of Sciences, Wuhan 430071, China
3. China Academy of Building Sciences Limited Company, Beijing, China 100013
Download: HTML     PDF(1998KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

10% Na2SO4 with mass fraction solution was used to carry out indoor corrosion tests under different osmotic pressures and different lengths of concrete samples, in order to simulate the corrosion damage and degradation of concrete under seawater environment. Combined with micro indentation test, CT scanning test and SEM test, the corrosion damage and micromechanical properties of concrete under the action of high osmotic pressure sulfate coupling corrosion were studied. Experimental results show that osmotic pressure accelerates ion migration and mainly promotes chemical erosion. The higher the osmotic pressure, the faster the chemical damage rate of concrete, the deeper the erosion depth; the cementation of aggregate and mortar is the weak point which is easy to be eroded and destroyed; the hydration products are easy to form in the internal pores of concrete, and more short column gypsum crystals and more fine needle ettringite crystals are formed under higher osmotic pressure.



Key wordshigh osmotic pressure      sulfate attack      concrete      micro indentation      micromechanics
Received: 21 February 2020      Published: 25 April 2021
CLC:  TV 331
Fund:  国家重点研发计划资助项目(2018YFC0809600,2018YFC0809601);国家自然科学基金资助项目(51779252);湖北省技术创新专项资助项目(2017AAA128);湖北省自然科学基金资助项目(2018CFA013)
Corresponding Authors: Yi-quan ZOU     E-mail: 917932422@qq.com;zouyq@mail.hbut.edu.cn
Cite this article:

Rui-xin LI,Yi-quan ZOU,Da-wei HU,Hui ZHOU,Chong WANG,Yong-xiang ZHOU,Zu-qi WANG. Spatiotemporal deterioration of concrete under high osmotic pressure and sulfate attack. Journal of ZheJiang University (Engineering Science), 2021, 55(3): 539-547.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2021.03.014     OR     http://www.zjujournals.com/eng/Y2021/V55/I3/539


高渗透压-硫酸盐侵蚀下混凝土时空劣化

为了模拟研究混凝土海水环境下的侵蚀损伤及劣化规律,采用质量分数10% Na2SO4溶液对混凝土试样进行不同渗透压和不同时长下的室内侵蚀试验. 结合微米压痕试验、CT扫描试验和电子显微镜扫描试验,对高渗透压-硫酸盐耦合侵蚀作用下混凝土的侵蚀损伤及微观力学性能进行研究. 试验结果显示,渗透压加速了离子迁移,主要起到了促进化学侵蚀作用. 渗透压越大,混凝土化学损伤速率越快,侵蚀深度越深;骨料与砂浆胶结处是易侵蚀、易破坏的薄弱点;混凝土内部孔隙易生成水化产物,高渗透压下容易生成大量短柱状石膏晶体及细密的针状钙矾石晶体.


关键词: 高渗透压,  硫酸盐侵蚀,  混凝土,  微米压痕,  微观力学
参数 符号 数值 单位 ω/%
强度等级 C50 ? ? ?
凝胶材料 BM 420 kg/m3 ?
水胶比 r 0.35 ? ?
水泥 CT 189 kg/m3 45
粉煤灰 FA 105 kg/m3 25
矿渣粉 SP 126 kg/m3 30
S 775 kg/m3 43
减水剂 WR 4.2 kg/m3 1
密度 ρ 2395 kg/m3 ?
Tab.1 Concrete parameters of sample
t/d n0/块 n1/块 n2/块
0 1 0 0
5 2 2 2
10 2 2 2
60 2 2 2
180 2 2 2
Tab.2 Erosion test sample quantity

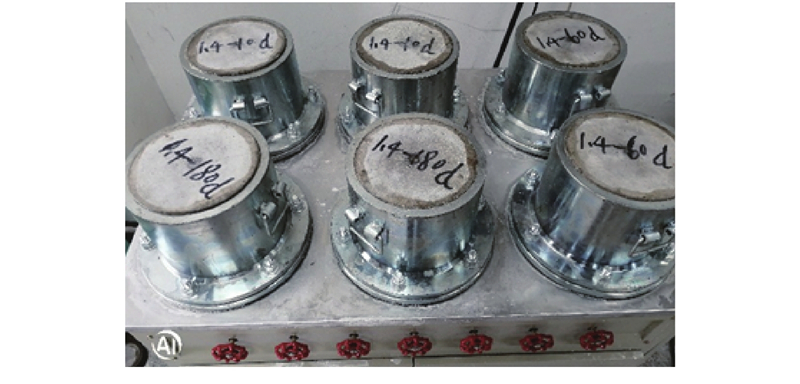

Fig.1 Photo of high osmotic pressure and sulfate erosion experiment

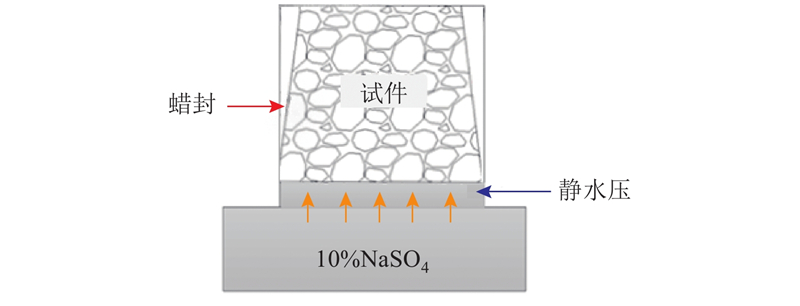

Fig.2 Schematic diagram of digital concrete impermeability instrument

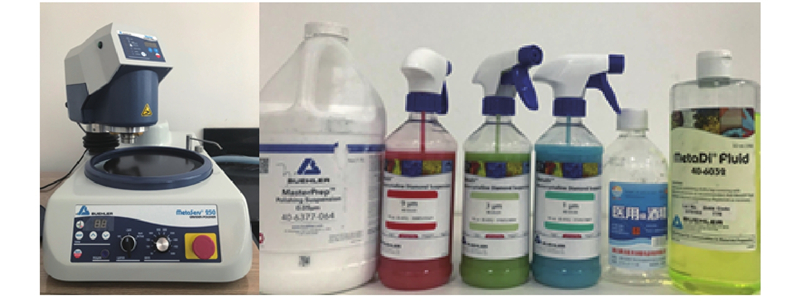

Fig.3 Automatic grinding and polishing machine and polishing fluid

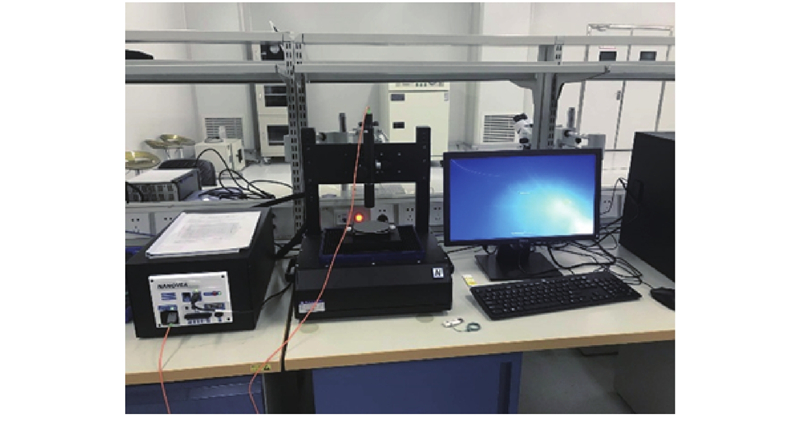

Fig.4 3D non-contact surface topography instrument of NANOVEA

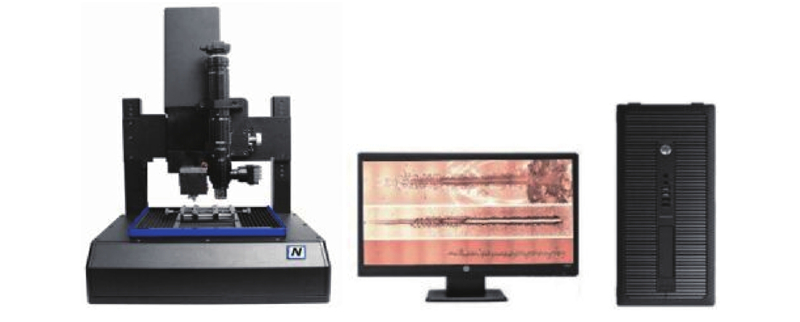

Fig.5 Micro indentation instrument

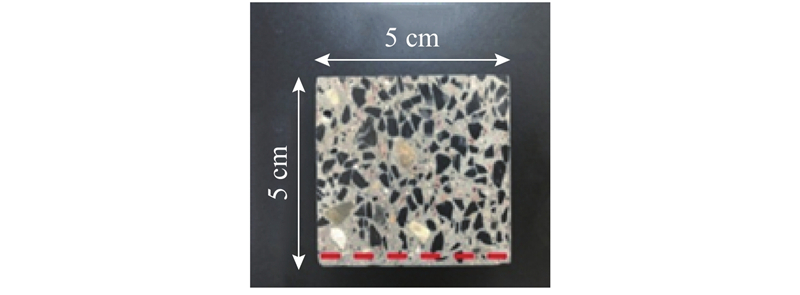

Fig.6 Specimen size of micro indentation test
Fig.7 Typical indentation cross section

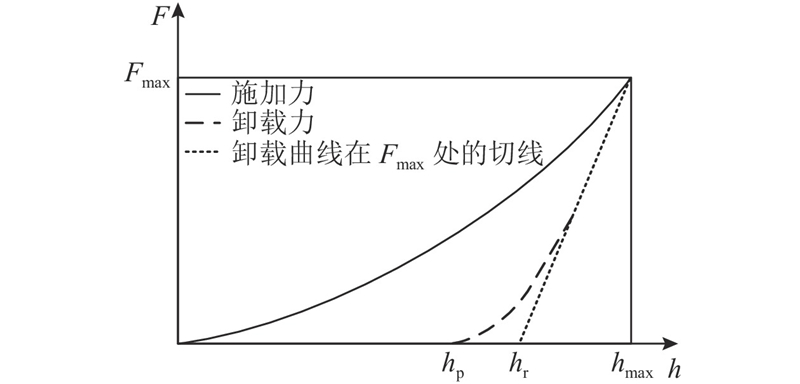

Fig.8 Typical loading and unloading curve of micro indentation test

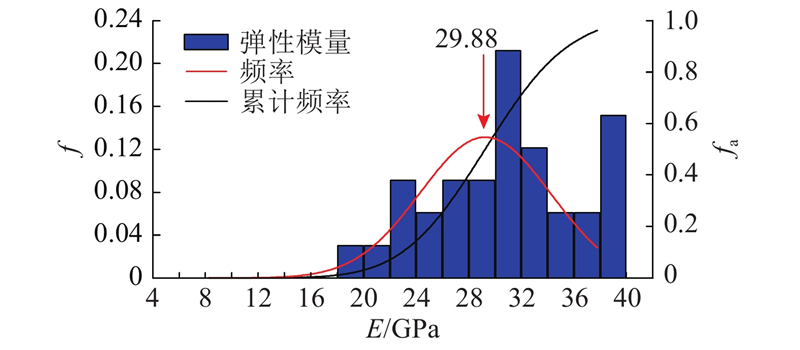

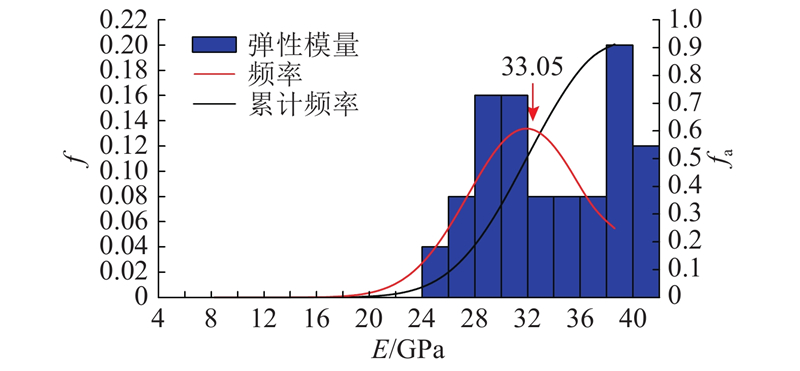

Fig.9 Distribution of elastic modulus of concrete without erosion

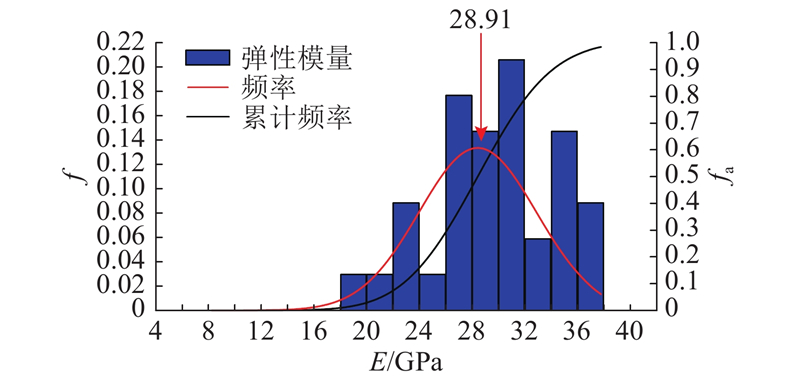

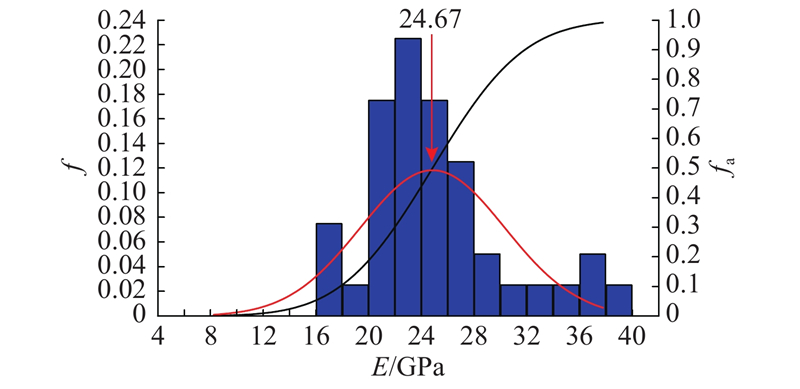

Fig.10 Distribution of elastic modulus of concrete under 0.7-5 d
Fig.11 Distribution of elastic modulus of concrete under 0.7-10 d

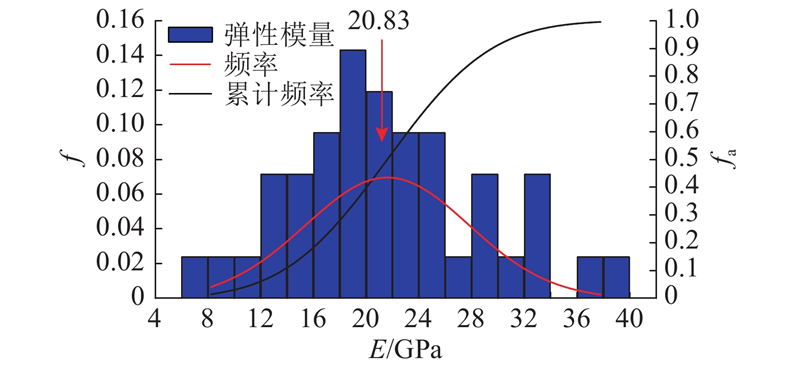

Fig.12 Distribution of elastic modulus of concrete under 0.7-60 d
Fig.13 Distribution of elastic modulus of concrete under 0.7-180 d

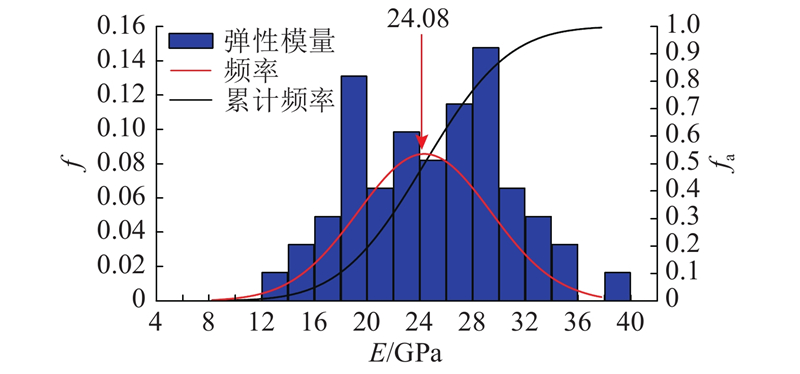

Fig.14 Distribution of elastic modulus of concrete under 1.4-5 d
Fig.15 Distribution of elastic modulus of concrete under 1.4-10 d
Fig.16 Distribution of elastic modulus of concrete under 1.4-60 d
Fig.17 Distribution of elastic modulus of concrete under 1.4-180 d

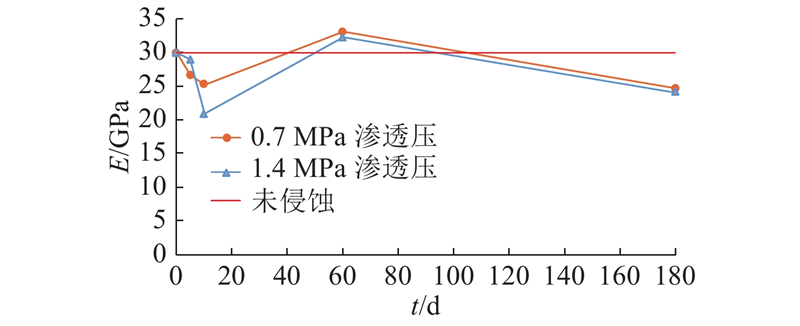

Fig.18 Trend of elastic modulus of concrete with different osmotic pressure and different erosion days

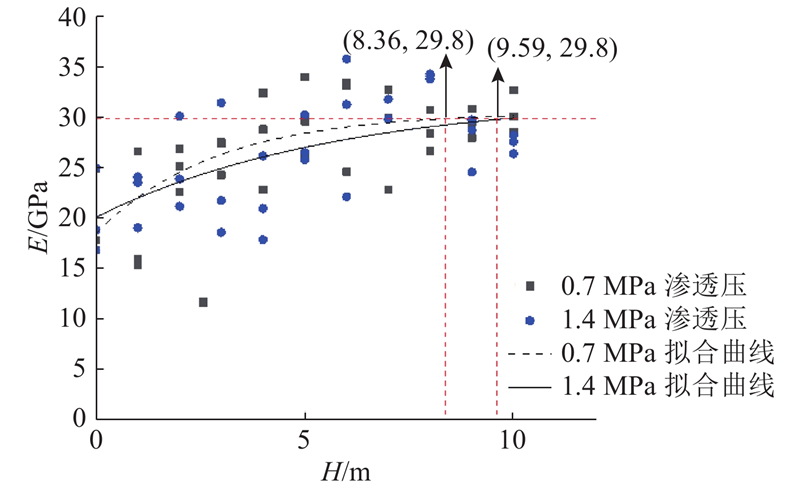

Fig.19 Fitting curve

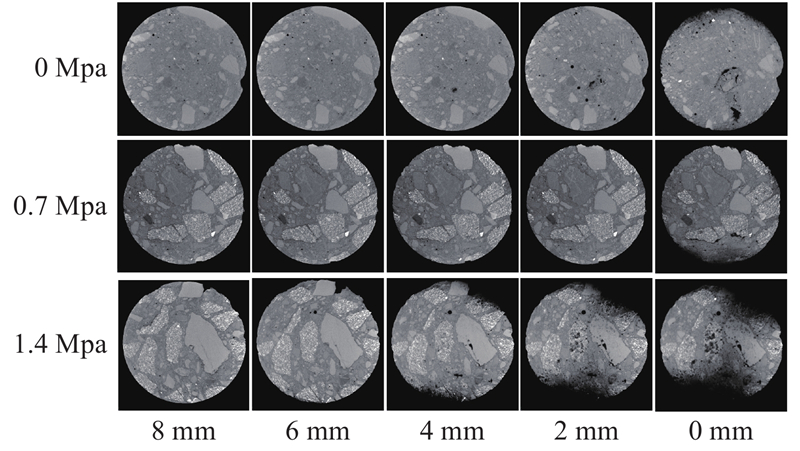

Fig.20 CT section pictures at 8,6,4,2 and 0 mm erosion depth under different osmotic pressure were taken in turn
Fig.21 Scanning electron micrograph of erosion specimen under different osmotic pressure
