Journal of ZheJiang University (Engineering Science)  2020, Vol. 54 Issue (4): 833-842    DOI: 10.3785/j.issn.1008-973X.2020.04.023
Aerospace and Astronautics Technology
Dynamic stall optimization design of rotor airfoil based on surrogate model
Bo-ping YU(),Gao-hua LI,Liang XIE,Fu-xin WANG*()
School of Aeronautics and Astronautics, Shanghai Jiao Tong University, Shanghai 200240, China
Download: HTML     PDF(1833KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The surrogate model was used to replace the computational fluid dynamic (CFD) method to optimize and design rotor airfoil considering dynamic stall characteristics. The unsteady aerodynamics calculation of rotor airfoil based on moving grid technology was established to obtain the lift, drag and torque coefficients under different airfoil shapes. The class shape transformation (CST) airfoil parameterization method was used to conduct fitting and reconstruction of the initial airfoil, and 12 design parameters were selected. The global optimal differential evolution algorithm based on natural heuristic was used to reduce the airfoil’s torque and drag coefficients. The main limiting condition was to ensure that the lift characteristics were not reduced and the airfoil thickness increase was not obvious. The optimization results of the method were compared with those of the adjoint and CFD method. Results show that the optimization method based on Kriging model has better search performance and better aerodynamic performance than the adjoint method in the two-dimensional airfoil optimization. The possibility of prematurely falling into the local best was reduced under the advantage of using the global optimization algorithm compared with CFD method. The comparison optimization results show that the lift characteristics are better when the torque and resistance characteristics are almost the same.



Key wordsrotor airfoil      dynamic stall      aerodynamic optimization design      surrogate model
Received: 23 January 2019      Published: 05 April 2020
CLC:  V 212
Corresponding Authors: Fu-xin WANG     E-mail: boping_yu@sjtu.edu.cn;fuxinwang@sjtu.edu.cn
Cite this article:

Bo-ping YU,Gao-hua LI,Liang XIE,Fu-xin WANG. Dynamic stall optimization design of rotor airfoil based on surrogate model. Journal of ZheJiang University (Engineering Science), 2020, 54(4): 833-842.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2020.04.023     OR     http://www.zjujournals.com/eng/Y2020/V54/I4/833


基于代理模型的旋翼翼型动态失速优化设计

利用代理模型方法取代计算流体动力学(CFD)方法,开展旋翼翼型的动态失速特性优化设计. 建立基于动网格技术的旋翼翼型非定常气动特性求解方法,获得旋翼翼型在不同外形下的升阻力和力矩气动特性参数. 利用类型转换(CST)翼型参数化方法,对初始翼型进行拟合重构;选取12个设计参数,利用基于自然启发的全局优化差分进化算法,优化目标是降低旋翼翼型的力矩和阻力特性,主要限制条件是保证升力特性不降低和翼型厚度增幅不明显. 将本文的优化设计结果与基于伴随方法和CFD方法的优化结果进行对比. 结果表明,基于Kriging模型的动态失速特性优化方法与伴随方法相比,在二维翼型优化设计上具有更好的寻优性能,优化翼型气动特性的表现更好;该方法与CFD方法相比,在利用全局优化算法的优势下,减少了过早陷入局部最优点的可能性,对比优化结果表明,在力矩和阻力特性相差无几的情况下,升力特性的表现更优.


关键词: 旋翼翼型,  动态失速,  气动优化设计,  代理模型

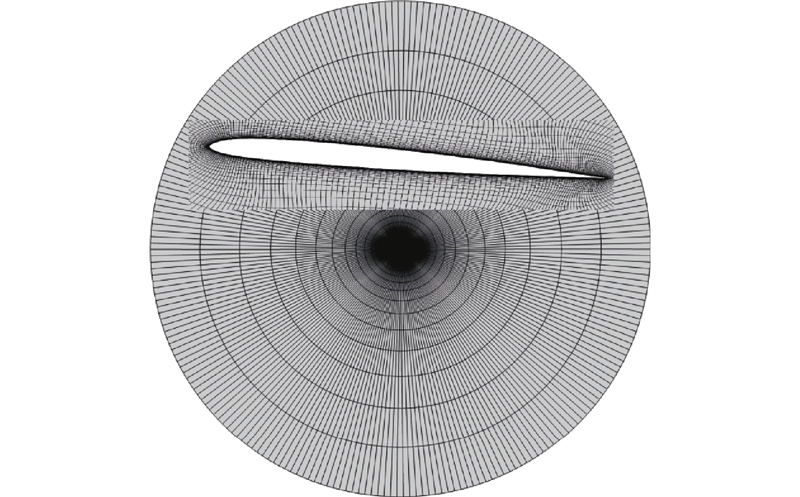

Fig.1 Grid diagram of validation example

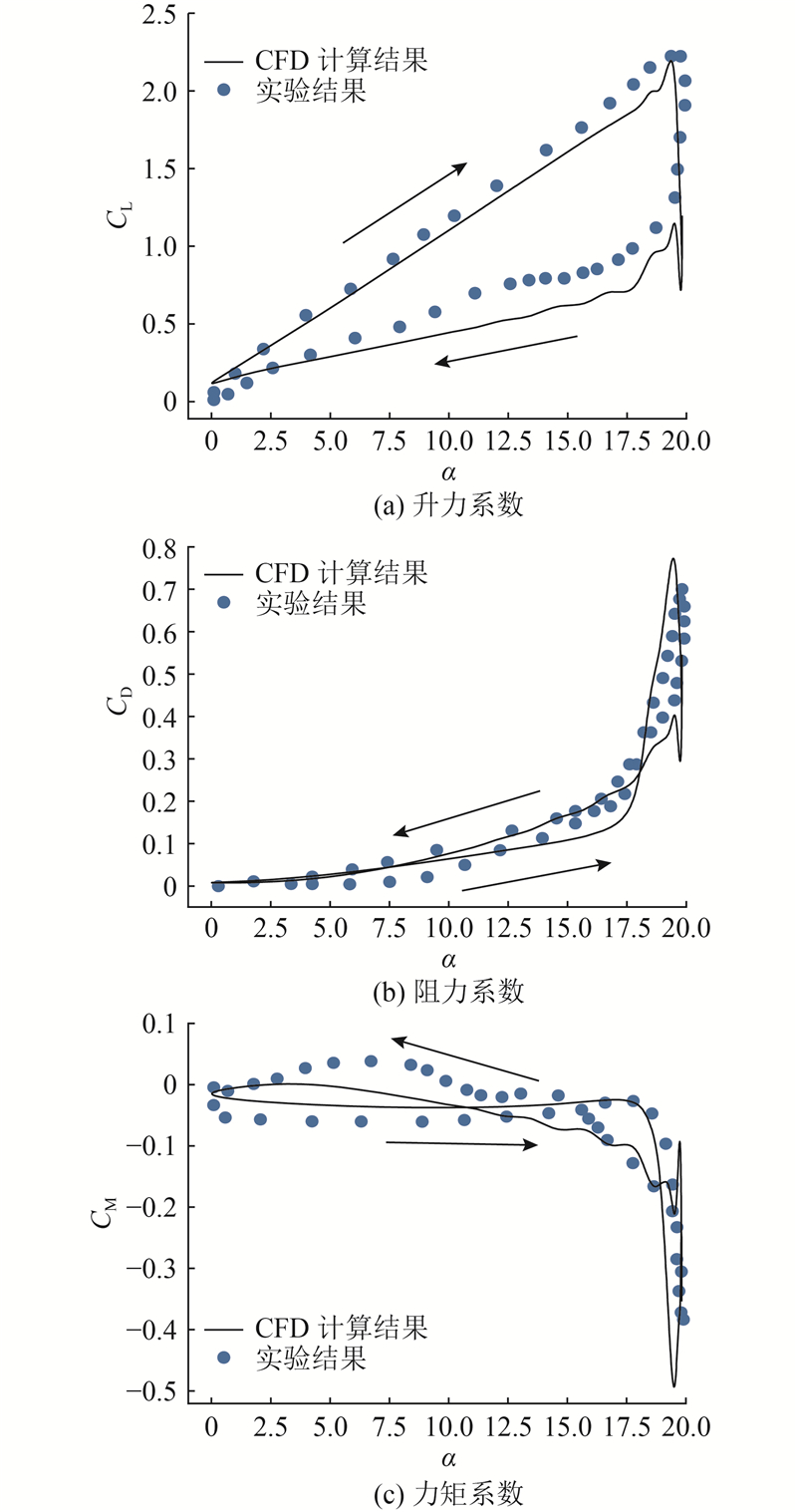

Fig.2 Numerical simulation and experimental comparison of lift coefficient drag coefficient and moment coefficient
Ai Ai
上翼面 下翼面 上翼面 下翼面
0.171 25 0.147 05 0.115 98 0.041 32
0.157 34 0.068 40 0.170 30 0.141 48
0.122 90 0.138 70 0.076 55 0.037 16
Tab.1 Design variables of initial airfoil

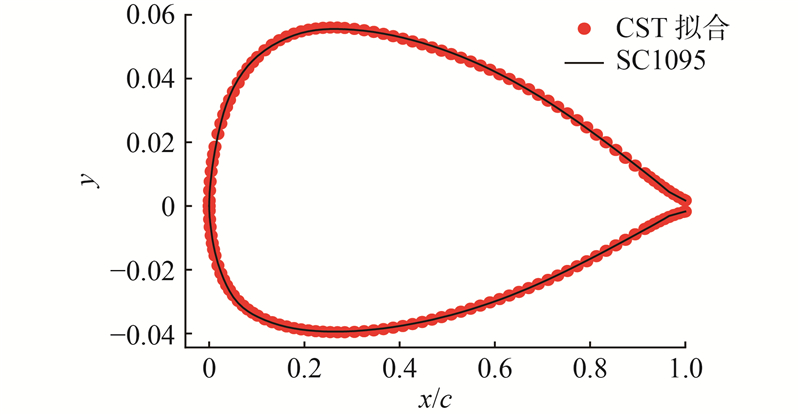

Fig.3 Class shape transformation method fitting diagram

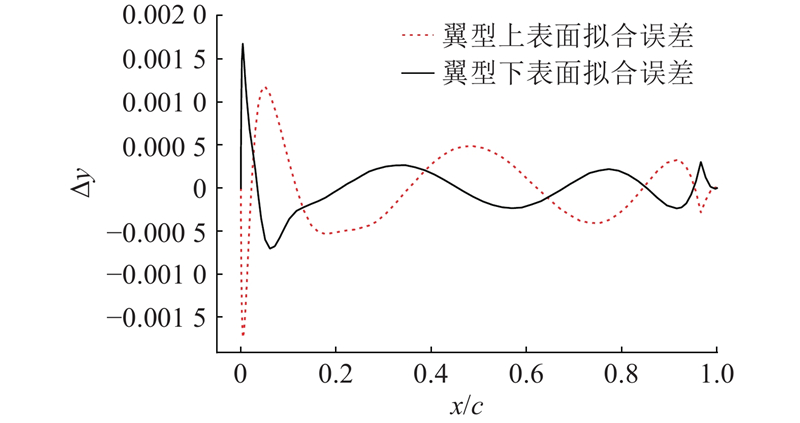

Fig.4 Error evaluation diagram of class shape transformation method fitting

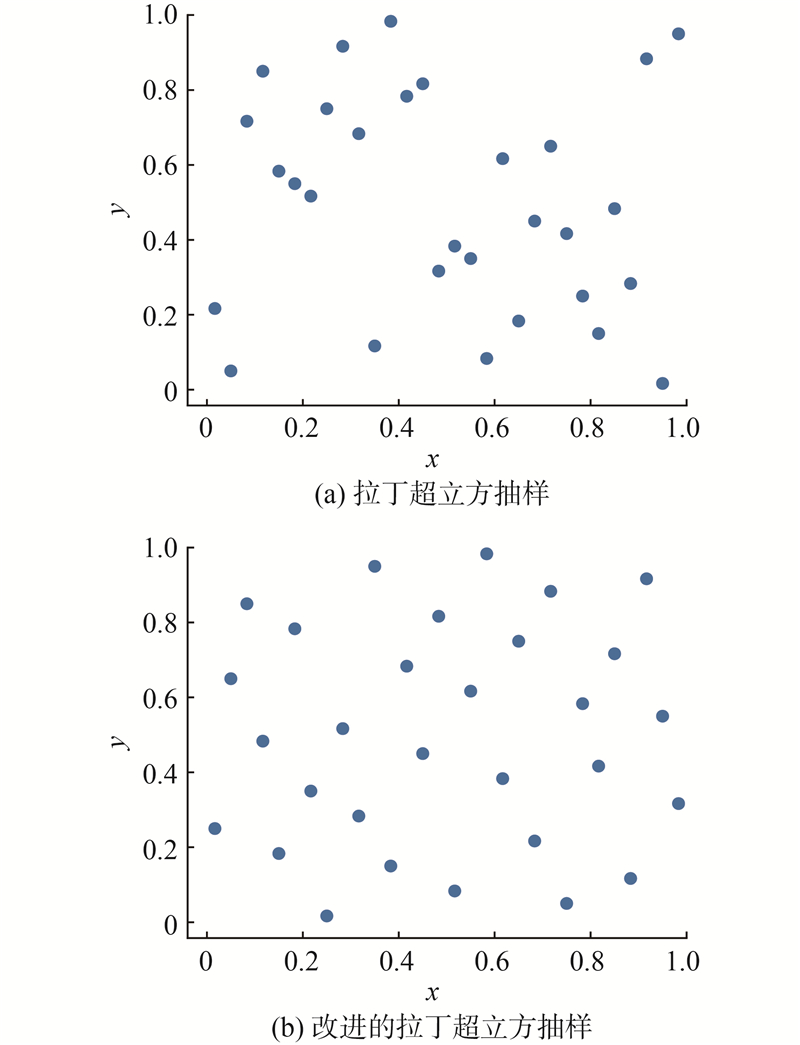

Fig.5 Comparison results of conventional and improved Latin Hypercube Sampling methods

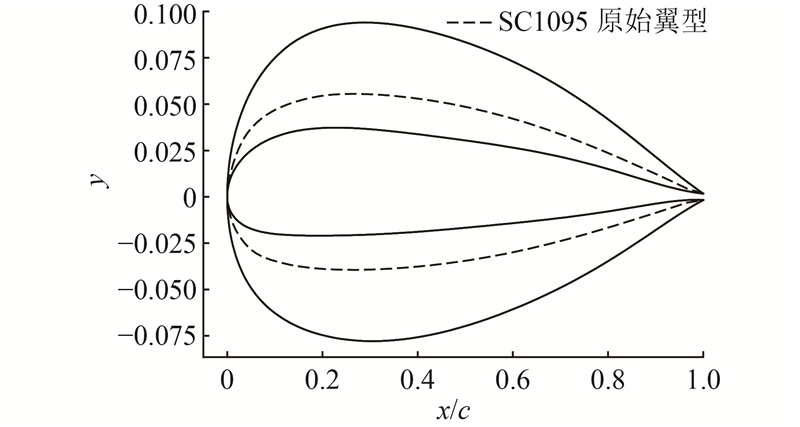

Fig.6 Diagram of design space

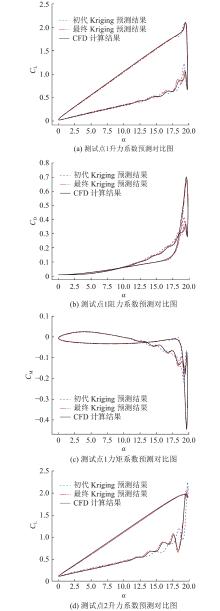

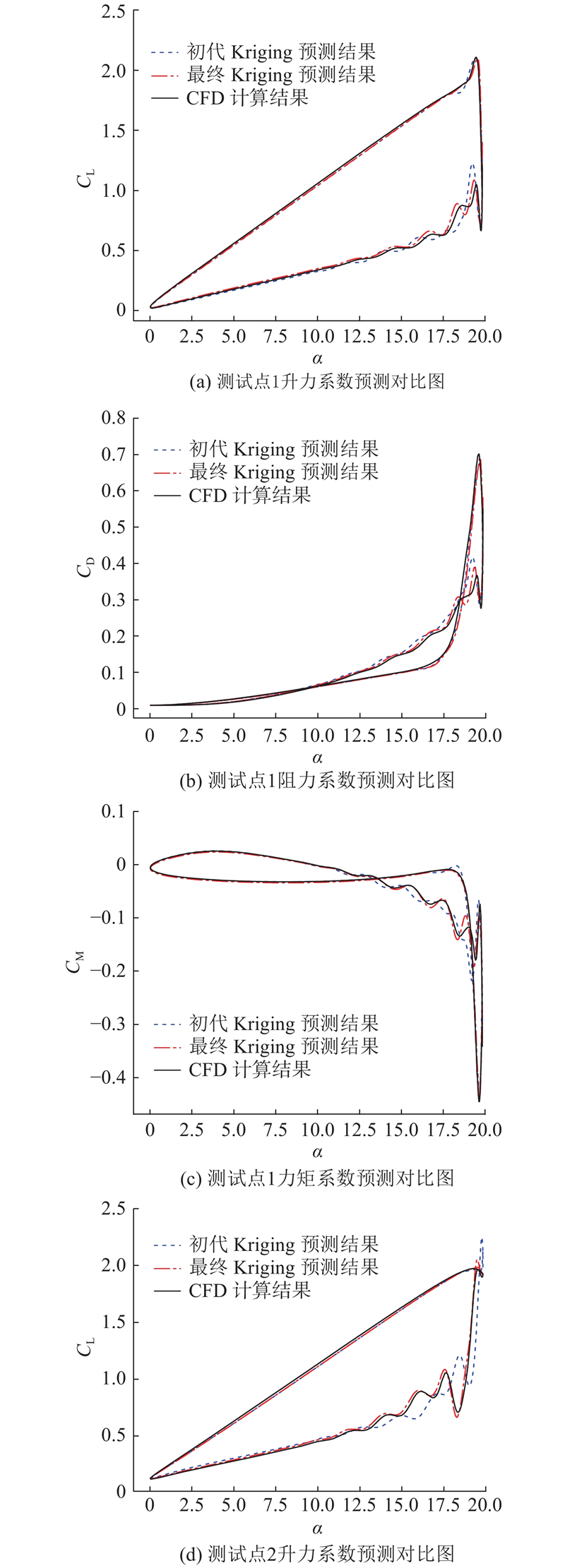

Fig.7 Comparison results of initial and final Kriging model prediction on test point one and two
模型 $\sigma_{C_{\rm L}} $ $\sigma_{C_{\rm D}} $ $\sigma_{C_{\rm M}} $
初代模型 10.67% 8.72% 12.38%
最终模型 2.16% 1.35% 3.06%
Tab.2 Prediction error of initial and final kriging model

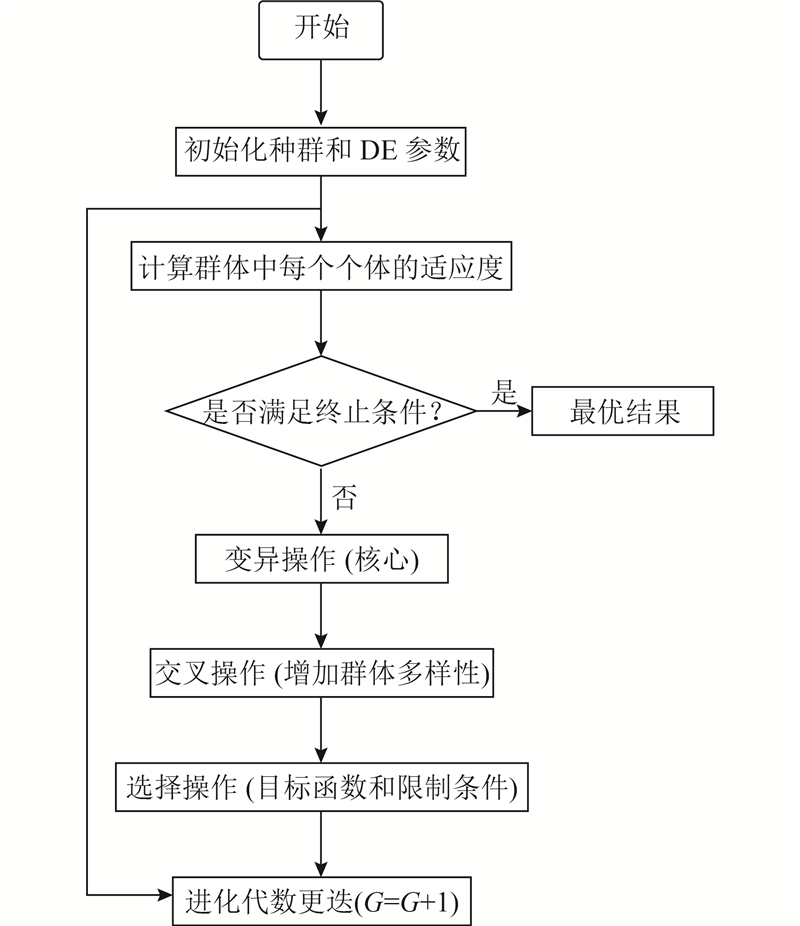

Fig.8 Differential evolution algorithm optimization flow chart
翼型 最大厚度 最大厚度位置 弯度 前缘半径
原始翼型 9.5% c 26.9% c 0.81% c 0.77% c
优化翼型 11.80% c 24.3% c 3.27% c 2.80% c
Tab.3 First example comparison of original airfoil and optimized airfoil detail parameters

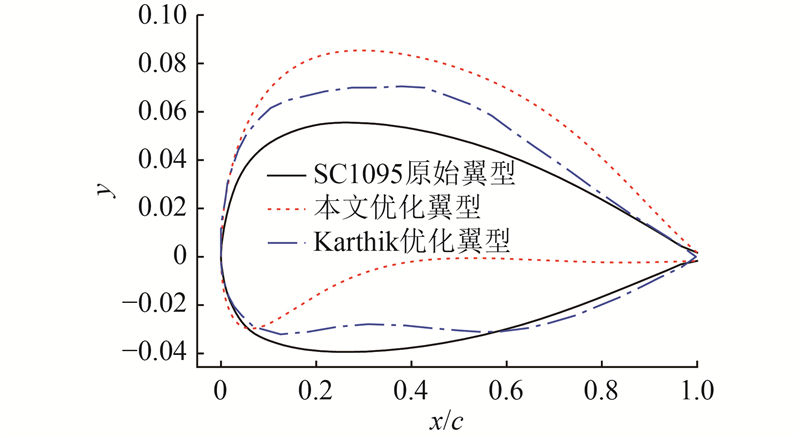

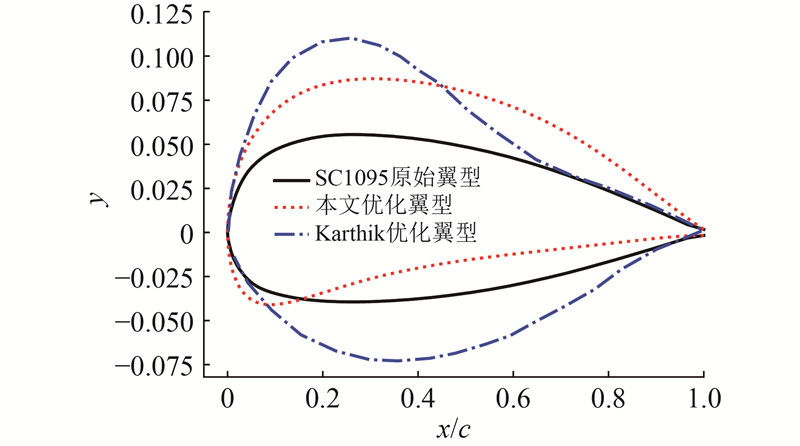

Fig.9 First example comparison of optimization airfoil

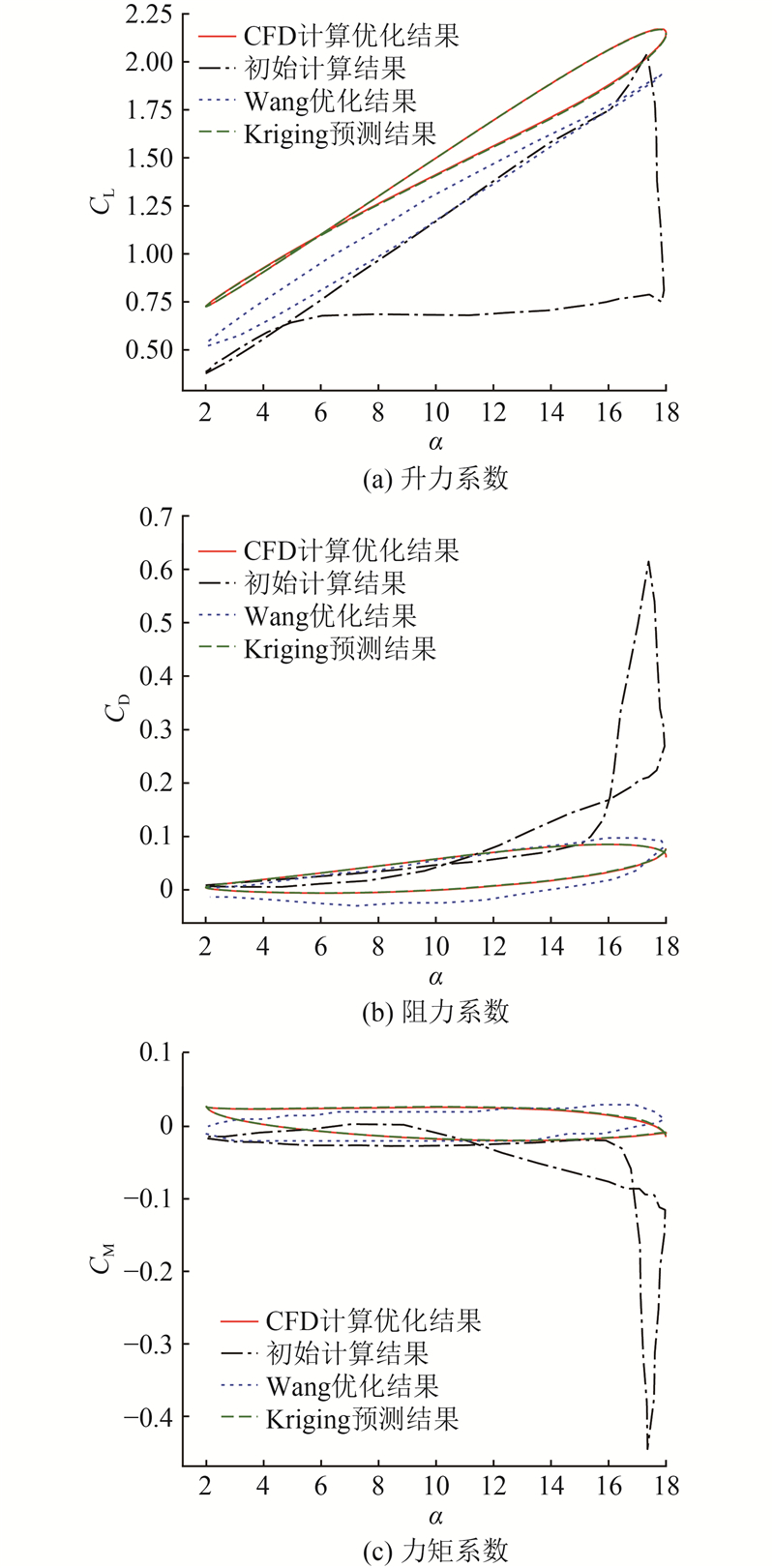

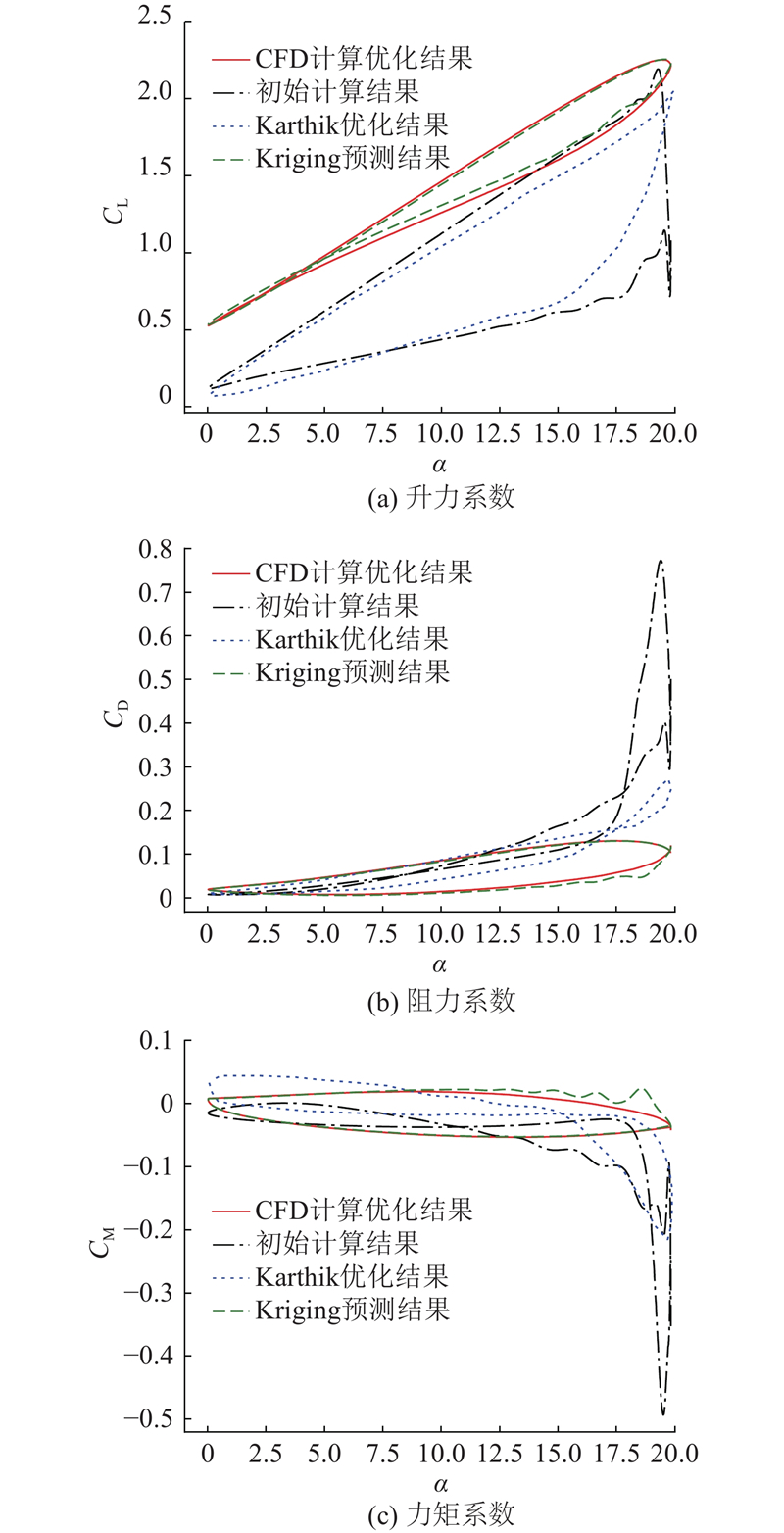

Fig.10 First example comparison results of aerodynamic characteristics in lift,drag and moment coefficient

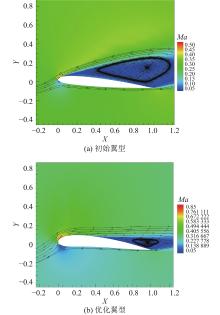

Fig.11 First example comparison of airfoil flow field of unsteady optimized airfoil with original airfoil
翼型 最大厚度 最大厚度位置 弯度 前缘半径
原始翼型 9.5% c 26.9% c 0.81% c 0.77% c
优化翼型 9.97% c 14.7% c 3.95% c 2.43% c
Tab.4 Second example comparison of original airfoil and optimized airfoil detail parameters
Fig.12 Second example comparison of dynamic stall optimization airfoil
Fig.13 Second example comparison results of aerodynamic characteristics in lift,drag and moment coefficient

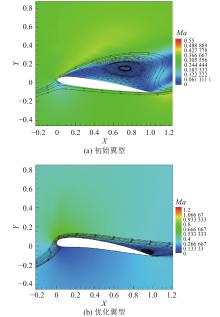

Fig.14 Second example comparison of airfoil flow field of unsteady optimized airfoil with original airfoil
