Blasting seismic effect of buried cast iron pipeline in silty clay layer
Bin ZHU1(),Nan JIANG1,2,*(),Chuan-bo ZHOU1,Yong-sheng JIA2,3,Xue-dong LUO1,Ting-yao WU1
1. Faculty of Engineering, China University of Geosciences, Wuhan 430074, China
2. Hubei Key Laboratory of Blasting Engineering, Jianghan University, Wuhan 430024, China
3. Wuhan Explosion and Blasting Co. Ltd, Wuhan 430024, China
 全文: PDF(1861 KB)   HTML
摘要:

针对武汉市区内常见直埋球墨铸铁管道,设计实施邻近预埋管道的全尺寸爆破实验. 结合有限元数值计算方法,考虑管道不同埋深,研究爆破地震作用下粉质黏土地层内直埋管道动力响应. 研究结果表明,管道和地表峰值振速(PPVs)随爆源与管道距离的减小而增大,在管道正下方爆破为最危险工况. 管道中心截面为危险截面,危险截面PPVs以管腰和管底较大,动态应变以轴向拉伸应变为主,环向应变次之,峰值有效应力以底部单元最大,管道肩部最小. 管道不同埋置深度和PPVs具有比例关系,通过实测地表振速与管道有效应力关系可以预测管道截面爆破峰值有效应力,计算关系式可以为岩土爆破施工中邻近管道的安全性评价提供计算方法.

关键词: 直埋管道爆破地震质点速度峰值有效应力安全评价
Abstract:

A full-scale blasting experiment of adjacent pre-buried pipes was designed and implemented, aiming at the common direct-buried ductile iron pipes in the urban area of Wuhan. Combined with the finite element numerical calculation method and considering the different buried depth of the pipeline, the dynamic response of the directly buried pipeline in the silty clay layer under the action of the blasting vibration was studied. Results show that the pipeline and the surface peak particle velocities (PPVs) increase with the decrease of the blast distance, and the most dangerous working condition is blasting directly below the pipeline. The central section of the pipeline is dangerous. The PPVs at the waist and bottom of the tube are larger for the dangerous section. The dynamic strain is mainly the axial tensile strain and the hoop strain is smaller. The peak effective stress in the bottom element is the largest and that of the pipe shoulder is the smallest. There is a functional relationship between PPVS and different embedded depth of pipeline. By measuring the relationship between the surface PPVs and the peak effective stress, the peak effective stress of the pipeline section can be predicted, which provides a calculation method for the safety determination of related pipelines in engineering construction.

Key words: directly buried pipeline    blasting seismic effect    particle velocities    peak effective stress    safety evaluation
收稿日期: 2020-02-15 出版日期: 2021-04-25
CLC:  TU 990.3
基金资助: 国家自然科学基金资助项目(41807265,41972286);爆破工程湖北省重点实验室开放基金资助项目(HKLBEF202001);湖北省自然科学基金资助项目(2019CFB224)
通讯作者: 蒋楠     E-mail: b.zhu@cug.edu.cn;jiangnan@cug.edu.cn
作者简介: 朱斌(1996—),男,博士生,从事地下工程、爆破工程研究. orcid.org/0000-0003-0629-6757. E-mail: b.zhu@cug.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
朱斌
蒋楠
周传波
贾永胜
罗学东
吴廷尧

引用本文:

朱斌,蒋楠,周传波,贾永胜,罗学东,吴廷尧. 粉质黏土层直埋铸铁管道爆破地震效应[J]. 浙江大学学报(工学版), 2021, 55(3): 500-510.

Bin ZHU,Nan JIANG,Chuan-bo ZHOU,Yong-sheng JIA,Xue-dong LUO,Ting-yao WU. Blasting seismic effect of buried cast iron pipeline in silty clay layer. Journal of ZheJiang University (Engineering Science), 2021, 55(3): 500-510.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2021.03.010        http://www.zjujournals.com/eng/CN/Y2021/V55/I3/500

地层 ρ /(kN·m?3 φ /(°) c /kPa fk /kPa
填土 19.2 18.0 8 120~160
粉质黏土 19.3 12.0 25 160~180
石英砂岩 26.8 5.5 43 2000~4000
表 1  爆破场地岩土参数

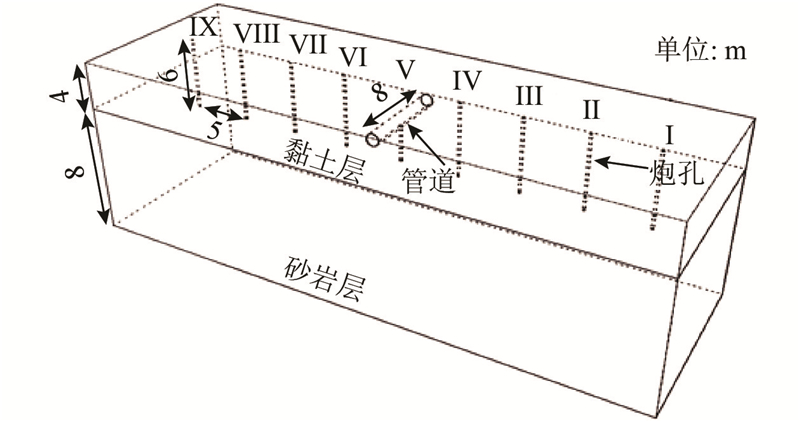

图 1  现场实验设计示意图
管材 E /GPa h /m d /mm δ /mm μ
球墨铸铁 195 2 1 000 10 0.3
表 2  实验用直埋球墨铸铁管道相关参数
图 2  实验监测点布置图

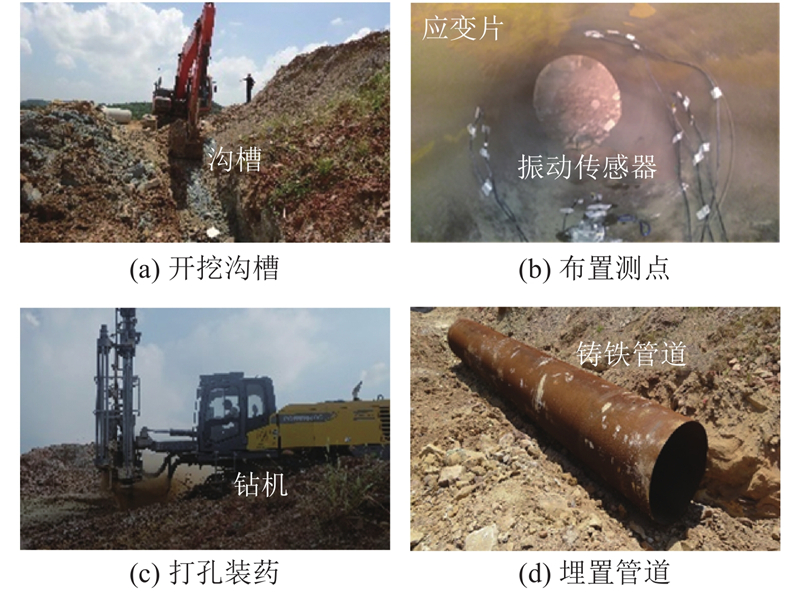

图 3  现场实验实施图

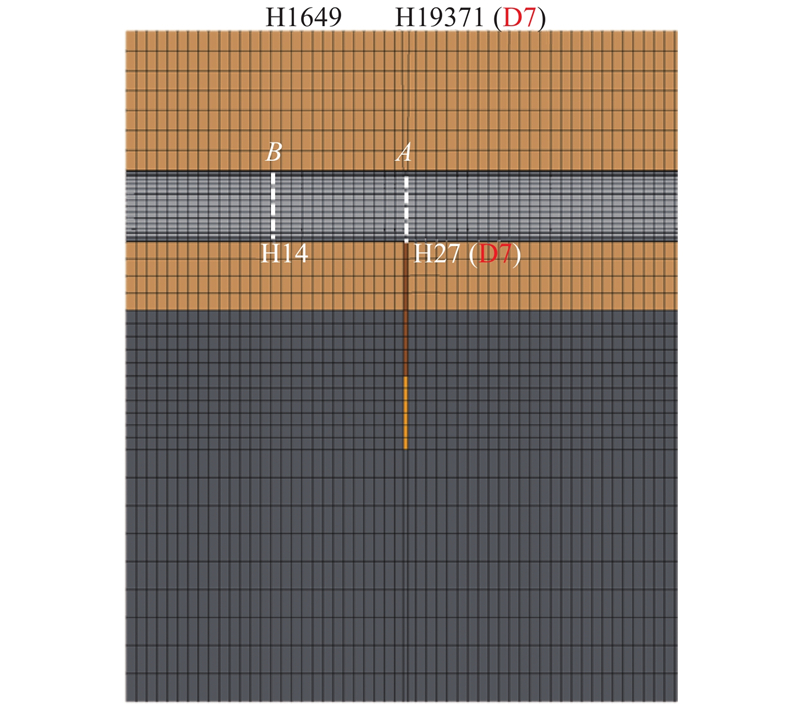

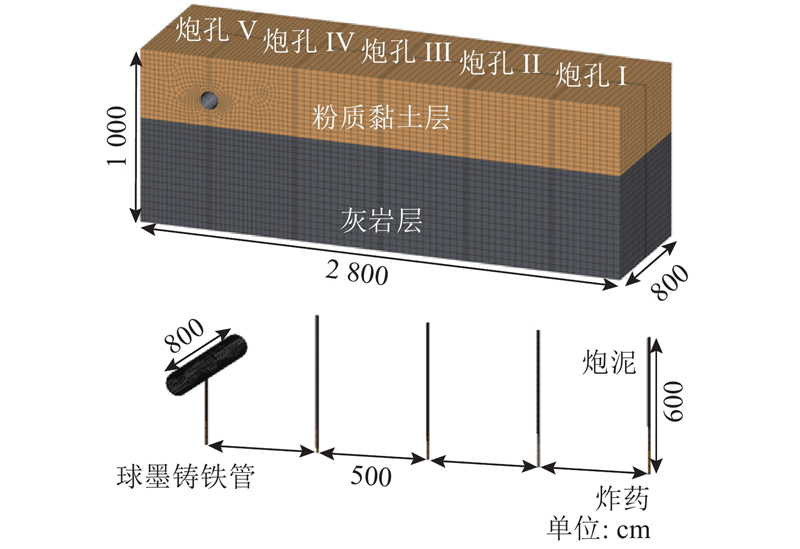

图 4  现场爆破实验数值模型示意图
材料 ρ /(g·m?3 E /GPa μ c /MPa φ /(°) σt /MPa
管道 7.85 195.000 0.30 ? ? 235.000
粉质黏土 1.98 0.039 0.35 0.035 15 0.028
砂岩 2.68 52.000 0.25 5.500 43 2.580
表 3  爆破实验数值模型材料参数
ρ /(g·cm?3 A /GPa B /GPa R1 R2 ω E0 /GPa V /cm3
1.25 214 18.2 4.2 0.9 0.15 4.19 1.0
表 4  爆轰产物参数
图 5  爆破实验数值模拟质点示意图

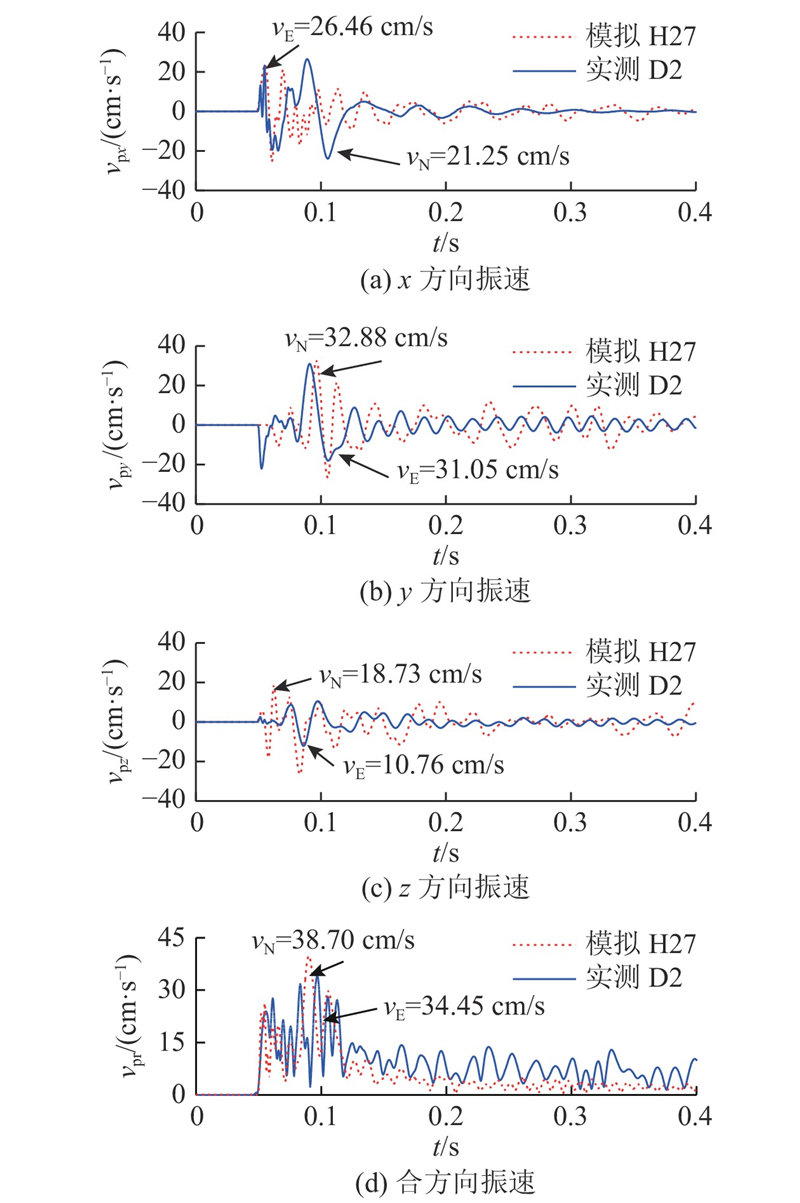

图 6  实验与数值模拟管道底部质点振动波形对比图

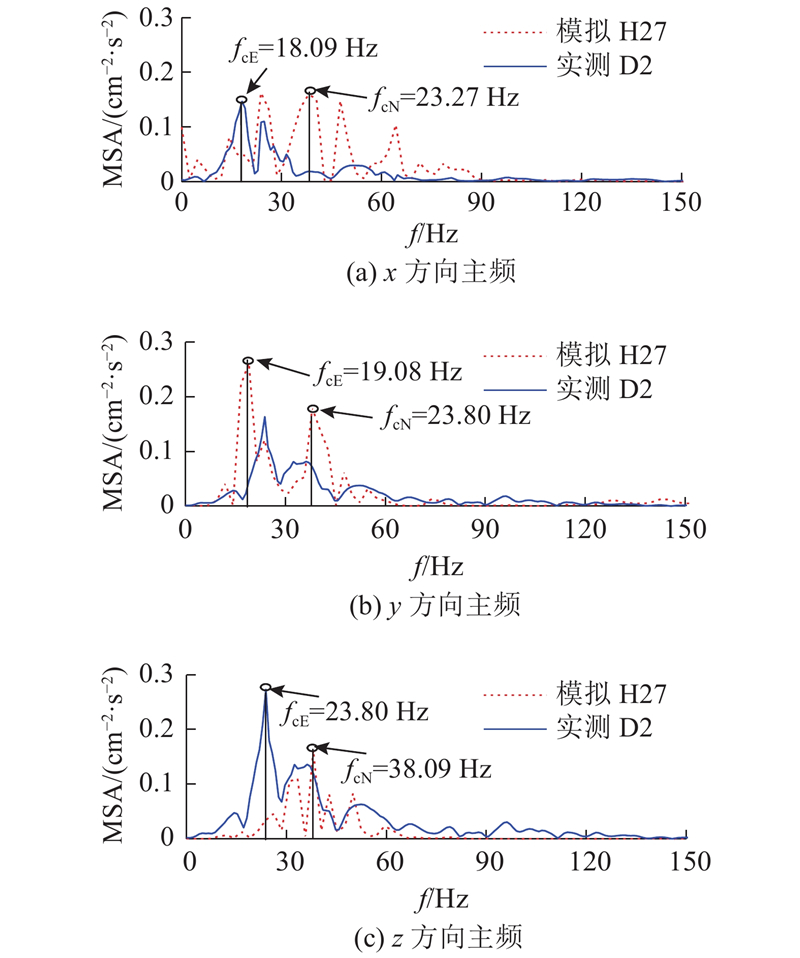

图 7  实验与数值模拟管道底部质点振动频率对比图

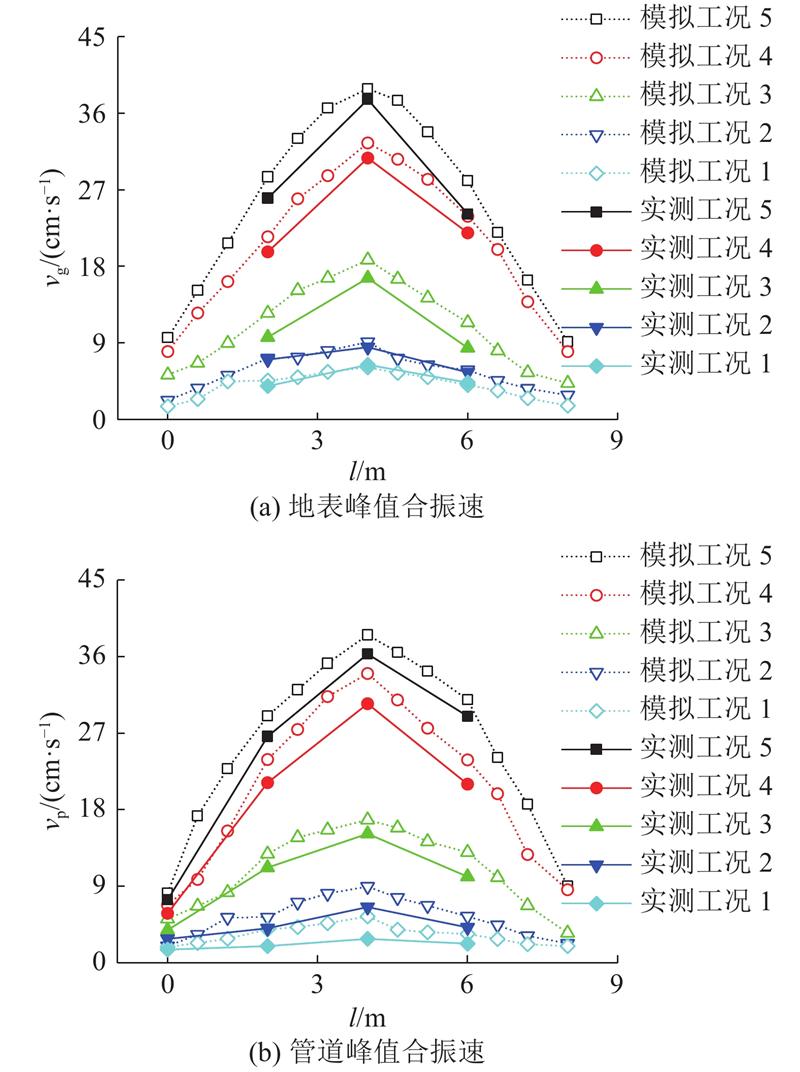

图 8  管道轴线方向振速分布图

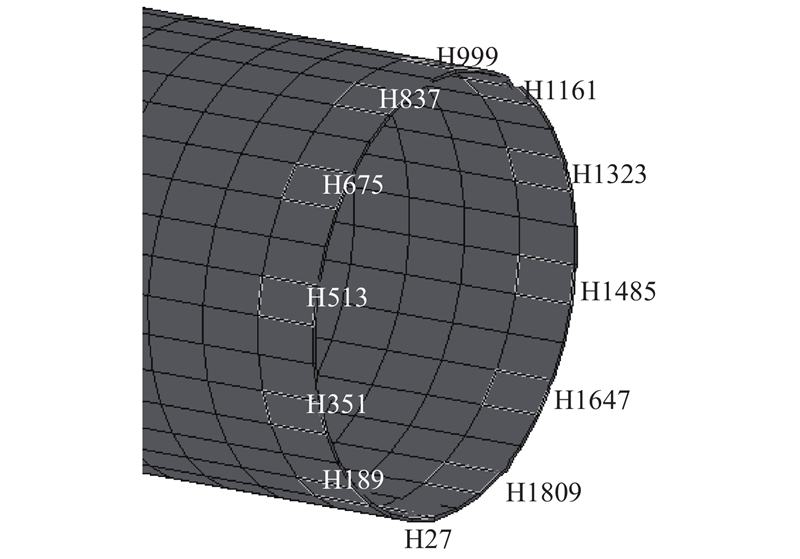

图 9  管道截面单元示意图

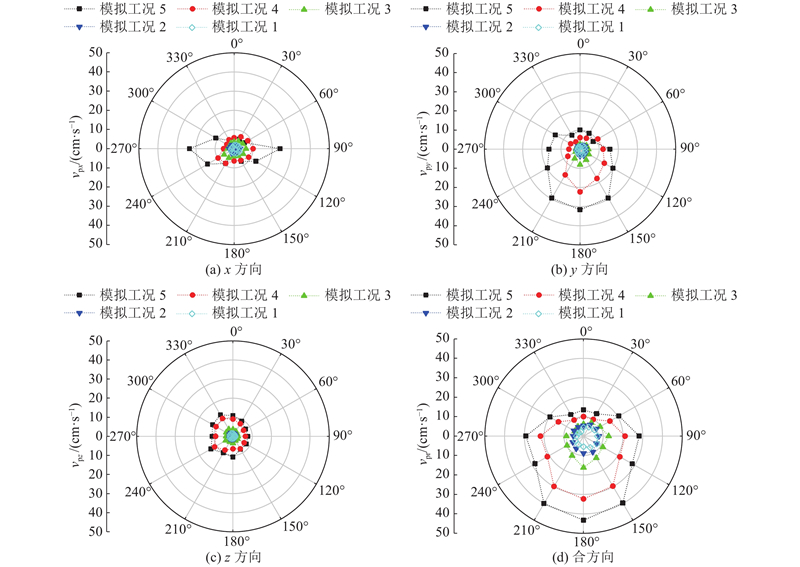

图 10  管道截面振速分布数值模拟结果

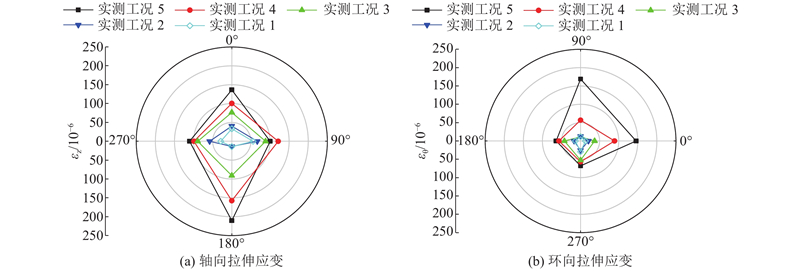

图 11  实测管道截面应变分布图

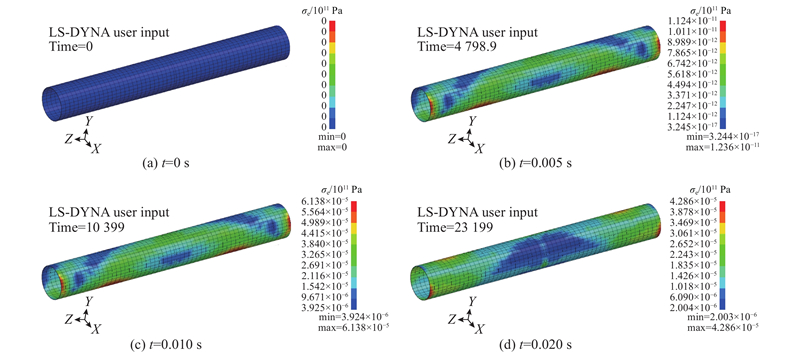

图 12  管道有效应力分布图
图 13  截面有效应力分布示意图
图 14  管道与地表振动速度关系示意图
图 15  有效应力与振速关系示意图
h /m vp /(cm·s?1 vg /(cm·s?1 K
0.5 27.56 45.320 0.60
1.0 33.35 43.340 0.76
1.5 38.15 40.120 0.95
2.0 43.99 37.123 1.18
2.5 50.35 33.330 1.51
3.0 59.45 28.140 2.11
表 5  不同管道埋深下的振速统计

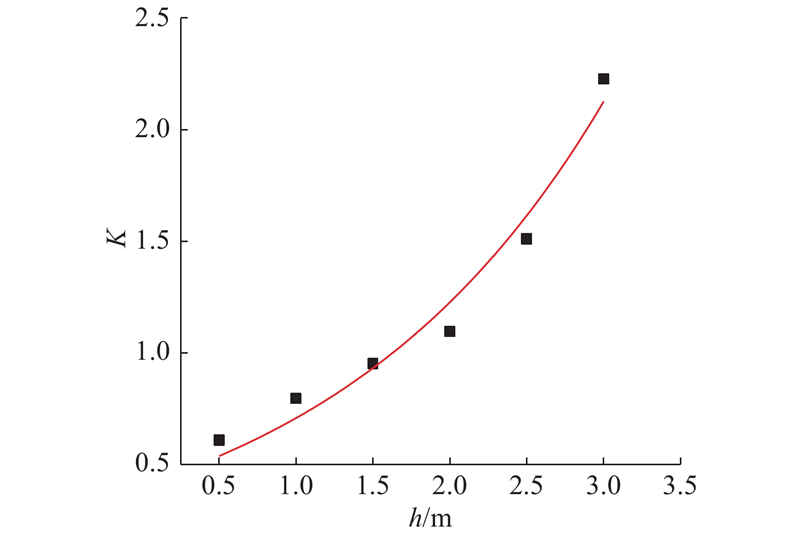

图 16  管表比与埋深关系示意图
