浙江大学学报(工学版)
Journal of ZheJiang University (Engineering Science)  2019, Vol. 53 Issue (7): 1415-1422    DOI: 10.3785/j.issn.1008-973X.2019.07.022
Traffic Engineering, Civil Engineering
Influencing factors on infiltration rate of heating rooms in hot summer and cold winter zone
Jian GE(),Deng-hui WANG,Kang ZHAO*()
College of Civil Engineering and Architecture, Zhejiang University, Hangzhou 310058, China
Download: HTML     PDF(1770KB) HTML
Export: BibTeX | EndNote (RIS)

Abstract

The flow rate of air infiltration and corresponding influencing factors were measured and analyzed. The air exchange rates with different heating methods and temperature difference between the indoor and outdoor air were tested in the experiment room by using the tracer gas method. The test results show that the air exchange rate in heating room increases by 35%-40% compared with that without heating when the temperature difference between the room and the outside reaches 6-8 °C under the same conditions of the airtightness of doors and windows. As to the influence of the heating methods on the air exchange rate, it is slightly larger when the room is heated by supplying hot air than that in the room with radiant floor heating methods. The increase in the air infiltration caused by space heating should be considered when designing the residential heating system in this region.

Key words： hot summer and cold winter zone      air infiltration rate      tracer gas method      warm-air heating      radiant floor heating
Received: 23 October 2018      Published: 25 June 2019
CLC:  TU 111
Corresponding Authors: Kang ZHAO     E-mail: gejian1@zju.edu.cn;zhaok@zju.edu.cn
Service
E-mail this article
Add to my bookshelf
Add to citation manager
E-mail Alert
RSS
Articles by authors
Jian GE
Deng-hui WANG
Kang ZHAO
Cite this article:

Jian GE,Deng-hui WANG,Kang ZHAO. Influencing factors on infiltration rate of heating rooms in hot summer and cold winter zone. Journal of ZheJiang University (Engineering Science), 2019, 53(7): 1415-1422.

URL:

http://www.zjujournals.com/eng/10.3785/j.issn.1008-973X.2019.07.022     OR     http://www.zjujournals.com/eng/Y2019/V53/I7/1415


夏热冬冷地区供暖房间冷风渗透影响因素

对夏热冬冷地区住宅房间供暖时的室外冷风渗透量及影响因素开展实测研究. 采用示踪气体法，在实验房间中测试不同供暖方式及室内外温差情况下，房间换气次数的变化规律. 测试结果表明，在相同的门窗密闭情况下，当供暖房间室内、外温差达到6~8 °C时，换气量比无供暖时增加35%~40%；在相同的室内、外温差下，采用对流送风方式时的房间换气次数略大于采用地板辐射供暖时的换气次数；在该地区设计住宅供暖系统时，应考虑采用不同的供暖方式对室内、外温差引起的渗风量增加的影响.


关键词： 夏热冬冷地区,  渗风,  示踪气体法,  送风供暖,  辐射供暖

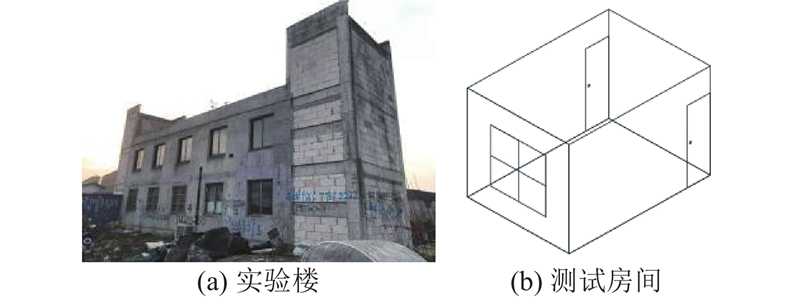

Fig.1 Experimental platform and testing room

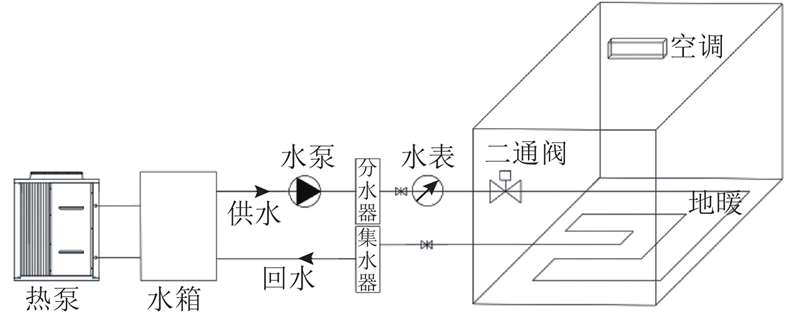

Fig.2 Diagram of heating system
测试参数 仪器型号 精度
注：1）该型号CO2检测仪用于验证测试房间CO2的均匀性.
$\varphi$(CO2) Telaire 7001 ±5×10?5或±5%
$\varphi$(CO2) WEZY-11） ±7.5×10?5
温度 HOBO U12 ± 0.35 °C
风速 WFDYZY-1 ± 0.05 m/s或5%
Tab.1 Test instruments and accuracy

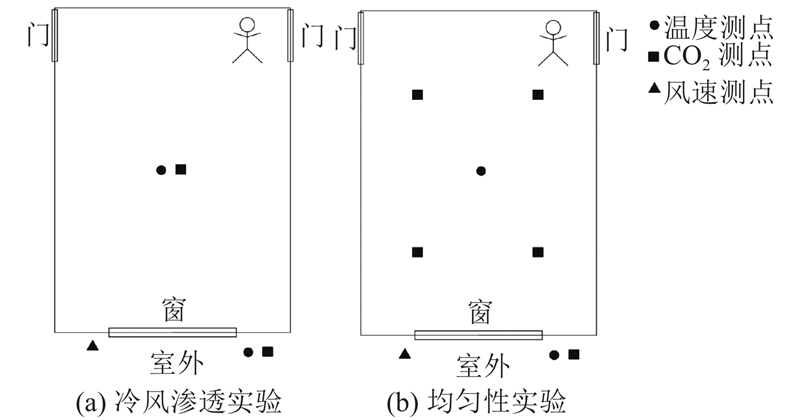

Fig.3 Location of measuring points
Fig.4 Comparison of CO2 volume fraction at different height
h/m δ/% h/m δ/%
0.7 2.8 1.5 2.8
1.2 2.7 2.0 2.9
Tab.2 Average deviation of CO2 volume fraction at different height

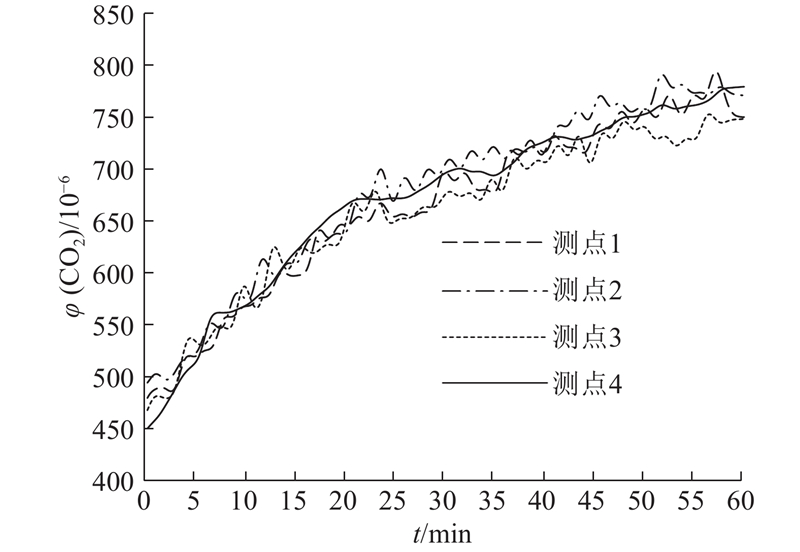

Fig.5 Variation of CO2 volume fraction at different location
位置 δ 位置 δ
测点1 1.0 测点3 1.8
测点2 1.8 测点4 1.0
Tab.3 Average deviation of CO2 volume fraction at each point
位置 n/h?1 δ/%
测点1 1.037 1.4
测点2 0.974 4.7
测点3 1.109 8.5
测点4 0.969 5.2
平均值 1.022 ?
Tab.4 Value of air change rate calculated according to each point’s CO2 volume fraction
Fig.6 Window seams between sealed and unsealed sliver seals

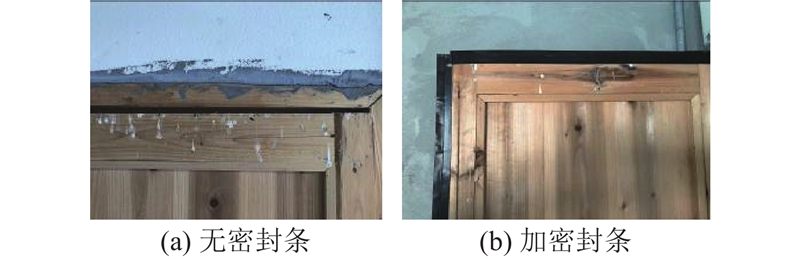

Fig.7 Door seams between sealed and unsealed seal strips
工况 窗的密闭情况 门的密闭情况
Ⅰ 设置毛条，无缝隙 设置胶条，无缝隙
Ⅱ 无毛条，缝隙面积约为29.2 cm2 设置胶条，无缝隙
Ⅲ 设置毛条，无缝隙 无胶条，缝隙面积约为72.0 cm2
Ⅳ 无毛条，缝隙面积约为29.2 cm2 无胶条，缝隙面积约为72.0 cm2
Tab.5 Cases with different airtightness of doors and windows

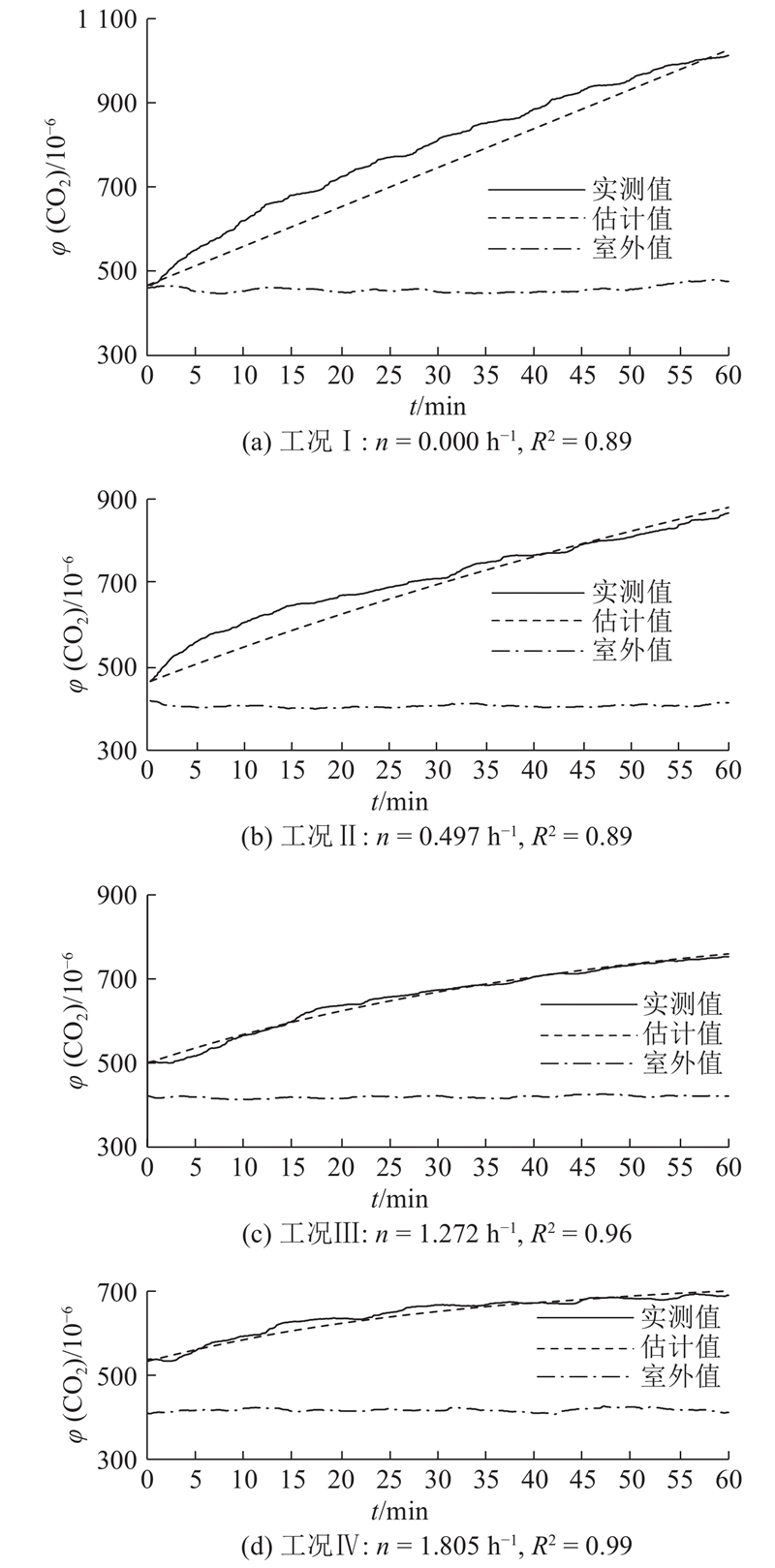

Fig.8 Variation of indoor and outdoor CO2 volume fraction with different airtightness of doors and windows
工况 θin/°C θout/°C Δθ/°C $\bar v$/（m·s?1） n/h?1
Ⅰ 30.5 24.4 6.1 0.1 0.000
Ⅱ 28.7 22.5 6.2 1.1 0.497
Ⅲ 30.4 24.9 5.5 0.2 1.272
Ⅳ 30.7 24.4 6.3 0.8 1.805
Tab.6 Air exchange rate with different airtightness of doors and windows and corresponding environmental parameters
Fig.9 Variation of indoor and outdoor CO2 volume fraction without heating
工况 供暖形式 θin/°C θout/°C Δθ/°C $\bar v$/（m·s?1） n/h?1
C1 对流送风 27.3 23.8 3.5 0.98 1.114
C2 对流送风 29.4 25.4 4.0 0.23 1.253
C3 对流送风 29.1 24.4 4.7 0.74 1.282
C4 对流送风 27.6 21.3 6.3 0.73 1.420
Tab.7 Air exchange rate with warm-air heating method and corresponding environmental parameters

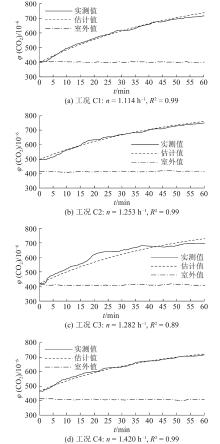

Fig.10 Variation of indoor and outdoor CO2 volume fraction with warm-air heating method

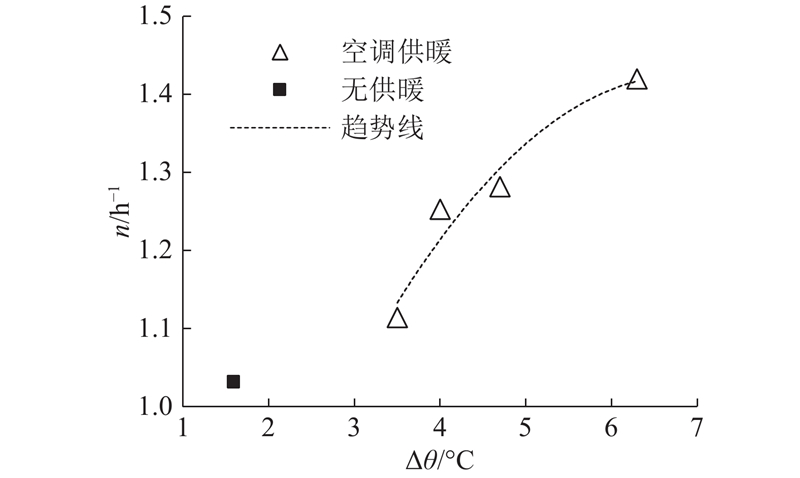

Fig.11 Change of air exchange rate with warm-air heating method
工况 供暖形式 θin/°C θout/°C Δθ/°C $\bar v$/（m·s?1） n/h?1
R1 辐射供暖 26.7 22.3 4.4 0.67 1.183
R2 辐射供暖 27.3 21.8 5.5 0.72 1.332
R3 辐射供暖 28.6 22.3 6.3 0.69 1.395
R4 辐射供暖 27.0 19.8 7.2 0.63 1.414
Tab.8 Air exchange rate with radiant floor heating method and corresponding environmental parameters

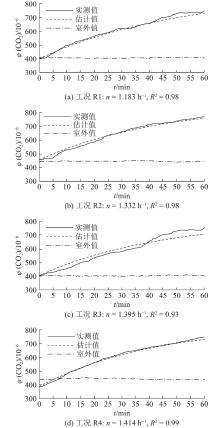

Fig.12 Variation of indoor and outdoor CO2 volume fraction with radiant floor heating method

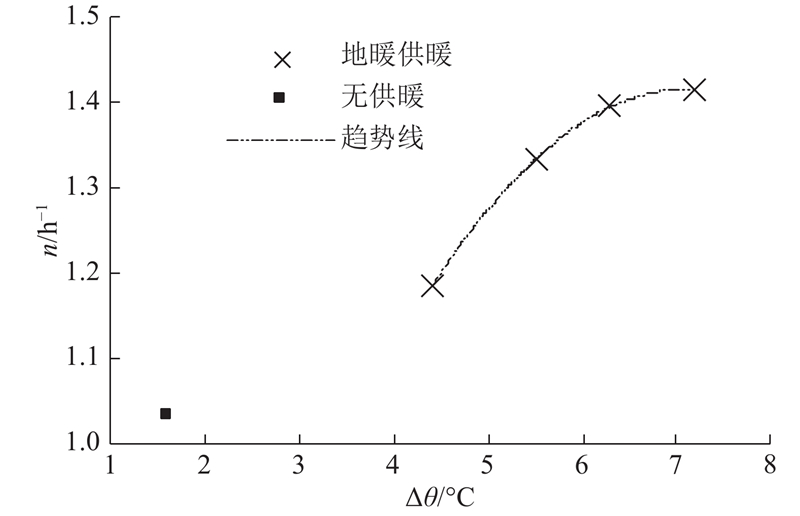

Fig.13 Change of air exchange rate with radiant floor heating method
Fig.14 Comparison of air exchange rate with different space heating methods
[1]   JOKISALO J, KURNITSKI J.Simulation of energy consumption in typical Finnish detached house [R].Espoo, Finland: Helsinki University of Technology, 2002.
[2]   汪静 关于房屋气密性检测的实践与经验分享[J]. 建设科技, 2014, (18): 74- 77
WANG Jing Practice and experience sharing of housing airtightness testing[J]. Construction Science and Technology, 2014, (18): 74- 77
doi: 10.3969/j.issn.1671-3915.2014.18.030
[3]   周翔, 张淇淇, 张静思, 等 上海地区住宅冬季室内环境调研及热需求分析[J]. 暖通空调, 2013, 43 (6): 64- 67
ZHOU Xiang, ZHANG Qi-qi, ZHANG Jing-si, et al Survey and heat demand analysis of winter residential indoor environment in Shanghai[J]. Heating Ventilating and Air Conditioning, 2013, 43 (6): 64- 67
[4]   WU X, FANG L, OLESEN B W, et al Comparison of indoor air distribution and thermal environment for different combinations of radiant heating systems with mechanical ventilation systems[J]. Building Services Engineering Research and Technology, 2018, 39 (1): 81- 97
doi: 10.1177/0143624417710105
[5]   MARQUEZ A A, LOPEZ J M C, HERNANDEZ F F, et al A comparison of heating terminal units: fan-coil versus radiant floor, and the combination of both[J]. Energy and Buildings, 2016, 138 (1): 621- 629
[6]   ASHRAE. 2009 ASHRAE handbook: fundamentals [M]. Atlanta: American Society of Heating, Refrigerating and Air-Conditioning Engineers, 2009.
[7]   李晓锋, 朱颖心. 示踪气体测量技术基本问题分析(一): 原理、办法与测量设备[C] // 全国暖通空调制冷1998年学术文集. 北京: 中国建筑工业出版社, 1998: 69-73.
LI Xiao-feng, ZHU Ying-xin. Analysis of basic problems in tracer gas measurement technology (I): principles, methods and measuring equipment [C] //National Academic Collection of HVAC. Beijing: China Architecture and Building Press, 1998: 69-73.
[8]   LAUSSMANN D, HELM D. Air change measurements using tracer gases. chemistry, emission control, radioactive pollution and indoor air quality [M/OL]. Rijeka: InTech, 2011: 365-404. https://edoc.rki.de/bitstream/handle/176904/973/27OA2TGPWvv0.pdf.
[9]   FUJIKAWA M, YOSHINO H, TAKAKI R, et al Experimental study of the multi-zonal airflow measurement method using human expiration[J]. Journal of Environmental Engineering, 2010, 75 (652): 499- 508
doi: 10.3130/aije.75.499
[10]   齐美薇, 李晓锋, 黄河 示踪气体法利用人体作为CO2释放源测量宿舍换气次数的方法探究 [J]. 建筑科学, 2013, 29 (6): 52- 57
QI Mei-wei, LI Xiao-feng, HUANG He Discussion on measuring ventilation rates of dorms through tracer gas method with human body as CO2 release source [J]. Building Science, 2013, 29 (6): 52- 57
doi: 10.3969/j.issn.1002-8528.2013.06.011
[11]   李严, 李晓锋 北京地区居住建筑夏季自然通风实测研究[J]. 暖通空调, 2013, (12): 46- 50
LI Yan, LI Xiao-feng Field testing of natural ventilation of residential buildings in Beijing in Summer[J]. Heating Ventilating and Air Conditioning, 2013, (12): 46- 50
[12]   GUO L Y, LEWIS O J Carbon dioxide concentration and its application on estimating the air change rate in typical Irish houses[J]. The International Journal of Ventilation, 2007, 6 (3): 235- 245
doi: 10.1080/14733315.2007.11683780
