浙江大学学报(工学版)  2019, Vol. 53 Issue (12): 2437-2444    DOI: 10.3785/j.issn.1008-973X.2019.12.023
环境工程
不同化学氧化剂对土壤中多环芳烃的降解效果
陈倩1(),蔡武1,陈杰2,赵虎彪1,李昌鑫1,何云峰1,*()
1. 浙江大学 环境与资源学院,浙江 杭州 310058
2. 杭州博盛环保科技有限公司,浙江 杭州 310014
Degradation effects of different chemical oxidants on polycyclic aromatic hydrocarbons in soil
Qian CHEN1(),Wu CAI1,Jie CHEN2,Hu-biao ZHAO1,Chang-xin LI1,Yun-feng HE1,*()
1. College of Environmental and Resource Sciences, Zhejiang University, Hangzhou 310058, China
2. Hangzhou Bo Sheng Environmental Science and Technology Co. Ltd, Hangzhou 310014, China
 全文: PDF(798 KB)   HTML
摘要:

选取被多环芳烃(PAHs)污染的土壤作为试验样本,应用4种化学氧化剂降解土壤中16种多环芳烃,对比不同氧化剂的降解效果,筛选最佳氧化剂并优化氧化条件. 结果表明:采用双氧水、改性Fenton试剂、高锰酸钾、活化过硫酸钠均可以降解土壤中的多环芳烃,其降解效率依次为:高锰酸钾(94.06%)>活化过硫酸钠(82.79%)>改性Fenton(81.15%)>双氧水(72.91%). 高锰酸钾能高效、稳定地降解16种多环芳烃,对单个多环芳烃的降解率均在80%以上,土壤中多环芳烃的残留量均在标准范围内. 当添加量为2.5 mol/kg、水土比为7.5、反应时间为48 h时,高锰酸钾降解多环芳烃的效率最高,达到95.96%. 化学氧化剂可以有效降解土壤中的多环芳烃,高锰酸钾的降解效果最好,具有较好的应用前景.

关键词: 多环芳烃(PAHs)化学氧化降解效果高锰酸钾
Abstract:

The soil polluted by polycyclic aromatic hydrocarbons (PAHs) was taken as test samples, and four types of chemical oxidants were applied to remove 16 PAHs from the soil. Their degradation effects were compared to select the most effective oxidant to remove 16 PAHs, and then optimize the oxidation conditions for this oxidant. Based on the results, potassium permanganate, activated sodium persulfate, modified Fenton, and hydrogen peroxide proved to be effective for degrading PAHs, and the degradation rate was 94.06%, 82.79%, 81.15% and 72.91%, respectively. Specifically, potassium permanganate showed remarkable improvement in degradation efficiency compared with other oxidants. The degradation rate of potassium permanganate for each PAH was more than 80%, and the residual PAHs contents in soil were below the standard limit values. What’s more, the best remediation performance of potassium permanganate achieved 95.96% with oxidant dosage of 2.5 mols per 1 kg soil, liquid/solid ratio of 7.5, and the contact time of 48 h. The chemical oxidants are availible to degrade PAHs efficiently from contaminated soil, and potassium permanganate appears to have great prospects of application to degrade PAHs for its best performance on PAHs degradation.

Key words: PAHs    chemical oxidation    degradation effects    potassium permanganate
收稿日期: 2018-10-30 出版日期: 2019-12-17
CLC:  X 53
基金资助: 国家自然科学基金资助项目(51675473);国家创新群体资助项目(51521064);高校基本科研专项资金资助项目(2018XZZX001-04)
通讯作者: 何云峰     E-mail: 21614045@zju.edu.cn;yfhe@zju.edu.cn
作者简介: 陈倩(1993—),女,硕士生,从事土壤污染修复研究. orcid.org/0000-0001-8845-352X. E-mail: 21614045@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
陈倩
蔡武
陈杰
赵虎彪
李昌鑫
何云峰

引用本文:

陈倩,蔡武,陈杰,赵虎彪,李昌鑫,何云峰. 不同化学氧化剂对土壤中多环芳烃的降解效果[J]. 浙江大学学报(工学版), 2019, 53(12): 2437-2444.

Qian CHEN,Wu CAI,Jie CHEN,Hu-biao ZHAO,Chang-xin LI,Yun-feng HE. Degradation effects of different chemical oxidants on polycyclic aromatic hydrocarbons in soil. Journal of ZheJiang University (Engineering Science), 2019, 53(12): 2437-2444.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.12.023        http://www.zjujournals.com/eng/CN/Y2019/V53/I12/2437

PAHs wB /10?6 PAHs wB /10?6
萘Na 15.63±3.05 苯并[a]蒽BaA 2.58±0.92
苊烯Acy 2.99±0.31 屈Chry 3.84±1.58
苊Ac 2.05±0.12 苯并[b]荧蒽BbF 6.19±1.10
芴Fl 0.89±0.78 苯并[k]荧蒽BkF 2.93±0.14
菲Phen 1.97±0.26 苯并[a]芘BaP 2.87±0.53
蒽An 1.17±0.32 茚并[1,2,3-cd]芘IN 8.95±1.60
荧蒽Flur 3.85±0.93 二苯并[a,h]蒽DA 2.47±1.07
芘Py 1.81±0.95 苯并[g,h,i]芘BP 6.29±1.32
表 1  原始土样中16种多环芳烃的质量分数
氧化剂 试剂 X/(mol·kg?1) V/mL
H2O2 H2O2 2.0 24.0
3.0 23.5
4.0 23.0
5.0 22.5
MF H2O2
FeSO4
柠檬酸
2.0 21.0
3.0 19.0
4.0 17.0
5.0 15.0
Activated Na2S2O Na2S2O8
FeSO4
柠檬酸
2.0 17.0
3.0 13.0
4.0 9.0
5.0 5.0
KMnO4 KMnO4 0.5 18.75
1.0 12.5
1.5 6.25
2.0 0
表 2  实验氧化剂和添加量设置

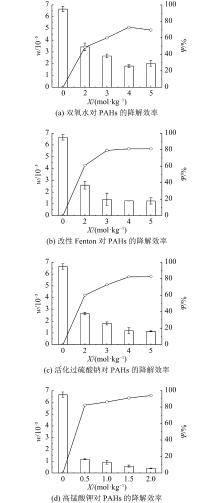

图 1  不同氧化剂对PAHs的降解效率

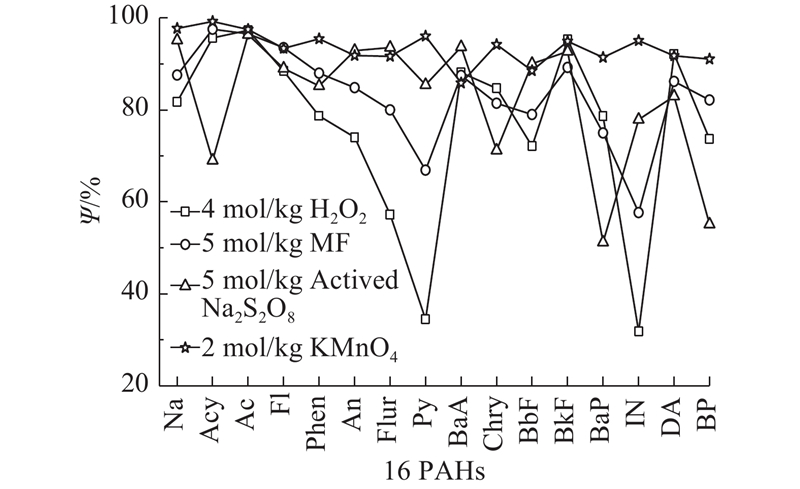

图 2  4种氧化剂对16种多环芳烃的最佳降解效率对比
土壤来源 wB /10?6 氧化剂 X/(mol·kg?1 Ψ/% R t/h 实验方法
钢铁厂 66.47 双氧水 4.0 72.91 5 24 本实验
改性Fenton 5.0 81.15
活化过硫酸钠 5.0 82.79
高锰酸钾 2.0 94.06
沉积物
(煤焦油废水污染)
2 816 双氧水 3.3 96 10/3 至反应结束 文献[8]
改性Fenton 1.7 98
活化过硫酸钠 1.7 88
高锰酸钾 3.3 96
焦化厂 189.0 双氧水 2.0 53 5 24 文献[11]
类Fenton 2.0 80
活化过硫酸钠 4.0 92
高锰酸钾 1.5、2.0 96
工业港口底泥 4.226 改性Fendon 1.25 68.3 25 24 文献[12]
高锰酸钾 26.9 72.8
表 3  不同条件下不同氧化剂对16种多环芳烃的降解效果对比

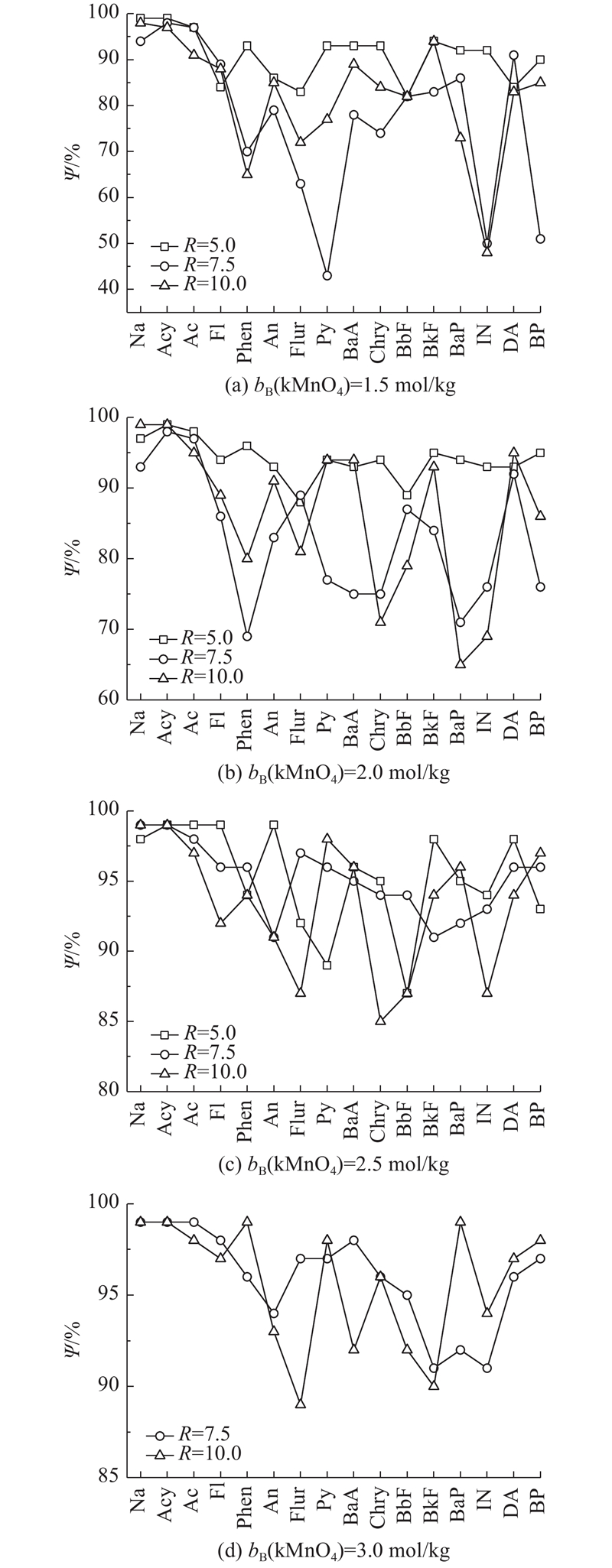

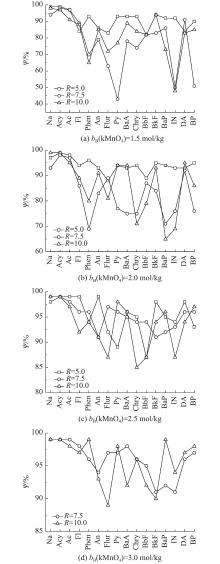

图 3  4种氧化剂添加量固定、水土比不同条件下高锰酸钾对16种 PAHs的降解效率对比

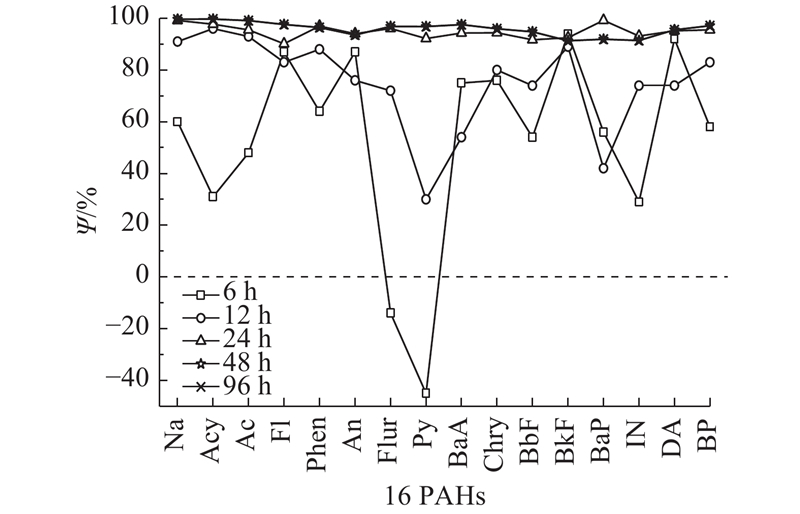

图 4  不同接触时间下高锰酸钾对16种PAHs的降解效率
参数 R X t
注:*表示在 0.05 层上显著(双尾),**表示在 0.01 层上显著(双尾)
Ψ的相关系数 ?0.033 0.463* 0.630**
Ψ的显著性(双尾) 0.875 0.029 0.004
表 4  高锰酸钾的降解条件与降解效率的相关性分析
