浙江大学学报(工学版)  2019, Vol. 53 Issue (11): 2154-2162    DOI: 10.3785/j.issn.1008-973X.2019.11.013
计算机技术与控制工程
基于低维约束嵌入的分布参数系统建模
周朝君(),黄明辉,陆新江*()
中南大学 机电工程学院,湖南 长沙 410083
Modeling for distributed parameter systems based on low-dimensional constrained embedding
Chao-jun ZHOU(),Ming-hui HUANG,Xin-jiang LU*()
College of Mechanical and Electrical Engineering, Central South University, Changsha 410083, China
 全文: PDF(1221 KB)   HTML
摘要:

针对分布参数系统受时空耦合特性、强非线性、复杂的能量交换以及未知因素等的影响,难以精确建模的问题,提出基于数据驱动的低维约束嵌入建模方法. 以数据流形分布为基础,考虑数据局部非线性和全局非线性;通过非线性映射和流形学习方法,保证数据局部流形结构的非线性联系;约束非局部流形结构,避免数据在低维空间内发生混乱现象;采用最小二乘支持向量机建立时序模型,获得时间方向上的动态特征,并通过时空整合,重构系统完整的预测模型. 热过程的实验结果表明,所提出的方法能有效建立强非线性分布参数系统的模型,与传统方法对比,具有更强的建模性能与预测能力.

关键词: 分布参数系统强非线性流形学习核方法低维约束最小二乘支持向量机
Abstract:

It is difficult to establish a precise model for the distributed parameter systems (DPSs), which is affected by spatiotemporal coupling characteristic, strong nonlinearity, complex energy exchange and unknown factors. Aiming at this problem, a data-driven based low-dimensional constrained embedding modeling method was proposed. The data local nonlinearity and the global nonlinearity were considered based on the data manifold distribution. By nonlinear mapping and manifold learning methods, the nonlinear connection of local manifold structure was guaranteed and the nonlocal manifold structure was constrained to avoid data chaos in the low-dimensional space. The least squares support vector machine (LS-SVM) was used to establish the temporal series model to obtain the dynamic features in time direction. A complete predictive model of the system was reconstructed by spatiotemporal integration. Experimental results of thermal process show that the proposed method can effectively establish a model of strongly nonlinear DPS. Compared with the traditional method, the proposed method has stronger modeling performance and predictive ability.

Key words: distributed parameter system    strong nonlinearity    manifold learning    kernel method    low-dimensional constraint    least squares support vector machine
收稿日期: 2018-07-30 出版日期: 2019-11-21
CLC:  TP 301
基金资助: 国家自然科学基金资助项目(51675539);中南大学创新驱动计划资助项目(2016CX009,2015CX002);湖南省科技领先人才资助项目(2016RS2015)
通讯作者: 陆新江     E-mail: jun9196@csu.edu.cn;luxj@csu.edu.cn
作者简介: 周朝君(1994—),男,硕士生,从事数据建模研究. orcid.org/0000-0002-6768-3163. E-mail: jun9196@csu.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
周朝君
黄明辉
陆新江

引用本文:

周朝君,黄明辉,陆新江. 基于低维约束嵌入的分布参数系统建模[J]. 浙江大学学报(工学版), 2019, 53(11): 2154-2162.

Chao-jun ZHOU,Ming-hui HUANG,Xin-jiang LU. Modeling for distributed parameter systems based on low-dimensional constrained embedding. Journal of ZheJiang University (Engineering Science), 2019, 53(11): 2154-2162.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.11.013        http://www.zjujournals.com/eng/CN/Y2019/V53/I11/2154

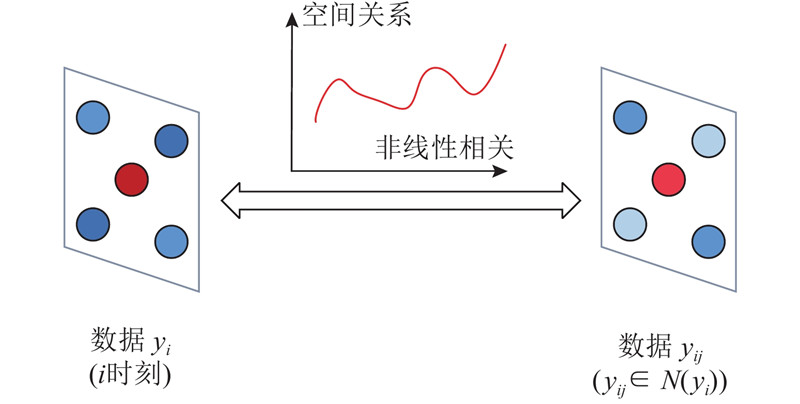

图 1  数据间的非线性联系
图 2  低维约束嵌入建模策略的空间基函数学习过程
图 3  低维约束嵌入方法的时空建模框架
图 4  加热炉构成示意图

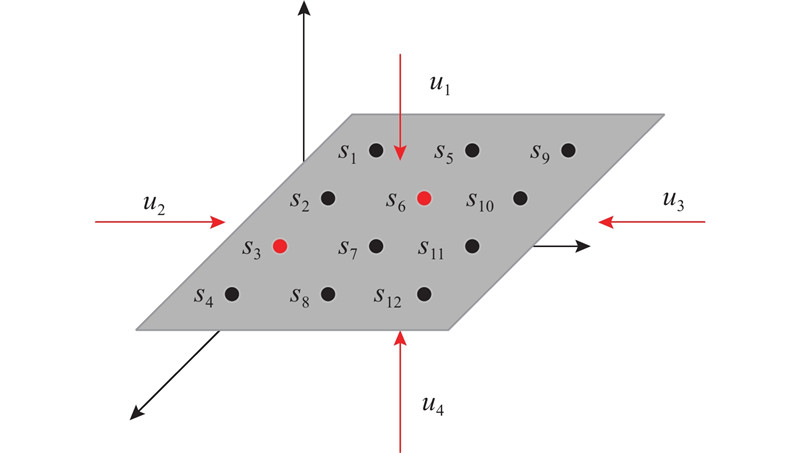

图 5  12个温度传感器的位置分布

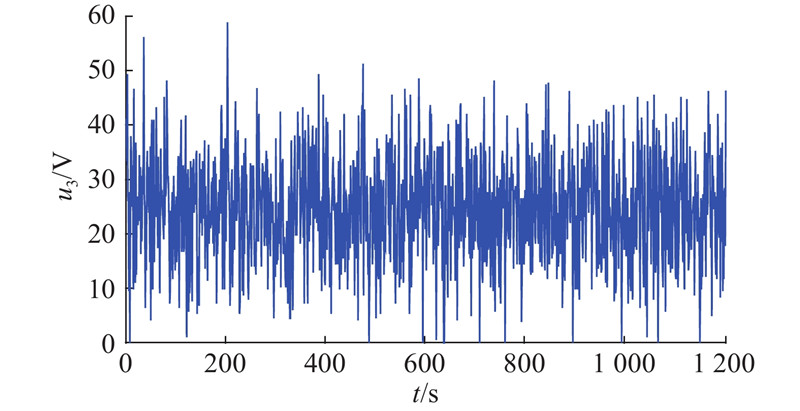

图 6  输入信号 ${u_3}$的幅值
图 7  不同位置处模型预测值与真实值的温度对比

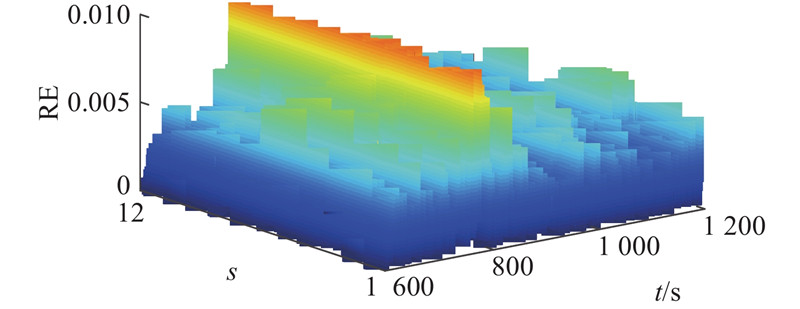

图 8  模型预测与真实值的相对误差
建模方法 建模误差 测试误差
KL 1.177 7 1.267 5
LLE 0.276 1 0.736 1
本研究方法 0.114 2 0.584 0
表 1  3种方法下模型的均方根误差
建模方法 RMSE
s3 s6
KL 2.361 4 0.744 6
LLE 0.631 9 0.643 7
本研究方法 0.457 1 0.562 8
表 2  3种方法下未训练点的均方根误差
1 DONG J, WANG Q, WANG M, et al Data-driven quality monitoring techniques for distributed parameter systems with application to hot-rolled strip laminar cooling process[J]. IEEE Access, 2018, 6: 16646- 16654
doi: 10.1109/ACCESS.2018.2812919
2 AGUILAR-LEAL O, FUENTES-AGUILAR R Q, CHAIREZ I, et al Distributed parameter system identification using finite element differential neural networks[J]. Applied Soft Computing, 2016, 43: 633- 642
doi: 10.1016/j.asoc.2016.01.004
3 PANCHAL S, DINCER I, AGELIN-CHAAB M, et al Thermal modeling and validation of temperature distributions in aprismatic lithium-ion battery at different discharge rates and varying boundary conditions[J]. Applied Thermal Engineering, 2016, 96: 190- 199
doi: 10.1016/j.applthermaleng.2015.11.019
4 WANG J W, WU H N Exponential pointwise stabilization of semi-linear parabolic distributed parameter systems via the Takagi-Sugeno fuzzy PDE model[J]. IEEE Transactions on Fuzzy Systems, 2016, 26 (1): 155- 173
5 ALESSANDRI A, GAGGERO M, ZOPPOLI R Feedback optimal control of distributed parameter systems by using finite-dimensional approximation schemes[J]. IEEE Transactions on Neural Networks and Learning Systems, 2012, 23 (6): 984- 996
doi: 10.1109/TNNLS.2012.2192748
6 DENG H, LI H X, CHEN G R Spectral-approximation-based intelligent modeling for distributed thermal processes[J]. IEEE Transactions on Control Systems Technology, 2005, 13 (5): 686- 700
doi: 10.1109/TCST.2005.847329
7 BARONI S, GIANNOZZI P, TESTA A Green's-function approach to linear response in solids[J]. Physical Review Letters, 1987, 58 (18): 1861- 1864
doi: 10.1103/PhysRevLett.58.1861
8 MITCHELL A R, GRIFFITHS D F. The finite difference method in partial differential equations [M]. London: Wiley, 1980.
9 LUO B, HUANG T W, WU H N, et al Data-driven H∞ infinity control for nonlinear distributed parameter systems [J]. IEEE Transactions on Neural Networks and Learning Systems, 2015, 26 (11): 2949- 2961
doi: 10.1109/TNNLS.2015.2461023
10 JIANG M, DENG H Improved empirical eigenfunctions based model reduction for nonlinear distributed parameter systems[J]. Industrial and Engineering Chemistry Research, 2013, 52 (2): 934- 940
doi: 10.1021/ie301179e
11 PARK H M, CHO D H The use of the Karhunen-Loève decomposition for the modeling of distributed parameter systems[J]. Chemical Engineering Science, 1996, 51 (1): 81- 98
doi: 10.1016/0009-2509(95)00230-8
12 GAY D H, RAY W H Identification and control of distributed parameter systems by means of the singular value decomposition[J]. Chemical Engineering Science, 1995, 50 (10): 1519- 1539
doi: 10.1016/0009-2509(95)00017-Y
13 ZHAO Z J, WANG X G, ZHANG C L, et al Neural network based boundary control of a vibrating string system with input deadzone[J]. Neurocomputing, 2018, 275: 1021- 1027
doi: 10.1016/j.neucom.2017.09.050
14 董辉, 傅鹤林, 冷伍明 支持向量机的时间序列回归与预测[J]. 系统仿真学报, 2006, 18 (7): 1785- 1788
DONG Hui, FU He-lin, LENG Wu-ming Time series regression and prediction of support vector machine[J]. Journal of System Simulation, 2006, 18 (7): 1785- 1788
doi: 10.3969/j.issn.1004-731X.2006.07.014
15 WANG J W, WU H N, YU Y, et al Mixed H2/H∞ fuzzy proportional-spatial integral control design for a class of nonlinear distributed parameter systems [J]. Fuzzy Sets and Systems, 2017, 306: 26- 47
doi: 10.1016/j.fss.2016.01.004
16 QI C K, LI H X A Karhunen-Loève decomposition based Wiener modeling approach for nonlinear distributed parameter processes[J]. Industrial and Engineering Chemistry Research, 2008, 47 (12): 4184- 4192
doi: 10.1021/ie0710869
17 ZHANG R D, TAO J L, LU R Q, et al Decoupled ARX and RBF neural network modeling using PCA and GA optimization for nonlinear distributed parameter systems[J]. IEEE Transactions on Neural Networks and Learning Systems, 2018, 29 (2): 457- 469
doi: 10.1109/TNNLS.2016.2631481
18 QI C K, LI H X Nonlinear dimension reduction based neural modeling for distributed parameter processes[J]. Chemical Engineering Science, 2009, 64 (19): 4164- 4170
doi: 10.1016/j.ces.2009.06.053
19 LU X J, ZOU W, HUANG M H Robust spatiotemporal LS-SVM modeling for nonlinear distributed parameter system with disturbance[J]. IEEE Transactions on Industrial Electronics, 2017, 64 (10): 8003- 8012
20 LU X J, ZOU W, HUANG M H A novel spatiotemporal LS-SVM method for complex distributed parameter systems with applications to curing thermal process[J]. IEEE Transactions on Industrial Informatics, 2016, 12 (3): 1156- 1165
21 LU X J, YIN F, HUANG M H Online spatiotemporal LS-SVM modeling approach for time-vary distributed parameter processes[J]. Industrial and Engineering Chemistry Research, 2017, 56 (25): 7314- 7321
doi: 10.1021/acs.iecr.7b00984
22 ROWEIS S, SAUL L Nonlinear dimensionality reduction by locally linear embedding[J]. Science, 2000, 290 (5500): 2323- 2326
23 MIAO A M , GE Z Q, SONG Z H, et al Nonlocal structure constrained neighborhood preserving embedding model and its application for fault detection[J]. Chemometrics and Intelligent Laboratory Systems, 2015, 142: 184- 196
