不确定性扰动下双足机器人动态步行的自适应鲁棒控制
袁海辉(),葛一敏,甘春标*()
浙江大学 机械工程学院,浙江 杭州 310027
Adaptive robust control of dynamic walking of bipedal robots under uncertain disturbances
Hai-hui YUAN(),Yi-min GE,Chun-biao GAN*()
School of Mechanical Engineering, Zhejiang University, Hangzhou 310027, China
 全文: PDF(4626 KB)   HTML
摘要:

针对不确定性扰动下双足机器人动态步行的鲁棒控制问题,建立不确定性扰动下双足机器人的动力学模型. 将特定庞卡莱映射方法拓展到不确定性扰动下双足机器人的稳定性分析,将机器人随机系统的稳定性分析转化为确定性周期系统的稳定性分析. 基于滑模控制方法,提出自适应滑模控制器. 与以往滑模控制器相比,该控制器无需外部扰动的准确幅值信息. 考虑到双足机器人在实际应用中常会遭遇非平整路面,进一步将该自适应滑模控制器拓展到非平整路面的鲁棒控制:提出碰撞速度不变性条件,基于落地速度控制进行在线轨迹规划,基于自适应滑模控制器对机器人进行反馈控制. 基于三维(3-D)五杆双足机器人进行仿真实验,结果表明,所设计的控制器能有效实现机器人在不确定性扰动下的鲁棒控制.

关键词: 双足机器人动态步行不确定性扰动稳定性分析鲁棒控制
Abstract:

A dynamic model for the bipedal robots under uncertain disturbances was established, aiming at the robust control problem of dynamic bipedal walking under uncertain disturbances. The specific Poincaré mapping method was extended to the stability analysis of bipedal robots under uncertain disturbances, by which the stability analysis of a robot random system was transformed into that of a deterministic and periodic system. An adaptive sliding-mode controller was proposed based on the sliding-mode control method. Compared with the traditional sliding-mode controllers, the proposed controller is applicable even when the magnitude information of the external disturbances is not accurately estimated. Considering that bipedal robots often encounter uneven terrains, the proposed sliding-mode controller was further extended to the robust control of dynamic walking on uneven terrains. For this goal, an invariance condition for impact velocity was presented and the trajectories were planned online based on landing-velocity control. Then, the presented controller was used to enforce feedback control on the robot. Numerical simulations were performed on a three-dimensional (3-D) five-link bipedal robot, and results show that the robust control of dynamic bipedal walking subject to uncertain disturbances can be realized by the proposed controller effectively.

Key words: bipedal robot    dynamic walking    uncertain disturbance    stability analysis    robust control
收稿日期: 2018-09-15 出版日期: 2019-11-21
CLC:  TU 111
基金资助: 国家自然科学基金资助项目(91748126,11772292)
通讯作者: 甘春标     E-mail: hh_yuan@zju.edu.cn;cb_gan@zju.edu.cn
作者简介: 袁海辉(1990—),男,博士生,从事双足机器人研究. orcid.org/0000-0003-3404-4039. E-mail: hh_yuan@zju.edu.cn
服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章
袁海辉
葛一敏
甘春标

引用本文:

袁海辉,葛一敏,甘春标. 不确定性扰动下双足机器人动态步行的自适应鲁棒控制[J]. 浙江大学学报(工学版), 2019, 53(11): 2049-2057.

Hai-hui YUAN,Yi-min GE,Chun-biao GAN. Adaptive robust control of dynamic walking of bipedal robots under uncertain disturbances. Journal of ZheJiang University (Engineering Science), 2019, 53(11): 2049-2057.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.11.001        http://www.zjujournals.com/eng/CN/Y2019/V53/I11/2049

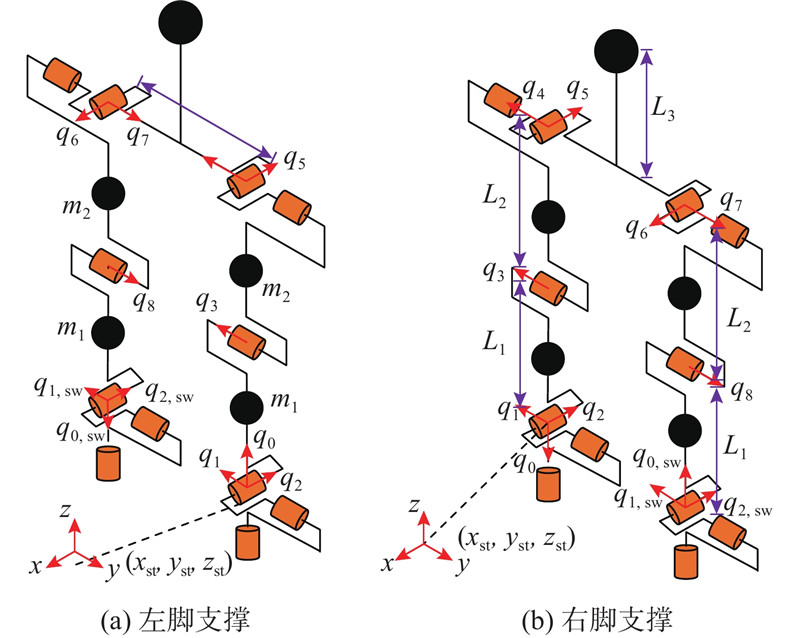

图 1  3-D双足机器人数学模型

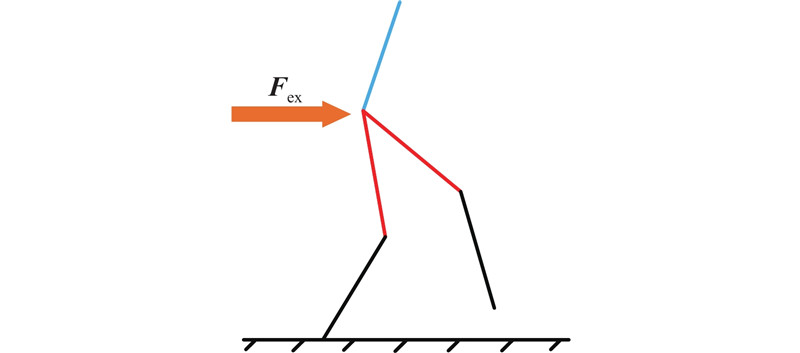

图 2  不确定性扰动作用示意图

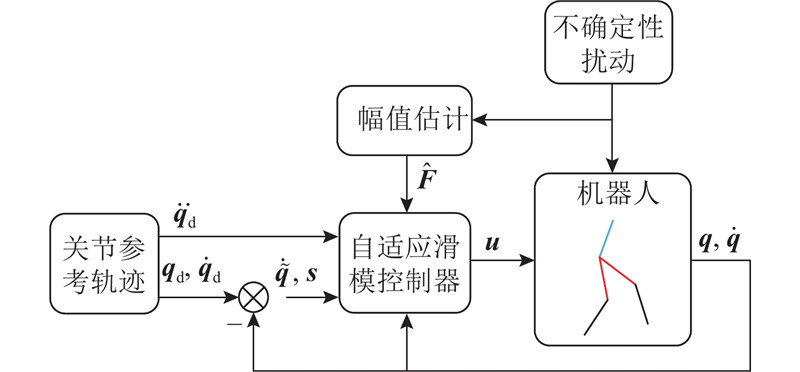

图 3  基于自适应滑模控制器的机器人控制系统框图

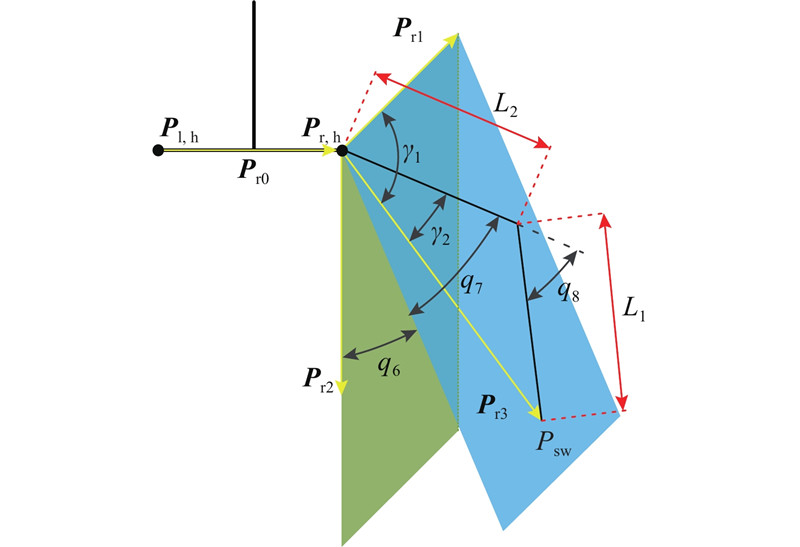

图 4  摆动腿关节的运动学模型

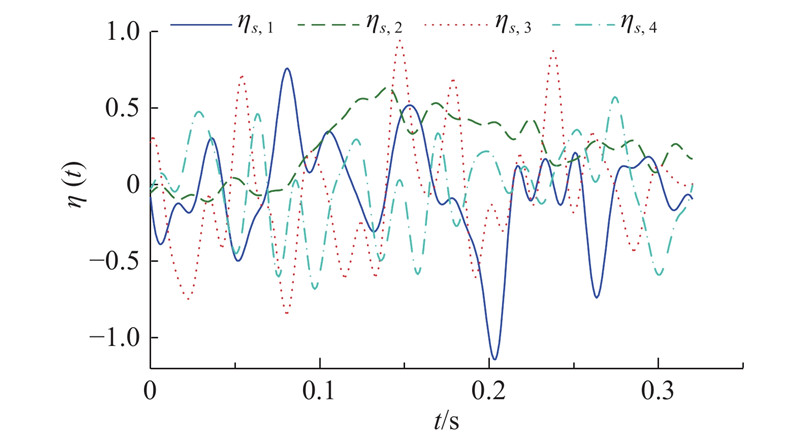

图 5  随机样本随时间的变化

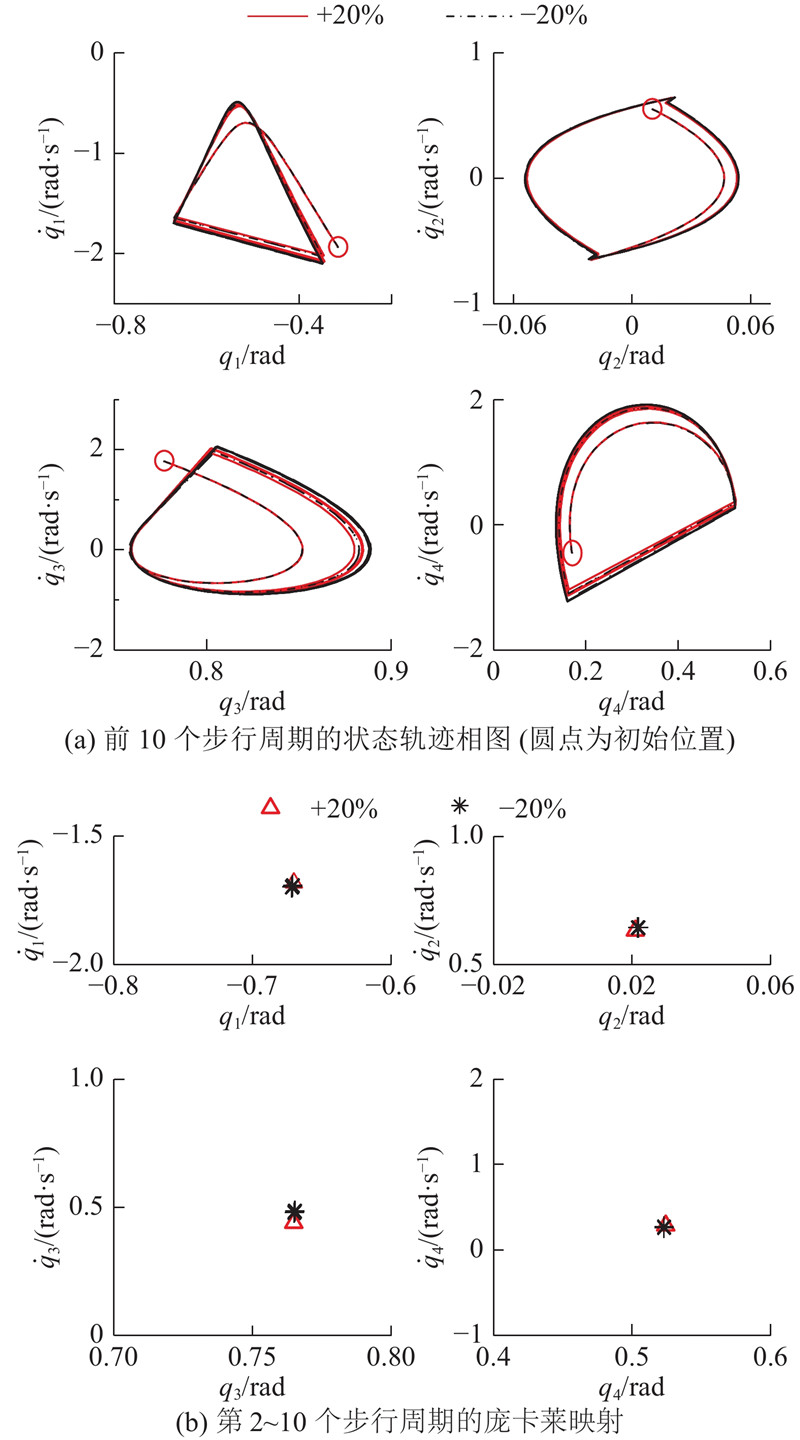

图 6  对外部扰动的幅值估计存在误差时机器人系统的状态轨迹相图与庞卡莱映射

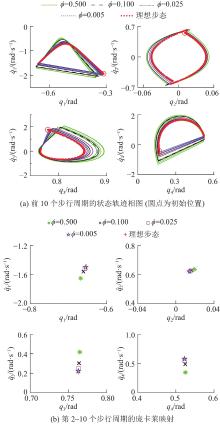

图 7  不同控制器参数下机器人状态轨迹相图与特定庞卡莱映射图

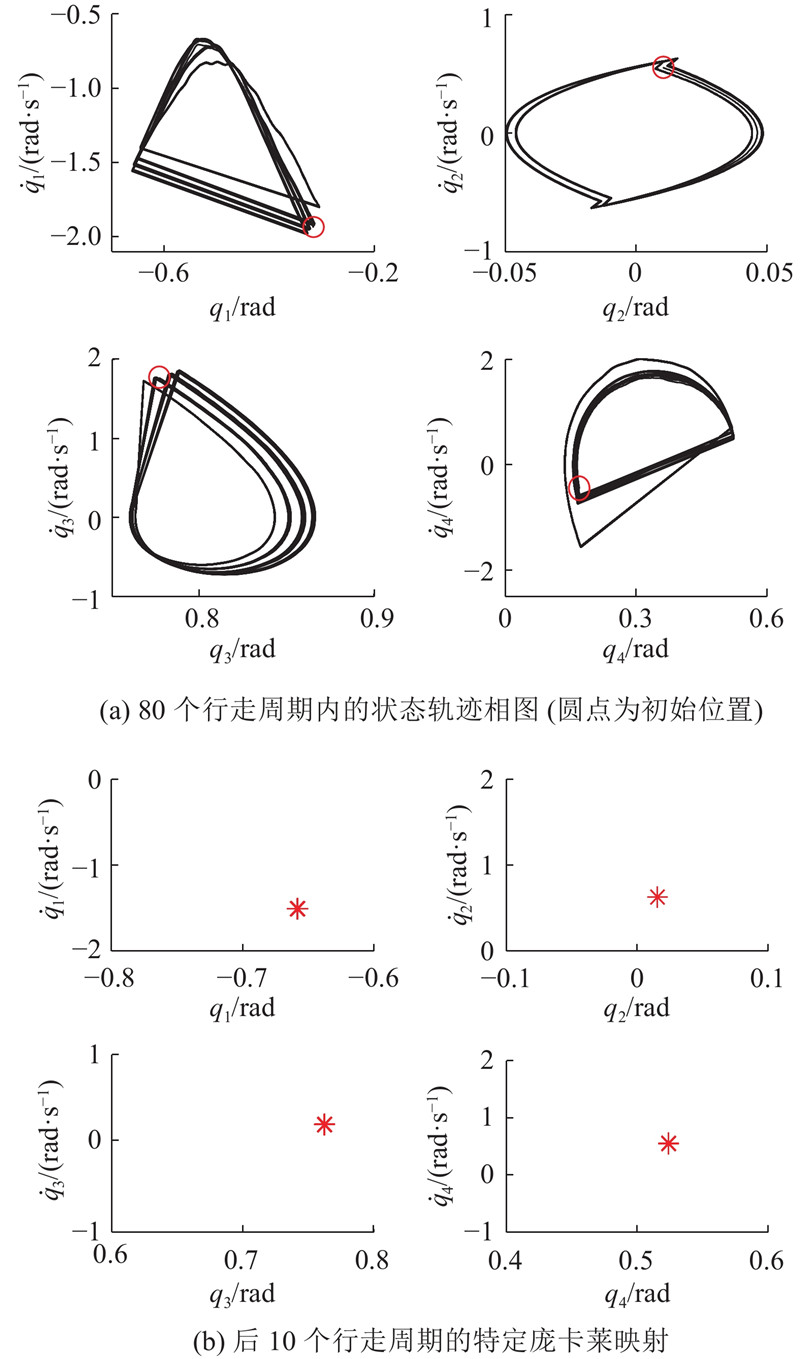

图 8  不确定性扰动作用下机器人状态轨迹相图与特定庞卡莱映射
