浙江大学学报(工学版)
浙江大学学报(工学版)  2019, Vol. 53 Issue (10): 1852-1864    DOI: 10.3785/j.issn.1008-973X.2019.10.002
机械与能源工程
基于多尺度分解和深度学习的锂电池寿命预测
胡天中(),余建波*()
同济大学 机械与能源工程学院，上海 201804
Life prediction of lithium-ion batteries based on multiscale decomposition and deep learning
Tian-zhong HU(),Jian-bo YU*()
School of Mechanical Engineering, Tongji University, Shanghai 201804, China
 全文: PDF(3701 KB)   HTML
摘要：

针对目前的剩余寿命预测（RUL）方法存在模型适应性差及预测不准确等问题，提出多尺度深度神经网络的锂电池健康退化预测模型. 通过经验模态分解（EEMD）方法和相关性分析（CA），将采集到的锂电池能量数据分解为主趋势数据和波动数据；采用深度置信网络（DBN）和长短期记忆网络（LSTM），分别对主趋势与波动数据进行建模；将DBN与LSTM预测结果进行有效集成，得到锂电池的健康预测结果. 实验结果表明，利用该方法能够有效地对锂电池的健康趋势进行拟合，得到准确的RUL预测结果，性能优于其他典型的预测方法.
关键词： 锂电池;  剩余寿命预测 (RUL);  多尺度分析;  深度置信网络;  长短期记忆网络(LSTM)
Abstract:

A health degradation prediction model of lithium batteries based on multi-scale deep neural network was proposed aiming at the problems of poor model adaptability and inaccurate prediction in current remaining useful life (RUL) prediction methods. The collected energy data of lithium-ion batteries were decomposed into main trend data and fluctuation data by ensemble empirical mode decomposition (EEMD) and correlation analysis (CA). Then deep belief network (DBN) and long short-term memory (LSTM) were used to model the main trend and fluctuation data respectively. The predicting outcomes of DBN and LSTM were effectively integrated to obtain the health predicted results of lithium-ion battery. The experimental results show that the method can effectively fit the health trend of lithium-ion batteries and obtain accurate RUL prediction results. The performance of the method is better than other typical prediction methods.
Key words: lithium-ion battery    remaining useful life (RUL)    multiscale analysis    deep belief network    long short-term memory (LSTM)
收稿日期: 2019-05-13 出版日期: 2019-09-30
CLC:  TH 165
通讯作者: 余建波     E-mail: 305122638@qq.com;jbyu@tongji.edu.cn
作者简介: 胡天中（1995—），男，硕士生，从事深度学习与信号处理的研究. orcid.org/0000-0003-3705-7433. E-mail： 305122638@qq.com
服务　　
把本文推荐给朋友
加入引用管理器
E-mail Alert
作者相关文章　　
胡天中
余建波

引用本文:

胡天中,余建波. 基于多尺度分解和深度学习的锂电池寿命预测[J]. 浙江大学学报(工学版), 2019, 53(10): 1852-1864.

Tian-zhong HU,Jian-bo YU. Life prediction of lithium-ion batteries based on multiscale decomposition and deep learning. Journal of ZheJiang University (Engineering Science), 2019, 53(10): 1852-1864.

链接本文:

http://www.zjujournals.com/eng/CN/10.3785/j.issn.1008-973X.2019.10.002    或    http://www.zjujournals.com/eng/CN/Y2019/V53/I10/1852

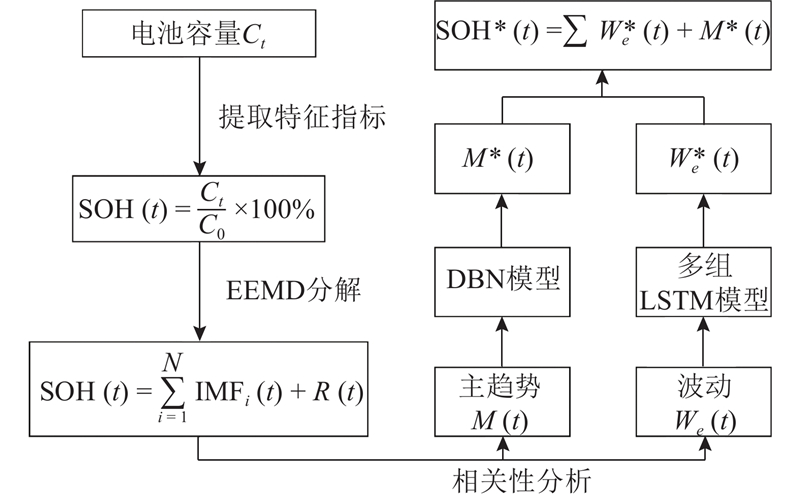

图 1  基于多尺度分解和深度学习的锂电池寿命预测方法

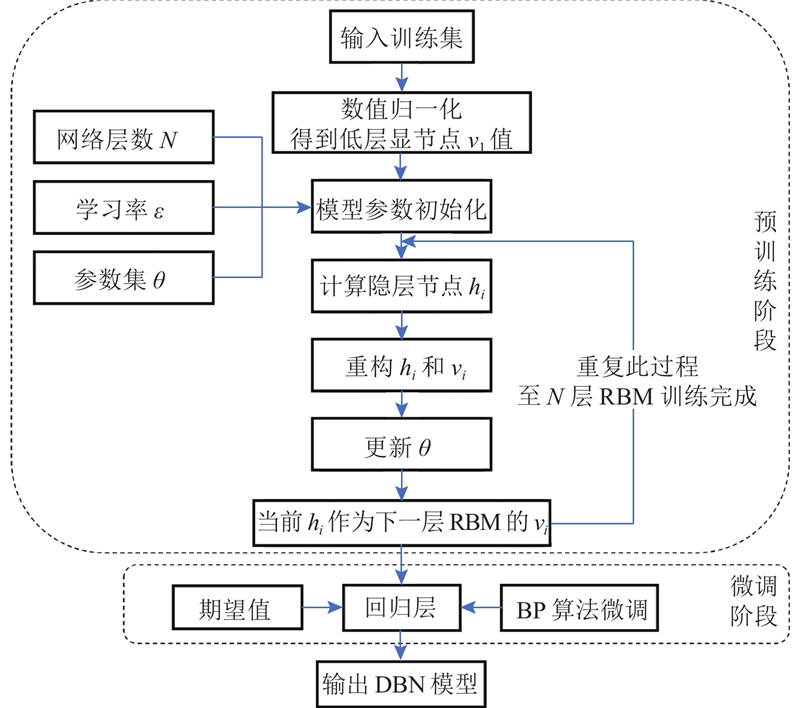

图 2  深度置信网络的训练流程

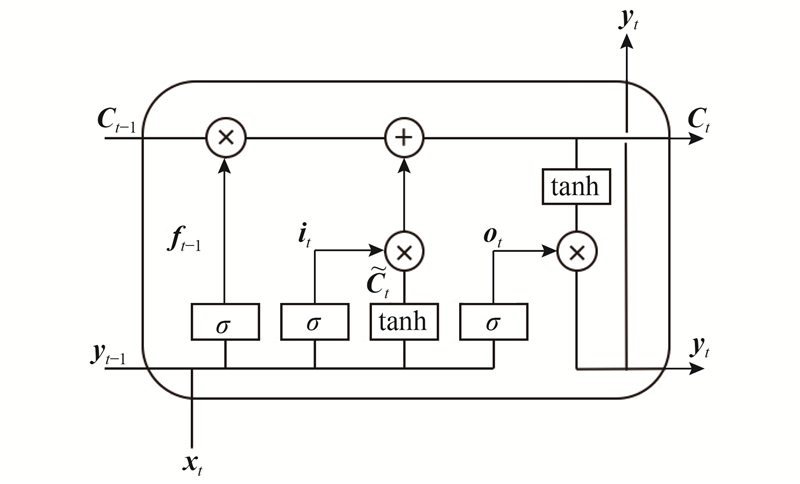

图 3  长短期记忆网络结构
图 4  长短期记忆网络的训练流程
电池编号 AT/°C CC/A DC/A EOC/V EOLC/%
#5 24 1.5 2 2.7 30
#6 24 1.5 2 2.5 30
#7 24 1.5 2 2.2 30
#18 24 1.5 2 2.5 30
表 1  用于预测实验的锂电池参数

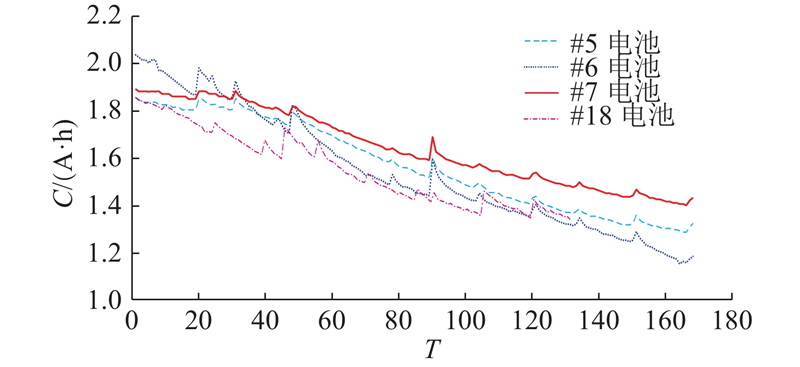

图 5  电池容量的变化曲线
IMFs 数值 IMFs 数值
b 0.042 e 0.152
c 0.107 f 0.691
d 0.150 g 0.878
表 2  本征模态函数的相关系数

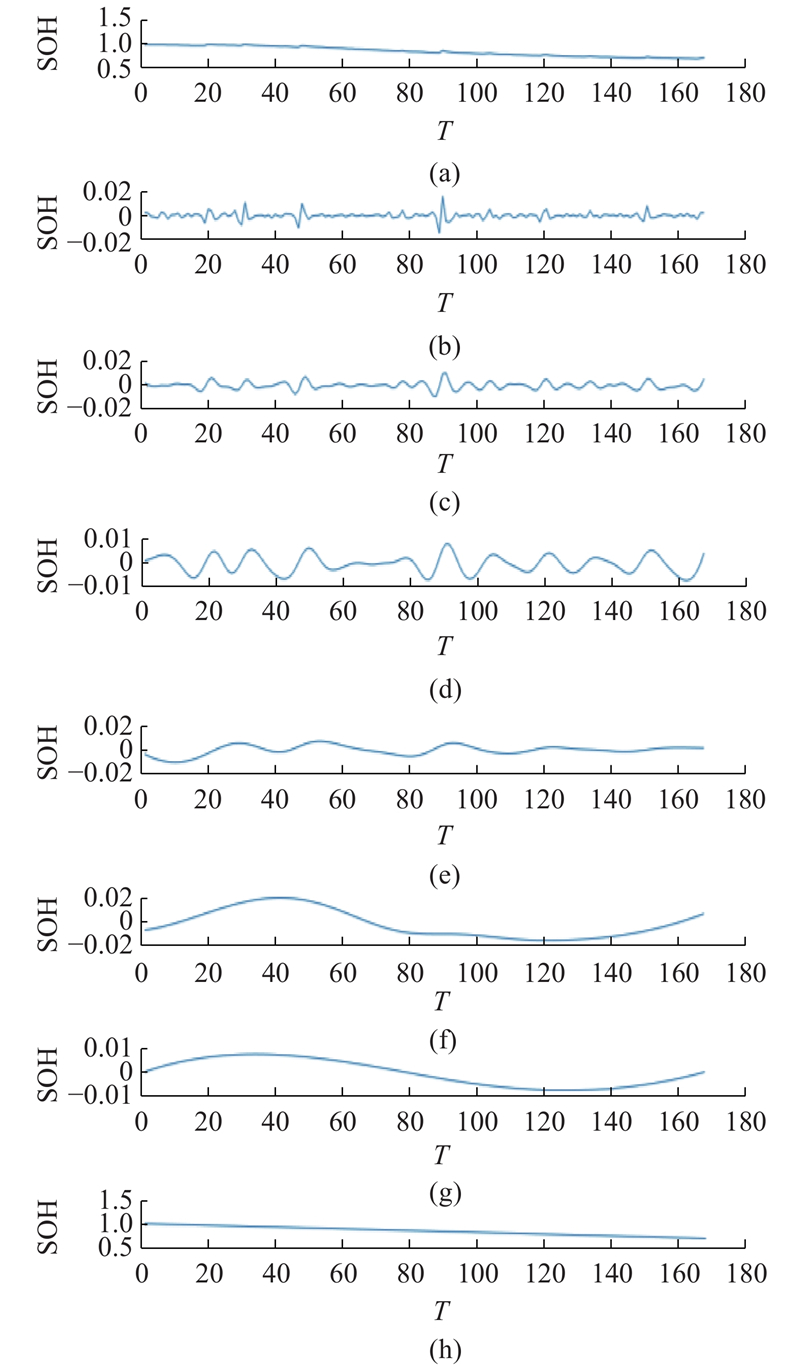

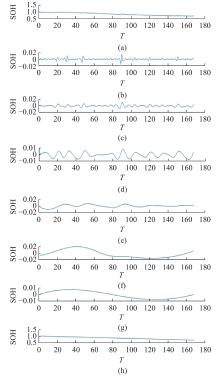

图 6  基于集合经验模态分解的健康状态时间序列
图 7  相关性分析的筛选结果
输入数 输出数 迭代次数 学习率 网络结构
3 1 100 0.001 3-35-25-15-1
表 3  深度置信网络的参数设置
输入数 输出数 细胞数 学习率 迭代次数
8 1 20 0.01 3 000
表 4  长短期记忆网络的参数设置

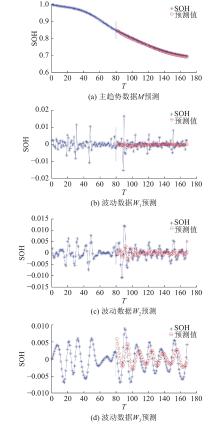

图 8  各个模型的预测结果

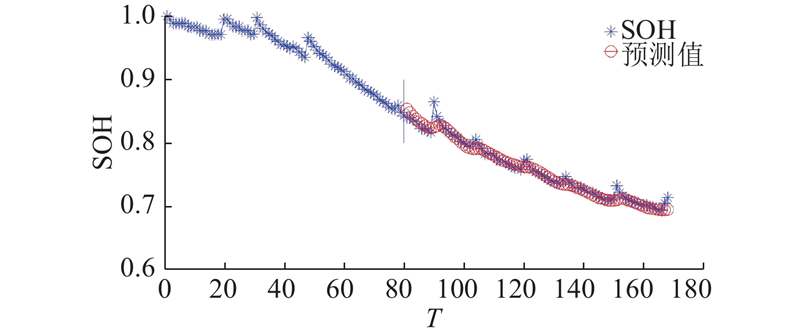

图 9  集成预测结果
多尺度分解 DBN训练 DBN预测 LSTM训练 LSTM预测
3.19 10.41 0.28 1.66 1.08
表 5  预测算法的运行时间
电池编号 AT/°C CC/A DC/A EOC/V EOLC/%
#32 43 1.5 4 2.7 30
表 6  用于高温预测实验的锂电池参数
图 10  高温环境下的预测结果

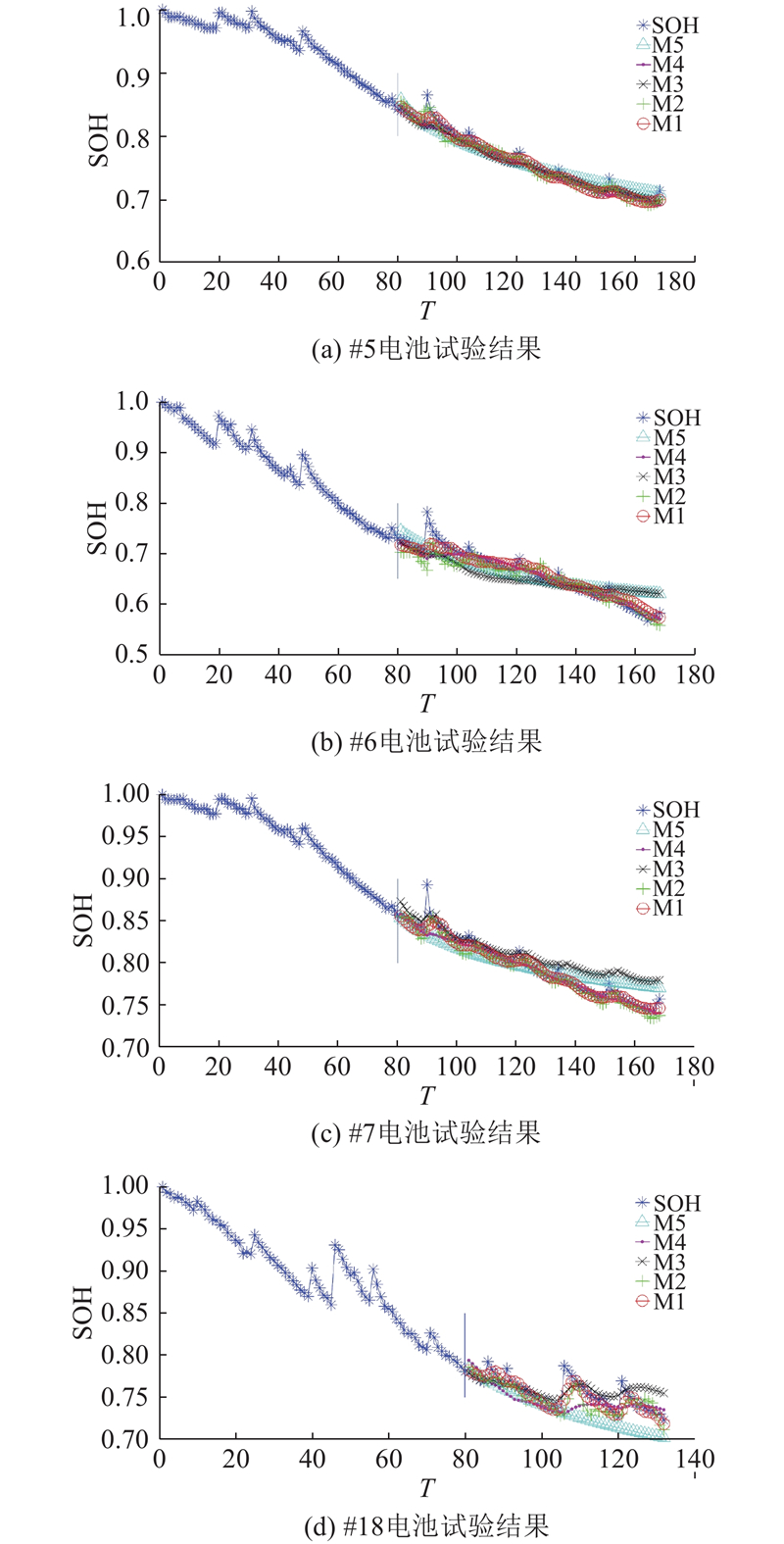

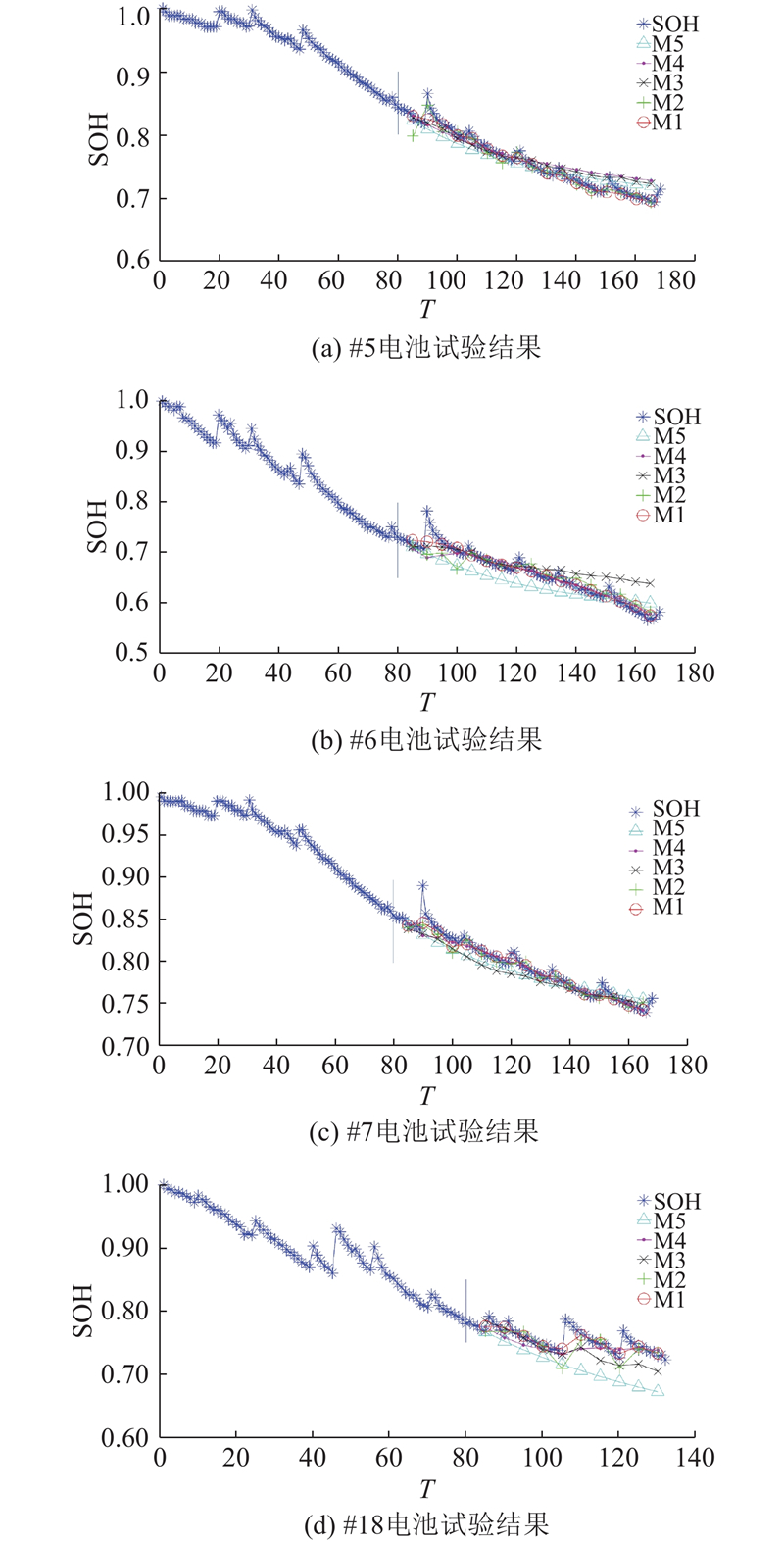

图 11  各个集成模型的一步预测结果

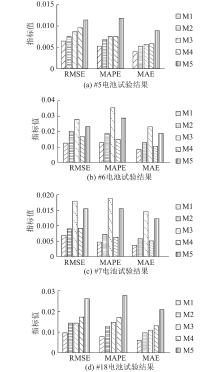

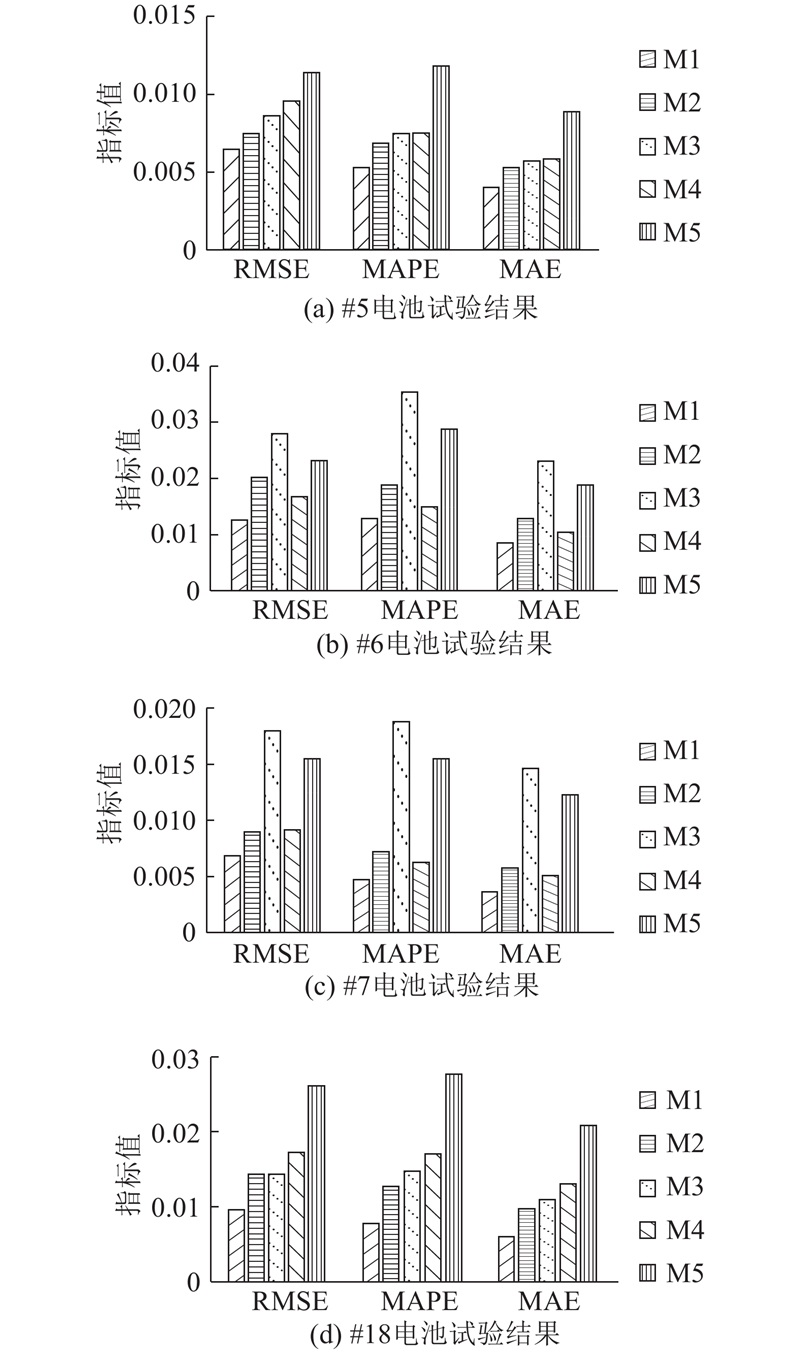

图 12  各个集成模型的一步预测指标值

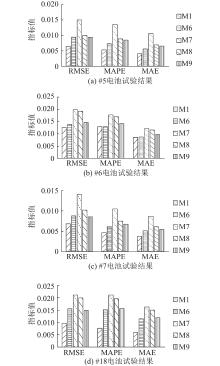

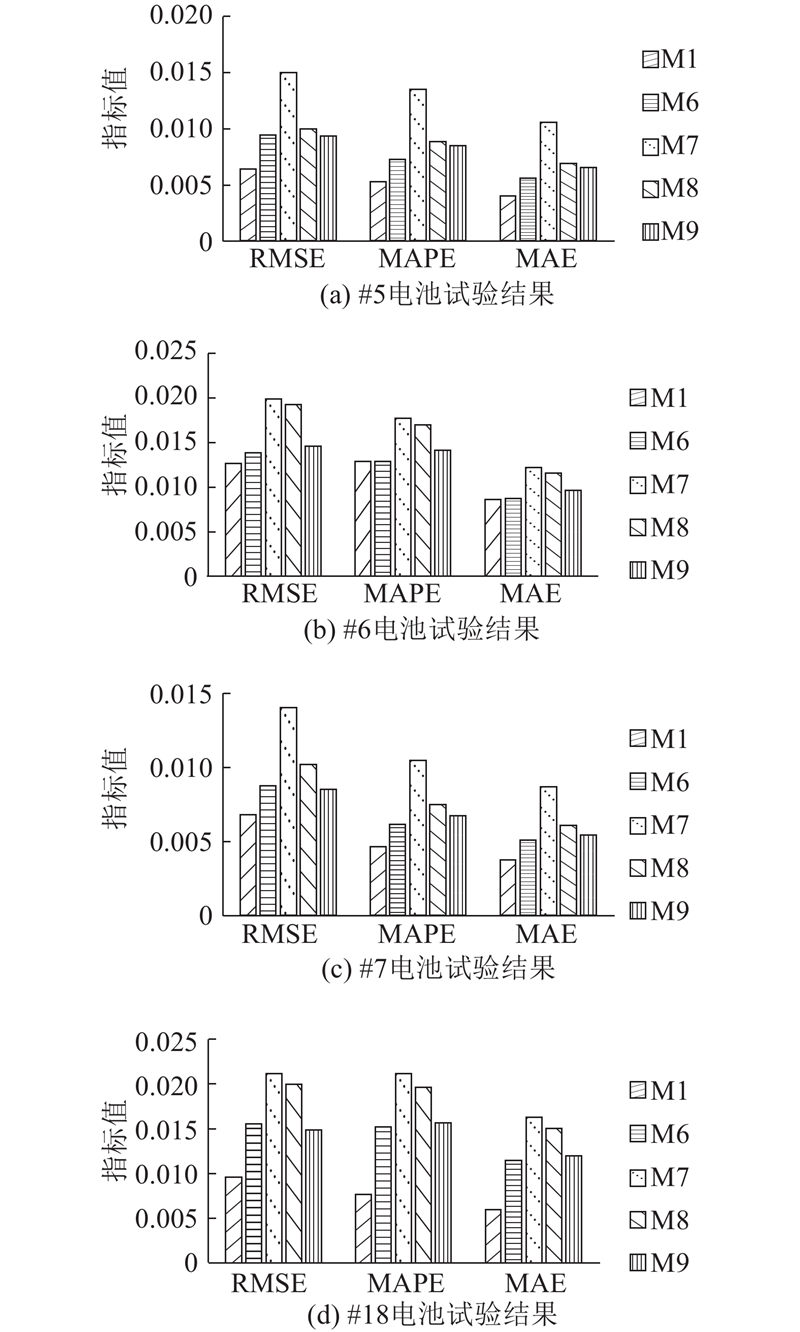

图 13  各个对比模型的一步预测指标值

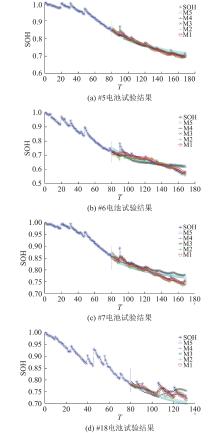

图 14  各个集成模型的5步预测结果

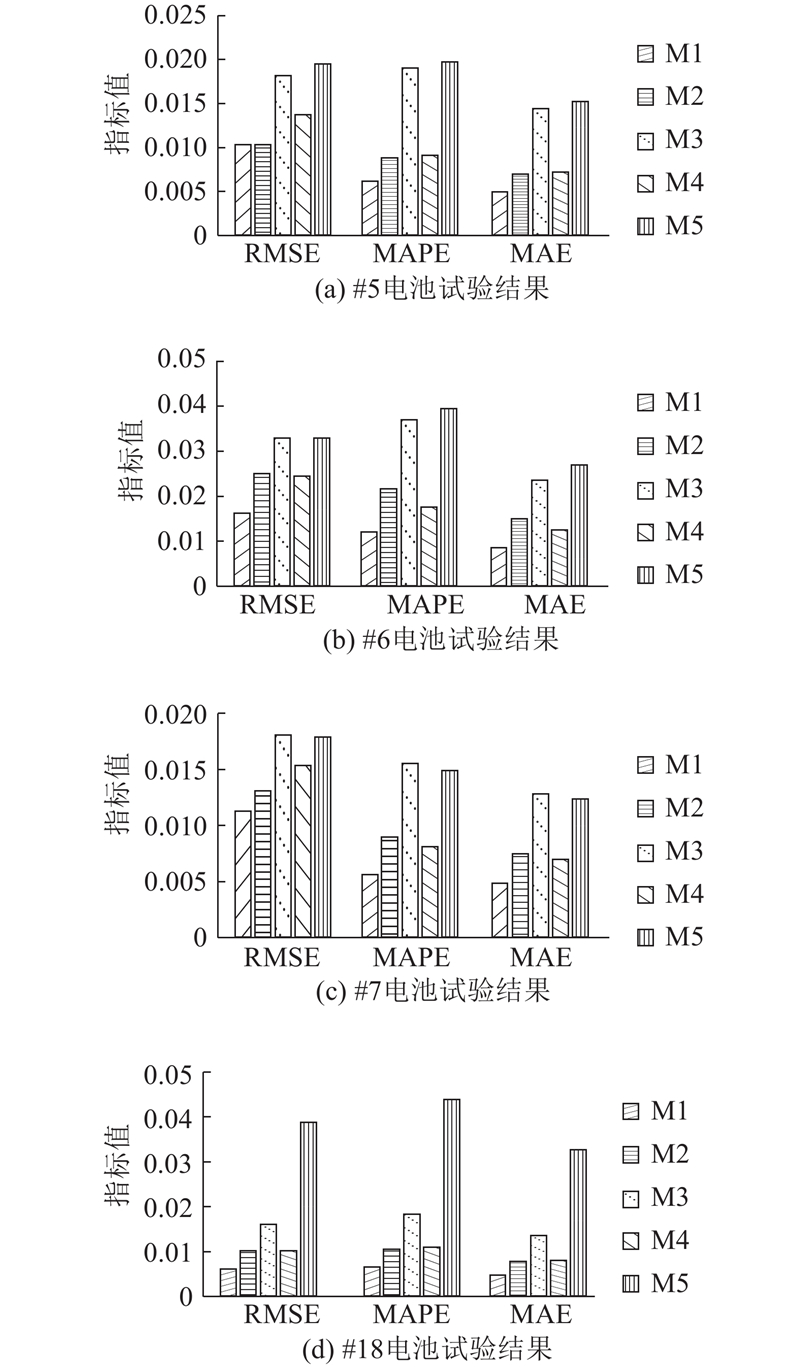

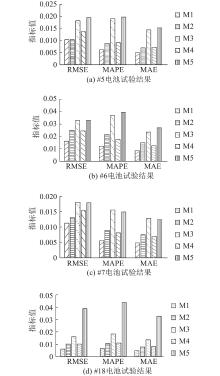

图 15  各个集成模型的5步预测指标值
图 16  各个对比模型的5步预测指标值

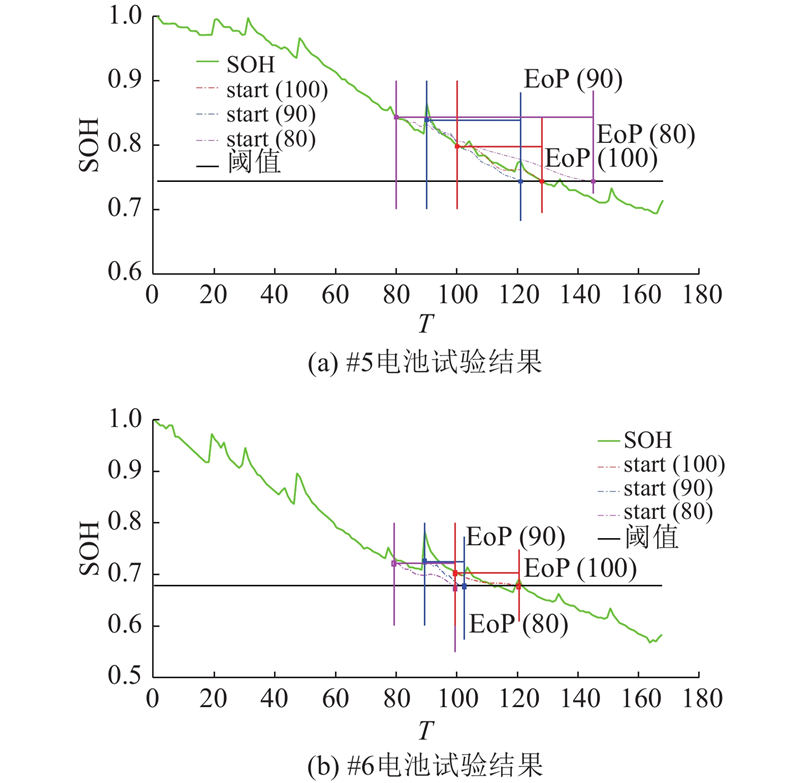

图 17  剩余使用寿命的预测结果
电池编号 SPP EoL EoP PE
#5 80 129 145 16
#5 90 129 121 8
#5 100 129 128 1
#6 80 113 108 13
#6 90 113 106 10
#6 100 113 99 8
表 7  剩余使用寿命的预测结果

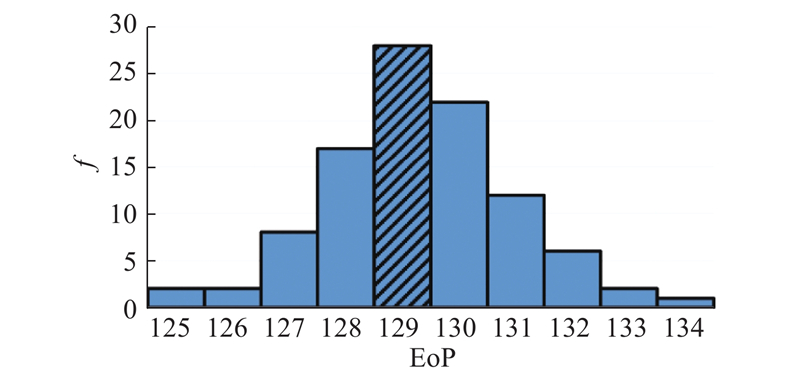

图 18  不确定性分析的实验结果
